Luxman L-505Z

Overview

The Luxman L-505Z is a solid state integrated amplifier that carries the refinement and engineering philosophy of Luxman's celebrated 500 series into a modern, versatile package. Built around the company's proprietary ODNF (Only Distortion Negative Feedback) amplification circuit, now in an updated generation, it delivers clean, low distortion output with a natural tonal balance and an easy, unforced sense of flow that Luxman is known for. The result is an amplifier that combines high resolving power with a musical, listenable character.

Engineering highlights include the LECUA (Luxman Electronically Controlled Ultimate Attenuator) volume control for precise, low noise level adjustment, and a high damping factor output stage that grips demanding loudspeaker loads with authority. A discrete phono stage supports both MM and MC cartridges, and the amplifier offers a full complement of line inputs alongside a robust preamp and power amp section that can be separated for flexible system building. Careful attention to the power supply, chassis construction, and signal path reflects Luxman's century of engineering heritage.

The L-505Z is ideal for the listener who wants a genuine high end integrated amplifier with the control, transparency, and long term reliability to anchor a serious two channel system. It suits a wide range of loudspeakers and rooms, from detailed standmounts to full size floorstanders, and rewards careful source and cable selection with clarity and finesse.

Key Features

• Updated ODNF (Only Distortion Negative Feedback) amplification circuit for low distortion and natural tone
• LECUA electronically controlled attenuator for precise, low noise volume control
• High damping factor output stage for confident control of demanding loudspeaker loads
• Discrete phono stage supporting both MM and MC cartridges
• Separable preamplifier and power amplifier sections for flexible system configuration

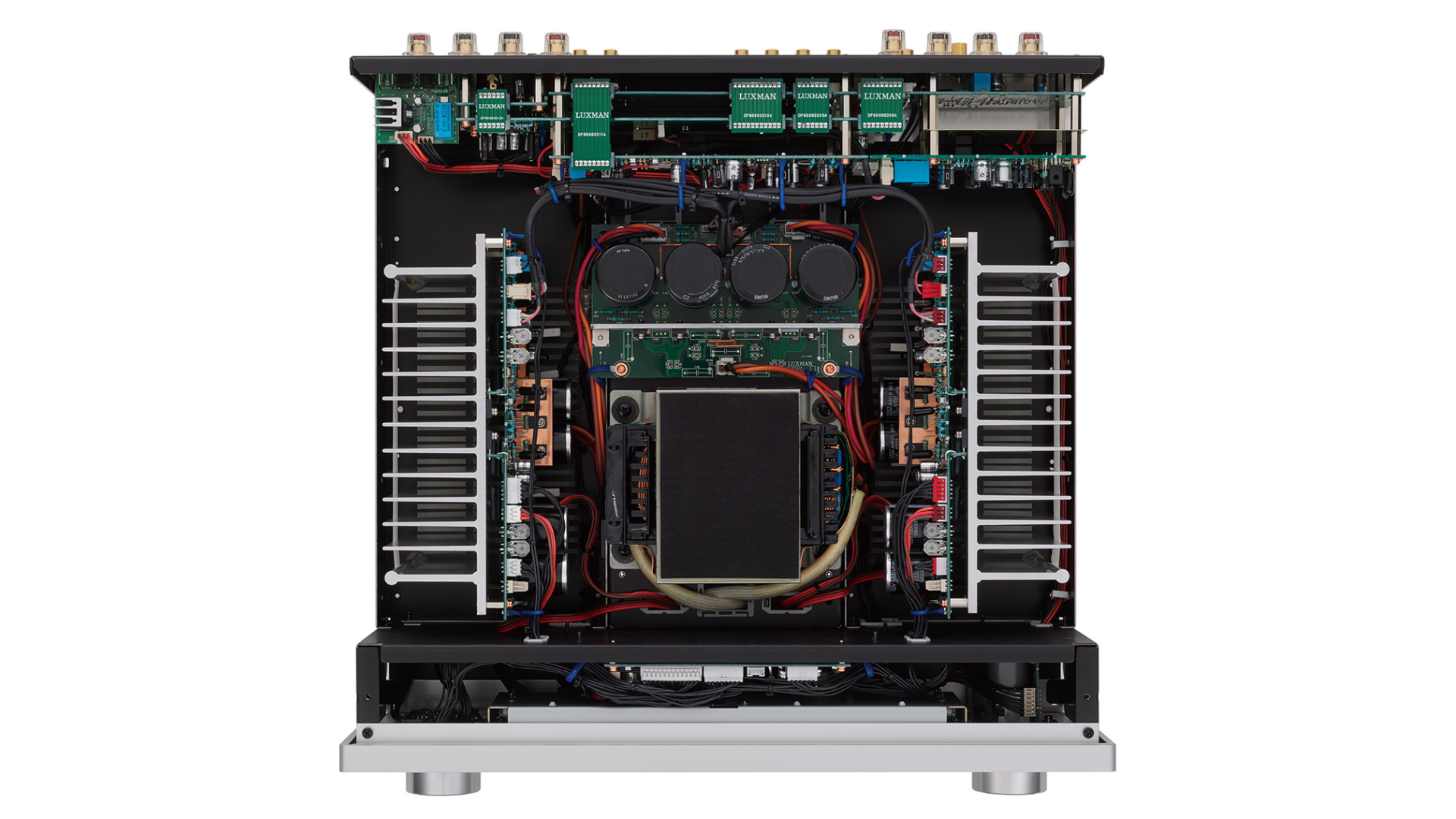

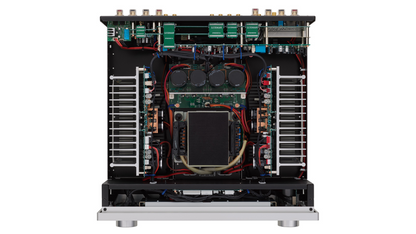

• Robust power supply and rigid chassis construction rooted in Luxman engineering heritage
• Comprehensive line level input complement with high quality connectors

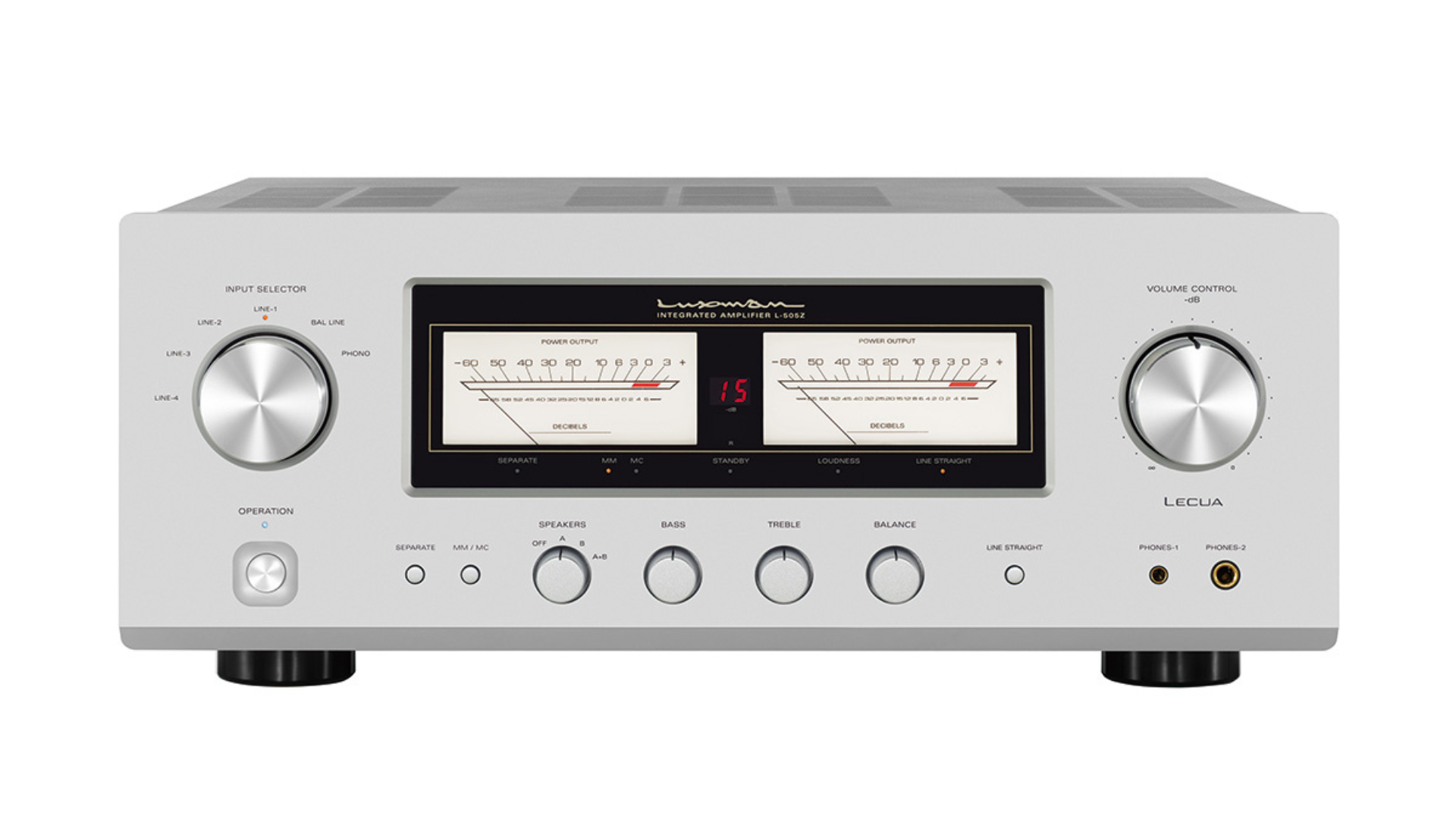

• Refined front panel with signal level meters and classic Luxman aesthetic
• Loudness and tone control options with the ability to bypass for a direct signal path

How the L-505Z Compares

Luxman L-505Z vs Luxman L-507Z

The L-507Z sits one step above the L-505Z in the Luxman range and offers more output power, a larger power supply, and additional refinement in the amplification and control circuitry. Both share Luxman's core ODNF and LECUA technologies and the same musical character, so the choice comes down to the scale of your system and speakers. Move up to the L-507Z if you drive larger or more demanding loudspeakers or want more headroom in a bigger room. See the Luxman L-507Z.

Luxman L-505Z vs Accuphase E-3000

The Accuphase E-3000 is another Japanese high end integrated amplifier with its own distinct design goals, emphasizing Accuphase's signature smoothness and modularity with optional DAC and phono boards. The Luxman L-505Z leans on its ODNF circuit and LECUA attenuator for a clean, flowing presentation. Both are excellent anchors for a two channel system, and the decision often comes down to tonal preference and expansion needs. See the Accuphase E-3000.

Luxman L-505Z vs Yamaha A-S2200

The Yamaha A-S2200 pairs a floating, balanced amplification design with the brand's classic level meters and toroidal power supply for a full bodied, tactile sound. The Luxman L-505Z counters with its high damping factor and ODNF circuit for a refined, controlled character. Both suit listeners who value build quality and analog inputs, so choose based on the tonal signature that fits your speakers and taste. See the Yamaha A-S2200.

Recommended Speakers

The L-505Z combines high damping with strong resolving power, so it pairs well with speakers that reward control and detail across a range of efficiencies and room sizes.

• Marten Parker Duo Diamond Luxman and Marten are a natural pairing, and this diamond tweeter standmount rewards the L-505Z's transparency and control with fast, detailed, holographic sound in small to medium rooms.
• Marten Oscar Trio A more accessible Marten floorstander that still delivers the brand's clarity and coherence, letting the L-505Z's refinement and damping shine on a full range speaker.
• Amphion Argon 7LX Amphion's controlled directivity and neutral voicing align with the L-505Z's clean, resolving presentation, making for an accurate and room friendly system.
• Spendor Classic 100 This three way stand mount adds a warm, natural midrange that complements the Luxman's flowing character, and its load is well served by the amplifier's confident grip.
• Gauder Akustik Arcona 80 MKII SD Gauder Akustik's steep crossover design and high resolution benefit from the L-505Z's control and detail, delivering precise imaging and tight bass in medium rooms.

Frequently Asked Questions

What is the rated power output of the Luxman L-505Z?
The L-505Z is rated at 100 watts per channel into 8 ohms and 150 watts per channel into 4 ohms.

Does the L-505Z have a built in phono stage?
Yes, it includes a discrete phono stage that supports both moving magnet (MM) and moving coil (MC) cartridges.

What is ODNF?
ODNF stands for Only Distortion Negative Feedback, Luxman's proprietary amplification circuit that reduces distortion while keeping the signal path clean and natural sounding.

What is LECUA?
LECUA is the Luxman Electronically Controlled Ultimate Attenuator, a volume control system that provides precise level adjustment with very low noise and minimal signal degradation.

Can I use the L-505Z with a separate power amplifier or preamplifier?
Yes, the preamplifier and power amplifier sections can be separated, allowing flexible system configuration and future expansion.

What is the damping factor of the L-505Z?
The L-505Z has a damping factor of 370, which allows confident control over demanding loudspeaker loads.

Does the L-505Z have a headphone output?
Yes, it includes a headphone output on the front panel for private listening.

How many speaker outputs does the L-505Z have?

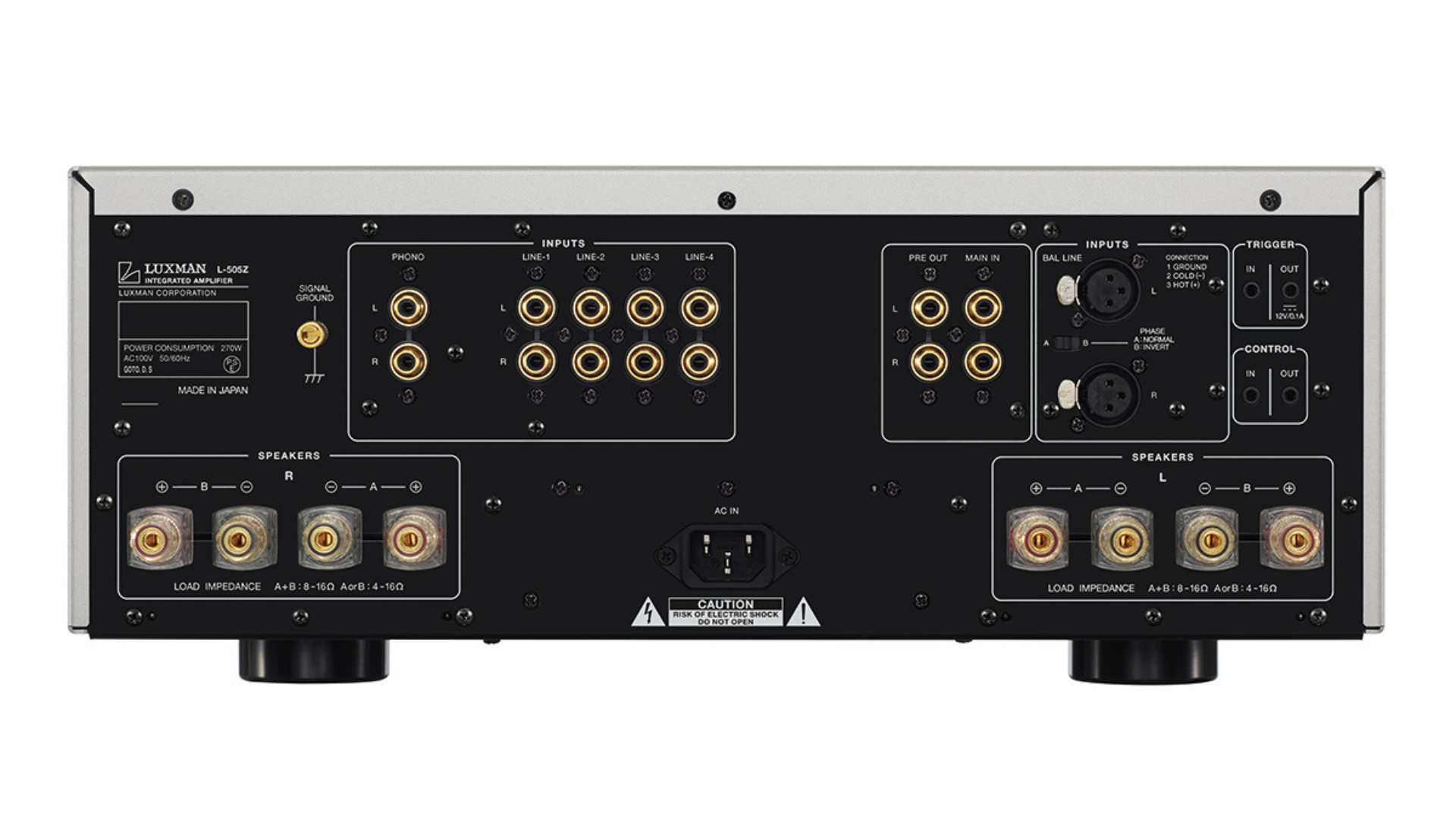

It provides A and B speaker terminals, allowing you to connect two pairs of loudspeakers.

What size room is the L-505Z suited for?
With 100 watts per channel and a high damping factor, it comfortably handles small to medium and many larger rooms, depending on speaker efficiency.

Does the L-505Z include tone controls?
Yes, it offers tone and loudness controls that can also be bypassed for a direct signal path when you prefer purity.

What speakers pair well with the L-505Z?
It pairs well with detailed, controlled loudspeakers such as Marten, Amphion, Spendor, and Gauder Akustik models across a range of efficiencies.

How does the L-505Z compare to the L-507Z?
The L-507Z sits one step higher in the range and offers more output power and a larger power supply, while both share Luxman's core ODNF and LECUA technologies and musical character.

What are the dimensions and weight of the L-505Z?
It measures approximately 440 x 178 x 454 mm and weighs around 24.8 kg.

Does the L-505Z have signal level meters?
Yes, the front panel features Luxman's classic signal level meters as part of its refined aesthetic.

Is the L-505Z a Class A or Class AB amplifier?
The L-505Z uses a solid state amplification design centered on Luxman's ODNF circuit for low distortion and natural tone.

Can the L-505Z drive 4 ohm speakers?
Yes, it is rated for 150 watts per channel into 4 ohms and its high damping factor helps it maintain control with lower impedance loads.

Does the L-505Z come with a remote control?

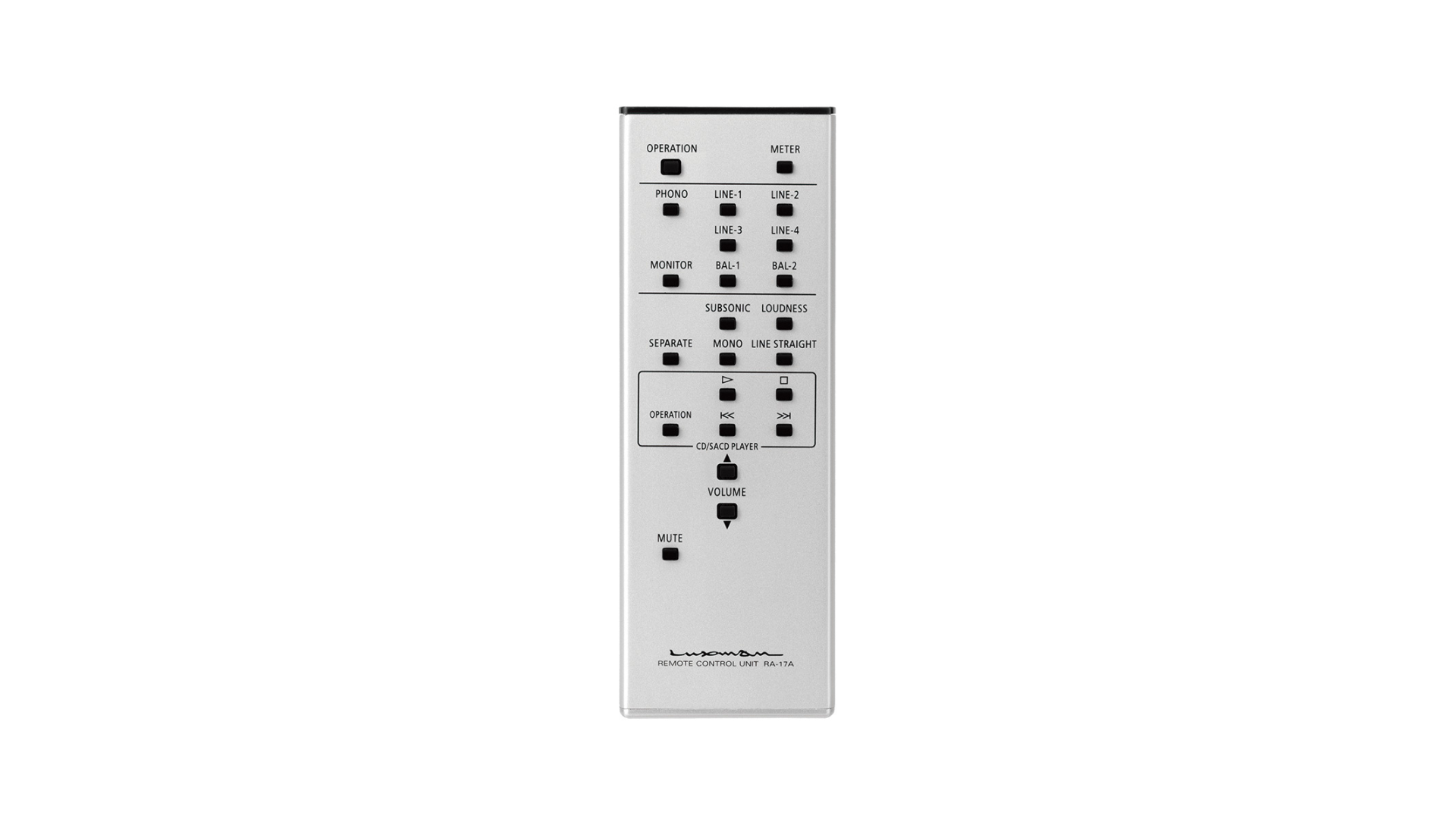

Yes, a remote control is included in the box along with a power cable and documentation.

What is the warranty on the Luxman L-505Z?
The L-505Z carries a 3 year parts and labor warranty through Luxman America for the original owner when purchased from an authorized dealer.
