Luxman

Luxman L-507Z

Integrated Amplifier

Luxman L-507Z

Regular price $10,495.00
Regular price $10,495.00 Sale price $10,495.00
SALE Sold Out
Free shipping
Product questions? Found a lower price?
Let us know: 443-402-5055 or text us 443-402-5064.
Have a trade-in item? Click here.

Trade-in Form

Tell us about yourself

Tell us about your trade-in item(s)

Trade-in item 1
Any technical problems with this piece?
Any scratches, dents, discoloration, or other physical wear?
Do you have the original accessories (manual, remote, power cable, etc.)?
Do you have the original product packaging?
Description

The Luxman L-507Z is a flagship-tier integrated amplifier from Luxman's 07 series, delivering 110 watts per channel into 8 ohms and 220 watts per channel into 4 ohms in Class AB. At its heart is the LIFES 1.0 amplification feedback engine, Luxman's latest evolution of its low-feedback circuit philosophy, paired with the new LECUA1000 88-step electronically controlled attenuator for precise, low-noise volume control across the entire listening range.

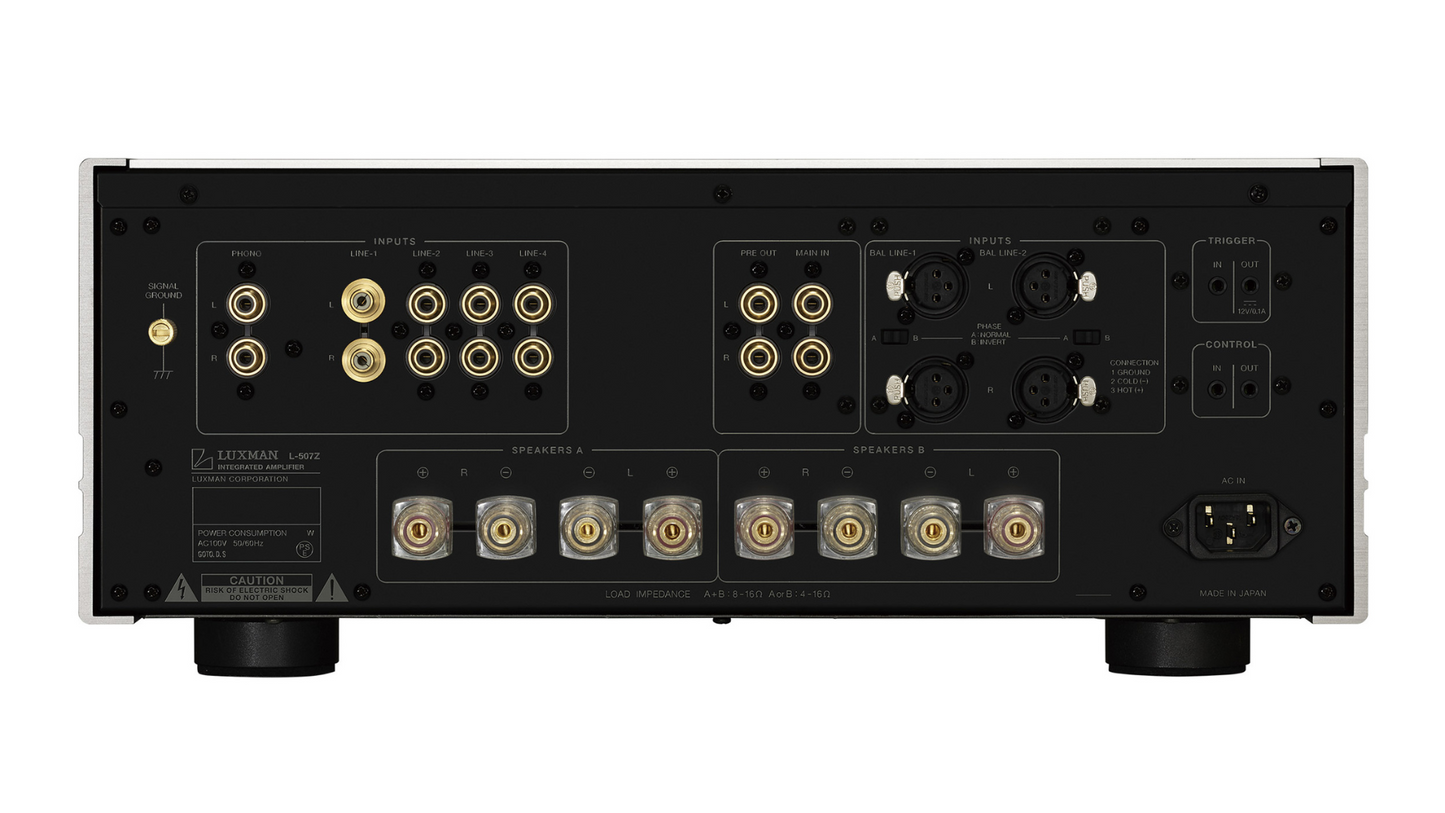

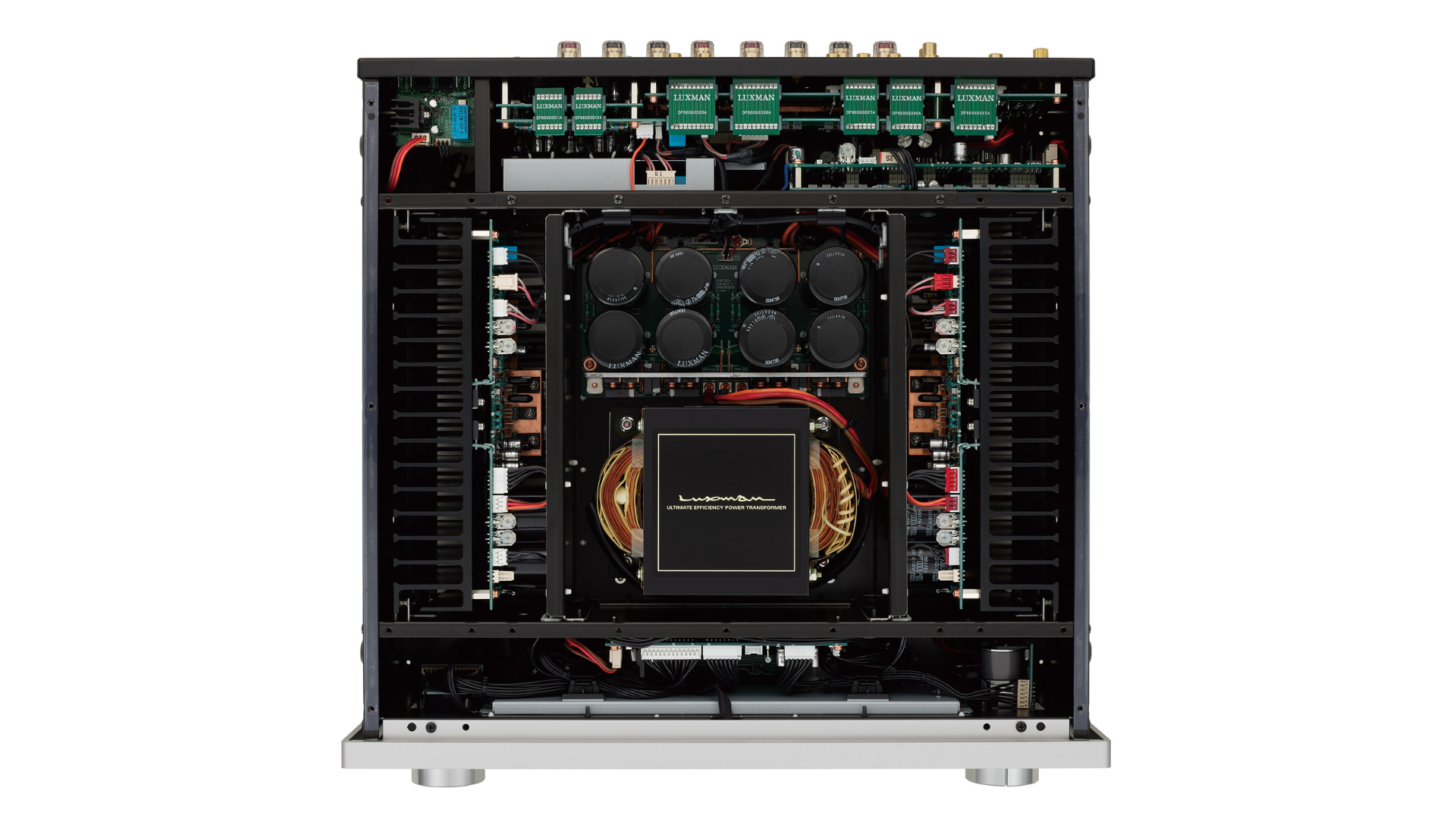

Built around a bipolar triple-parallel push-pull output stage and a custom EI-type power transformer with large-capacity filter capacitors, the L-507Z pairs authoritative power delivery with the refinement Luxman is known for. Connectivity is generous, with four RCA line inputs, two balanced XLR inputs, and a built-in MM and MC phono stage, plus pre-out and main-in jacks and two sets of speaker terminals for biwiring or a second pair of loudspeakers.

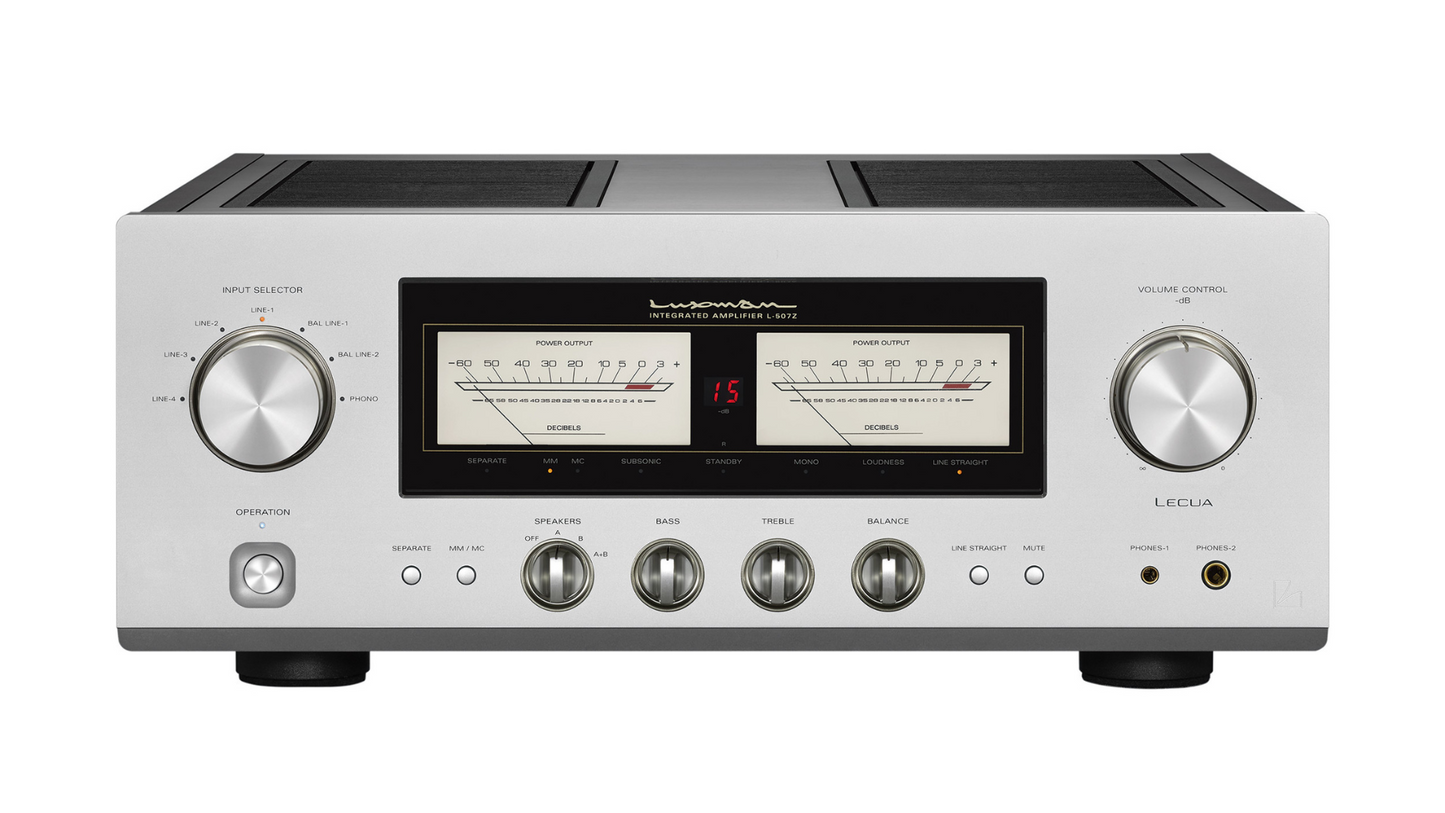

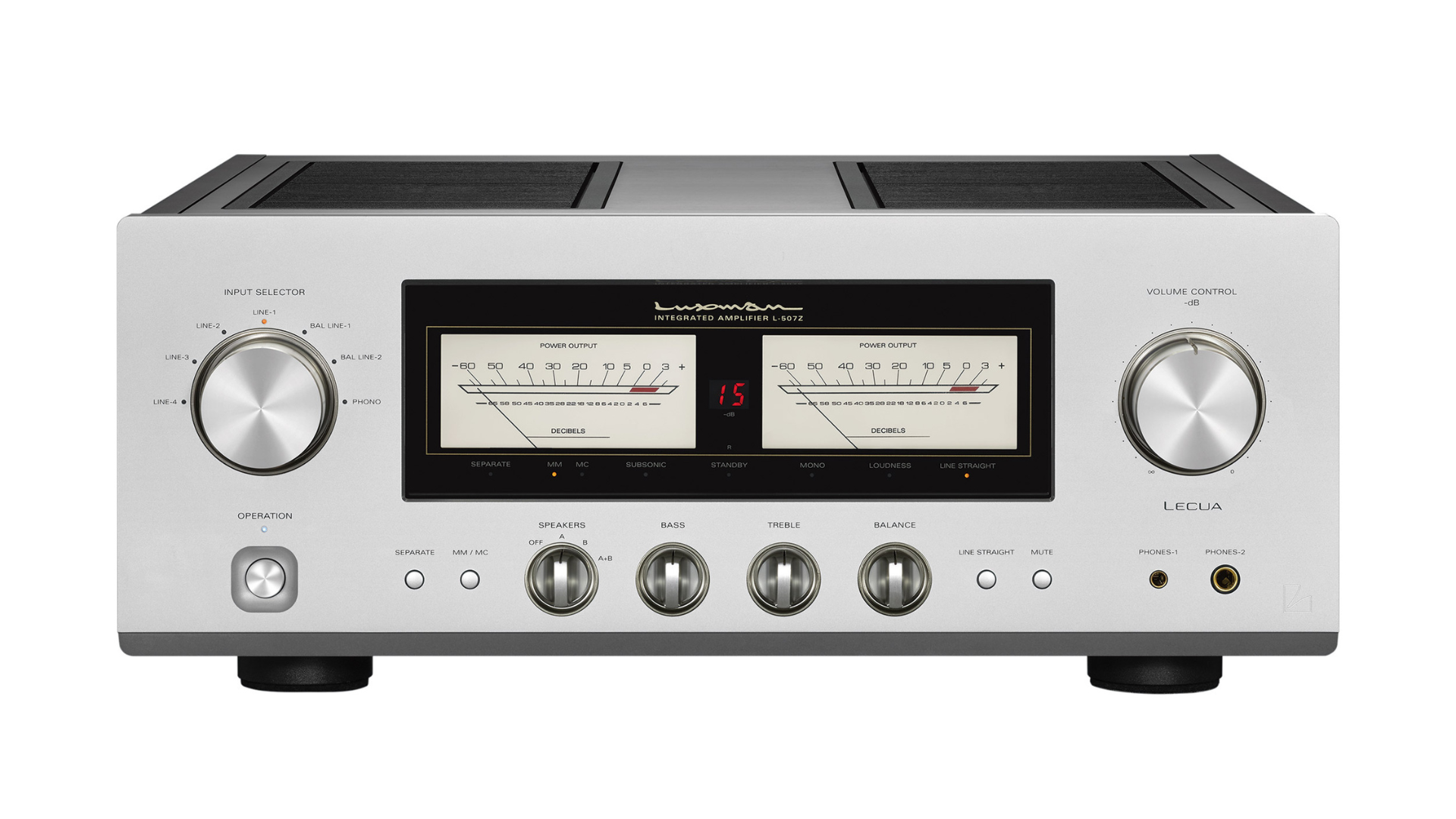

Front-panel touches include Luxman's signature illuminated dual analog meters and both a 6.3mm single-ended and a 4.4mm balanced headphone output, making the L-507Z a complete listening hub for turntables, digital sources, and headphones alike. Its blasted-white front panel and hairline top plate carry the classic Luxman aesthetic, and the amplifier is backed by a three-year warranty.

Specs
Type Integrated amplifier
Power Output 110W + 110W (8 ohms), 210W + 210W (4 ohms)
Amplifier Class Class AB
Output Stage Bipolar triple-parallel push-pull configuration
Feedback / Circuit LIFES 1.0 (Luxman Integrated Feedback Engine System) amplification feedback engine; new LECUA1000 88-step electronically controlled attenuator
Total Harmonic Distortion 0.007% or less (8 ohms, 1kHz)
Frequency Response Line: 20Hz to 100kHz (within -3dB); Phono: 20Hz to 20kHz (+/-0.5dB)
Input Sensitivity Line: 180mV / 47k ohms; Balanced line: 180mV / 79k ohms; Phono MM: 2.5mV / 47k ohms; Phono MC: 0.3mV / 100 ohms
Inputs (RCA) Four unbalanced line-level inputs (RCA)
Inputs (XLR) Two balanced line-level inputs (XLR)
Inputs (Phono) One phono input, MM/MC compatible
Outputs (Pre-out) One line-level pre-output (RCA); one main-in (RCA)
Outputs (Headphone) 6.3mm single-ended (TRS) and 4.4mm Pentaconn balanced
Outputs (Speaker) Two pairs of speaker terminals (A and B)
Power Transformer Custom-made EI-type power transformer
Dimensions (W x H x D) 440 x 178 x 454 mm (17.32 x 7.01 x 17.87 in)
Weight 25.4 kg (56 lbs)
Finishes Blasted-white finished front panel with hairline-finished top panel (single finish)
Warranty

Sold as an authorized Luxman dealer by All Elite Audio. New Luxman L-507Z units include the full Luxman manufacturer warranty of 3 years for the original owner. Contact us with any setup or service questions.

What's in the Box
  • L-507Z integrated amplifier

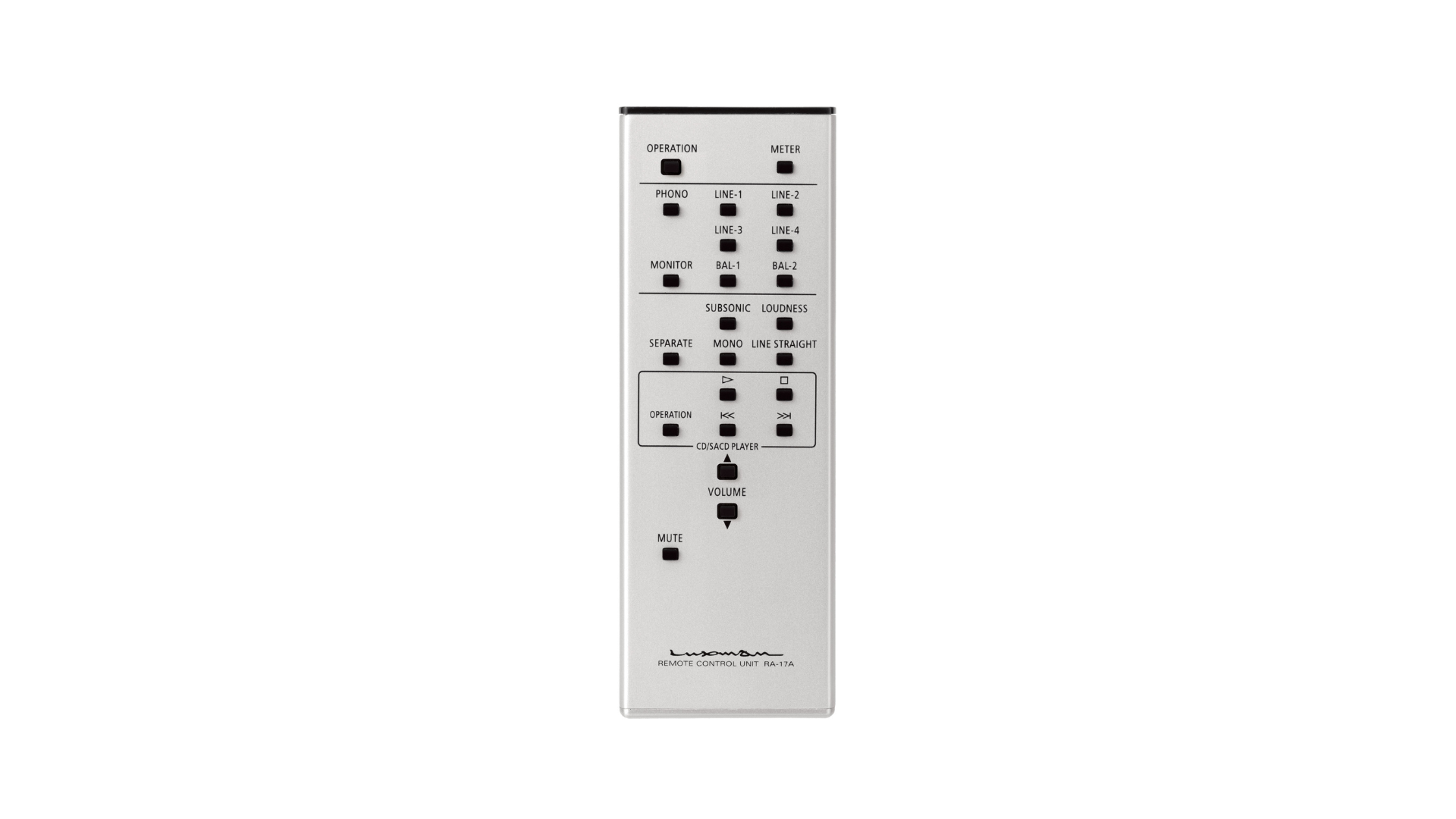

  • Remote control
  • AC power cord
  • Owner's manual
View full details
