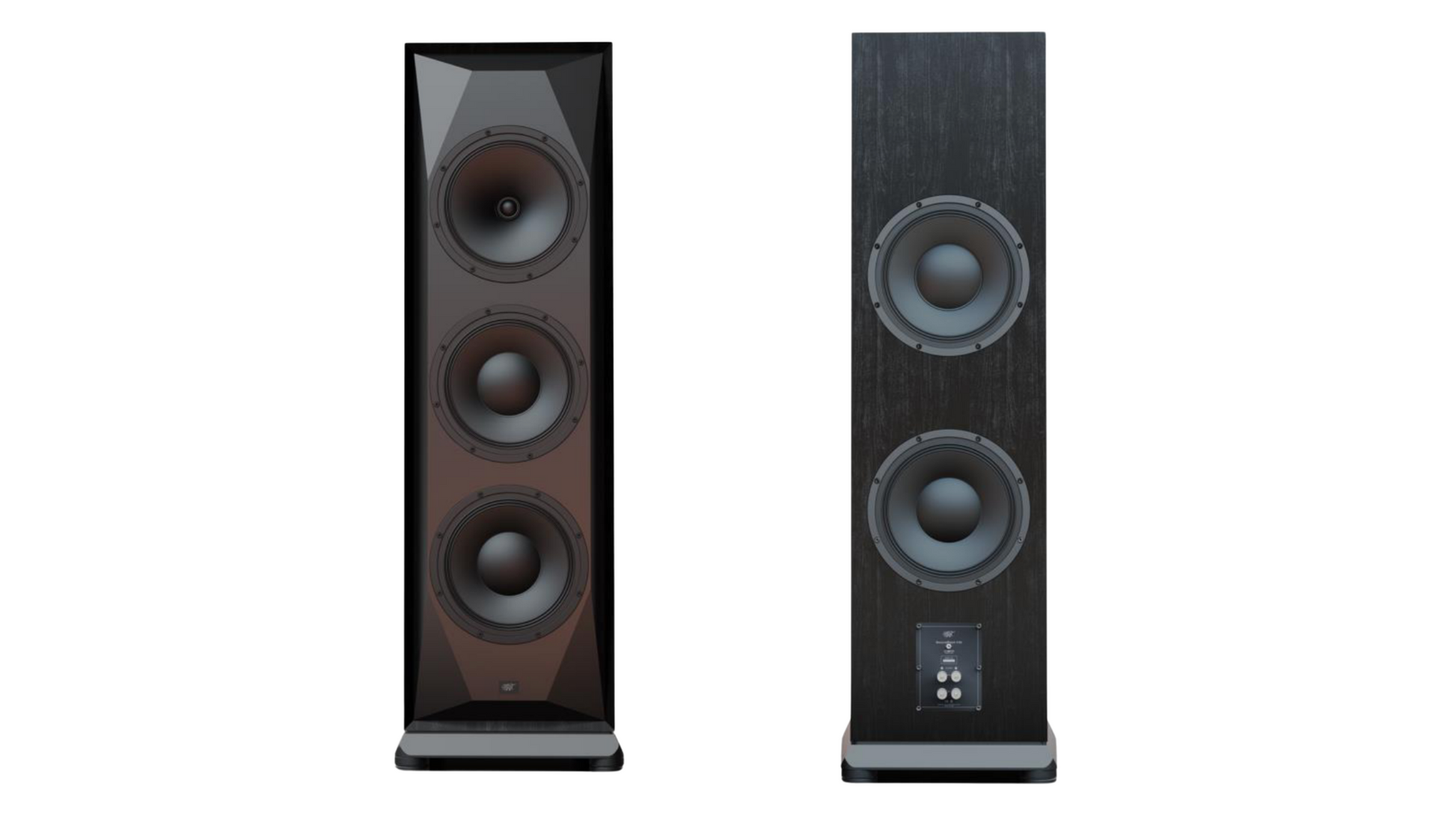

MOFI SourcePoint V10 Master Edition Speakers

SourcePoint V10 Master Edition – Monumental Sound, Reimagined

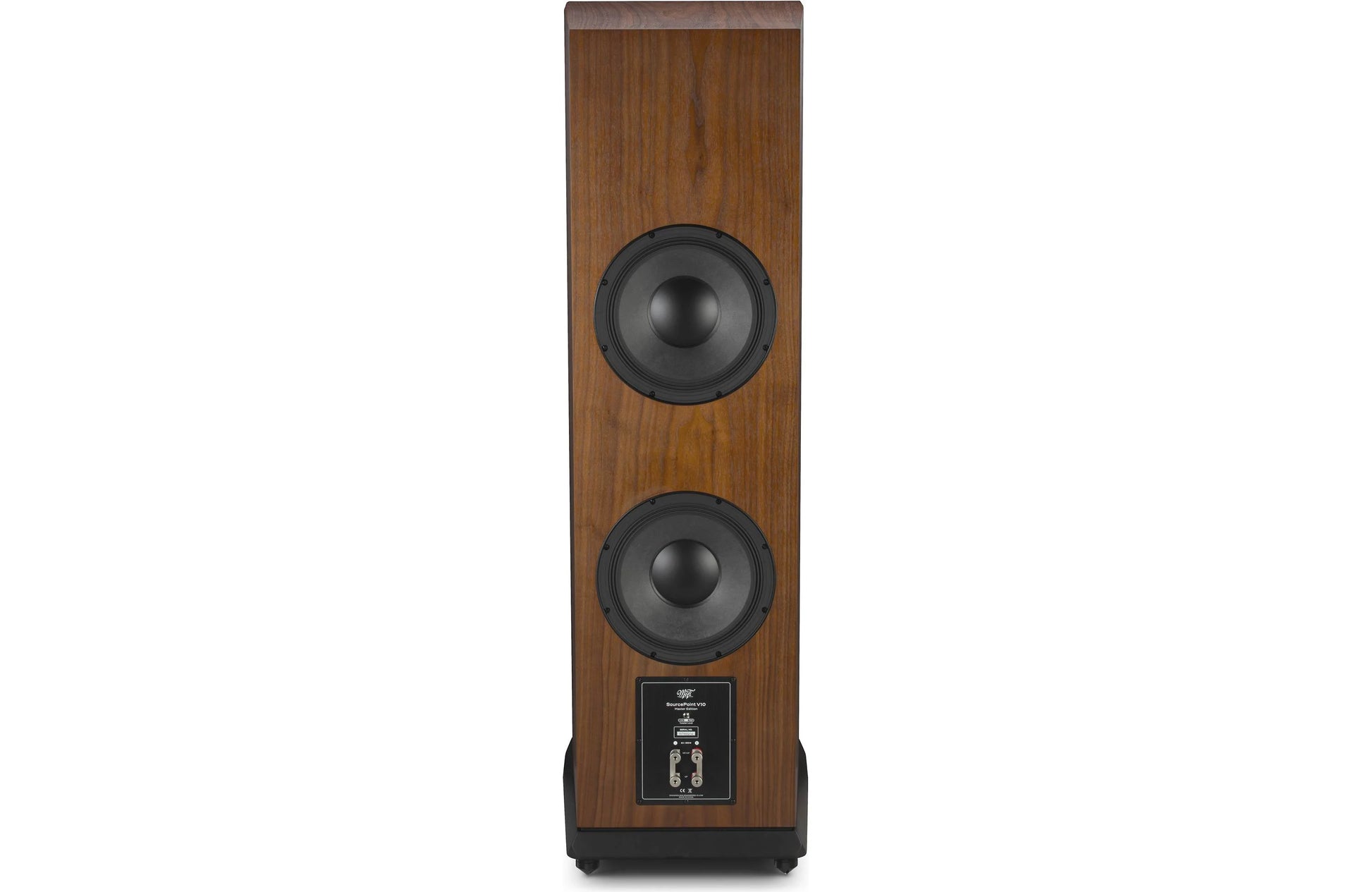

Built to defy expectations, the SourcePoint V10 Master Edition is a statement speaker that marries brute force with intricate finesse. This imposing 3-way loudspeaker houses three active 10" drivers, two 10" passive radiators, and a pair of neodymium-magnet rear woofers—purpose-built to free the concentric driver from low-frequency duty, allowing it to shine in the midrange and treble. The result is a massive, immersive soundstage with stunning bass extension, reaching down to 27 Hz with ease.

Inside the rigid, reinforced cabinet, each driver/passive radiator pair resides in its own acoustically isolated chamber. The dual-opposing-magnet short-coil, long-gap woofer design delivers an ultra-linear magnetic field—keeping the cone under precise control for agile, dynamic bass without distortion. Tunable tweeter output and an elegant concentric midrange driver ensure the SourcePoint V10 delivers both punch and poise.

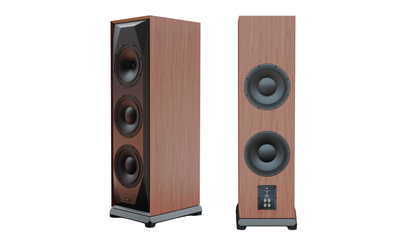

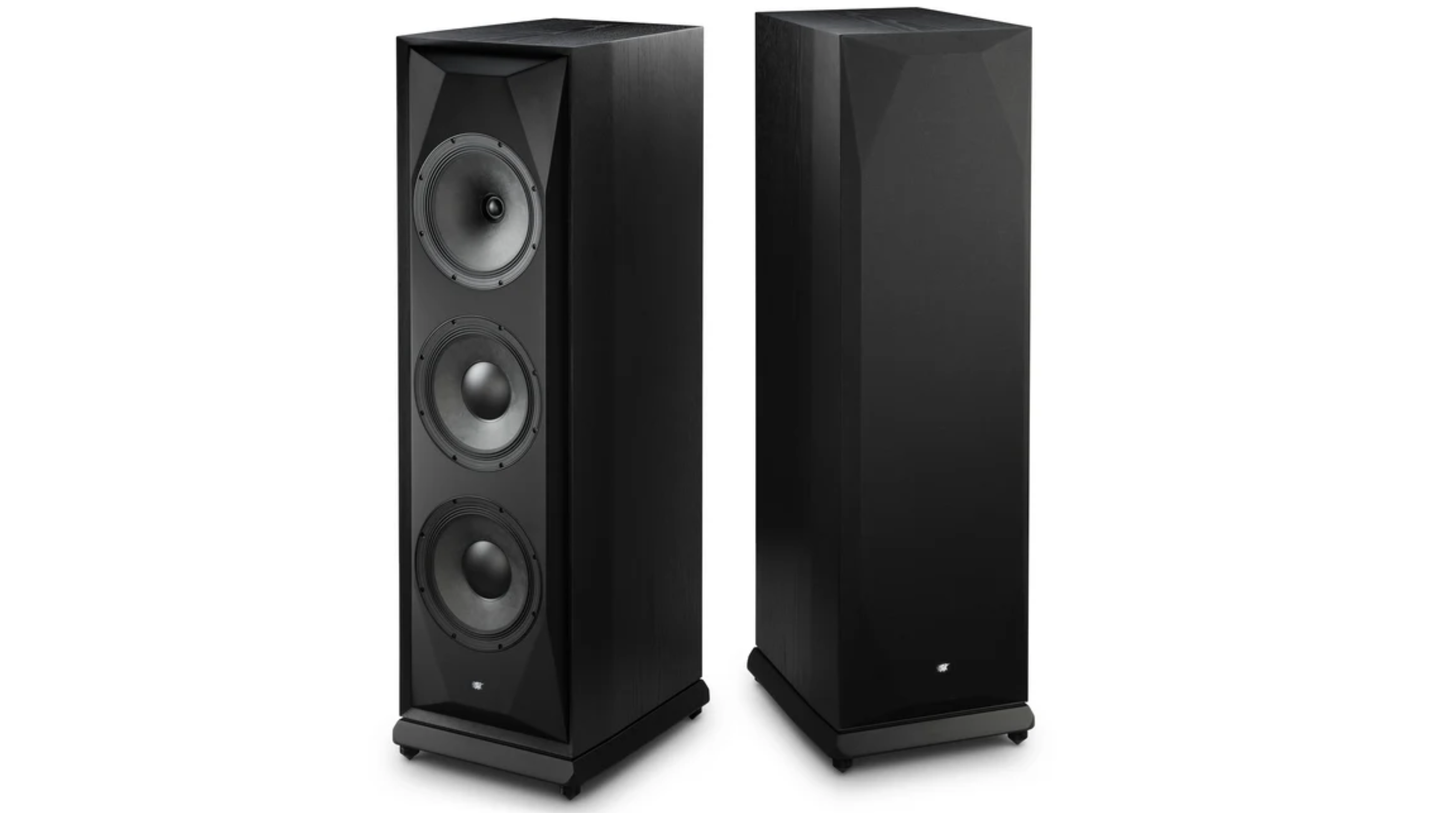

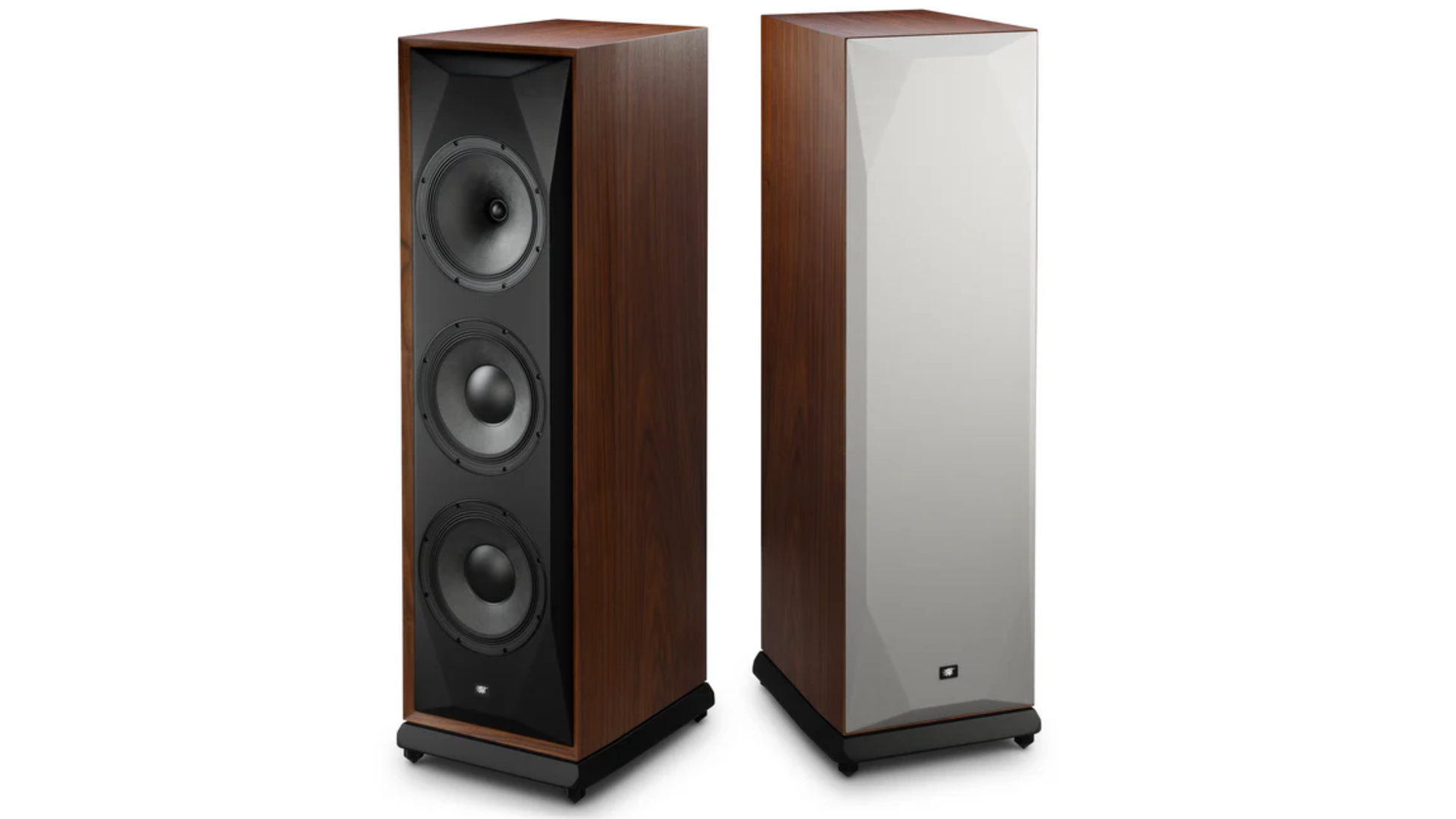

Available in rich Walnut or sleek Black Ash finishes, this speaker doesn’t just sound big—it looks the part too.

🔷 Three 10" Drivers with Rear Neodymium Woofers
Unleash high-output bass that extends below 130 Hz without burdening the concentric driver—improving clarity and impact.

🔷 Dual 10" Passive Radiators
Smooth out low-frequency response while minimizing enclosure turbulence and port noise.

🔷 Tunable 1.25" Soft Dome Tweeter
Customize treble presentation to your room and taste.

🔷 Concentric 10" Paper Cone Midrange
Cohesive sound from a time-aligned driver—natural vocals, lifelike detail, and seamless integration.

🔷 Stiffened, Multi-Chambered Cabinet Design
Eliminates internal resonances for ultra-clean dynamics and imaging.

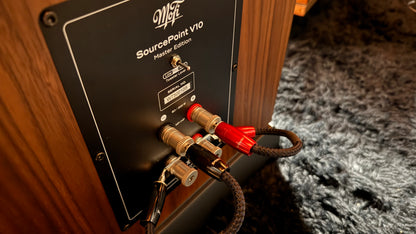

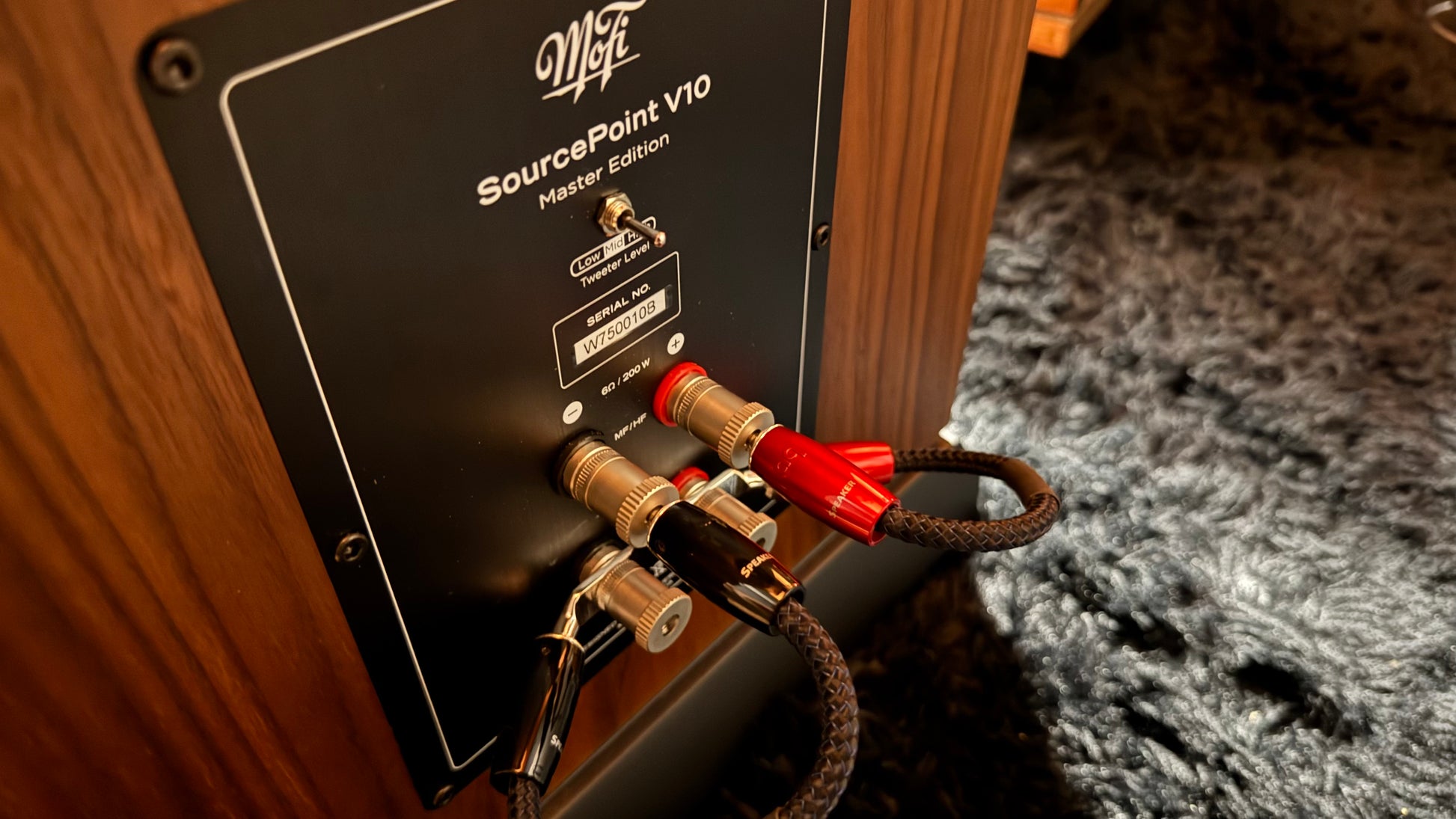

🔷 Three-Way System with 5-Way Binding Posts
Delivers superior driver integration and secure connection flexibility.

Specifications
• Frequency Range: 27 Hz – 30 kHz
• Sensitivity: 91 dB (2.83V / 1m)
• Nominal Impedance: 6 Ohms (4.5 Ohms minimum)
• Max Power Handling: 200 Watts
• Crossover Frequencies: 130 Hz, 1.4 kHz
• System Type: 3-way passive radiator with concentric driver
• Tweeter: 1.25" soft dome (tunable)
• Midrange: 10" paper cone
• Woofers: 2 × 10" rear-firing paper cone
• Passive Radiators: 2 × 10"
• Finishes: Walnut, Black Ash
• Dimensions (H × W × D): 48.8” × 19.9” × 15.5”
• Weight: 160 lbs per pair
