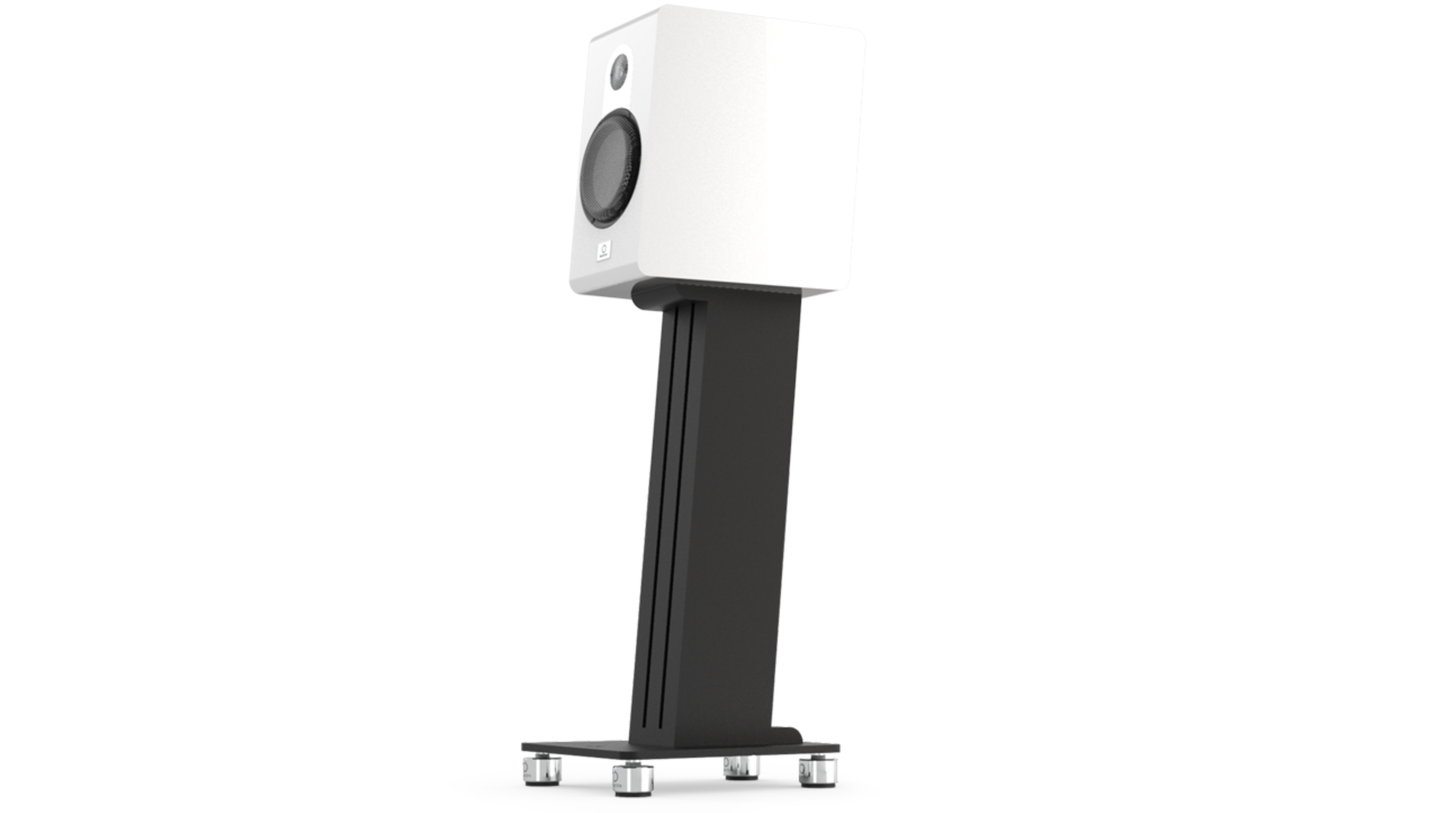

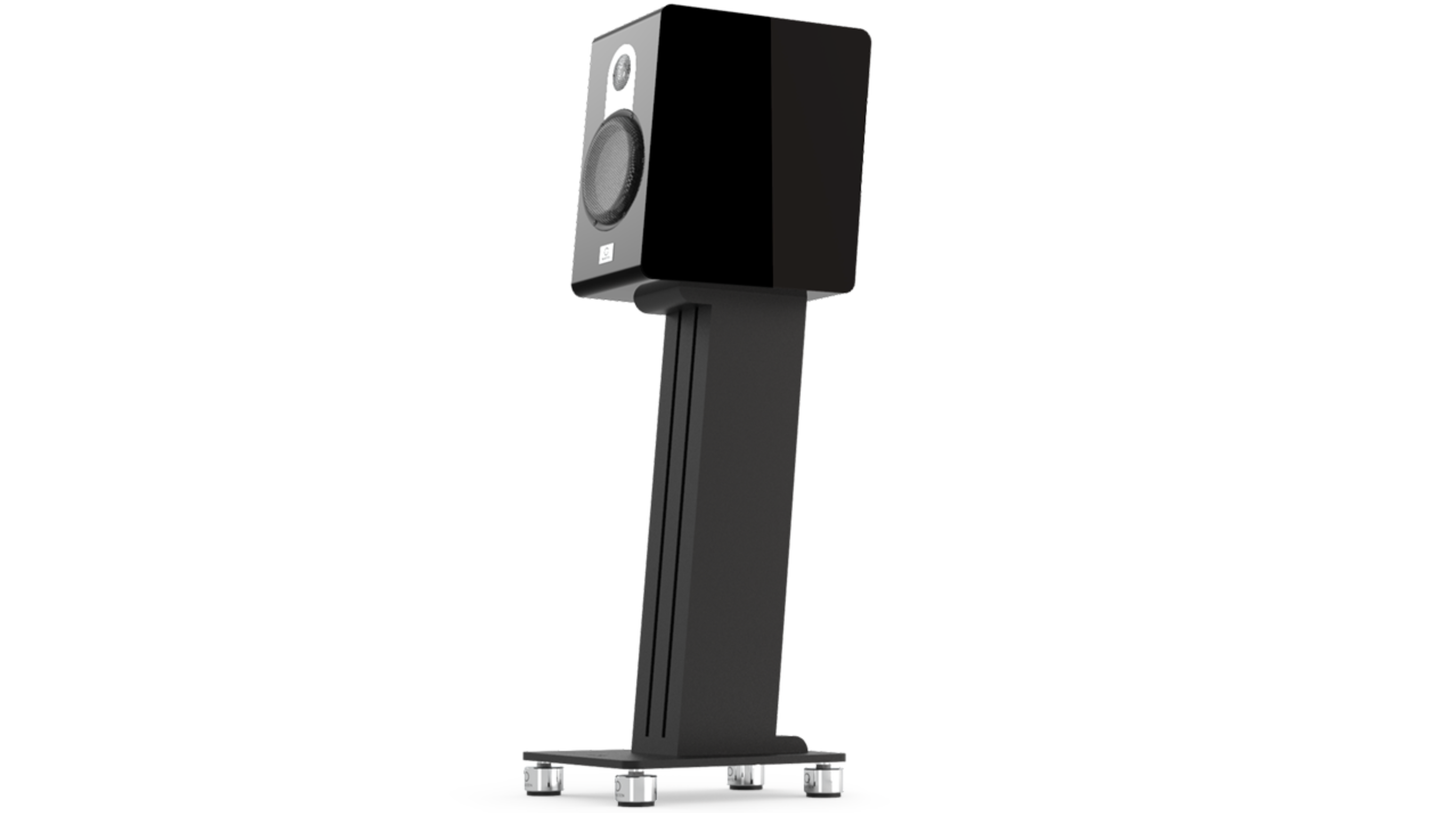

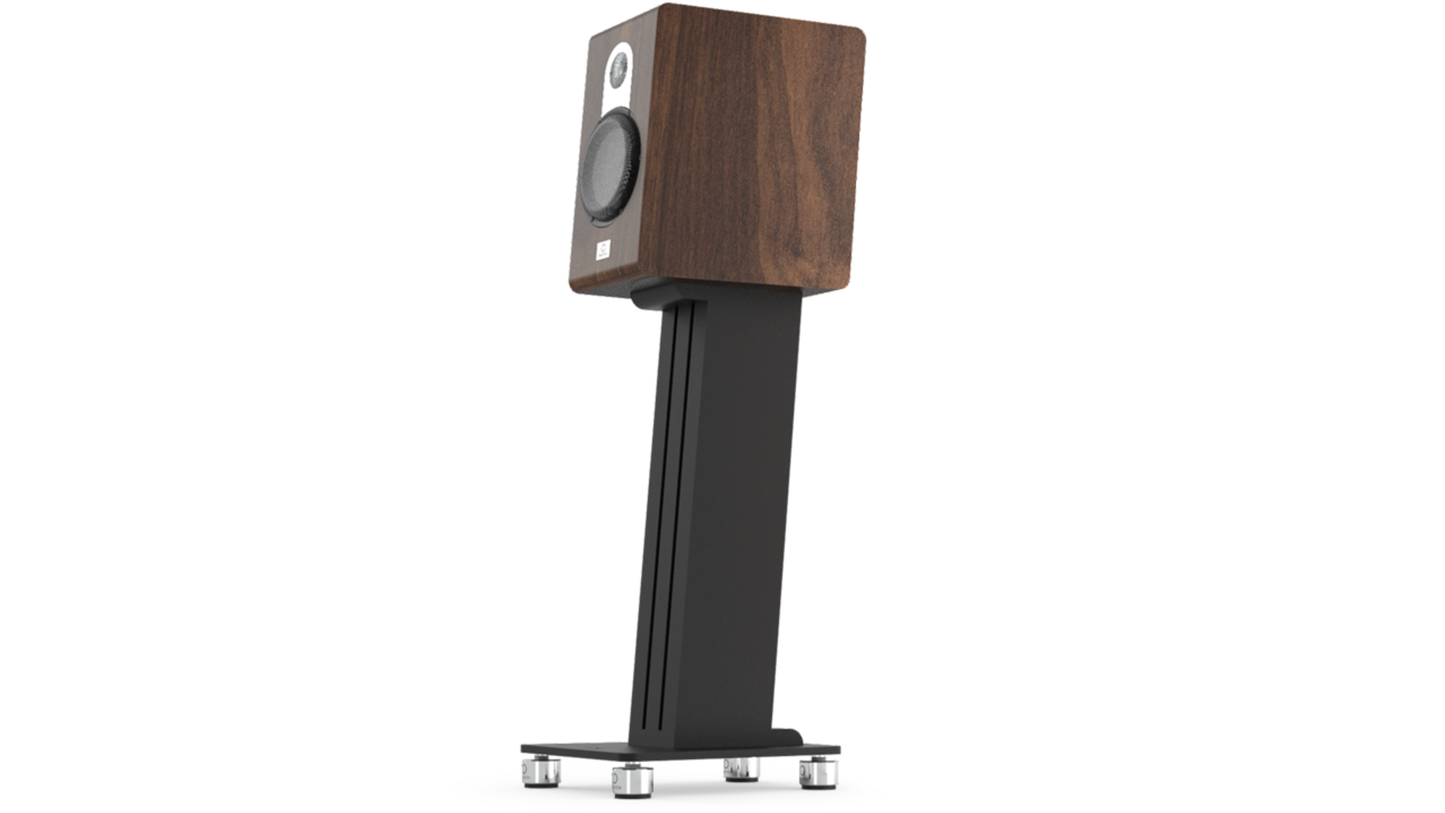

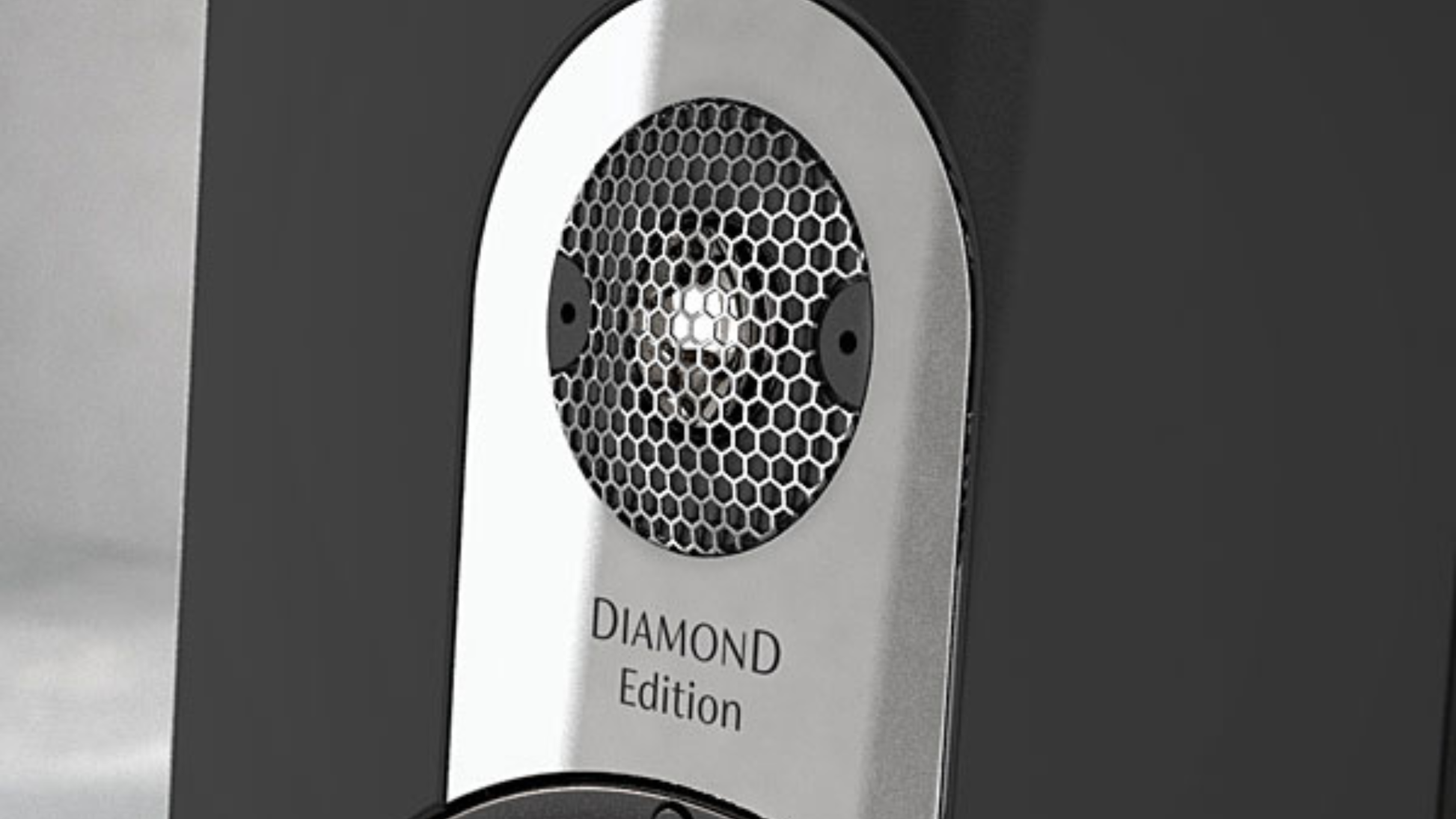

The Marten Parker Duo Diamond is the Diamond Edition of the Parker Duo standmount, sharing its two way layout and 35 mm M-board cabinet loaded by a single 9 inch aluminium rear firing passive radiator. The defining difference is the tweeter, a 1 inch pure diamond dome that replaces the standard ceramic unit for even lower distortion and greater high frequency refinement.
The Diamond Edition also upgrades the crossover, swapping the standard polypropylene capacitors for exotic copper foil types, and routes the signal through Jorma Statement internal cabling. The multi diverse order crossover remains at 2,200 Hz, feeding the 7.5 inch ceramic bass and midrange driver, with WBT NextGen terminals completing the connection.
Performance figures match the standard Parker Duo, with 88 dB sensitivity, a 6 ohm nominal impedance dropping to 3.1 ohms, up to 200 watts of power handling, and a 36 Hz to 40 kHz response within a 2 dB window. It is offered in Piano Walnut, Matte Walnut, Piano Black, and Piano White.
Specs
| Design | 2-way, passive-radiator-loaded standmount |
| Tweeter | 1 inch (25 mm) pure Diamond dome (Diamond Edition upgrade over the standard ceramic tweeter) |
| Midrange | None (2-way design; one ceramic driver covers mid and bass) |
| Woofers | 1 x 7.5 inch ceramic cone bass/midrange driver |
| Frequency Response | 36 to 40,000 Hz +/- 2 dB |
| Sensitivity | 88 dB / 2.83 V |
| Nominal Impedance | 6 ohms (3.1 ohms minimum) |
| Recommended Amplifier Power | 200 W (Marten rated power handling) |
| Crossover Frequencies | Multi diverse order at 2,200 Hz; copper foil capacitors and copper foil inductors (Diamond Edition) |
| Enclosure | 35 mm M-board cabinet with 1 x 9 inch aluminium rear-firing passive radiator (ABR loaded); single-wiring WBT NextGen terminals, Jorma Statement internal wiring (Diamond Edition) |
| Dimensions (H x W x D) | 42 x 22 to 28 x 36 cm (16.5 x 8.7 to 11 x 14.2 in), speaker only without stand |
| Weight | 18 kg (40 lbs) each |
| Finishes | Piano Walnut, Matte Walnut, Piano Black, Piano White |
Warranty
Sold as an authorized Marten dealer by All Elite Audio. New Marten Parker Duo Diamond units include the full Marten manufacturer warranty. Contact us with any setup or service questions.
