Audio Technica AT-VM750xSH/H

Overview

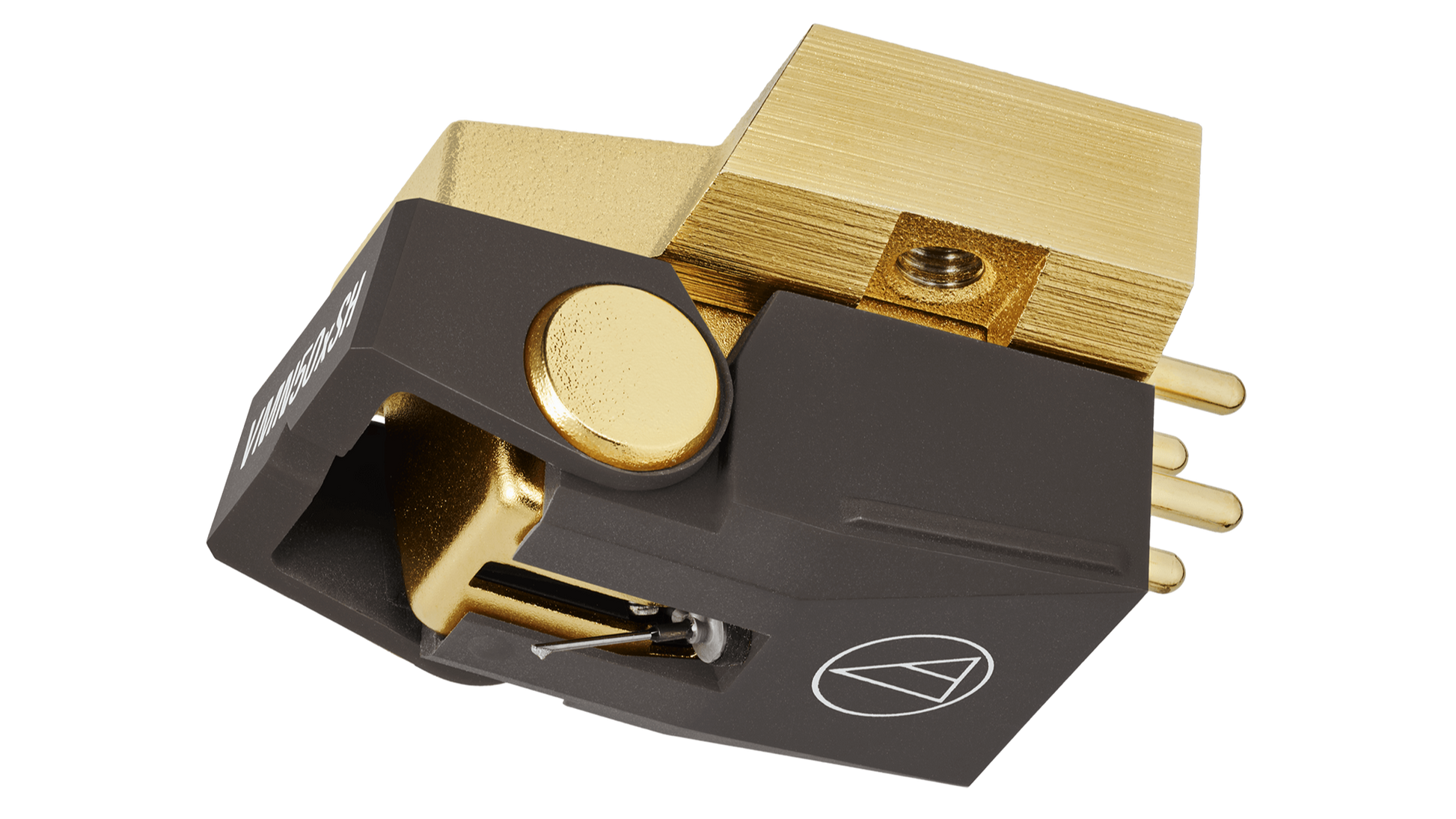

The Audio-Technica AT-VM750xSH/H is a dual moving magnet phono cartridge fitted with a nude Shibata stylus and delivered preinstalled on a matched AT-LT10 headshell. The Shibata profile presents a longer contact area to the groove wall than conventional elliptical shapes, so it reads high frequency information with excellent stability and reduced wear over the life of the record. This makes it a natural fit for listeners who want extended detail and precise imaging from their existing collection.

Audio-Technica builds the VM750x series around a dual magnet generator, para-toroidal coils, and a hardwiring design intended to keep the signal path short and channel behavior consistent. The result is an open, articulate character with strong left to right separation and a clean top end. The bundled headshell version removes a step from setup, arriving already mounted so alignment on a compatible S-shaped or removable headshell tonearm is straightforward.

Positioned in the upper part of the VM series, this Shibata variant is aimed at enthusiasts running quality belt drive or direct drive turntables with a capable MM phono stage. It rewards careful cartridge alignment, correct tracking force, and a well matched load, offering a refined and revealing presentation across a wide range of music.

Key Features

• Nude Shibata stylus for extended high frequency detail and a large groove contact area
• Dual moving magnet generator design for consistent channel behavior
• Para-toroidal coils wound for efficiency and low distortion

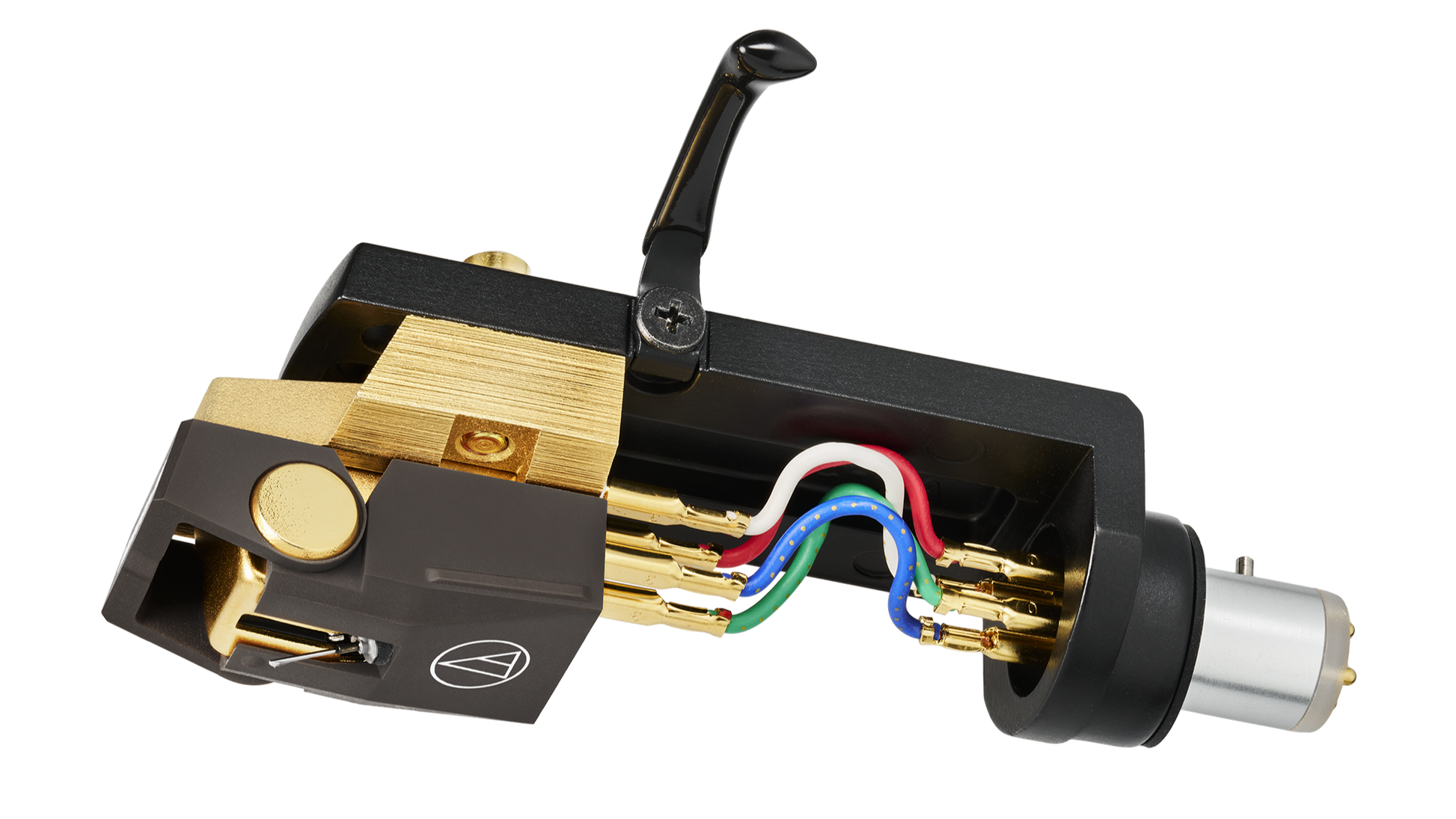

• Preinstalled on an AT-LT10 headshell for simplified setup
• Solid boron cantilever for fast, accurate transient response
• PCUHD coil wiring for clean signal transfer
• User replaceable VM series stylus assembly
• Strong channel separation for stable, focused imaging
• Compatible with standard MM phono inputs

How the AT-VM750xSH Compares

Audio-Technica AT-VM750xSH/H - Shibata MM Phono Cartridge w/ Headshell vs Audio-Technica AT-VM760xSL

The VM760xSL sits one step up in the VM series and uses a Special Line Contact stylus with a different groove interface than the Shibata here. Both share the dual magnet generator and boron cantilever approach, but the 760xSL is aimed at listeners chasing the last measure of tracing precision. The VM750xSH answers with the Shibata profile and the convenience of a preinstalled headshell. See the Audio-Technica AT-VM760xSL.

Audio-Technica AT-VM750xSH/H - Shibata MM Phono Cartridge w/ Headshell vs Audio-Technica AT-VM745xML

The VM745xML is the next model down and pairs a MicroLine stylus with the same VM platform. The MicroLine and Shibata profiles both offer long contact geometry, so the choice is largely one of tonal character and preference. The VM750xSH leans on the Shibata cut for its smooth, extended high frequency presentation. See the Audio-Technica AT-VM745xML.

Audio-Technica AT-VM750xSH/H - Shibata MM Phono Cartridge w/ Headshell vs Ortofon 2M Bronze Premounted

The 2M Bronze arrives premounted on a headshell like this Audio-Technica, making both easy to fit on a removable headshell tonearm. Ortofon voices the 2M line with its own house character, while the VM750xSH pursues fast, detailed tracking with a boron cantilever and Shibata stylus. Both are strong upper tier moving magnet choices with distinct design goals. See the Ortofon 2M Bronze Premounted.

Recommended Turntables and Phono Stage

This cartridge suits quality belt drive and direct drive tables with a removable headshell tonearm and a capable MM phono stage. These pairings match its 4.0 mV output and reward its detailed Shibata tracking.

• Audio-Technica AT-LP7X A fully manual belt drive deck with a precise tonearm that lets this cartridge track cleanly and align accurately. Its resolving nature complements the Shibata stylus.
• TEAC TN-4D-SE A stable direct drive platform with a removable headshell that makes fitting the preinstalled VM750xSH straightforward. Steady speed supports the cartridge's detailed top end.
• MoFi UltraDeck A well damped belt drive turntable with a quality tonearm that draws out the imaging and separation this cartridge is capable of delivering.
• Luxman E-250 A refined MM/MC phono stage that offers 47 kohm loading for this cartridge and a quiet, musical presentation to match its 4.0 mV output.
• MoFi UltraPhono Pro A flexible MM/MC preamplifier that provides correct MM loading and a clean gain structure well suited to this cartridge's output.

Frequently Asked Questions

What stylus does the AT-VM750xSH/H use?
It uses a nude Shibata stylus, a line contact profile that presents a large contact area to the groove wall for extended detail and even wear.

Does it come with a headshell?
Yes. The H version arrives preinstalled on an AT-LT10 headshell, so it is ready to fit on a compatible removable headshell tonearm.

Is this a moving magnet or moving coil cartridge?
It is a dual moving magnet design, so it works with standard MM phono inputs.

What is the recommended tracking force?
The recommended range is 1.8 to 2.2 grams, with 2.0 grams as the nominal setting.

What output voltage does it produce?
It produces about 4.0 mV at 1 kHz, which is a healthy moving magnet level for most MM phono stages.

What load impedance should I use?
Use a 47 kohm load, which is the standard moving magnet input impedance.

What capacitance is recommended?
Audio-Technica recommends 150 to 250 pF, so keep your total cable and phono stage capacitance within that window.

What cantilever material is used?
It uses a solid boron cantilever for fast, accurate transient response.

Will this fit my tonearm?
The headshell version fits tonearms that accept a standard removable headshell, such as many S-shaped and some straight designs.

Can I use it with a standard receiver phono input?
Yes, as long as the input is a moving magnet phono input, which matches this cartridge's output and loading.

Is the stylus replaceable?
Yes. The VM series uses a user replaceable stylus assembly, so you can renew the stylus without replacing the whole cartridge.

How does the Shibata stylus differ from an elliptical?
The Shibata profile has a longer, narrower contact area than an elliptical, which improves high frequency tracing and can reduce record wear.

How does it compare to the AT-VM745xML?
The 745xML sits a step below and uses a MicroLine stylus, while this model uses a Shibata stylus for a slightly different tonal character on the same VM platform.

How does it compare to the AT-VM760xSL?
The 760xSL is the next model up and uses a Special Line Contact stylus aimed at the last measure of tracing precision, while this model pairs the Shibata cut with headshell convenience.

What frequency response does it offer?
It offers a response of 20 to 27,000 Hz.

What turntables pair well with it?
Quality belt drive and direct drive tables with a good tonearm, such as the AT-LP7X, TEAC TN-4D-SE, or MoFi UltraDeck, are strong matches.

Do I need a special phono stage?
No, just a good moving magnet phono stage. Options like the Luxman E-250 or MoFi UltraPhono Pro provide correct MM loading.

Does it track warped or worn records well?
Its compliance and Shibata profile track cleanly when set within the recommended force range, though very damaged records remain challenging for any cartridge.

How much does the cartridge weigh?
The cartridge itself weighs about 8.8 g (20.3 g with headshell)rams, before the headshell is added.
