TEAC Audio TN-4D-SE Direct Drive Turntable

Product Description

The TEAC TN-4D-SE is a direct-drive analog turntable that combines elegant design with high-performance audio engineering, ideal for audiophiles and vinyl enthusiasts. Powered by a newly developed brushless DC servo motor with a feedback control system, it achieves crystal-locked speed stability and low wow-and-flutter levels (0.1%), eliminating cogging for smooth rotation. The turntable features a knife-edge, pivot-point tonearm designed in collaboration with SAEC Corporation, a renowned high-end tonearm manufacturer, delivering dynamic sound with excellent resolution. Pre-installed with a Sumiko Oyster MM cartridge, it ensures rich, musical playback. A built-in NJM8080 phono EQ amplifier allows direct connection to line-level inputs, while the die-cast aluminum platter and vibration-resistant MDF plinth with aluminum/rubber feet enhance stability. With a sleek, low-profile design in piano black or walnut veneer, the TN-4D-SE blends modern aesthetics with TEAC’s 70-year legacy of audio excellence.

Key Features

• Brushless DC Servo Motor: Newly developed direct-drive motor with feedback control ensures crystal-locked speed stability, low wow-and-flutter (0.1%), and smooth rotation without cogging.

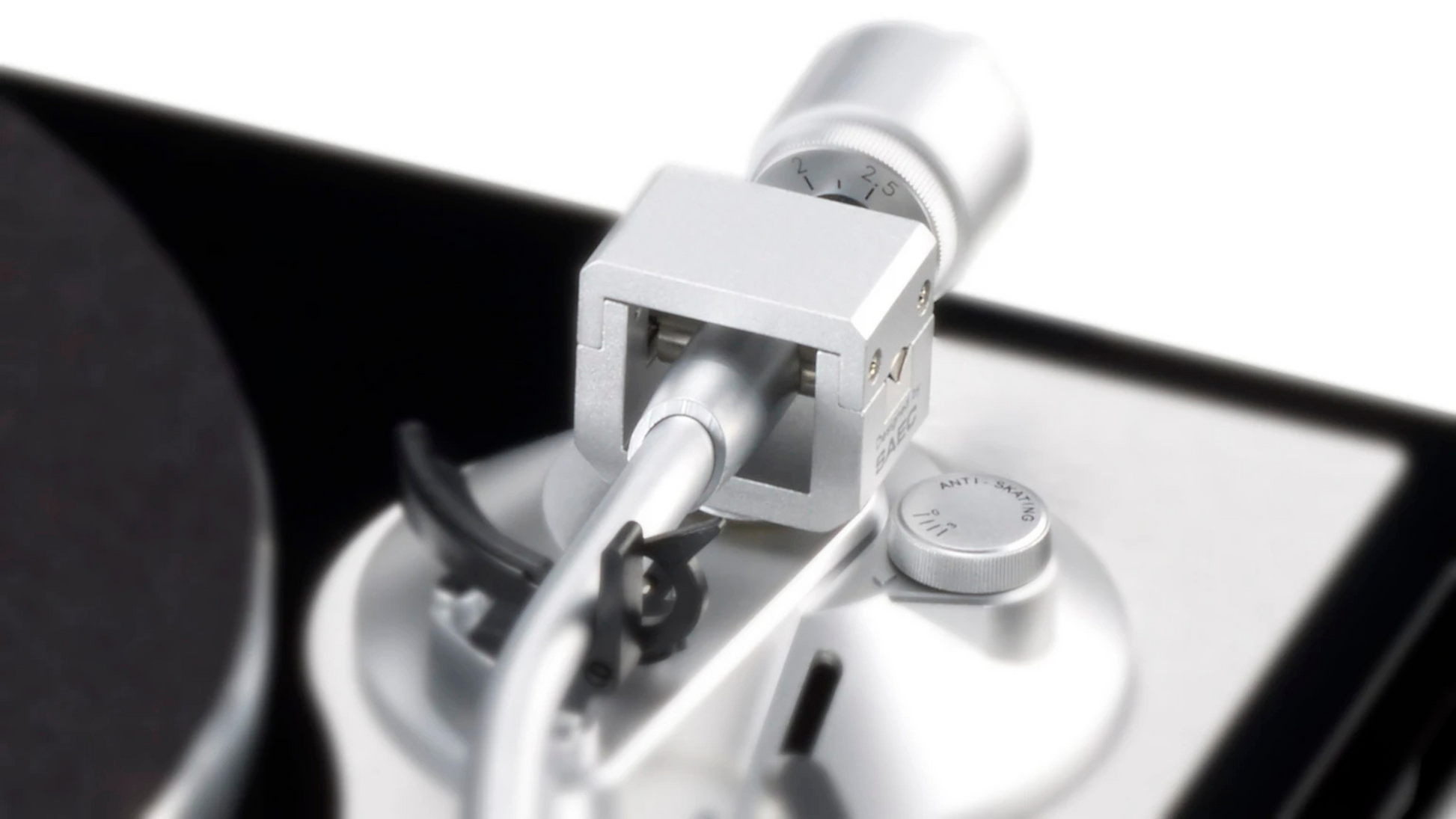

• SAEC Knife-Edge Tonearm: S-shaped, static-balanced tonearm with pivot-point bearings minimizes friction, enhancing resolution and supporting cartridge weights from 14–23g (including headshell).

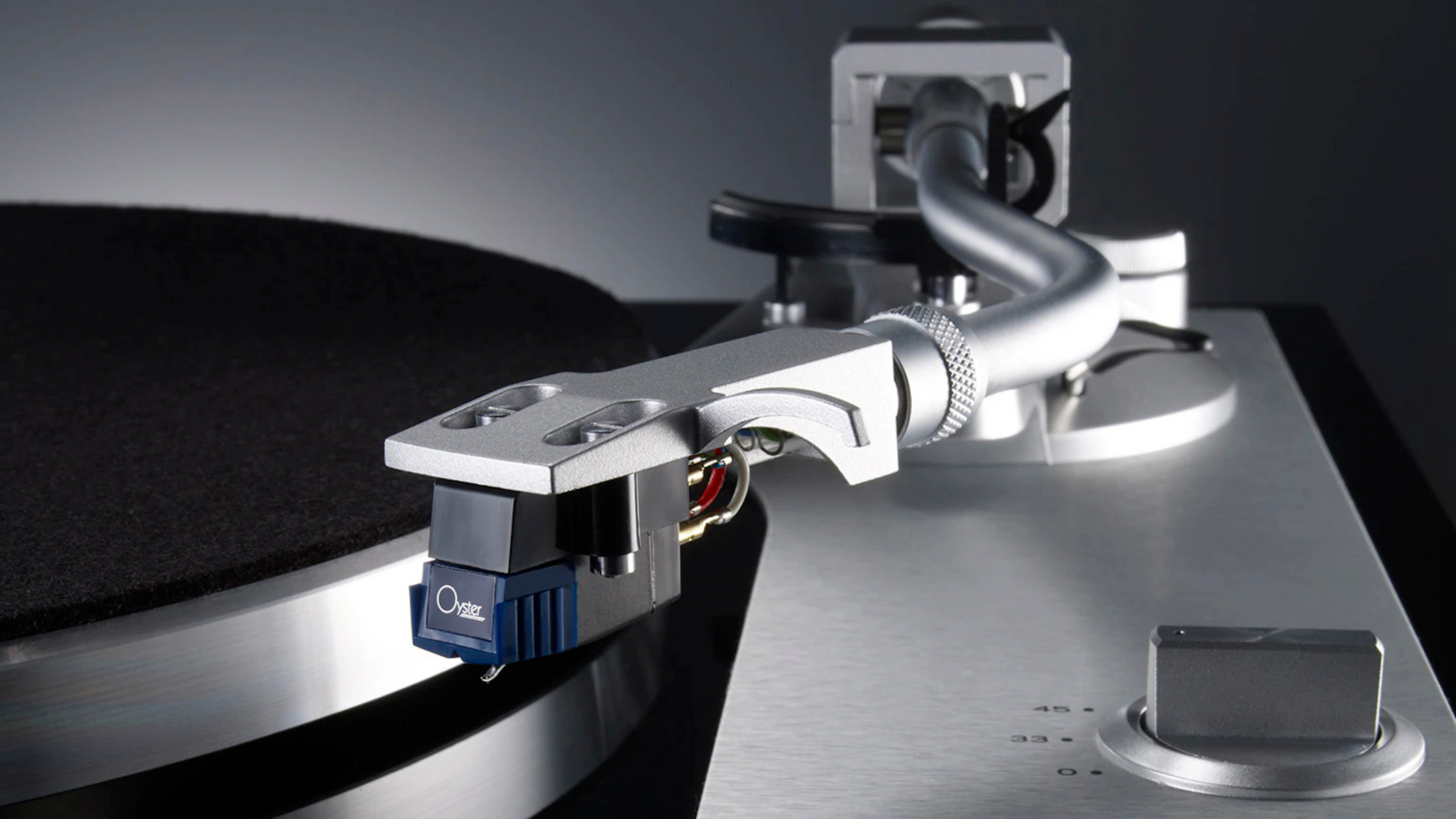

• Pre-Installed Sumiko Oyster MM Cartridge: Factory-installed cartridge (4.0 mV output, 2.3g tracking force) delivers a powerful, musical soundstage, with a universal headshell for easy swaps.

• Built-In Phono EQ Amplifier: Hi-fi-grade NJM8080 op-amp boosts phono signals to line level, with a switchable PHONO/LINE output for direct connection to amplifiers or active speakers.

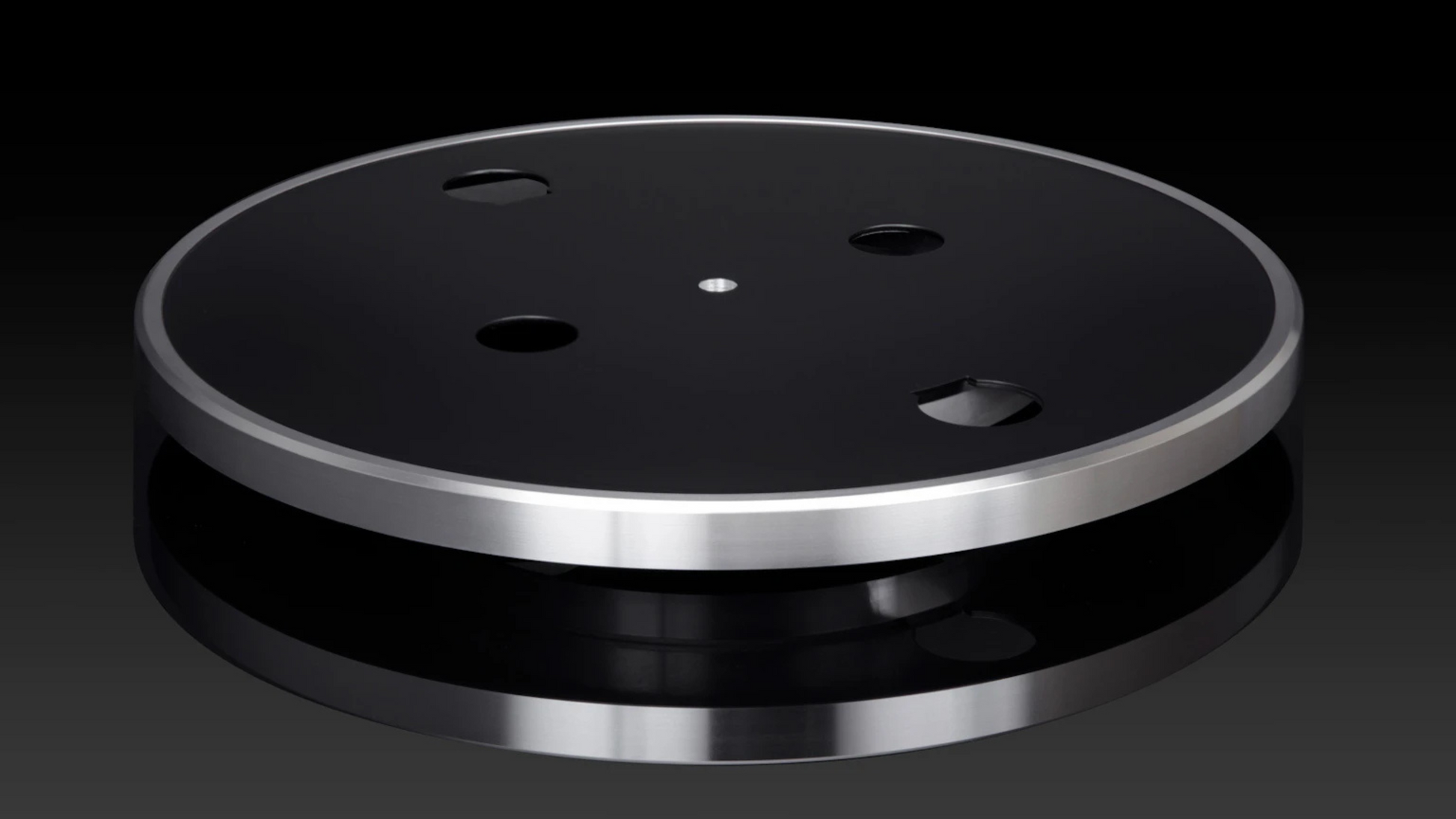

• Die-Cast Aluminum Platter: High-inertia platter ensures stable rotation, minimizing speed variations for consistent playback.

• Vibration Control: High-density MDF plinth with multi-layer lacquer and insulating aluminum/rubber feet reduces acoustic feedback and vibrations.

• Precision Adjustments: Adjustable counterweight and anti-skating mechanism ensure accurate tracking for optimal cartridge performance.

• 2-Speed Operation: Supports 33⅓ and 45 RPM for LP and EP records, with a machined aluminum rotary control for start-up/speed selection.

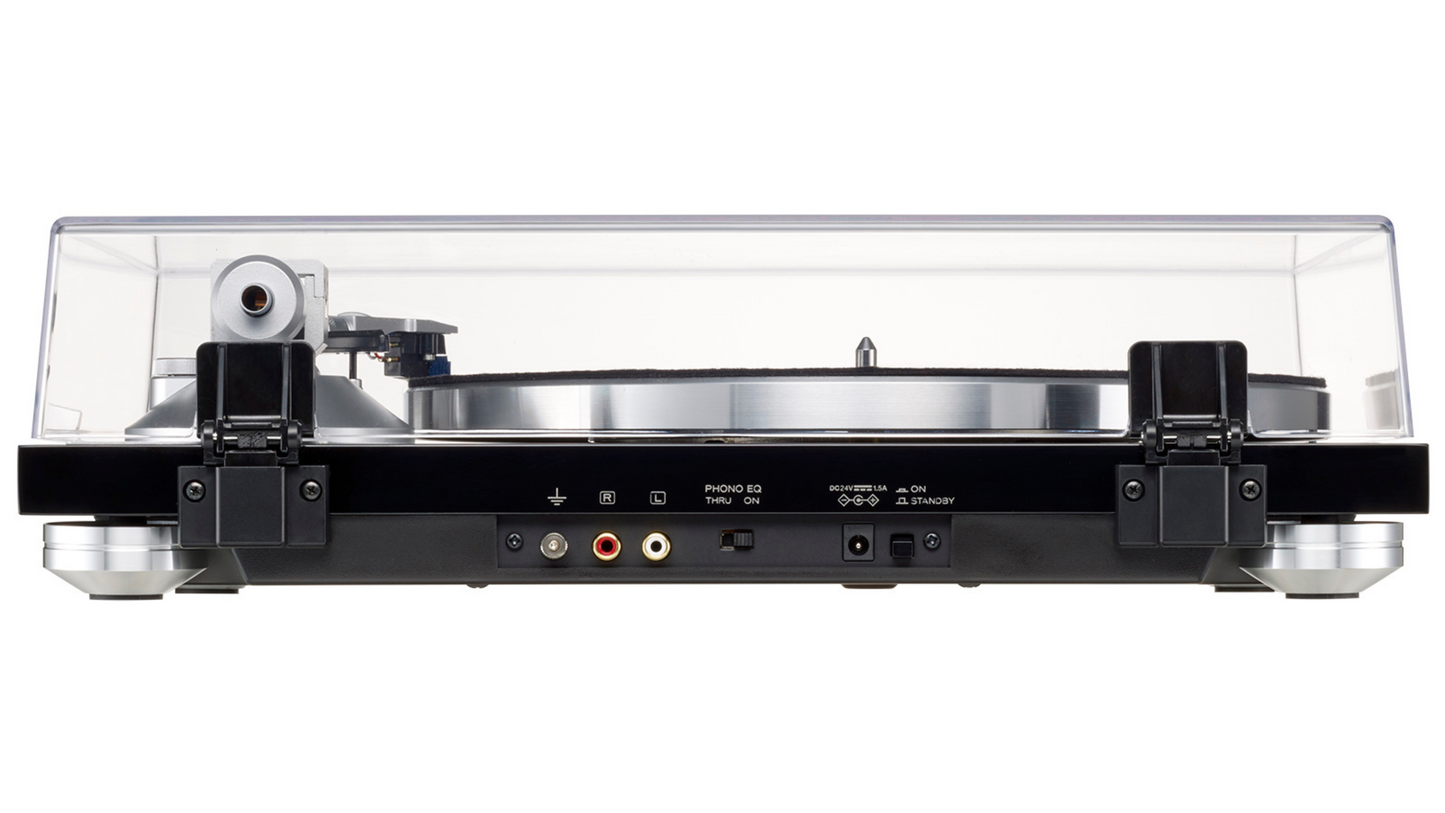

• Versatile Connectivity: Gold-plated RCA outputs (PHONO/LINE switchable) with ground terminal for flexible integration into hi-fi systems.

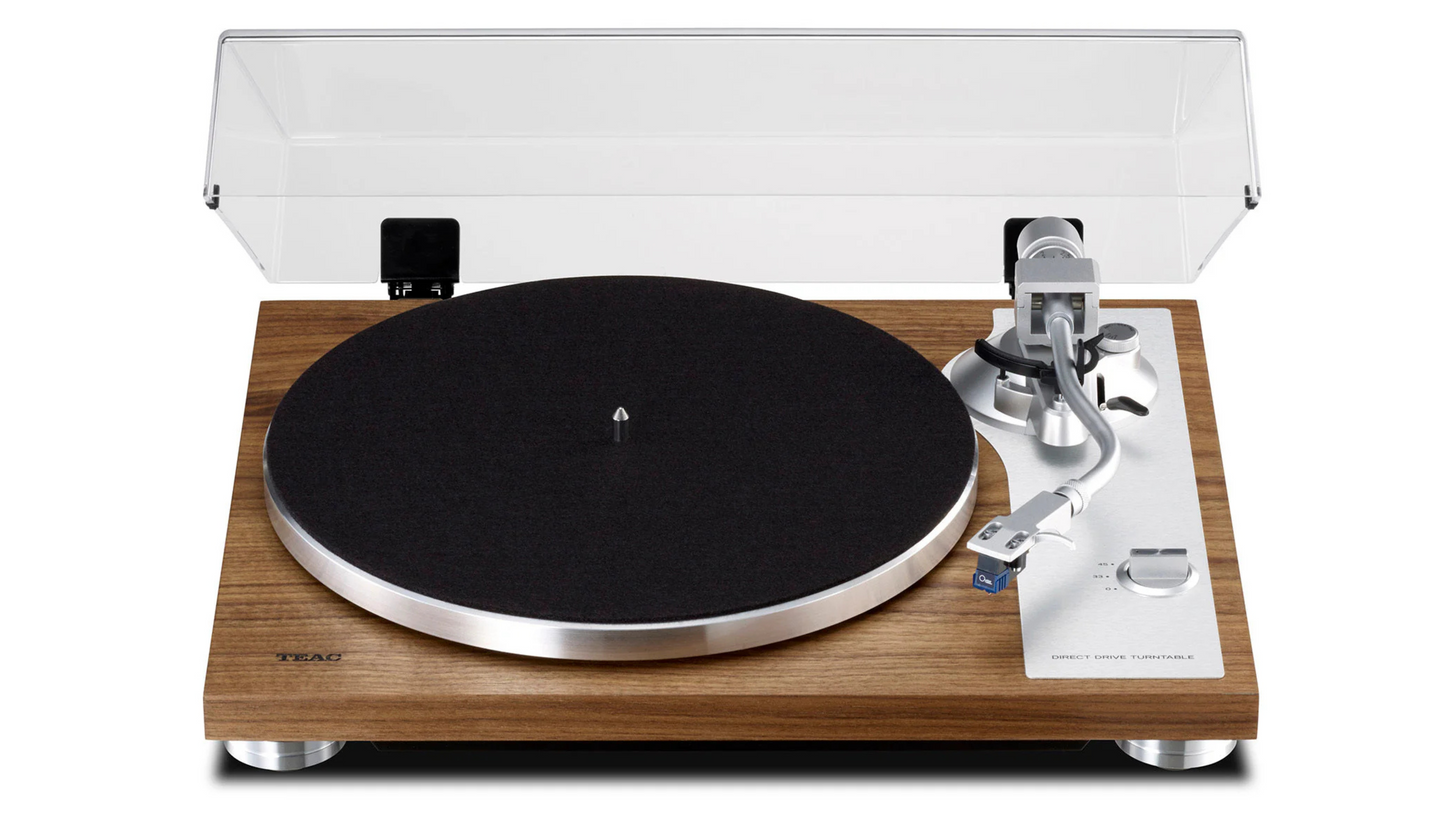

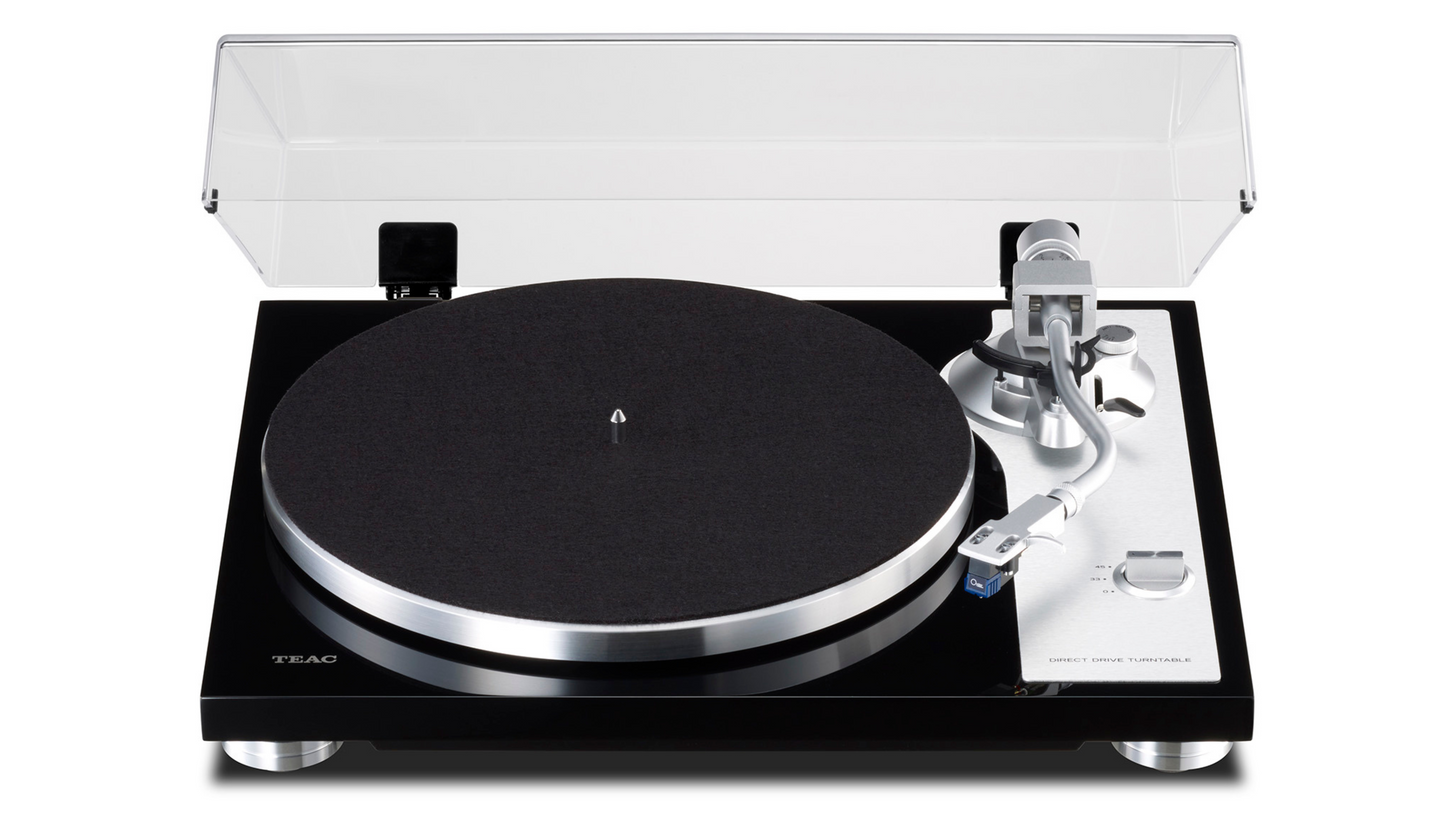

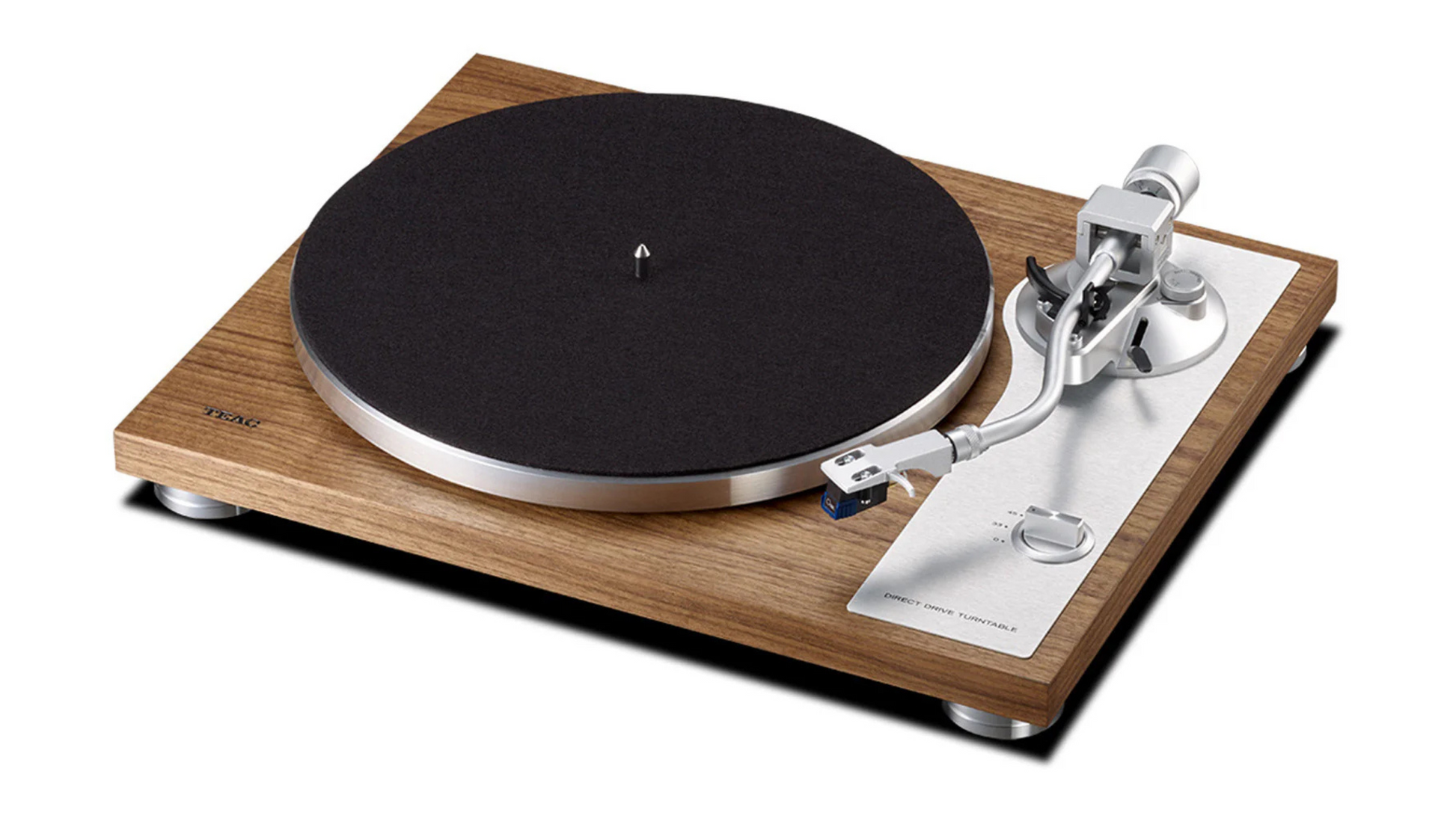

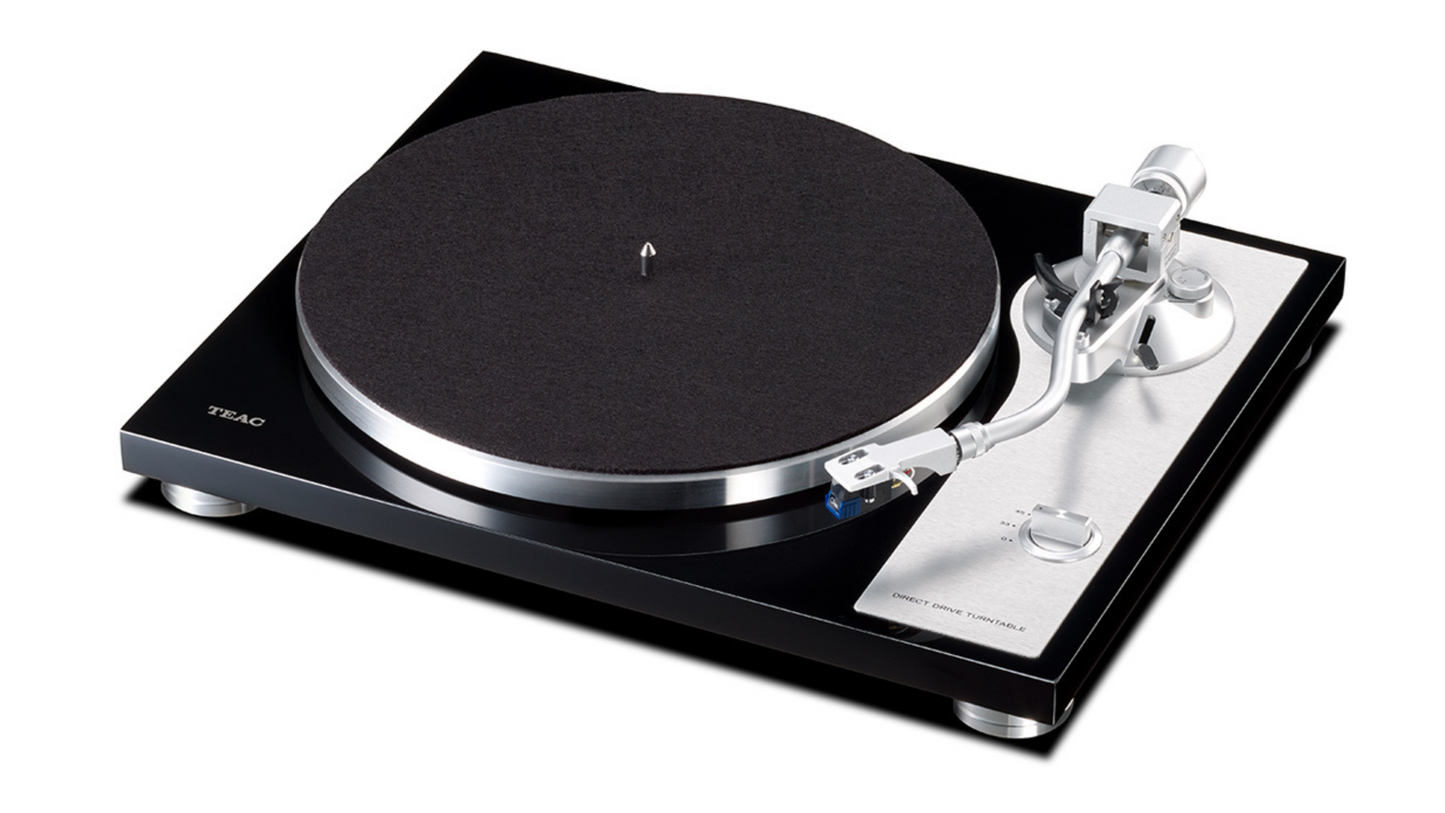

• Sleek Design: Low-profile chassis (4.6" height) in piano black or walnut veneer, with a detachable acrylic dust cover for vibration-free playback.

Why Choose the TEAC TN-4D-SE?

The TN-4D-SE offers a warm, detailed sound with a wide soundstage, ideal for genres like jazz, classical, and rock. Its direct-drive motor and SAEC tonearm deliver high-resolution playback, while the built-in phono stage simplifies setup for beginners and seasoned listeners alike. The vibration-resistant design and premium Sumiko cartridge ensure audiophile-grade performance at a mid-range price, making it a compelling alternative to belt-drive models like the Rega Planar 2 or Pro-Ject Debut. Its sleek, low-profile design adds elegance to any setup, balancing modern functionality with classic vinyl charm.

Product Specifications

• Drive System: Direct-drive, brushless DC servo motor

• Speeds: 33⅓ RPM, 45 RPM

• Wow and Flutter: <0.1%

• Signal-to-Noise Ratio: >67 dB (A-weighted, 20 kHz LPF)

• Platter: Die-cast aluminum, 30cm diameter

• Tonearm: S-shaped, static-balanced, 223mm effective length, knife-edge pivot-point bearing

• Cartridge: Sumiko Oyster MM (4.0 mV, 1 kHz, 2.3g tracking force, 5.3g weight)

• Compatible Cartridge Weight: 4.0–13.0g (14–23g including headshell)

• Headshell Weight: 10g (including nuts, screws, wires)

• Outputs: RCA (PHONO/LINE switchable, gold-plated), 4.0 mV (PHONO), 224 mV (LINE, –13 dBV)

• Power Supply: External AC adapter (100–240V, 50/60 Hz)

• Power Consumption: 2W (operating), <0.5W (standby)

• Dimensions: 16.5" W x 4.6" H x 14.0" D (420 x 117 x 356 mm, including protrusions)

• Weight: 13.5 lbs (6.1 kg)

• Finish: Piano Black, Walnut Veneer


What’s Included

• TEAC TN-4D-SE Direct Drive Turntable

• Felt mat

• EP adapter (45 RPM)

• Counterweight

• Headshell (Sumiko Oyster MM pre-installed)

• Die-cast aluminum platter

• Detachable acrylic dust cover

• 2 hinges

• RCA audio cable with ground terminal

• AC adapter (GPE036W-24015)

• Owner’s manual (including warranty card)

Perfect For

• Audiophiles seeking high-resolution vinyl playback with direct-drive precision

• Vinyl beginners and enthusiasts wanting a plug-and-play turntable with a built-in phono stage

• Music lovers valuing TEAC’s craftsmanship and stylish, high-performance design
