MoFi Electronics UltraDeck

Overview

The MoFi Electronics UltraDeck is a serious belt-drive turntable developed with acclaimed designer Allen Perkins, built to draw quiet, dynamic and detailed performances from your records. It sits in the heart of the MoFi turntable range, above the StudioDeck and below the PrecisionDeck, and it reflects the mastering-house pedigree of Mobile Fidelity Sound Lab in its engineering priorities of low noise and honest tonal balance.

At its core is an isolated 300 RPM AC synchronous motor decoupled from the plinth to keep vibration away from the record surface, paired with a substantial 1.3 inch Delrin platter weighing 6.8 lbs for speed stability and resonance control. The 10 inch straight aluminum tonearm rides on a precise gimbal bearing with 18mm overhang and a 22.8 degree offset, and the MDF and steel plinth with adjustable feet gives the whole deck a stable, level foundation. Wow and flutter is rated at 0.017 to 0.025 percent with a signal to noise figure of 74dB.

This deck is sold here without a cartridge, which lets you choose the sound you want. It accepts the MoFi MasterTracker, UltraTracker or UltraGold and other standard half inch mount cartridges. It suits the listener who wants a refined, musical analog front end and enjoys tuning the system to taste rather than accepting a fixed package.

Key Features

• Belt-drive design with an isolated 300 RPM AC synchronous motor to keep vibration away from the record
• 1.3 inch Delrin platter weighing 6.8 lbs for speed stability and resonance control
• 10 inch straight aluminum gimbal-bearing tonearm with 18mm overhang and 22.8 degree offset
• Plays both 33 and 45 RPM records
• Low wow and flutter of 0.017 to 0.025 percent and 74dB signal to noise
• MDF and steel plinth with adjustable feet for a stable, level setup
• Sold as the deck without a cartridge, accepting standard half inch mount cartridges
• Developed with Allen Perkins, reflecting the MoFi mastering-house pedigree

How the UltraDeck Compares

MoFi UltraDeck vs MoFi PrecisionDeck Fender

The PrecisionDeck sits a step up in the MoFi range and offers a more elaborate platter and tonearm arrangement aimed at even lower noise and greater resolution. The UltraDeck delivers the core MoFi character of quiet, musical playback in a more accessible package. Choose the PrecisionDeck if you want the additional refinement at the top of the line. See the MoFi PrecisionDeck Fender.

MoFi UltraDeck vs Audio-Technica AT-LP7X

The AT-LP7X is a fully manual belt-drive deck aimed at listeners who want a compact, straightforward analog front end. The UltraDeck emphasizes a heavier Delrin platter and an isolated synchronous motor for a more substantial, resonance-controlled foundation. Both are manual belt-drive designs, so the choice comes down to mass, tonearm character and how you like to tune your system. See the Audio-Technica AT-LP7X.

MoFi UltraDeck vs Thorens TD 403 DD

The Thorens TD 403 DD is a direct-drive design that provides immediate speed lock and a clean, low-maintenance approach. The UltraDeck takes the belt-drive route with an isolated motor and a massive Delrin platter to shape its own quiet, flowing presentation. Pick based on whether you prefer direct-drive immediacy or the isolated belt-drive character. See the Thorens TD 403 DD.

Recommended Cartridge, Phono Stage and Amplifier

Because the UltraDeck ships without a cartridge and a turntable needs phono equalization and gain, here is a complete path to a finished, high-end analog system.

• MoFi MasterTracker MM Cartridge The MasterTracker is MoFi's top moving magnet cartridge and mounts cleanly on the UltraDeck's half inch arm, giving a voiced-in-house match with detailed, dynamic tracking.
• MoFi UltraPhono Pro Phono Stage This single-input MM and MC phono stage provides the equalization and gain the turntable needs, keeping the whole front end within the MoFi family for a coherent result.
• MoFi MasterPhono Phono Stage For the reference route, the MasterPhono offers an extensive adjustable loading range so you can fine-tune whichever MM or MC cartridge you mount on the UltraDeck.
• Audiolab 6000A MKII Amplifier This integrated amplifier drives passive speakers and completes the system, since MoFi does not make amplifiers and the SourcePoint speakers need separate amplification.
• MoFi SourcePoint 8 Bookshelf Speakers Designed by Andrew Jones around a concentric point-source driver, these stand mounts give wide, even dispersion and a true point source to reveal what the UltraDeck retrieves.

Frequently Asked Questions

Does the UltraDeck come with a cartridge?
No. This deck is sold without a cartridge. It accepts the MoFi MasterTracker, UltraTracker or UltraGold and other standard half inch mount cartridges.

What drive system does the UltraDeck use?
It is a belt-drive turntable with an isolated 300 RPM AC synchronous motor decoupled from the plinth to keep vibration away from the record.

What speeds does it play?
The UltraDeck plays both 33 and 45 RPM records.

What is the platter made of?
The platter is 1.3 inch Delrin and weighs 6.8 lbs for speed stability and resonance control.

What tonearm does the UltraDeck use?
It uses a 10 inch straight aluminum tonearm on a gimbal bearing, with 18mm overhang and a 22.8 degree offset.

What is the wow and flutter figure?
Wow and flutter is rated at 0.017 to 0.025 percent.

What is the signal to noise ratio?
The signal to noise ratio is 74dB.

Do I need a phono stage with the UltraDeck?
Yes. A turntable needs phono equalization and gain, so you should pair it with a phono stage such as the MoFi UltraPhono Pro or the MoFi MasterPhono.

Which cartridge should I choose?
The MoFi MasterTracker moving magnet cartridge is an in-house match that mounts on the UltraDeck's half inch arm. UltraTracker and UltraGold are also compatible options.

Can I mount a moving coil cartridge?
Yes. The arm accepts standard half inch mount cartridges including moving coil designs, provided you pair it with a phono stage that supports moving coil.

What amplifier works with the UltraDeck system?
MoFi does not make amplifiers, so you need a separate integrated amplifier such as the Audiolab 6000A MKII to drive passive speakers.

Which speakers pair well?
The Andrew Jones designed MoFi SourcePoint 8 bookshelf speakers pair naturally, offering a true point source and wide, even dispersion.

How does the UltraDeck compare to the PrecisionDeck?
The PrecisionDeck sits a step up in the MoFi range with a more elaborate platter and tonearm arrangement, while the UltraDeck delivers the core MoFi character in a more accessible package.

Is the UltraDeck fully manual?
Yes, it is a manual belt-drive deck, so you cue the arm and change speeds yourself.

What plinth material is used?
The plinth combines MDF and steel with adjustable feet for a stable, level foundation.

Can I adjust for a level setup?
Yes. The plinth has adjustable feet so you can level the deck on your surface.

Who designed the UltraDeck?
MoFi's belt-drive turntables were developed with acclaimed designer Allen Perkins, reflecting the mastering-house pedigree of Mobile Fidelity Sound Lab.

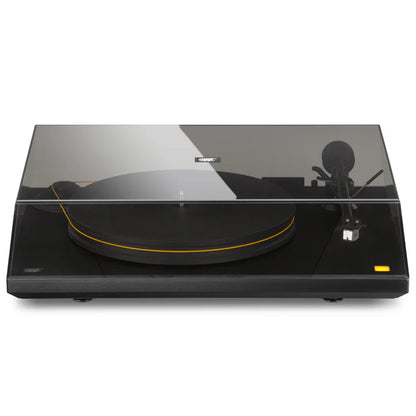

Does the UltraDeck include a dust cover?
Yes, a dust cover is included to protect the deck and record when not in use.

What warranty does the UltraDeck carry?
It carries a 3 year parts and labor warranty from MoFi Electronics for the original owner.

Why buy from All Elite Audio?
All Elite Audio is an authorized MoFi Electronics dealer in MD with this turntable in stock. You get genuine product, the full manufacturer warranty, and expert guidance on matching a cartridge, phono stage, amplifier and speakers for a complete system.
