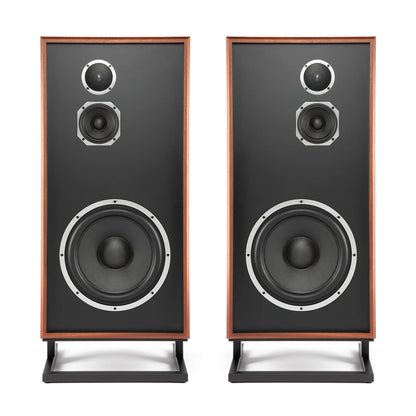

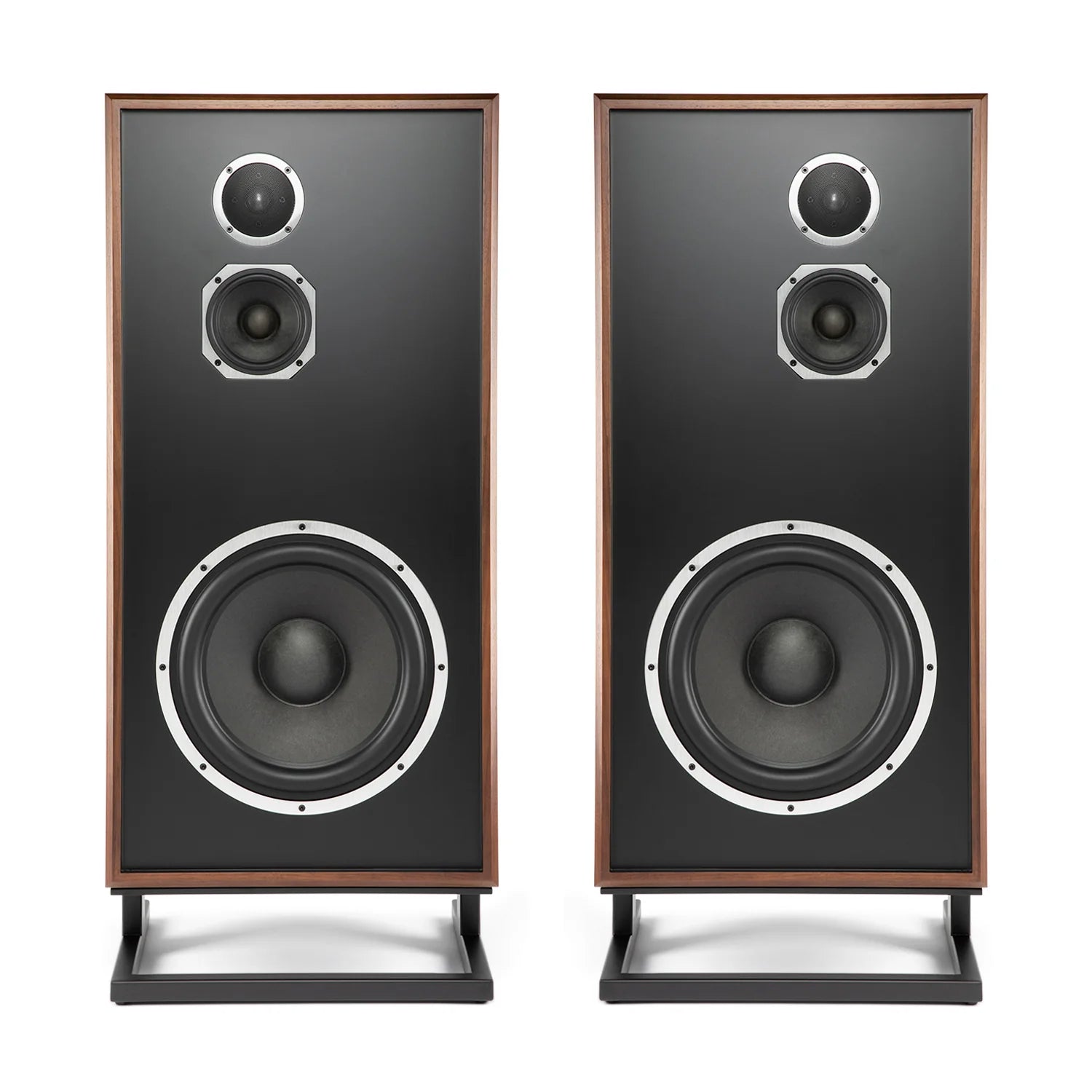

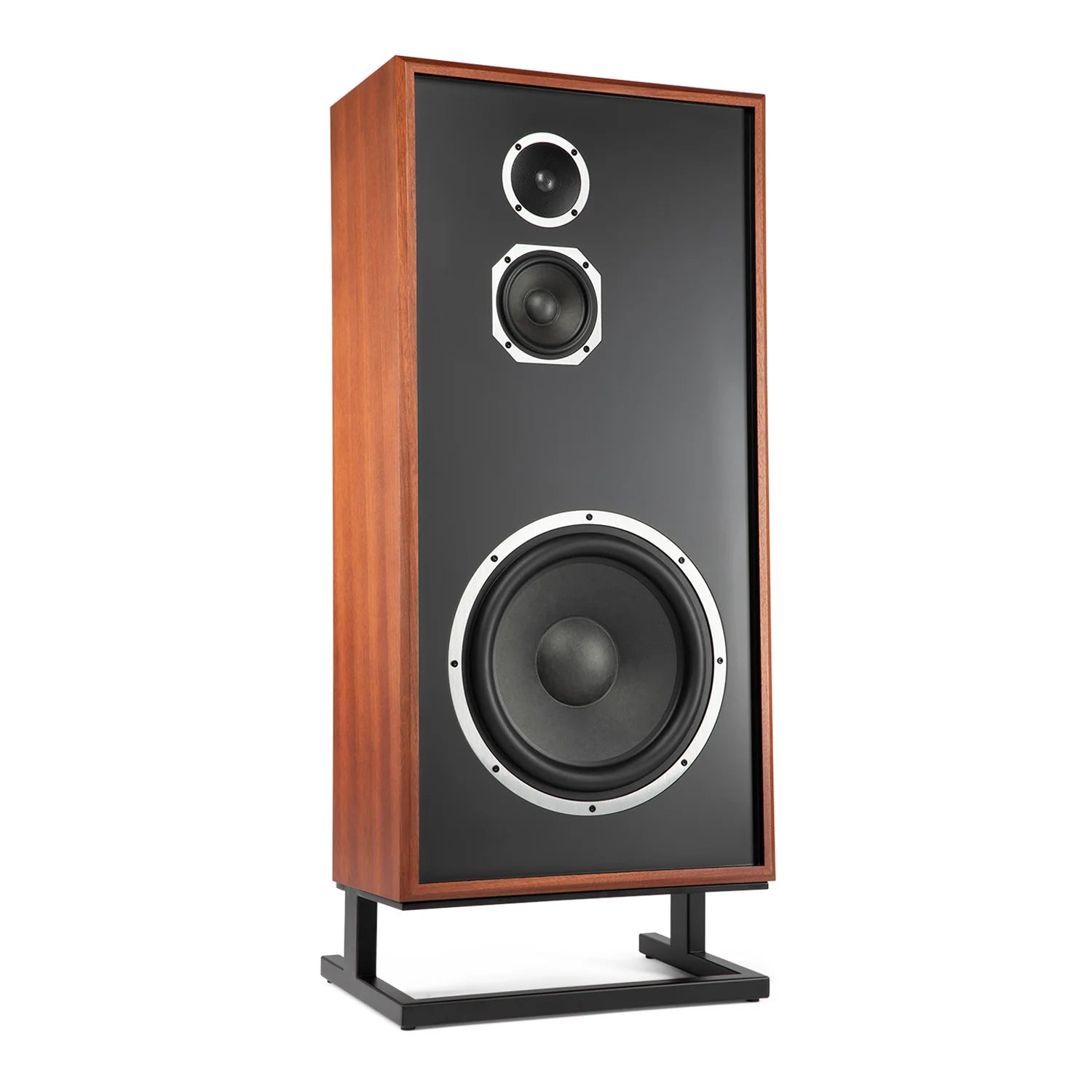

KLH Model 7 Speakers

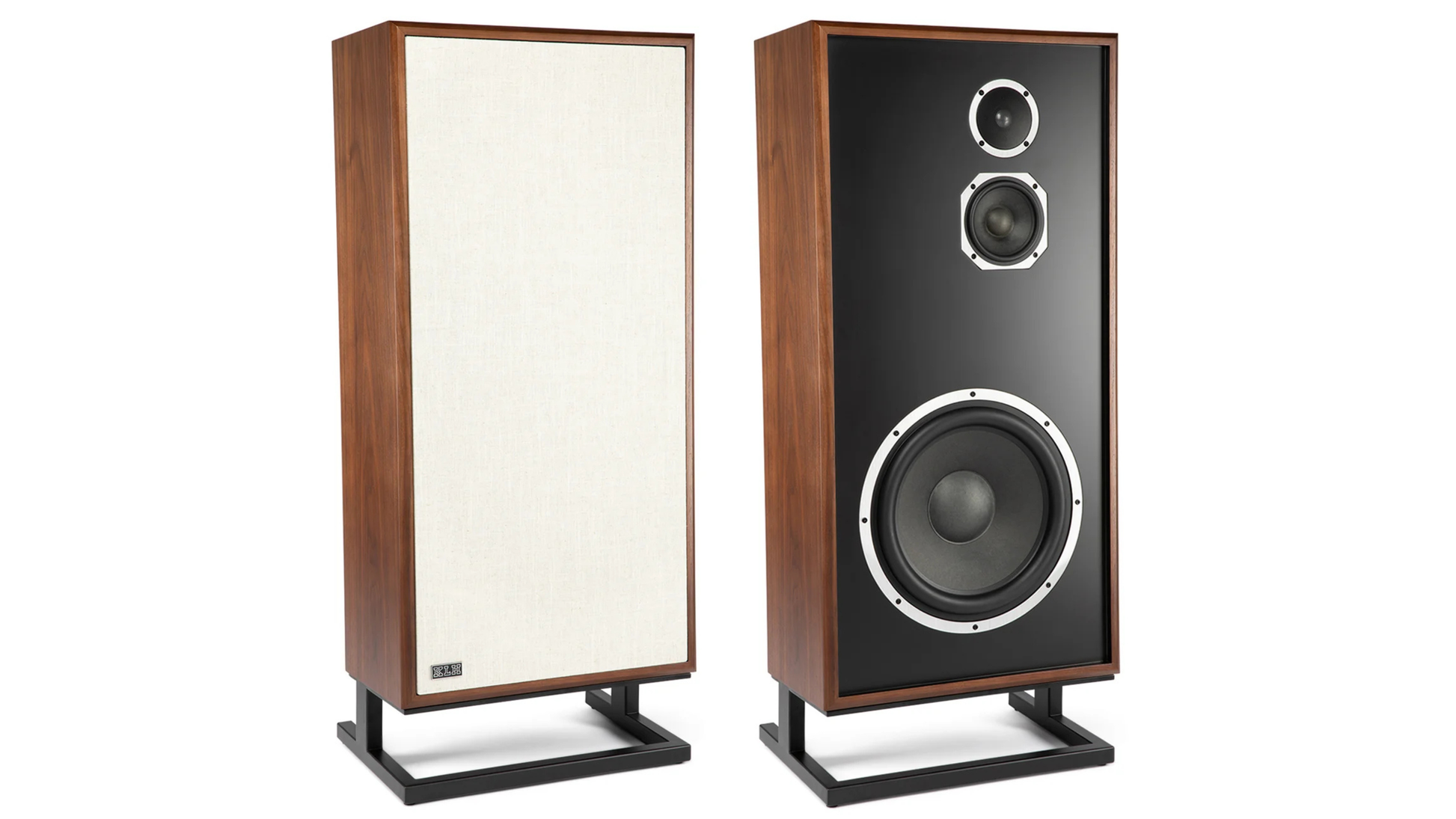

KLH Model Seven Three-Way Acoustic Suspension Floorstanding Loudspeaker

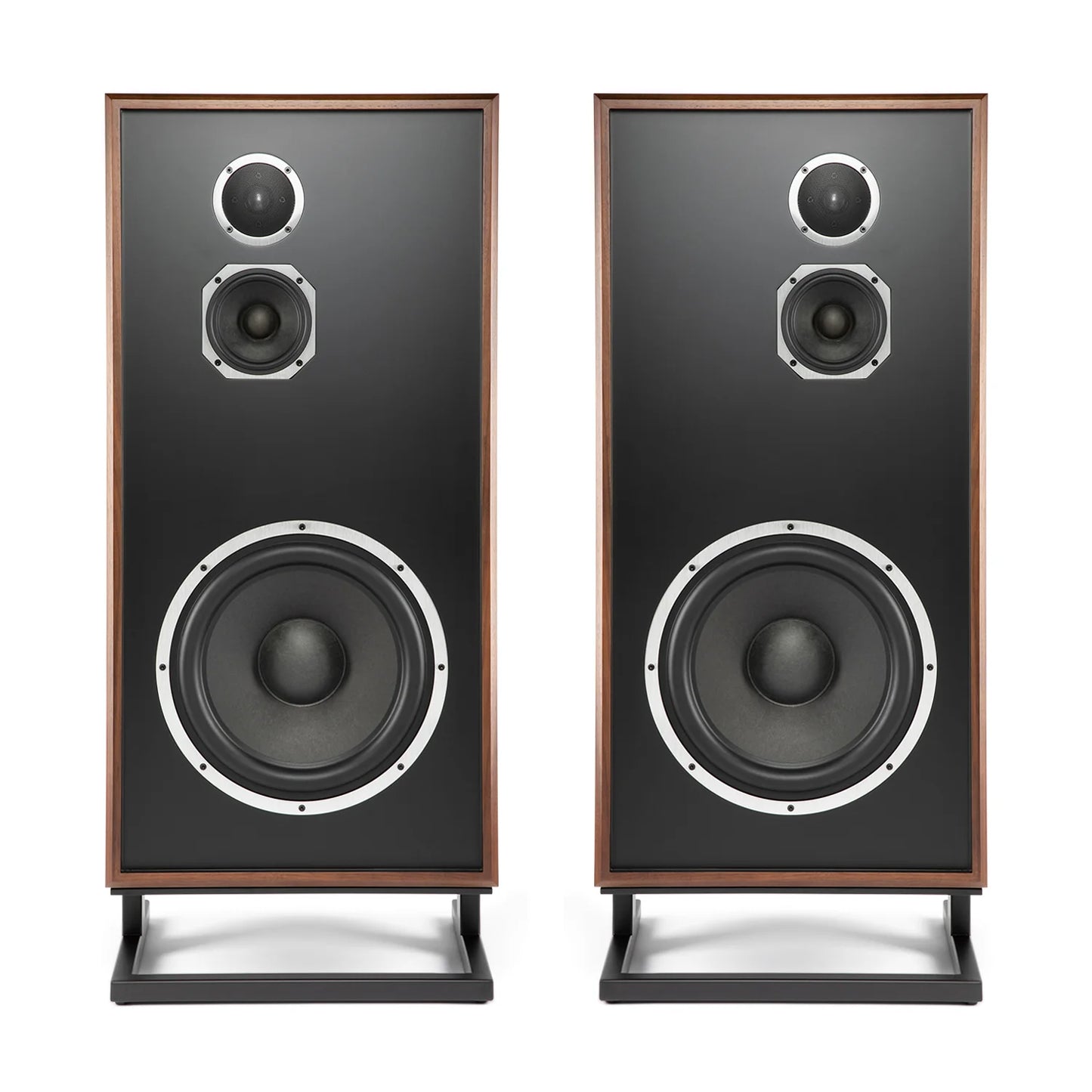

The flagship of KLH's Model Collection Series — a wide-baffle, acoustic suspension floorstander built around a 13-inch woofer, a dedicated 5-inch midrange in its own sealed sub-enclosure, and a precision-machined aluminum dome tweeter, in a handcrafted real-wood cabinet that looks like it belongs in 1968 and sounds like it was designed yesterday.

---

The History Behind the Speaker

KLH was founded in Cambridge, Massachusetts in 1957 by Henry Kloss and partners Malcolm Low and Josef Hofmann. Kloss had already co-developed the acoustic suspension loudspeaker with Edgar Villchur at Acoustic Research, and at KLH he applied that principle — using the sealed air volume inside a cabinet as a linear spring for the woofer — to a generation of speakers that defined what home hi-fi could be. The Model Five, produced from 1968 to 1977, became one of the most popular and respected American loudspeakers ever made. The full-range electrostatic Model Nine is still discussed reverently. The high-selectivity Model Eight FM tuner changed what table radios could be. Kloss later went on to found Advent, which brought acoustic suspension technology to a mass market. The KLH name and its connection to the acoustic suspension principle represent one of the foundational chapters of high-fidelity audio history.

The brand was revived in 2018 under David P. Kelley, formerly President of Klipsch. Kelley's stated mission was to return KLH to Henry Kloss's original purpose: world-class loudspeakers at prices that serious listeners could justify. The Model Collection Series — the Model Three, Model Five, and now Model Seven — has been the primary expression of that mission. The Model Seven is the flagship: the largest driver, the largest cabinet, the most complex engineering, and the clearest statement of what the revived KLH stands for. It debuted as a prototype at AXPONA 2023 and made its global debut as a finished, shipping product at High End Munich 2025.

---

What It Is: The Acoustic Suspension Principle in 2025

Acoustic suspension is a sealed-cabinet design in which the volume of air inside the enclosure acts as an air spring — the dominant restoring force for the woofer cone. In a conventional ported or vented design, the cabinet is tuned to a specific frequency where the port's acoustic output reinforces the woofer's output, extending bass below the woofer's natural rolloff but at the cost of a steeper rolloff below the port tuning frequency and a characteristic "one-note" bass quality when the port is overdriven. A sealed enclosure produces a gentler, more gradual rolloff that extends further below the nominal specification under real musical conditions, and the air spring's behavior is more linear than most mechanical suspensions — meaning the cone moves more accurately over a wider excursion range.

The trade-off is efficiency: sealed designs typically require more amplifier power to reach the same bass level as a ported design of similar size. KLH addresses this with the 13-inch woofer — a cone that moves far more air per unit of excursion than the smaller woofers in most competitors at this price, and whose high-volume displacement compensates for the efficiency limitation of the sealed topology. The result, as Audio Advice described it, is bass where "low end lines simply start and stop when they should" — the character of live music rather than the character of a tuned port resonance. Kevin Deal of Upscale Audio put it directly: "the acoustic suspension design means that while bass response isn't as deep as you might expect for the driver size, it's tight and quick, providing a greater sense of what bass is like in live music, where it doesn't boom but is a rapid impulse you feel in your body."

The 13-inch woofer in the Model Seven uses a pulp-paper cone with a ½-roll rubber suspension, mounted in a non-resonant die-cast aluminum frame. The voice coil is a 2-inch diameter flat-wire design — flat wire allows more turns in the same radial space as round wire, increasing motor force and efficiency within the available gap volume. The woofer operates in its own sealed 2.5 cubic foot enclosure within the cabinet, which is a meaningful architectural decision. The sealed sub-enclosure isolates the woofer's back pressure from the midrange chamber, preventing the midrange driver from being modulated by the woofer's large pressure swings during bass reproduction.

---

The Three-Way Architecture: Why a Dedicated Midrange Matters

The midrange band — broadly 300 Hz to 3,500 Hz — is the most sensitive region of human hearing. It is where voices live, where the fundamentals of most musical instruments are reproduced, and where errors in timbre and phase coherence are most readily perceived. A two-way loudspeaker, however well designed, asks its woofer to reproduce bass and lower midrange while asking its tweeter to cover upper midrange and treble — two regions with fundamentally different acoustic requirements from a single driver in each case. The crossover point in a two-way typically falls directly in the midrange band where the ear is most sensitive to problems.

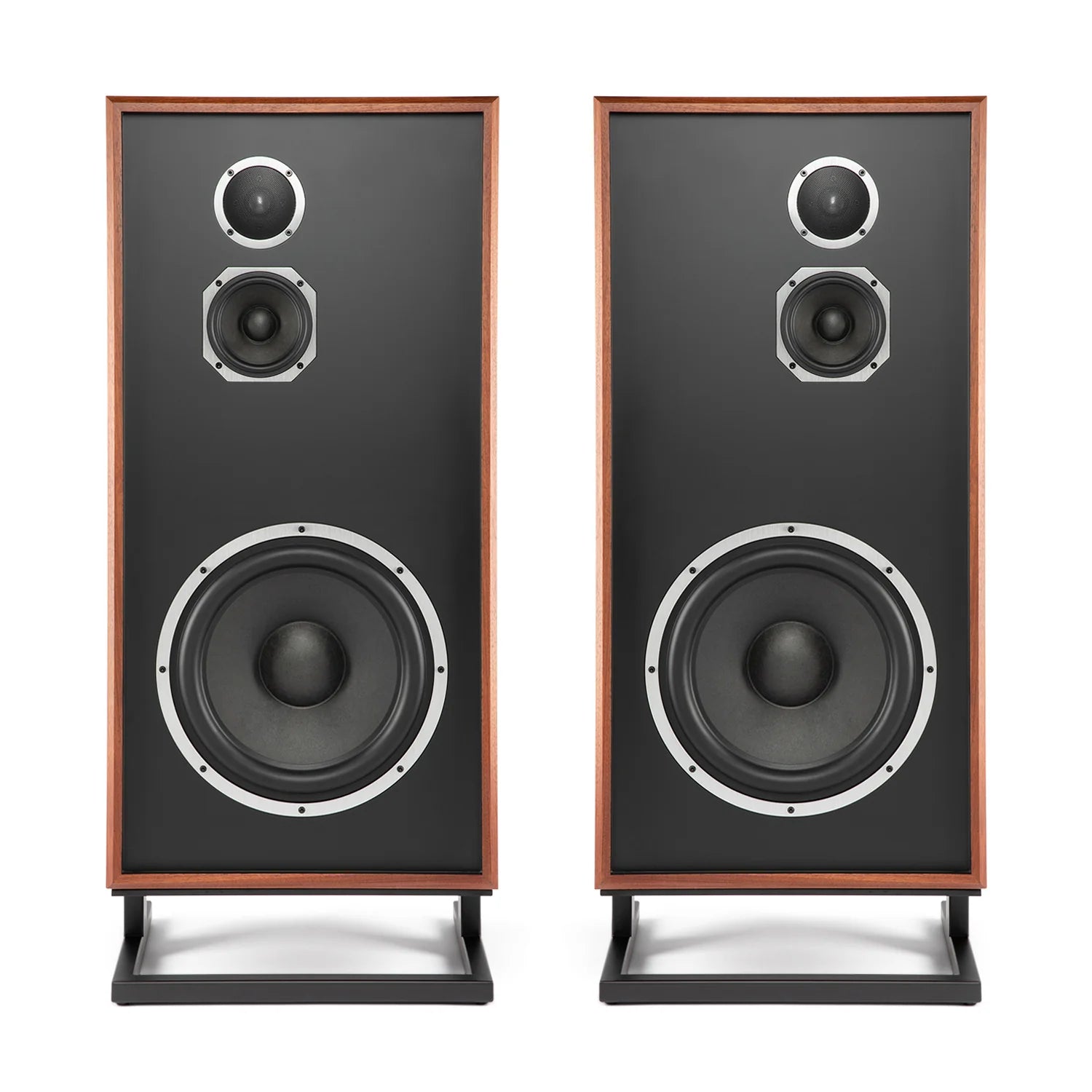

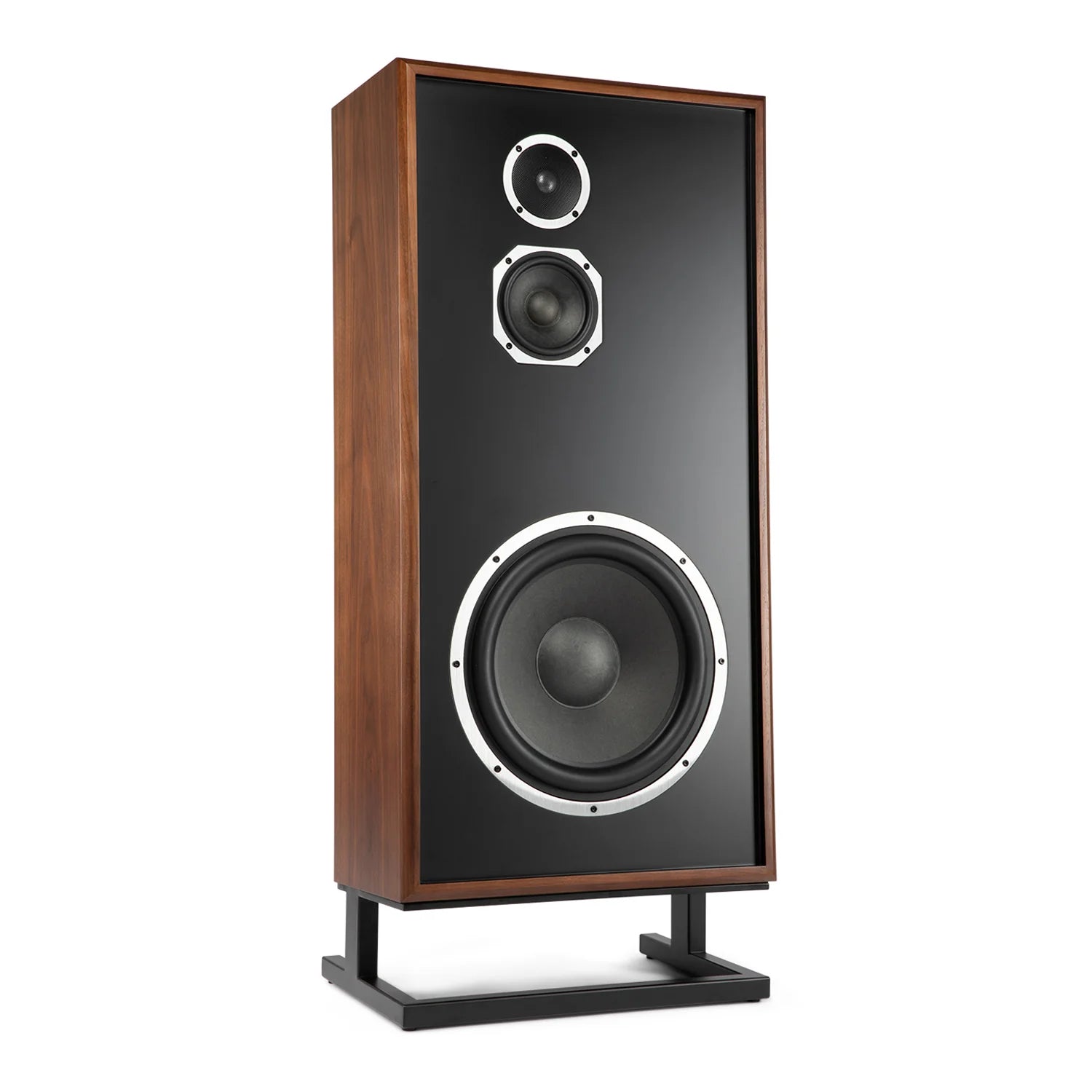

The Model Seven uses a dedicated 5-inch pulp-paper cone midrange driver mounted in its own internal sealed sub-enclosure, crossed over from the woofer at 300 Hz and to the tweeter at 3,500 Hz. A driver that handles only the midrange band can be optimized specifically for that application — the cone mass, surround compliance, and motor design can all be tuned for the 300 Hz–3,500 Hz range without compromising bass extension or treble response. The result is a midrange that, in Stereophile's Munich listening session, produced "holographic soundstage, pristine vocals, and sound that was uncolored and unhindered, with a great sense of ease." The isolation of the midrange chamber from the woofer back-pressure is as important as the driver itself: without it, the large woofer excursions during bass reproduction would modulate the midrange driver's behavior, introducing intermodulation distortion that degrades the very quality the three-way design exists to preserve.

The tweeter is a 1-inch aluminum dome with a soft rubber suspension, mounted behind a precision-machined aluminum faceplate. Aluminum dome tweeters extend cleanly and maintain low distortion through the upper treble, and the soft rubber suspension controls the dome's high-frequency breakup mode — the resonance that aluminum domes can develop near their upper limit and that can produce harshness if not properly damped. The machined faceplate is both aesthetic and acoustic: its precisely controlled geometry manages the diffraction of high-frequency energy from the dome, which affects dispersion and the smoothness of the off-axis response.

The crossover network uses 19 carefully selected components, including both air-core and iron-core inductors. Third-order electro-acoustic slopes at both crossover points (300 Hz and 3,500 Hz) produce 18 dB/octave attenuation — steep enough to protect each driver from frequencies outside its optimized range while allowing the three-way integration to be controlled and coherent.

---

The Wide Baffle: More Than an Aesthetic Choice

The Model Seven's 18-inch front baffle is one of its most distinctive visual features, and it is doing real acoustic work. A wide baffle reduces the baffle diffraction step — the frequency at which sound energy begins to radiate around the edges of the cabinet rather than projecting forward. On a narrow-baffle design, this transition occurs in the midrange, causing the forward output to drop relative to a half-space radiating condition and requiring the crossover to compensate for this loss. On the Model Seven's wide baffle, the diffraction step is pushed to a lower frequency where the woofer's output is more robust and the compensation required is smaller. This produces cleaner, more controlled first-arrival sound — the direct sound that reaches the listening position before any room reflections — and reduces energy reflected from the rear and side walls near the speaker. In practical terms, as Audio Advice observed, it means "more stable imaging, especially in rooms where the speakers cannot be pulled far from the wall."

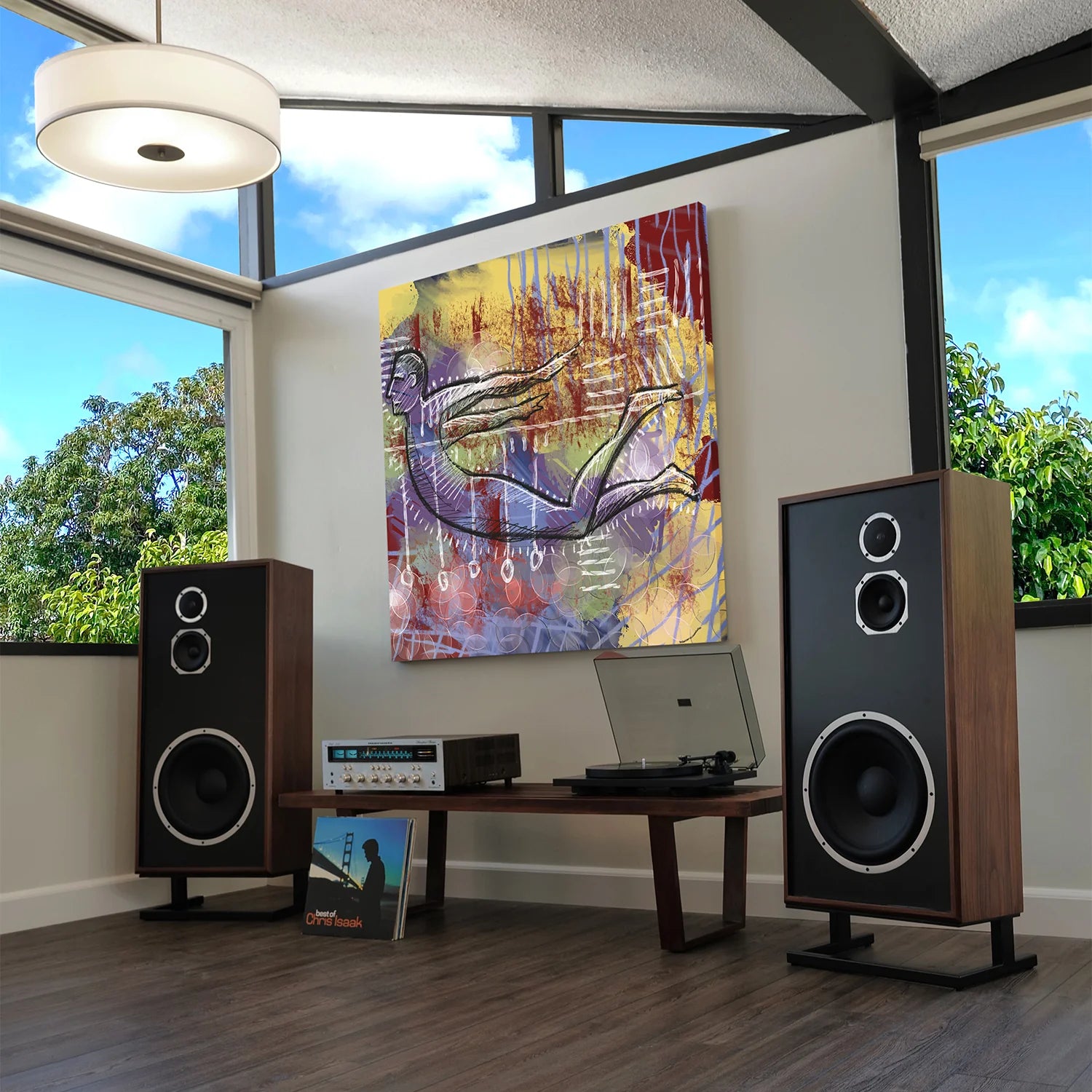

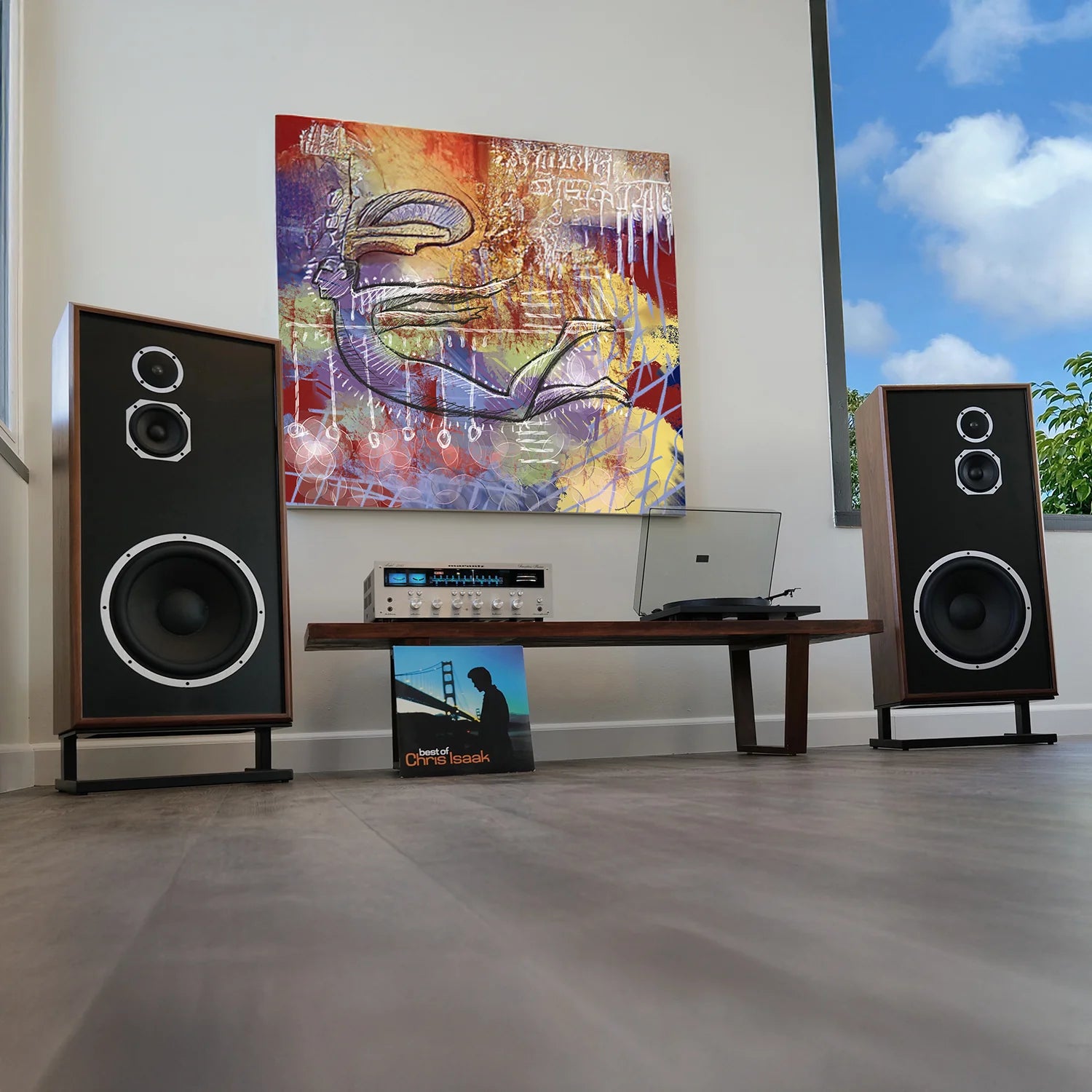

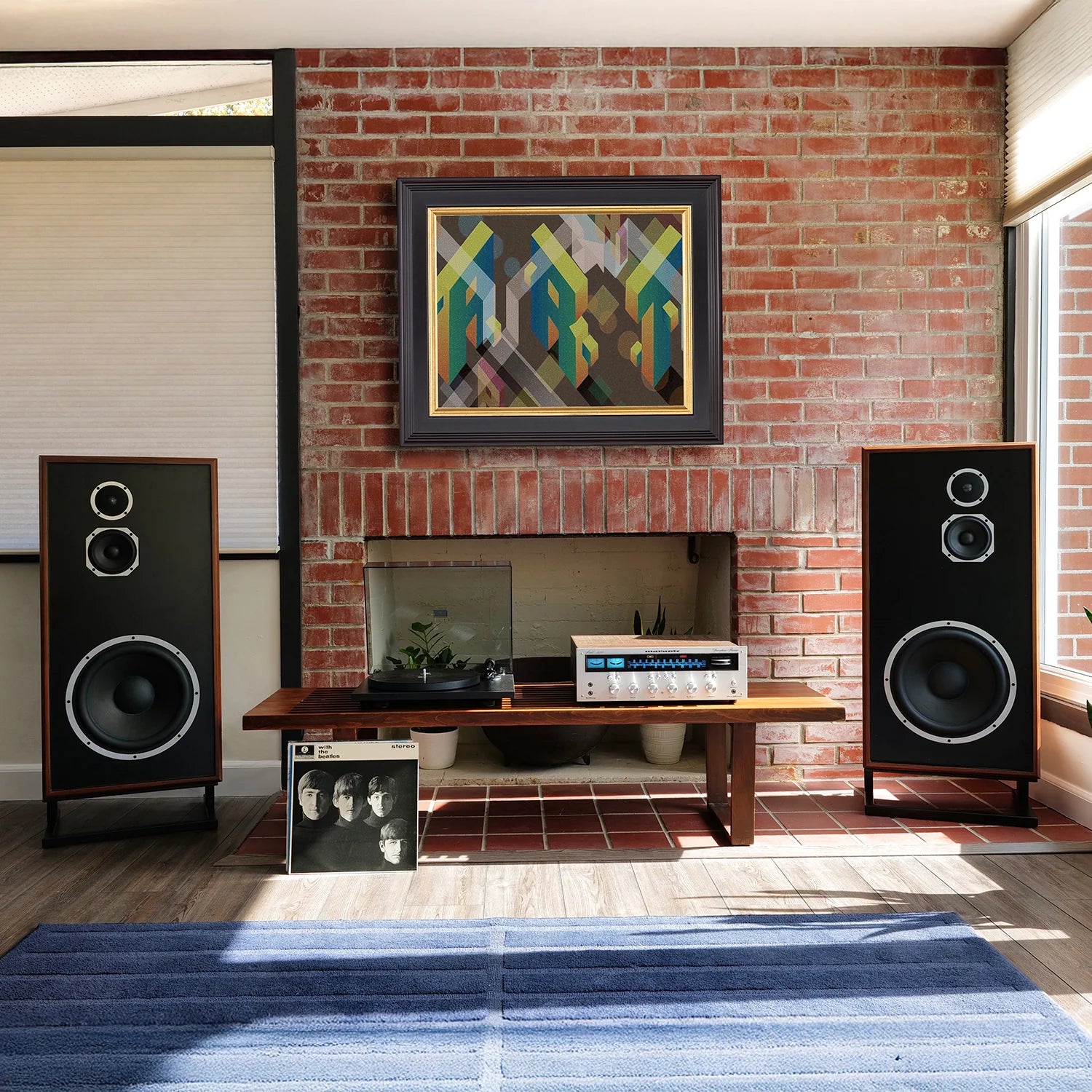

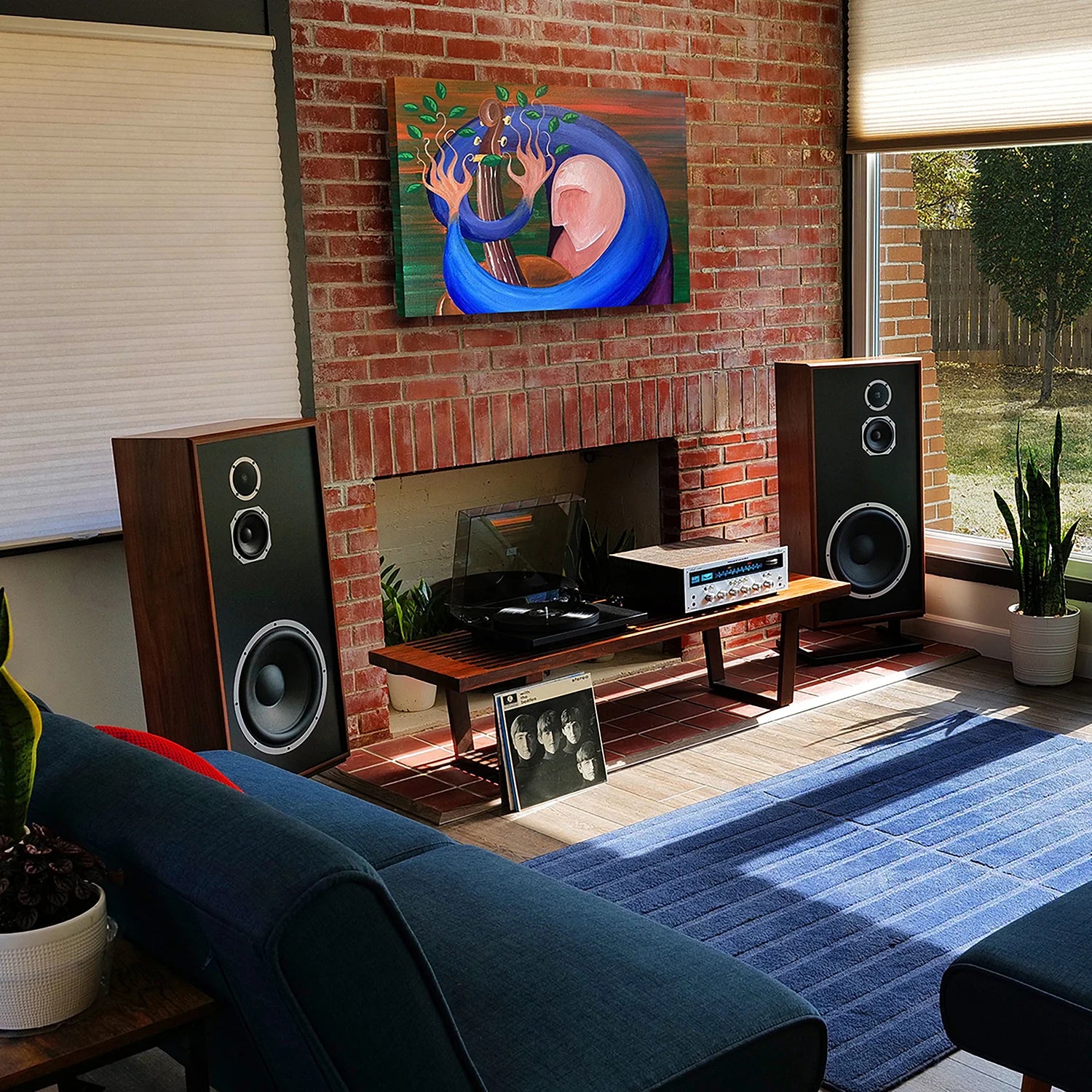

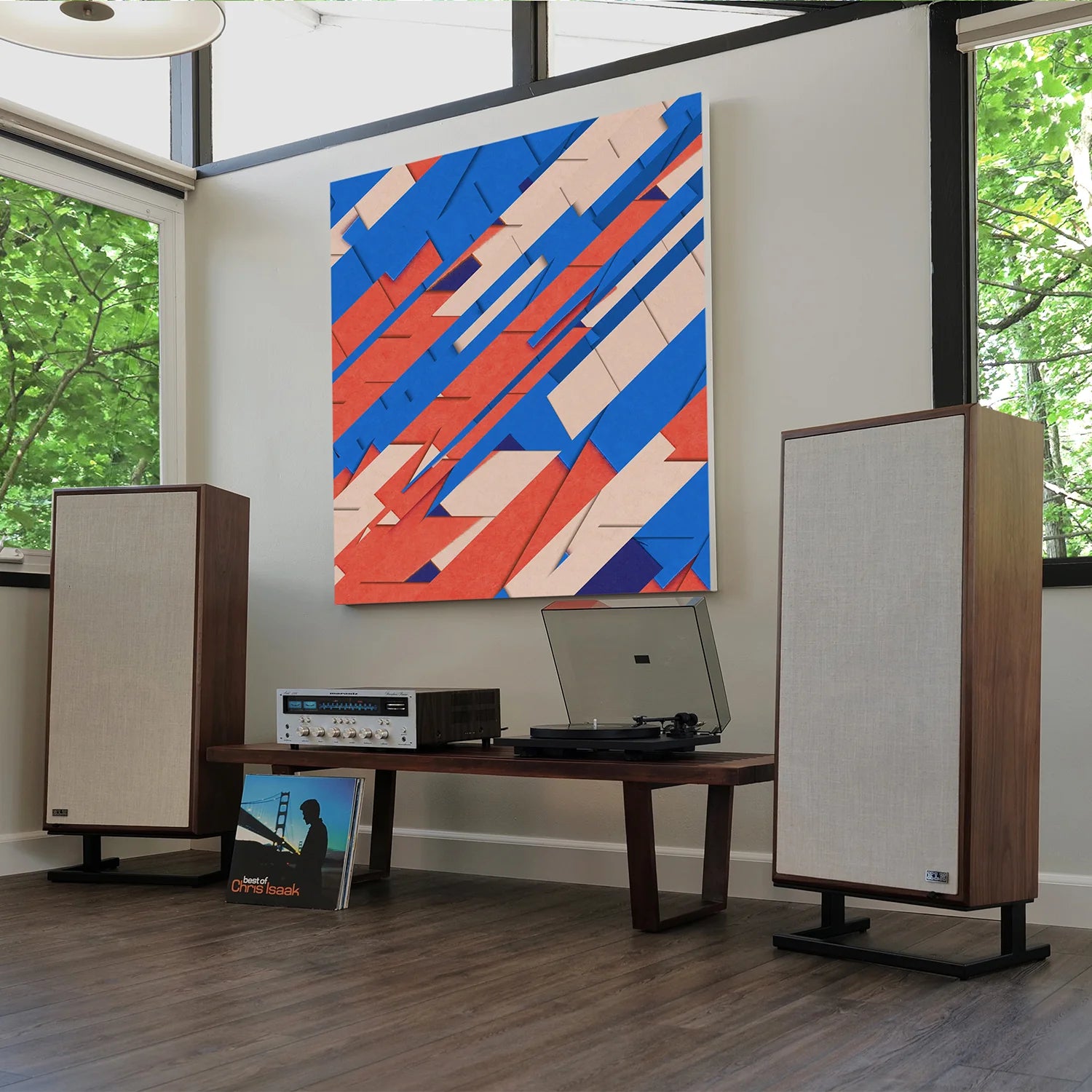

The placement flexibility this affords is a real benefit for real living rooms. The Model Seven is designed to work well close to a rear wall — a constraint that frustrates many audiophile speakers that require substantial distance from boundaries to image correctly. The shallow cabinet depth (9.75 inches without the riser base, 12.25 inches with it) reinforces this placement flexibility; despite the 18-inch baffle width, the Model Seven does not intrude far into the room.

---

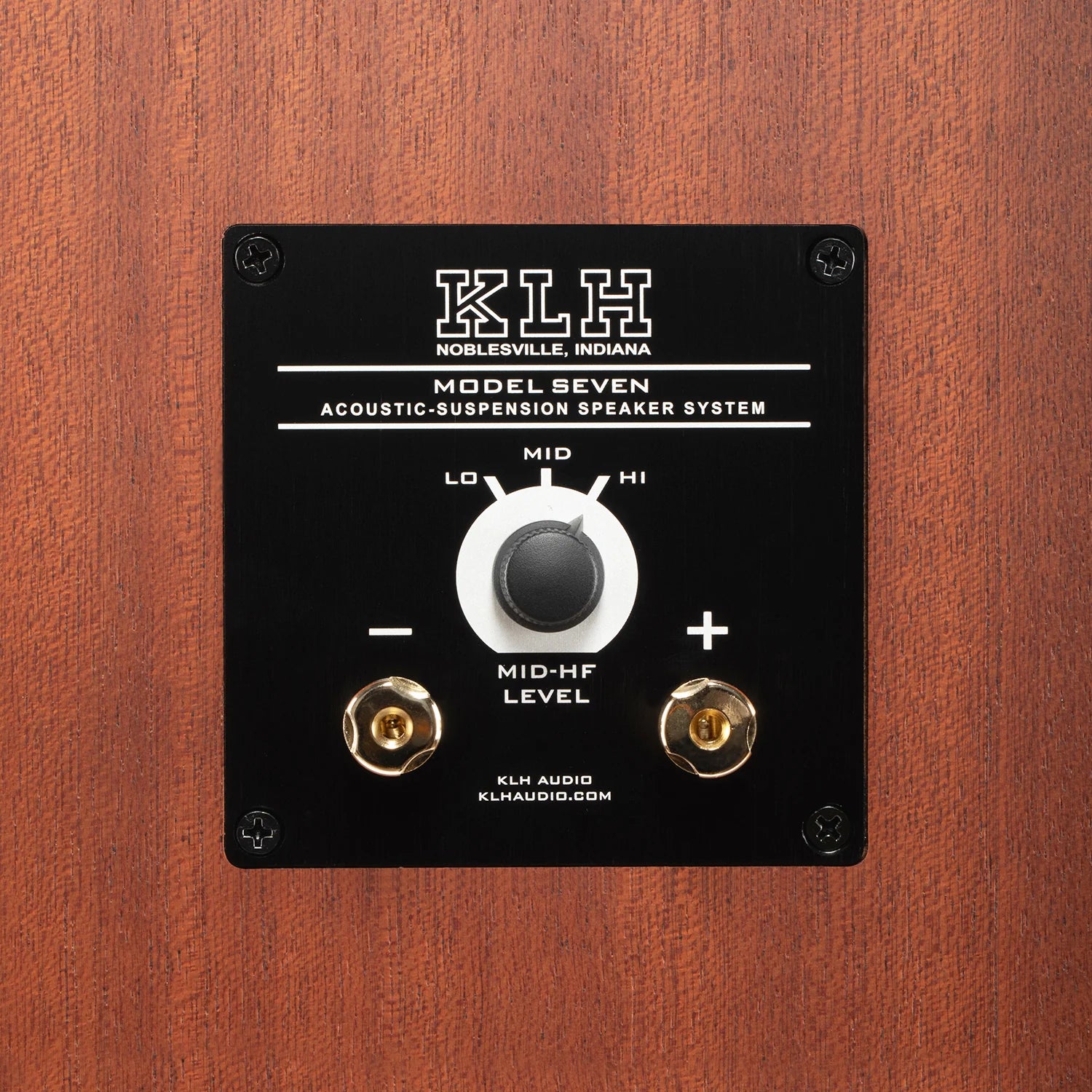

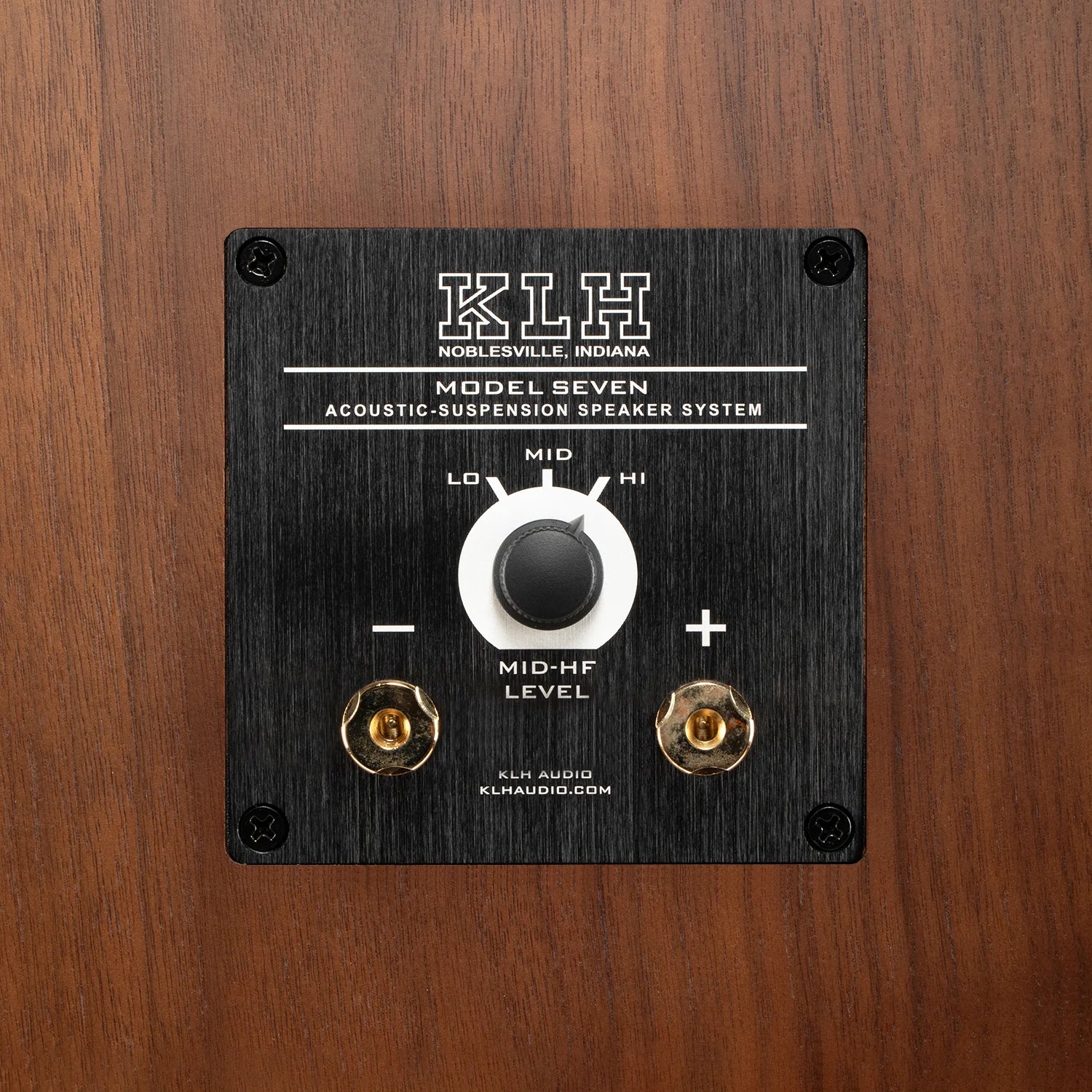

The Acoustic Balance Control

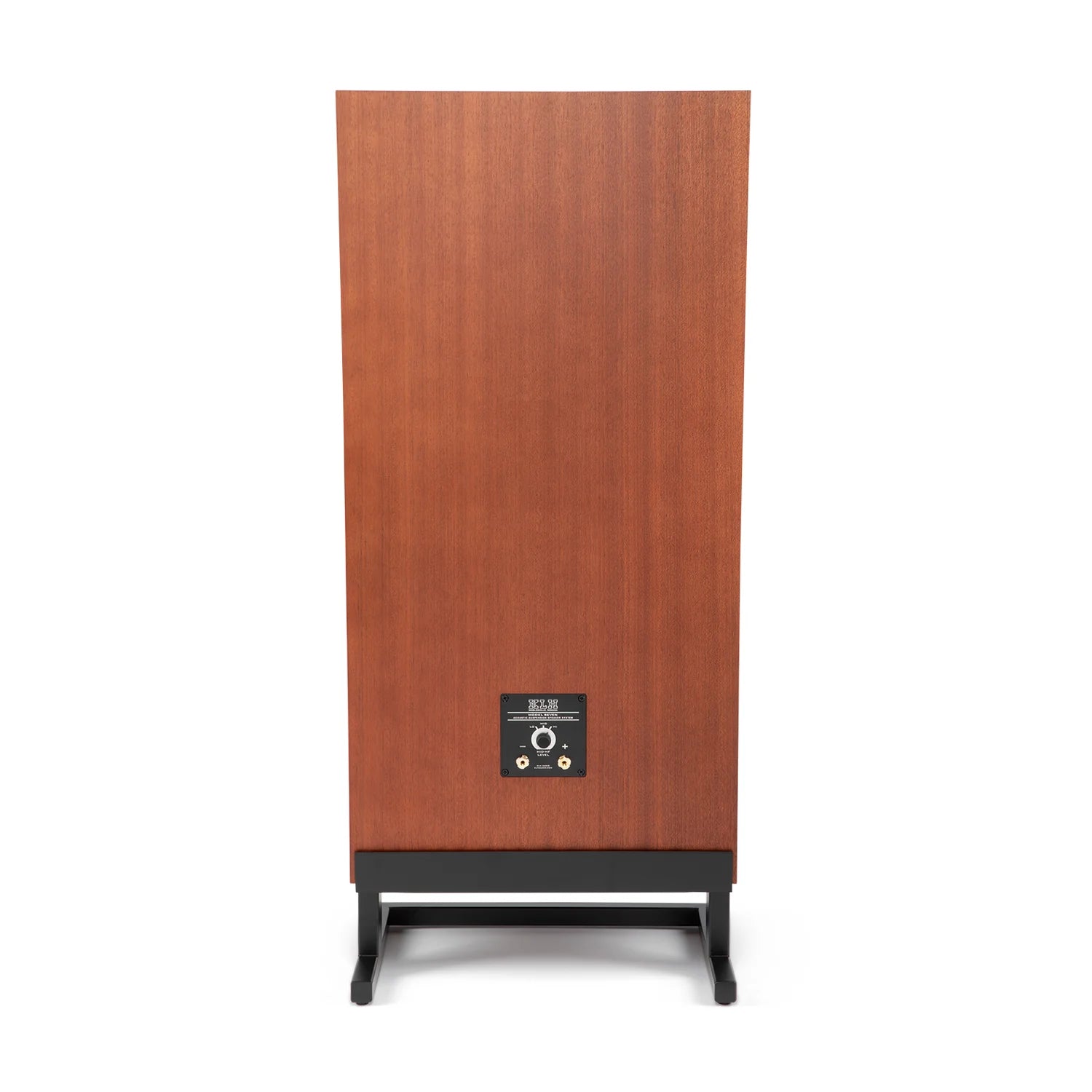

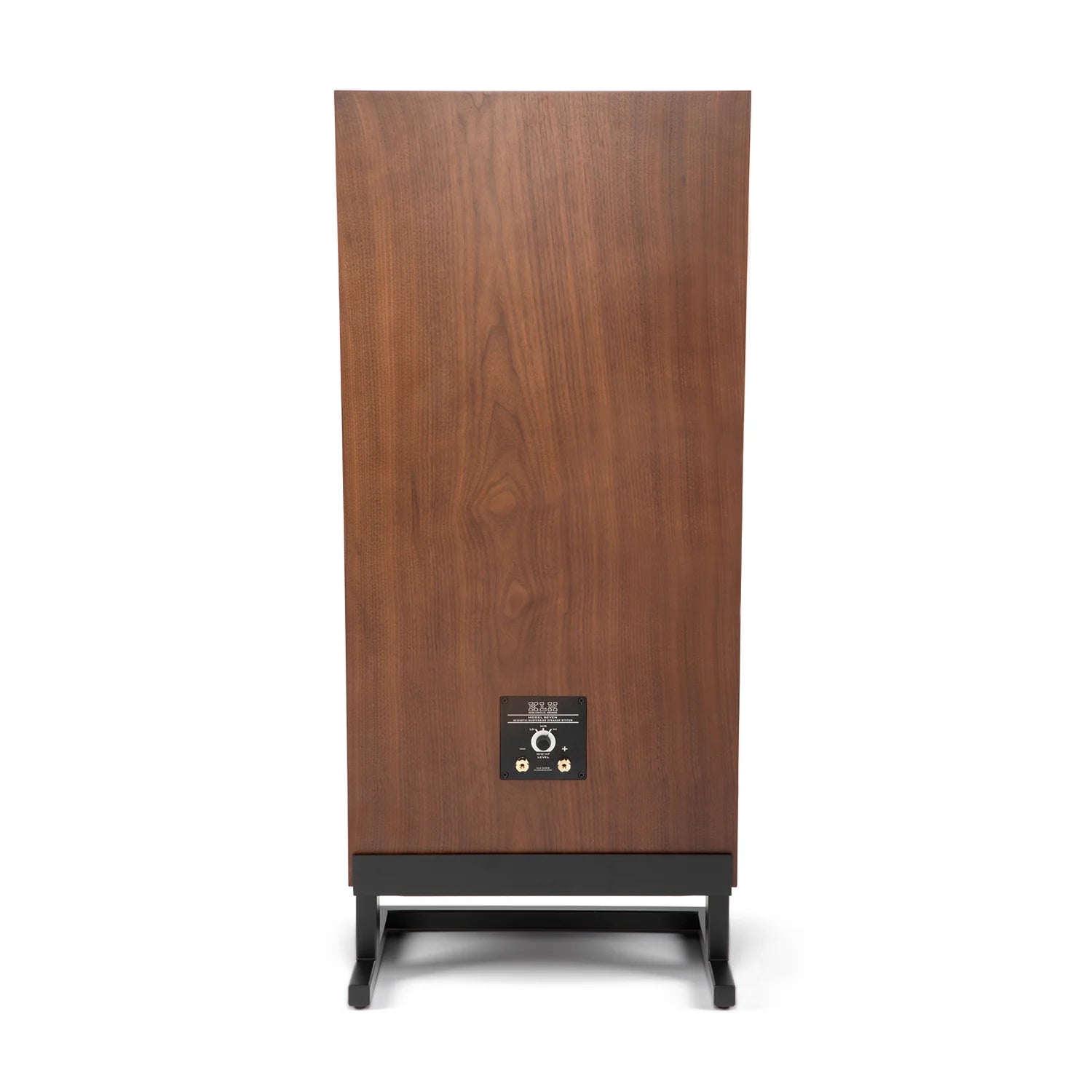

The rear-panel three-position Acoustic Balance Control adjusts output above 400 Hz in ±1.5 dB steps. The High position is the neutral reference — the speaker's designed frequency response without any attenuation. The Mid position applies −1.5 dB above 400 Hz, and the Low position applies −3.0 dB above 400 Hz. This control exists to accommodate the acoustic reality that different rooms behave very differently in the midrange and treble. A room with hard floors, large glass surfaces, and little soft furnishing ("live" in acoustic terms) produces more high-frequency energy at the listening position than a heavily damped room. Engaging the Mid or Low position compensates for this without requiring room treatment or DSP processing. The High position is correct for most typical furnished living rooms.

---

Cabinet and Finish

The Model Seven cabinet is built from structurally reinforced ¾-inch MDF with a 1-inch front baffle — the additional thickness at the front baffle resists the acoustic pressure and mechanical force of the 13-inch woofer without flexing, which would introduce cabinet colorations. The drivers are mounted in non-resonant die-cast aluminum frames, which are stiffer and better damped than stamped steel frames. Real-wood veneer is applied with matched grain, and the overall presentation — wide baffle, asymmetric driver layout, zinc-cast vintage KLH logo on the magnetic grille — reads as a deliberate and successful homage to mid-century hi-fi aesthetics without feeling like pastiche.

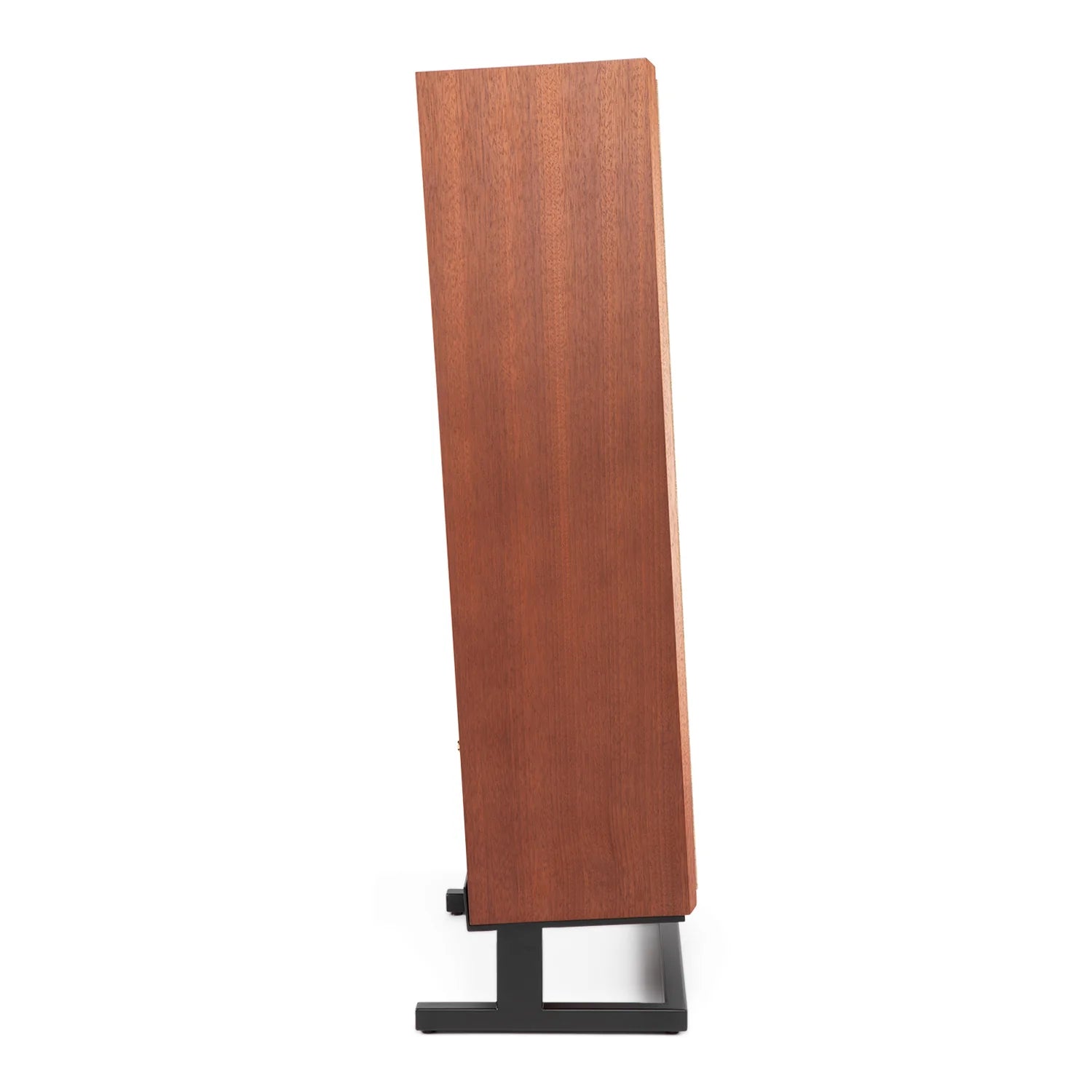

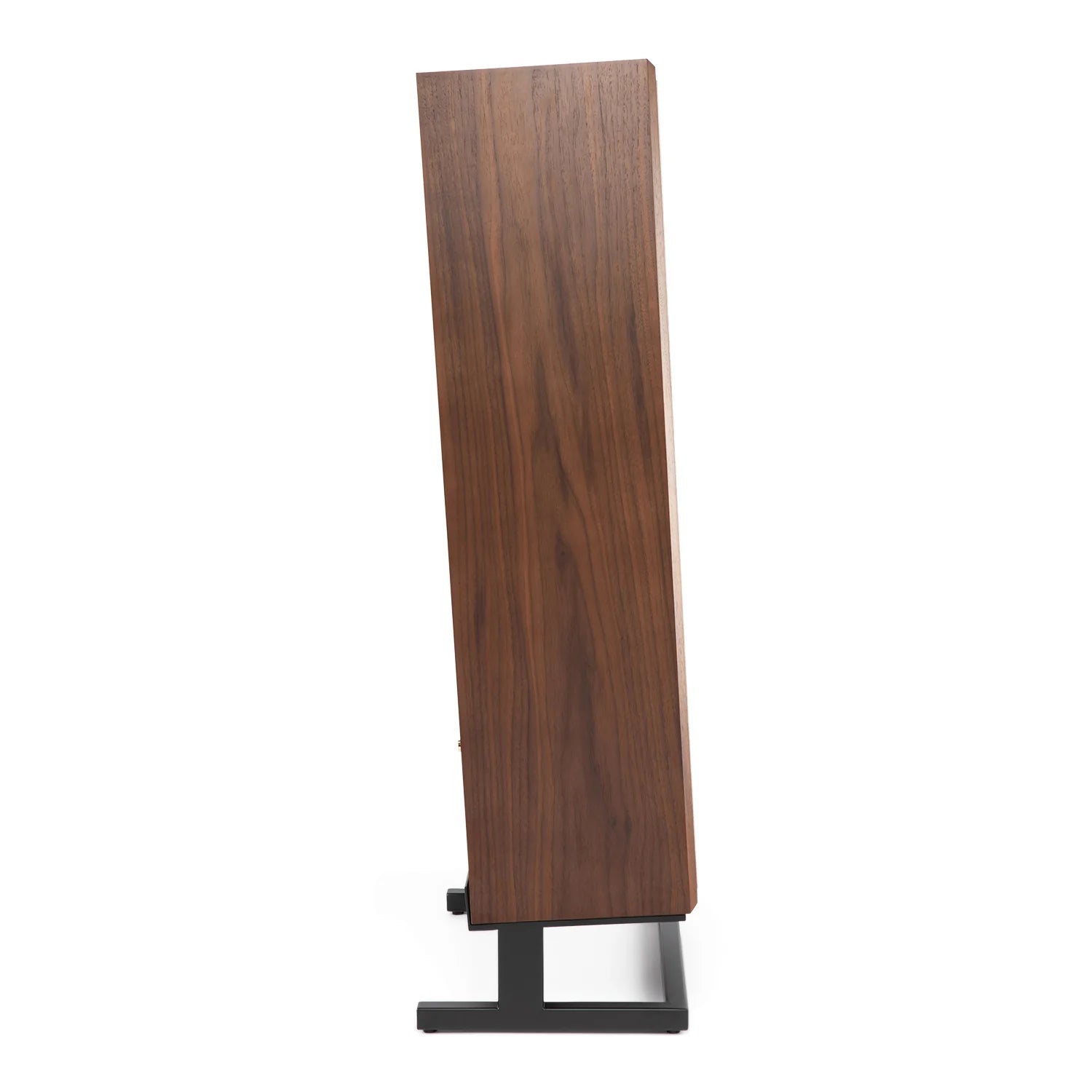

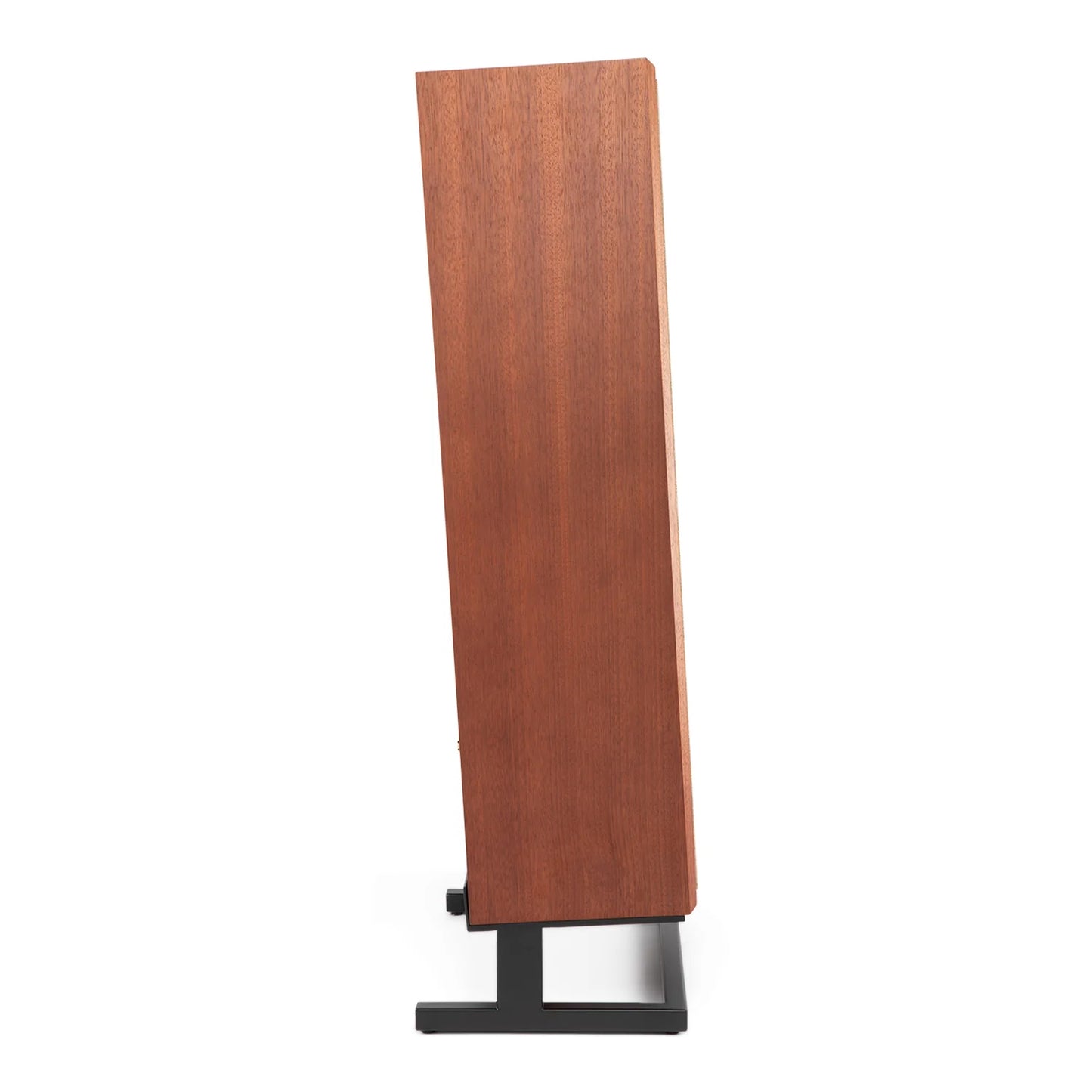

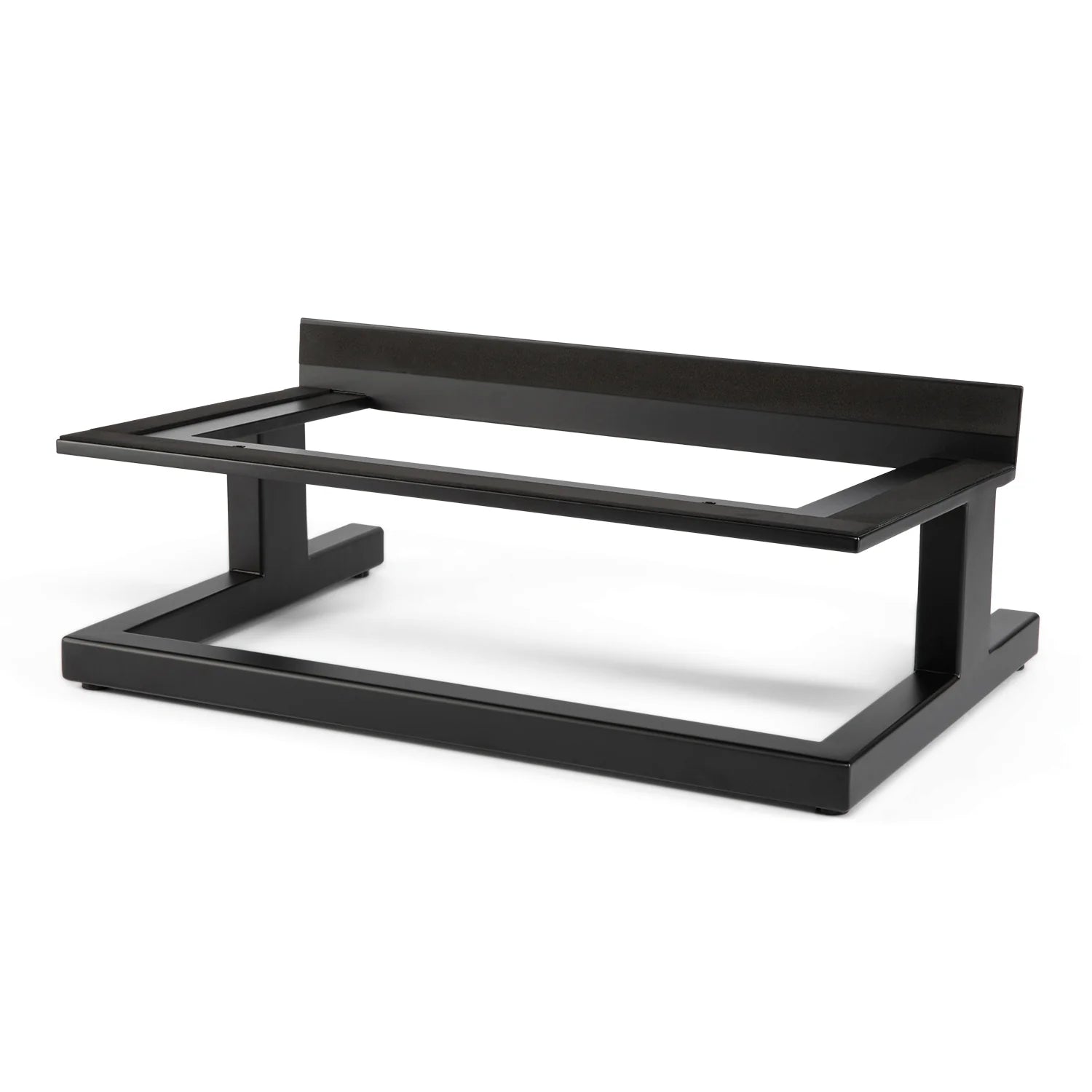

The included 3-degree slant riser base elevates the cabinet and angles the baffle toward the listening position, optimizing the time alignment of the three drivers relative to a seated listener. The slant riser adds approximately 5 inches to the total height, bringing the speaker to 41 inches tall with the base installed. Magnetic grilles are available in four fabric options.

---

How It Compares: Model Seven vs. KLH Model Five

The KLH Model Five is the three-way acoustic suspension speaker that the Model Seven logically grows from — same brand heritage, same design philosophy, smaller execution. The Model Five uses a 10-inch woofer and a 1-inch tweeter without a dedicated midrange. It is narrower, lighter, more affordable, and more compact. For listeners with smaller rooms, lower power amplifiers, or tighter budgets, the Model Five is an outstanding speaker. The Model Seven is the right choice when the room is larger, the amplifier is more powerful, and the listener specifically wants the advantages of a true three-way design — the dedicated midrange driver, the larger woofer's bass authority, and the wider baffle's imaging stability. Both speakers share the acoustic suspension principle and the mid-century aesthetic; the Model Seven is simply the more fully realized statement.

---

Key Specifications

• Type: Three-way acoustic suspension (sealed) floorstanding loudspeaker
• Woofer: 13" pulp-paper cone with ½-roll rubber suspension; 2" flat-wire voice coil; die-cast aluminum frame; 2.5 cu. ft. sealed enclosure
• Midrange: 5" pulp-paper cone with ½-roll rubber suspension; die-cast aluminum frame; isolated sealed sub-enclosure
• Tweeter: 1" aluminum dome with soft rubber suspension; precision-machined aluminum faceplate
• Crossover Frequencies: 300 Hz (woofer/midrange); 3,500 Hz (midrange/tweeter)
• Crossover Type: Third-order electro-acoustic (18 dB/octave); 19-component network with air-core and iron-core inductors
• Frequency Response: 38 Hz–20 kHz (−6 dB); bass extension to ~26 Hz at −10 dB
• Sensitivity: 88 dB (2.83V/1m, free field); ~91 dB in-room
• Impedance: 4Ω nominal
• Power Handling: 250W RMS continuous; 1,000W peak
• Recommended Amplifier Power: 20W–250W
• Horizontal Dispersion: −6 dB at ±70° (140° total)
• Maximum In-Room SPL: 115 dB
• Maximum Output at 45 Hz: 111 dB
• Acoustic Balance Control: 3-position; adjusts output above 400 Hz at 0 / −1.5 / −3.0 dB (High/Mid/Low)

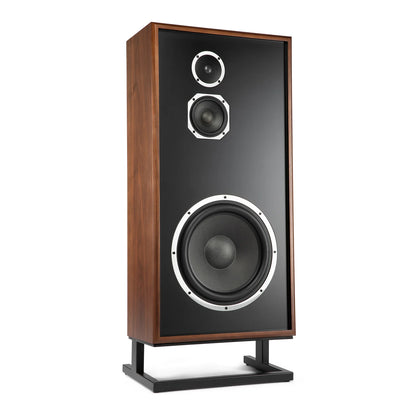

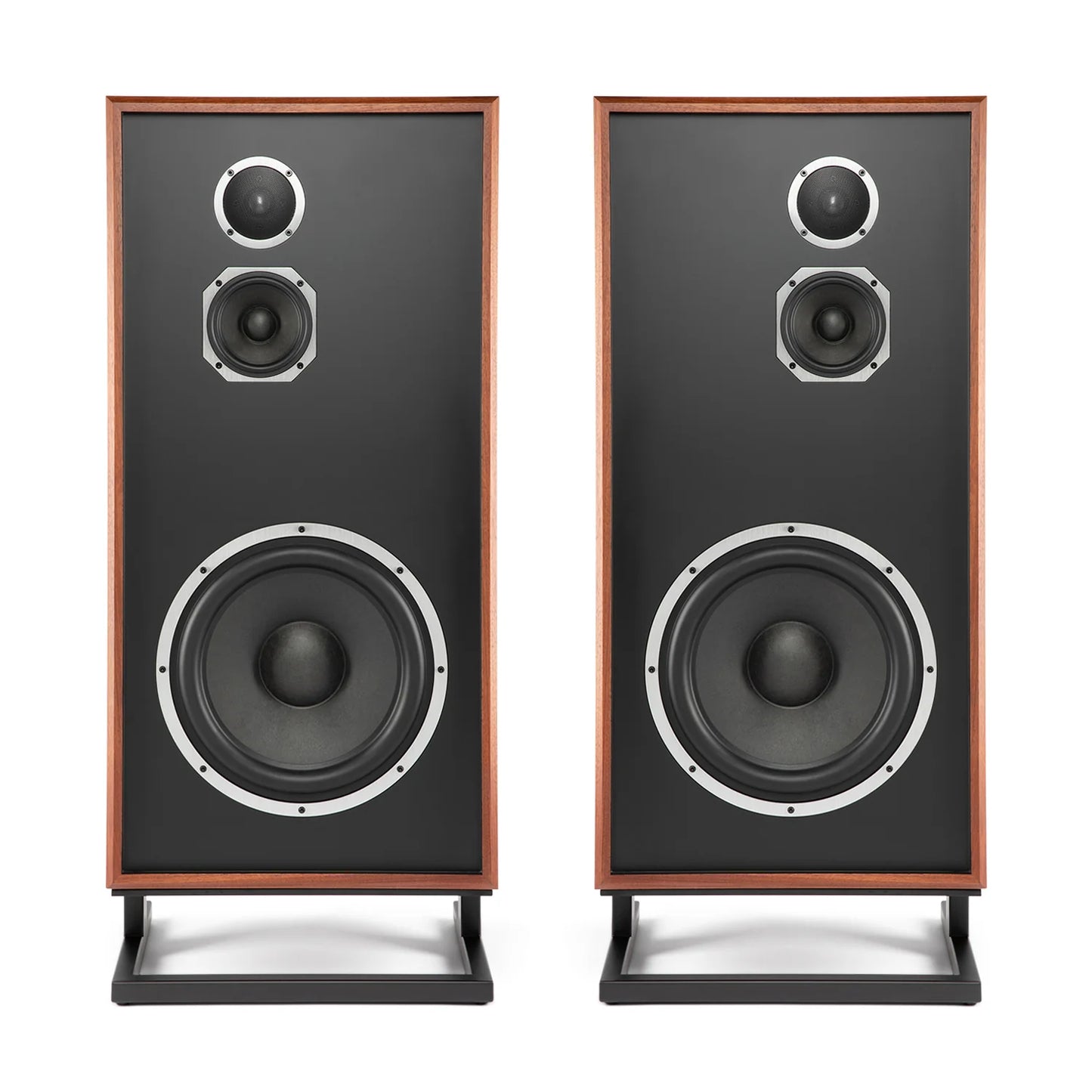

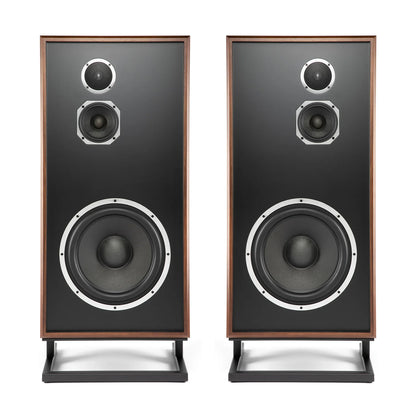

• Driver Layout: Asymmetric (offset from center); mirrored left/right pairs
• Cabinet: Structurally reinforced ¾" and 1" front-baffle MDF; acoustic suspension sealed

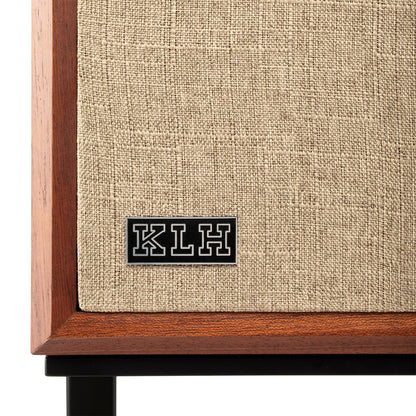

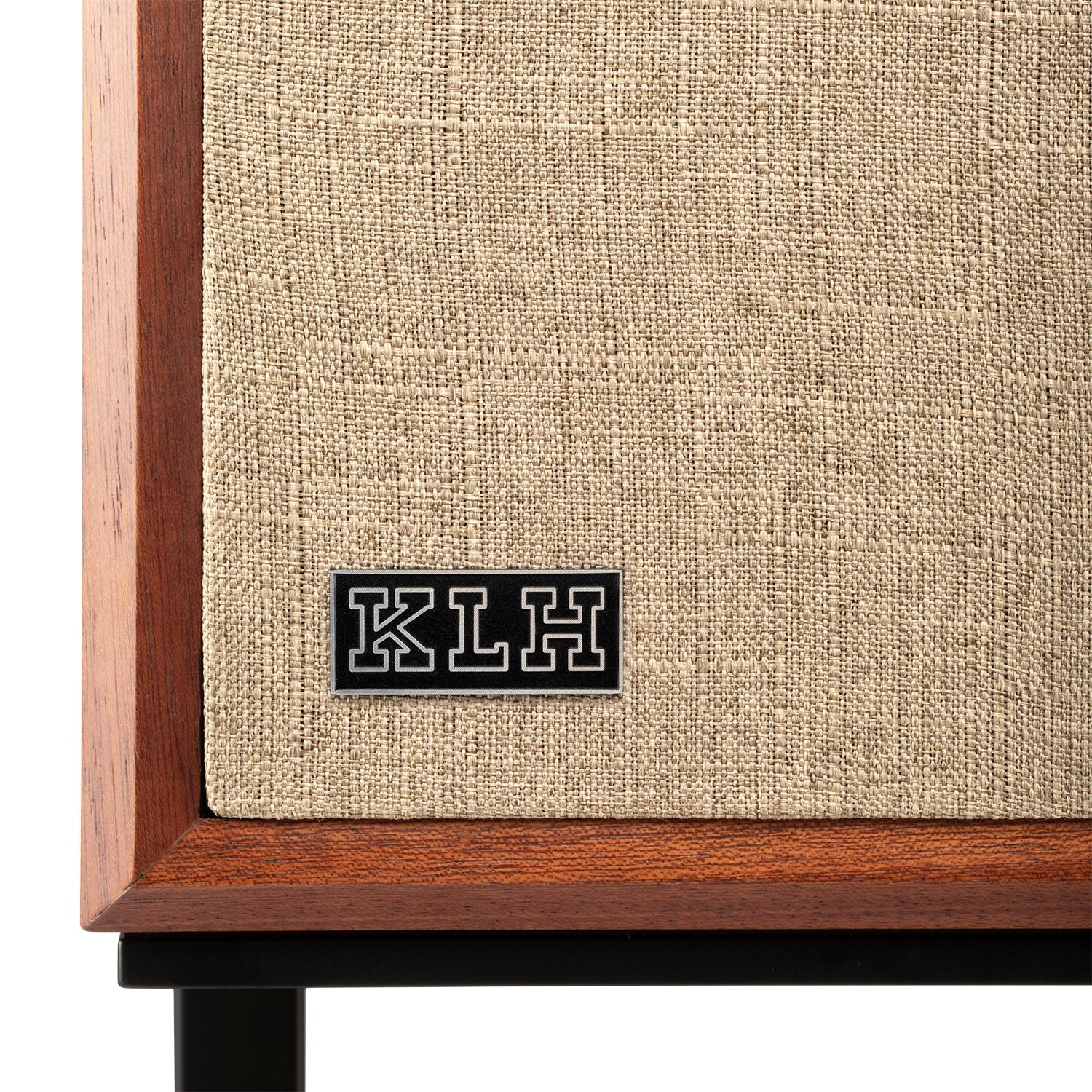

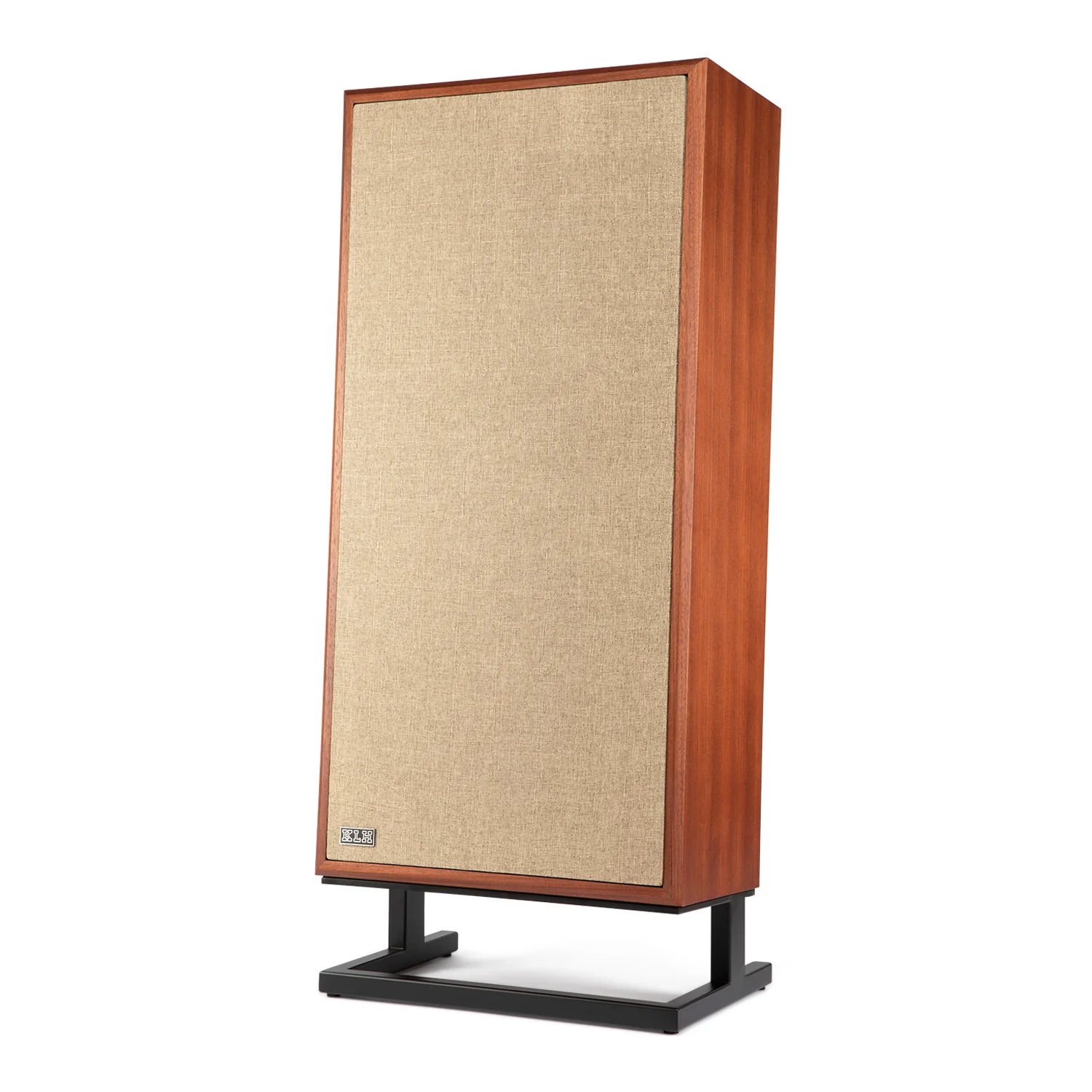

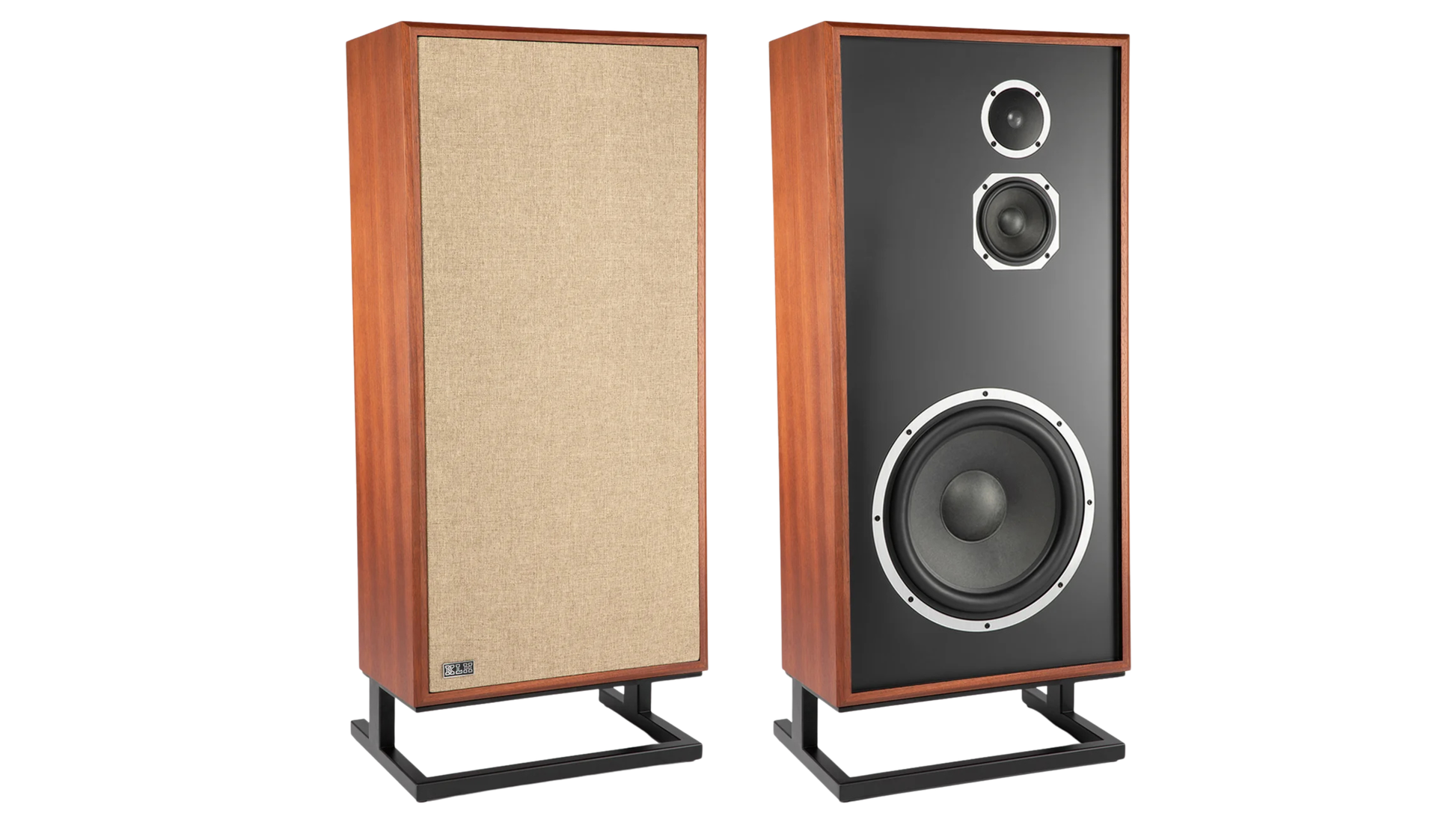

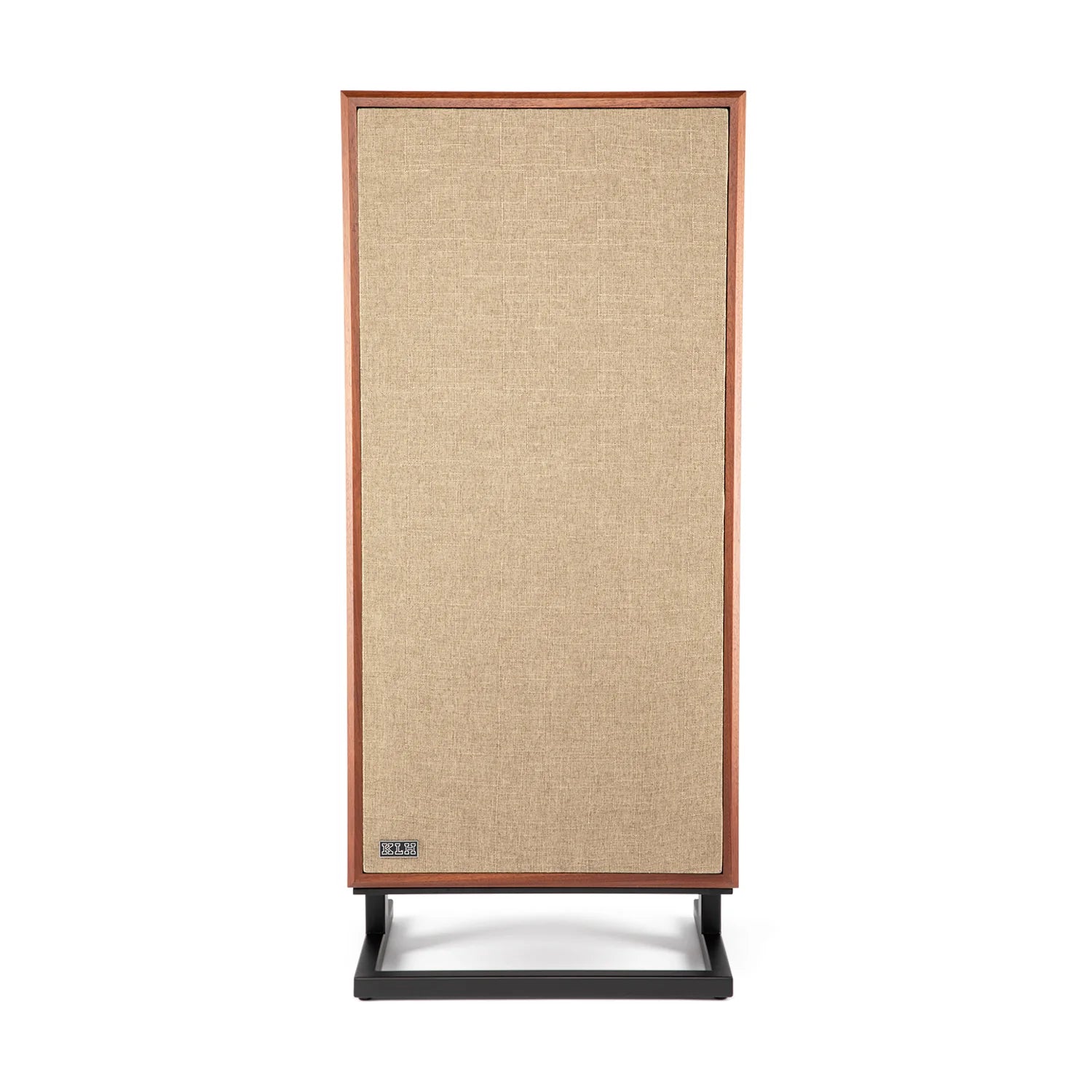

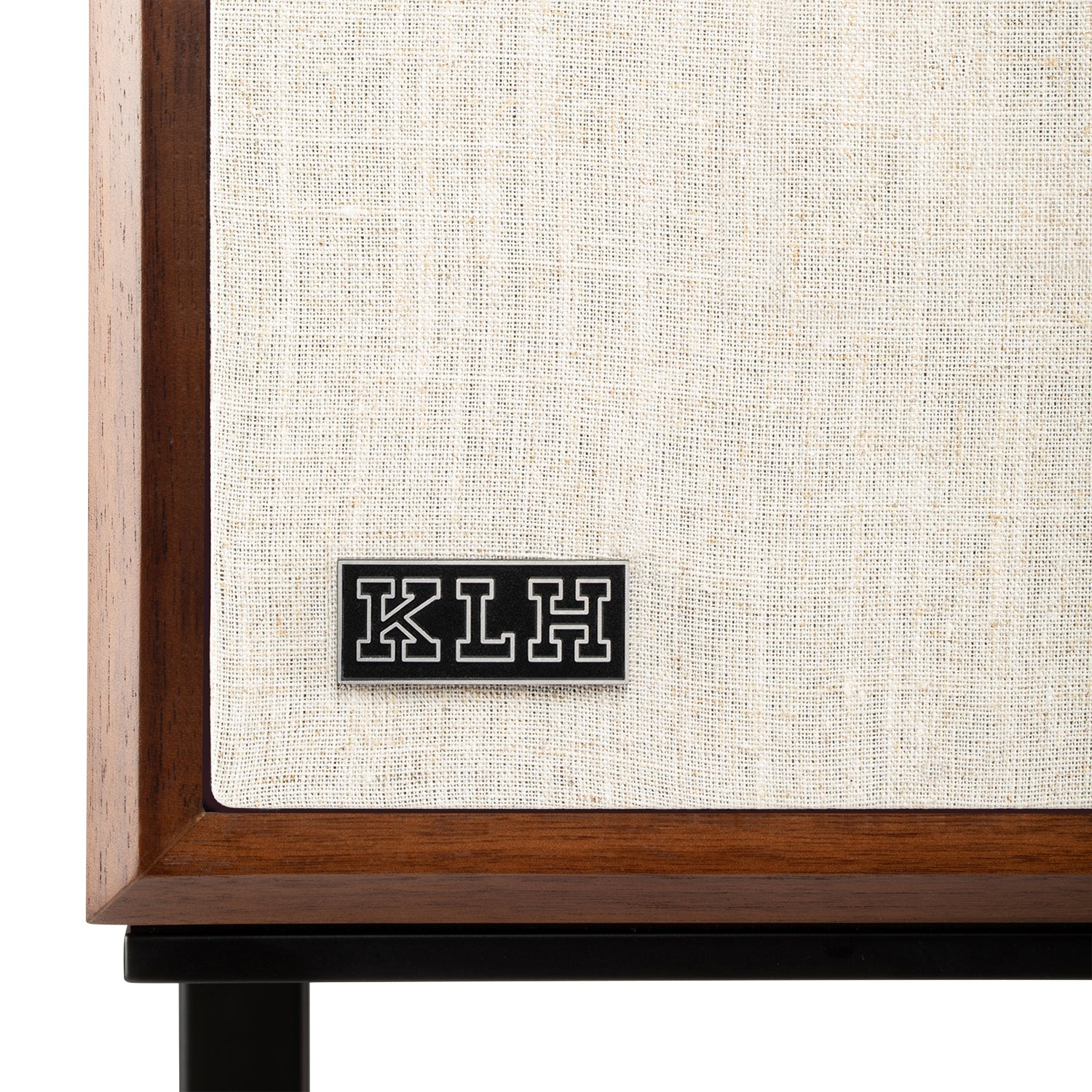

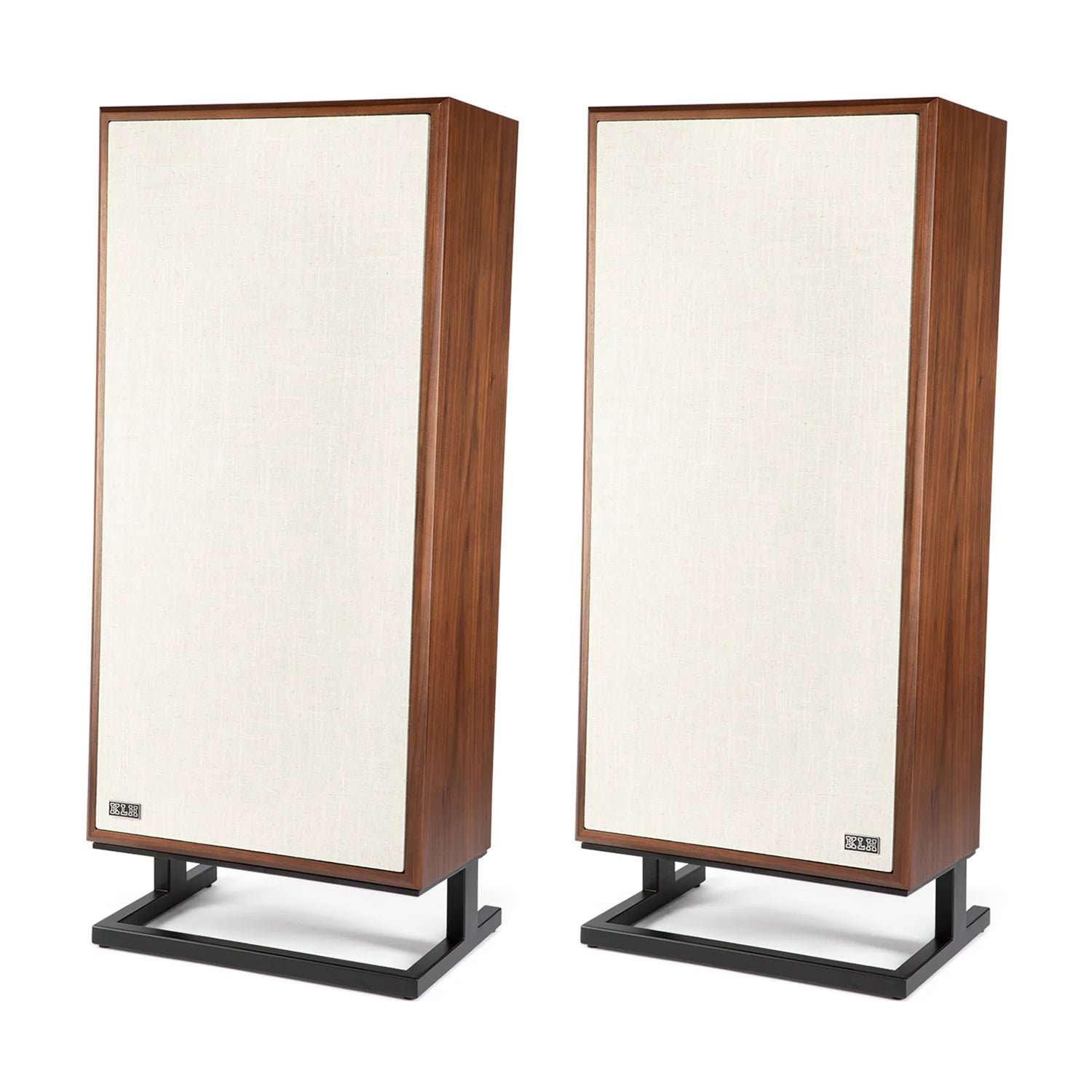

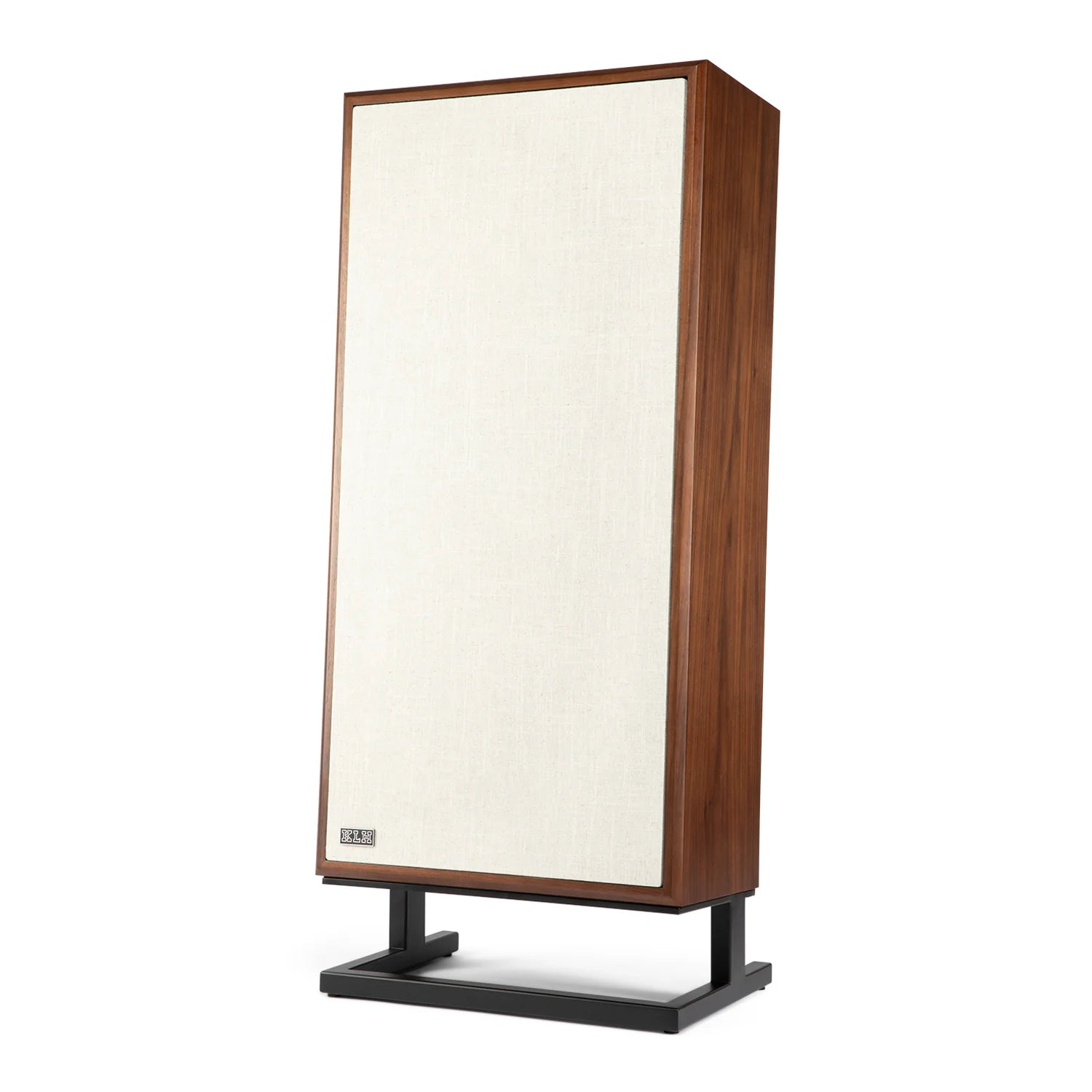

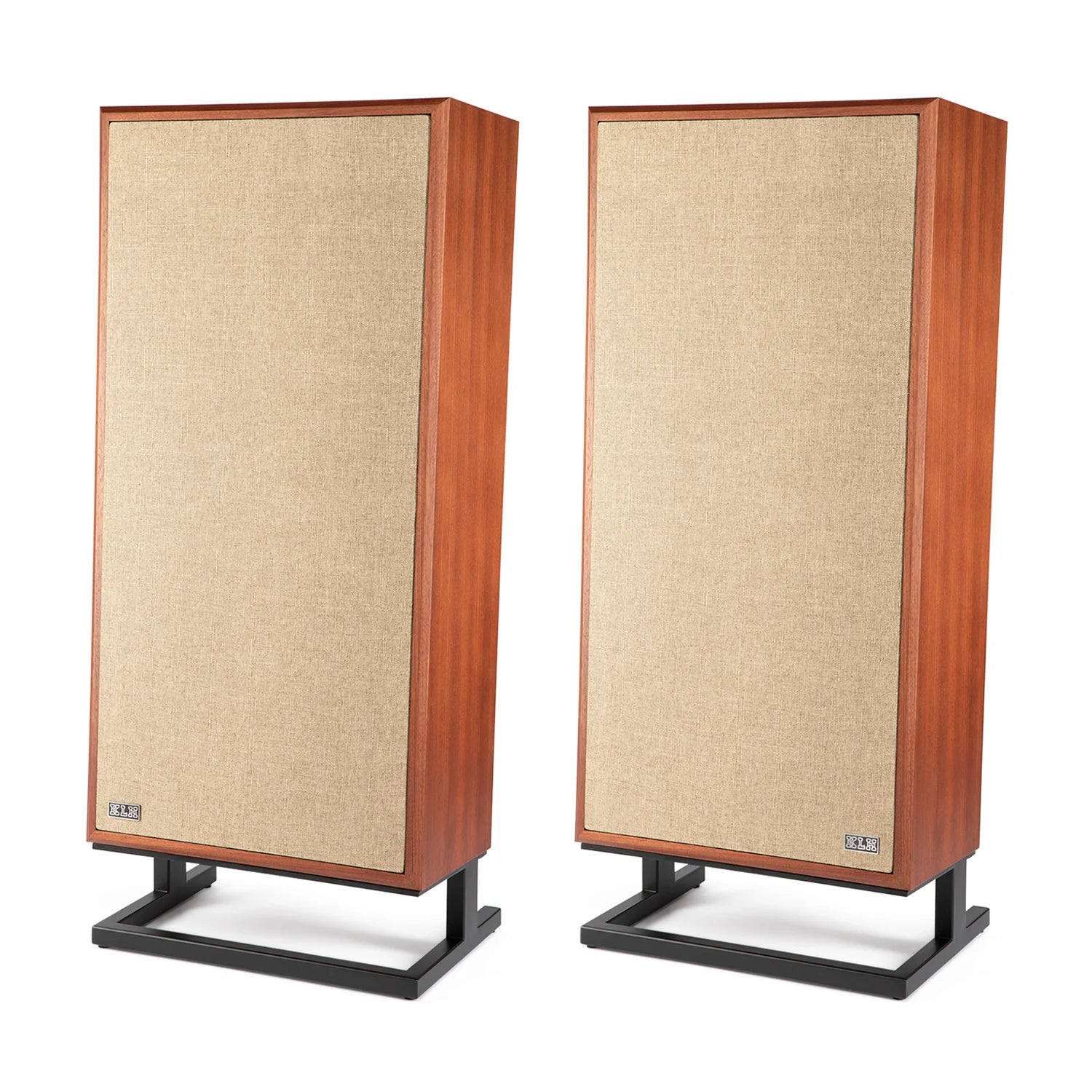

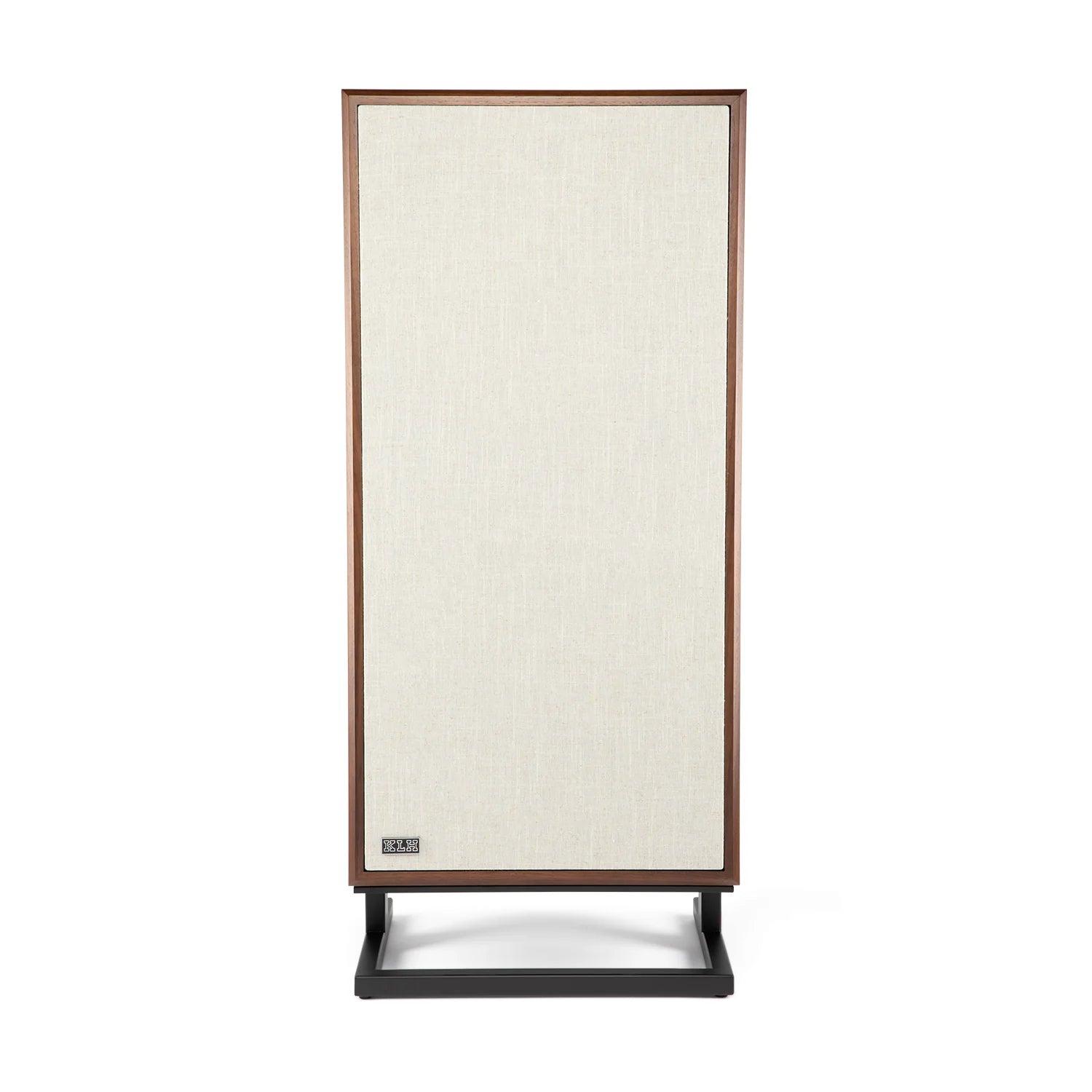

• Grille: Magnetic attachment; 4 fabric options; zinc-cast vintage KLH logo
• Riser Base: Included; 3-degree slant; matte black
• Binding Posts: Gold-plated 5-way

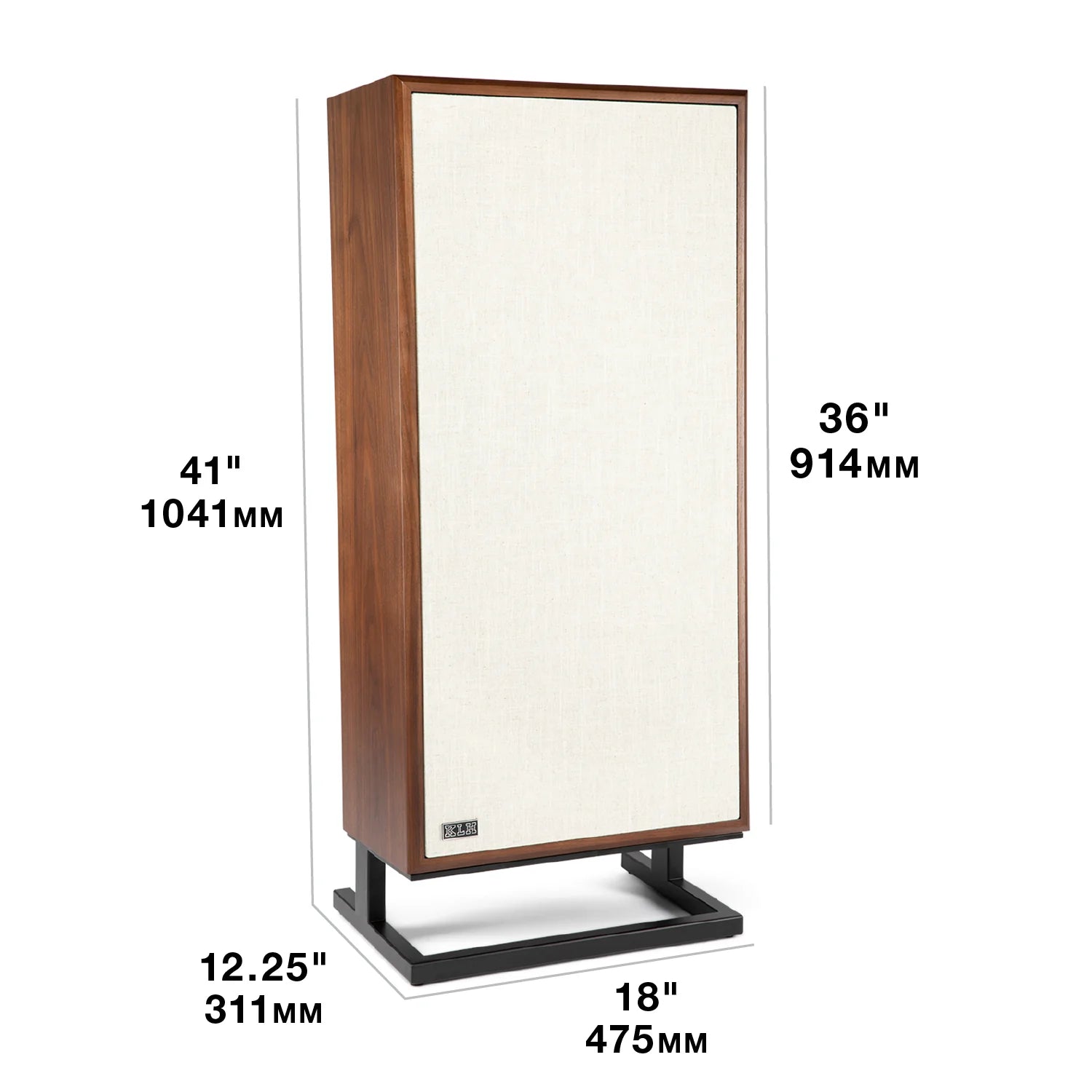

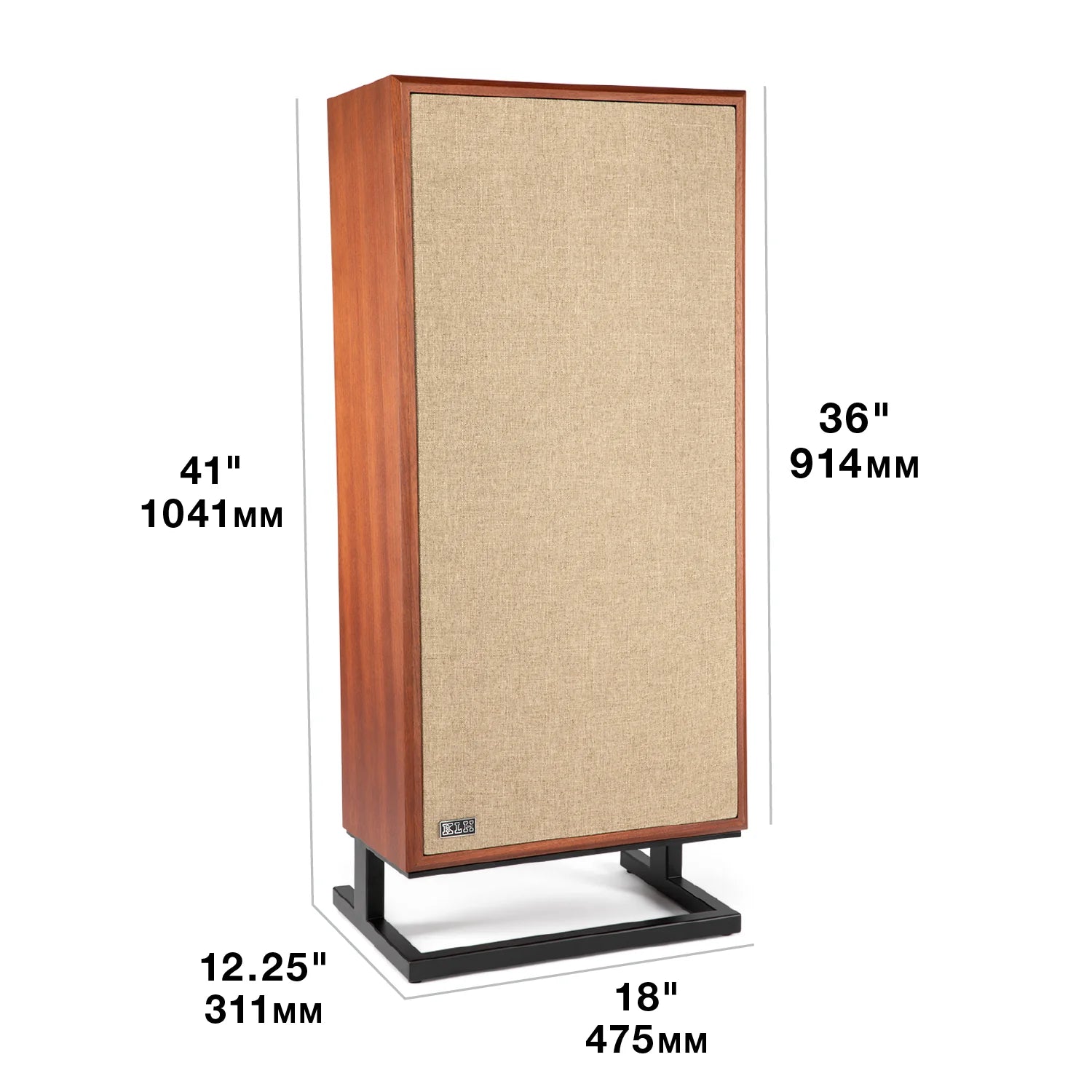

• Dimensions (with riser): 18"W × 41"H × 12.25"D
• Dimensions (without riser): 18"W × 36"H × 9.75"D
• Weight: 68 lbs each (78.8 lbs with riser)
• Sold: As mirrored pairs
• Warranty: 10 years parts and labor (KLH Audio USA)


---

Why Buy From All Elite Audio

All Elite Audio is an authorized KLH dealer, and the Model Seven is a speaker worth hearing before you decide. The acoustic suspension character, the wide baffle imaging, and the three-way midrange are qualities that reveal themselves clearly in a listening session — reading about them is useful context, but the experience of what a 13-inch sealed woofer actually does to the lower registers of music, and what a fully isolated midrange driver does to the clarity of voices, is more persuasive than any description.

Call 443-402-5055, text 443-402-5064, or visit us at 1921 York Rd, Timonium, MD 21093.

---

Frequently Asked Questions

What makes the KLH Model Seven different from a typical floorstanding speaker at this price?

Most floorstanding loudspeakers at this price use a ported (bass-reflex) enclosure, a two-way driver configuration with a crossover point in the midrange band, and a 6- to 8-inch woofer. The Model Seven does three things differently. It uses an acoustic suspension sealed enclosure, which produces tighter, more linear bass that starts and stops cleanly rather than having the tuned resonance character of a ported design. It uses a 13-inch woofer — larger than any competitor at this price we are aware of — whose high-volume displacement compensates for the sealed topology's efficiency limitation and produces bass authority that smaller woofers cannot match. And it uses a dedicated 5-inch midrange driver in its own isolated sealed sub-enclosure, which means the most critical band of human hearing is handled by a driver optimized specifically for that task, rather than by the top octaves of the woofer or the bottom octaves of the tweeter.

What is acoustic suspension and why does KLH use it?

Acoustic suspension is the design principle co-developed by Edgar Villchur and Henry Kloss in the early 1950s and commercialized first at Acoustic Research and then at KLH. In a sealed enclosure, the air inside the cabinet acts as an air spring — the primary restoring force for the woofer cone. Because air behaves more linearly than most mechanical suspensions, the cone tracks the input signal more accurately over a wider range of excursion. The rolloff below resonance is gradual rather than steep, meaning the speaker continues to reproduce low-frequency content below its rated specification — just at reduced level — rather than cutting off sharply. The main trade-off is that sealed designs are typically less efficient than ported designs of similar size, which is why the Model Seven uses a 13-inch woofer rather than a smaller one: the additional displacement compensates for the efficiency penalty of the sealed topology.

How does the three-way design improve on a two-way?

In a two-way design, the woofer crosses over to the tweeter somewhere in the midrange band — the region where the ear is most sensitive to timbre, phase, and distortion. This crossover point creates a transition zone where the characteristics of both drivers are present and where the design must carefully manage their interaction. A dedicated midrange driver eliminates this compromise: the woofer handles bass up to 300 Hz, the midrange handles 300 Hz to 3,500 Hz exclusively, and the tweeter handles everything above 3,500 Hz. Each driver is optimized for its specific range without the constraints imposed by needing to also cover adjacent frequency regions. The 5-inch midrange driver in the Model Seven is also isolated in its own sealed sub-enclosure, preventing back-pressure from the 13-inch woofer from modulating its behavior during bass-heavy program material.

Why is the front baffle so wide and why does it matter?

The 18-inch front baffle serves a specific acoustic purpose in addition to its visual impact. Every loudspeaker has a baffle diffraction step — a frequency below which the driver radiates in a full half-space (forward hemisphere) and above which sound begins to wrap around the cabinet edges and lose the baffle's reinforcement. On a narrow cabinet, this transition occurs in the midrange band, requiring the crossover to compensate for a level drop in a frequency region where such compensation introduces phase and timing complications. The Model Seven's wide baffle pushes this transition lower in frequency where the correction is easier and less audible. A practical consequence is that the speaker projects its direct sound forward with less energy wrapping around to the rear and side walls, which reduces early reflections and produces more stable, precise imaging — particularly in rooms where the speakers must be placed close to the rear wall.

What amplifier do I need to drive the Model Seven?

KLH recommends amplifier power between 20 and 250 watts. The speaker's 88 dB free-field sensitivity (approximately 91 dB in a typical furnished room) means it is not particularly demanding in terms of efficiency, but the 4-ohm nominal impedance means the amplifier will deliver roughly double its 8-ohm power rating into this load. Confirm that your amplifier is stable and rated into 4-ohm loads. A quality amplifier of 50–150 watts per channel into 4 ohms is sufficient for most rooms at reference listening levels. The Model Seven has been demonstrated publicly with Bryston, Parasound, and other quality amplifier brands. If you are unsure whether your current amplifier is a good match, we are glad to discuss it before you purchase.

What does the Acoustic Balance Control do?

The three-position Acoustic Balance Control on the rear panel adjusts the speaker's output above 400 Hz. The High position is the neutral reference — the speaker's designed response. The Mid position attenuates frequencies above 400 Hz by approximately 1.5 dB, and the Low position attenuates by approximately 3.0 dB. The purpose is to accommodate different room acoustic environments. A very live, reflective room — hard floors, glass surfaces, minimal soft furnishings — will produce more cumulative high-frequency energy at the listening seat than a heavily damped room with carpet and upholstered furniture. Switching from High to Mid or Low in a live room is the acoustic equivalent of applying a gentle treble reduction without introducing any signal processing. Most listeners in typically furnished rooms will find the High position correct. Experimenting with the Mid position in brighter rooms is recommended before making permanent adjustments.

How does the Model Seven compare to the KLH Model Five?

The Model Five is a two-way acoustic suspension speaker with a 10-inch woofer and a 1-inch tweeter — smaller, lighter, more compact, and more affordable than the Model Seven. Both share the sealed acoustic suspension principle, the wide-baffle cabinet philosophy, and the mid-century aesthetic. The Model Seven adds a dedicated 5-inch midrange in an isolated sub-enclosure, a larger 13-inch woofer with a flat-wire voice coil, and a substantially larger overall cabinet. The Model Five is the right choice for smaller rooms, more modest amplifiers, and listeners who want the KLH character without the Model Seven's physical scale and cost. The Model Seven is the right choice when bass authority, three-way midrange clarity, and statement-level performance are the priorities.

Can the Model Seven be placed close to the rear wall?

Yes — this is a genuine design advantage of the acoustic suspension sealed enclosure and wide-baffle architecture. Ported speakers have a port that radiates from the rear or bottom of the cabinet and requires some clearance from the wall to avoid boundary reinforcement that skews the bass response. The Model Seven's sealed enclosure has no port, so wall proximity affects only the broad diffuse bass reinforcement that any speaker experiences near a boundary — which is generally manageable with the Acoustic Balance Control and speaker toe-in. The shallow cabinet depth (9.75 inches without the riser) and the wide baffle's forward-projecting dispersion pattern both support near-wall placement without the imaging or bass quality penalties that affect many competing designs.

The drivers are positioned asymmetrically — why, and how do I set the speakers up?

The asymmetric driver layout — with the midrange and tweeter offset to one side of the baffle rather than centered — is a deliberate design choice with both sonic and historical roots. Centering a tweeter and midrange on a wide baffle places them far from the nearest baffle edge, which can cause edge diffraction artifacts that affect the off-axis response. The offset placement changes the path lengths to the baffle edges in ways that distribute diffraction energy more evenly across the frequency band. Historically, offset driver placement was also a characteristic of classic KLH and Advent speaker designs. The Model Seven is sold as a mirrored pair — one speaker with the drivers offset to the left and one with them offset to the right — which means when set up symmetrically in a room, the drivers face inward toward the listening position. Place the speaker with the drivers closer to the center of the room on each side, or with the drivers closer to the outside edge — KLH recommends experimenting with both orientations, as different rooms and listening positions respond differently.

What is included with the Model Seven?

Each Model Seven comes with the loudspeaker, a magnetic grille in your choice of four fabric colors, the matte black 3-degree slant riser base, and an owner's manual. The riser base is strongly recommended for installation — it optimizes the listening angle by tilting the baffle toward a seated listener and adds the appropriate height for the drivers to align with typical ear height in a listening chair.
