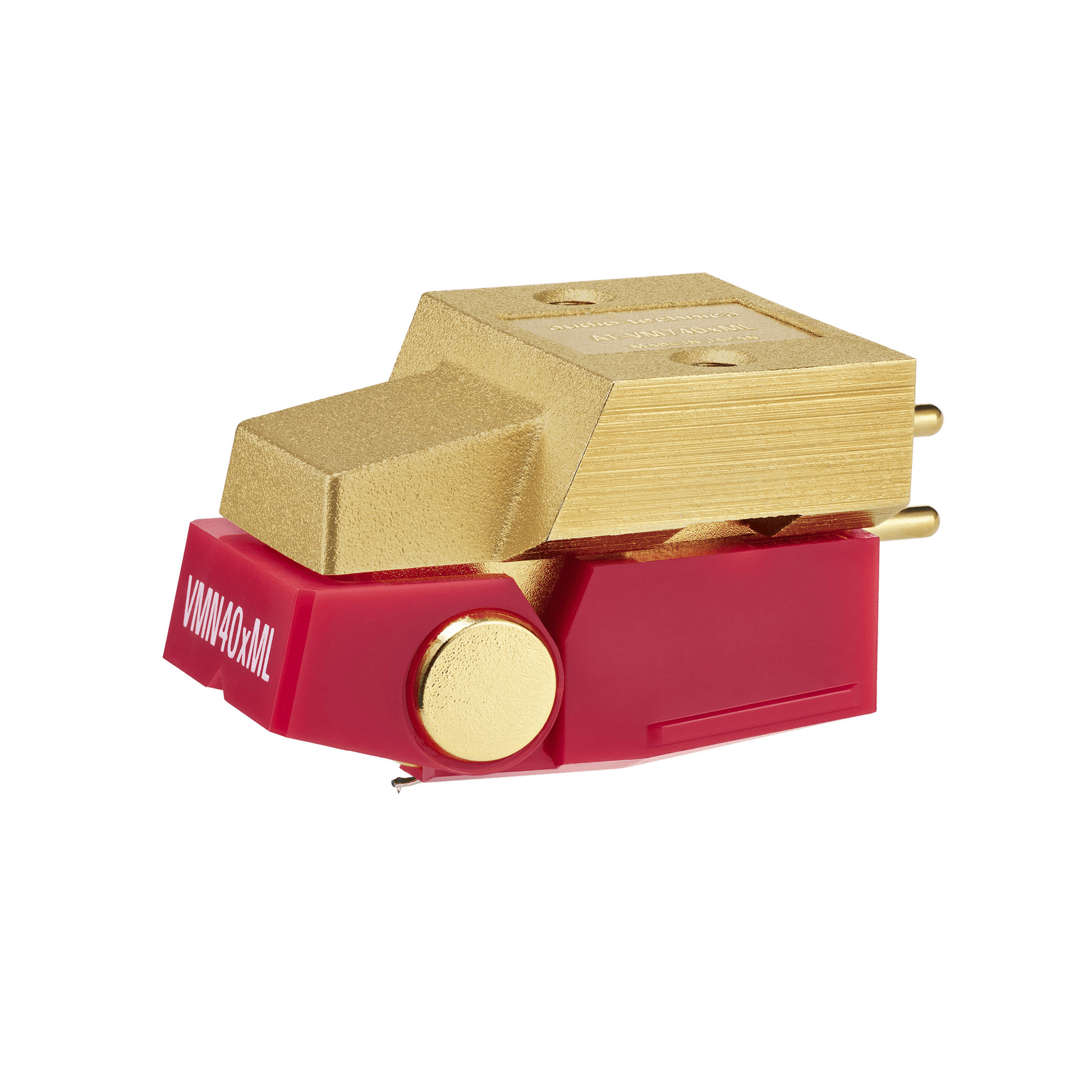

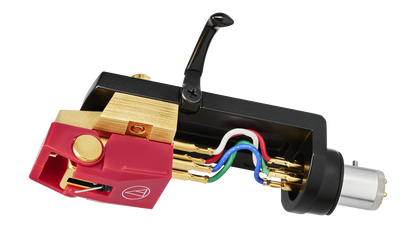

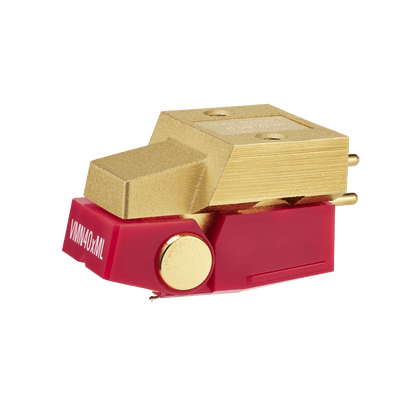

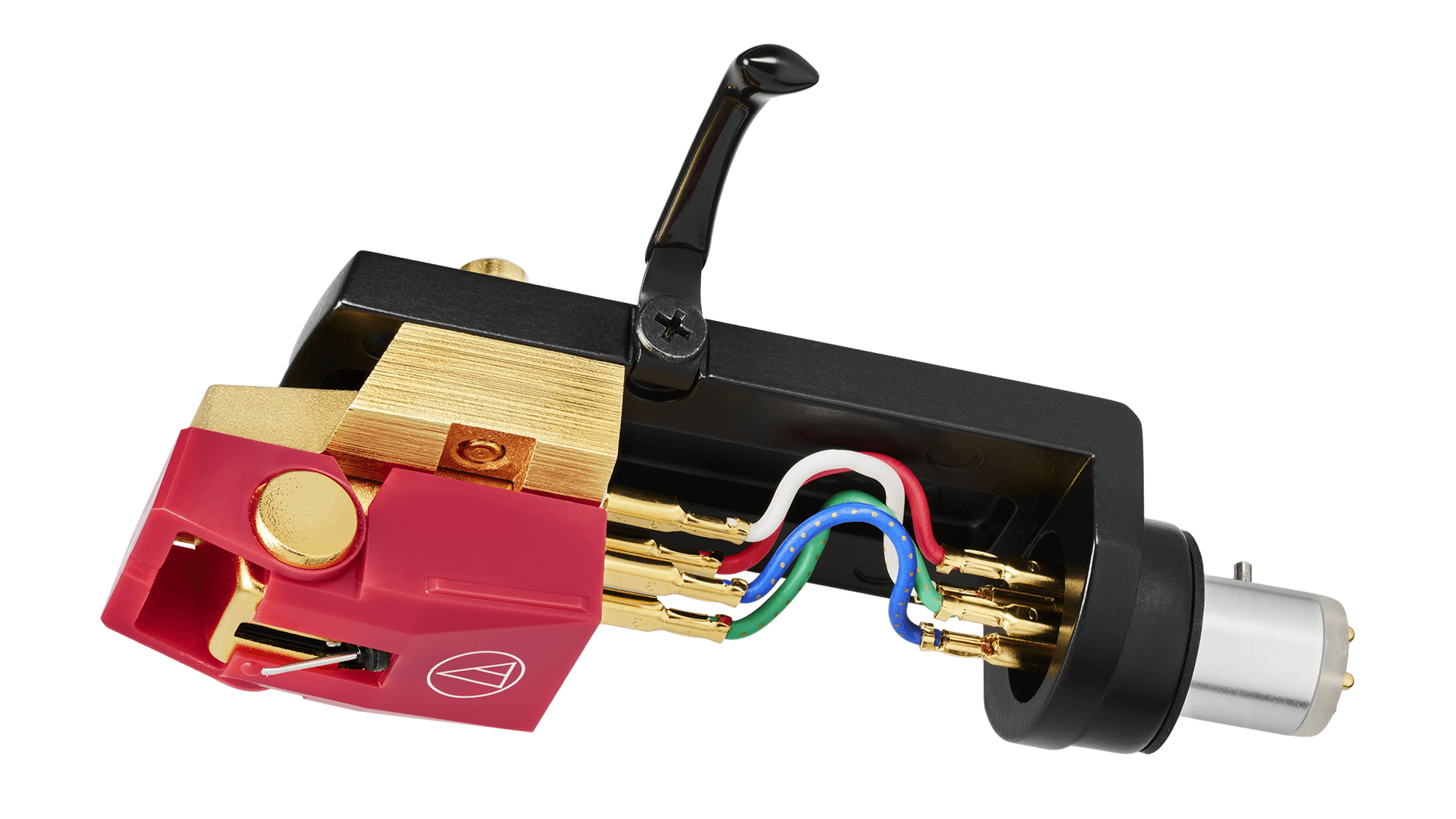

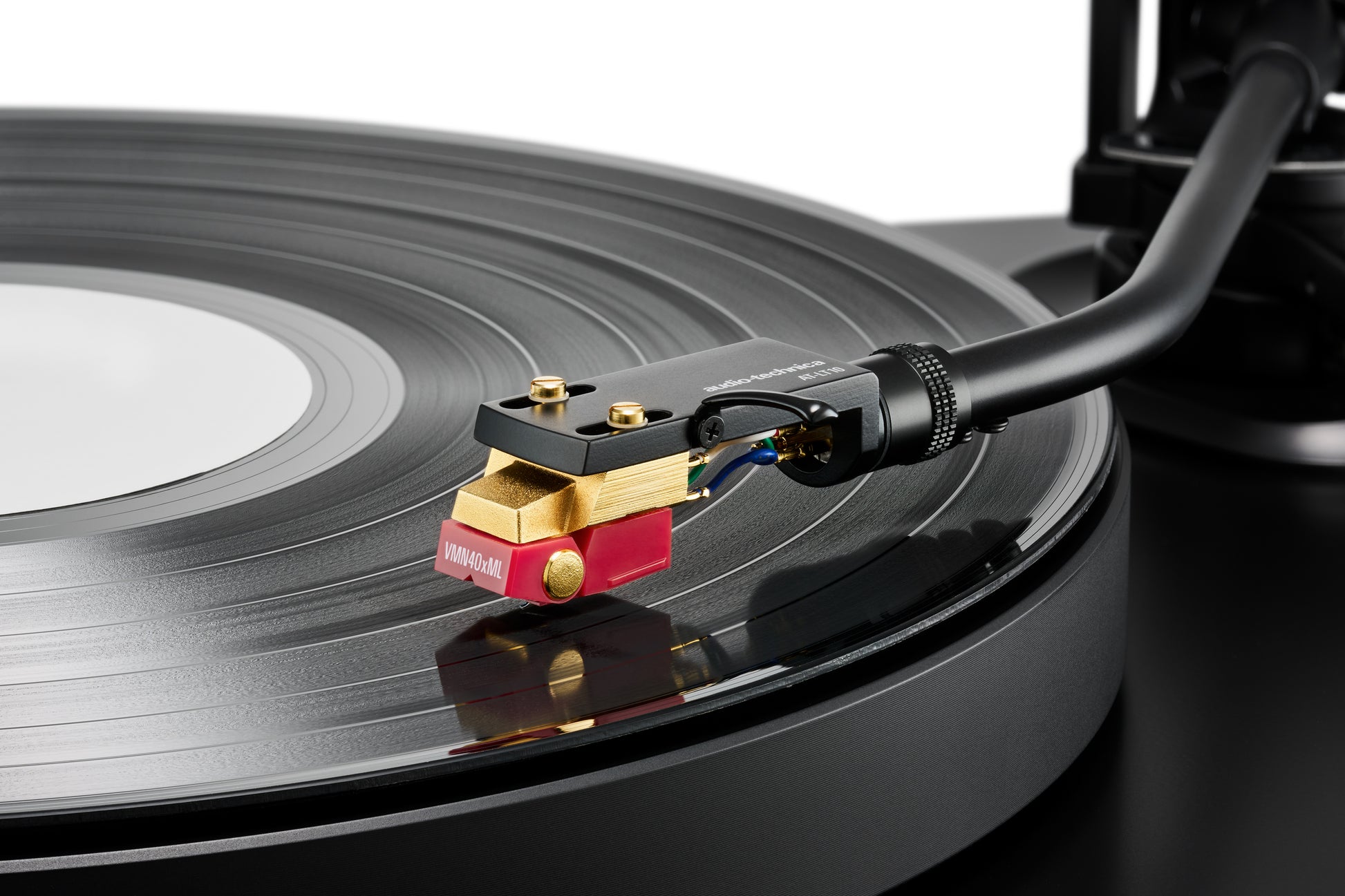

Audio Technica AT-VM740xML/H - Microlinear MM Phono Cartridge w/ Headshell

Audio-Technica AT-VM740xML – High-Resolution Dual Moving Magnet Cartridge with Microlinear Stylus

The Audio-Technica AT-VM740xML offers a significant leap in performance for audiophiles looking to elevate their analog setup. As part of the VMx premium series, it features an advanced dual moving magnet design, upgraded PCUHD coil construction, and a precision nude microlinear stylus. This cartridge is engineered for immersive stereo imaging, lifelike detail, and nuanced playback across all musical genres.

🔹 Precision Tracking & Detailed Playback

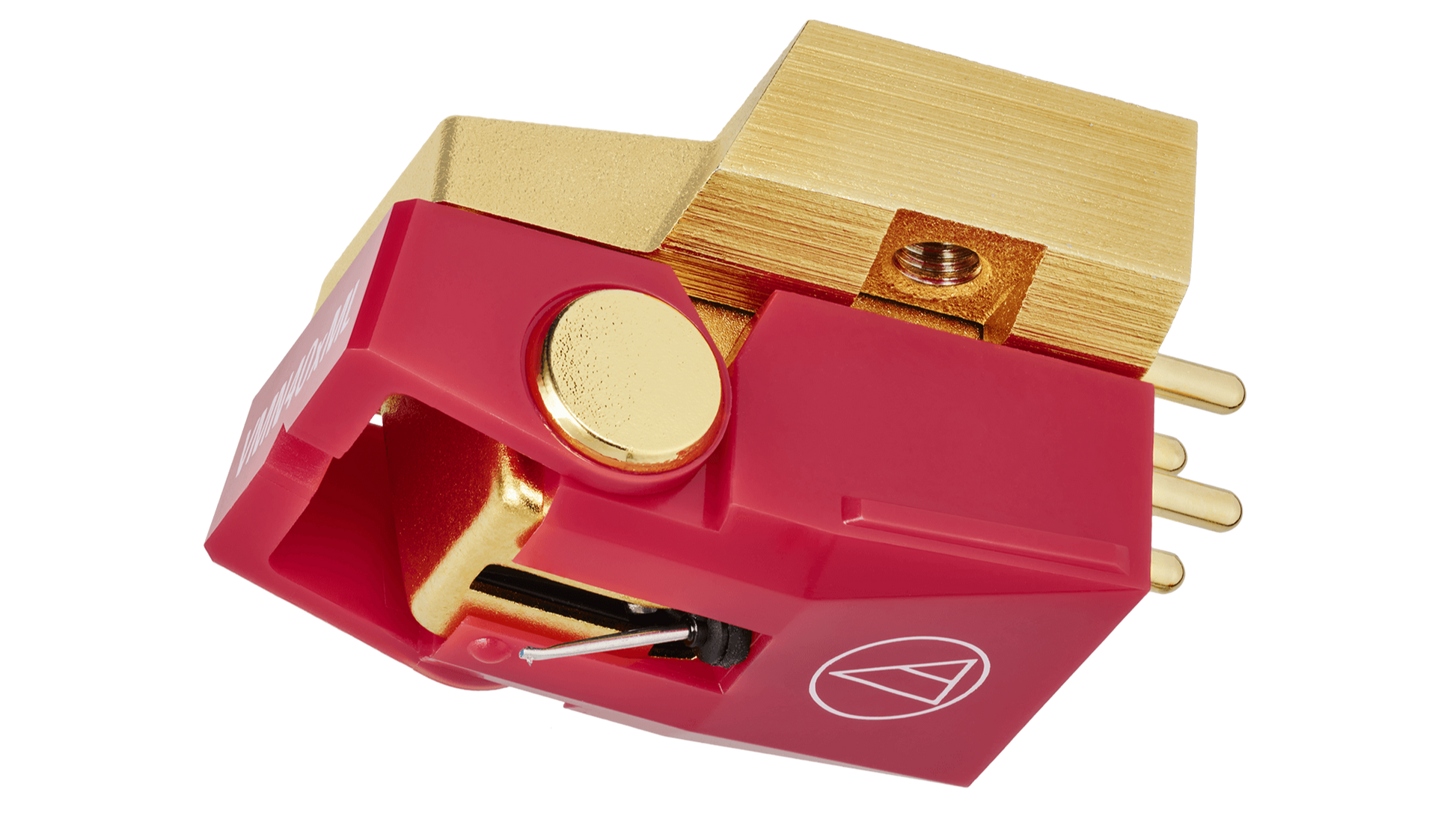

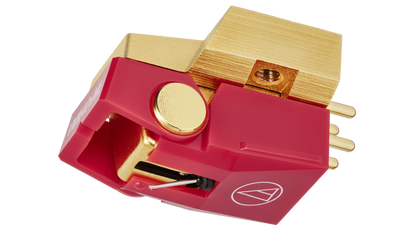

• Nude Microlinear Stylus (2.2 x 0.12 mil) – Provides exceptional groove contact, tracking even the most delicate high-frequency information with greater accuracy and lower distortion than elliptical or conical profiles.

• Aluminum Tapered Pipe Cantilever – Reduces mass at the stylus tip for quick signal transmission and improved tracking of dynamic passages.

• Tracking Force Range: 1.8 – 2.2 g (2.0 g recommended)

🔹 VMx Dual Magnet Generator for Audiophile Clarity

• Vertical Dual Magnet Configuration – Mimics the geometry of a master lacquer cutter head for precise stereo imaging and excellent channel separation.

• Paratoroidal PCUHD Coils – Uses Pure Copper Ultra High Drawability wire in a dual-stacked configuration for increased efficiency, richer tonal balance, and improved transient response.

• Center Shield Plate – Isolates left and right channels to minimize crosstalk, enhancing clarity across the soundstage.

🔹 Mechanical Stability & Easy Installation

• Die-Cast Aluminum Housing – Damps vibrations and reduces unwanted resonance, contributing to a cleaner, more accurate output.

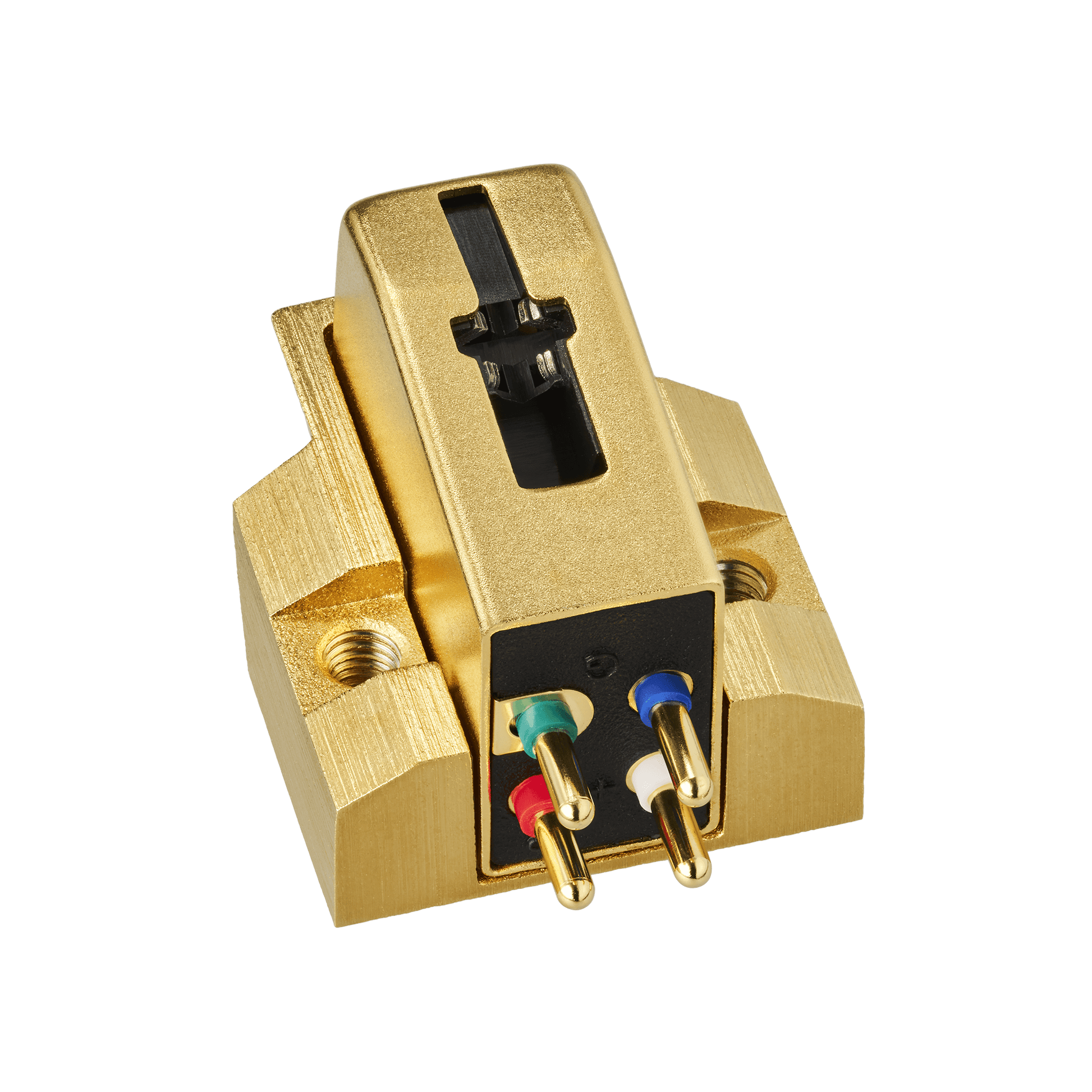

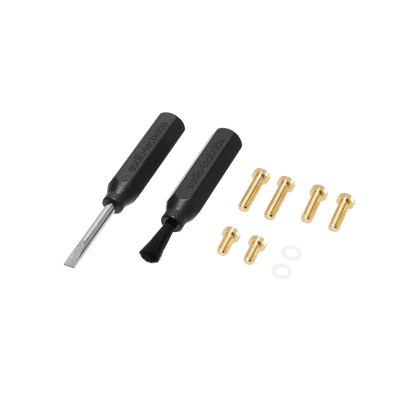

• Threaded Mounting Holes – Makes installation easy on 1/2" headshells and integrated tonearms—no nuts required.

• Stylus Protector with V-Cut – Flip-up design includes a visual cue for stylus positioning, helping you lower the needle with precision.

🔹 Flexible Compatibility & Upgrade Options

• Interchangeable Stylus Design – Works with most AT-VMx series replacement styli (excluding mono models), offering a path to future upgrades or profile changes.

• Standard 1/2" Mounting – Compatible with virtually all tonearms and turntables that support standard mounting configurations.

🔹 Technical Specifications

• Type: Dual Moving Magnet (VMx)

• Frequency Response: 20 – 25,000 Hz

• Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)

• Channel Separation: 25 dB (1 kHz)

• Output Balance: 1.0 dB (1 kHz)

• Coil Impedance: 3.2 kΩ (1 kHz)

• DC Resistance: 750 Ω

• Load Impedance: 47 kΩ

• Load Capacitance: 150 – 250 pF

• Cantilever: Aluminum tapered pipe

• Static Compliance: 20 × 10⁻⁶ cm/dyne

• Dynamic Compliance: 7 × 10⁻⁶ cm/dyne (100 Hz)

• Vertical Tracking Angle: 20°

• Dimensions (H x W x D): 29.0 mm × 18.3 mm × 17.5 mm

• Weight: 8.8 g

• Replacement Stylus: AT-VMN40xML

The AT-VM740xML delivers studio-level precision, dynamic responsiveness, and refined analog sound in a cartridge that’s easy to install and built to evolve with your system. A true standout in its class, it offers high-end performance that punches far above its price.
