Audio Technica AT-VM530xEN

Overview

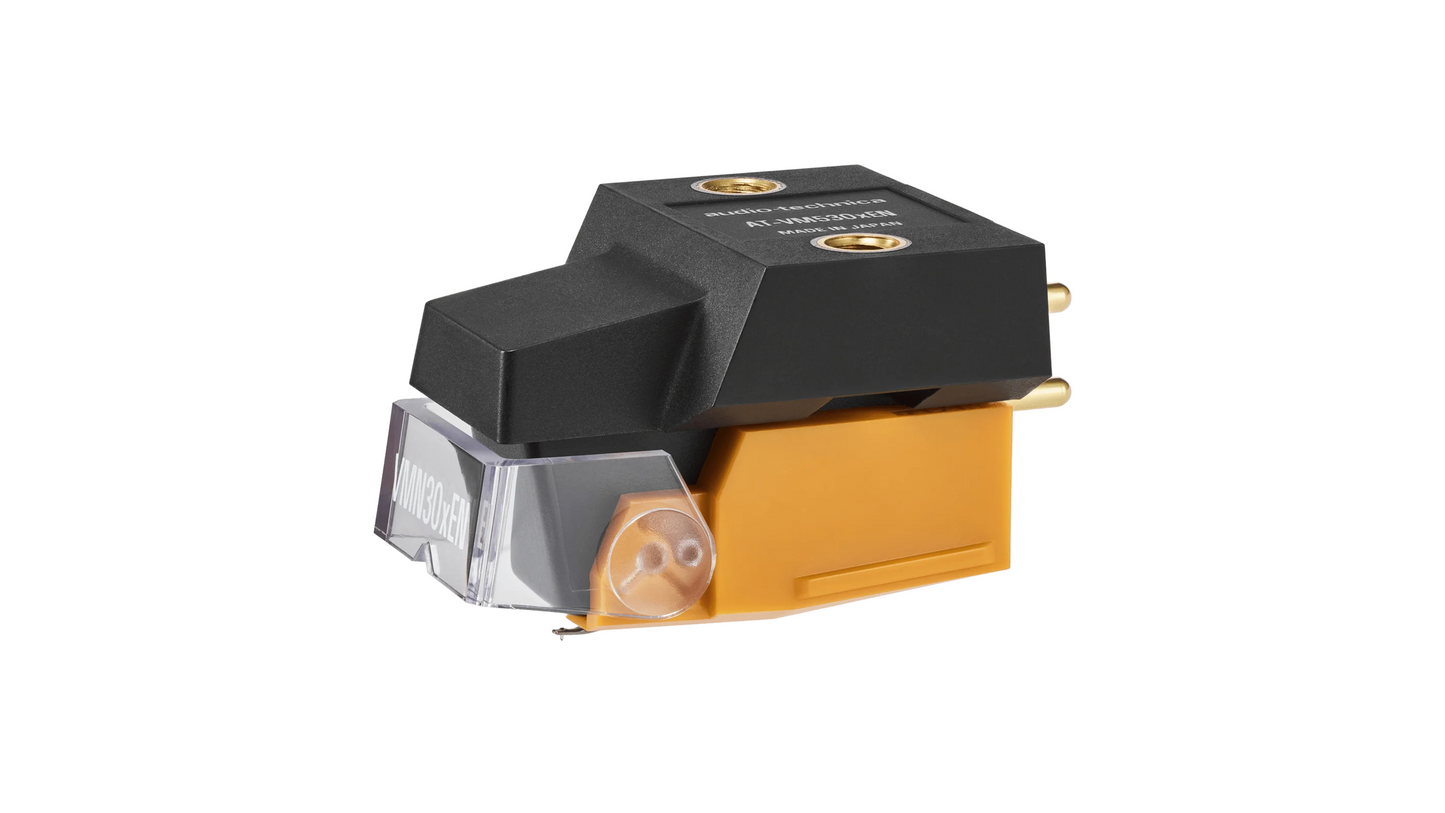

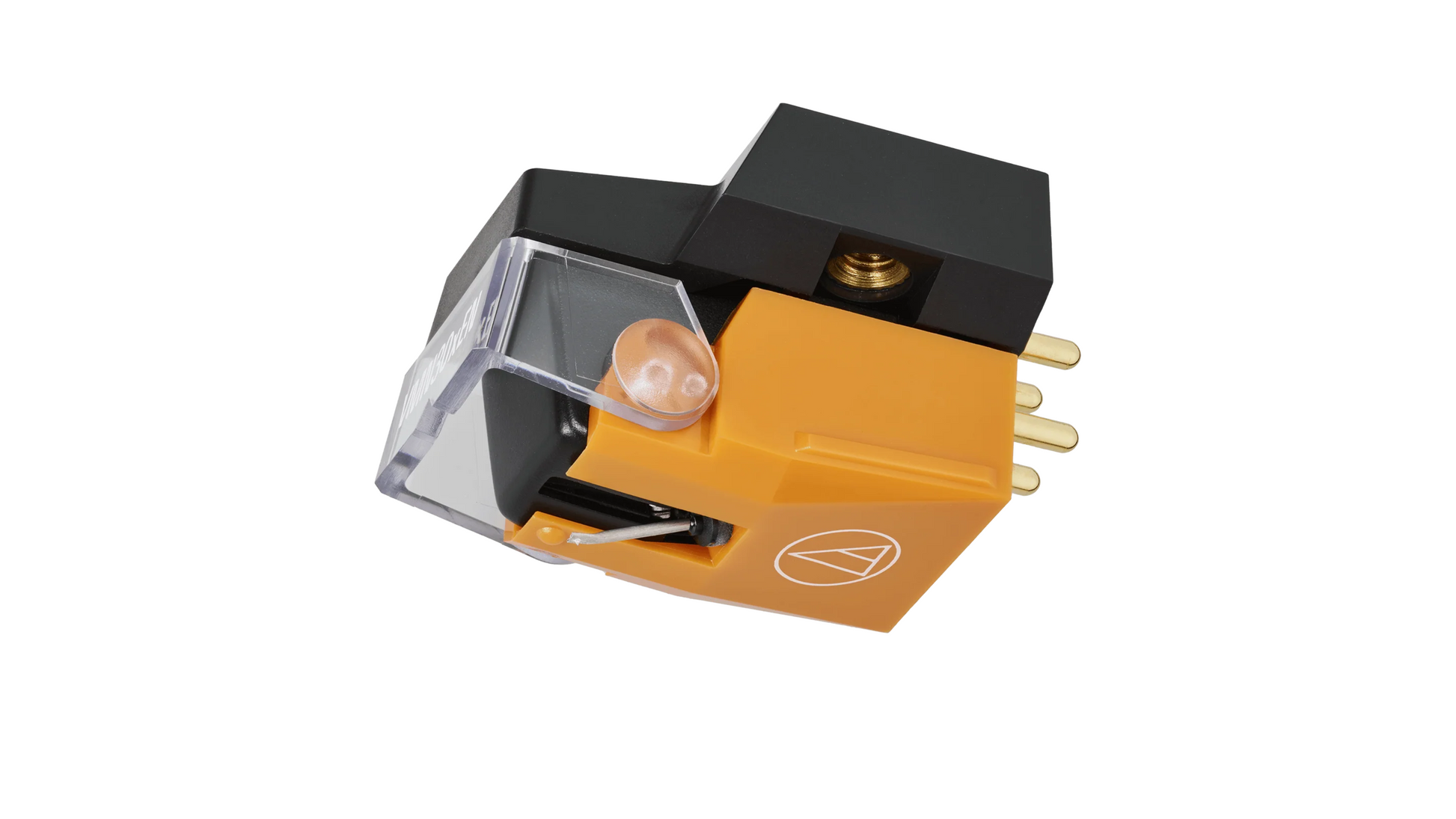

The Audio-Technica AT-VM530xEN is a moving magnet phono cartridge built around a nude elliptical diamond stylus and Audio-Technica's dual magnet generator. The nude construction means the diamond tip is mounted directly rather than bonded to a metal shank, which reduces tip mass and lets the stylus track fine groove modulations more faithfully. The result is clean, articulate reproduction with strong stereo separation and a confident, well organized presentation across the full range.

This cartridge sits in the popular VM500 series, aimed at listeners upgrading from an entry level bonded stylus who want more resolution without moving to a moving coil setup. The VM dual magnet design places the two magnets in a V configuration matching the cutter head geometry used when records are made, supporting accurate channel balance and a stable image. A para-toroidal signal coil helps deliver a healthy, consistent output that works easily with standard MM phono inputs.

The AT-VM530xEN uses the standard half inch mount and accepts VM500 series replacement styli, so future upgrades to a Shibata or MicroLine profile are a simple stylus swap rather than a full cartridge change. That upgrade path makes it a smart long term choice for a quality turntable and tonearm.

Key Features

• Nude elliptical diamond stylus for lower tip mass and improved tracking of fine detail
• VM dual magnet generator with V configuration matching the cutter head geometry
• Para-toroidal signal coils for consistent, healthy output
• Excellent channel separation and stable stereo imaging
• Standard half inch mount fits most tonearms and headshells
• Interchangeable VM500 series stylus for a simple upgrade path
• Balanced, articulate tonal character suited to a wide range of music
• Machined design for secure, repeatable alignment

How the AT-VM530xEN Compares

Audio-Technica AT-VM530xEN - Elliptical Nude MM Cartridge vs Audio-Technica AT-VM740xML

The AT-VM740xML steps up to a MicroLine stylus on a tapered aluminum pipe cantilever, which digs deeper into the groove for finer high frequency detail and lower record wear over time. The VM530xEN with its nude elliptical tip is the more accessible option focused on clean, articulate tracking. Choose the 740xML if you want the extra resolution and are running a higher resolution front end. See the Audio-Technica AT-VM740xML.

Audio-Technica AT-VM530xEN - Elliptical Nude MM Cartridge vs Audio-Technica AT-VM670xSP

The AT-VM670xSP is a specialist cartridge with a 3.0 mil conical stylus designed for 78 RPM shellac records, not modern microgroove LPs. The VM530xEN is the correct choice for standard 33 and 45 RPM vinyl playback. Pick the 670xSP only if you specifically collect and play 78s. See the Audio-Technica AT-VM670xSP.

Audio-Technica AT-VM530xEN - Elliptical Nude MM Cartridge vs Audio-Technica AT-VM750xSH

The AT-VM750xSH uses a Shibata stylus on a boron cantilever, giving it a broader contact profile that excels with high frequency extension and long groove contact. The VM530xEN offers a more straightforward elliptical presentation at a friendlier point in the series. Both share the same VM500 body, so you can start with the 530xEN and move up by swapping styli later. See the Audio-Technica AT-VM750xSH.

Recommended Turntables and Phono Stage

The AT-VM530xEN suits a well set up belt or direct drive deck with a standard headshell and a good MM phono input. Its 4.0 mV output and 2.0 g tracking force pair easily with the tables and phono stage below.

• Audio-Technica AT-LPW50PB A fully manual belt-drive deck with a quality tonearm and removable headshell that makes mounting and aligning the VM530xEN straightforward. Its stable platter and low resonance plinth let the elliptical stylus track cleanly.
• Audio-Technica AT-LPW40WN A well matched manual belt-drive turntable at a sensible level for this cartridge, with an adjustable counterweight and anti-skate to dial in the 2.0 g tracking force precisely.
• Audio-Technica AT-LP140XP A professional direct-drive deck with strong speed stability and a standard half inch headshell mount, giving the VM530xEN a solid, repeatable platform for accurate tracking.
• Parasound XRM Phono Preamplifier A clean MM capable phono stage that loads the cartridge at 47k ohms and provides quiet gain for the 4.0 mV output, revealing the detail the nude elliptical stylus retrieves.

Frequently Asked Questions

Is the AT-VM530xEN a moving magnet or moving coil cartridge?
It is a moving magnet cartridge using Audio-Technica's dual magnet VM design, so it works with any standard MM phono input.

What stylus profile does it use?
It has a nude elliptical diamond stylus, meaning the tip is mounted directly rather than bonded to reduce tip mass and improve tracking.

What tracking force should I set?
The recommended range is 1.8 to 2.2 g, with 2.0 g as the nominal setting for most tonearms.

What is the output voltage?
It outputs 4.0 mV at 1 kHz, which is a healthy MM level compatible with standard phono preamps.

What load impedance and capacitance should I use?
Use a 47k ohm load with roughly 150 to 250 pF of capacitance for correct tonal balance.

Will it fit my turntable?
It uses a standard half inch mount, so it fits most tonearms and headshells that accept two screw cartridges.

Can I upgrade the stylus later?
Yes. It accepts VM500 series replacement styli, so you can move to a Shibata or MicroLine profile with a simple stylus swap.

What is the correct replacement stylus?
The direct replacement is the AT-VMN30xEN, which carries the same nude elliptical tip.

Do I need a phono preamp with this cartridge?
Yes. As a moving magnet cartridge it requires a MM phono stage or a receiver with a built in phono input.

What cantilever material does it use?
It uses an aluminum cantilever paired with the nude elliptical diamond stylus.

What frequency response can I expect?
It covers 20 Hz to 25 kHz, giving full range coverage for standard vinyl playback.

How does it compare to the AT-VM740xML?
The 740xML adds a MicroLine stylus for more detail and lower record wear, while the 530xEN is the more accessible elliptical option in the same series.

Is it suitable for 78 RPM records?
No. For 78 RPM shellac you would want the AT-VM670xSP with its conical 78 stylus. The 530xEN is for standard microgroove LPs.

What kind of music does it suit?
Its balanced, articulate character works well across all genres, from acoustic and jazz to rock and orchestral recordings.

Does it require special alignment?
Standard cartridge alignment using an overhang and offset gauge is recommended for best tracking and lowest distortion.

How much does the cartridge weigh?
It is a lightweight VM500 series body that balances easily on typical tonearms; consult the included manual for the exact figure when setting counterweight.

Will it work on a direct-drive deck like the AT-LP140XP?
Yes. Its standard mount and output make it a good match for direct-drive decks with removable headshells.

Does channel separation matter for imaging?
Yes. Its 25 dB separation at 1 kHz supports a stable, well defined stereo image.

Can I use it with a Bluetooth turntable?
Yes. It works with belt-drive decks that include a Bluetooth output, though a wired MM phono connection preserves the most detail.
