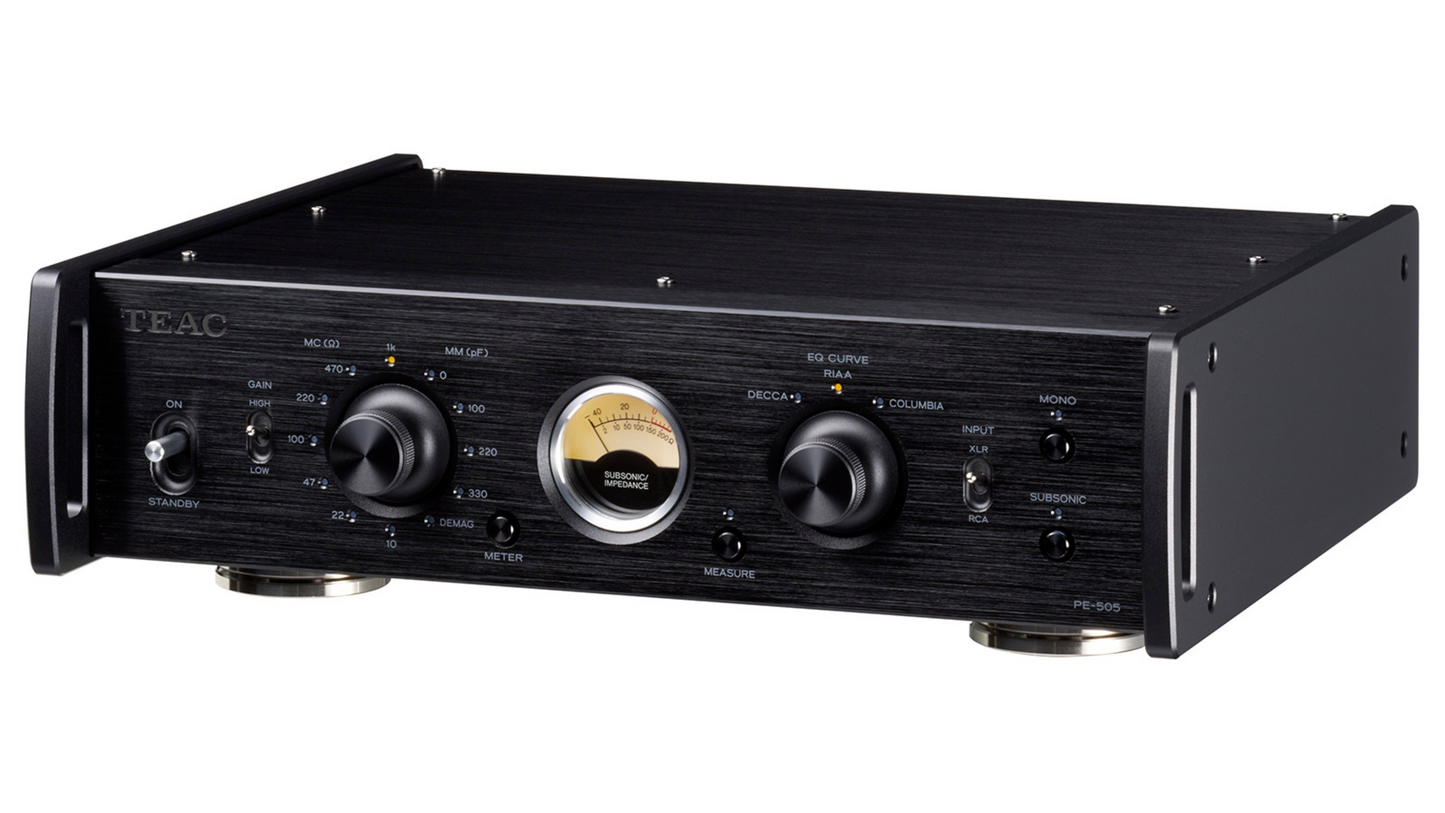

TEAC Audio PE-505 Fully-Balanced Phono Amplifier

Fully-balanced circuit design

From the head amplifier to the equalizing amplifier sections to the buffer amplifier section on the final output stage; the PE-505 employs a fully-balanced circuit design throughout all stages that amplify, equalizes, and maintains signal purity of even the most extremely faint audio signals picked up by a cartridge.

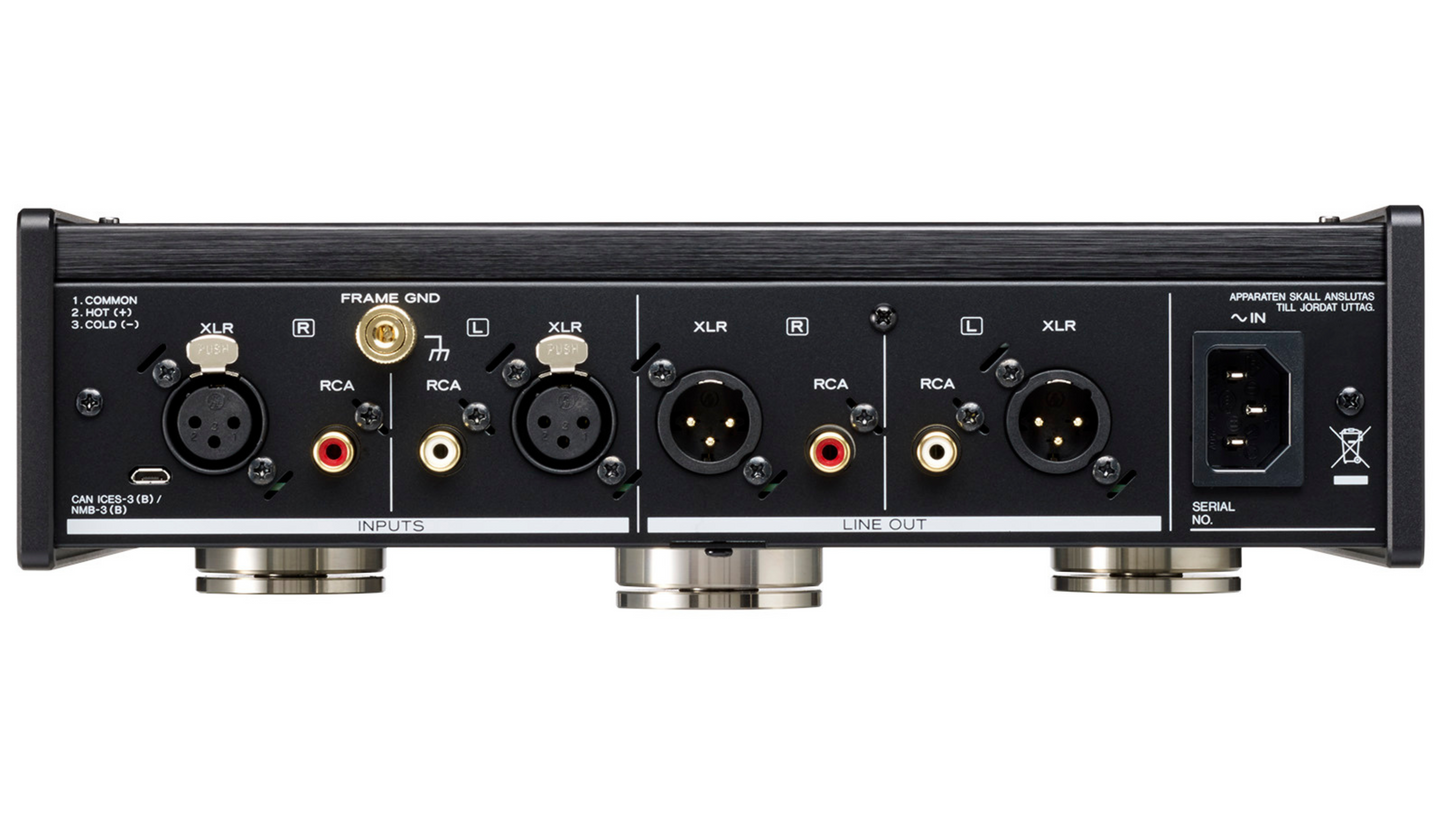

Even an unbalanced signal on the conventional RCA input is converted to the differential processing mode right after the input terminals.

Equalizing circuit on the differential cartridge output

Absorbing errors on the balanced output, the differential output equalizing circuit delivers a more accurate audio signal. The differential output circuit that cross-multiplied the hot and cold outputs each other. As the result, both signals are equalized for a pure and natural audio signal delivery.

High-precision RIAA circuit

A newly developed NF-type equalizing amplifier achieves less than ±0.05dB of RIAA deviation.
(20Hz to 20kHz)

High Signal-to-Noise ratio

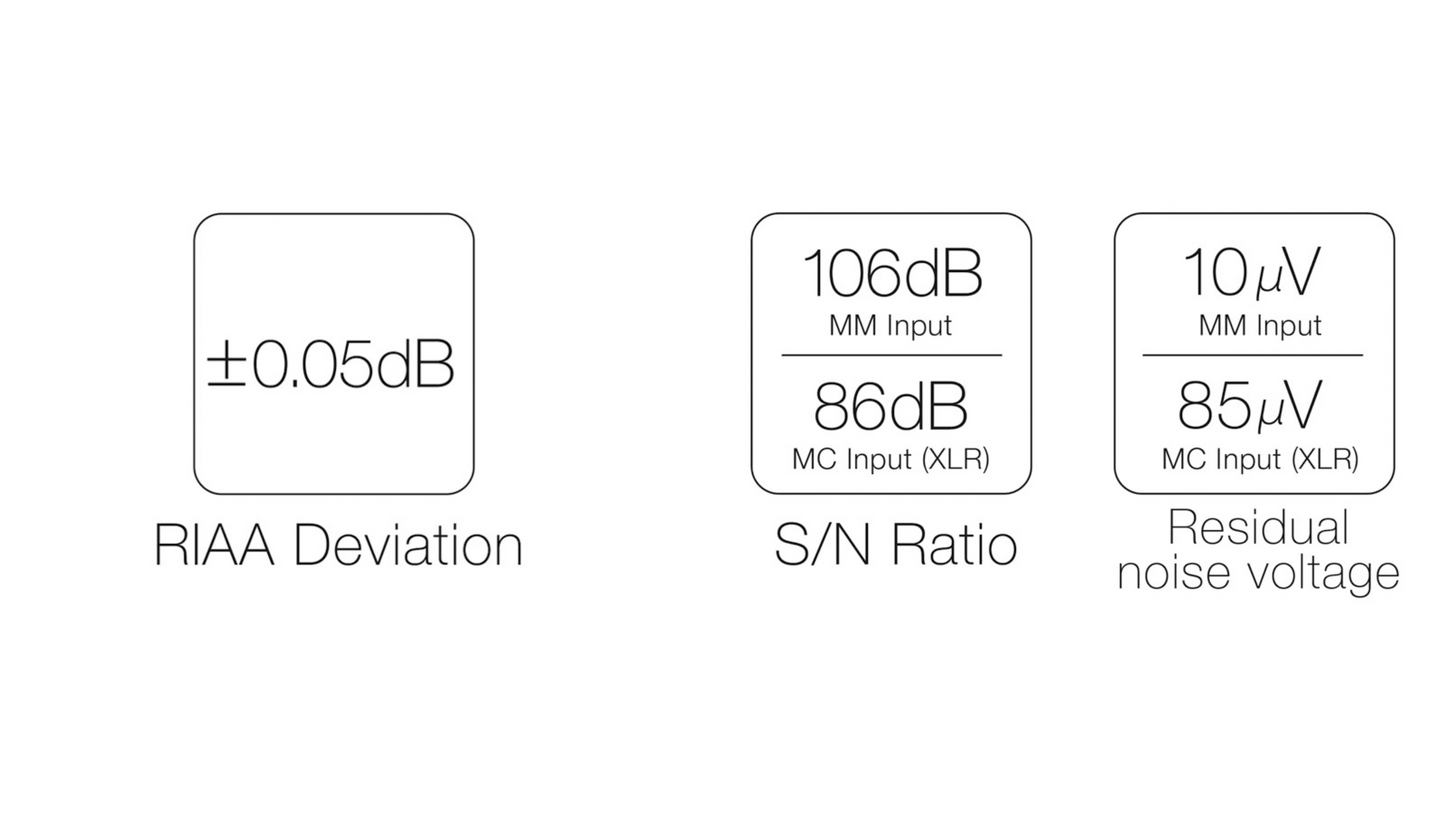

The PE-505 achieves 106dB on the RCA input^*1, and 86dB on the XLR input^*2, while the residual noise voltage reaches 10μV on the MM and 85μV on the MC^*3 which are sophisticated.
*1 MM   *2 MC   *3 XLR input

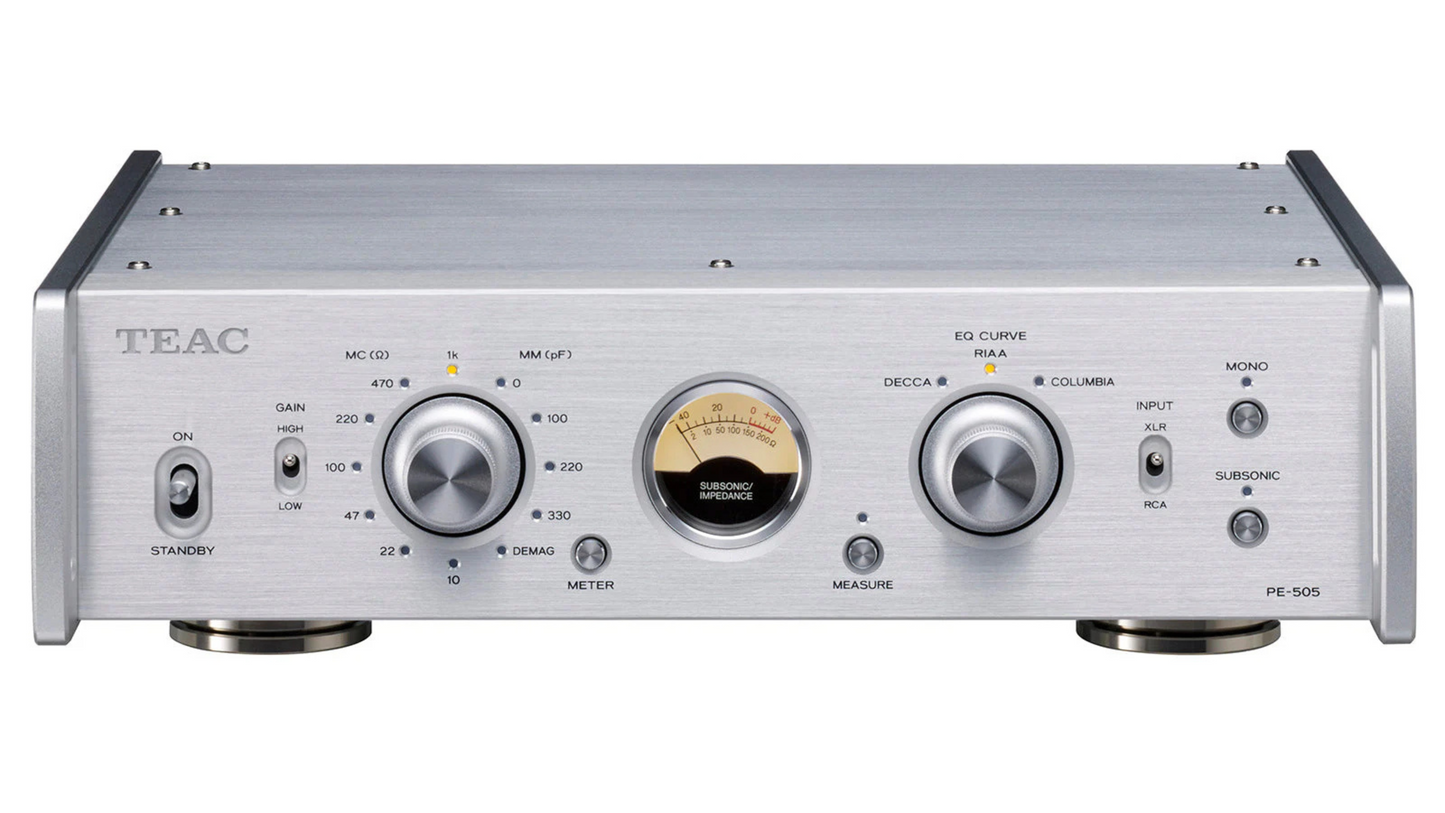

Versatile settings and unique measuring functions

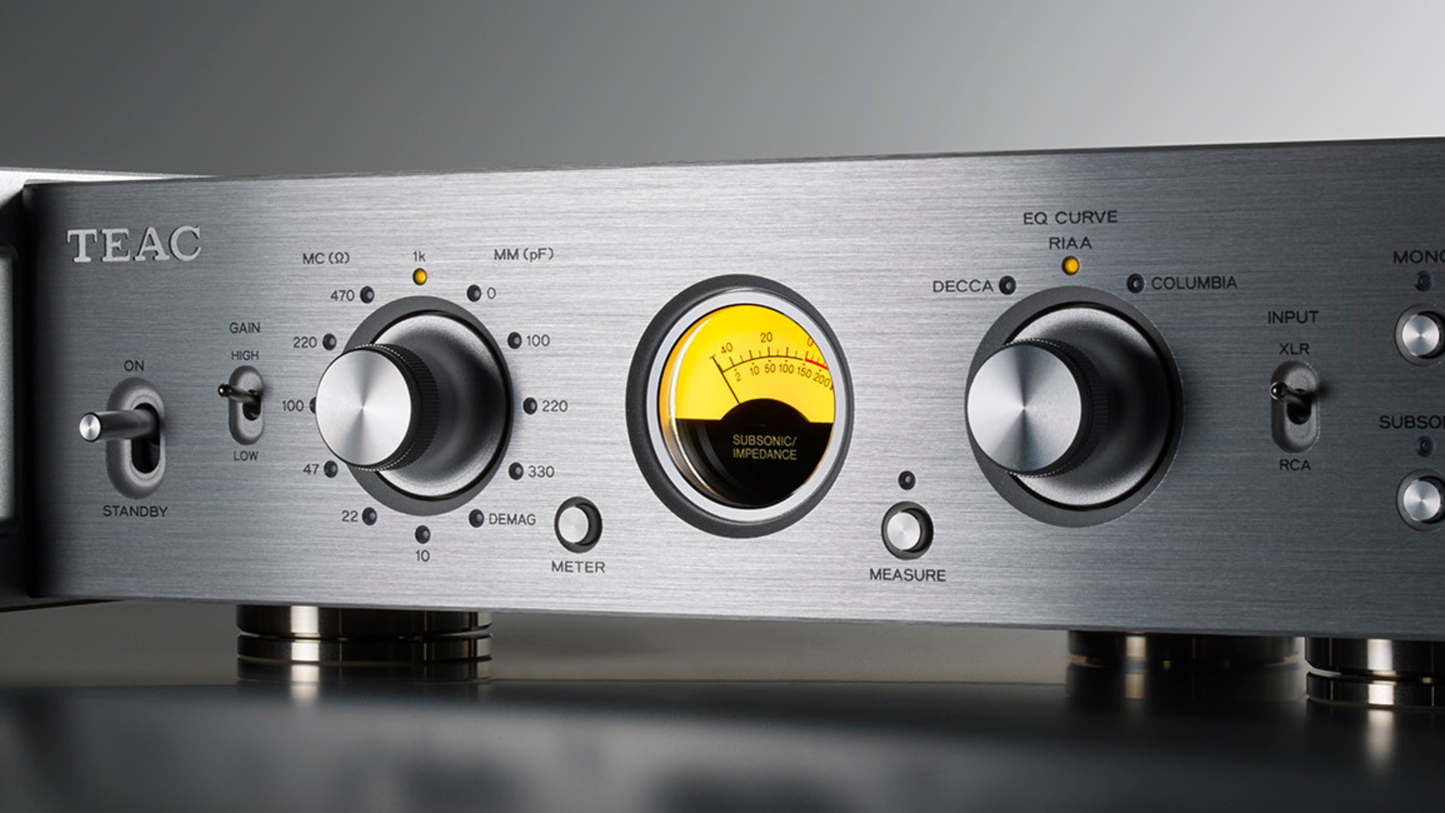

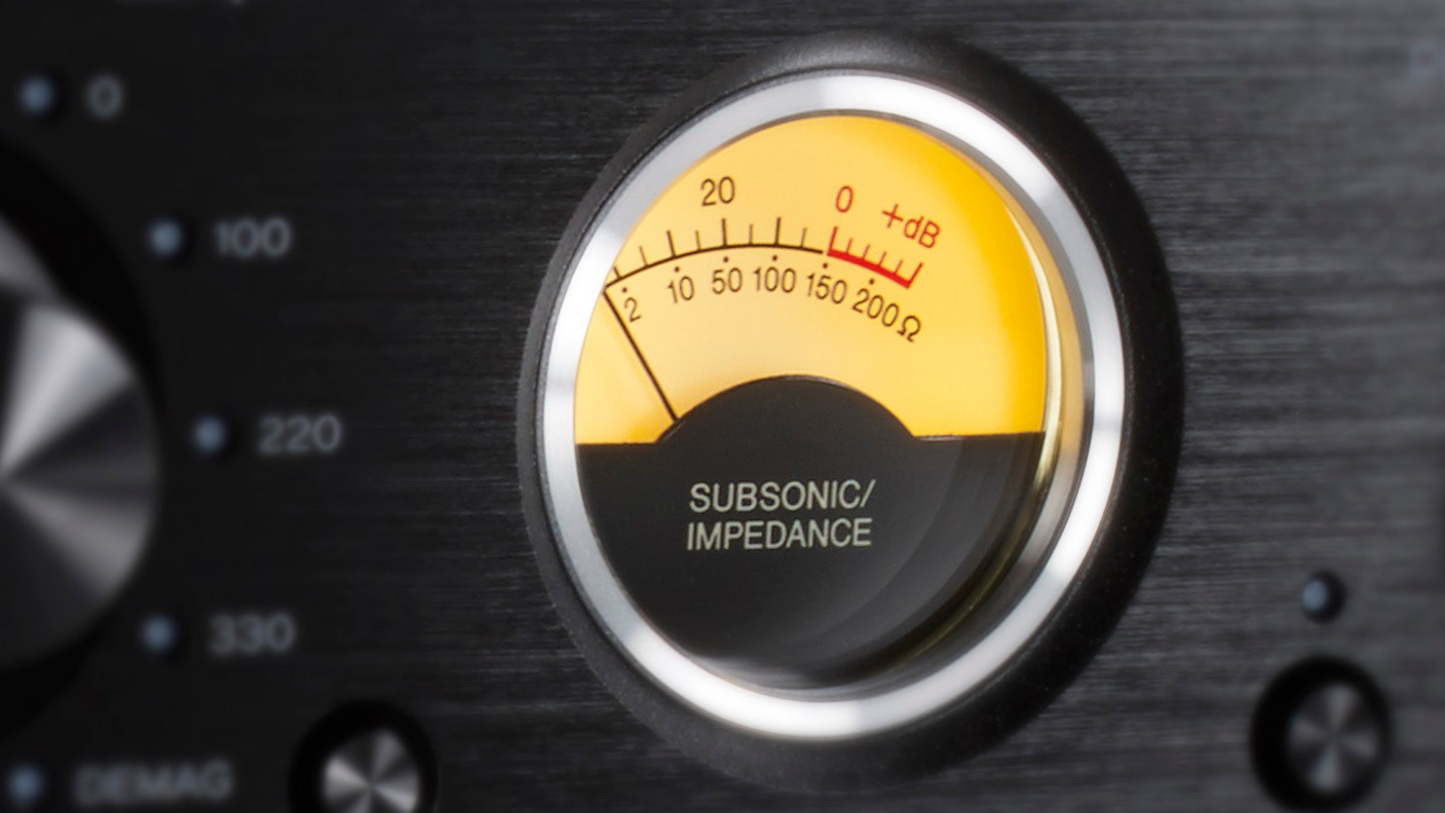

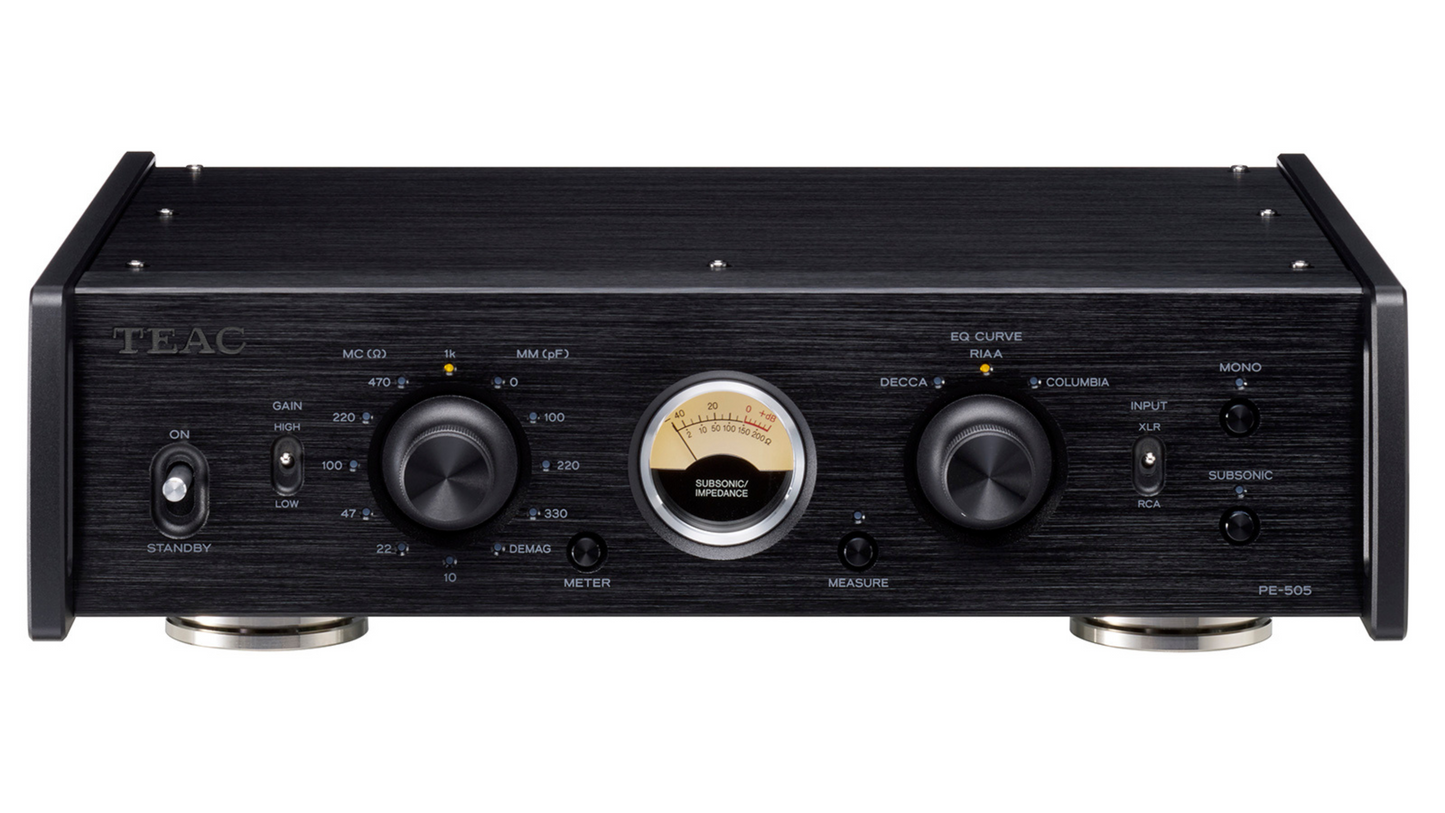

The PE-505 equips switchable load capacity for MM cartridges and switchable load resistance for MC cartridges. Furthermore, the load-resistance measuring function allows users to select an appropriate load-resistance by pressing the MEASURE key on the front panel to show the total load-resistance value including cable resistance on the gauge.

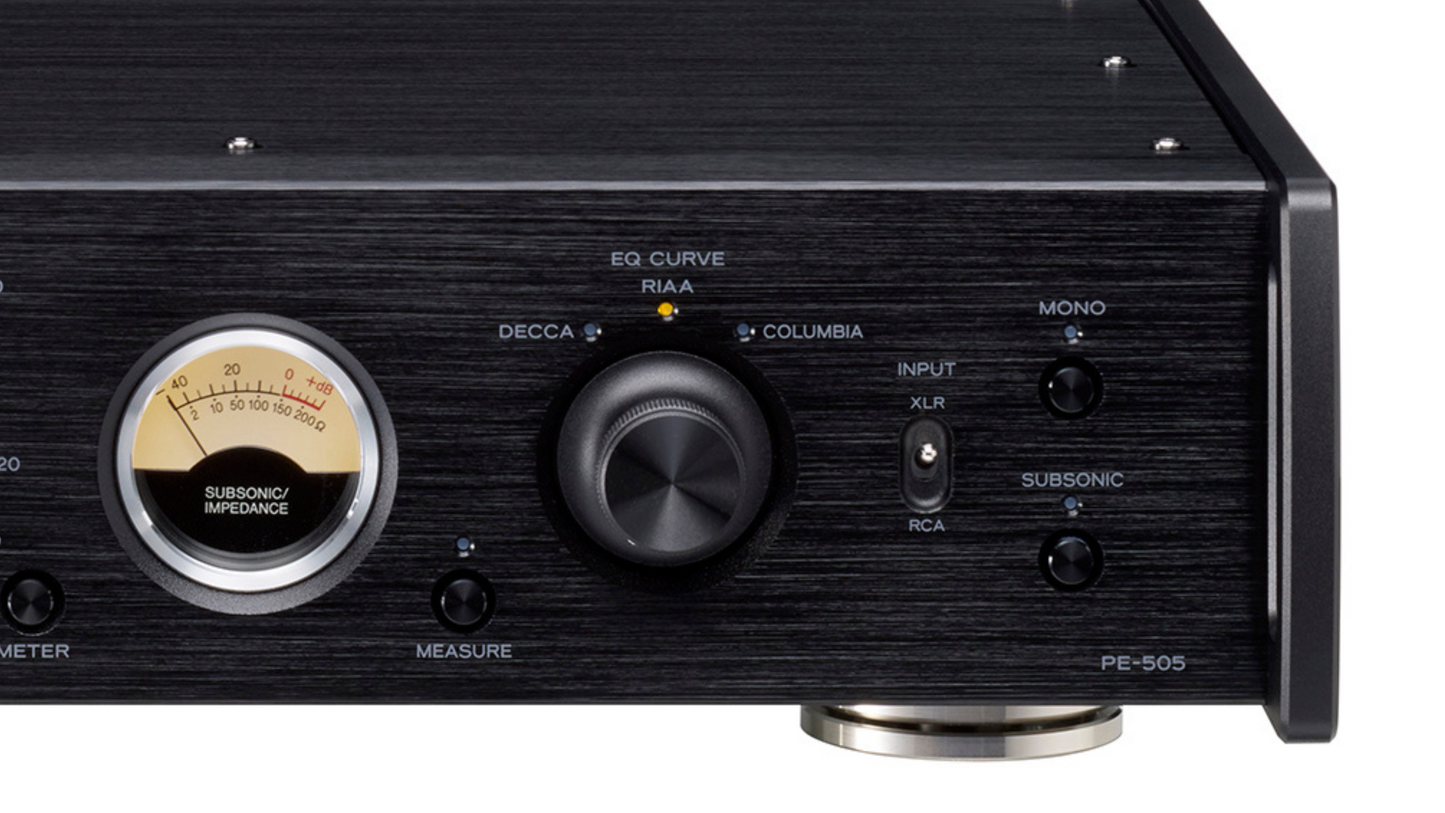

Also, the Subsonic function shows subsonic signals less than 6Hz on the gauge, while the subsonic filter (17Hz, -24dB/octave) cuts unnecessary low frequency out of the hearing range.
