Audio Technica AT-ART9XI

Overview

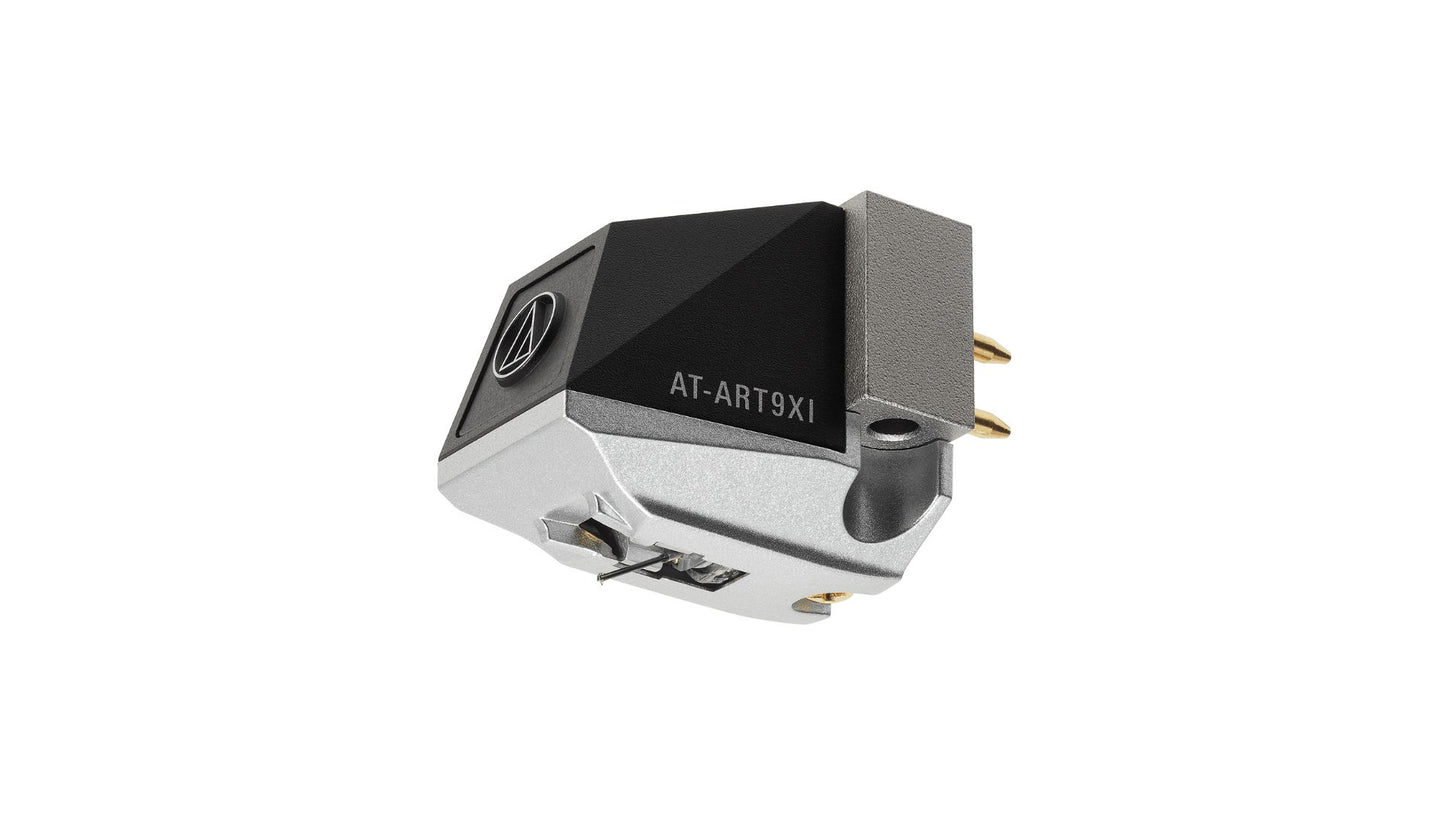

The Audio-Technica AT-ART9XI is a low-output dual moving coil phono cartridge engineered for listeners who want articulate detail retrieval paired with a natural, balanced tonal character. Its dual moving coil design places the left and right coils in a symmetrical, non-magnetic layout that reduces crosstalk and helps preserve stereo image stability across the record.

Audio-Technica pairs a Special Line Contact stylus with a solid boron cantilever, a combination chosen to trace fine groove modulations with precision while keeping mass low for responsive tracking. The result is a cartridge that reads inner-groove passages cleanly and renders vocals and acoustic instruments with convincing texture.

The AT-ART9XI is intended for medium to high mass tonearms and phono stages with dedicated moving coil support. With its low output voltage, it rewards a quiet, high-gain MC input and careful setup, making it a natural centerpiece for a resolving high-fidelity turntable system.

Key Features

• Dual moving coil generator with symmetrical coil placement for low crosstalk
• Special Line Contact stylus for precise groove tracing
• Solid boron cantilever for low mass and fast transient response
• PCOCC coil wire for clean signal transfer
• Low output design that rewards a quality MC phono stage
• Machined body construction for rigidity and resonance control
• Neutral, detailed tonal balance suited to a wide range of music
• Threaded mounting inserts for straightforward alignment
• Designed for medium to high mass tonearms

How the AT-ART9XI Compares

Audio-Technica AT-ART9XI Dual Moving Coil Cartridge vs Audio-Technica AT-ART20

The AT-ART20 sits a step up in the Audio-Technica moving coil ladder, using a more advanced generator and cantilever assembly aimed at even greater resolution and dynamic scale. The AT-ART9XI delivers the same family voicing with a focus on refined detail and neutral tonality. Choose the AT-ART20 if you want the most resolving expression of this design goal in a top-tier system. See the Audio-Technica AT-ART20.

Audio-Technica AT-ART9XI Dual Moving Coil Cartridge vs Audio-Technica AT33xMLB

The AT33xMLB is the more accessible dual moving coil model, offering a lively, engaging sound with a MicroLine stylus. The AT-ART9XI moves up with a boron cantilever and Special Line Contact stylus for lower coloration and finer tracing. Step to the AT-ART9XI when your tonearm and phono stage can reveal the extra refinement. See the Audio-Technica AT33xMLB.

Audio-Technica AT-ART9XI Dual Moving Coil Cartridge vs Audio-Technica AT-ART9XA

The AT-ART9XA is the non-magnetic core sibling within the same ART9X series, tuned toward an open and airy presentation. The AT-ART9XI leans toward a slightly warmer, fuller body with strong detail. Both share the boron cantilever platform, so the choice comes down to which tonal character suits your system and taste. See the Audio-Technica AT-ART9XA.

Audio-Technica AT-ART9XI Dual Moving Coil Cartridge vs Ortofon MC Cadenza Blue

The Ortofon MC Cadenza Blue is a comparable low-output moving coil with a character often described as smooth and harmonically rich. The AT-ART9XI emphasizes precision and neutral tonality with its boron cantilever and Special Line Contact stylus. Both suit high-resolution systems, so the decision reflects the sonic signature you prefer rather than a ranking. See the Ortofon MC Cadenza Blue.

Recommended Turntables and Phono Stage

Pair the AT-ART9XI with a resolving turntable and a moving coil phono stage that offers ample gain and adjustable loading. These options match its tracking needs, low output, and tonearm requirements.

• Luxman PD-151 Mark II Its precise, well-damped tonearm and stable platter provide the accurate tracking this low-output moving coil needs to perform at its best.
• Thorens TD 1601 The sub-chassis belt-drive design isolates the cartridge from vibration and its tonearm suits the medium mass requirement of the AT-ART9XI.
• MoFi MasterDeck A reference belt-drive deck with a capable tonearm that lets the cartridge trace inner grooves cleanly and hold a stable image.
• Luxman E-250 Phono Offers dedicated MC gain and loading adjustments to properly amplify the 0.5 mV output while keeping noise low.
• Parasound JC3+ A high-gain, low-noise MC stage with adjustable loading, ideal for extracting full detail from this low-output cartridge.

Frequently Asked Questions

Is the AT-ART9XI a moving coil or moving magnet cartridge?
It is a low-output dual moving coil (MC) cartridge with a symmetrical coil layout.

What is the output voltage of the AT-ART9XI?
It outputs approximately 0.5 mV at 1 kHz, which requires a phono stage with moving coil support.

What tracking force should I use?
The recommended tracking force is 2.0 g, within a range of 1.8 to 2.2 g.

Do I need a special phono preamplifier?
Yes, you need a phono stage with a dedicated moving coil input that provides sufficient gain for its low output.

What load impedance should I set?
Audio-Technica recommends a load of 100 ohms or higher; experiment within your phono stage settings for your taste.

What stylus does the AT-ART9XI use?

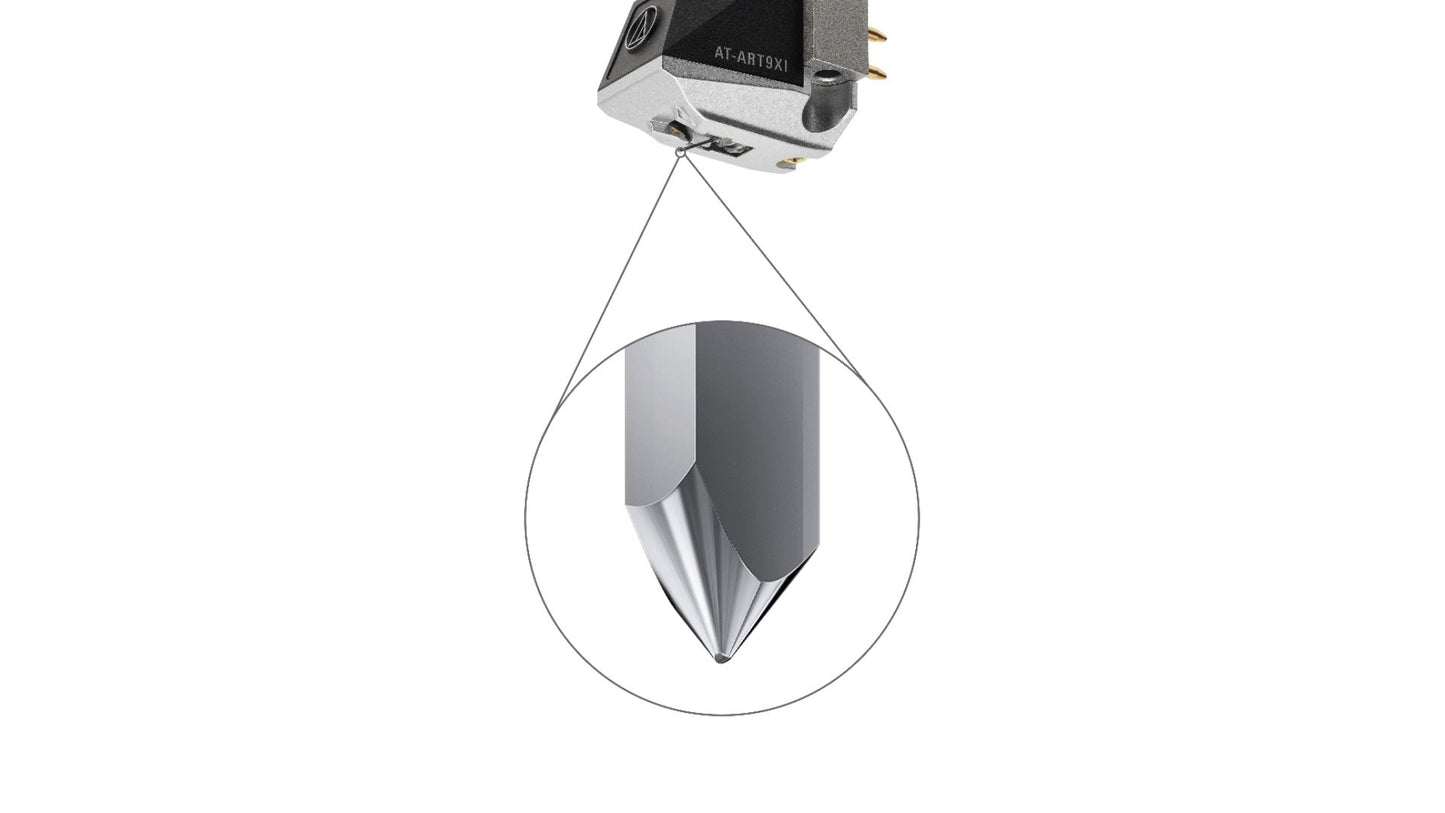

It uses a Special Line Contact stylus for precise groove tracing and low distortion.

What cantilever material is used?
The cantilever is solid boron, chosen for low mass and fast transient response.

What tonearms are compatible?
It is best paired with medium to high mass tonearms; the cartridge weighs about 8.5 g.

Can the stylus be replaced?
Moving coil cartridges are typically serviced through a trade-in or rebuild program rather than a user-replaceable stylus. Contact us for details.

What is the frequency response?
The published frequency response is 15 Hz to 50 kHz.

How does it compare to the AT-ART20?
The AT-ART20 is the next model up with a more advanced generator for greater resolution, while the AT-ART9XI shares the family voicing with a focus on refined detail.

How does it compare to the AT33xMLB?
The AT33xMLB is the more accessible model with a MicroLine stylus, while the AT-ART9XI adds a boron cantilever and Special Line Contact stylus for lower coloration.

What is the difference between the AT-ART9XI and AT-ART9XA?
The AT-ART9XA uses a non-magnetic core for an open, airy presentation, while the AT-ART9XI leans toward a warmer, fuller body with strong detail.

Is a good turntable important for this cartridge?
Yes, a stable platter and precise tonearm let this cartridge track cleanly and reveal its full detail.

Does the AT-ART9XI include mounting hardware?
Yes, it ships with mounting hardware, a stylus guard, and a non-magnetic screwdriver.

What channel separation does it offer?
It provides about 30 dB of channel separation at 1 kHz for strong stereo imaging.

Is professional setup recommended?
Yes, careful alignment, tracking force, and loading make a meaningful difference with a low-output MC cartridge like this one.

What kind of music suits this cartridge?
Its neutral, detailed balance suits a wide range of genres, from acoustic and vocal recordings to complex orchestral passages.

Does it work with balanced phono inputs?
Its dual coil design pairs well with balanced phono stages such as fully balanced designs for lower noise; check your preamplifier's inputs.
