SourcePoint 10 Master Edition – Precision-Engineered Loudspeakers for Audiophiles
Elevate your listening experience with the SourcePoint 10 Master Edition, a refined masterpiece from Chief Loudspeaker Designer Andrew Jones. Building on the acclaimed SourcePoint 10, this Master Edition enhances the original with upgraded crossover components, improved impedance linearity, and a new mid/high-frequency adjustment switch for seamless room integration. Crafted around a custom 10-inch concentric driver, these speakers deliver wide frequency response, ultra-low distortion, and exceptional musicality, letting you “hear through to the heart of the music.”
Precision-Tuned for Pure Accuracy
The SourcePoint 10 Master Edition is engineered for audiophiles who demand lifelike sound. At its core is the innovative Twin-Drive high-flux neodymium magnet system, which creates a symmetrical magnetic field to eliminate flux modulation and achieve remarkably low intermodulation distortion (IMD). This ensures every note is reproduced with stunning clarity and accuracy, free from unwanted frequencies. Paired with a user-tunable 3-position Tweeter Level Switch, you can tailor the high-frequency output to your room’s acoustics—choose “High” for damped spaces, “Mid” for balanced environments, or “Low” for reflective rooms—without compromising signal purity.
All-New Master Edition Crossover
The heart of the Master Edition’s refined sound lies in its precision-tuned crossover. Built with premium components—polypropylene film capacitors, metalized-film resistors, and air-core inductors—this crossover cleanly splits the audio signal, ensuring optimal frequency bands reach each driver. The result is seamless integration between the woofer and tweeter, with exceptional phase alignment and coherence. The integrated Tweeter Level Switch allows on-the-fly adjustments, giving you ultimate control over your listening experience.
The 10-Inch Concentric Driver: Two Drivers, One Voice
Designed by Andrew Jones after 18 months of R&D, the 10-inch concentric driver is a marvel of engineering. The paper-pulp woofer, with nearly 2.5x the surface area of a typical 6.5-inch driver, delivers deep, impactful bass with minimal movement, maintaining a consistent waveguide for the centrally fitted 1.25-inch soft dome tweeter. This tweeter, with its wide-roll surround and large voice coil, handles frequencies from 1.6kHz to beyond 30kHz with ease, ensuring smooth, detailed highs. Together, they produce a cohesive, powerful sound with unmatched clarity.
High-Quality Cabinet Construction

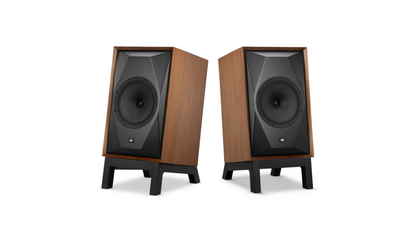

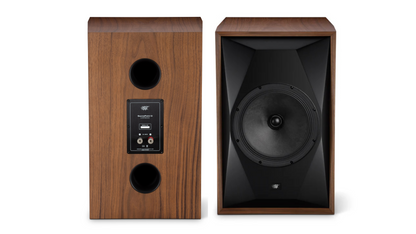

The SourcePoint 10 Master Edition is built to eliminate resonance and enhance performance. The cabinet features 1-inch thick MDF panels for the top, bottom, and sides, reinforced with extensive internal bracing to minimize vibrations. The 2-inch thick multi-faceted front baffle, finished in smooth satin black, reduces diffraction for a clean, even response. Wrapped in furniture-grade real wood veneer—available in elegant Satin Walnut or sleek Satin Black Ash—the speakers are book-matched for mirror-imaged grain patterns, blending modern and classic aesthetics to complement any interior.
Easy to Drive, Amplifier-Friendly
With a 91dB sensitivity and a nominal impedance of 8 ohms (minimum 6.4 ohms), the SourcePoint 10 Master Edition is easy to drive, requiring as little as 30 watts of power and supporting up to 200 watts. Whether you prefer tube or solid-state amplifiers, these speakers pair effortlessly with your electronics, delivering dynamic performance across genres.
Thoughtful Design Features
-
Magnetic Grilles: Form-fitting, fabric-wrapped grilles attach magnetically for a discreet look during casual listening. Remove them for optimal sound quality.
-
Multi-Faceted Baffle: The sculpted 2-inch thick front baffle eliminates diffraction, ensuring smooth, uncolored sound.
-

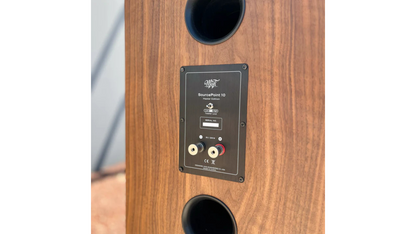

5-Way Binding Posts: High-quality connectors accommodate a variety of cable types for secure, reliable connections.
-
Vented Box Design: Enhances low-frequency response for deep, controlled bass.
Upgrade Your SourcePoint 10
Already own the original SourcePoint 10? Transform your speakers to Master Edition performance with the Master Edition Crossover Upgrade Kit. This user-installable kit includes premium crossover components and the 3-position Tweeter Level Switch, unlocking refined sound and room-tailored tonality. [Shop the Upgrade Kit Now]
Specifications
-
Frequency Response: 42Hz–30kHz
-
Nominal Impedance: 8 Ohms (6.2 Ohms minimum)
-
Sensitivity: 91dB/2.83V/1m
-
Crossover Frequency: 1.6kHz
-
Minimum Recommended Power: 30W
-
Max Power Input: 200W
-
Dimensions (WxHxD): 14.5" x 22.5" x 16.6" (with grille), 14.5" x 22.5" x 16" (without grille)
-
Weight: 46.2 lb (21kg) each
-
Warranty: Five years parts & labor
Why Choose SourcePoint 10 Master Edition?
The SourcePoint 10 Master Edition combines cutting-edge engineering with elegant design to deliver a listening experience that’s as pure as it is powerful. From the custom concentric driver to the tunable crossover and robust cabinet, every detail is crafted to bring you closer to the music. Explore the development process in Andrew Jones’ [Development White Paper] and discover why these speakers are a must-have for discerning listeners.
