Specs
| Type | Dual Magnet (MM) Stereo |
| Line position | Top of MoFi Tracker MM line |
| Stylus | Micro-Linear |
| Cantilever | Tapered Aluminuim |
| Output voltage | 3mV |
| Mounting | Standard half inch |
| Compatibility | MoFi turntables and other standard tonearms |
| Generator | V-Twin dual-magnet generator — two low-mass magnets aligned in a V formation parallel with the record grooves; Ohno continuous cast copper coils |
| Body | Well-damped billet aluminum body |
| Frequency Response | 20–25,000Hz |
| Weight | 9.7g |
| Tracking Force | 1.8–2.2g |
| Impedance | 47kOhm |
| Capacitance | 100pF |
| Compliance | Static compliance: 40 x 10e-6/dyne; Dynamic compliance: 10 x 10e-6/dyne |
| Channel Separation | 27dB at 1KHz |
| Channel Balance | 1.0dB at 1KHz |
Warranty
Sold as an authorized MoFi Electronics dealer by All Elite Audio. New MoFi MasterTracker units include the full MoFi Electronics manufacturer warranty of 1 year parts and labor for the original owner. Contact us with any setup or service questions.
What's in the Box
- MoFi MasterTracker moving magnet cartridge
- Mounting hardware
- Stylus guard
- Documentation
Overview

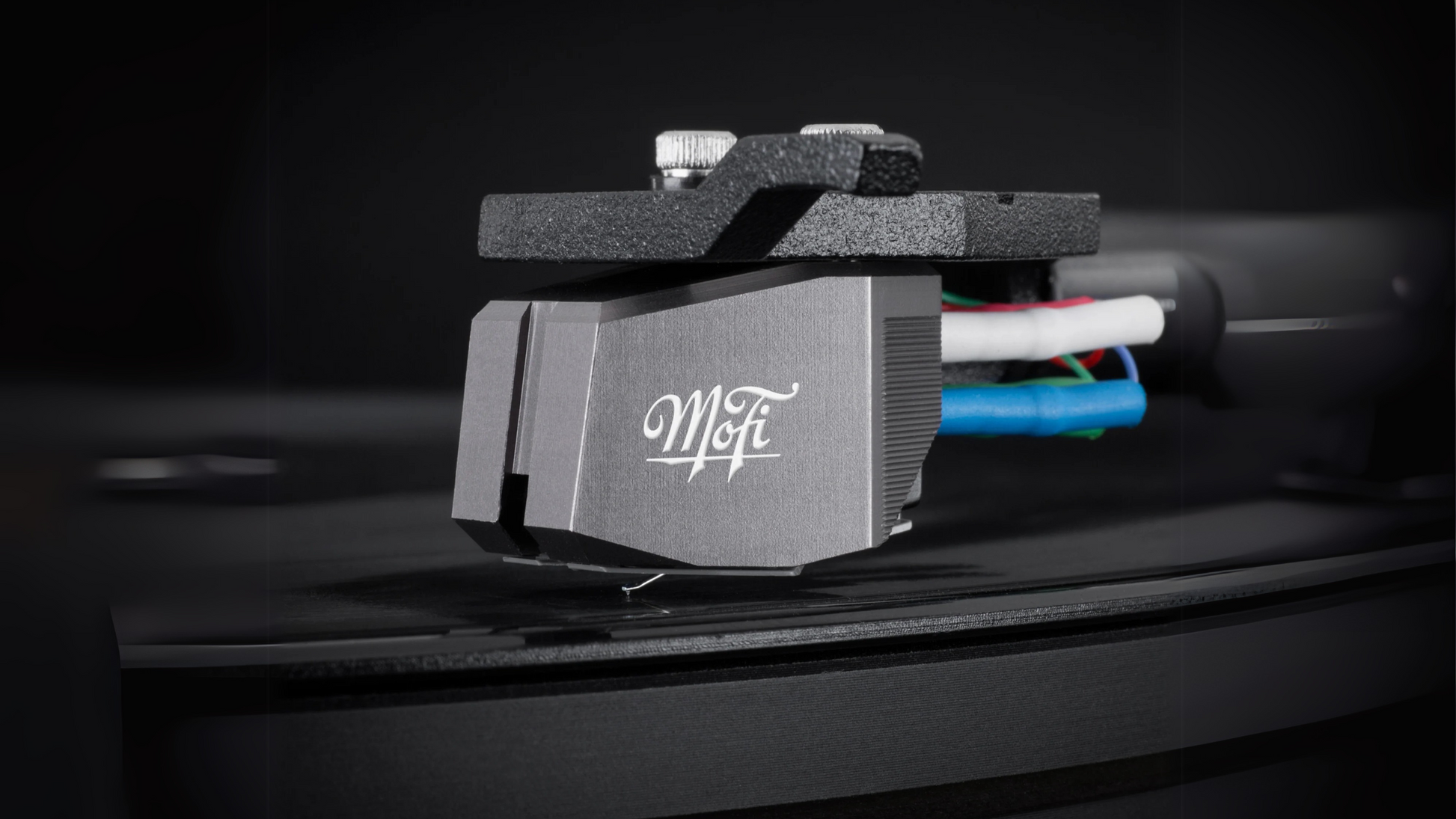

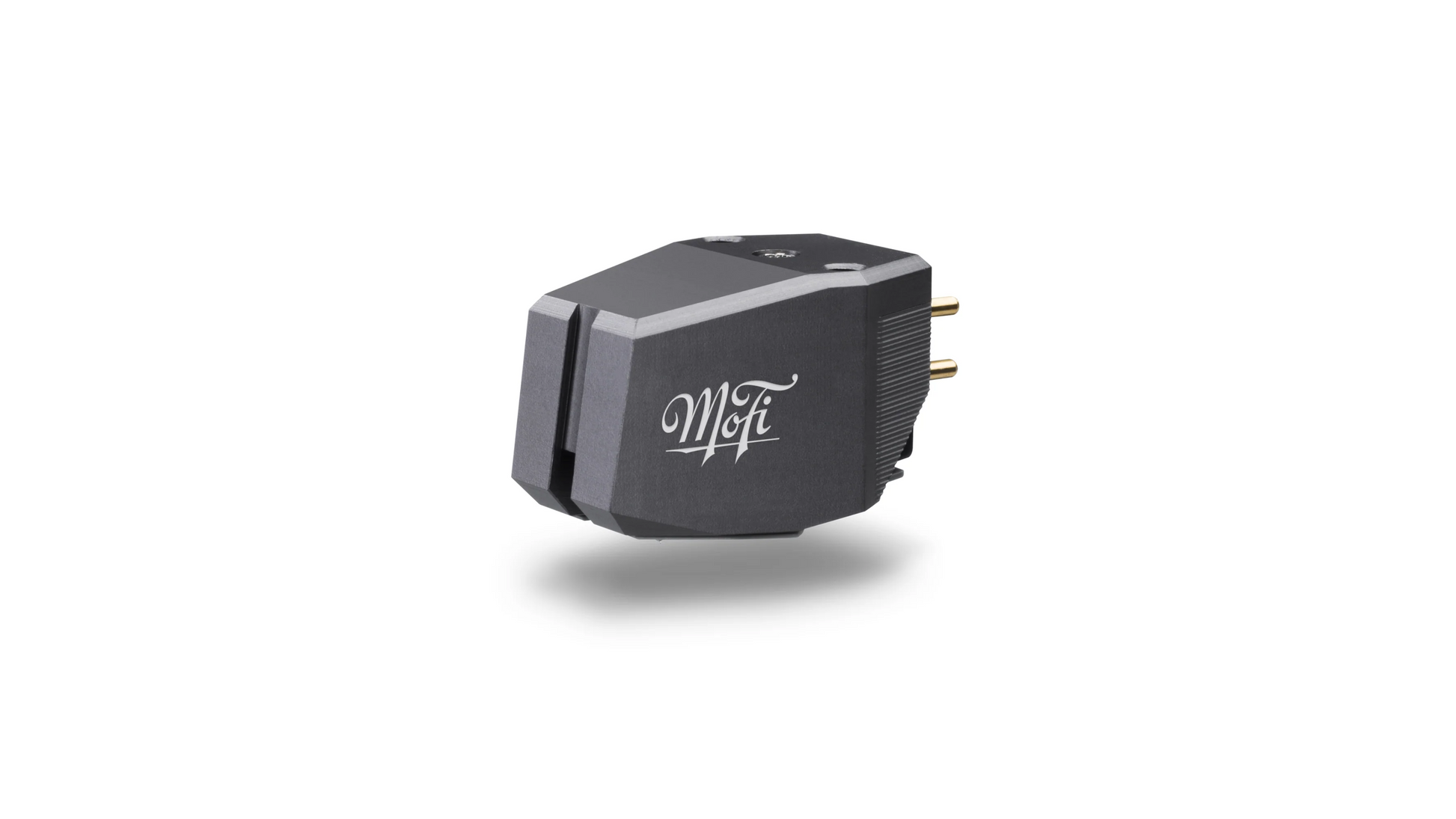

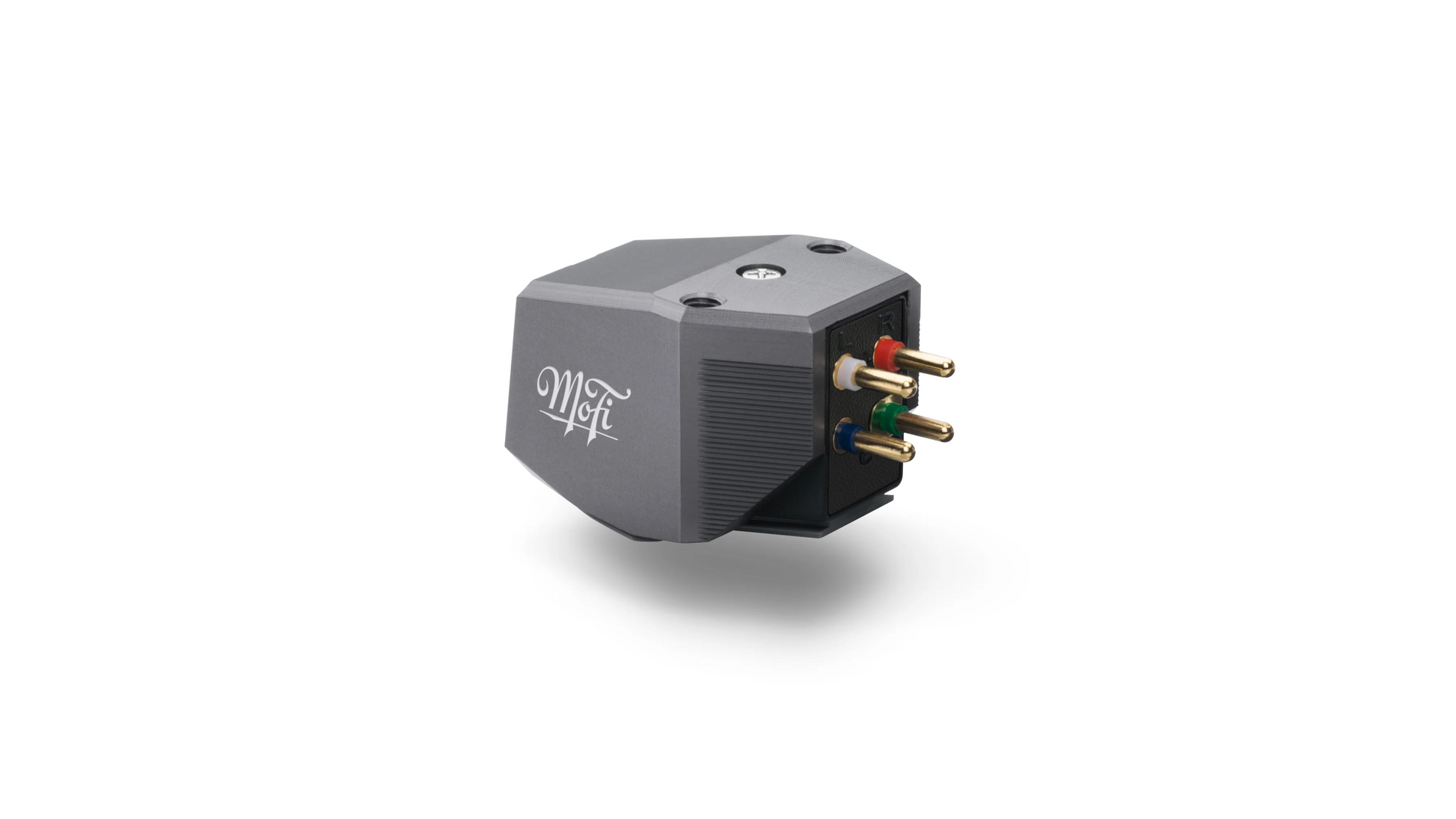

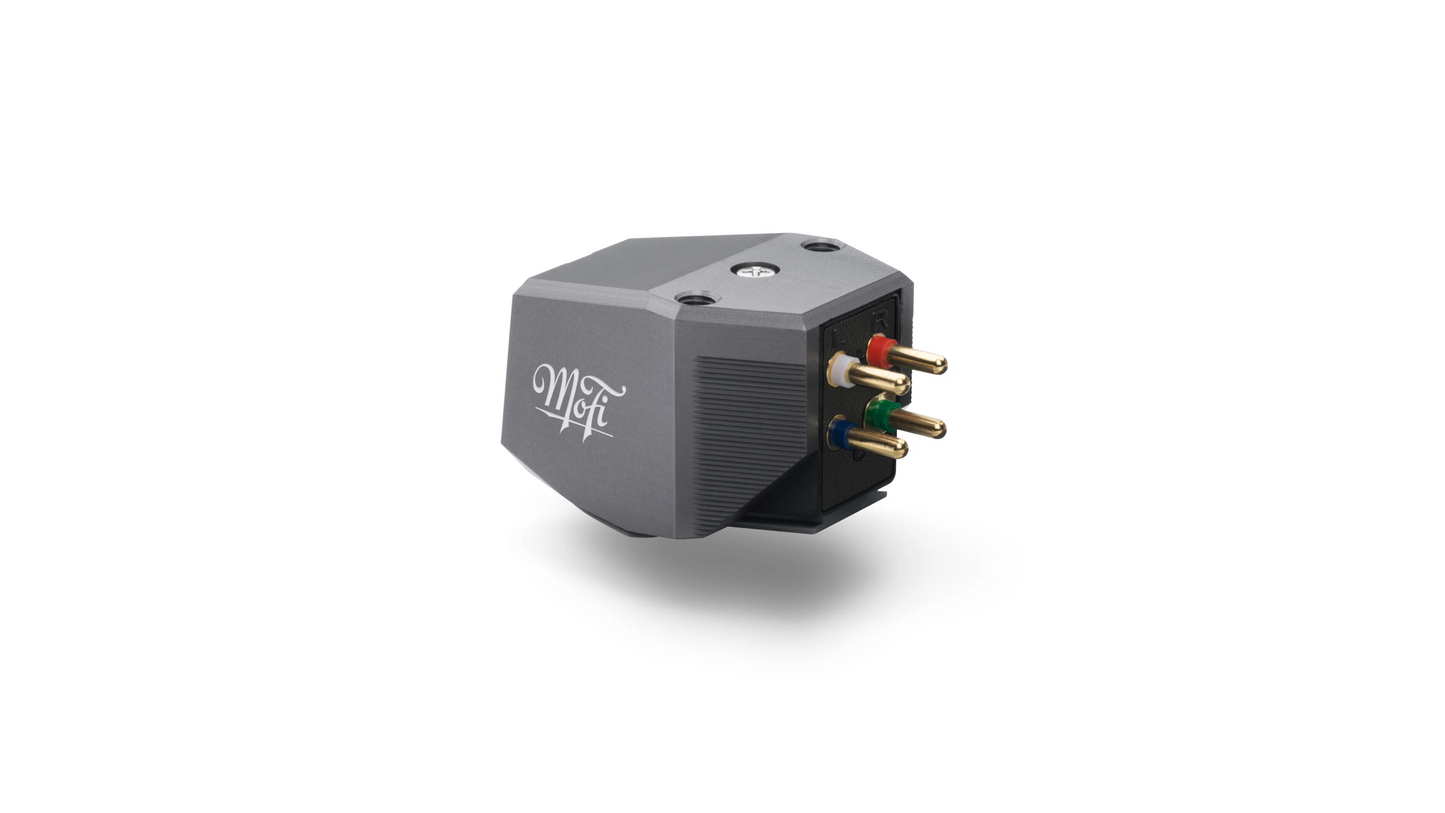

The MoFi Electronics MasterTracker is the flagship of MoFi's Tracker moving magnet cartridge line. Designed to extract fine detail and dynamic contrast from your records while remaining easy to set up and live with, it uses a Micro-Linear diamond stylus on a tapered aluminium cantilever to trace the groove with precision and low distortion. The high output of about 3.0mV means it pairs effortlessly with any standard moving magnet phono input, so there is no need for the extra gain or fussy loading that low output moving coil designs require.
Engineering focus here is on faithful, musical tracking. The Micro-Linear diamond is mounted directly to the cantilever for lower moving mass and improved high frequency response, and the recommended tracking force of about 2.0 grams keeps the stylus stable in the groove. Standard half inch mounting fits MoFi turntables and virtually any other standard tonearm, and the replaceable stylus assembly means you can refresh the cartridge over time rather than replacing the whole unit.
The MasterTracker is for the listener who wants a genuine reference grade moving magnet experience without moving into low output moving coil territory. It is an ideal match for MoFi's UltraDeck, PrecisionDeck and MasterDeck turntables, and a natural upgrade for anyone running a high quality belt drive deck who prefers the convenience and forgiving nature of a moving magnet cartridge.
Key Features
- Top of MoFi's Tracker moving magnet cartridge line
- Nude elliptical diamond stylus for precise groove tracing and low distortion
- Lightweight aluminum cantilever for reduced moving mass
- High output of about 3.0mV works with any standard MM phono input
- Recommended tracking force of about 2.0 grams for stable, secure tracking
- Standard half inch mounting fits MoFi turntables and other standard tonearms
- Replaceable stylus assembly for long term serviceability
- Musical, detailed voicing tuned for real world listening
How the MasterTracker Compares
MoFi MasterTracker vs Ortofon 2M Bronze
Both are high performance moving magnet cartridges aimed at listeners who want refinement without moving to low output moving coil. The 2M Bronze leans toward a smooth, richly voiced presentation with its nude Fine Line stylus, while the MasterTracker with its Micro-Linear diamond emphasizes clean tracking and lively dynamics. Choose based on the tonal character you prefer and your existing tonearm setup. See the Ortofon 2M Bronze.
MoFi MasterTracker vs Audio Technica AT-VM760xSL
The AT-VM760xSL is a moving magnet design with a Special Line Contact stylus that trades on very fine detail retrieval and a dual magnet generator. The MasterTracker pairs a Micro-Linear profile with high output and easy standard MM compatibility. Both suit a listener who wants the convenience of moving magnet, so the decision comes down to voicing and preferred stylus profile. See the Audio Technica AT-VM760xSL.
MoFi MasterTracker vs Ortofon MC Quintet Blue
The Quintet Blue is a low output moving coil cartridge that requires a phono stage with additional gain and loading adjustment, rewarding you with the airy, detailed character typical of moving coil designs. The MasterTracker is a moving magnet with high output that plugs into any standard MM input for a simpler, more forgiving setup. Pick the MC route if your system is built for it, or the MasterTracker for plug and play ease. See the Ortofon MC Quintet Blue.
Recommended Turntable and Phono Stage
The MasterTracker is a moving magnet cartridge, so it mounts on any standard tonearm and works with any moving magnet phono input. These MoFi decks and phono stages are natural matches.
- MoFi UltraDeck A precision belt drive turntable with a stable platter and refined tonearm that makes an ideal home for the MasterTracker's standard half inch mount.
- MoFi MasterDeck MoFi's reference turntable pairs beautifully with the flagship Tracker cartridge for a fully realized MoFi analog front end.
- MoFi UltraPhono Pro Its moving magnet input is a perfect match for the MasterTracker's high output, delivering clean gain in a compact package.
- MoFi MasterPhono The reference MoFi phono stage supports moving magnet cartridges and offers extensive adjustability for those who want to fine tune the MasterTracker's performance.
- Parasound XRM A capable phono preamplifier with a moving magnet input, giving the MasterTracker a clean, quiet gain stage in a broader system.
Frequently Asked Questions
Is the MasterTracker a moving magnet or moving coil cartridge?
It is a moving magnet (MM) cartridge, the top of MoFi's Tracker line.
What stylus does the MasterTracker use?
It uses a Micro-Linear diamond stylus mounted on a tapered aluminium cantilever.
What is the output voltage?
Output is approximately 3.0mV, which works with any standard moving magnet phono input.
What tracking force should I use?
The recommended tracking force is 1.8 to 2.2 grams.
Will it fit my turntable?
Yes, it uses standard half inch mounting and fits MoFi turntables as well as other standard tonearms.
Do I need a special phono stage?
No, because it is a high output moving magnet cartridge it works with any standard MM phono input, such as the MoFi UltraPhono Pro or MasterPhono.
Is the stylus replaceable?
Yes, the MasterTracker has a replaceable stylus assembly, so you can refresh it over time rather than replacing the whole cartridge.
How does it compare to a moving coil cartridge?
Moving coil cartridges offer a different character but usually require extra gain and loading. The MasterTracker gives you a reference grade moving magnet experience with simple, forgiving setup.
Which MoFi turntable pairs best with it?
The UltraDeck, PrecisionDeck and MasterDeck are all excellent matches, with the MasterDeck being MoFi's reference deck.
Can I use it with a non MoFi turntable?
Yes, its standard half inch mount fits virtually any standard tonearm.
Is it suitable for beginners?
It is a flagship moving magnet cartridge, so it is an ideal upgrade for enthusiasts, but its high output and standard mounting make setup straightforward for anyone with a compatible deck.
What cantilever material is used?
The cantilever is aluminum, chosen for a good balance of low mass and stability.
Does it come with mounting hardware?
Yes, mounting hardware and a stylus guard are included.
How is it different from other cartridges in the Tracker line?
The MasterTracker sits at the top of the Tracker moving magnet range, offering the most refined tracking and detail of the family.
Do I need a phono stage at all?
Yes, a cartridge requires a phono stage to boost and equalize its signal. Any moving magnet compatible phono input will work.
Will it improve sound over a budget cartridge?
As a reference grade moving magnet design, it can offer improved tracking, detail and dynamics compared with entry level cartridges when mounted on a capable deck.
Can I use it for mono records?
It plays mono records through both channels, though it is a standard stereo cartridge rather than a dedicated mono design.
How should I care for the stylus?
Use a proper stylus brush to keep the diamond clean and use the included stylus guard when not playing records.
What warranty does it carry?
It is covered by MoFi Electronics for one year parts and labor to the original owner.
Why buy from All Elite Audio?
All Elite Audio is an authorized MoFi Electronics dealer in Maryland, so you receive genuine product, full manufacturer warranty support and expert guidance on pairing the MasterTracker with the right turntable and phono stage.
