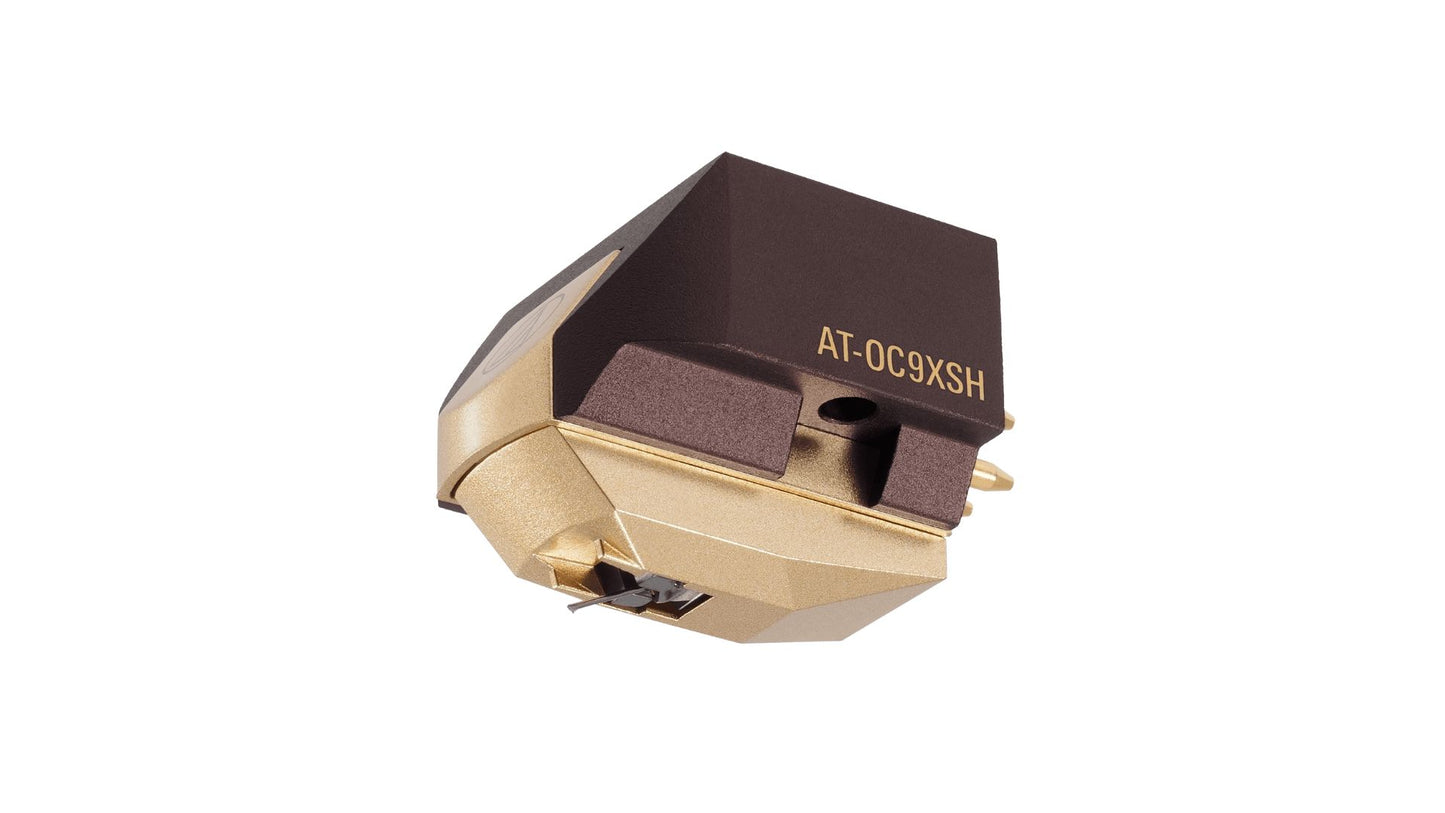

Audio Technica AT-OC9XSH Dual Moving Coil Cartridge

Audio Technica AT-OC9XSH Dual Moving Coil Cartridge

$699.00 USD
$699.00 USD $699.00 USD
SALE Sold Out
Shipping calculated at checkout.

The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion.

Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Features

    • Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation

    • The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion

    • The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws – no nuts required

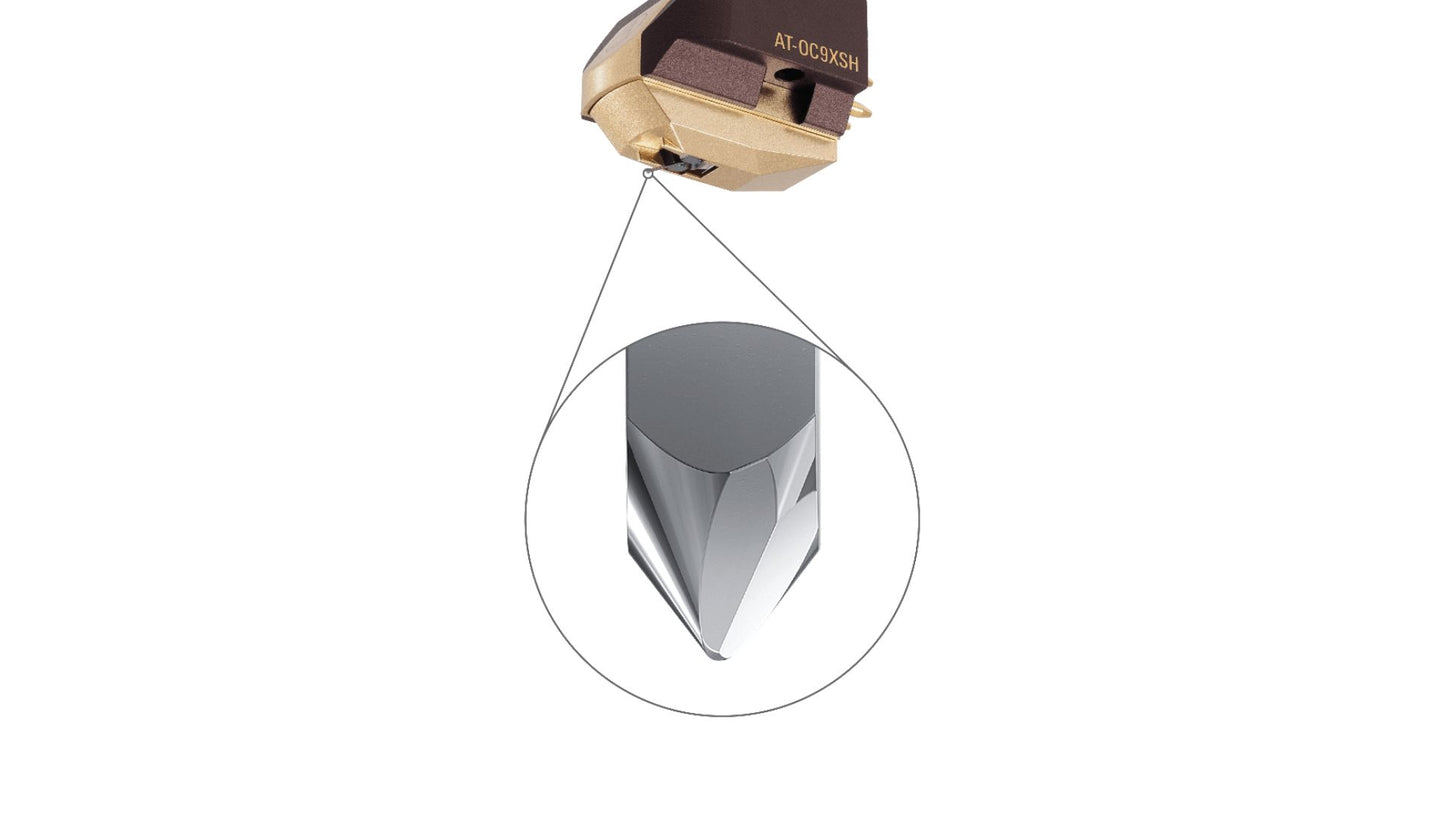

    • Features nude Shibata stylus and boron cantilever for rich full-range audio reproduction and high transient response

    • A neodymium magnet and permendur yoke provide dramatically increased magnetic energy

    • Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction

    • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer

    Please Note: AT-OC9XSH’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.

          Specifications

          Cartridge & Stylus
          Frequency Response 20-47,000 Hz
          Channel Separation 27 dB (1 kHz)
          Vertical Tracking Angle 20°
          Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
          Stylus Construction Nude square shank
          Recommended Load Impedance Min. 100 ohms (when head amplifier is connected)
          Coil Impedance 12 ohms (1 kHz)
          DC Resistance 12 ohms
          Coil Inductance 25 mH (1 kHz)
          Output Voltage 0.4 mV (at 1 kHz, 5 cm/sec)
          Output Channel Balance 1.0 dB (1 kHz)
          Stylus Shape Shibata
          Cantilever 0.28 mm diameter nude boron
          Static Compliance 20 x 10-6 cm/dyne
          Dynamic Compliance 16 x 10-6 cm/dyne (100 Hz)
          Mounting Half-inch
          Cartridge Weight 7.6 g
          Dimensions 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D
          Accessories Included Non-magnetic screwdriver; 2 washers; cartridge installation screws (5 mm × 2, 8 mm × 2, 10 mm x 2, 12 mm x 2); plastic protector; brush
          Body Material Aluminum
          Model AT-OC9XSH
          Mounting Feature Half-inch mount
          Stylus Curvature Radius 2.7 x 0.26 mil
          Stylus Size Nude square shank
          Terminal Pins Brass
          Type Dual Moving Coil
          Weight 7.6 g (0.3 oz)
          Wire Used for Coil PCOCC
          Notes Mounting Feature: Threaded body Note: moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable.
