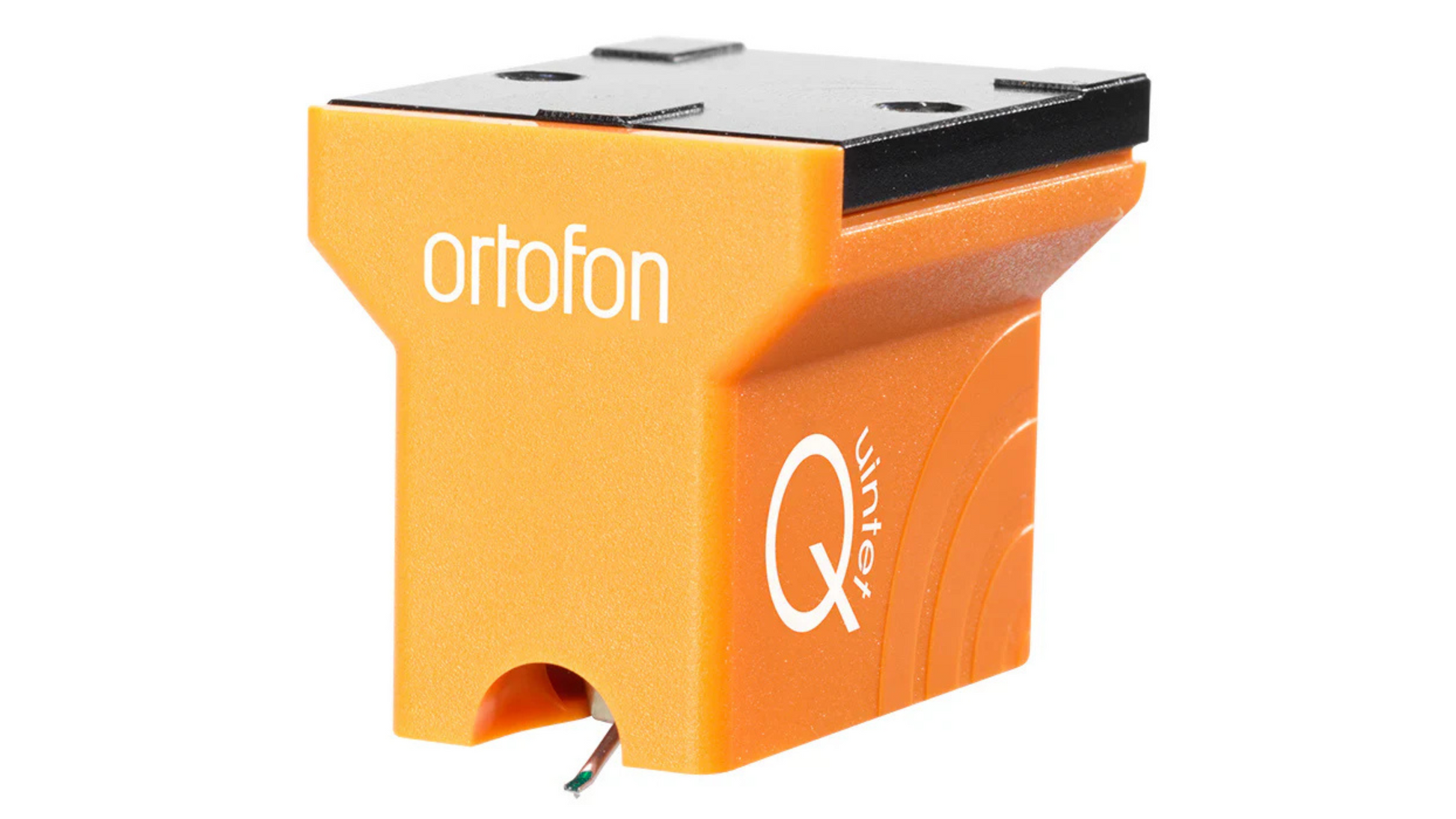

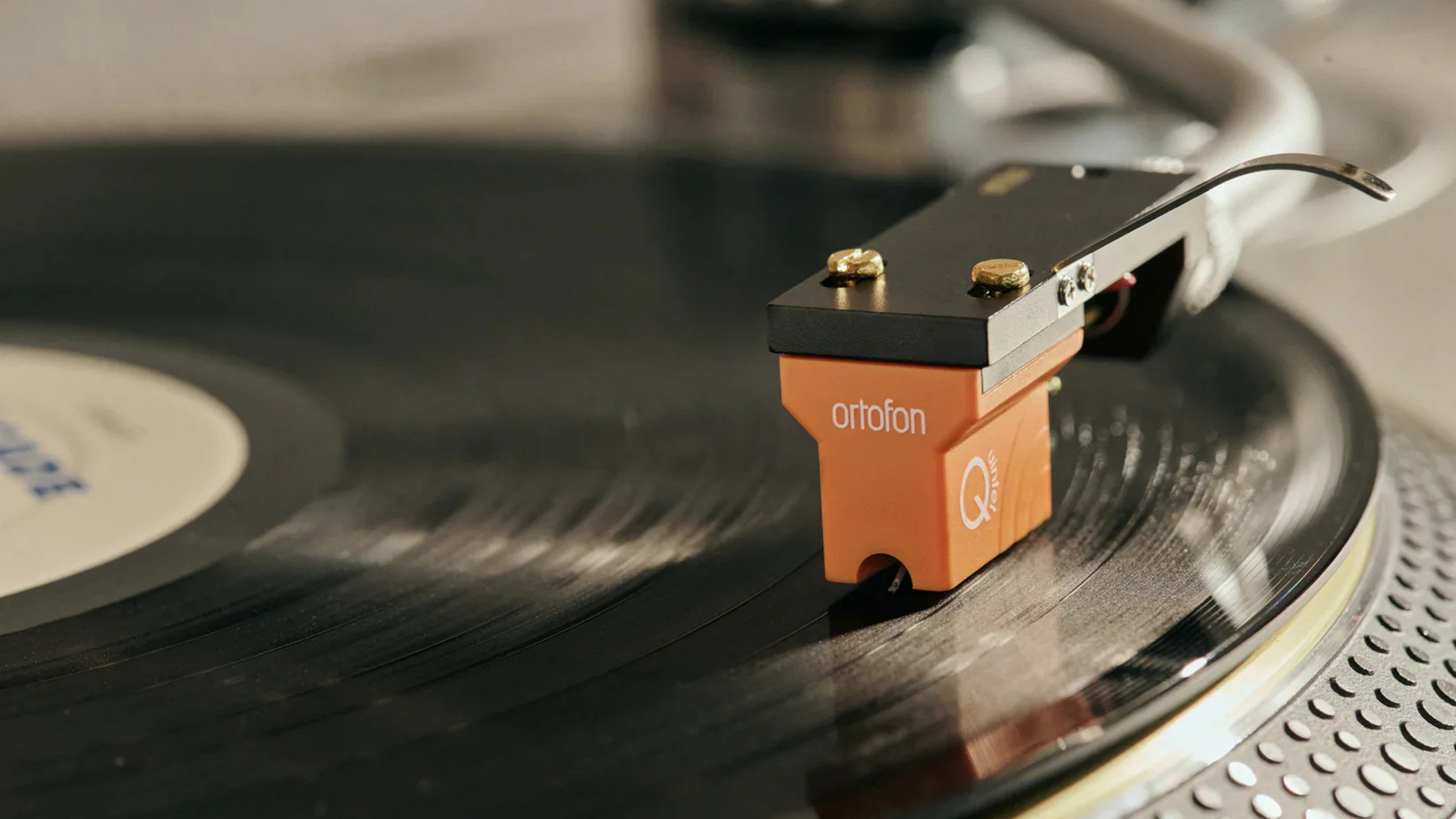

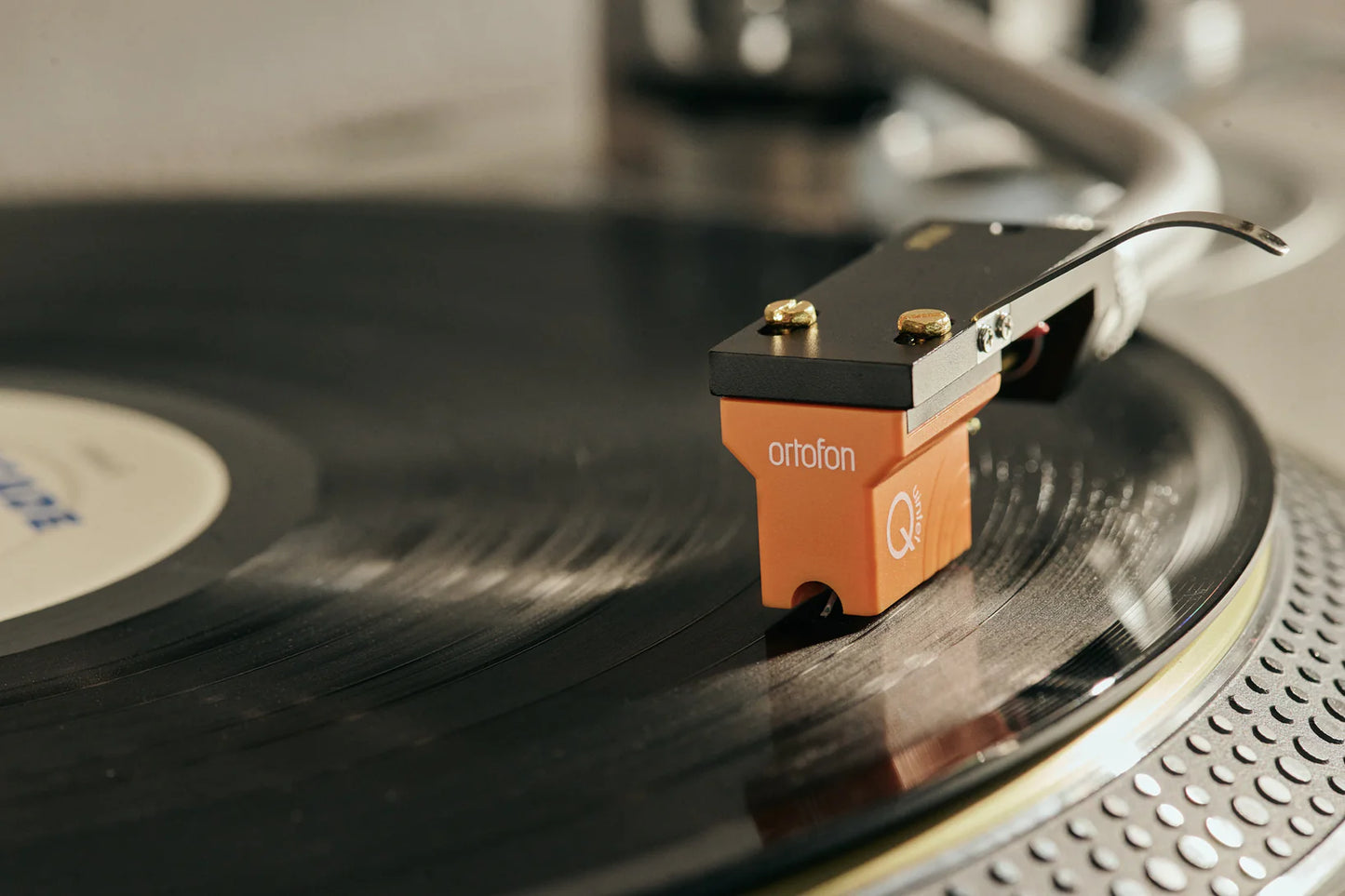

Ortofon MC Quintet Bronze

Overview

The Ortofon MC Quintet Bronze is a low output moving coil phono cartridge that sits above the Quintet Blue in Ortofon's Quintet series. As a moving coil design it delivers the immediacy and low moving mass that this cartridge topology is known for, and it requires a phono stage with a moving coil (MC) input or a step up transformer feeding a moving magnet input because of its low output.

The defining upgrade at the Bronze level is its nude Fine Line diamond stylus, a finer contact profile that traces the record groove with greater precision for finer detail retrieval and improved high frequency resolution. Ortofon, a Danish specialist founded in 1918 and one of the world's leading cartridge makers, builds the Quintet range as a natural companion for quality moving coil turntables and tonearms, pairing a refined stylus with the balanced, engaging character the series is designed for.

This cartridge is aimed at the listener who already has, or is building toward, a moving coil capable phono chain and wants a resolving, musically communicative pickup at the upper middle of the Quintet ladder. It suits medium mass tonearms and MC ready electronics, rewarding careful alignment with detailed, spacious reproduction.

Key Features

• Low output moving coil design for the speed and detail characteristic of the MC topology
• Nude Fine Line diamond stylus for finer detail and precise groove tracing
• Positioned above the Quintet Blue in Ortofon's Quintet series
• Requires an MC phono input or a step up transformer feeding an MM input
• Engineered by Ortofon, a Danish cartridge specialist founded in 1918
• Balanced, engaging tonal character suited to serious analog systems
• Designed for medium mass tonearms on quality moving coil turntables
• Rewards careful alignment and correct MC loading with detailed, spacious sound

How the Quintet Bronze Compares

Ortofon MC Quintet Bronze vs Ortofon MC Quintet Black S

The Quintet Black S sits above the Bronze at the top of the Quintet range and moves to a nude Shibata stylus for even more refined groove contact. If you want the fullest resolution the Quintet series offers and have a suitably resolving MC phono chain, the Black S is the step up. The Bronze remains an excellent choice where its Fine Line stylus and balanced voicing match your system and goals. See the Ortofon MC Quintet Black S.

Ortofon MC Quintet Bronze vs Ortofon MC Quintet Blue

The Quintet Blue sits just below the Bronze in the same series and shares the low output moving coil character. The Bronze advances the stylus to a nude Fine Line profile for finer detail and closer groove tracing. Both need MC capable electronics, so the choice comes down to how much stylus refinement your system and library reward. See the Ortofon MC Quintet Blue.

Ortofon MC Quintet Bronze vs Ortofon MC X30

The MC X30 comes from Ortofon's easy mounting MC X range and is designed for straightforward installation and a smooth, approachable presentation. The Quintet Bronze offers a nude Fine Line stylus aimed at finer detail retrieval within the Quintet range. Both are low output moving coil designs that need an MC input or step up transformer, so the decision is about mounting convenience versus the Quintet's detail focused voicing. See the Ortofon MC X30.

Ortofon MC Quintet Bronze vs Audio Technica AT-OC9XML

The AT-OC9XML is a dual moving coil design from Audio Technica with a MicroLine stylus and its own energetic, detail forward character. The Quintet Bronze presents Ortofon's take with a nude Fine Line stylus and the balanced Quintet voicing. Both are low output MC cartridges requiring MC ready electronics, so choose by the tonal character and system fit you prefer. See the Audio Technica AT-OC9XML.

Recommended Turntable and Phono Stage

Ortofon makes cartridges only, so build the MC Quintet Bronze into a system with a turntable and tonearm at its level plus a phono stage that has a moving coil input. Here are catalog components that suit its resolution and low output.

• TEAC TN-4D-SE Direct Drive Turntable A stable direct drive deck with a capable tonearm that gives the Quintet Bronze a solid, low noise foundation for careful setup and alignment.
• Audio-Technica AT-LP140XP Turntable A professional direct drive turntable with a headshell mount tonearm that makes installing and aligning the Bronze straightforward while providing consistent speed.
• Parasound JC3+ Phono Preamplifier A high resolution phono stage with a moving coil input and adjustable loading, letting the low output Bronze be dialed in for detailed, quiet playback.
• Luxman E-250 Phono Preamplifier Offers a dedicated MC input with selectable loading and a refined presentation that complements the Bronze's nude Fine Line stylus.
• MoFi UltraPhono Pro Phono Preamplifier An MM and MC phono preamplifier that provides the moving coil input the Bronze needs, a flexible starting point for a detailed analog front end.

Frequently Asked Questions

Is the MC Quintet Bronze a moving magnet or moving coil cartridge?
It is a low output moving coil cartridge in Ortofon's Quintet series.

Do I need a special phono stage for it?
Yes. Because it is a low output moving coil design, it needs a phono stage with a moving coil (MC) input, or a step up transformer feeding a moving magnet input.

What stylus does the Quintet Bronze use?
It uses a nude Fine Line diamond stylus, a finer contact profile chosen for finer detail and precise groove tracing.

Where does the Bronze sit in the Quintet range?
It sits above the Quintet Blue and below the Quintet Black S.

What is the recommended tracking force?
Ortofon recommends 2.3 grams for this cartridge.

What is the output voltage?
It is rated at 0.3 mV at 1 kHz, which is typical for a low output moving coil design.

What load impedance should I use?
A recommended load in the range of 50 to 200 ohms works well with this cartridge; consult your phono stage for the best match.

Will it work with a standard moving magnet phono input?
Not directly. You need an MC input or a step up transformer between the cartridge and an MM input because of the low output.

What tonearms suit the Quintet Bronze?
It suits medium mass tonearms; check your arm's effective mass against the cartridge's 9 gram weight and 15 um/mN compliance for a good match.

How does it compare to the Quintet Blue?
The Bronze advances the stylus to a nude Fine Line profile for finer detail while sharing the low output moving coil character of the Blue.

How does it compare to the Quintet Black S?
The Black S sits above the Bronze and uses a nude Shibata stylus for even more refined groove contact at the top of the range.

Can I use it for mono records?
It is a stereo cartridge. For mono only listening a dedicated mono cartridge such as the Quintet Mono is designed specifically for mono LPs.

What cantilever does it use?
It uses an aluminium cantilever paired with the nude Fine Line diamond stylus.

Is Ortofon a reputable maker?
Yes. Ortofon is a Danish company founded in 1918 and one of the world's leading phono cartridge makers.

What frequency range does it cover?
Its rated frequency range is 20 Hz to 25 kHz.

How much does the cartridge weigh?
It weighs approximately 9 grams.

Can the stylus be replaced?
Moving coil cartridges are typically serviced through Ortofon's exchange program rather than a user replaceable stylus; contact us for details on the current program.

What turntable should I pair it with?
A quality deck with a capable tonearm such as the TEAC TN-4D-SE or Audio-Technica AT-LP140XP pairs well, feeding an MC capable phono stage.

Does it include mounting hardware?
Yes, mounting hardware and a stylus brush are included along with setup documentation.

Why buy from All Elite Audio?
All Elite Audio is an authorized Ortofon dealer, so your MC Quintet Bronze is genuine and covered by the full manufacturer warranty. We offer expert setup guidance and system matching to help you build the right MC ready chain around it.
