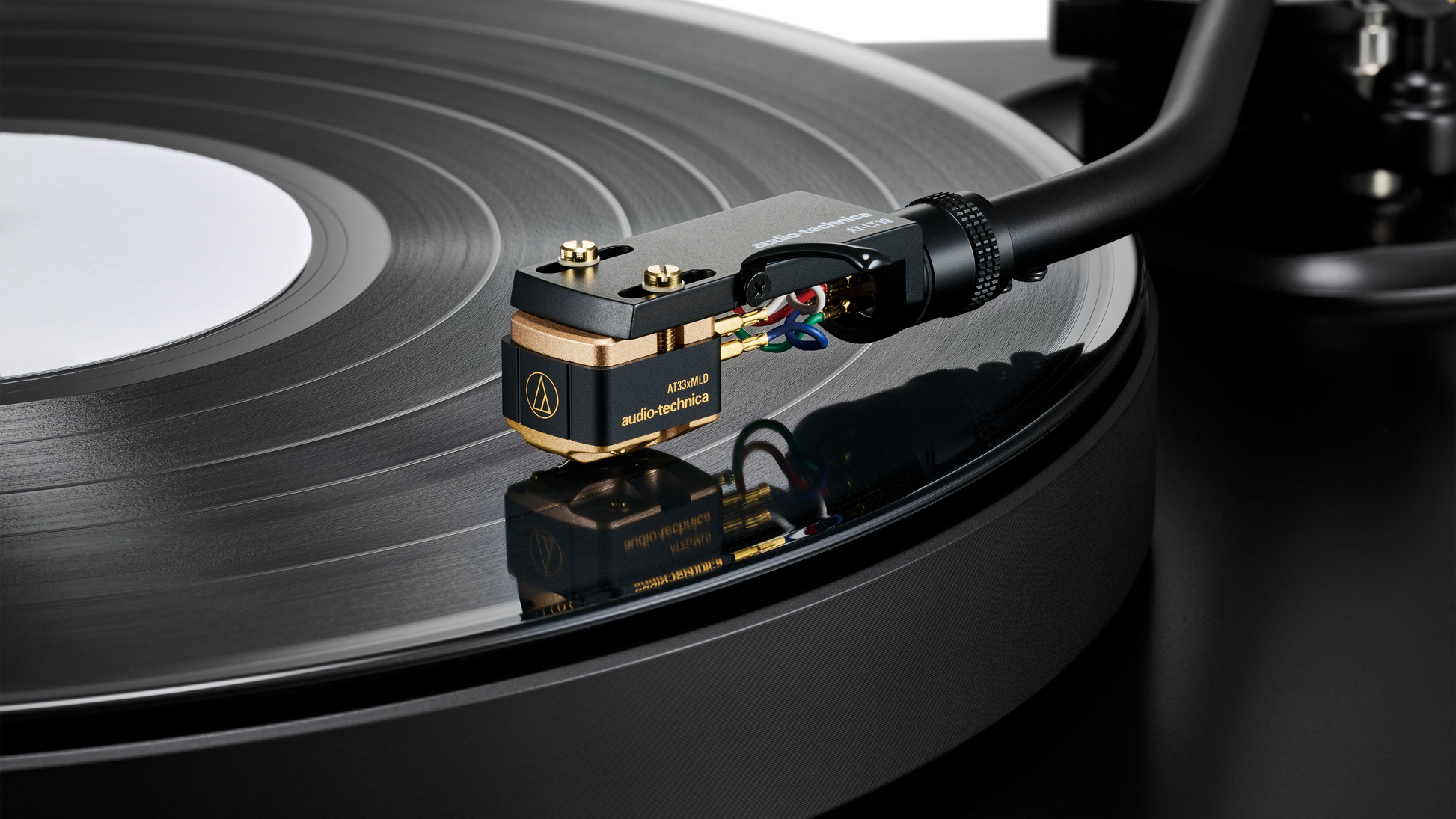

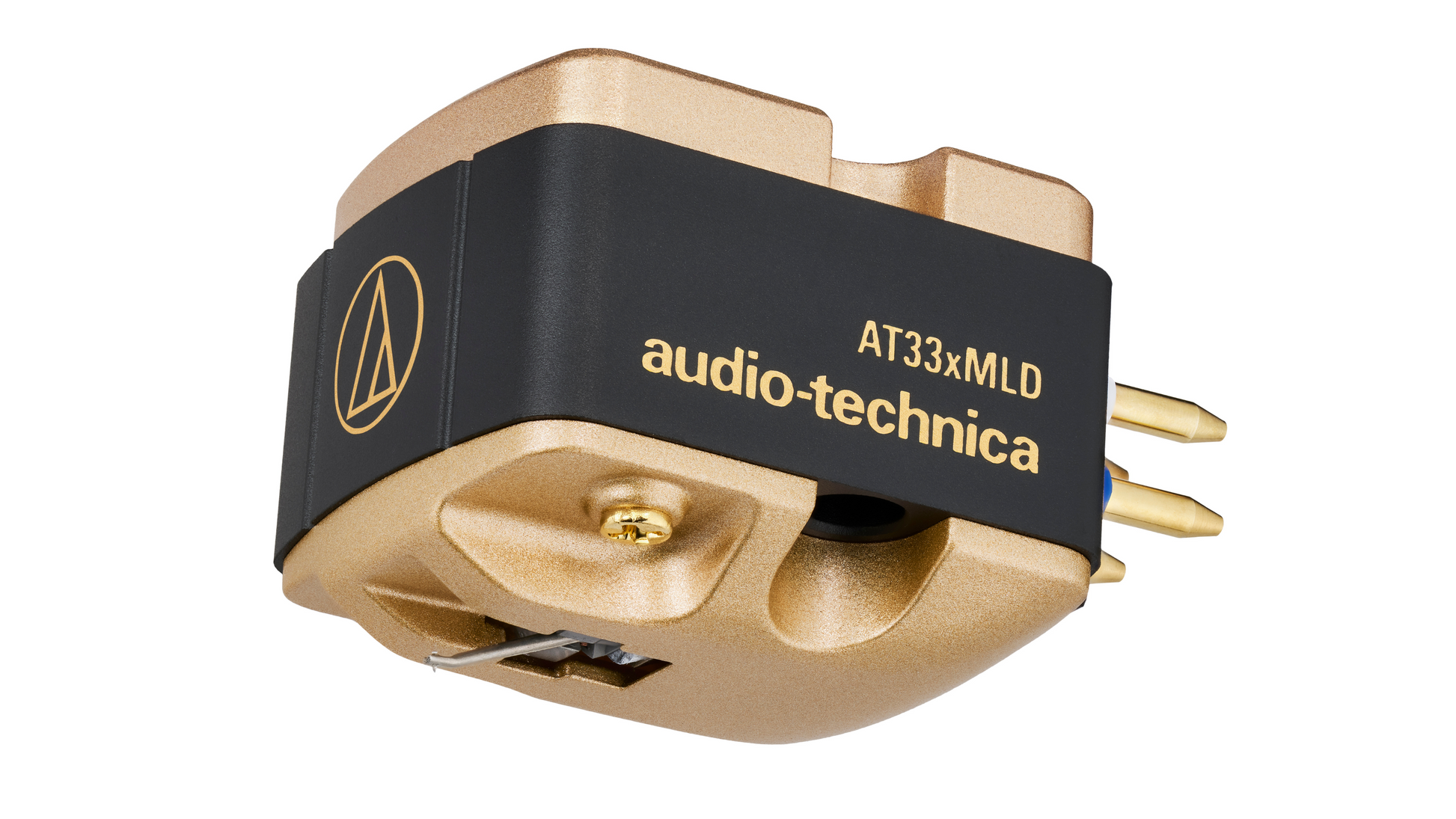

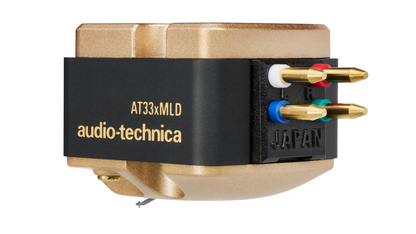

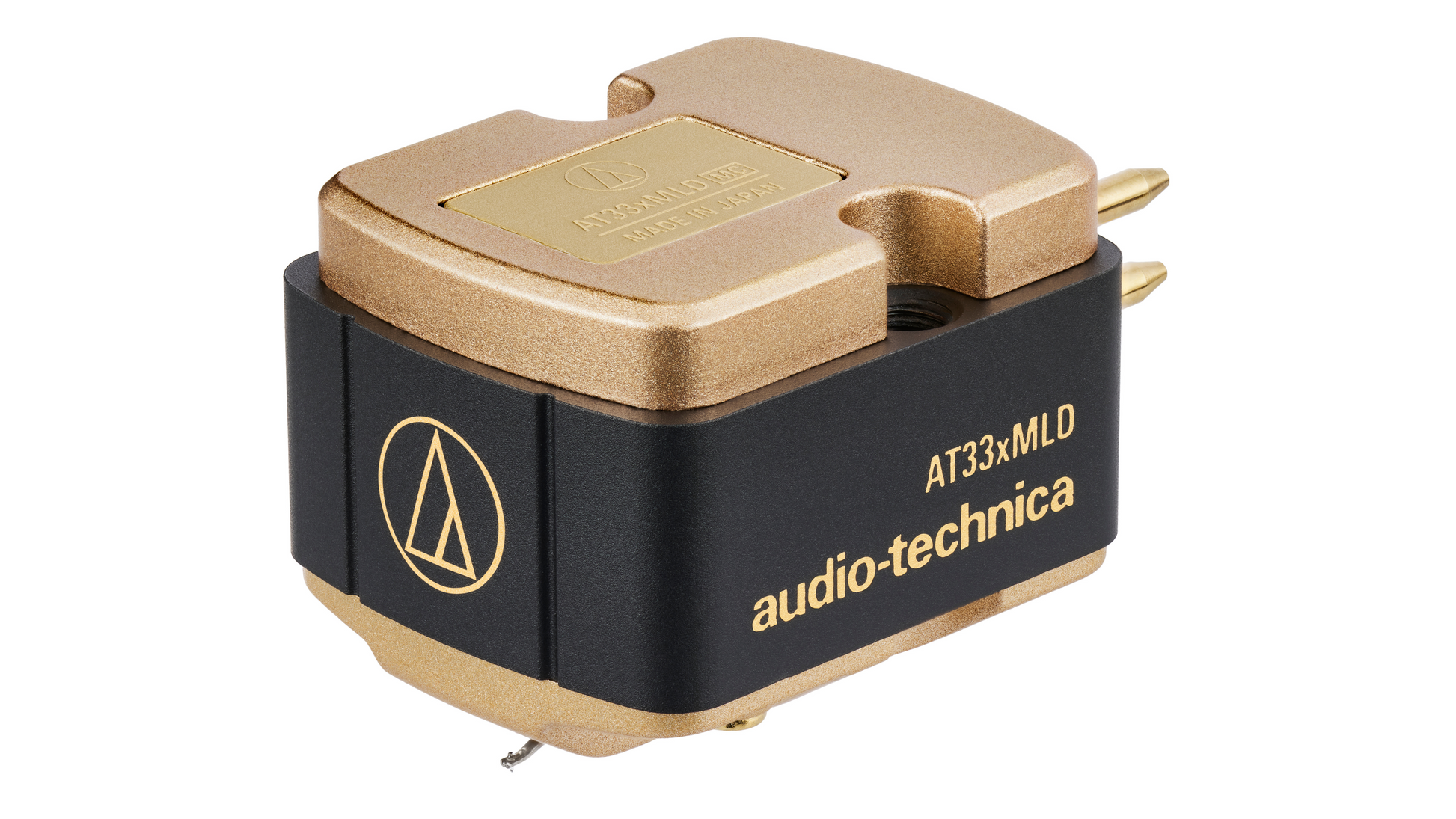

Audio Technica AT33xMLD

Overview

The Audio-Technica AT33xMLD is a low output dual moving coil stereo phono cartridge built for listeners who want deep detail retrieval and precise tracking from the vinyl groove. Its MicroLine bonded stylus rides accurately in the innermost recorded modulations, extracting fine spatial cues and inner groove detail that broader profiles can leave behind. The dual moving coil design uses a symmetrical structure aimed at strong channel balance and stable stereo imaging.

This cartridge is voiced for a clean, articulate, and open character. It favors resolution and transient speed, revealing texture in strings, breath in vocals, and air around instruments. As a low output MC design, it is intended for use with a phono stage that provides moving coil support and sufficient gain, paired with a well set up tonearm that can be dialed in for tracking force and alignment.

The AT33xMLD sits in Audio-Technica's respected 33 series, a family long favored by analog enthusiasts who value engagement and finesse over an overtly warm or forgiving presentation. Matched to a capable turntable and MC phono preamplifier, it rewards careful setup with a highly resolved and dimensional soundstage.

Key Features

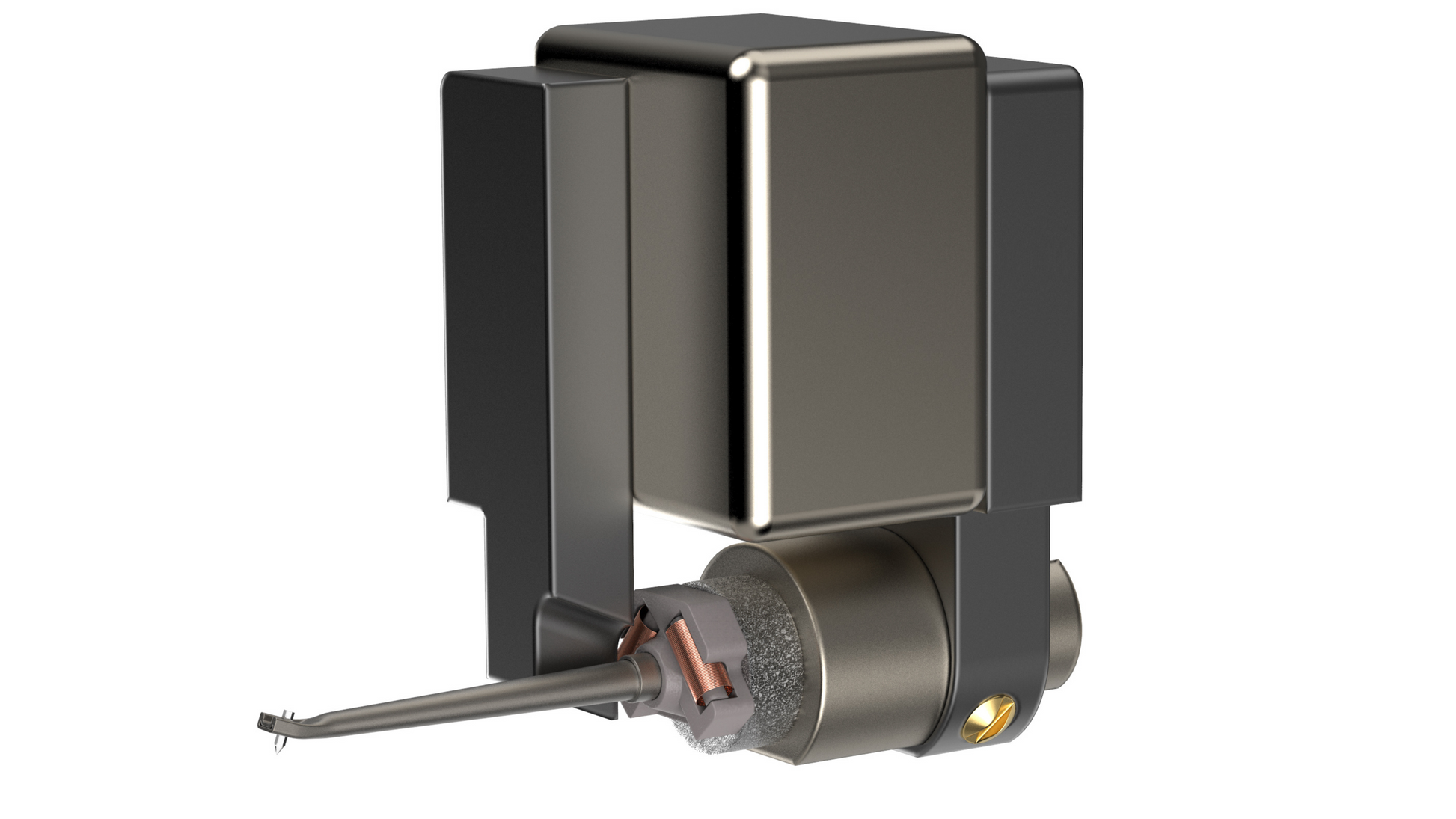

• Dual moving coil generator for strong channel separation and balanced stereo imaging
• MicroLine bonded stylus for accurate groove tracing and inner groove detail
• Low output MC design voiced for resolution, speed, and openness
• Solid boron cantilever for rigid, low mass energy transfer
• Precision aligned coils for consistent channel balance
• Part of the acclaimed Audio-Technica 33 series analog lineage
• Requires an MC capable phono stage with adequate gain
• Designed for careful alignment and repeatable, precise tracking

How the AT33xMLD Compares

Audio-Technica AT33xMLD Dual Moving Coil Stereo Phono Cartridge vs Audio-Technica AT-OC9XSL

The AT-OC9XSL is the step up model in this family and pairs an even finer Special Line Contact stylus with a design aimed at extreme resolution and delicacy. The AT33xMLD, with its MicroLine profile, delivers a highly detailed yet slightly more forgiving presentation of inner groove information. Both are low output MC designs that reward a quality MC phono stage, so the choice comes down to how much ultimate refinement you want to chase. See the Audio-Technica AT-OC9XSL.

Audio-Technica AT33xMLD Dual Moving Coil Stereo Phono Cartridge vs Audio-Technica AT-OC9XSH

The AT-OC9XSH is a high output leaning member of the OC9X range that eases the demands placed on your phono stage. The AT33xMLD stays committed to the low output MC approach with its MicroLine stylus for precise tracing. If your system has strong MC gain, the AT33xMLD leans into detail and finesse. See the Audio-Technica AT-OC9XSH.

Audio-Technica AT33xMLD Dual Moving Coil Stereo Phono Cartridge vs Audio Technica AT33xMLB

The AT33xMLB is a sibling in the same 33 series and shares much of the family DNA, differing in construction details of the cartridge body. Both use a MicroLine stylus and low output MC generator for a resolving, articulate character. Choosing between them is about body construction preference within the same voicing goal. See the Audio Technica AT33xMLB.

Audio-Technica AT33xMLD Dual Moving Coil Stereo Phono Cartridge vs Ortofon MC Quintet Black S

The Ortofon MC Quintet Black S is a low output MC cartridge with a Shibata stylus and a smooth, richly textured character. The AT33xMLD offers a crisp, fast, and highly detailed presentation through its MicroLine profile. Both are excellent MC choices for a resolving system, differing in tonal character rather than capability. See the Ortofon MC Quintet Black S.

Recommended Turntables and Phono Stage

This low output MC cartridge needs a tonearm that can be precisely aligned and a phono stage with MC support and ample gain. The pairings below suit its output and tracking requirements.

• Thorens TD 1500 A refined sub chassis belt drive deck whose stable, low resonance tonearm suits the precise alignment the AT33xMLD needs to trace cleanly.
• MoFi UltraDeck A well engineered turntable with a rigid, adjustable tonearm that lets you dial in tracking force and alignment for this MicroLine MC cartridge.
• TEAC TN-5BB A balanced capable belt drive deck with a solid tonearm, a strong platform for extracting the detail this low output MC cartridge delivers.
• MoFi UltraPhono Pro A dedicated MM/MC phono stage with the moving coil gain and loading needed to properly amplify the 0.4 mV output of the AT33xMLD.
• Luxman E-250 A refined MM/MC phono preamplifier with flexible loading and low noise, letting this cartridge's low output MC signal shine.

Frequently Asked Questions

Is the AT33xMLD a moving coil or moving magnet cartridge?
It is a low output dual moving coil (MC) cartridge.

What is the output voltage?
Output is approximately 0.4 mV at 1 kHz and 5 cm/sec, which is a low output MC level.

Do I need a special phono stage?
Yes. You need a phono preamplifier with moving coil support and enough gain to handle the low 0.4 mV output.

What stylus does it use?
It uses a MicroLine bonded stylus for accurate groove tracing and strong inner groove detail.

What is the recommended tracking force?
The tracking force range is 1.8 to 2.2 grams, with 2.0 grams as the standard setting.

What cantilever material is used?
It uses a solid boron cantilever for rigid, low mass energy transfer.

What is the recommended load impedance?
A minimum load impedance of 100 ohms is recommended for this cartridge.

What is the frequency response?
The published frequency response is 15 Hz to 50 kHz.

How much does the cartridge weigh?
It weighs about 8.0 grams.

Does it fit a standard headshell?
Yes, it uses a standard half inch mount and works with most standard tonearms and headshells.

Can the stylus be replaced separately?
As with most moving coil cartridges, the stylus is not user replaceable in the way a moving magnet is. Audio-Technica offers a replacement program for the cartridge.

How does it differ from the AT-OC9XSL?
The AT-OC9XSL is the step up model with a finer Special Line Contact stylus aimed at even greater refinement, while the AT33xMLD focuses on detail with its MicroLine profile.

How does it compare to the AT33xMLB?
Both share the 33 series voicing and MicroLine stylus, differing in cartridge body construction details.

Is it a good match for detailed listening?
Yes. Its MicroLine stylus and low output MC design favor resolution, speed, and spatial detail.

What kind of sound character does it have?
It is clean, articulate, and open, favoring transient speed and detail over an overtly warm presentation.

What turntables pair well with it?
Decks with rigid, adjustable tonearms such as the Thorens TD 1500, MoFi UltraDeck, or TEAC TN-5BB are well suited.

Does it work with a moving magnet input?
No. It requires a moving coil input or step up device because of its low output level.

Is careful setup important?
Yes. Precise alignment, tracking force, and loading are important to get the best from this MC cartridge.

Is this an authentic Audio-Technica product?
Yes. All Elite Audio is an authorized Audio-Technica dealer and every cartridge is genuine with full support.

Why buy from All Elite Audio?
We are an authorized Audio-Technica dealer in MD with the AT33xMLD in stock, offering genuine product, expert setup guidance, and full manufacturer support.
