Thorens TD 1601 Turntable

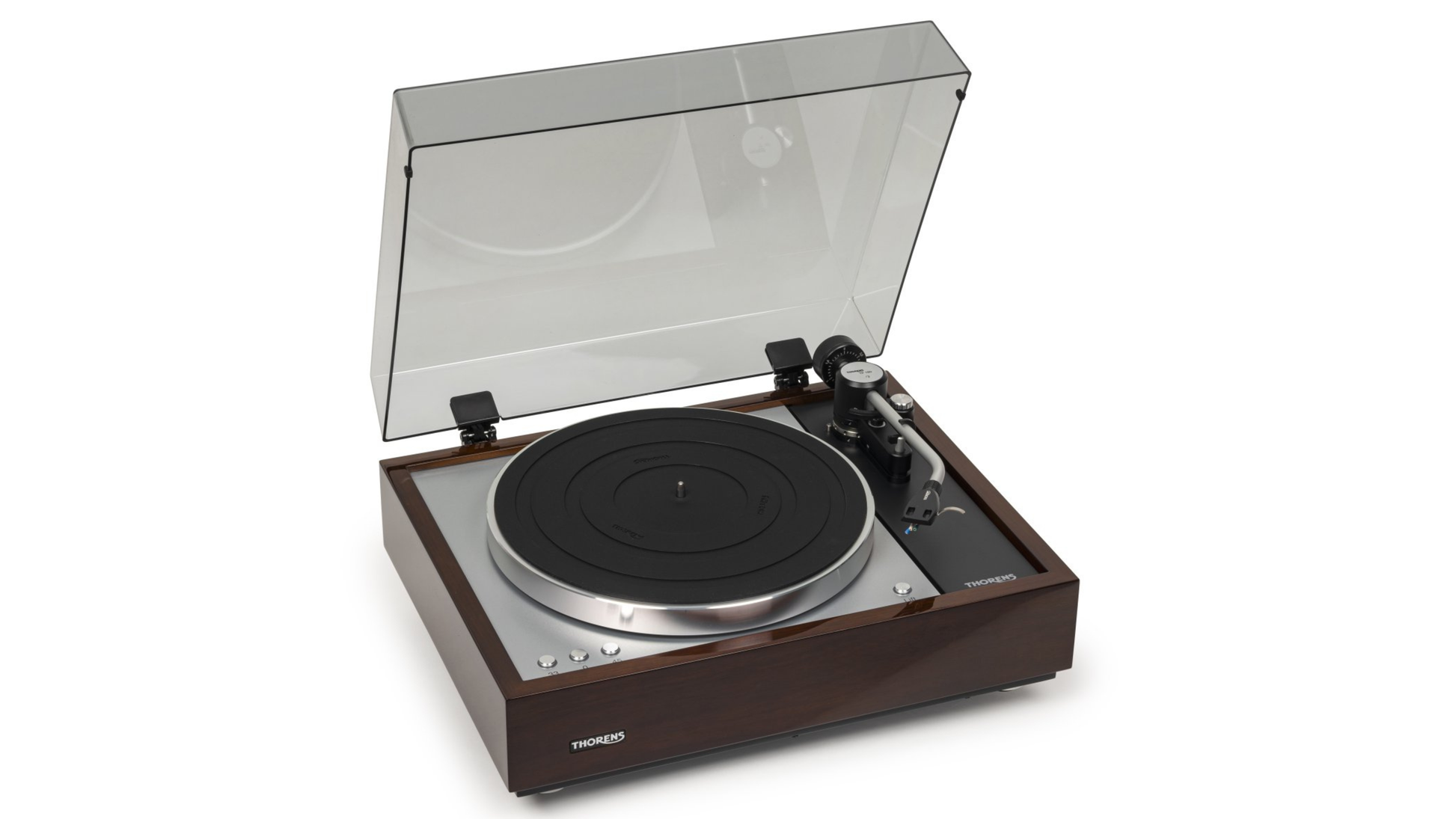

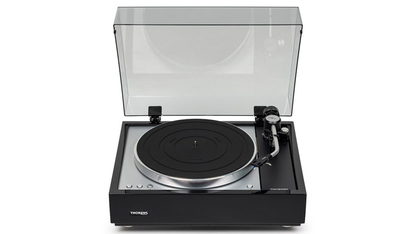

Thorens TD 1601 w/ TP 160 Tonearm

Elevate timeless Thorens suspension design with effortless convenience in the Thorens TD 1601 w/ TP 160 Turntable — a semi-automatic belt-drive gem featuring patented electric lift, touchless auto shut-off, and the precision TP 160 tonearm for refined, vibration-isolated vinyl mastery.

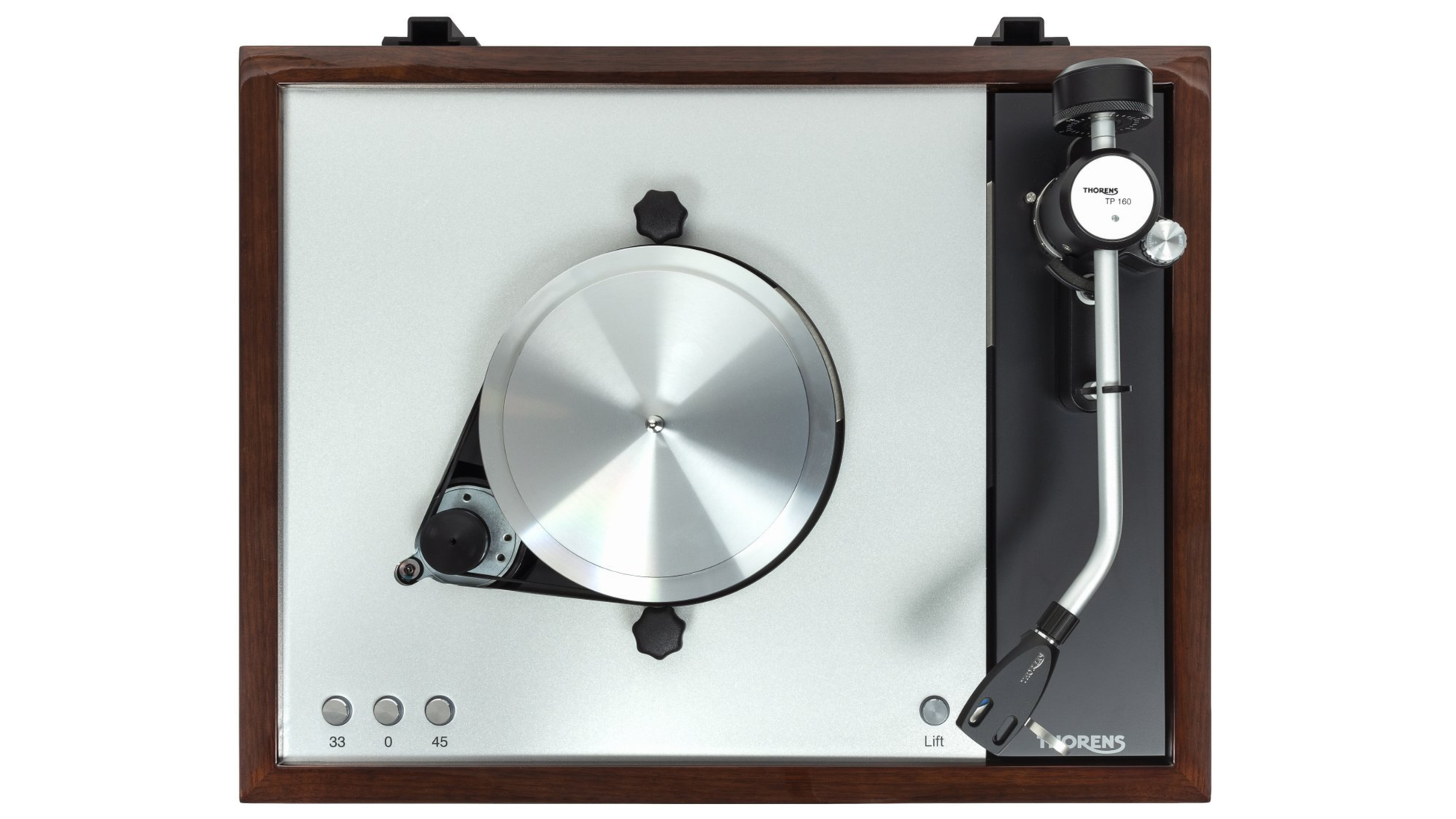

The Thorens TD 1601 builds on the acclaimed TD 1600 with added user-friendly features: a patented electric tonearm lift and contactless end-of-record shut-off that gently raises the arm to protect your stylus and records. Its stabilized sub-chassis floats on three conical springs for superior isolation, while the electronically controlled synchronous motor and adjustable belt tension drive a two-part machined aluminum platter (12-inch, 4.2 kg) with exceptional stability.

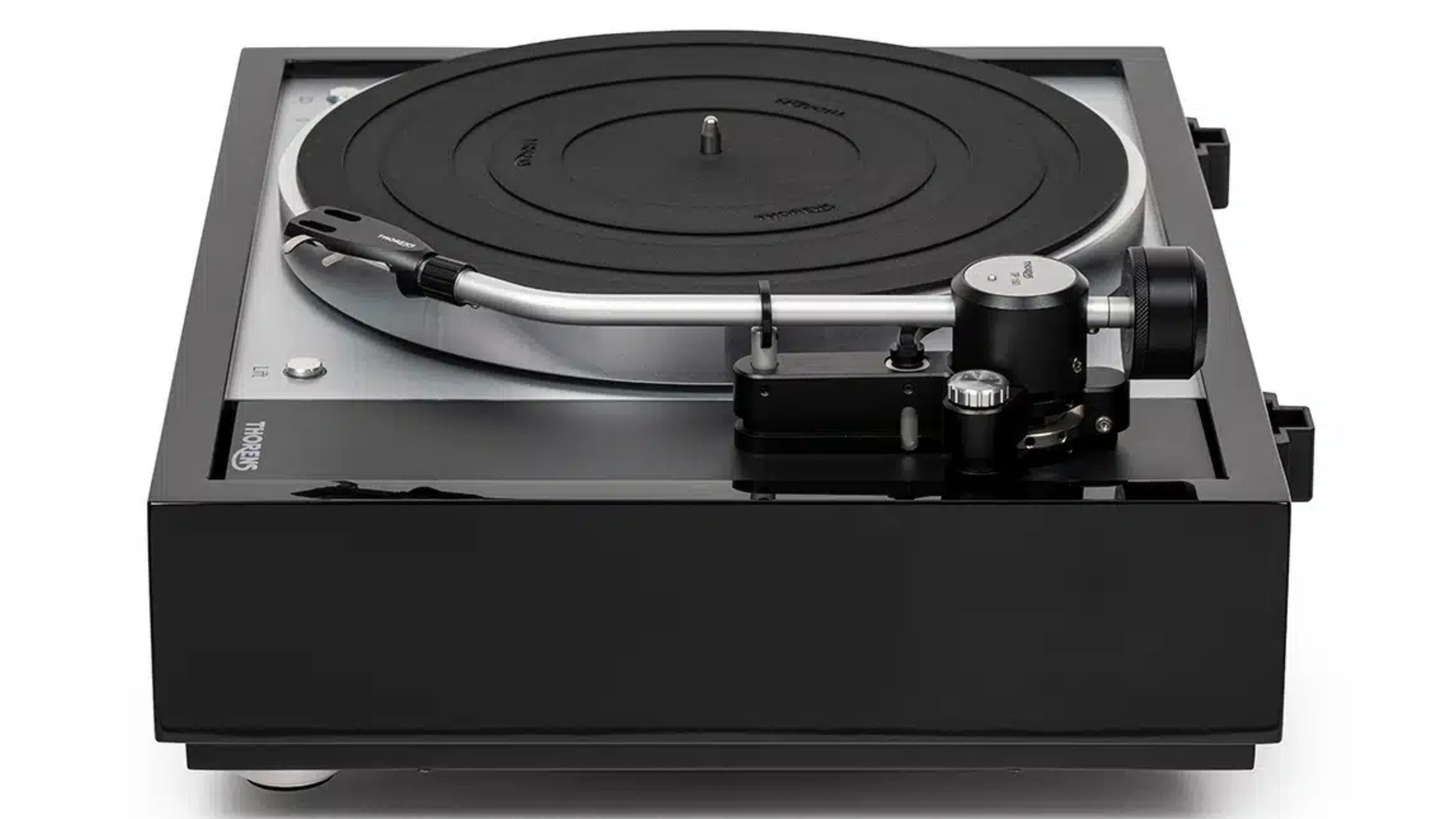

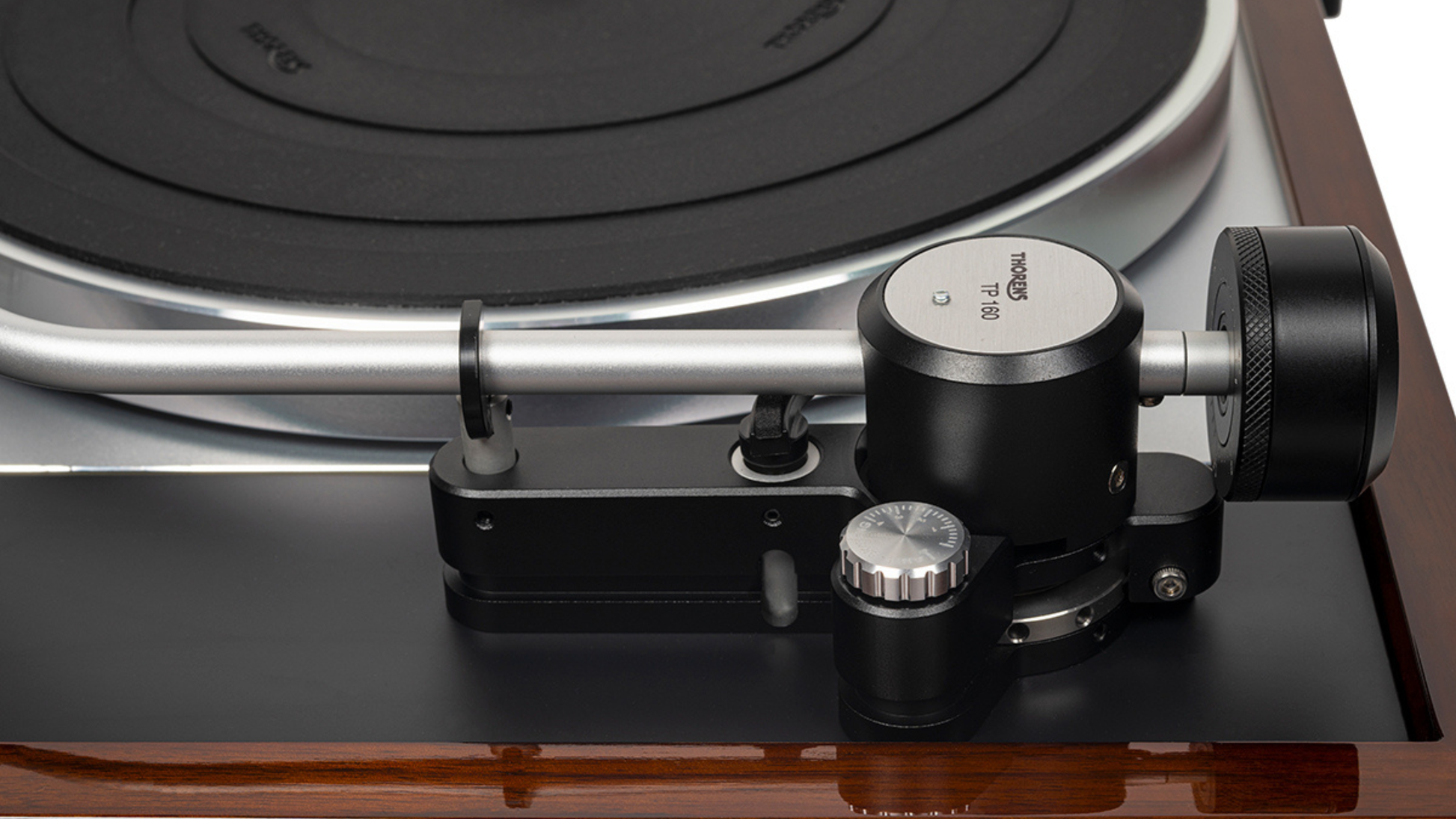

The upgraded Thorens TP 160 tonearm — a 9-inch J-shaped design by Helmut Thiele — boasts an ultra-precise knife-edge bearing magnetically stabilized for horizontal precision, low effective mass (14-15 g), and detachable SME headshell for easy cartridge changes. Balanced XLR and RCA outputs, plus the external TPN 1600 linear power supply with toroidal transformer, ensure ultra-low noise and clean power.

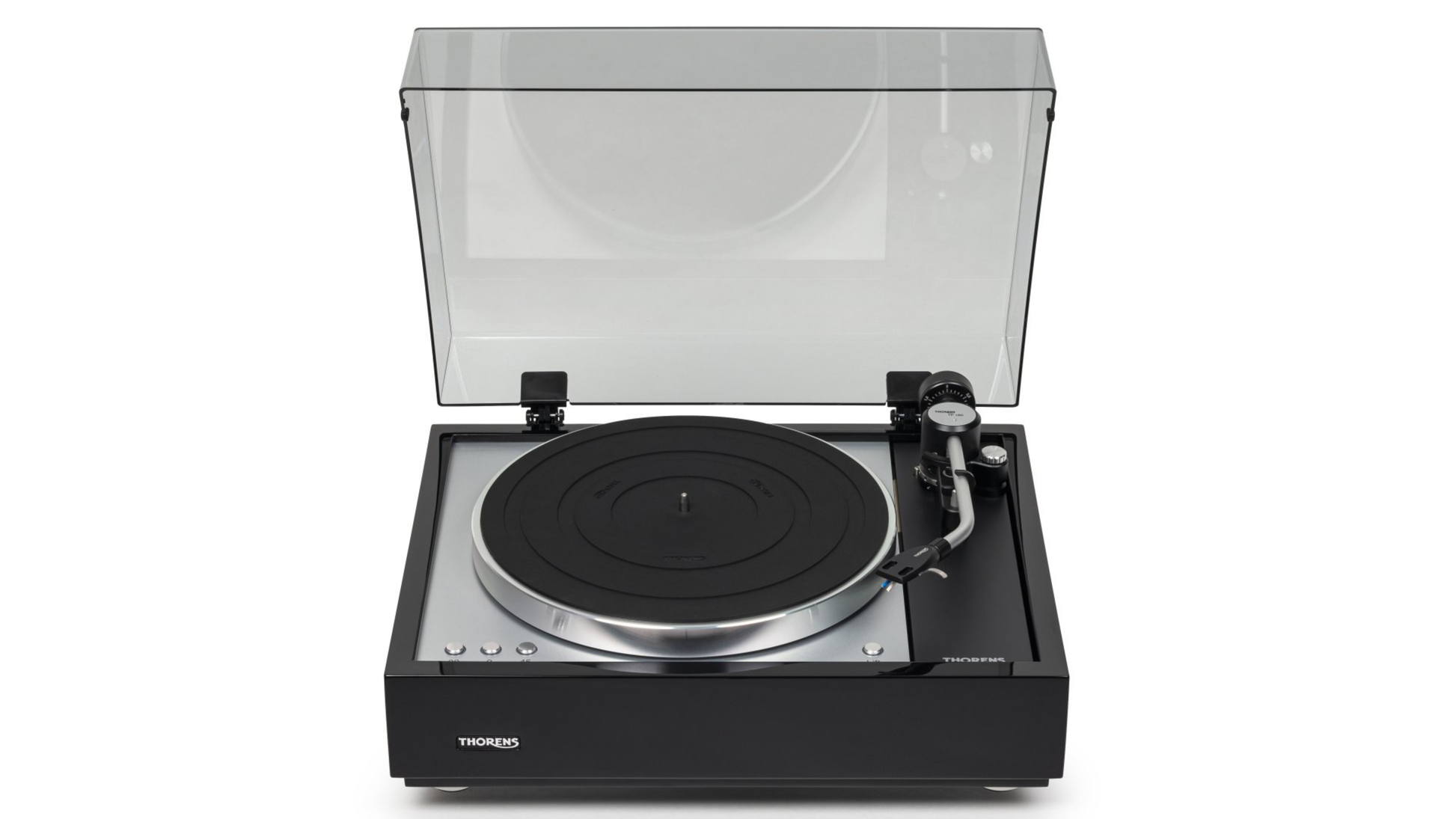

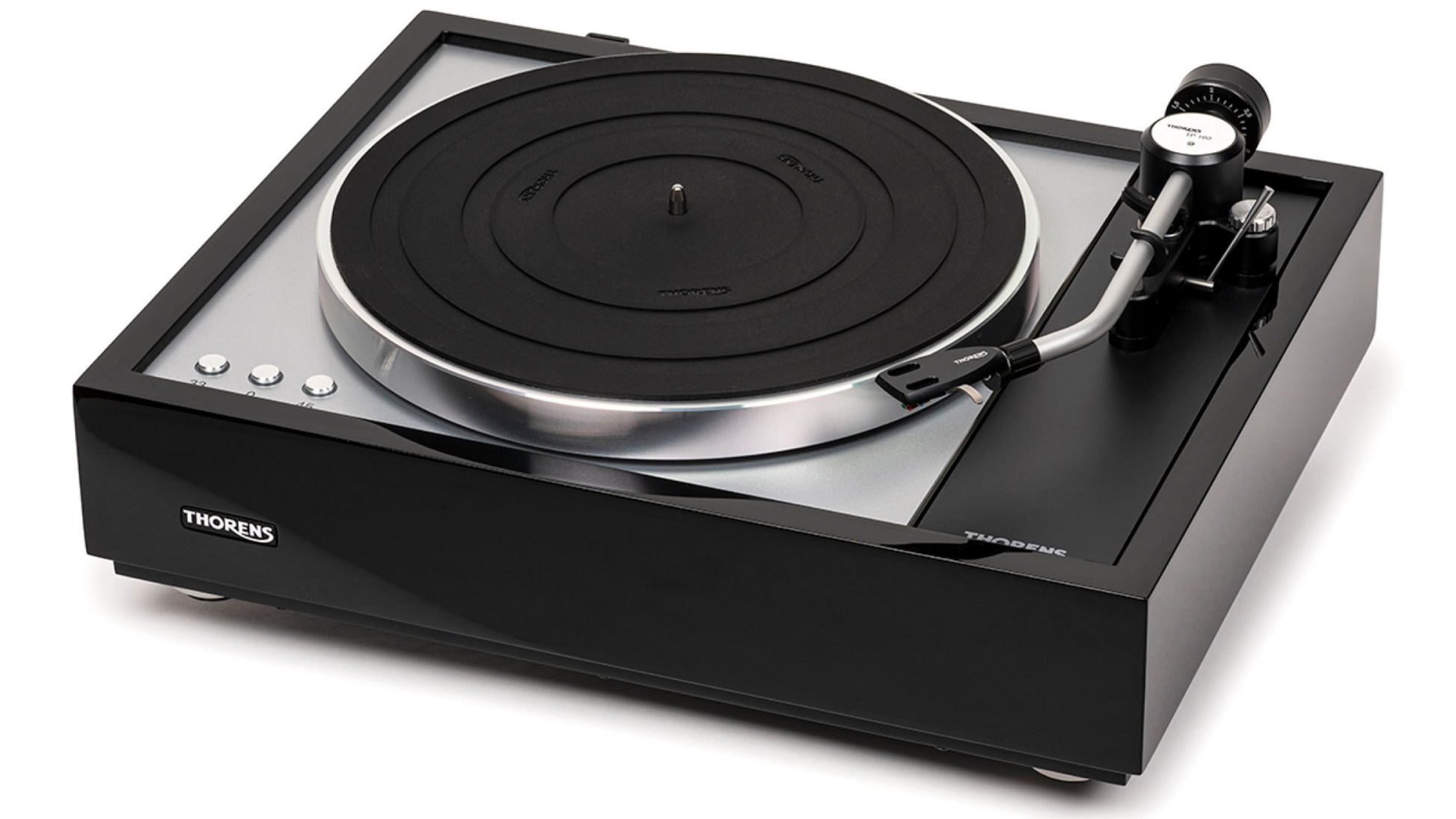

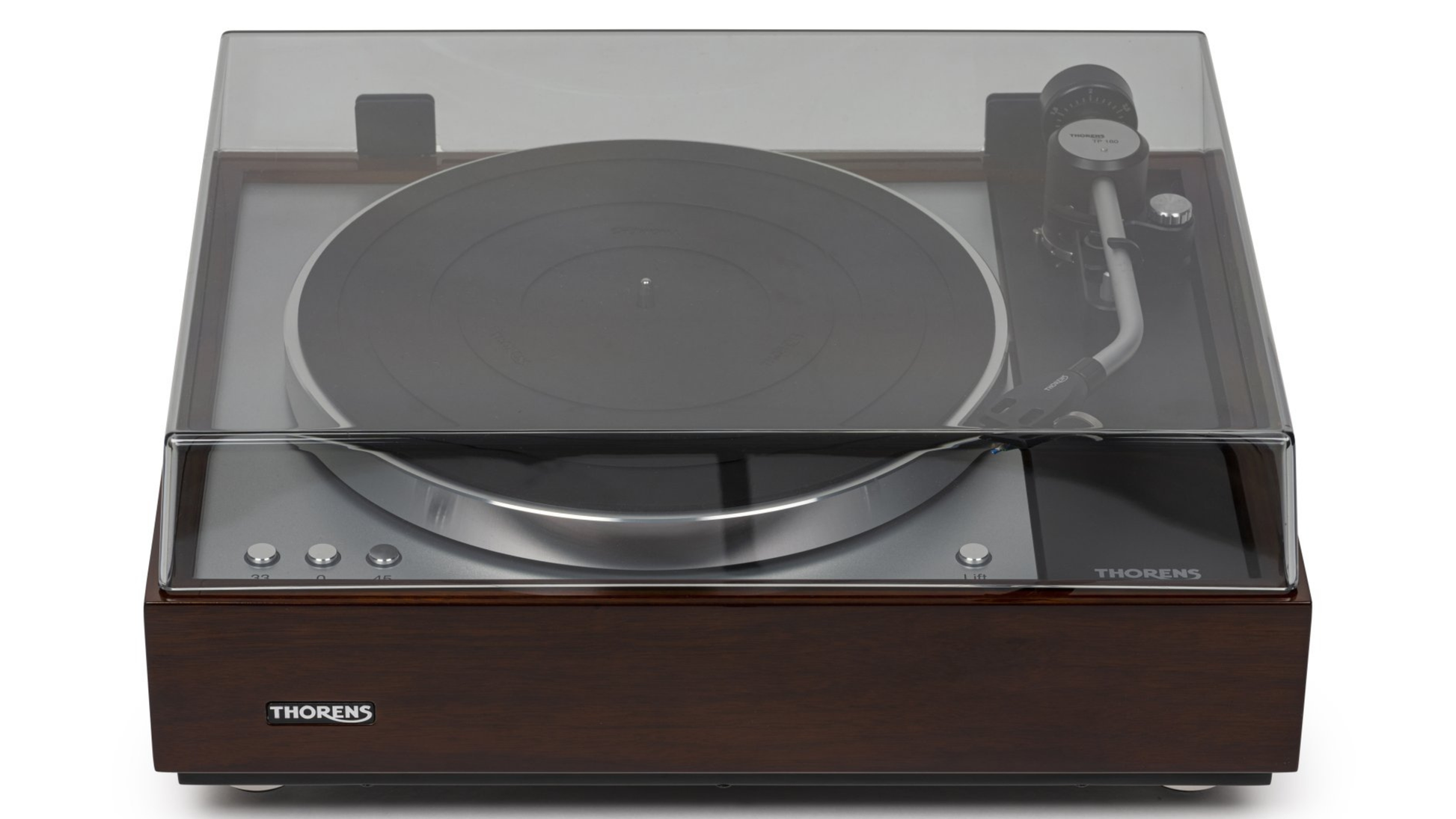

Encased in a solid wooden plinth with high-gloss black or walnut finishes and triCom top board, the TD 1601 blends classic aesthetics with modern comfort and performance. Manual speed selection for 33-1/3 and 45 rpm keeps the analog purity intact.

From immersive symphonies to punchy rock, the Thorens TD 1601 w/ TP 160 Turntable delivers natural detail, rhythmic drive, and effortless musicality in a sophisticated, semi-automatic package.

For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team. All Elite Audio is an authorized dealer for Thorens in Maryland and operates a full home audio showroom.

Key Specifications

• Drive: Belt drive, sub-platter aluminum, adjustable tension

• Motor: Electronically controlled and stabilized AC synchronous motor

• Speeds: 33-1/3, 45 rpm (electronic selection)

• Platter: 12-inch / 4.2 kg (two-part machined aluminum)

• Tonearm: Thorens TP 160 (knife-edge bearing, effective mass 14-15 g), detachable SME headshell

• Anti-Skating: Spring-based

• Auto Features: Patented electric lift, touchless shut-off

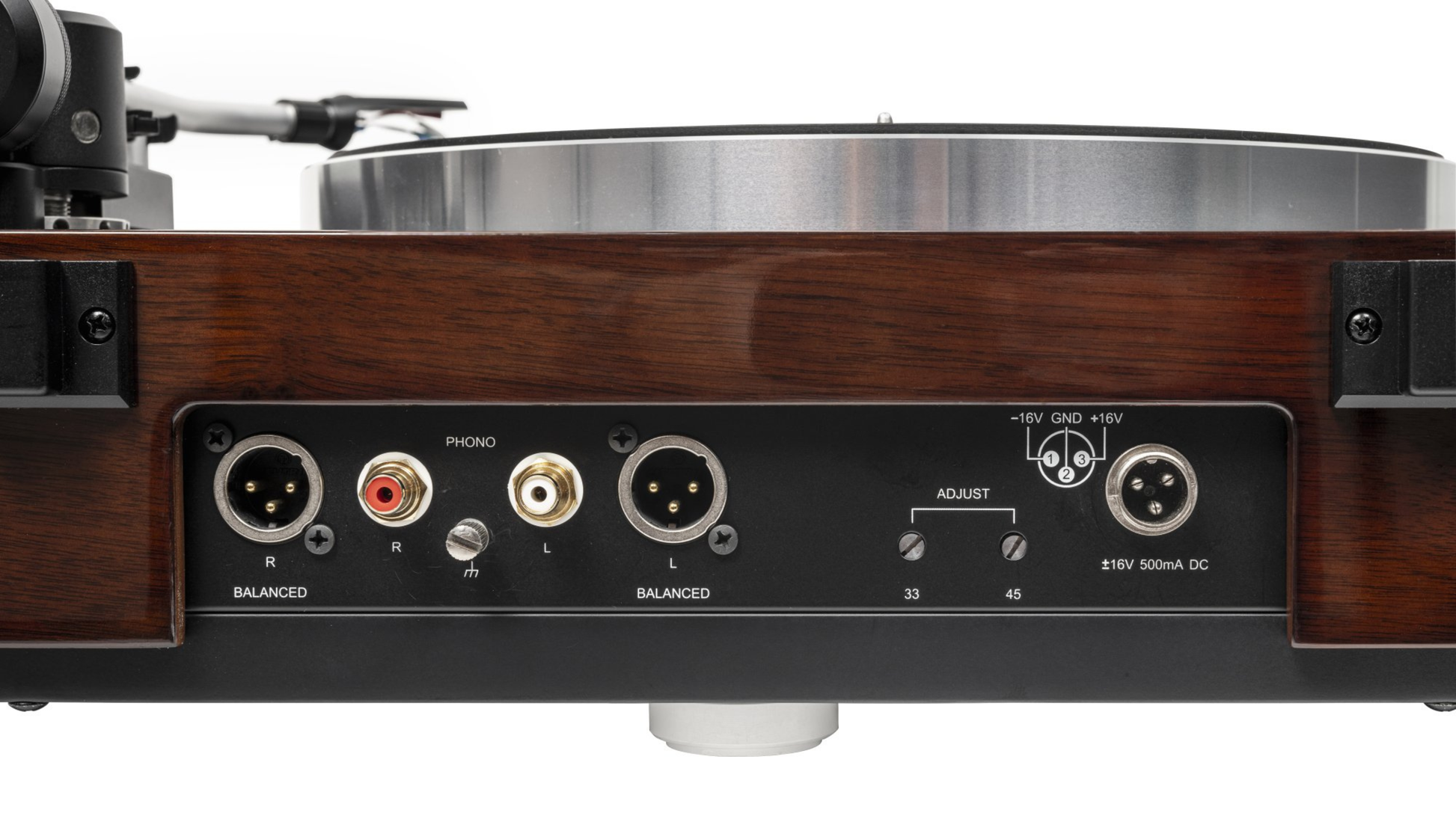

• Outputs: RCA and balanced XLR

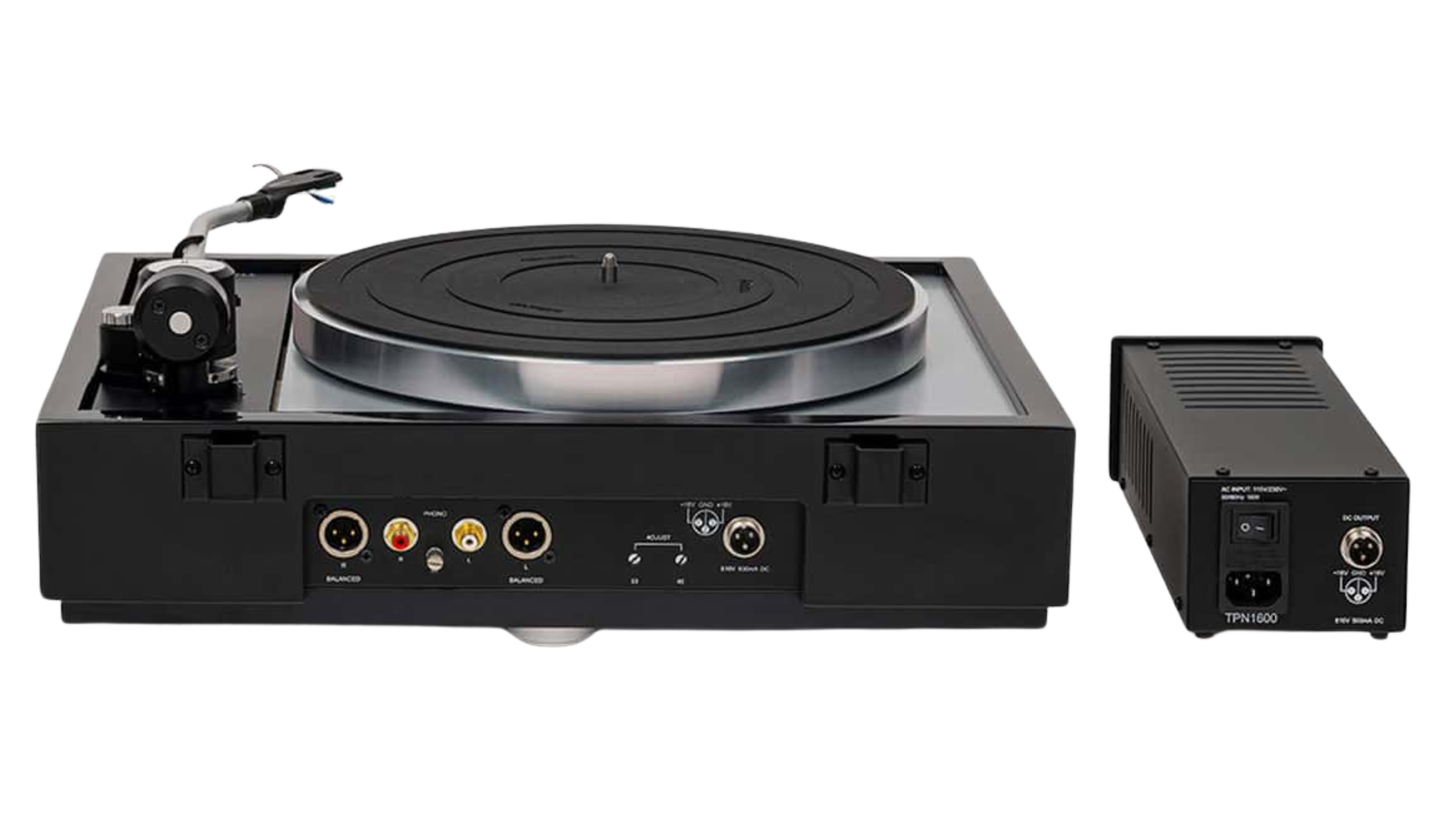

• Power Supply: External TPN 1600 linear with toroidal transformer (2x 16V)

• Dimensions: 454 × 180 × 369 mm (W×H×D)

• Weight: 11 kg


Top 20 Questions About Thorens TD 1601 w/ TP 160

What kind of sound does the Thorens TD 1601 w/ TP 160 produce?
It offers pure, detailed, and highly musical analog reproduction with excellent dynamics, natural timbre, and low resonance thanks to superior isolation and precision arm.

Is the Thorens TD 1601 a belt-drive turntable?
Yes, featuring a polished precision belt with adjustable tension for smooth, accurate, and quiet operation.

What makes the Thorens TD 1601 different from the TD 1600?
The TD 1601 adds patented electric tonearm lift and contactless auto shut-off for greater convenience, while sharing the same core design and performance.

Does the Thorens TD 1601 w/ TP 160 include auto lift and shut-off?
Yes, it features a patented electric lift and touchless mechanism that raises the arm at record's end to protect your stylus.

What tonearm comes with the Thorens TD 1601?
The high-precision Thorens TP 160 9-inch tonearm with knife-edge bearing, magnetic stabilization, and detachable SME headshell.

Can I easily swap cartridges on the Thorens TD 1601 w/ TP 160?
Yes, the detachable SME headshell allows quick, tool-free cartridge changes and alignments.

What platter does the Thorens TD 1601 feature?
A heavy two-part 12-inch machined aluminum platter at 4.2 kg for outstanding speed stability and flywheel effect.

Does the Thorens TD 1601 support balanced connections?
Yes, it provides true balanced XLR outputs alongside unbalanced RCA for low-noise, high-fidelity setups.

Is there a built-in phono preamp in the Thorens TD 1601?
No, it requires an external phono stage or amplifier with phono input.

How does the Thorens TD 1601 isolate vibrations?
Through a stabilized sub-chassis on three conical springs, enhanced by a tensioned steel cord for piston-like motion.

What power supply does the Thorens TD 1601 use?
The external TPN 1600 linear supply with high-performance toroidal transformer for clean, interference-free power.

Does the Thorens TD 1601 include a dust cover?
Yes, it comes with an acrylic dust cover.

Is the Thorens TD 1601 easy to set up?
It's straightforward, with precise suspension tuning, adjustable belt tension, and user-friendly tonearm setup.

What cartridge pairs best with the Thorens TD 1601 w/ TP 160?
It excels with quality MM or MC cartridges; the TP 160 handles a wide range with superb tracking and detail.

Does the Thorens TD 1601 have electronic speed control?
Yes, for accurate and stable 33-1/3 and 45 rpm selection.

How does the Thorens TD 1601 w/ TP 160 compare to manual models?
It adds semi-automatic convenience without compromising sound quality, ideal for those wanting ease alongside high-end performance.

What room size suits the Thorens TD 1601?
It shines in medium to large dedicated listening spaces, delivering scale, refinement, and dynamics.

Is the Thorens TD 1601 low-maintenance?
Yes, with durable belt-drive, external PSU, and reliable build for long-term enjoyment with minimal upkeep.

What warranty does the Thorens TD 1601 include?
It carries a manufacturer's 2-year warranty.

Where can I get expert help with the Thorens TD 1601 w/ TP 160?
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team at All Elite Audio, your authorized Maryland dealer with a full home audio showroom.
