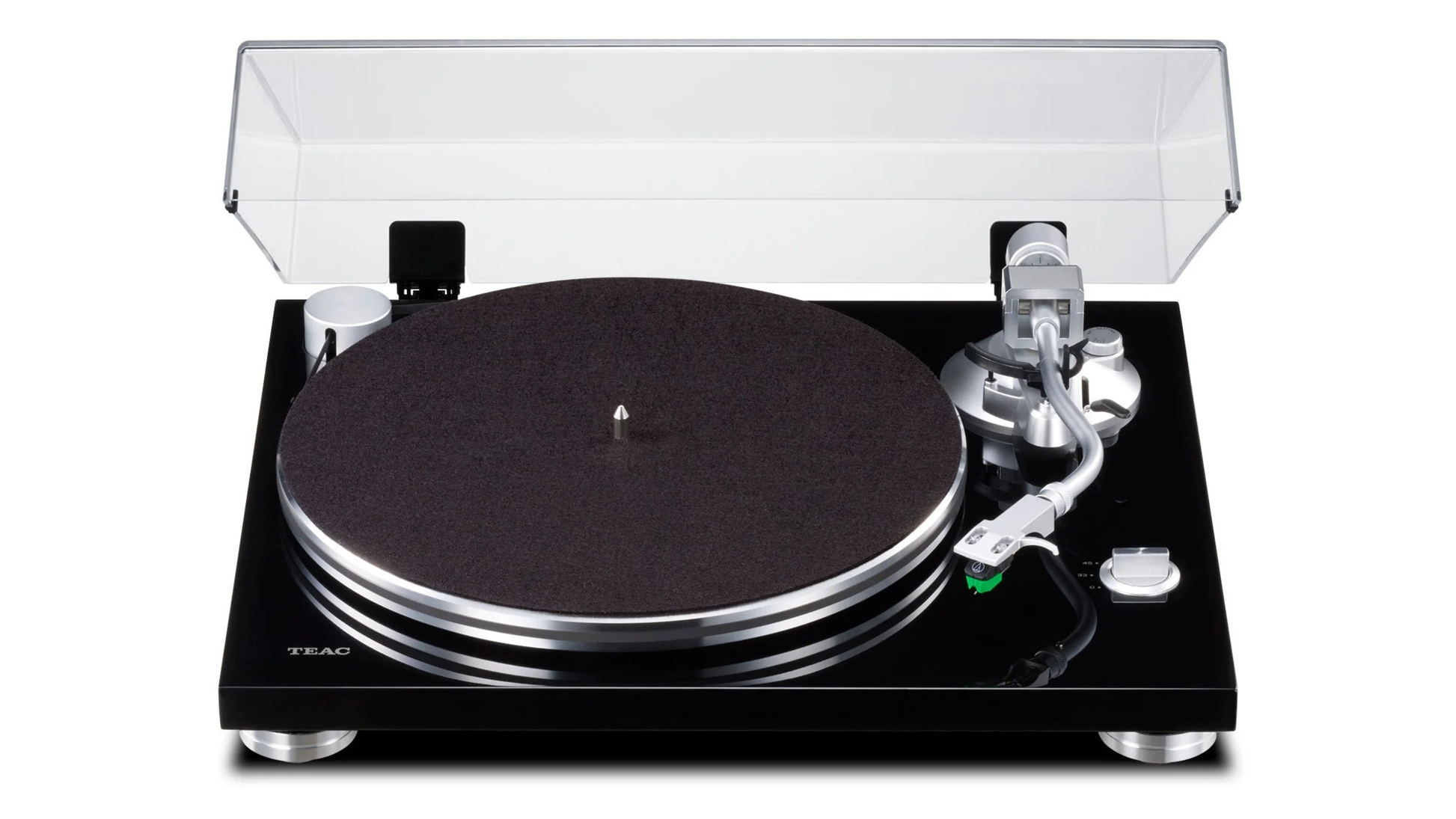

TEAC Audio TN-3B-SE Manual Belt-Drive Turntable

TEAC Audio TN-3B-SE Manual Belt-Drive Turntable

Product Description

The TEAC Audio TN-3B-SE is a meticulously crafted manual belt-drive turntable designed for serious vinyl enthusiasts. Its belt-drive mechanism ensures smooth, stable platter rotation, reducing motor cogging and providing a more consistent speed.

This model includes a built-in MM (moving magnet) phono EQ amplifier, enabling direct connection to an amplifier or powered speakers even if they lack a dedicated phono input.

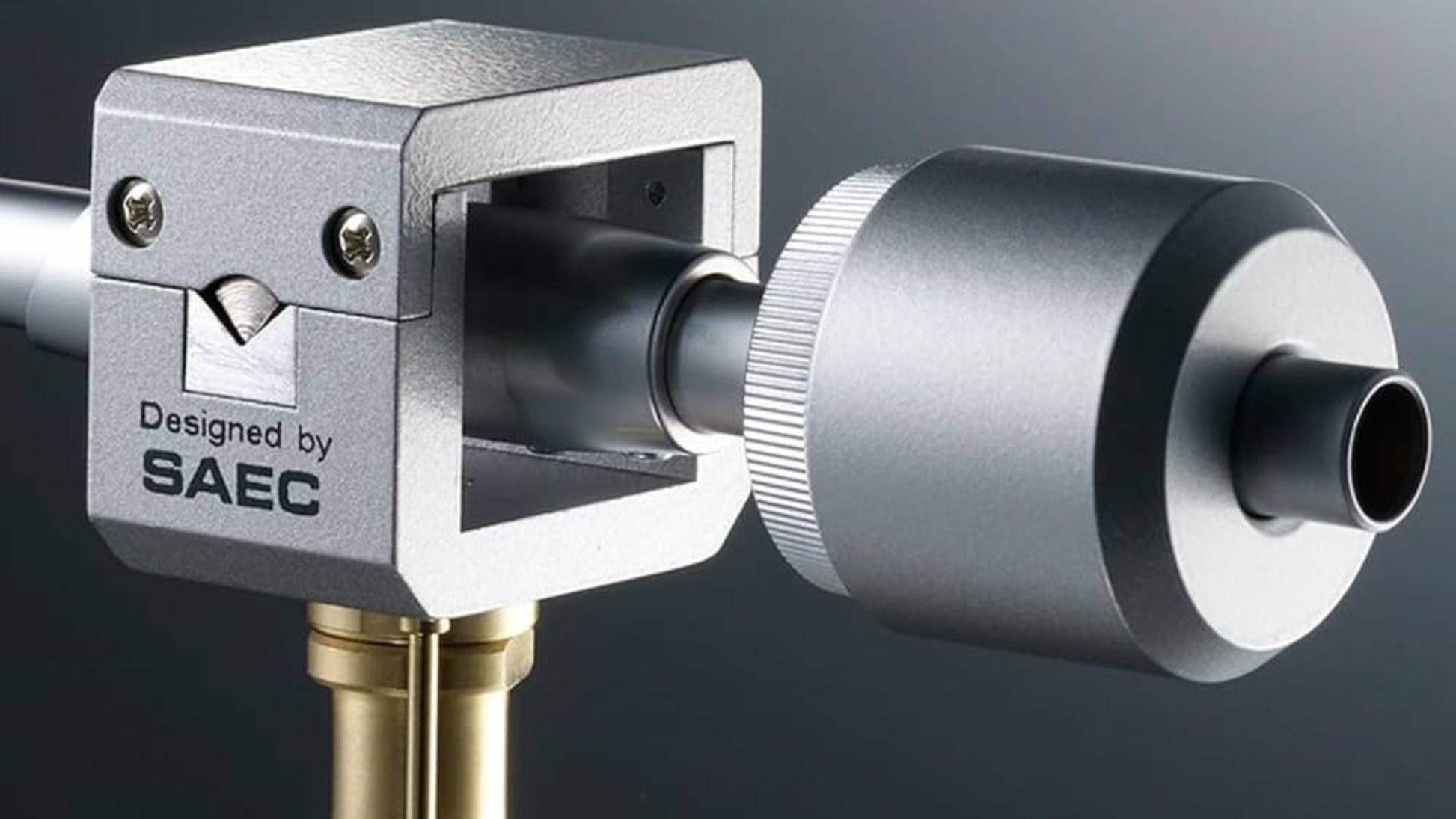

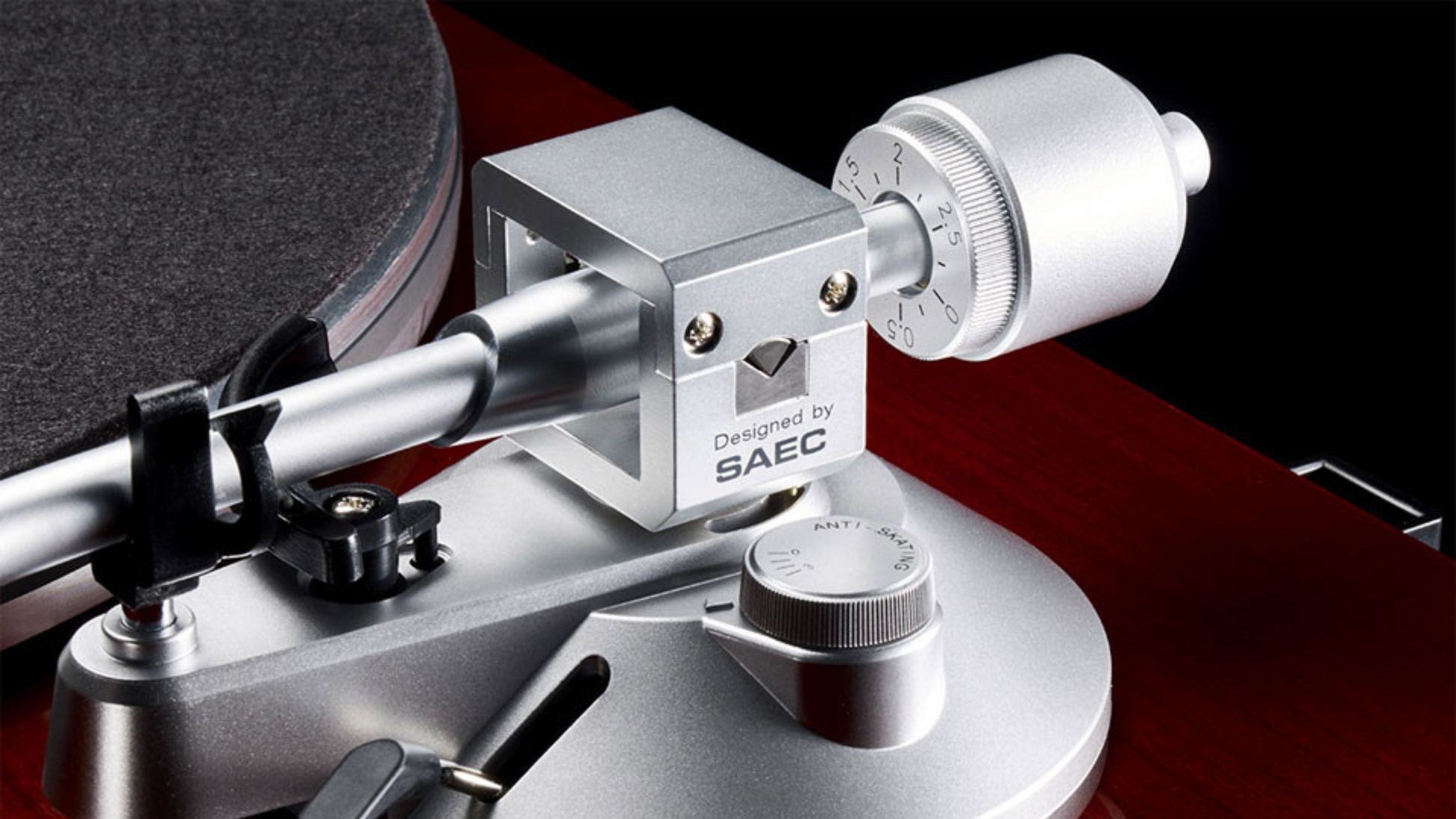

The tonearm is an S-shaped static-balanced design developed in collaboration with high-end tonearm specialist SAEC, featuring a knife-edge pivot-point bearing for enhanced stability and tracking precision.

With the TEAC Audio TN-3B-SE (White) you get full 33 ⅓ and 45 rpm support for LPs and EPs, a die-cast aluminum platter, and a high-density MDF plinth with vibration-damping feet and honeycomb-pattern bottom panel for acoustic isolation.

This turntable comes pre-fitted with the Audio-Technica AT-VM95E MM cartridge, giving you excellent out-of-the-box playback; and its universal headshell and adjustable tonearm make future cartridge upgrades possible.

Key Specifications

• Type: Belt-drive (external drive) turntable

• Speeds: 33 ⅓ rpm & 45 rpm
• Wow & flutter: 0.1% or less (as claimed)

• S/N ratio: 67 dB (A-weighted)

• Platter: Die-cast aluminum, ≈ 30 cm diameter

• Tone-arm: S-shape, static balanced, effective length ≈ 223 mm

• Compatible cartridge weight (with head-shell): 14 g-23 g (0.5-0.8 oz)

• Pre-installed cartridge: Audio-Technica AT-VM95E (MM type)

• Built-in phono EQ amplifier (MM type) with NJM8080 op-amp

• Dimensions (W × H × D): approx 420 × 117 × 356 mm (≈16.5″ × 4.6″ × 14″)

• Warranty: 1-year manufacturer’s warranty


Top 20 Questions About TEAC Audio TN-3B-SE

What cartridge comes with the TEAC Audio TN-3B-SE?
The TN-3B-SE ships with the Audio-Technica AT-VM95E moving-magnet cartridge pre-installed, allowing you to start playing records right away.

Does the TEAC Audio TN-3B-SE include a built-in phono preamp?
Yes. The TN-3B-SE includes a switchable MM-type phono EQ amplifier, so you can connect it to line-level inputs or traditional phono inputs.

What speeds does the TEAC Audio TN-3B-SE support?
It supports two speeds: 33 ⅓ rpm and 45 rpm, covering standard LPs and EPs.

Is the tonearm upgradeable on the TEAC Audio TN-3B-SE?
The tonearm uses a universal headshell fitting and supports cartridges of 14 g-23 g (including headshell), so yes — you can upgrade the cartridge and headshell.

What is the drive system for the TEAC Audio TN-3B-SE?
The TN-3B-SE uses a belt-drive mechanism (external drive) designed to minimize motor cogging and improve rotational stability.

How is vibration handled in the TEAC Audio TN-3B-SE design?
The unit features a high-density MDF plinth, shock-absorbing feet, and a honeycomb patterned bottom panel to reduce unwanted vibration and resonance.

What is the wow and flutter specification for the TEAC Audio TN-3B-SE?
The manufacturer states wow & flutter of “0.1% or less.”

Can I connect the TEAC Audio TN-3B-SE directly to powered speakers?
Yes — with the built-in phono preamp switched “On”, you can output line-level RCA and connect directly to powered speakers with a standard RCA input.

What voltage/power does the TEAC Audio TN-3B-SE use?
It supports AC 100-240 V, 50/60 Hz power consumption about 1.5 W.

Is the dust cover included with the TEAC Audio TN-3B-SE?
Yes — a detachable, hinged dust cover is included to protect the unit and records from dust and debris.

What output terminals does the TEAC Audio TN-3B-SE include?
It includes gold-plated stereo RCA outputs and a ground terminal for proper connection to phono/line systems.

Is the TEAC Audio TN-3B-SE suitable for audiophiles?
Yes — with a precision tonearm, high-quality plinth, belt drive, built-in preamp, and upgrade support, it delivers a strong performance baseline for vinyl enthusiasts.

Can I use a higher-end cartridge with the TEAC Audio TN-3B-SE?
Absolutely — the headshell and tonearm support a range of cartridge weights (14 g-23 g including headshell), giving you flexibility to upgrade.

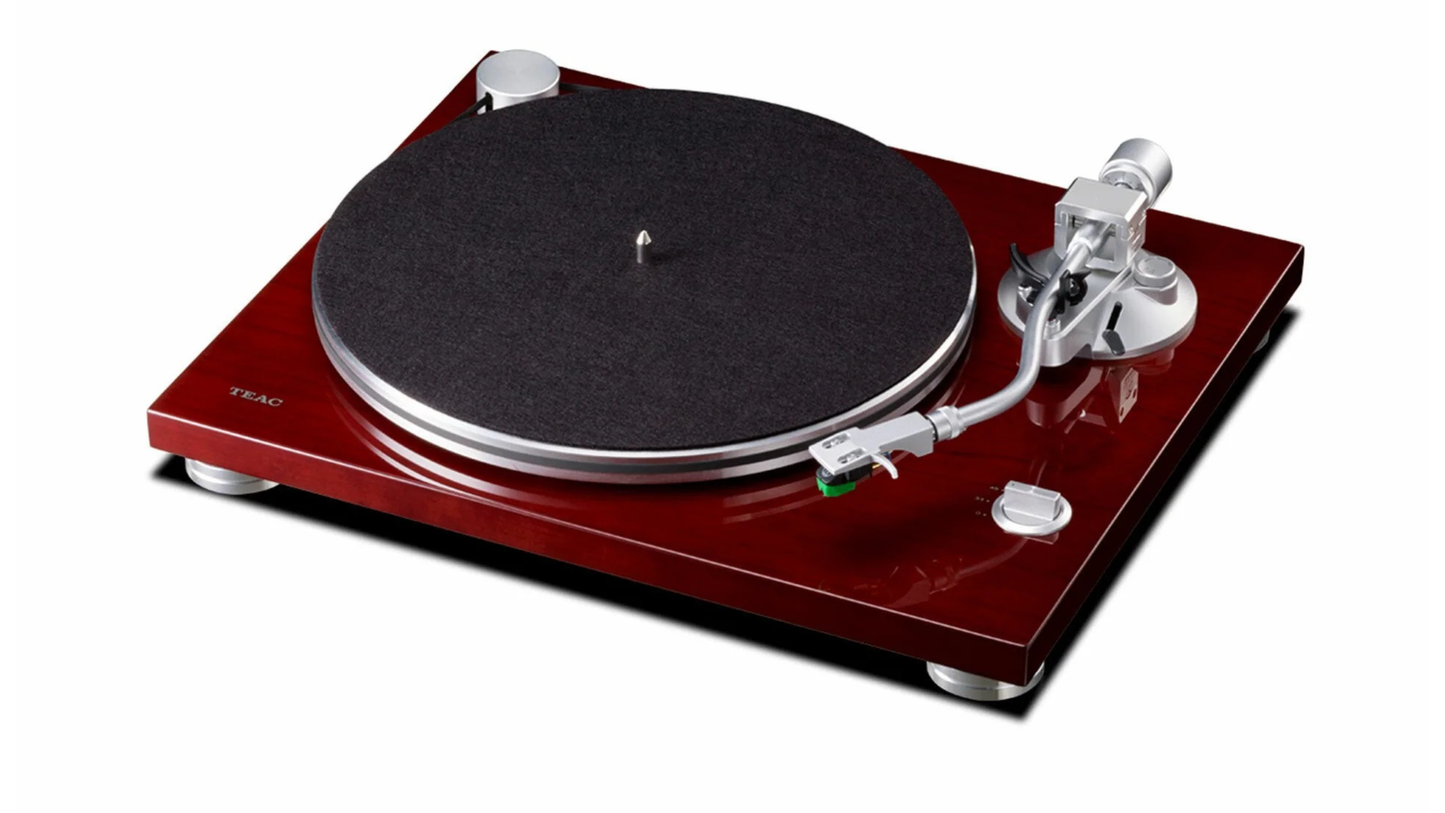

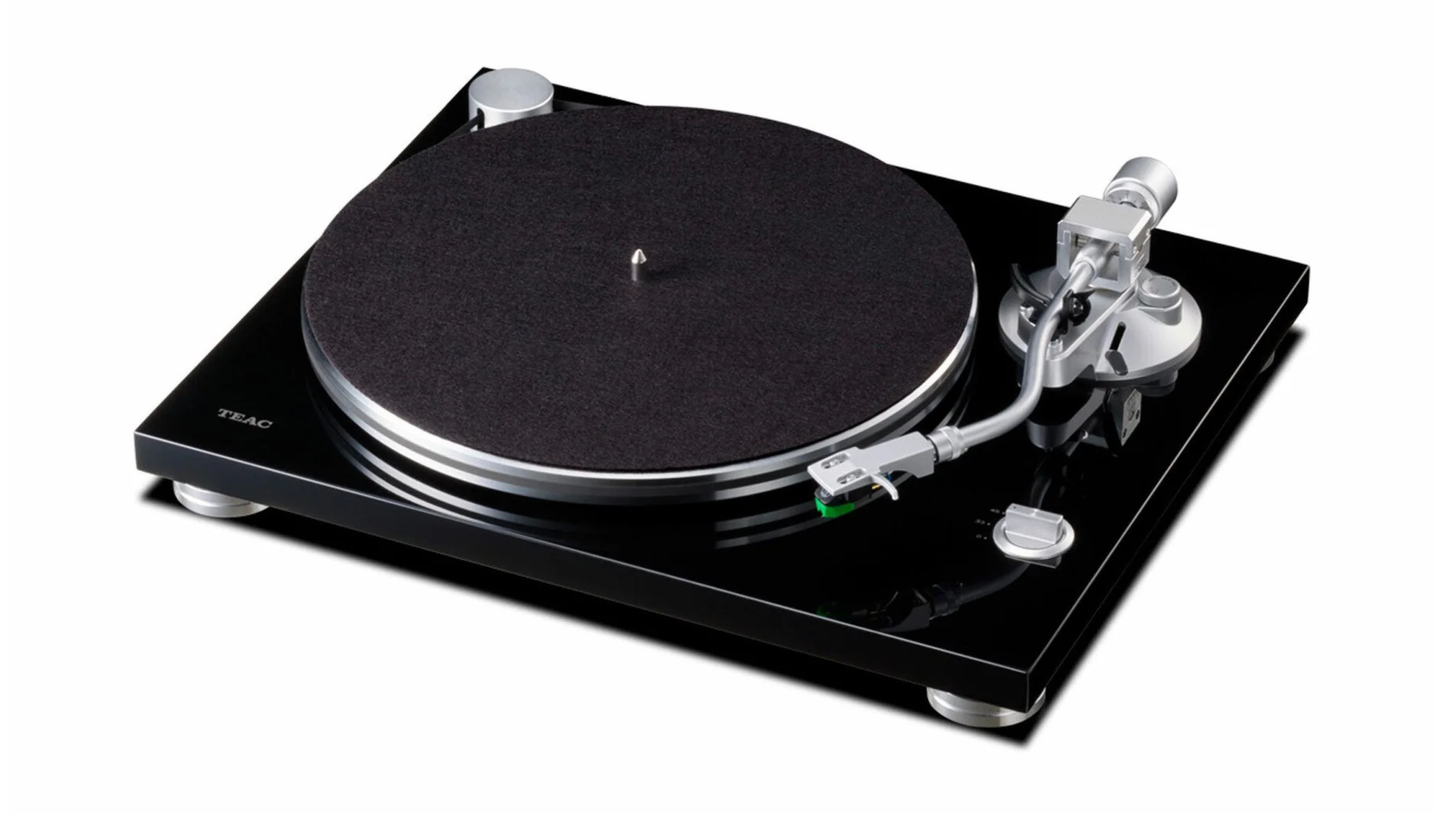

What finishes are available for the TEAC Audio TN-3B-SE?
The model is available in White (gloss), Black (gloss) and Cherry Gloss finishes.

Does the TEAC Audio TN-3B-SE support 78 rpm records?
No — it supports only 33 ⅓ rpm and 45 rpm speeds.

What warranty comes with the TEAC Audio TN-3B-SE?
The manufacturer provides a 1-year warranty covering parts and labor for the unit.

Does the TEAC Audio TN-3B-SE include a USB output for digitising vinyl?
This specific TN-3B-SE model does not list a USB output for digitising in its main spec sheet; earlier TN-3B variants may have included USB.

How easy is setup for the TEAC Audio TN-3B-SE?
Setup is straightforward: install the belt and platter, mount the headshell with cartridge if needed, connect RCA/ground, select speed, and you are ready to play. The manual provides clear instructions for tonearm balancing and tracking force.

What system components pair well with the TEAC Audio TN-3B-SE?
The TN-3B-SE pairs well with a quality integrated amplifier or powered speakers (line input) or a receiver with phono input, plus a good set of passive speakers. Since a cartridge upgrade is supported, you can grow the system over time.
