Luxman P-100 Centennial Headphone Amplifier

Product Description

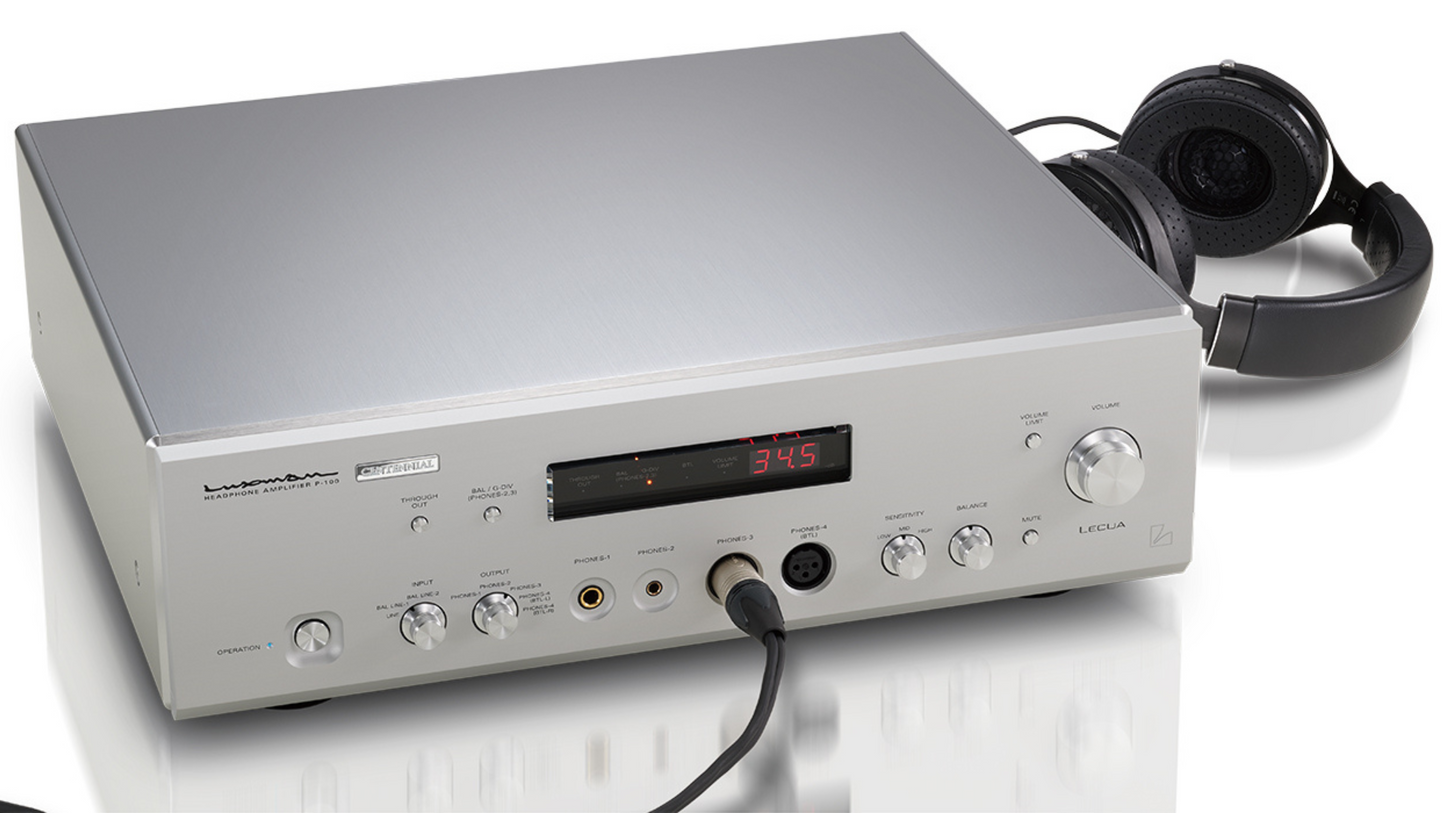

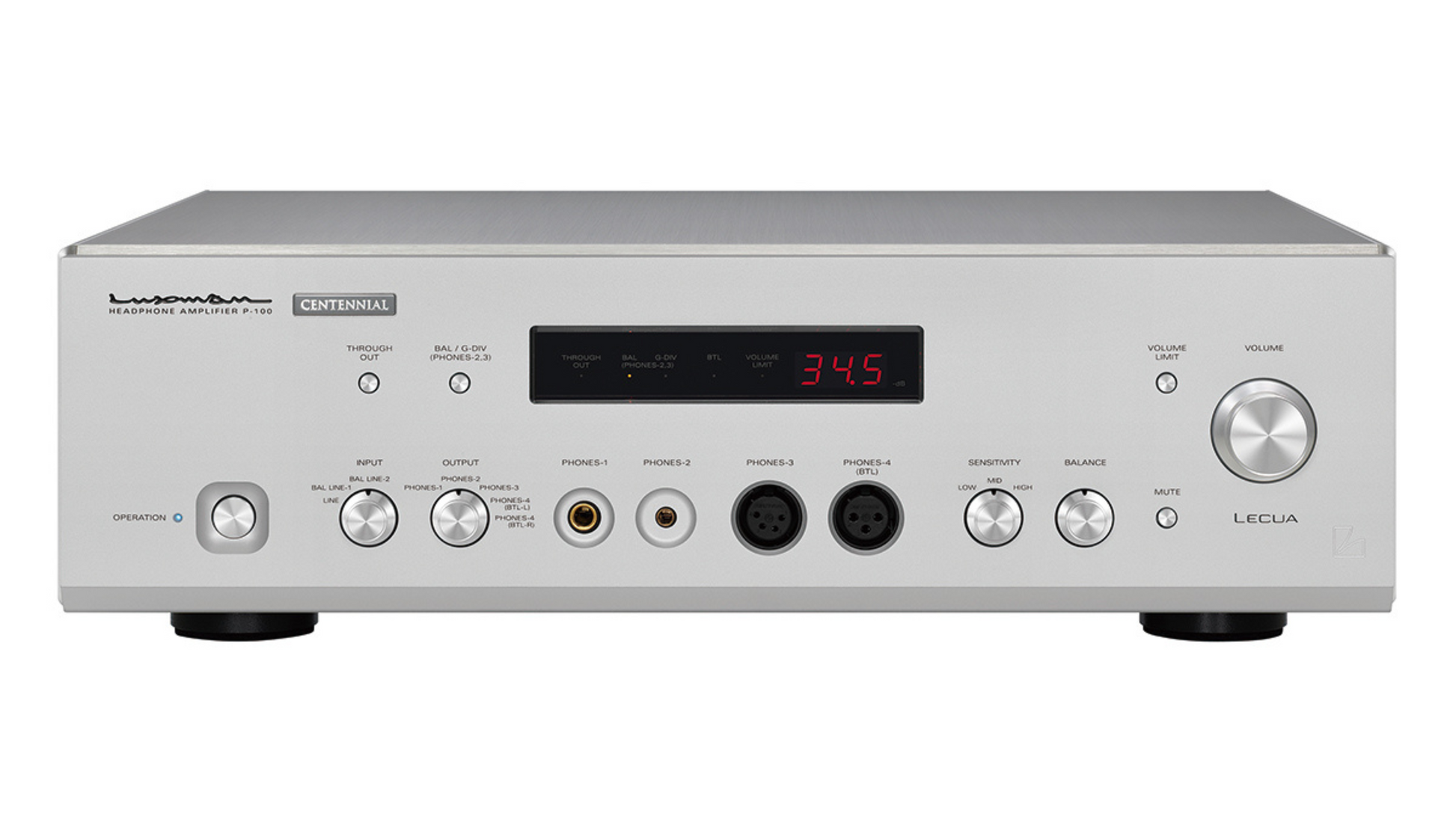

The Luxman P-100 Centennial Headphone Amplifier is a reference-grade amplifier celebrating Luxman’s 100th anniversary, designed for audiophiles seeking unparalleled sound quality and musicality. Featuring the LIFES amplification circuit, it delivers 4W+4W unbalanced at 8 ohms and 8W+8W balanced at 16 ohms, driving demanding headphones with ease. Its fully balanced architecture, LECUA-EX volume control, and high-capacity power supply ensure a lush soundstage with delicate detail and vibrant energy. Housed in a high-rigidity, loop-less chassis with a platinum-toned CENTENNIAL nameplate, this handcrafted Japanese masterpiece blends timeless design with cutting-edge technology, offering a future-proof listening experience for high-end headphone setups.

Key Features

• LIFES Amplification Engine: Reduces distortion by over 50% and improves signal-to-noise ratio by over 3 dB using high-performance FETs and discrete components for clear, vibrant sound.

• Fully Balanced Architecture: Four independent amplifier blocks support balanced and unbalanced modes, enhancing channel separation, positional accuracy, and power regulation.

• LECUA-EX Volume Control: 200-step electronically controlled attenuator with 0.5 dB resolution ensures precise volume adjustment without channel imbalance, even at low levels.

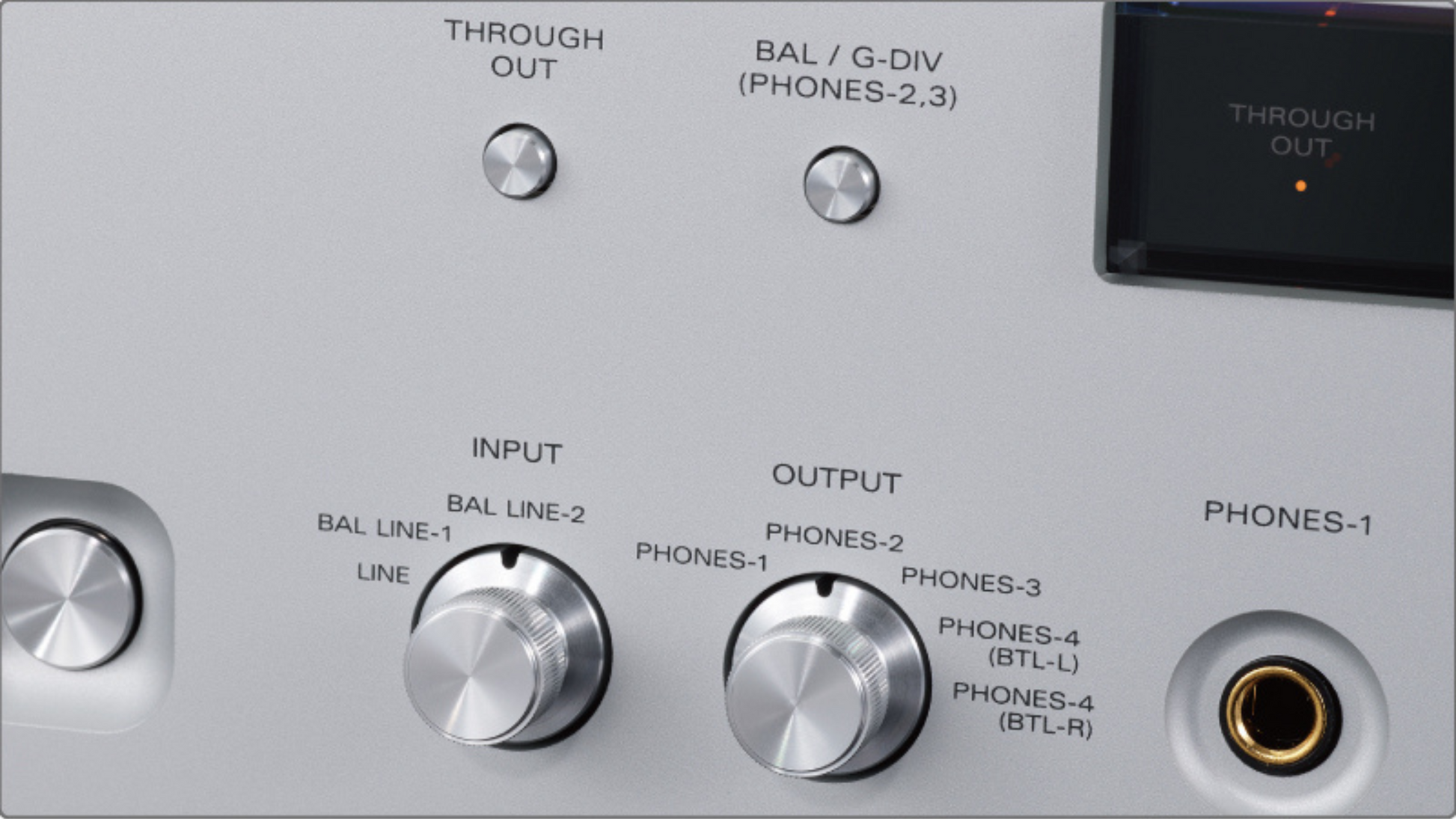

• Versatile Output Modes: Supports standard unbalanced 6.3mm, balanced 4.4mm and 4-pin XLR, and parallel BTL balanced 3-pin XLR outputs, with dual-unit mono mode using eight amplifier blocks for ultimate performance.

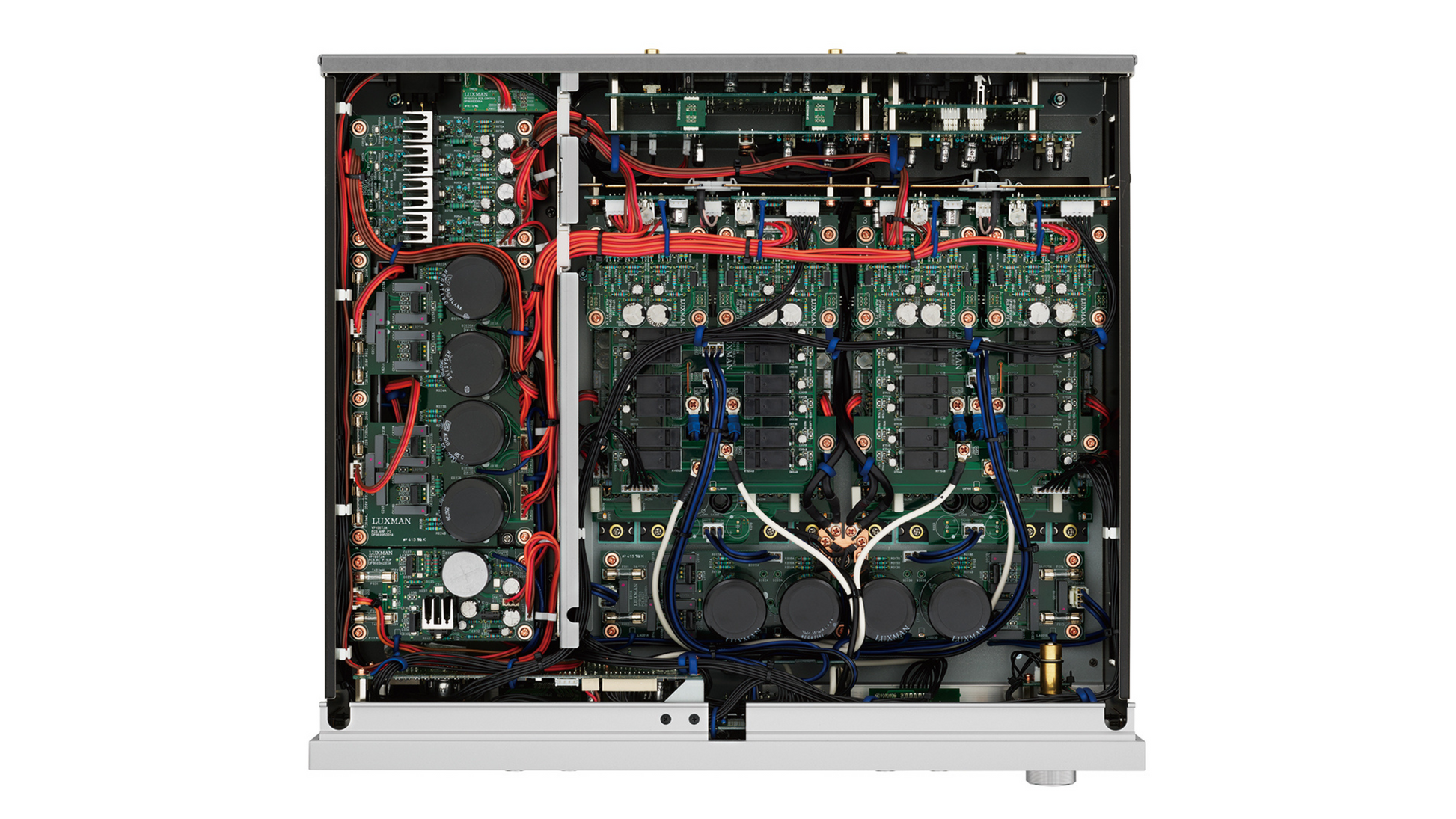

• High-Capacity Power Supply: Independent left/right circuits with twin OI-core transformers, eight large capacitors (4 x 10,000 μF for output, 4 x 3,300 μF for driver stages), and OFC wiring ensure stable, clean power delivery.

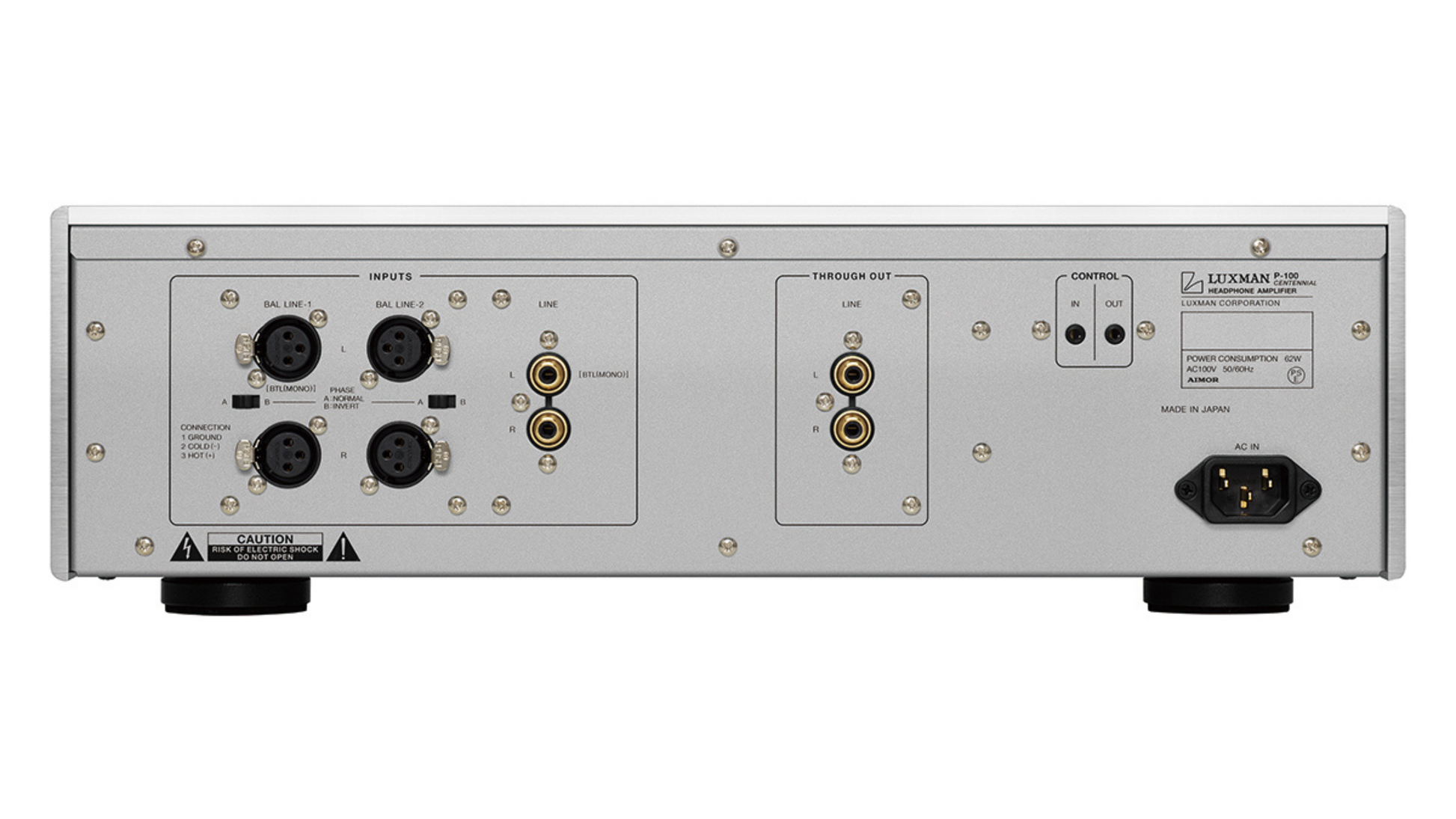

• Flexible Connectivity: Includes balanced XLR and unbalanced RCA inputs, with a 3-pin XLR output for dual-unit setups, accommodating a wide range of high-end headphones.

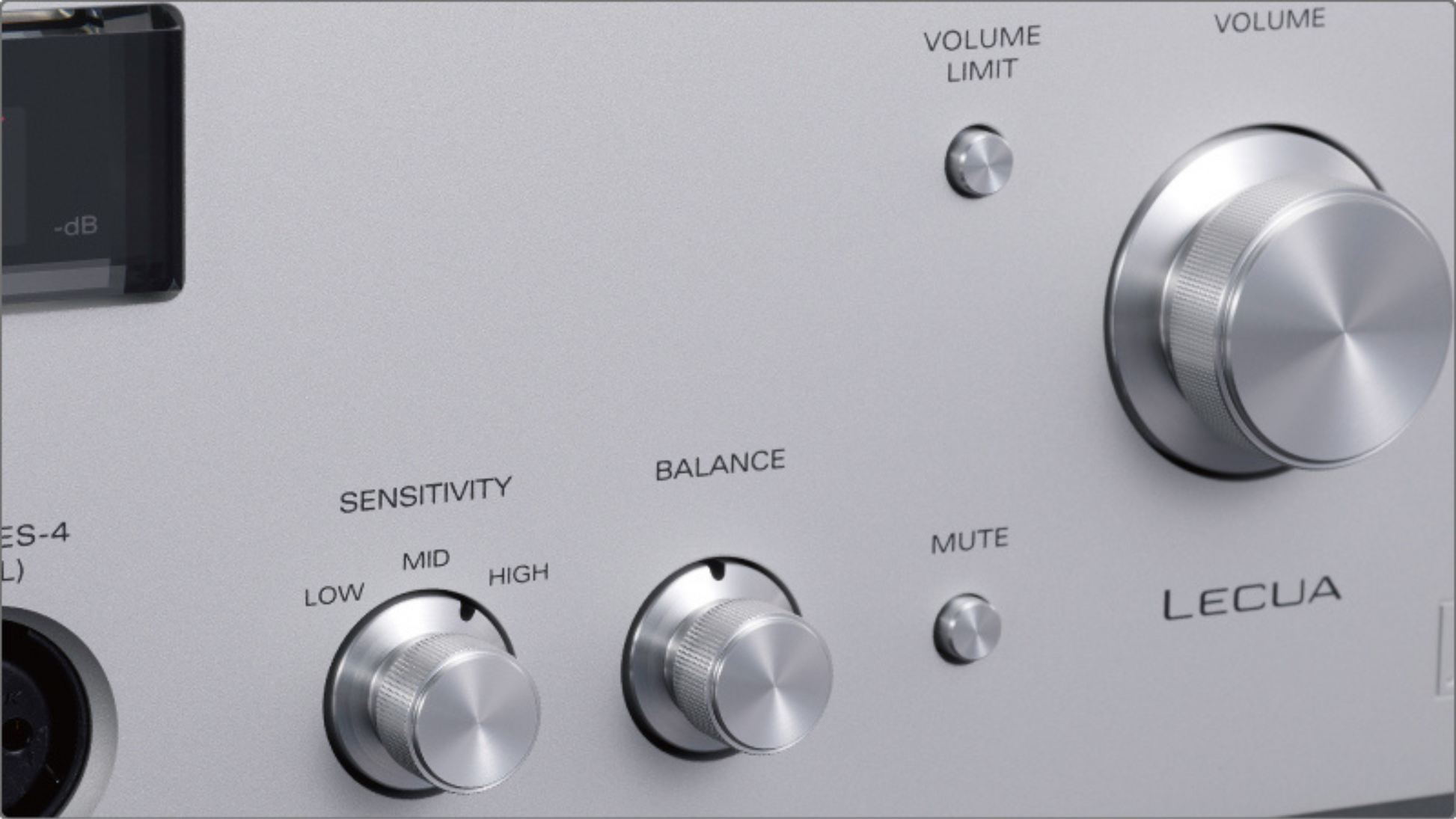

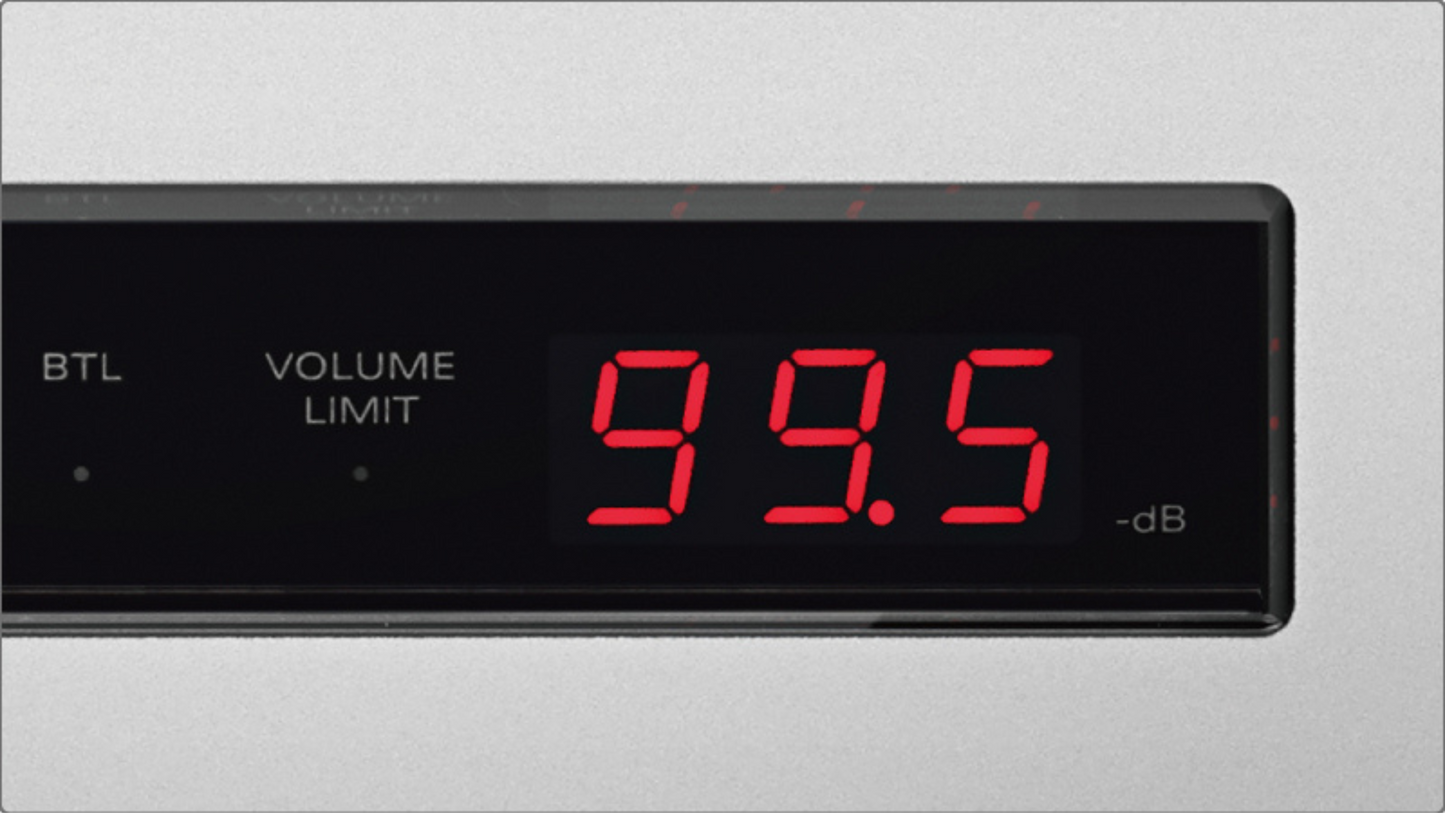

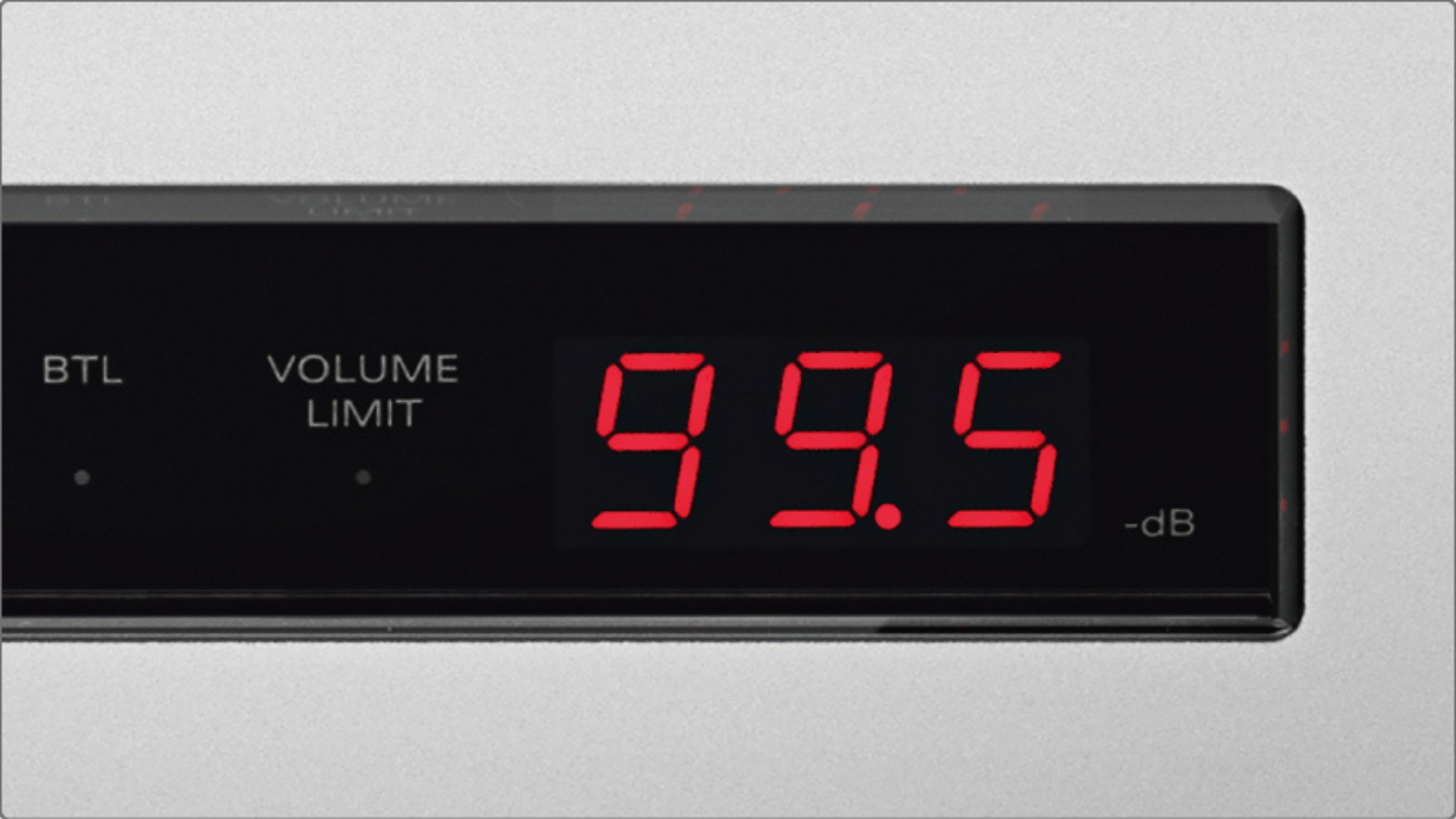

• User-Friendly Interface: Large 3-digit 7-segment LED display shows volume in 0.5 dB steps, with sensitivity switching (0, -6, -12 dB), LR balance adjustment, and VOLUME LIMIT function (6 levels: OFF, -10 to -50 dB) for ear protection.

• Robust Chassis Design: High-rigidity, loop-less chassis with a 4.1mm-thick steel bottom plate minimizes EMI, chassis current, and vibrations, doubling as a heatsink for the power block.

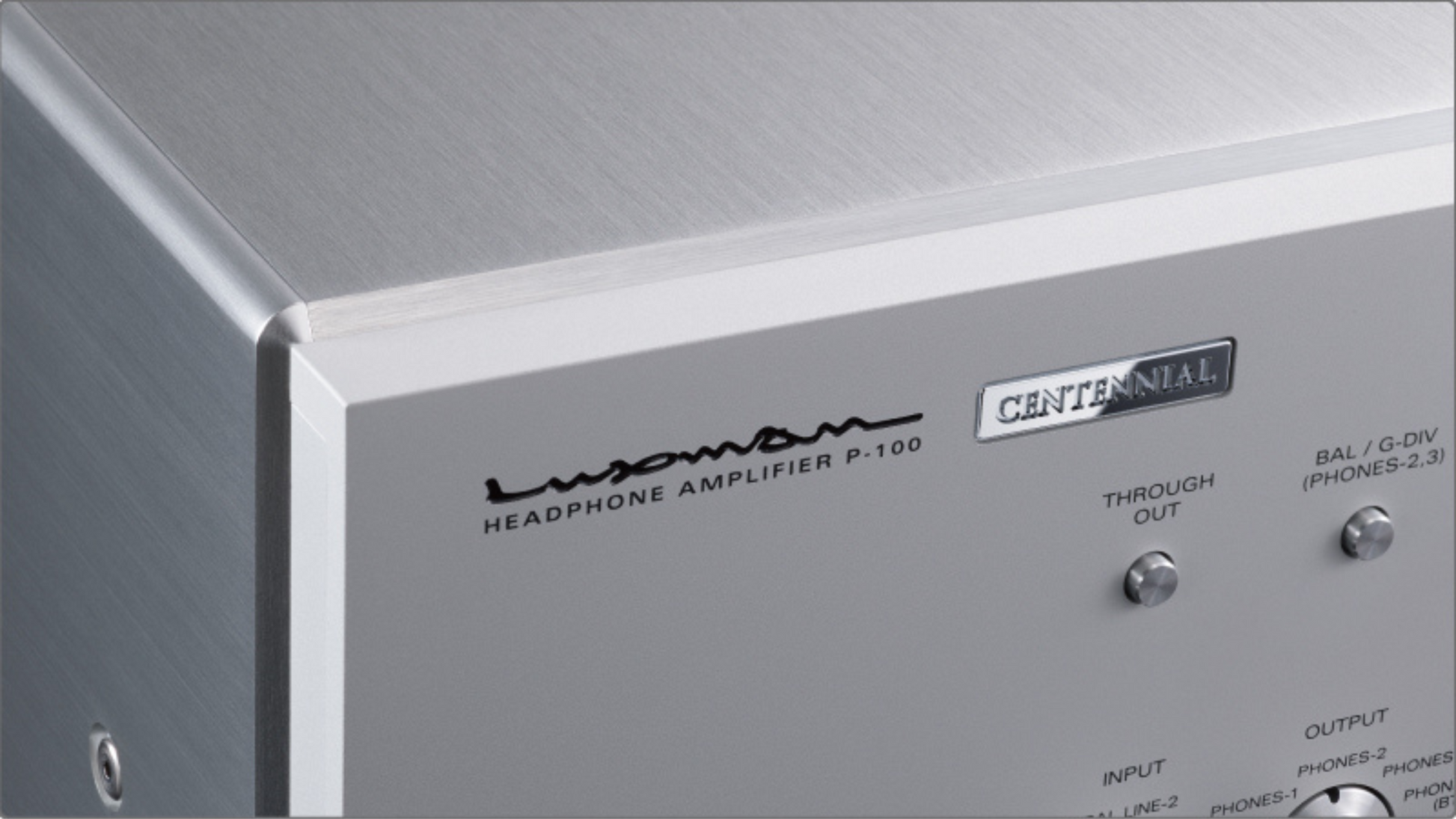

• Handcrafted in Japan: Built in Yokohama with meticulous craftsmanship, featuring a hairline-finished bonnet and CENTENNIAL nameplate, reflecting Luxman’s 100-year legacy.

• Future-Proof Expandability: Supports emerging headphone designs, with dual-unit mono configuration for unmatched performance.

Why Choose the Luxman P-100 Centennial?

The P-100 Centennial embodies Luxman’s century of audio expertise, delivering vivid, dynamically charged sound with unparalleled clarity and emotional resonance. Its LIFES circuit and LECUA-EX control ensure pristine audio, while versatile output modes accommodate any headphone. The robust power supply and balanced architecture provide a wide, detailed soundstage, ideal for audiophiles seeking a flagship headphone experience. Though lacking a built-in DAC or streaming, its analog purity and meticulous construction make it a luxurious, future-proof choice for headphone enthusiasts aiming to elevate their listening experience.

Product Specifications

• Output Power:  Unbalanced: 4W+4W (8Ω), 2W+2W (16Ω), 1W+1W (32Ω), 0.25W+0.25W (600Ω)

• Balanced: 8W+8W (16Ω), 4W+4W (32Ω), 2W+2W (64Ω), 0.28W+0.28W (600Ω)

• Inputs: 1 balanced (XLR), 1 unbalanced (RCA)

• Outputs:  Headphone: 6.3mm (unbalanced), 4.4mm (balanced/GND independent), 4-pin XLR (balanced/GND independent), 3-pin XLR (parallel BTL balanced)

• Line: 1 balanced (3-pin XLR, for dual-unit setup)

• Total Harmonic Distortion: <0.0005%

• Signal-to-Noise Ratio: >120 dB

• Frequency Response: 5 Hz–100 kHz (+0, -3 dB)

• Sensitivity Adjustment: 0, -6, -12 dB

• Volume Control: LECUA-EX, 200 steps (0.5 dB increments), LR balance (0 to -12 dB)

• Power Consumption: 62W (operating), 42W (no signal), <0.5W (standby)

• Dimensions: 17.6" W x 5.4" H x 15.8" D (446 x 136 x 401 mm, including knobs/terminals)

• Weight: 43.4 lbs (19.7 kg, main unit)

• Finish: Blasted Silver with platinum-toned CENTENNIAL nameplate


What’s Included

• Luxman P-100 Centennial Headphone Amplifier

• Aluminum remote control

• Power cable (JPA-15000 with polarity mark)

• User manual

Perfect For

• Audiophiles seeking flagship-grade headphone amplification with versatile output modes

• High-end hi-fi setups needing pure analog performance for Luxman systems

• Music lovers valuing Luxman’s Japanese craftsmanship and dynamic, musical sound
