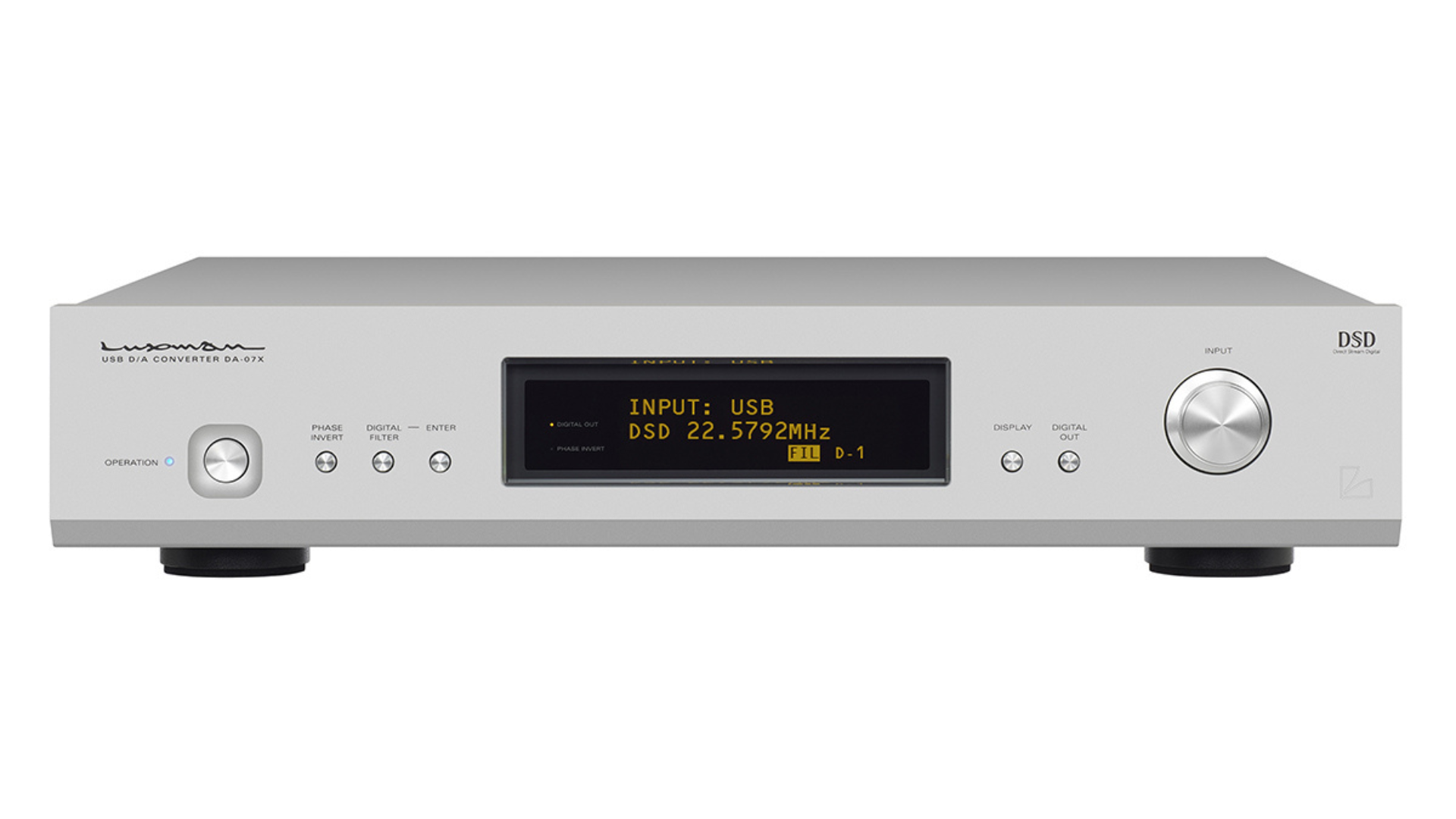

Luxman DA-07X

Overview

The Luxman DA-07X is a reference-grade USB digital-to-analog converter that carries forward Luxman's long tradition of blending precise digital engineering with a rich, natural analog output stage. Built around the acclaimed ROHM BD34301EKV chipset, the DA-07X handles high-resolution PCM up to 768kHz and native DSD up to 22.5MHz, giving it the headroom to render the most demanding modern file formats with clarity and composure.

What sets the DA-07X apart from purely spec-driven designs is Luxman's approach to the analog domain. The proprietary ODNF (Only Distortion Negative Feedback) circuitry and Luxman's own discrete output stage give the converter a full-bodied, musically coherent character that many listeners describe as organic rather than clinical. A rigorous power supply, careful galvanic isolation on the USB input, and multiple selectable digital filters let you tailor the presentation to your recordings and taste.

The DA-07X is for the listener who wants a single, definitive digital source that can anchor a high-end system for years. It suits desktop-to-main-system streaming setups, transport-based CD or SACD playback via its coaxial and optical inputs, and USB-fed computer or network audio. Paired with Luxman amplification, it completes a cohesive, brand-matched signal path from bits to speaker terminals.

Key Features

• ROHM BD34301EKV flagship DAC chipset for high-precision conversion
• PCM support up to 768kHz/32-bit and native DSD up to 22.5MHz (DSD512)
• Galvanically isolated asynchronous USB input for low-jitter computer audio
• Luxman proprietary ODNF analog output stage for a natural, full-bodied sound
• Multiple selectable digital filters to tailor tonal character

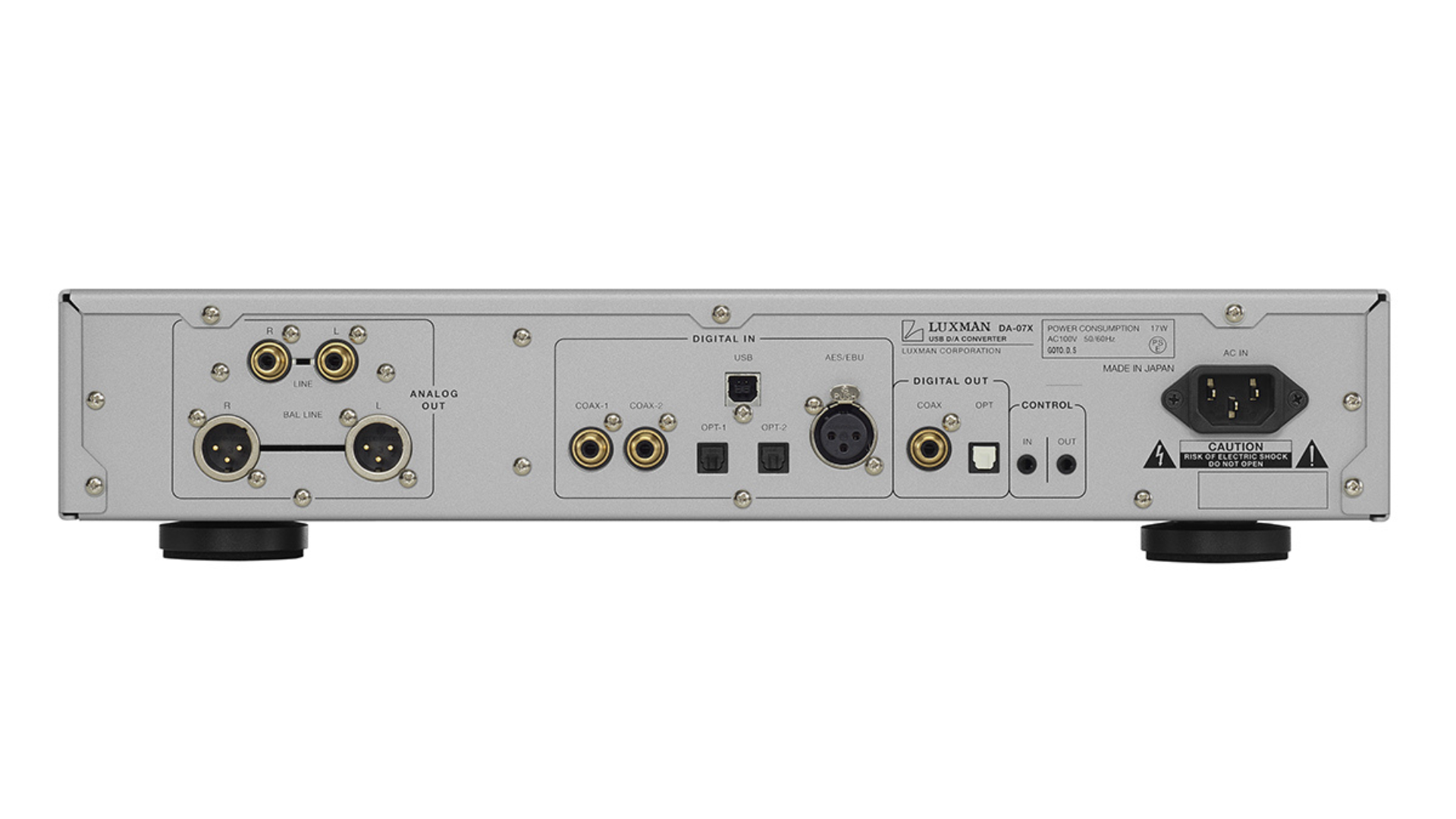

• Comprehensive digital input complement including USB, coaxial, and optical
• Both balanced XLR and unbalanced RCA analog outputs

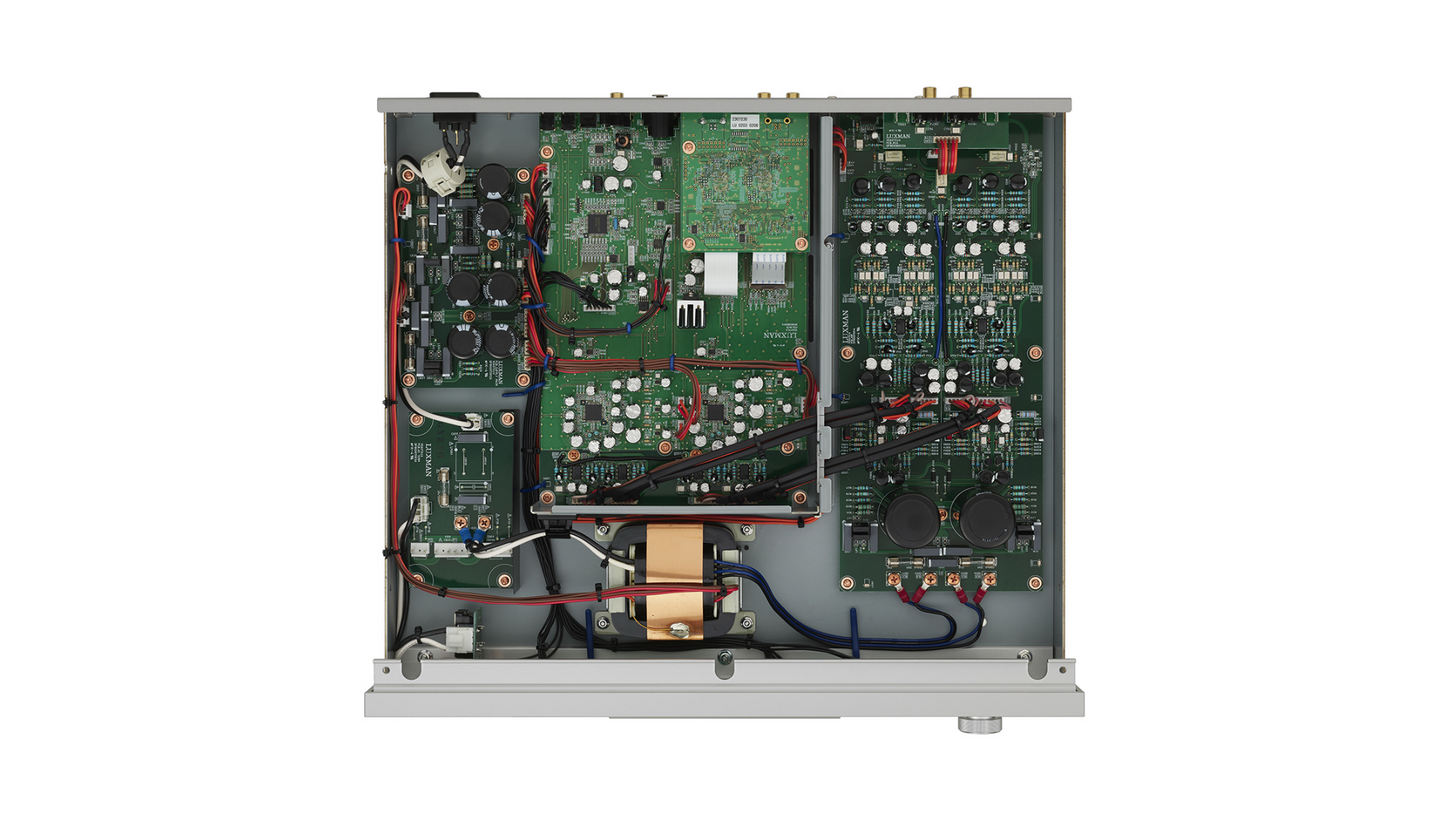

• High-rigidity chassis with careful internal isolation and low-noise power supply
• Machined aluminum front panel and Luxman fit and finish

How the DA-07X Compares

Luxman DA-07X vs Accuphase DC-500

The Accuphase DC-500 is a precision MDSD digital processor built around Accuphase's own multiple-DAC summing topology, aiming for an exceptionally clean, ultra-low-noise presentation. The Luxman DA-07X, by contrast, leans on its ODNF analog output stage for a warmer, more organic voicing. Choose the DC-500 if you favor a crystalline, analytical character and the DA-07X if you want a fuller, more relaxed musical flow. See the Accuphase DC-500.

Luxman DA-07X vs Accuphase DF-75

The Accuphase DF-75 is a specialized digital frequency dividing network intended for active, multi-amplified systems rather than a conventional single-output DAC. The Luxman DA-07X is a straightforward reference stereo converter designed to feed one amplifier or preamplifier. Pick the DF-75 only if you are building an active crossover system, and the DA-07X for standard high-end stereo playback. See the Accuphase DF-75.

Recommended Amplifiers and Speakers

Because the DA-07X is a pure digital source, build around it with Luxman amplification for a matched signal path and a resolving speaker that reveals its nuance.

• Luxman L-509Z Integrated Amplifier A flagship integrated that mirrors the DA-07X's engineering pedigree, offering LECUA volume control and abundant clean power in one chassis for a cohesive Luxman front-to-back system.
• Luxman C-10X Control Amplifier Pair with the M-10X for a full separates approach; the C-10X provides refined line-level control that lets the DA-07X's analog character come through unaltered.
• Luxman M-10X Power Amplifier A high-current reference power amplifier that supplies effortless grip and dynamics, ideal for driving demanding speakers fed by the DA-07X and C-10X.
• Marten Parker Trio Diamond Diamond tweeters and ceramic drivers make this floorstander highly transparent, revealing the DA-07X's resolution and the character of high-resolution files.
• Spendor Classic 200Ti A large, full-range classic design that complements the DA-07X's organic voicing with rich tonal density and an easygoing, room-filling presentation.

Frequently Asked Questions

What is the Luxman DA-07X?
It is a reference-grade USB digital-to-analog converter from Luxman that turns digital audio from computers and transports into high-quality analog signals for your amplifier.

What DAC chip does the DA-07X use?
It is built around the ROHM BD34301EKV flagship DAC chipset.

What file resolutions does it support?
It supports PCM up to 768kHz/32-bit and native DSD up to 22.5MHz over its USB input.

What digital inputs are available?
The DA-07X offers a USB-B input, a coaxial RCA input, and an optical TOSLINK input.

Does it have balanced outputs?
Yes, it provides both balanced XLR and unbalanced RCA analog outputs.

What is ODNF?
ODNF stands for Only Distortion Negative Feedback, Luxman's proprietary analog amplification technology used in the output stage for low distortion and a natural sound.

Can I use the DA-07X with my computer?
Yes, the asynchronous, galvanically isolated USB input is designed for low-jitter playback from a computer or USB-capable streamer.

Does the DA-07X have selectable digital filters?
Yes, it offers multiple selectable digital filter modes so you can tailor the tonal character to your preference and recordings.

Is the DA-07X a streamer?
No, it is a dedicated D/A converter. You can feed it from a network streamer or transport via its digital inputs.

What amplifier should I pair with it?
Luxman integrated amplifiers such as the L-509Z, or a C-10X preamplifier with an M-10X power amplifier, make an ideal matched pairing.

Which speakers work well with a DA-07X system?
Resolving loudspeakers like the Marten Parker Trio Diamond or the Spendor Classic 200Ti reveal the converter's detail and character.

Does it include a remote control?
Yes, a remote control is supplied with the unit.

How does it compare to the Accuphase DC-500?
The DC-500 favors an ultra-clean, analytical presentation via Accuphase's MDSD topology, while the DA-07X leans on its ODNF stage for a warmer, more organic voicing.

Can it decode DSD natively?
Yes, it supports native DSD playback up to 22.5MHz over USB.

What is the warranty on the DA-07X?
It carries a three year parts and labor warranty through Luxman America for the original owner when purchased from an authorized dealer.

How heavy is the DA-07X?
It weighs approximately 12.6 kg thanks to its high-rigidity chassis and robust power supply.

Will it improve sound from my CD transport?
Yes, feeding a transport into the coaxial or optical input lets the DA-07X handle conversion with its high-quality DAC and analog stage.

Do I need a preamplifier to use it?
The DA-07X is a fixed-level source and should feed an integrated amplifier or preamplifier rather than driving power amps directly.

Is the DA-07X a good long-term source component?
Yes, its flagship chipset, comprehensive inputs, and Luxman build quality make it a definitive digital anchor for a high-end system for years to come.
