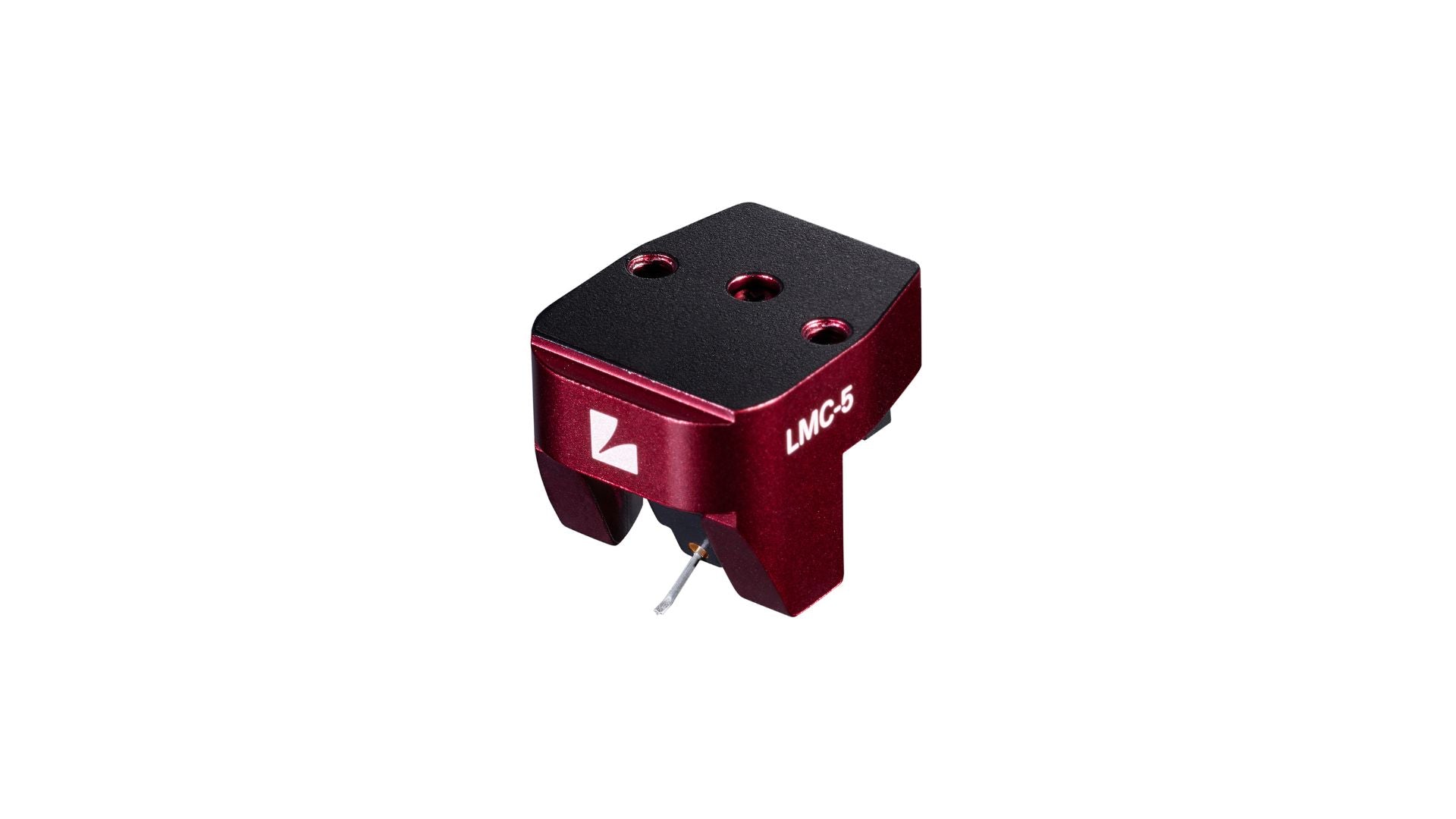

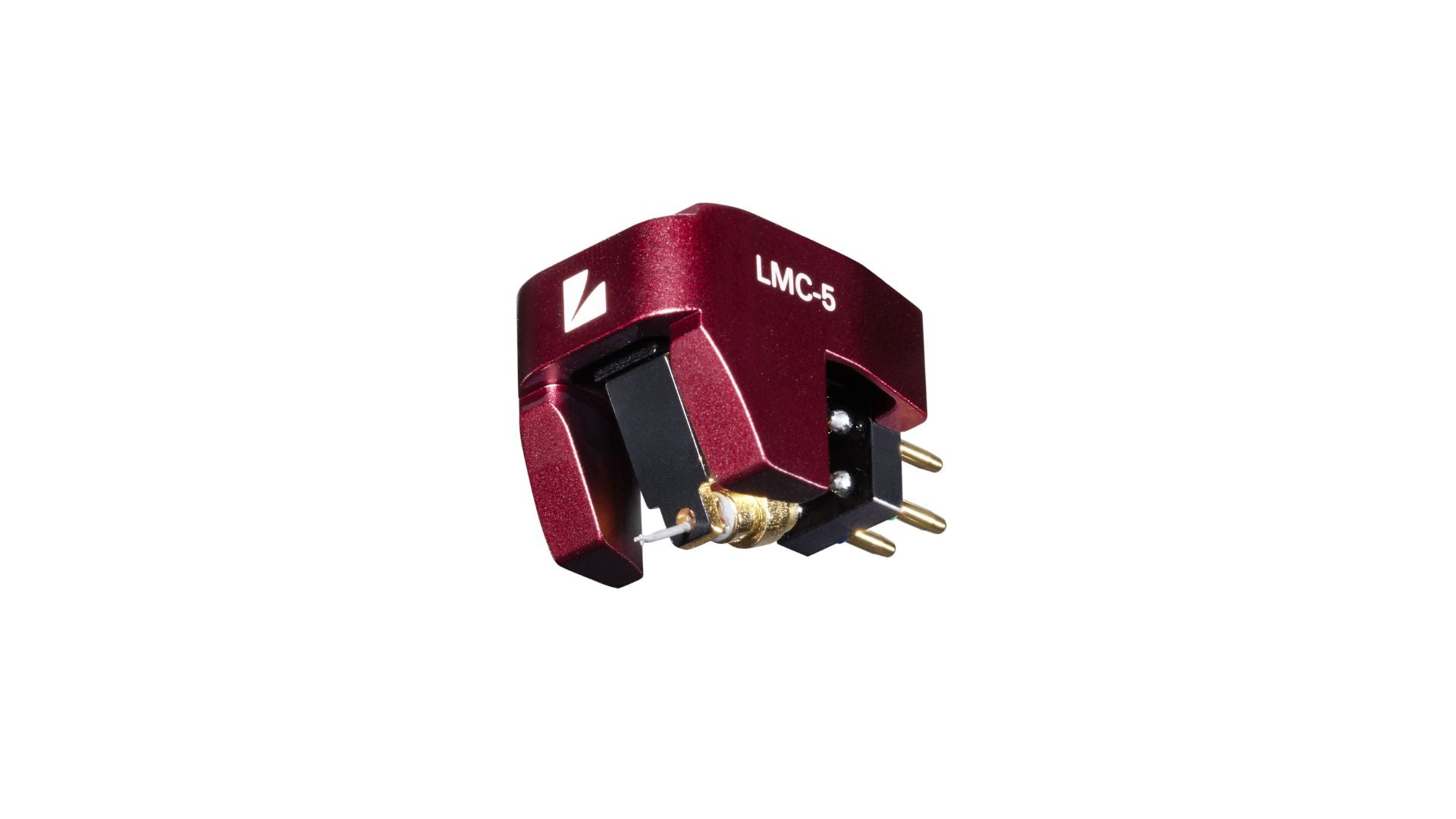

Luxman LMC-5 MC Cartridge

Luxman LMC-5 MC Phono Cartridge

Experience high-end analog playback with the Luxman LMC-5 MC Phono Cartridge, a precision-engineered moving-coil design crafted for the most discerning vinyl enthusiasts.

The Luxman LMC-5 MC Phono Cartridge marks the brand’s celebrated return to cartridge manufacturing, combining refined craftsmanship with exceptional performance. Featuring a cross-mounted iron core and symmetrically wound left and right coils, it delivers superb tonal balance, ultra-low distortion, and remarkable channel separation.

Built with a solid aluminum body for resonance control, the Luxman LMC-5 provides a pure, detailed, and emotionally engaging sound experience. Its 0.4 mV output and 4.7-ohm internal impedance make it ideal for pairing with high-quality MC phono stages or step-up transformers.

A Shibata stylus mounted on a 0.5 mm aluminum cantilever ensures the Luxman LMC-5 captures every nuance from the groove with lifelike clarity. With a wide 10 Hz to 35 kHz frequency response, it reveals both delicate microdetail and dynamic punch.

Finished in a striking deep red anodized aluminum housing, the Luxman LMC-5 MC Phono Cartridge embodies Luxman’s devotion to musical precision and timeless design.

For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team. All Elite Audio is an authorized Luxman dealer in Maryland and operates a full home audio showroom.

Key Specifications
• Type: Moving-Coil (MC) cartridge
• Internal Impedance: 4.7 Ω (1 kHz)
• Tracking Force: 2.1–2.3 g (2.2 g standard)
• Output Voltage: 0.4 mV (1 kHz, 3.54 cm/s)
• Frequency Response: 10 Hz–35 kHz
• Channel Separation / Balance: 28 dB / 0.5 dB (1 kHz)
• Recommended Load Impedance: 40 Ω+ (head amp) / 2.5–10 Ω (step-up transformer)
• Dynamic Compliance: 8 × 10⁻⁶ cm/dyne (100 Hz)
• Stylus: Solid diamond, Shibata profile
• Cantilever: 0.5 mm aluminum
• Vertical Tracking Angle: 25°
• Magnet: Samarium-Cobalt BH20
• Coil: Ultra-fine 30 µm wire
• Body: Machined aluminum A6063
• Dimensions: 17.0 (W) × 18.3 (H) × 21.3 (D) mm
• Weight: 8.5 g
• Finish: Deep red anodized aluminum

Top 20 Questions About Luxman LMC-5 MC Phono Cartridge

What type of cartridge is the Luxman LMC-5?
The Luxman LMC-5 is a moving-coil (MC) cartridge engineered for high-end vinyl playback.

What is the output level of the Luxman LMC-5?
The cartridge outputs 0.4 mV at 1 kHz, delivering exceptional clarity and resolution with compatible MC stages.

What is the ideal tracking force?
Luxman recommends a tracking force of 2.1–2.3 g, with 2.2 g being optimal.

What stylus type does it use?
The Luxman LMC-5 features a solid diamond Shibata stylus for precise groove tracing.

What load impedance is recommended?
Use 40 Ω or higher when paired with a head amp, or 2.5–10 Ω when using a step-up transformer.

What tonearms are compatible with the Luxman LMC-5?
The cartridge works best with medium-to-high mass tonearms designed for low-compliance MC cartridges.

What sound signature does it offer?
Expect natural tonal warmth, wide soundstage depth, and excellent resolution with balanced detail.

Does it require special setup?
Yes, proper alignment and load matching are key to achieving optimal performance.

Can it work with any MC phono stage?
Yes, provided the stage supports low-output cartridges and low internal impedance.

What turntable setup suits the Luxman LMC-5?
High-quality, adjustable tonearm turntables with precise VTA and anti-skate adjustment are ideal.

Can the stylus be replaced?
No, the stylus is not user-replaceable and requires factory service if worn.

Why is the aluminum body important?
The rigid aluminum shell minimizes resonance and enhances structural stability for clearer playback.

Is it considered good value?
Yes, the Luxman LMC-5 offers reference-level performance in its price class.

Which genres benefit most from the LMC-5’s sound?
Jazz, classical, and acoustic recordings showcase its tonal purity and dynamic expressiveness.

Does it include mounting hardware?
Yes, it comes with screws, washers, a hex wrench, and a stylus guard.

What type of magnet does it use?
The LMC-5 uses a powerful Samarium-Cobalt BH20 magnet for precise magnetic flux control.

Is the Luxman LMC-5 quiet in operation?
Yes, its 4.7 Ω impedance and tight coil construction deliver an exceptionally low noise floor.

Can it be paired with a step-up transformer?
Absolutely. It performs beautifully with high-quality SUTs rated for 2.5–10 Ω input.

How does it compare to vintage Luxman cartridges?
The LMC-5 revives Luxman’s analog heritage with modern materials, improving refinement and imaging.

Is the Luxman LMC-5 right for my system?
If you own a premium turntable and MC phono stage, the LMC-5 offers stunning realism and musical depth.
