Luxman E-07 Phono Preamplifier

Product Description

The Luxman E-07 Phono Amplifier is a high-performance phono stage designed for audiophiles seeking exceptional vinyl playback with uncompromising sound quality. Featuring Luxman’s proprietary low-distortion amplification circuit, it supports both MM and MC cartridges with adjustable impedance and capacitance settings for precise cartridge matching. Its fully balanced design, high-capacity power supply, and robust aluminum chassis ensure pristine signal integrity and minimal noise. With versatile connectivity, including balanced XLR and unbalanced RCA inputs/outputs, the E-07 delivers a rich, detailed soundstage with remarkable dynamics. Handcrafted in Japan, it reflects Luxman’s century-long legacy of audio excellence since 1925, offering a future-proof solution for vinyl enthusiasts aiming to elevate their listening experience.

Key Features

• High-Performance Phono Stage: Supports MM (47 kohms) and MC (40/10/2.5 ohms) cartridges with adjustable impedance (3 levels for MC) and capacitance (4 levels for MM) for optimal cartridge performance.

• Low-Distortion Amplification: Luxman’s proprietary circuit design minimizes distortion (<0.003% for MM, <0.02% for MC), delivering clear, natural sound with high gain (38 dB MM, 58/64 dB MC).

• Fully Balanced Architecture: Balanced signal paths via XLR inputs/outputs ensure superior channel separation and noise rejection for a wide, precise soundstage.

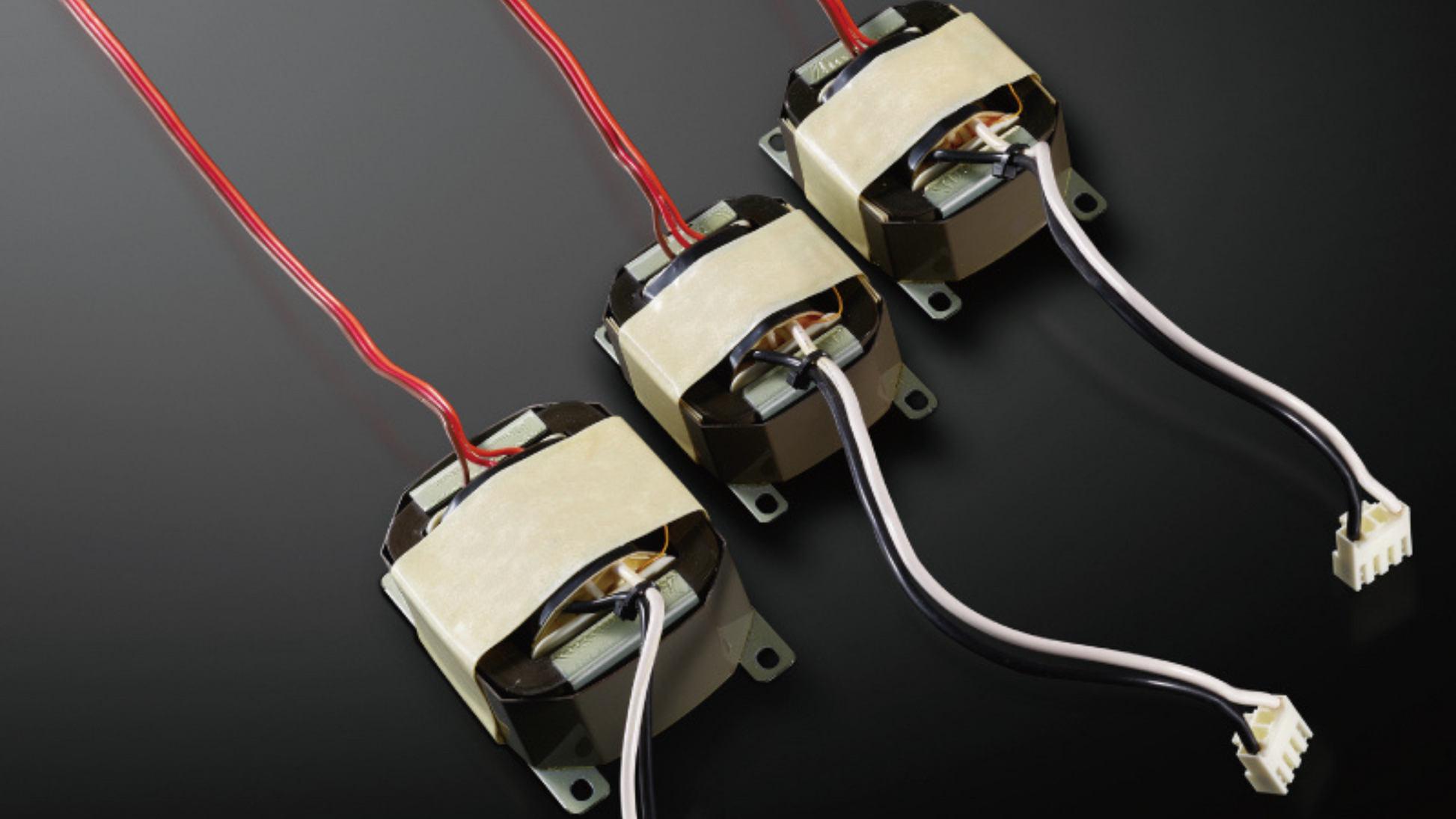

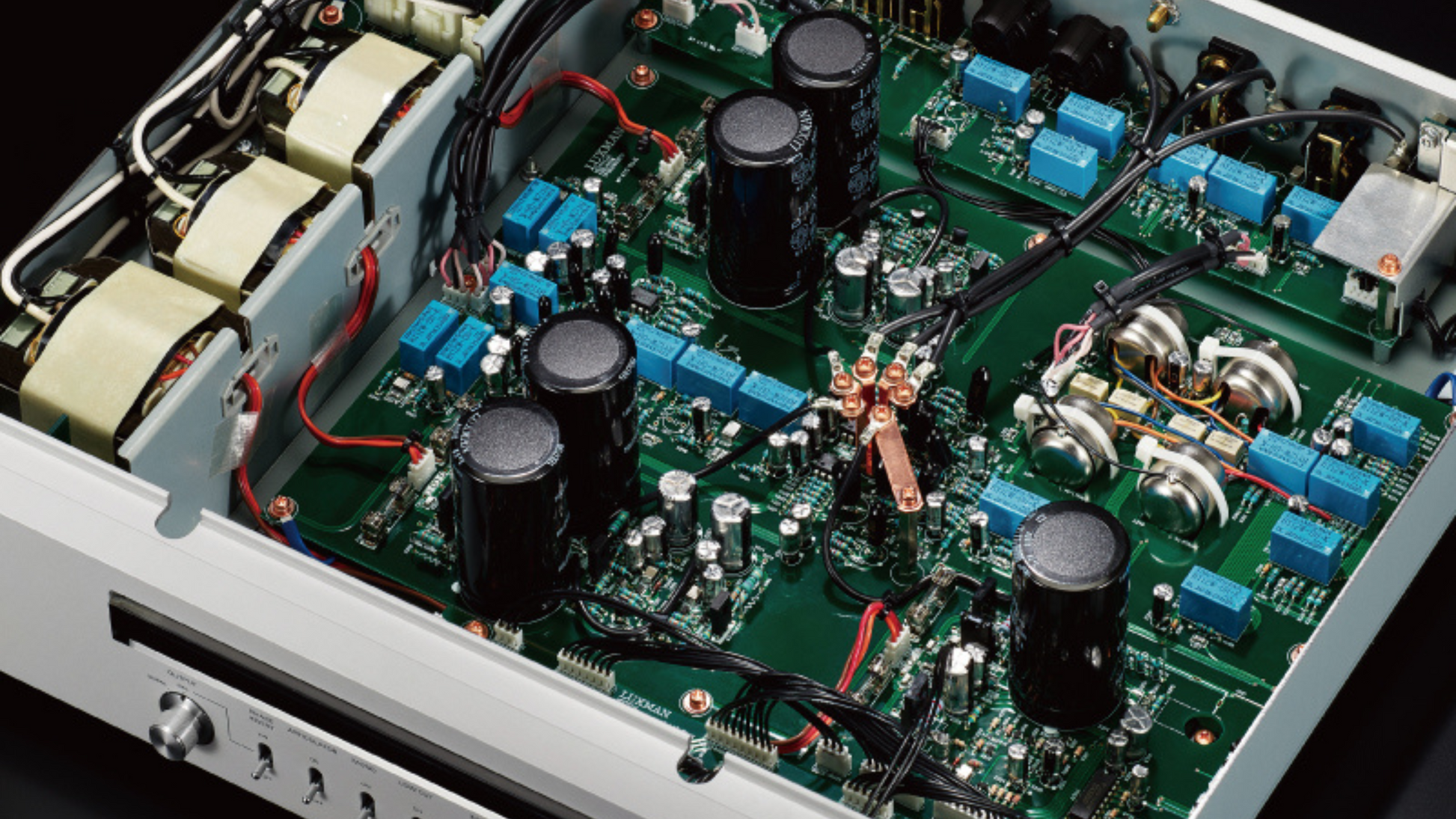

• High-Capacity Power Supply: Large EI-core transformer and 4,700 μF capacitors provide stable, clean power, reducing noise and enhancing dynamic range.

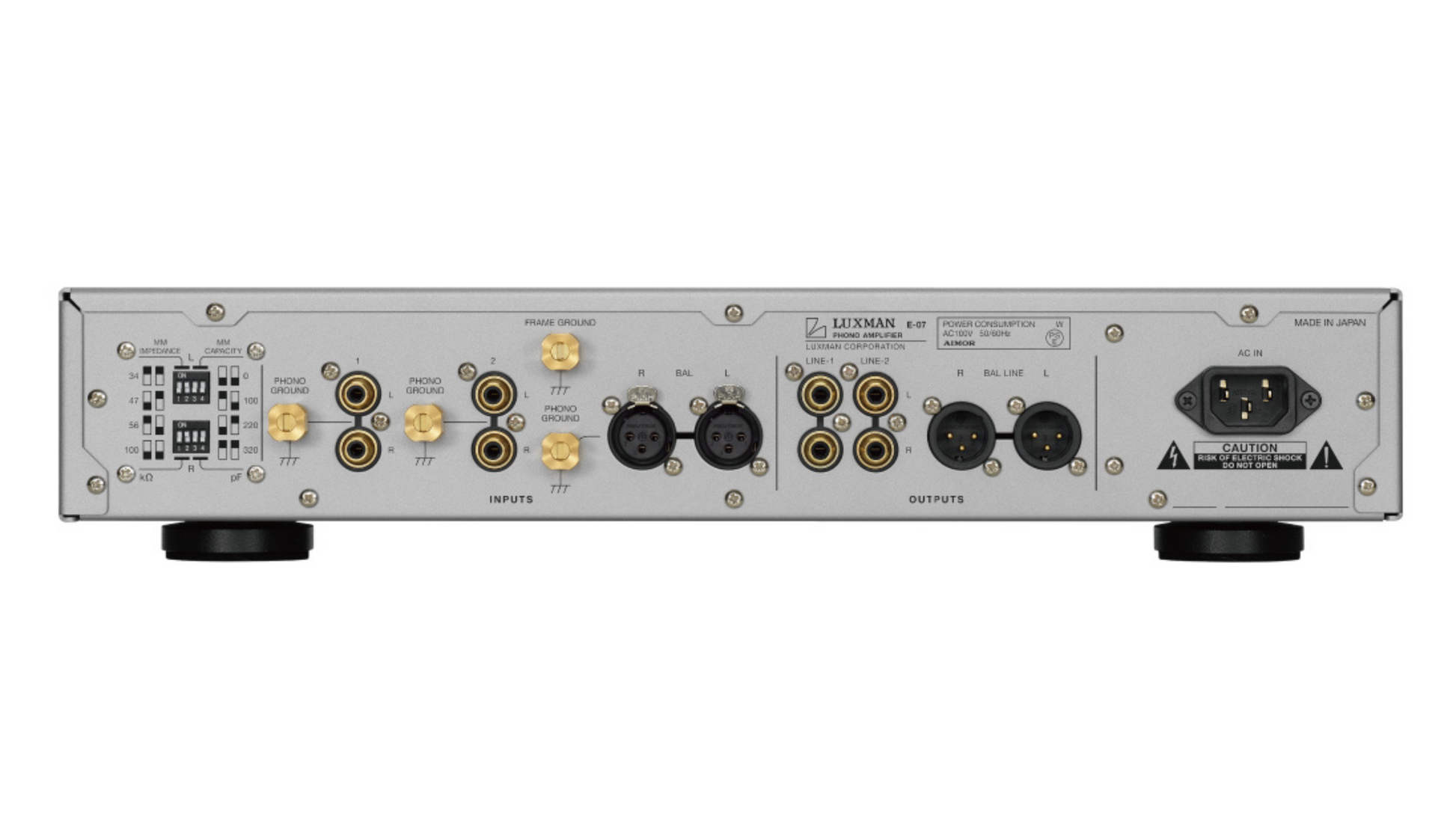

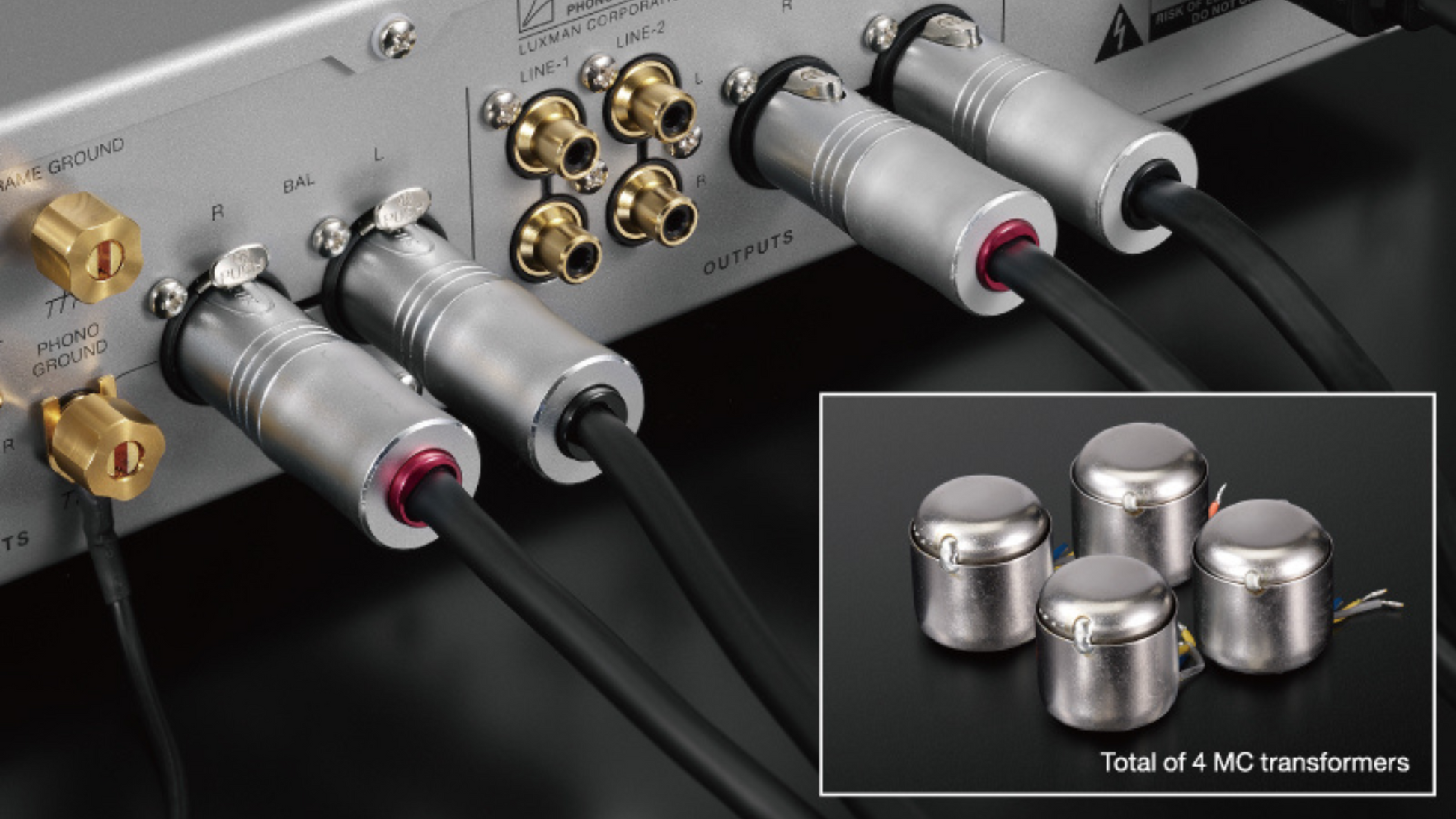

• Versatile Connectivity: Includes 2 unbalanced RCA inputs, 1 balanced XLR input, and both RCA and XLR outputs, with switches for mono/stereo, subsonic filter, and direct/phase-inverted modes.

• Subsonic Filter: Reduces low-frequency rumble (below 20 Hz) to maintain clarity without affecting musical content.

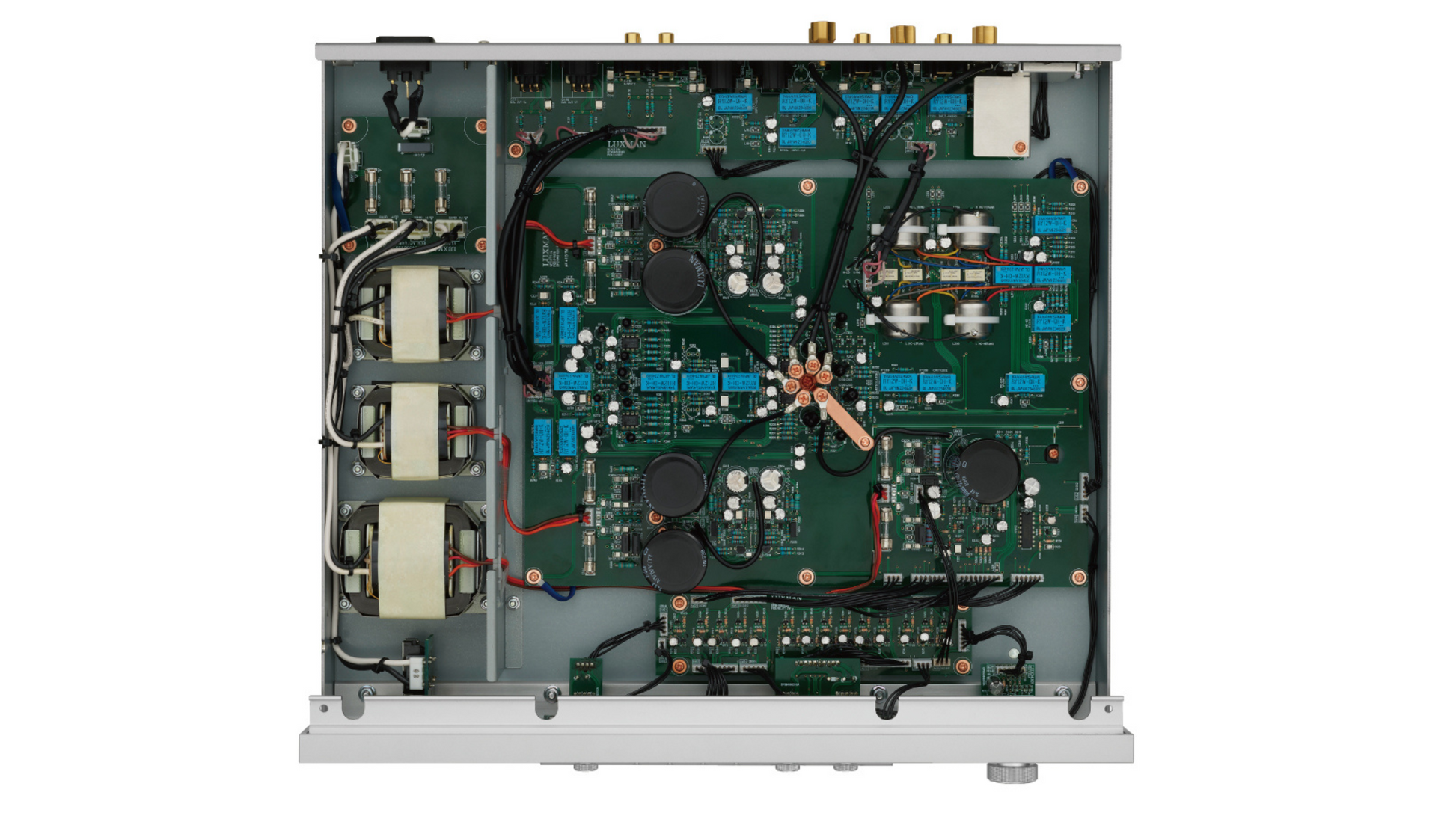

• Robust Chassis Design: 5mm-thick aluminum top plate and loop-less structure minimize vibrations and EMI, ensuring pure signal integrity.

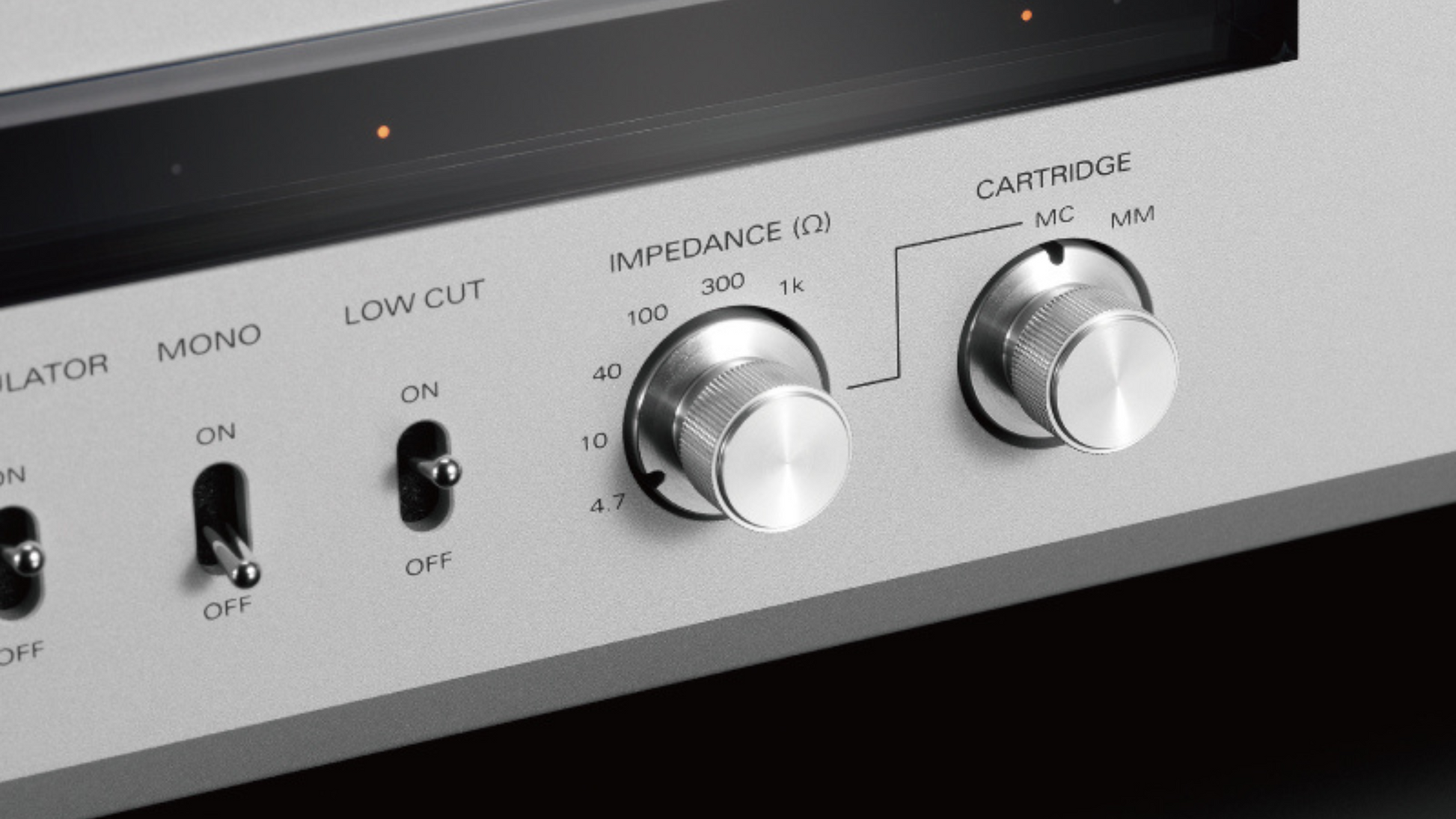

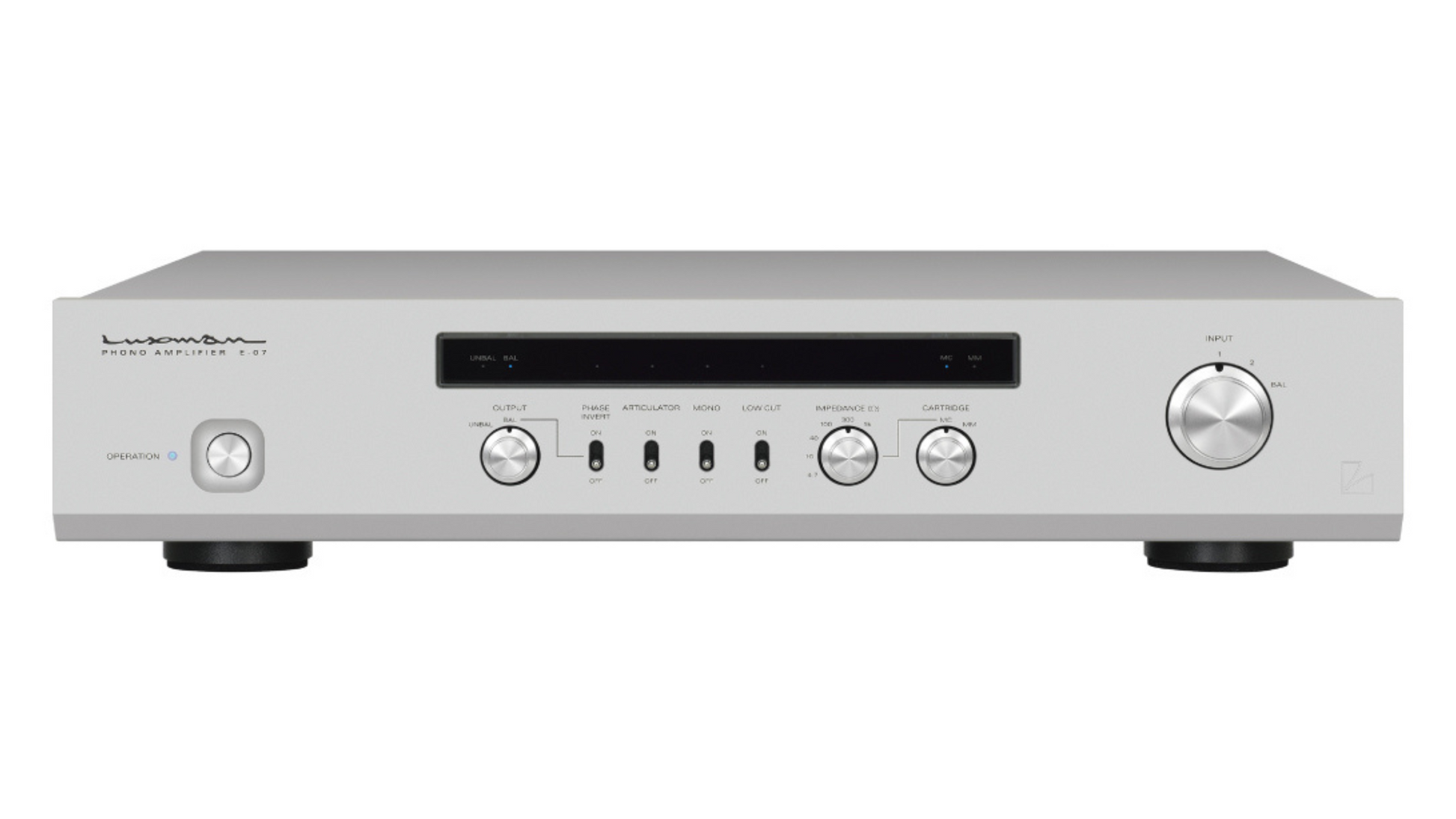

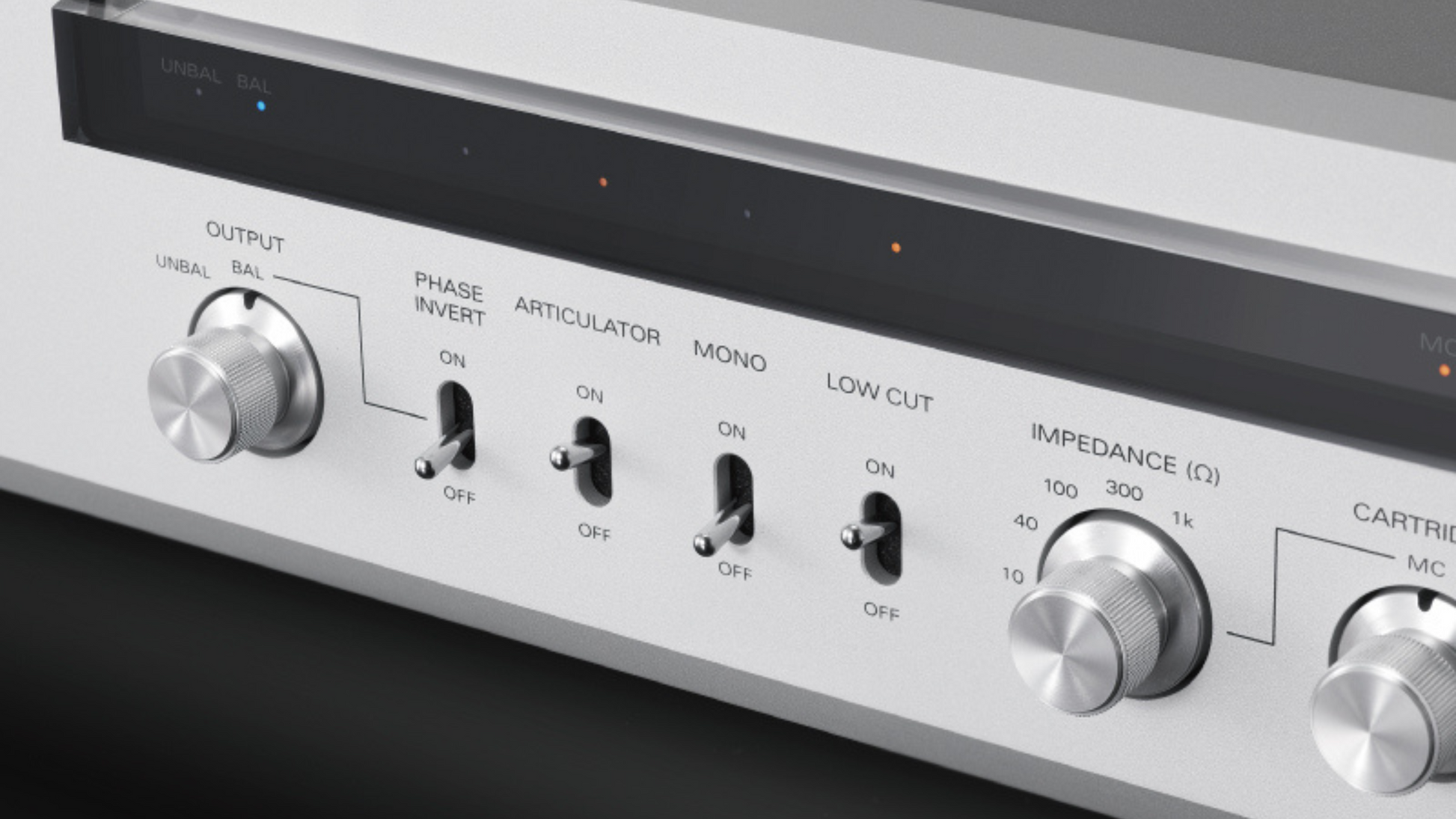

• User-Friendly Interface: Front-panel switches for cartridge selection, impedance, capacitance, and playback modes, with a 7-segment LED display for settings.

• Handcrafted in Japan: Built in Yokohama with meticulous craftsmanship, reflecting Luxman’s commitment to ultimate fidelity and durability.

• Elegant Design: Blasted silver aluminum finish with a minimalist aesthetic complements Luxman’s high-end components, enhancing any hi-fi setup.

Why Choose the Luxman E-07?

The E-07 upholds Luxman’s tradition of analog excellence, delivering a rich, detailed, and dynamic sound that brings vinyl recordings to life. Its adjustable impedance and capacitance settings allow precise matching with a wide range of cartridges, ensuring optimal performance for both MM and MC setups. The fully balanced design and high-capacity power supply provide exceptional clarity and low noise, ideal for genres like jazz, classical, and rock. The robust chassis and versatile connectivity make it a seamless addition to Luxman systems, offering audiophiles a reference-grade phono stage with timeless musicality and future-proof flexibility.

Product Specifications

• Cartridge Support:  MM: 47 kohms, 3.2 mV, capacitance adjustable (0, 100, 220, 330 pF)

• MC: 40 ohms (high), 10 ohms (mid), 2.5 ohms (low), 0.12 mV (high/mid), 0.18 mV (low)

• Gain: 38 dB (MM), 58 dB (MC high/mid), 64 dB (MC low)

• Inputs: 2 unbalanced RCA, 1 balanced XLR

• Outputs: 1 unbalanced RCA, 1 balanced XLR

• Frequency Response: 20 Hz–20 kHz (±0.5 dB, MM/MC)

• Total Harmonic Distortion: <0.003% (MM), <0.02% (MC)

• Signal-to-Noise Ratio: >80 dB (MM), >70 dB (MC)

• Channel Separation: >80 dB (10 kHz)

• Subsonic Filter: 20 Hz, 12 dB/octave

• Power Consumption: 15W (operating), <0.5W (standby)

• Dimensions: 17.3" W x 3.6" H x 15.6" D (440 x 92 x 395 mm)

• Weight: 19.8 lbs (9 kg)

• Finish: Blasted Silver aluminum


What’s Included

• Luxman E-07 Phono Amplifier

• Power cord

• User manual

Perfect For

• Vinyl enthusiasts seeking reference-grade phono amplification for MM and MC cartridges

• High-end hi-fi setups needing versatile, balanced connectivity for Luxman systems

• Audiophiles valuing Luxman’s Japanese craftsmanship and pure, musical sound
