Audio Technica

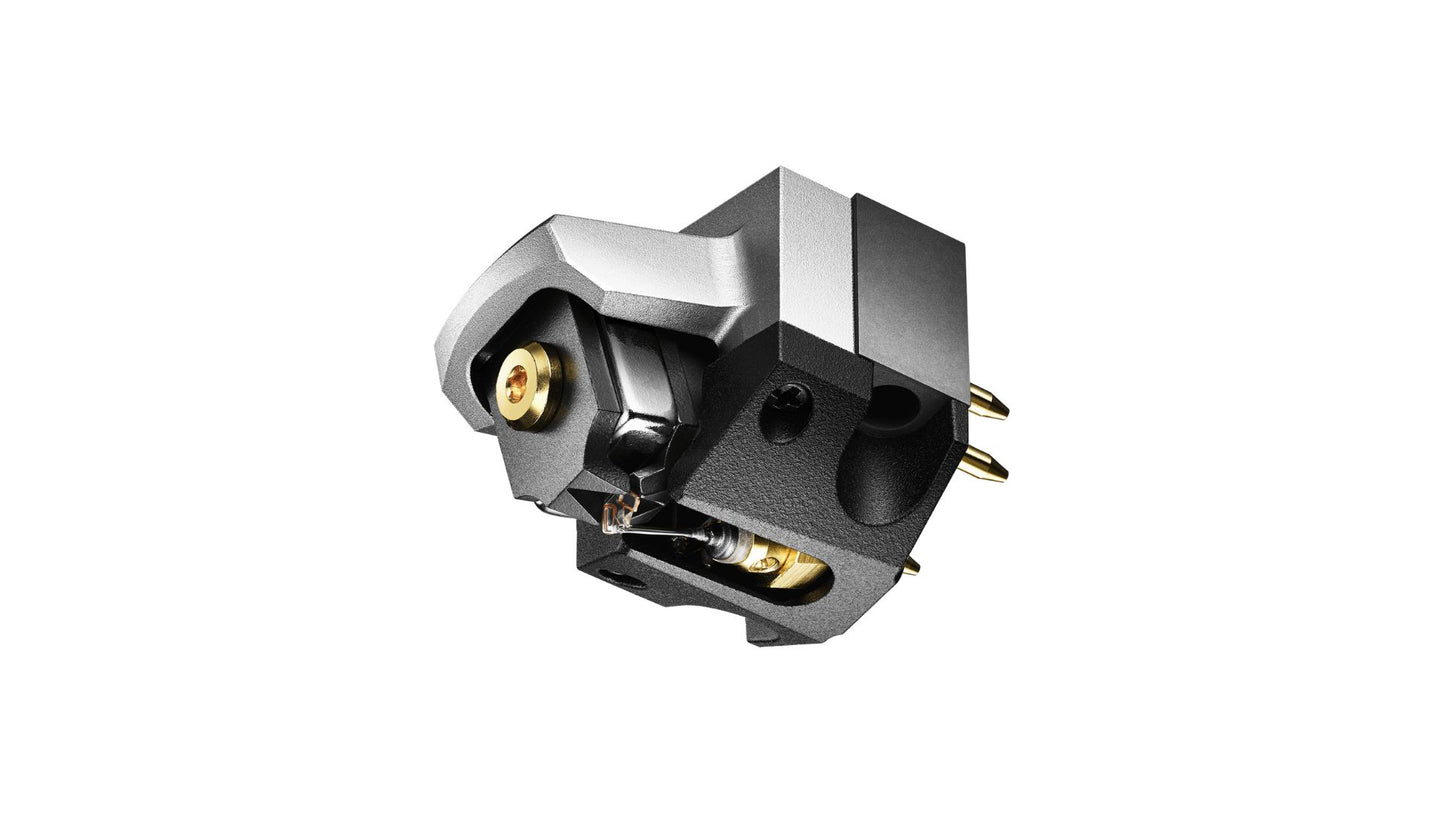

Audio Technica AT-ART1000x Direct Power Stereo MC Cartridge
Audio Technica AT-ART1000x Direct Power Stereo MC Cartridge
Regular price
$5,499.00 USD
Regular price
$5,499.00 USD
Sale price
$5,499.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Features
Download the ART1000X Brochure
- Innovative direct power system delivers unsurpassed transient response, resulting in reproduction of even the most subtle sonic details
- Newly designed rectangular coils improve the cartridge’s efficiency and extend low-frequency output
- Threaded mounting holes make it easy to install cartridge to headshell or integrated tonearm

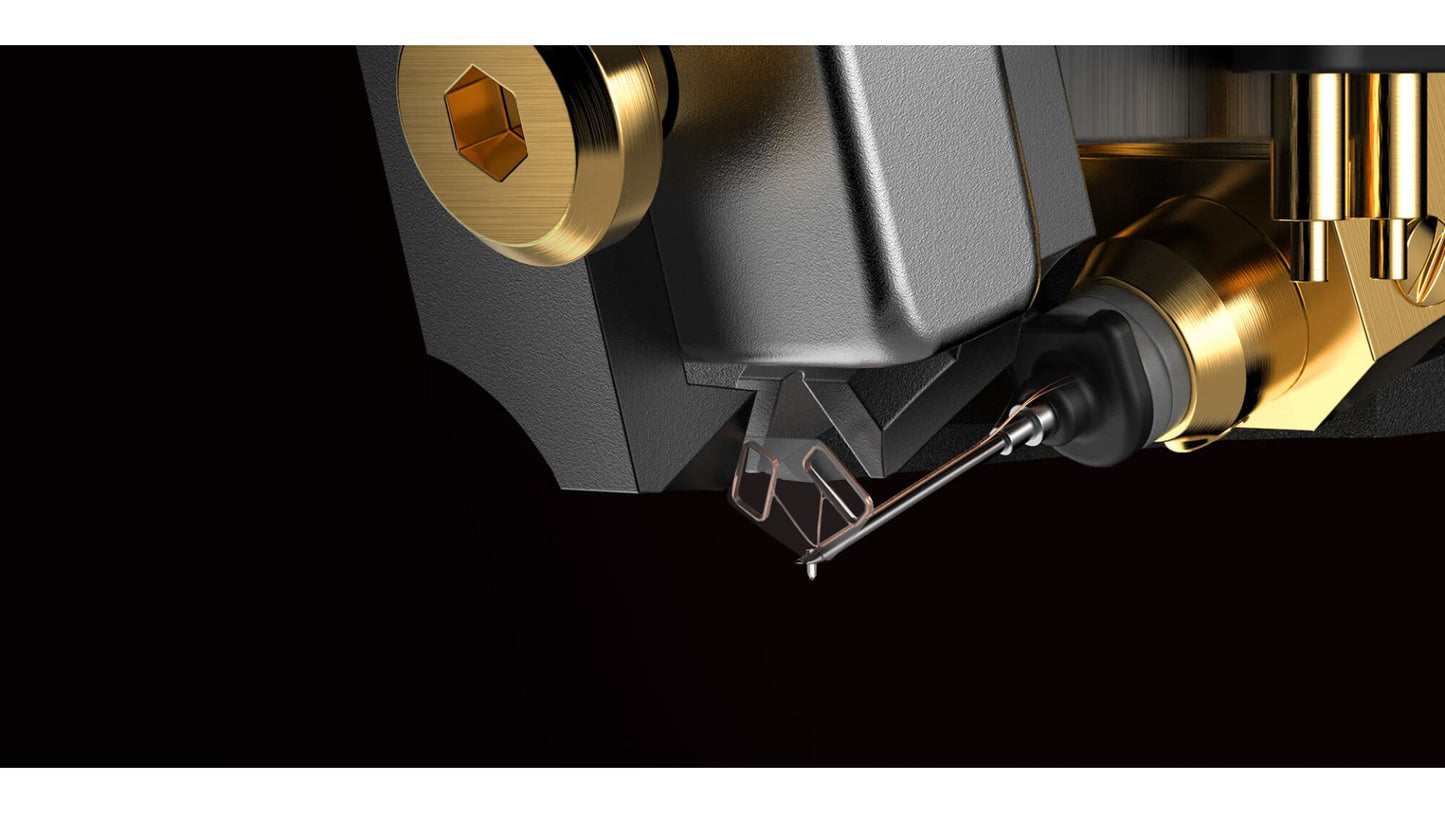

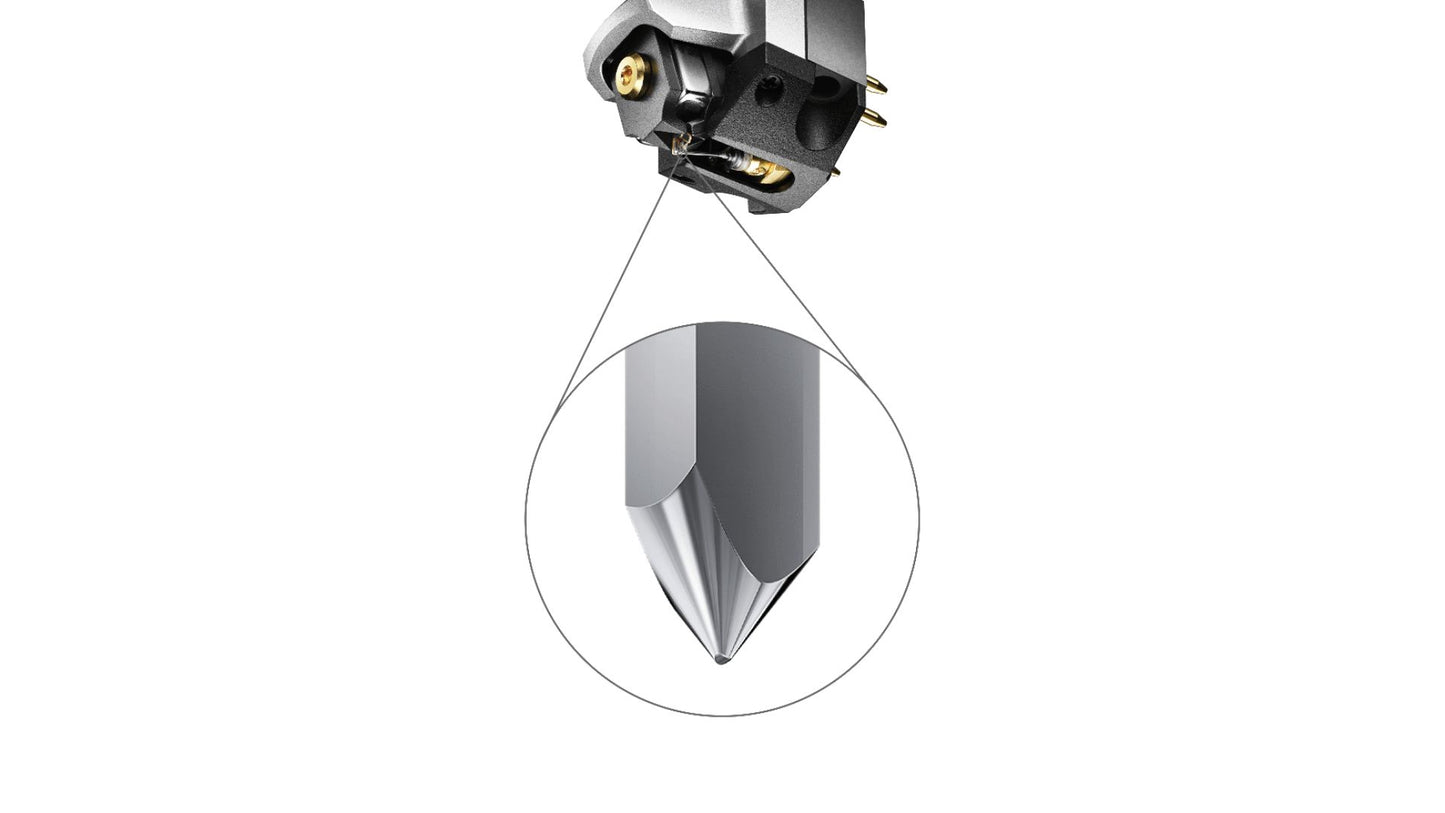

- Special line contact stylus and solid boron cantilever with a 0.26 mm diameter ensure an extremely accurate reading of the record groove
- Non-magnetic core coils provide exquisite, full-dimensional audio reproduction
- Magnetic circuit’s titanium base works in combination with the cartridge’s hard plastic cover and aluminum housing to disperse unwanted resonance
- PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
- Special coating protects the magnetic circuit from corrosion for stable performance throughout the life of the cartridge
- Developed and manufactured in Japan by skilled experts
Please Note: AT-ART1000X’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.
Specifications
| Cartridge & Stylus | |
|---|---|
| Frequency Response | 15 - 30,000 Hz |
| Channel Separation | 30 dB (1 kHz) |
| Vertical Tracking Angle | 19° |
| Vertical Tracking Force | Refer to “Tracking force information” included in the box. |
| Recommended Load Impedance | ≥ 30 ohms (when head amplifier connected) |
| Coil Impedance | 3.5 ohms (1 kHz) |
| DC Resistance | 3.5 ohms |
| Coil Inductance | ≤ 1 μH (1 kHz) |
| Output Voltage | 0.22 mV (1 kHz, 5 cm/sec.) |
| Output Channel Balance | 0.5 dB (1 kHz) |
| Stylus Shape | Special line contact stylus |
| Cantilever | 0.26 mm (0.010") diameter solid boron |
| Static Compliance | 20 × 10–6 cm/dyne |
| Dynamic Compliance | 9 × 10–6 cm/dyne (100 Hz) |
| Dimensions | 17.3 mm (0.68") × 17.0 mm (0.67") × 25.5 mm (1.0") (H × W × D) |
| Accessories Included | ・Case (wooden box) ・Non-magnetic screwdriver ・Washer × 2 ・Protector ・Cartridge installation screws (M2.6) (5.0 mm × 2, 8.0 mm × 2, 10.0 mm × 2, 12.0 mm × 2) ・Brush |
| Threaded Hole | M2.6 × 2 |
| Stylus Curvature Radius | 1.5 × 0.28 mil |
| Type | Direct power system, non-magnetic core coil (MC) type |
| Weight | 11 g (0.39 oz) |
| Notes | For product improvement, the product is subject to modification without notice. |
