Yamaha A-S801 Integrated Amplifier

Yamaha A-S801 Integrated Amplifier

High-resolution integrated amplifier with built-in USB DAC and exceptional analog precision for modern music lovers.

The Yamaha A-S801 Integrated Amplifier blends powerful analog performance with advanced digital playback in a single elegant chassis. Delivering 100 watts per channel into 8 ohms with ultra-low distortion, the Yamaha A-S801 provides detailed sound and dynamic control for any high-fidelity setup.

Equipped with a high-end ESS 32-bit DAC, the Yamaha A-S801 supports native DSD (2.8MHz/5.6MHz) and PCM playback up to 384kHz/32-bit through its USB-B input, giving you pure and lifelike sound from digital sources. Its ToP-ART (Total Purity Audio Reproduction Technology) design and ART base chassis reduce vibration, preserve channel separation, and maintain signal integrity.

Gold-plated terminals, a symmetrical layout, and solid internal wiring ensure stable, low-noise operation. The Yamaha A-S801 also includes optical and coaxial digital inputs, analog RCA inputs, and a built-in phono stage for turntables, making it a complete solution for both digital and analog enthusiasts.

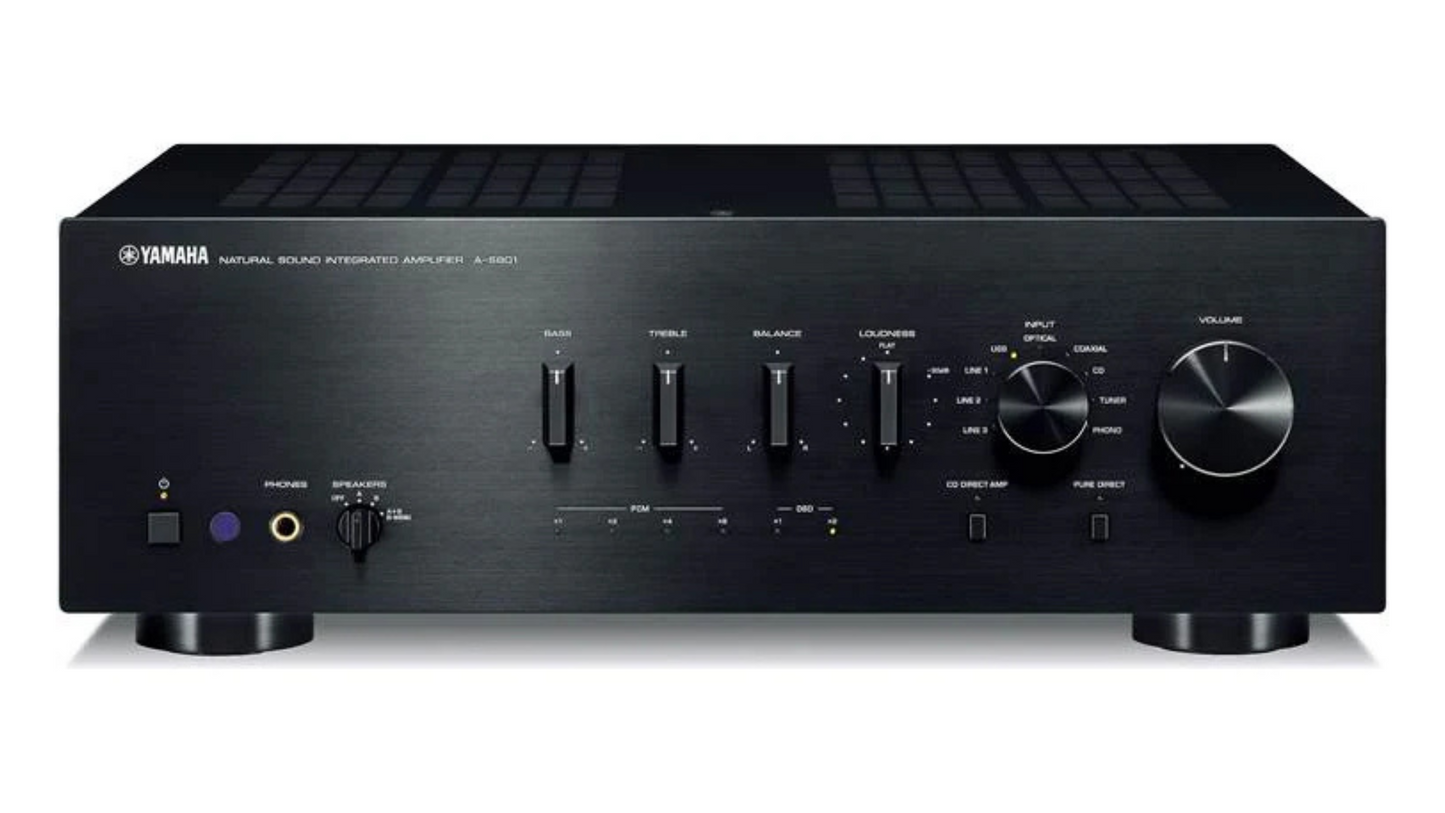

Classic aesthetics with tactile aluminum controls and a clean front panel reflect Yamaha’s Hi-Fi heritage while delivering contemporary performance for modern systems.

The Yamaha A-S801 Integrated Amplifier is In Stock now at All Elite Audio, your authorized Yamaha dealer in Maryland with a full home audio showroom. For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team.

Key Specifications

Rated Output Power: 100W + 100W (8 ohms, 20Hz–20kHz)
High Dynamic Power per Channel: 140W (8 ohms), 170W (6 ohms), 220W (4 ohms), 290W (2 ohms)
Damping Factor: ≥ 240
Frequency Response: 10Hz – 100kHz (+0/–1.0dB)
Total Harmonic Distortion: 0.019% (50W/8 ohms)
Signal-to-Noise Ratio: 99dB (CD input, 200mV)
Digital Inputs: USB-B (DSD 2.8MHz/5.6MHz, PCM 384kHz/32-bit), Optical, Coaxial
Analog Inputs: 6 RCA (including MM phono)
Subwoofer Output: Yes
Pure Direct and CD Direct Amplification Modes: Yes
Dimensions (W×H×D): 17 1/8" × 6" × 15 1/4"
Weight: 26.7 lbs (12.1 kg)
Warranty: 5 Years Manufacturer Warranty

Top 20 Questions About Yamaha A-S801 Integrated Amplifier

What kind of sound can I expect from the Yamaha A-S801?
The Yamaha A-S801 delivers clean, detailed, and dynamic sound with excellent control and transparency across all frequencies.

Does the Yamaha A-S801 include a built-in DAC?
Yes. The Yamaha A-S801 features a 32-bit ESS DAC that supports high-resolution PCM and native DSD playback for exceptional digital performance.

Can the Yamaha A-S801 play music from a computer or digital streamer?
Yes. The Yamaha A-S801’s USB-B input connects directly to computers or streamers, enabling playback of high-resolution digital files.

Is the Yamaha A-S801 suitable for vinyl playback?
Yes. It includes a moving magnet (MM) phono input for turntables, offering warm and precise analog sound.

How powerful is the Yamaha A-S801?
It outputs 100 watts per channel into 8 ohms and up to 290 watts dynamically into 2 ohms, driving a wide range of speakers with authority.

What kind of DAC chip does the Yamaha A-S801 use?
It uses an ESS Sabre 32-bit DAC (ES9010K2M) for ultra-low jitter and high-resolution conversion.

Does the Yamaha A-S801 support both digital and analog inputs?
Yes. It includes multiple analog RCA inputs plus optical, coaxial, and USB digital inputs for flexible system integration.

Can the Yamaha A-S801 connect to two pairs of speakers?
Yes. It includes A/B speaker outputs with selection control for single or dual speaker setups.

Does the Yamaha A-S801 have tone controls?
Yes. It features bass, treble, and balance adjustments with a Pure Direct mode for bypassing them to achieve the purest sound.

Is the Yamaha A-S801 suitable for demanding speakers?
Yes. With its strong power output and high damping factor, the Yamaha A-S801 handles 4-ohm and complex speaker loads easily.

What is the warranty on the Yamaha A-S801?
The Yamaha A-S801 comes with a 5-year manufacturer warranty when purchased from an authorized Yamaha dealer.

Does the Yamaha A-S801 include a headphone output?
Yes. A high-quality headphone jack is provided on the front panel for private listening.

What design features reduce vibration in the Yamaha A-S801?
Its ToP-ART symmetrical layout, ART base, and double-bottom steel construction minimize vibration and noise.

Does the Yamaha A-S801 have subwoofer connectivity?
Yes. It includes a dedicated subwoofer output for easy integration with powered subs.

What finishes are available for the Yamaha A-S801?
It is available in both Black and Silver finishes with a brushed aluminum front panel.

Is the Yamaha A-S801 easy to operate?
Yes. Its simple layout, clear input selector, and large volume knob make it intuitive to use.

Can the Yamaha A-S801 be used in a computer audio setup?
Yes. The USB-B input allows direct connection to a PC or Mac for high-resolution audio playback.

Does the Yamaha A-S801 support DSD playback?
Yes. It supports native DSD 2.8MHz and 5.6MHz formats for true high-resolution performance.

How does the Yamaha A-S801 compare to the Yamaha A-S701?
The Yamaha A-S801 adds a high-end USB DAC and superior resolution, offering a clear upgrade in digital playback capability.

Where can I buy or audition the Yamaha A-S801?
You can purchase the Yamaha A-S801 Integrated Amplifier In Stock now at All Elite Audio, your authorized Yamaha dealer in Maryland with a full home audio showroom. For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team.
