Ortofon MC X40 Moving Coil Cartridge
The flagship model of the MC X Series, combining Ortofon's most advanced stylus profile with an entirely new moving coil platform to deliver exceptional detail, precision, and musical realism.
The Ultimate Expression of the MC X Series
The Ortofon MC X40 represents the highest level of performance available within the MC X family.
Built upon the same advanced platform shared throughout the series, the X40 elevates performance through the addition of a Nude Shibata diamond stylus, allowing it to extract more information from the record groove than any other model in the lineup.
The result is a cartridge capable of delivering extraordinary resolution, expansive soundstaging, exceptional tracking precision, and remarkable musical involvement.
For listeners seeking the finest performance available from the MC X platform, the MC X40 stands at the top of the range.
A Completely New Moving Coil Platform
The MC X Series was designed from the ground up as an entirely new cartridge architecture.
Every MC X cartridge benefits from:
- High-purity silver coil technology
- Advanced integrated magnet architecture
- Stainless-steel honeycomb chassis construction
- Custom damping compounds
- Precision moving coil generator design
The MC X40 combines all of these innovations with the most advanced stylus profile in the series to achieve its reference-level performance.
Nude Shibata Diamond Stylus
The defining feature of the MC X40 is its Nude Shibata diamond stylus.
Originally developed to handle the demands of quadraphonic recordings, the Shibata profile offers an exceptionally long contact surface and superior groove tracing accuracy.
Benefits include:
- Exceptional detail retrieval
- Superior high-frequency extension
- Outstanding inner-groove performance
- Reduced tracing distortion
- Improved channel separation
- Enhanced record preservation
Its ability to maintain accurate groove contact allows the MC X40 to recover musical information that lesser stylus profiles often leave behind.
Why the Shibata Stylus Matters
Many analog enthusiasts consider the Shibata stylus one of the most desirable stylus profiles available.
Compared with elliptical and Fine Line designs, a Shibata stylus offers:
- Greater groove contact area
- Improved low-level detail retrieval
- Better transient precision
- More realistic imaging
- Enhanced soundstage depth
- Superior retrieval of ambient information
The result is a presentation that feels more lifelike, spacious, and emotionally engaging.
High-Purity Silver Coil Technology
The MC X40 utilizes high-purity silver wire throughout its moving coil generator system.
Silver's superior conductivity allows delicate musical information to pass through the cartridge with exceptional efficiency and accuracy.
Advantages include:
- Enhanced transparency
- Improved signal integrity
- Better microdetail retrieval
- Greater transient speed
- Superior dynamic expression
- Increased realism
This advanced coil system contributes significantly to the cartridge's open and revealing character.
Advanced Integrated Magnet System
At the heart of the MC X40 is Ortofon's newly developed magnet architecture.
The integrated pole cylinder and rear yoke design optimize magnetic efficiency while simplifying the signal path.
Benefits include:
- Improved channel balance
- Lower distortion
- Better image stability
- Greater dynamic contrast
- Enhanced resolution
- Increased overall accuracy
This sophisticated generator architecture provides the foundation for the MC X40's exceptional performance.

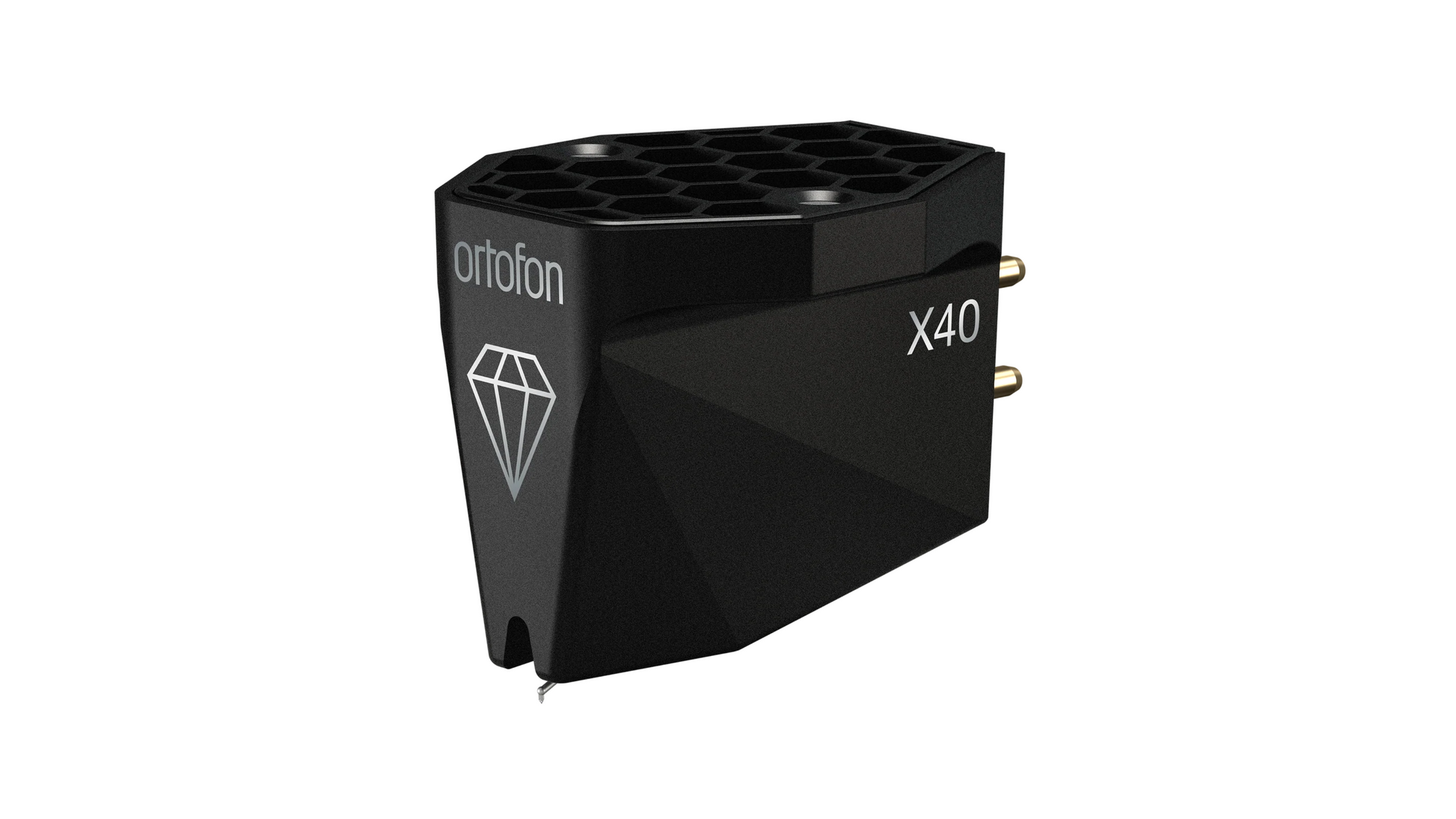

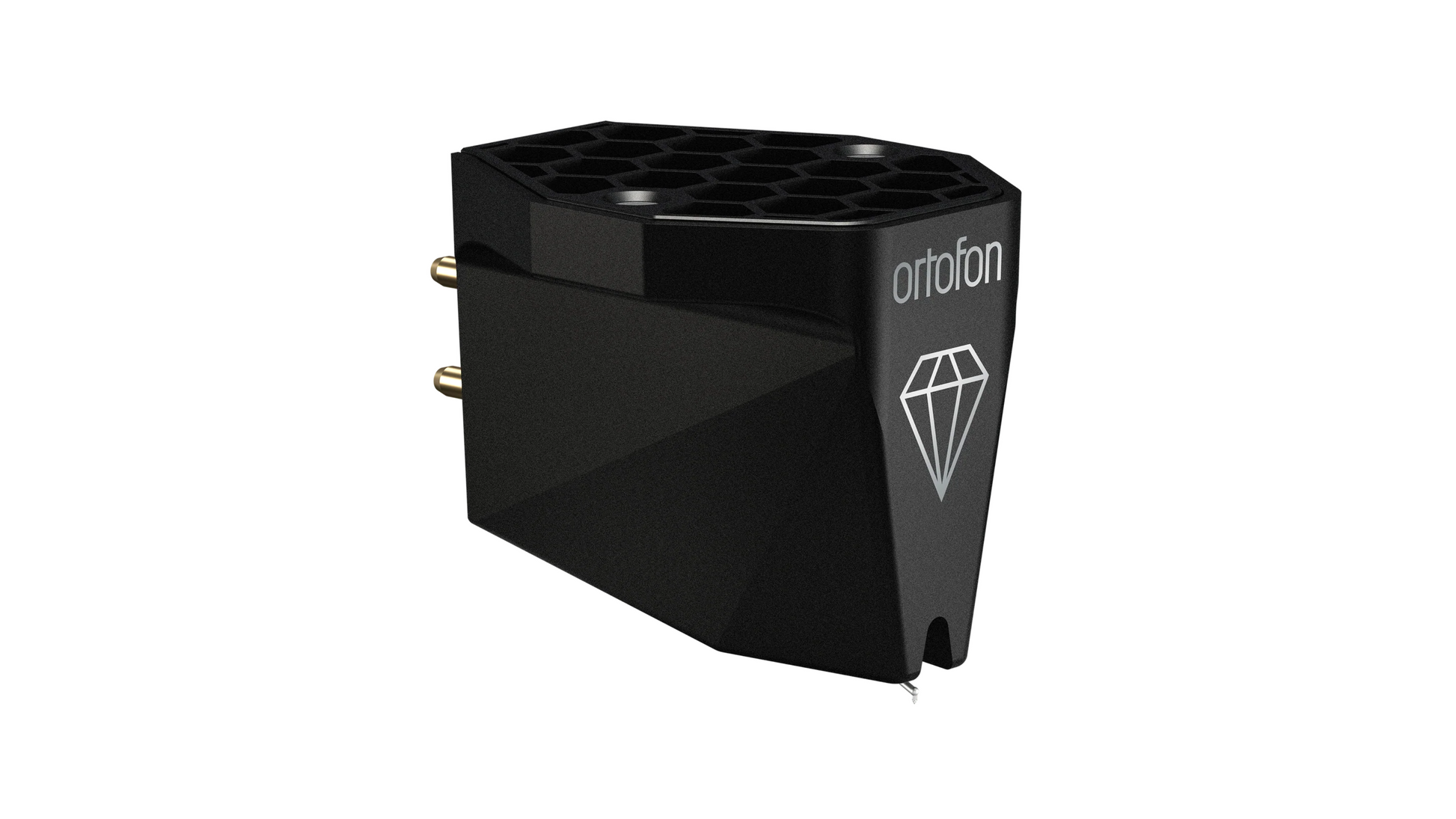

Stainless-Steel Honeycomb Chassis
The MC X40 is built around a stainless-steel honeycomb frame produced using Metal Injection Molding technology.
The structure provides outstanding rigidity while controlling unwanted resonances that can interfere with accurate playback.
Advantages include:
- Exceptional structural integrity
- Improved resonance management
- Enhanced tracking stability
- Better energy transfer
- Long-term durability
- Consistent performance
A Physical Vapor Deposition surface treatment further enhances durability and finish quality.
Precision Damping Technology
Ortofon developed proprietary damping compounds specifically for the MC X platform.
These materials help control unwanted movement within the cartridge assembly while preserving the stylus's ability to respond accurately to groove information.
Benefits include:
- Improved tracking precision
- Reduced distortion
- Better bass articulation
- Enhanced dynamic control
- Greater tonal accuracy
- Improved musical coherence
The damping system plays a major role in the cartridge's refined presentation.
Compared to the MC X30
The MC X30 delivers excellent performance through its Nude Fine Line stylus.
The MC X40 advances performance through:
- Nude Shibata stylus geometry
- Greater groove contact area
- Enhanced detail retrieval
- Better ambient information recovery
- Improved soundstage depth
- Higher overall resolution
Listeners upgrading from the X30 often notice improvements in dimensionality, transparency, and low-level detail retrieval.
Bridging the Gap to Higher-End Ortofon Cartridges
The MC X40 occupies a unique position within Ortofon's lineup.
Its performance begins to approach cartridges traditionally associated with much higher price categories, including models from the Quintet and even select Cadenza-series designs.
The combination of advanced generator technology, silver coils, and a Nude Shibata stylus allows the MC X40 to compete far above what many listeners expect from a cartridge in this class.
For many systems, the MC X40 serves as a long-term destination cartridge rather than a stepping stone.
Ideal System Matching
The MC X40 performs exceptionally well with medium-mass and higher-performance tonearms.
As system quality improves, the MC X40 continues to reveal deeper levels of musical information.
Phono Stage Compatibility
The MC X40 produces 0.4mV of output and requires a moving coil phono stage or MC-capable phono preamplifier.
Recommended phono stage characteristics include:
- Dedicated MC gain capability
- Load impedance above 50 ohms
- Low-noise circuitry
- Stable gain architecture
- High-quality power supply design
Careful phono stage matching allows the cartridge to achieve its full performance potential.
Flagship Performance Without Compromise
The MC X40 demonstrates just how far modern moving coil cartridge design has evolved.
Its Nude Shibata stylus, pure silver coils, advanced magnetic architecture, stainless-steel honeycomb chassis, and proprietary damping technology combine to create one of the most capable cartridges in its class.
For listeners seeking the highest level of performance available within the MC X lineup, the MC X40 delivers a listening experience that approaches true reference-quality analog playback.
Key Specifications Block
- Product: Ortofon MC X40
- Category: Flagship Moving Coil Cartridge
- Cartridge Type:
- Mounting:
- Output Voltage:
- Stylus:
- Stylus Radius:
- Cantilever:
- Tracking Force:
- Compliance:
- Channel Balance:
- Channel Separation:
- Frequency Response:
- Internal Impedance:
- Recommended Load:
- Coil Wire:
- Coil System:
- Body Structure:
- MIM Stainless-Steel Honeycomb Frame
- Weight:
- Warranty:
- Manufacturer Warranty Included
Why Buy From All Elite Audio
All Elite Audio is an authorized Ortofon dealer specializing in high-performance analog playback systems.
Our team provides expert guidance on cartridge selection, tonearm compatibility, phono stage matching, cartridge alignment, VTA optimization, loading recommendations, and complete analog system setup. When investing in a cartridge at the level of the MC X40, proper setup can make the difference between excellent performance and extraordinary performance.
Call: 443-402-5055
Text: 443-402-5064
Visit: 1921 York Rd, Timonium, MD 21093
FAQ
What makes the MC X40 the flagship of the MC X Series?
The MC X40 features the most advanced stylus profile in the lineup—a Nude Shibata diamond—along with the complete MC X platform of silver coils, advanced magnet technology, and stainless-steel honeycomb construction.
What is the benefit of a Shibata stylus?
A Shibata stylus offers greater groove contact and more accurate tracing, allowing it to retrieve additional detail while reducing distortion and record wear.
Does the MC X40 use silver coils?
Yes. Like every cartridge in the MC X Series, the MC X40 uses high-purity silver coil wire throughout its generator system.
Is the MC X40 a low-output moving coil cartridge?
Yes. It produces 0.4mV of output and requires a moving coil phono stage or MC-compatible preamplifier.
How does the MC X40 compare to the MC X30?
The MC X40 upgrades to a Nude Shibata stylus, offering improved detail retrieval, soundstage depth, and overall resolution compared with the MC X30's Fine Line stylus.
What phono stage load should I use?
Ortofon recommends a load impedance greater than 50 ohms for optimal performance.
Is the stylus replaceable?
No. Like most moving coil cartridges, the stylus is not user replaceable and requires professional retipping or cartridge exchange services when worn.
Is the MC X40 considered a high-end cartridge?
Absolutely. While it is the flagship of the MC X Series, its performance places it firmly within the realm of serious high-end moving coil cartridges.
What music works best with the MC X40?
The MC X40 excels with jazz, classical, rock, acoustic recordings, vocals, electronic music, and audiophile pressings where maximum detail retrieval and realism are desired.
