Ortofon MC X50 Moving Coil Cartridge

The most advanced model in the MC X Series, combining a Nude Micro Ridge stylus, boron cantilever, and newly engineered suspension system to deliver extraordinary precision, resolution, and musical realism.

The New Flagship of the MC X Series

The MC X50 represents the highest level of performance ever achieved within Ortofon's MC X lineup.

Developed as the new flagship model, the X50 builds upon the award-winning MC X platform while introducing significant upgrades in stylus technology, cantilever design, and suspension engineering. The goal was not simply to create a better MC X40, but to push the entire platform into genuine high-end territory.

The result is a cartridge capable of exceptional tracking accuracy, outstanding transparency, and the kind of low-level detail retrieval normally associated with cartridges costing substantially more.

Nude Micro Ridge Diamond Stylus

The defining feature of the MC X50 is its Nude Micro Ridge diamond stylus.

Micro Ridge profiles are widely regarded as among the most sophisticated stylus geometries available. Their extremely small tracing radius allows the stylus to follow groove modulations with exceptional precision while maintaining a large contact patch that distributes tracking forces evenly across the groove walls.

Benefits include:

• Exceptional groove tracing accuracy
• Superior high-frequency extension
• Reduced inner-groove distortion
• Outstanding tracking ability
• Enhanced retrieval of ambient information
• Extended stylus longevity

The Micro Ridge stylus allows the MC X50 to extract remarkable amounts of musical information while maintaining composure during complex passages.

Boron Cantilever Technology

Unlike the aluminum cantilevers used throughout the rest of the MC X lineup, the MC X50 upgrades to a boron cantilever.

Boron offers an exceptional combination of rigidity and low mass, allowing groove information to be transferred more efficiently from stylus to generator.

Advantages include:

• Faster transient response
• Improved dynamic expression
• Lower distortion
• Greater low-level resolution
• Enhanced microdetail retrieval
• Superior control

The boron cantilever is one of the most important upgrades that separates the MC X50 from the MC X40.

Pure Silver Coil System

Like every cartridge in the MC X Series, the MC X50 utilizes coils wound with high-purity silver wire.

Silver's superior conductivity helps preserve delicate musical information while minimizing signal losses throughout the generator assembly.

Benefits include:

• Exceptional signal clarity
• Improved transparency
• Greater resolution
• Better transient accuracy
• Enhanced imaging precision
• More realistic musical presentation

The silver coil architecture remains one of the defining technologies of the MC X platform.

Optimized Magnet Architecture

The MC X50 utilizes Ortofon's advanced magnet system featuring a one-piece pole cylinder integrated into the rear magnet yoke.

This optimized structure improves magnetic efficiency while maintaining exceptional signal integrity throughout the generator system.

Advantages include:

• Improved channel balance
• Enhanced imaging
• Lower distortion
• Better dynamic contrast
• Increased resolution
• Superior signal stability

The result is a presentation that feels effortless, open, and highly engaging.

Newly Developed Suspension System

The MC X50 receives a dedicated suspension compound engineered specifically for the flagship model.

Ortofon developed a newly formulated rubber suspension to work in harmony with the Micro Ridge stylus and boron cantilever, improving tracking stability and maintaining consistent groove contact.

Benefits include:

• Improved tracking precision
• Better groove contact
• Reduced distortion
• Enhanced bass control
• Greater musical coherence
• Increased stability

This refined suspension system plays a major role in the MC X50's ability to resolve fine musical details while remaining composed and natural.

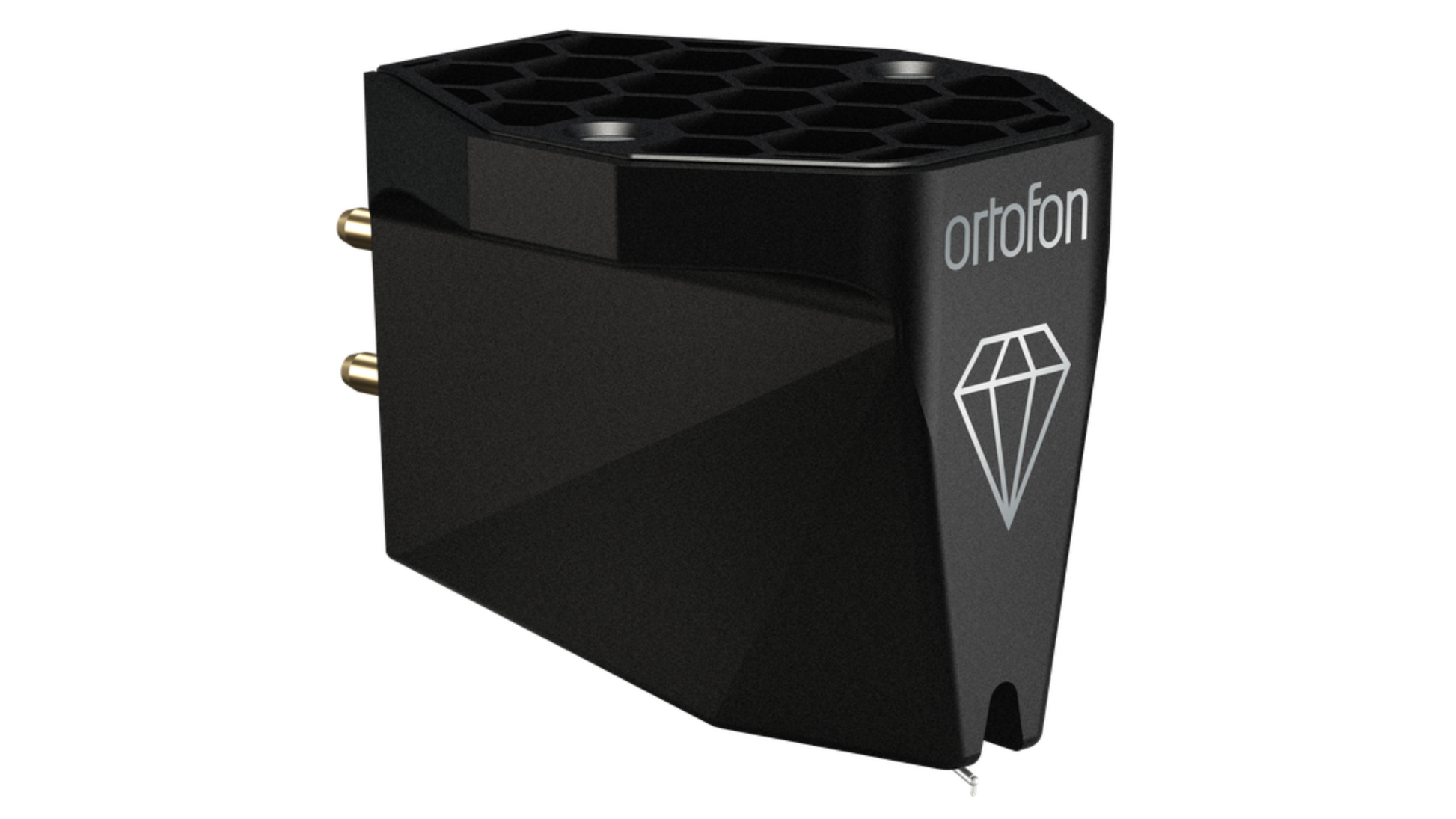

Stainless-Steel Honeycomb Chassis

The MC X50 utilizes the same advanced MIM-manufactured stainless-steel honeycomb structure found throughout the MC X Series.

This sophisticated chassis provides exceptional rigidity while minimizing unwanted resonances that can blur musical information.

Benefits include:

• Superior mechanical stability
• Improved resonance management
• Enhanced tracking consistency
• Better energy transfer
• Increased durability
• Long-term reliability

The rigid platform allows the advanced generator system to operate at its full potential.

Compared to the MC X40

The MC X40 remains an exceptional cartridge and features a Nude Shibata stylus.

The MC X50 advances performance through:

• Nude Micro Ridge stylus geometry
• Boron cantilever construction
• Newly engineered suspension compound
• Greater tracking accuracy
• Improved transient response
• Enhanced low-level detail retrieval

Listeners upgrading from the X40 often notice improvements in transparency, spatial precision, microdynamics, and overall refinement.

Bridging the Gap to the Quintet and Cadenza Series

The MC X50 occupies a unique position within Ortofon's lineup.

Its combination of a Micro Ridge stylus, boron cantilever, silver coils, advanced magnet architecture, and dedicated suspension system allows it to approach performance levels traditionally associated with significantly more expensive moving coil cartridges.

For many listeners, the MC X50 serves as a bridge between the MC X family and Ortofon's renowned Quintet Black S and Cadenza series cartridges.

Ideal System Matching

The MC X50 performs exceptionally well with higher-performance turntables and medium-mass tonearms.

Its compliance and weight make it suitable for a wide variety of modern tonearm designs while rewarding systems capable of revealing its extraordinary resolving power.

Phono Stage Compatibility

The MC X50 produces 0.4mV of output and requires a moving coil phono stage or MC-capable preamplifier.

Recommended phono stage characteristics include:

• Dedicated MC gain capability
• Load impedance above 50 ohms
• Low-noise circuitry
• Stable gain architecture
• High-quality power supply design

As phono stage quality improves, the MC X50 continues to reveal deeper levels of information embedded within the recording.

The Most Advanced MC X Ever Built

The MC X50 represents the culmination of everything Ortofon has learned during the development of the MC X platform.

Its Nude Micro Ridge stylus, boron cantilever, pure silver coils, optimized magnet architecture, proprietary suspension system, and stainless-steel honeycomb chassis combine to create a cartridge capable of extraordinary performance.

For vinyl enthusiasts seeking a true high-end moving coil cartridge without entering the stratospheric pricing of flagship reference models, the MC X50 stands among the most compelling analog components available today.

Key Specifications Block

• Product: Ortofon MC X50
• Category: Flagship Moving Coil Cartridge
• Cartridge Type:
  • Low Output Moving Coil
• Mounting:
  • Standard Half-Inch Mount
• Output Voltage:
  • 0.4 mV
• Stylus:
  • Nude Micro Ridge Diamond
• Stylus Radius:
  • r/R 2.5/75 µm
• Cantilever:
  • Boron
• Tracking Force:
  • 2.0 g
• Compliance:
  • 14 µm/mN
• Channel Balance:
  • 0.5 dB
• Channel Separation:
  • 28 dB
• Frequency Response:
  • 20 Hz – 20 kHz ±1 dB
• Internal Impedance:
  • 6 Ohms
• Recommended Load:
  • Greater Than 50 Ohms
• Coil Wire:
  • High-Purity Silver
• Coil System:
  • Quad Coil
• Body Structure:
  • MIM Stainless Steel & Honeycomb Core Structure
• Weight:
  • 8.6 g
• Color:
  • Black
• Warranty:
  • Manufacturer Warranty Included

Why Buy From All Elite Audio

All Elite Audio is an authorized Ortofon dealer specializing in high-performance analog playback systems.

Our team provides expert guidance on cartridge selection, tonearm compatibility, phono stage matching, cartridge alignment, VTA optimization, loading recommendations, and complete analog system setup. When investing in a cartridge at the level of the MC X50, proper setup is critical to unlocking its full performance potential.

Call: 443-402-5055

Text: 443-402-5064

Visit: 1921 York Rd, Timonium, MD 21093

FAQ

What makes the MC X50 different from the MC X40?

The MC X50 upgrades to a Nude Micro Ridge stylus, boron cantilever, and newly developed suspension compound, providing greater resolution, tracking accuracy, and overall refinement.

Why is a Micro Ridge stylus important?

Micro Ridge profiles offer exceptional groove tracing accuracy, reduced distortion, superior high-frequency tracking, and outstanding longevity.

Does the MC X50 use silver coils?

Yes. The MC X50 utilizes high-purity silver coil wire as part of Ortofon's advanced MC X generator architecture.

Is the MC X50 a low-output moving coil cartridge?

Yes. It produces 0.4mV of output and requires a moving coil phono stage or MC-compatible preamplifier.

What is the benefit of a boron cantilever?

Boron combines exceptional rigidity with low mass, improving transient response, resolution, and tracking accuracy.

What phono stage load should I use?

Ortofon recommends a load impedance greater than 50 ohms.

Is the stylus replaceable?

No. Like virtually all moving coil cartridges, the stylus is not user replaceable and requires professional retipping or cartridge exchange services when worn.

Is the MC X50 considered a high-end cartridge?

Absolutely. The MC X50 was specifically developed to extend the MC X platform into genuine high-end analog playback territory.

What music works best with the MC X50?

The MC X50 excels with every genre, including jazz, classical, rock, acoustic recordings, vocals, and audiophile pressings where maximum resolution and realism are desired.
