Luxman NT-07 Network Transport

Luxman NT‑07 – Flagship Network Transport for High-End Audio Systems

The Luxman NT‑07 is the first-ever dedicated network transport from Luxman, engineered to bridge the gap between modern digital media and premium DACs. It aggregates network storage, streaming services, USB, and HDMI inputs into a sophisticated, audiophile‑grade digital output platform—perfect for listeners who demand flexibility, fidelity, and finesse.

Uncompromising Connectivity & Source Support

Network Input (RJ‑45 Ethernet): Supports UPnP and OpenHome (Roon Ready certification in progress), enabling playback from NAS, servers, and streaming services such as TIDAL Connect, Spotify Connect, Qobuz, and TuneIn.

USB Inputs (Front & Rear USB 2.0): Compatible with FAT32, exFAT, NTFS media—plays PCM up to 768 kHz and DSD up to 22.5 MHz.

Digital Outputs: Balanced and robust USB (up to 32‑bit/768 kHz PCM, DSD 22.5 MHz), plus coaxial and optical S/PDIF outputs supporting 24‑bit/192 kHz PCM.

HDMI In/Out with ARC: Import audio from TVs, Blu‑ray players, or consoles; pass-through PCM 2‑channel audio up to 192 kHz/24‑bit via HDMI ARC.

Advanced Playback & Processing Features

Intelligent Resampling Engine: Auto-matches sample rate and bit depth (44.1–384 kHz PCM) to the connected DAC’s capabilities, with manual up/down sampling control for optimal compatibility.

MQA Decoding Modes: Choose between Off, Core Decoding, or Pass‑Through modes depending on your DAC’s MQA support.

OpenHome & Roon Ready: Full metadatabase, playlist, and multi-room control via the Luxman Stream app or Roon once certified.

Elegant Operation & User Interface

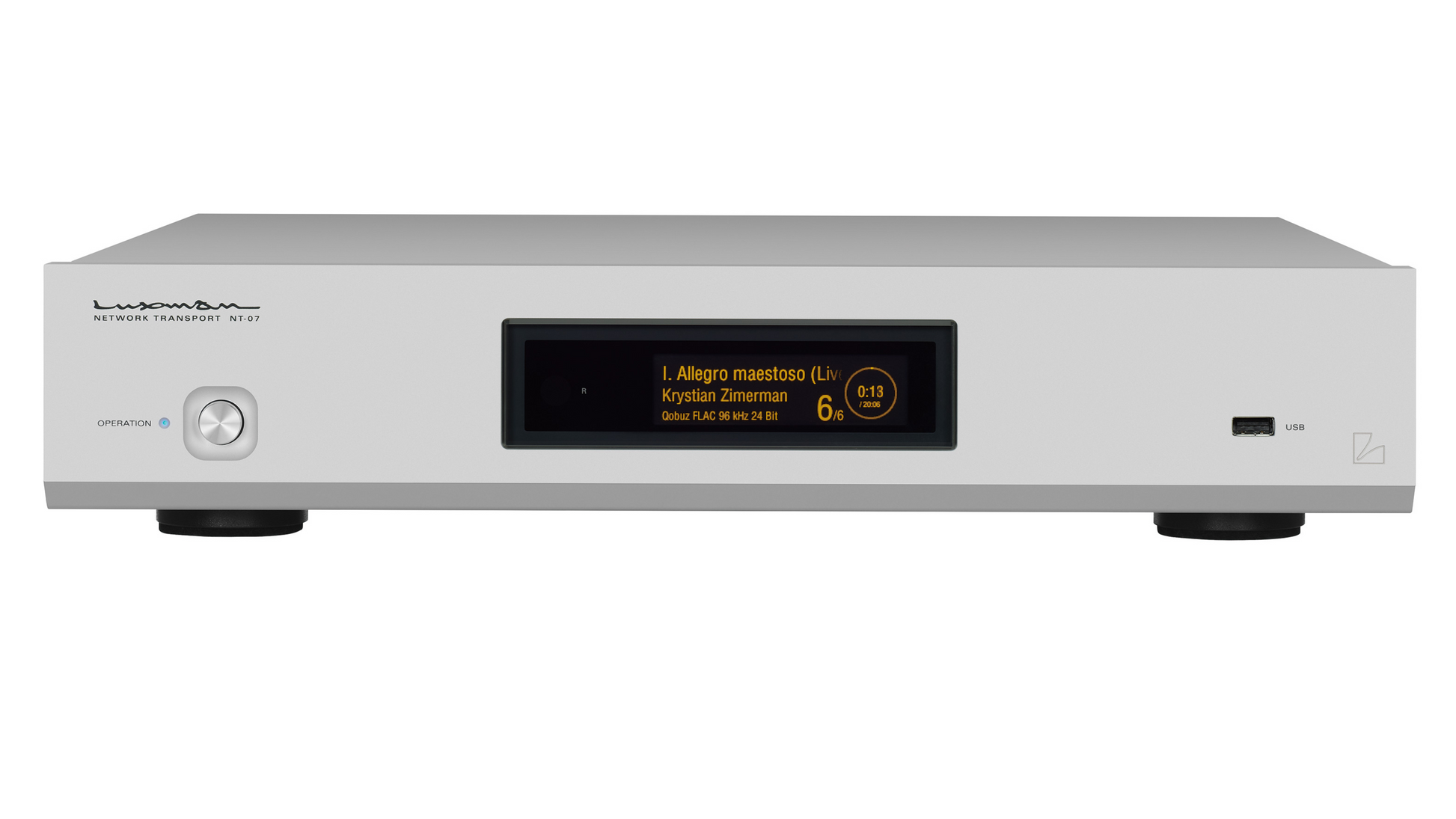

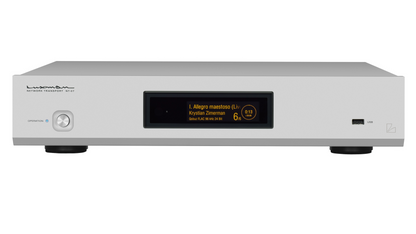

High‑Definition OLED Display: Shows track title, artist name, elapsed time, audio format, and bit-depth; includes a unique circle graphic visualizing playback progress.

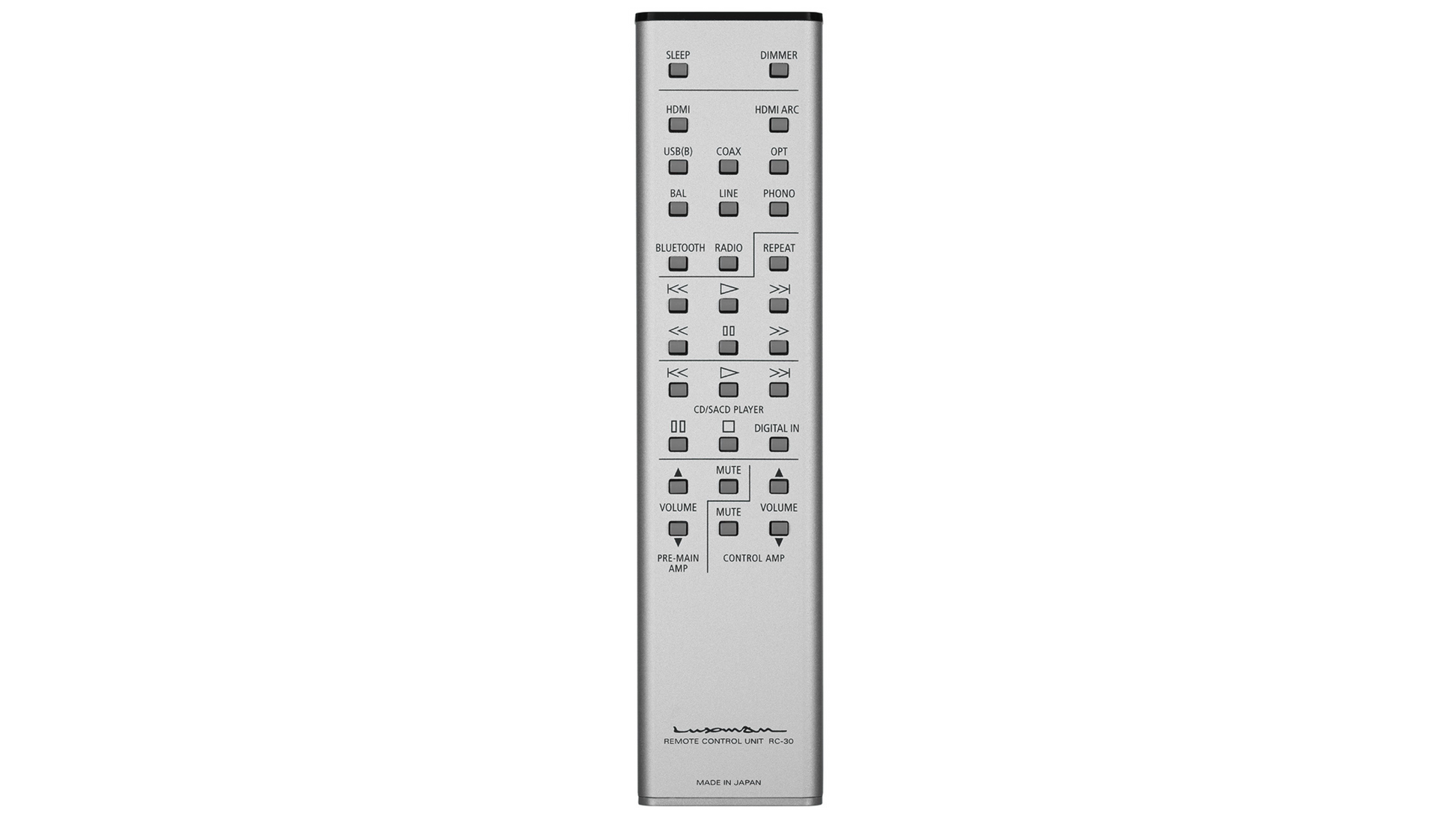

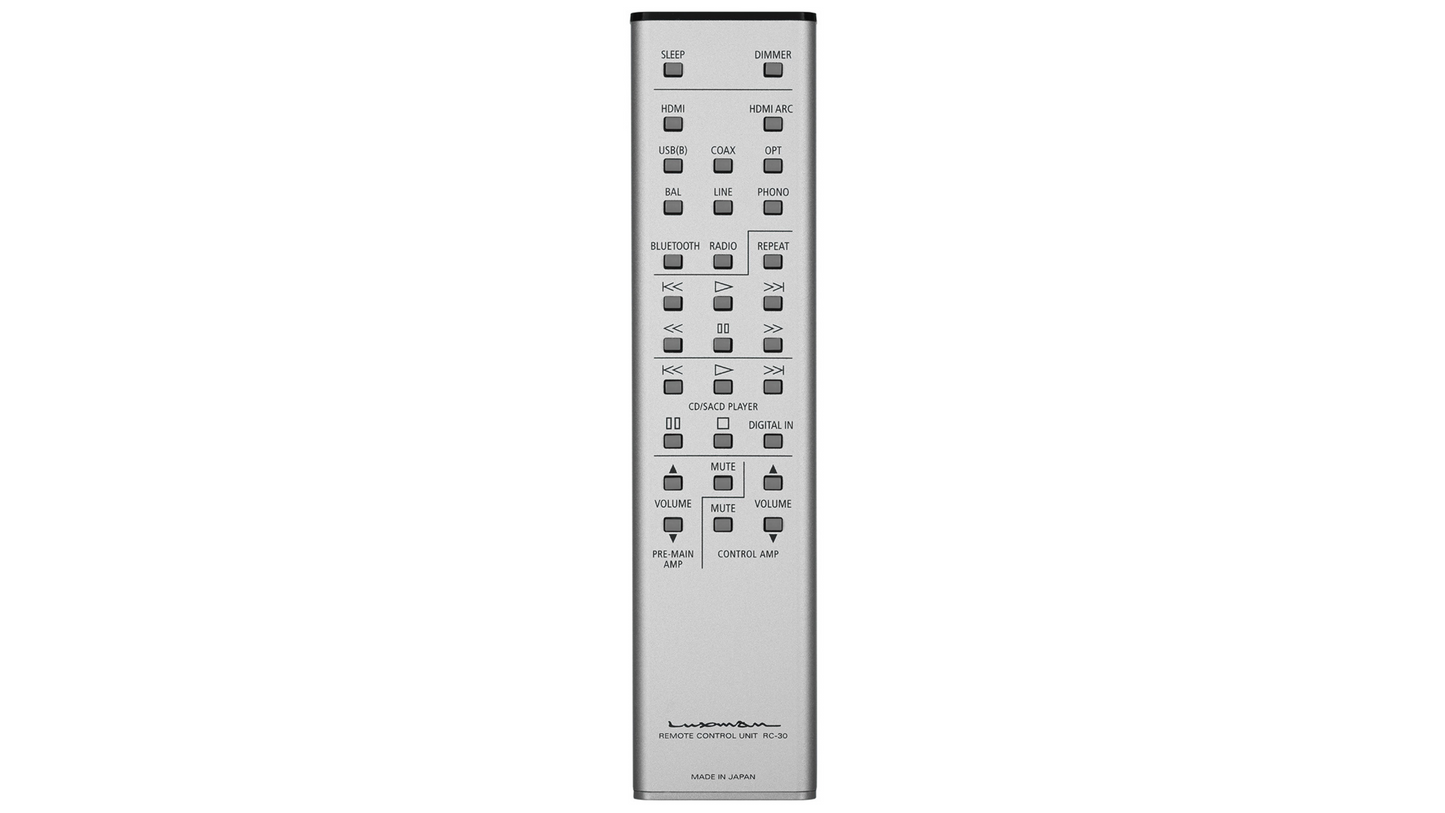

Minimalist Front Panel: Only a power button on the fascia—control playback entirely via the Luxman Stream app on iOS/Android or the supplied RC‑30 aluminum IR remote.

System Integration: Records remote control in/out terminals (12V trigger) allow control syncing with Luxman amplifiers and disc players.

Engineering & Build Quality

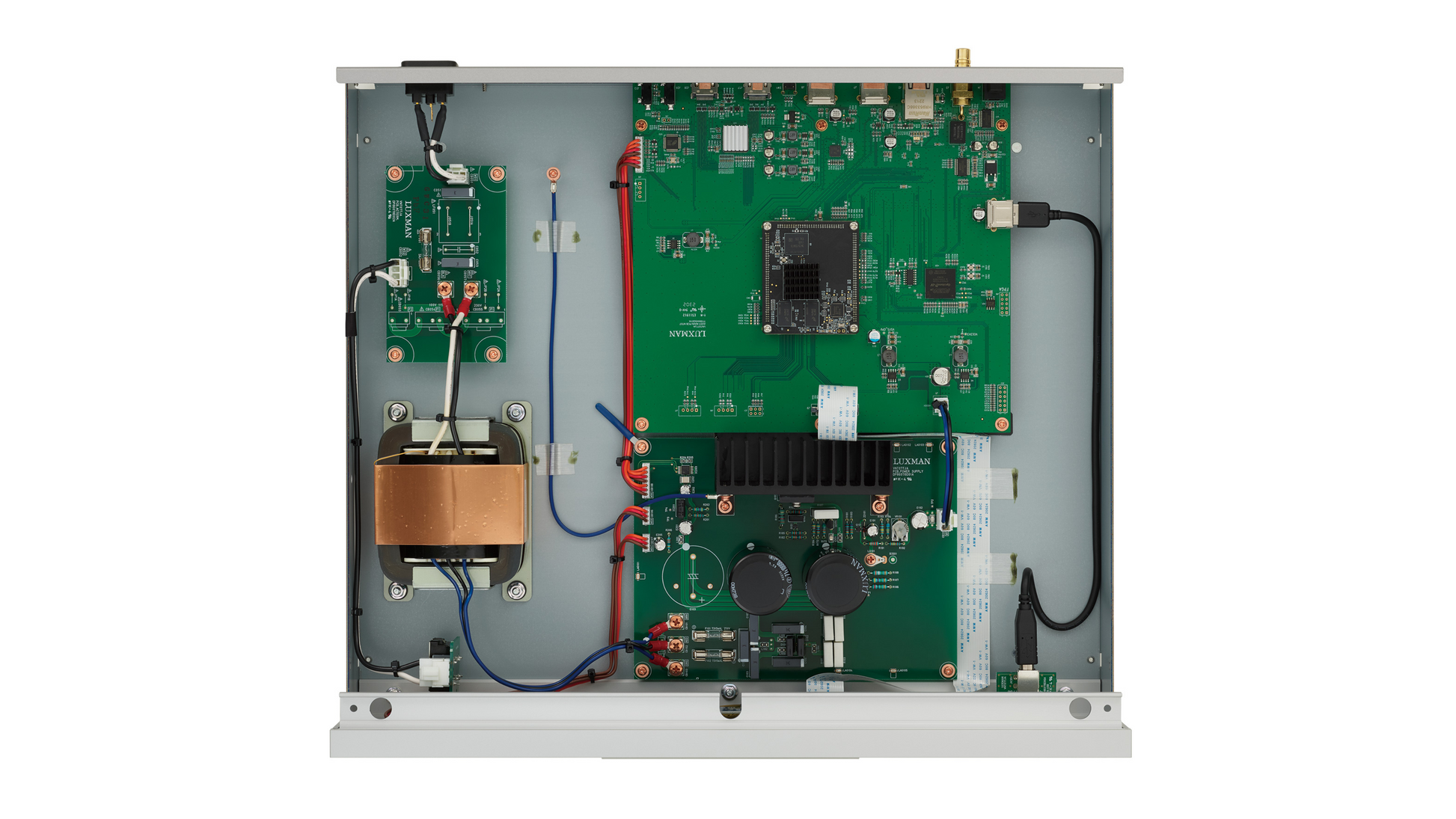

Precision Power Supply: Custom toroidal transformer and dual 10,000 µF high-capacity filter capacitors deliver low noise and stable voltage regulation.

Solid Audio Circuit Design: High-speed processor modules and noise-suppressed architecture uphold clean signal integrity from input to output, meticulously optimized for audio performance.

Technical Specifications

Supported Formats: WAV, AIFF, FLAC, ALAC, MP3, AAC, DSD/DSF, DFF, MQA

Sampling Rates:

USB: PCM 44.1–768 kHz (16/24/32-bit), DSD 2.8–22.5 MHz (1‑bit)

OPT / COAX / HDMI (ARC): PCM 44.1–192 kHz (16/24‑bit)

Streaming Protocols: UPnP (OpenHome), TIDAL Connect, Spotify Connect, TuneIn; Roon Ready underway

Power Consumption: Approx. 27 W (with USB storage connected), ~5.9 W idle

Dimensions: 440 × 92 × 398 mm (includes display and terminal clearances)

Weight: 10.3 kg

Why Choose the NT‑07?

The Luxman NT‑07 is built for serious listeners who demand uncompromising digital signal routing. It consolidates all major digital sources—network servers, USB storage, HDMI ARC—into a single, finely tuned device. The intelligent resampling and versatile MQA decoding modes ensure seamless integration with almost any high-end DAC. Coupled with its elegant OLED display and simplified control experience, the NT‑07 brings high-resolution music streaming into your audio system with luxurious ease.
