EverSolo AMP-F10 Power Amplifier

EverSolo AMP-F10 – High-Fidelity Fully Balanced Power Amplifier

Precision Power for Demanding Audiophile Systems

The EverSolo AMP-F10 is a state-of-the-art Class D stereo power amplifier, built to complement EverSolo’s acclaimed streaming and DAC platforms with pristine power delivery, transparency, and ultra-low noise. Designed with a fully balanced architecture and high-end components throughout, it delivers a rich, controlled, and highly detailed sound signature across a wide range of loudspeakers. Whether you’re building a minimalist high-end system or expanding a streaming-based setup, the AMP-F10 is engineered to power your music with authority and finesse.

Key Features

Fully Balanced Differential Amplification
Ensures exceptional channel separation, reduced noise, and superior dynamics for clean, distortion-free sound.

Premium Class D Topology
Utilizes the cutting-edge German Infineon MA12070 amplifier module, delivering high power efficiency, low heat, and impressive sonic purity.

Ultra-Low Noise & Distortion
With THD+N below 0.0003% and SNR exceeding 125 dB, the AMP-F10 provides stunning clarity and resolution across all genres.

Discrete Linear Power Supply
Equipped with a low-noise toroidal transformer and high-speed capacitors to deliver stable power with exceptional transient response and dynamic control.

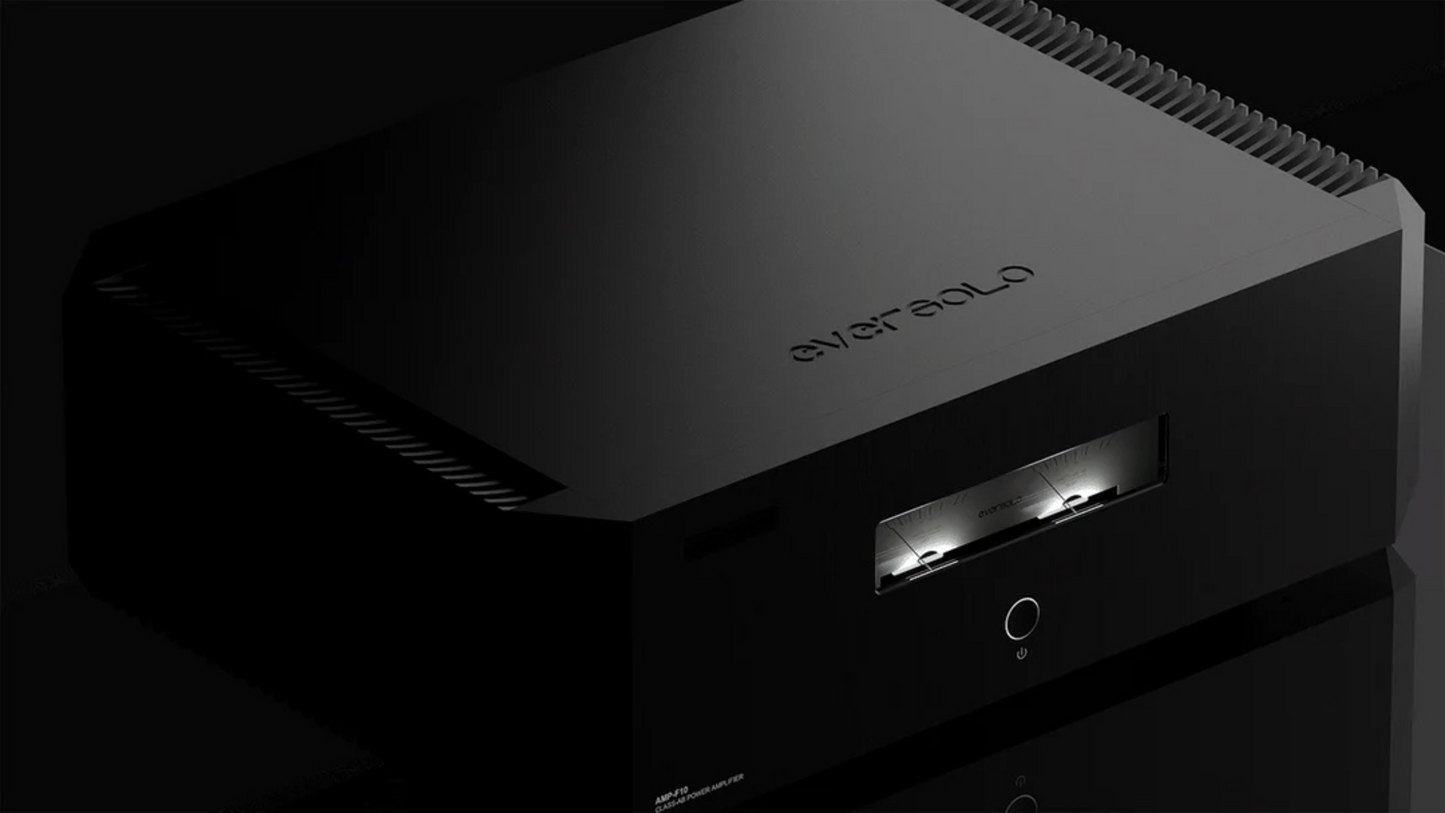

All-Aluminum Chassis
Precision-machined from solid aluminum for optimal thermal performance and vibration control while maintaining a sleek, modern aesthetic.

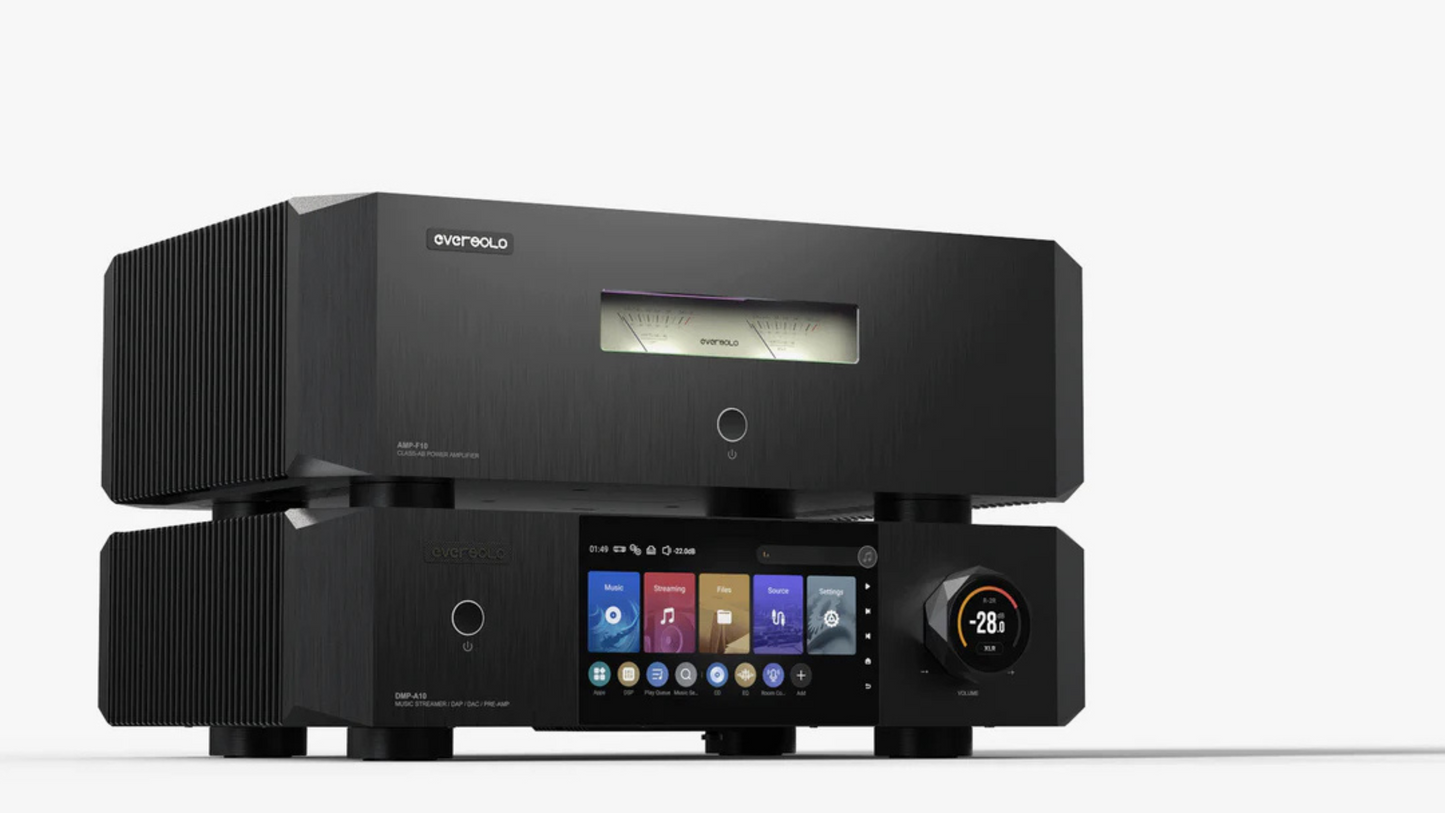

Seamless System Integration
Designed to pair perfectly with EverSolo streamers like the DMP-A6 and DMP-A10 for a refined, high-performance audio chain.

High-Efficiency Output Stage
Delivers high current with minimal heat dissipation, allowing the AMP-F10 to maintain performance consistency even during extended playback sessions.

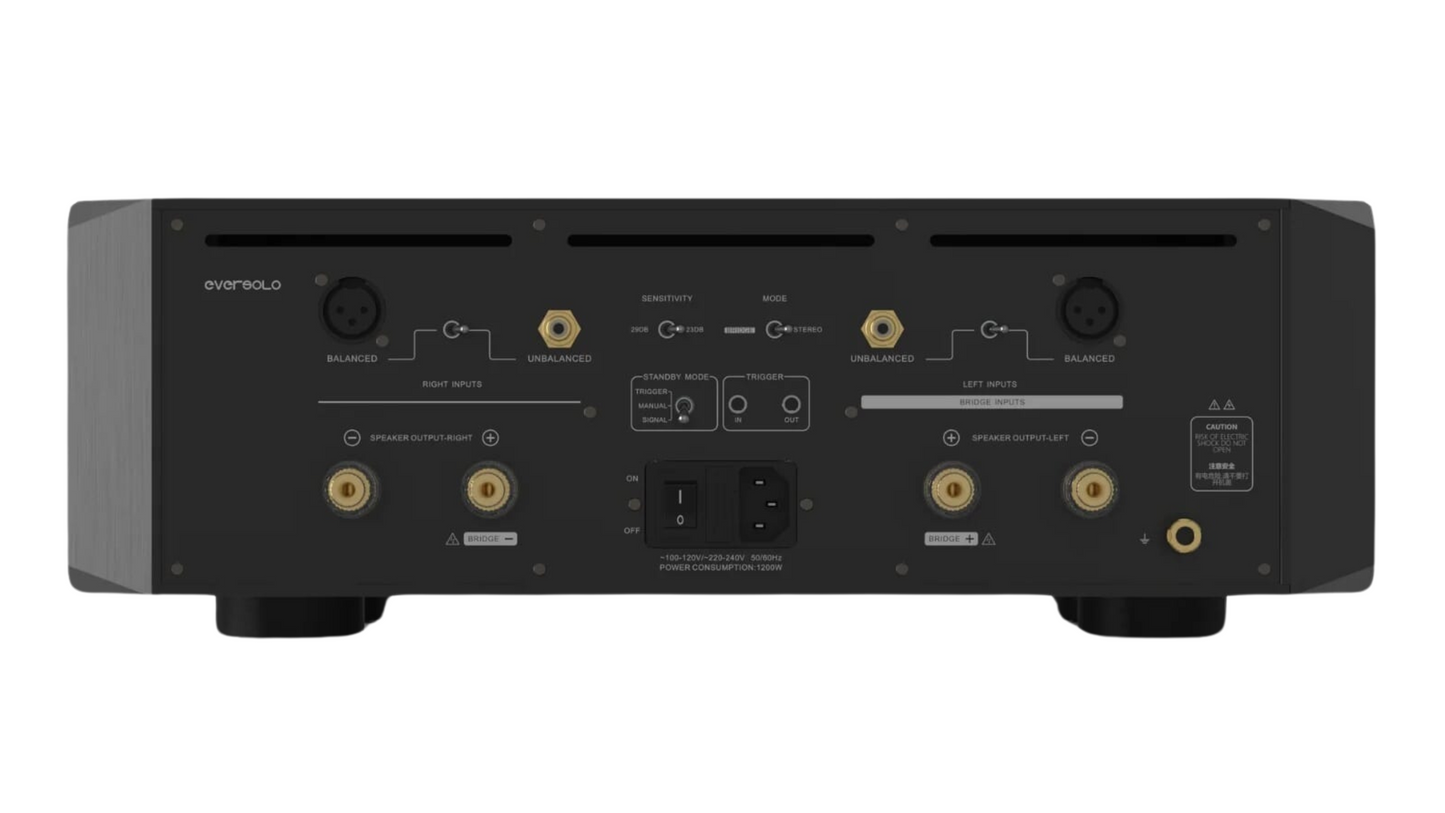

Input & Output Connections

Analog Inputs:
• 1 × Balanced XLR Input (Stereo)
• 1 × Unbalanced RCA Input (Stereo)
(Selectable via rear switch)

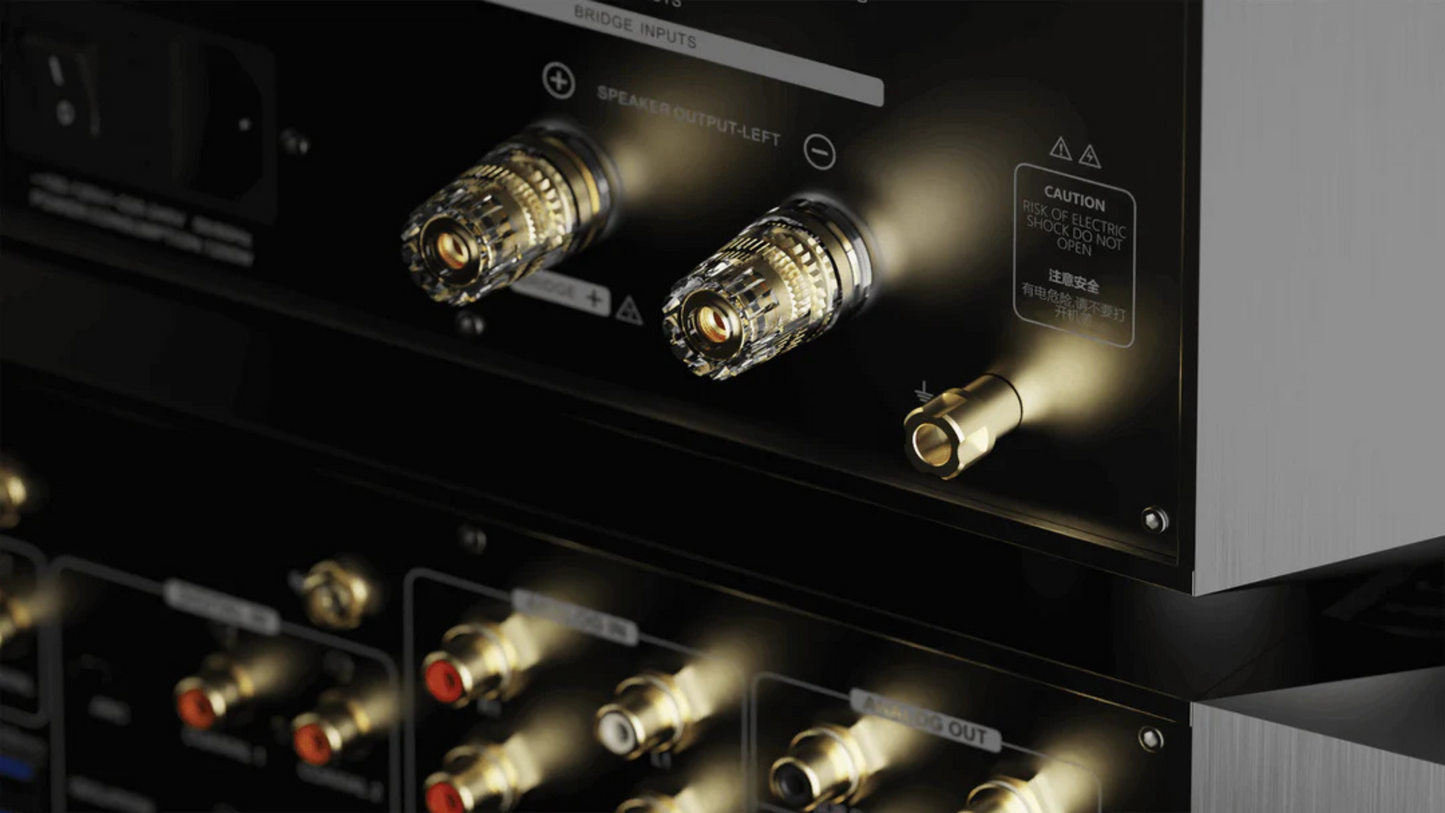

Speaker Outputs:
• 1 × Pair of Gold-Plated Binding Posts (Stereo Output)
Compatible with banana plugs, spades, or bare wire.

Trigger Input:
• 1 × 12V Trigger Input (for automatic power on/off from connected devices)

Specifications

Output Power:
• 125W × 2 (8Ω)
• 250W × 2 (4Ω)

Amplifier Class:
• Class D – Infineon MA12070

Frequency Response:
• 20 Hz – 40 kHz (+0/-0.5 dB)

THD+N:
• < 0.0003% @ 1kHz, 1W (8Ω)

Signal-to-Noise Ratio (SNR):
• > 125 dB (A-weighted)

Channel Separation:
• > 100 dB

Input Sensitivity:
• 2.3 Vrms (XLR)
• 1.15 Vrms (RCA)

Input Impedance:
• 100 kΩ (XLR)
• 50 kΩ (RCA)

Power Supply:
• Linear with toroidal transformer
• Standby Power: < 0.5W

Dimensions:
• 11.4" W × 2.9" H × 8.5" D (290 × 74 × 216 mm)

Weight:
• 4.3 kg (9.5 lbs)

The EverSolo AMP-F10 offers pure, powerful sound in a refined form factor. Whether paired with a high-end streamer or used in a minimalist two-channel setup, its balanced design, precision components, and headroom make it a compelling amplifier for any modern audiophile system.
