Advance Paris X-P1200 Classic Preamplifier

Advance Paris X‑P1200 Classic – Reference-Grade Stereo Preamplifier

The Advance Paris X‑P1200 Classic is a precision-engineered, dual-mono preamplifier designed for audiophiles seeking uncompromising fidelity. With fully independent left and right audio circuits and power supplies, this separates-grade preamp ensures exceptional channel isolation, image depth, and tonal purity.

 Hybrid Analog/Digital Design

Dual Mono Architecture – Each audio channel has its own dedicated circuitry and toroidal transformer for minimal interference and maximum stereo definition.

AD1955 Sigma-Delta DAC – Handles digital sources up to high resolution with extremely low noise and maximum linearity.

 Inputs & Outputs

9 Analog Inputs – Includes 2 balanced XLR, USB B (XMOS), 2 coaxial digital, and 2 optical digital inputs.

Flexible Outputs – Choice of balanced XLR or unbalanced RCA output, with relay-based switching to maintain contact clarity and audio cleanliness.

 Sonics & Tone Control

0.01% Total Harmonic Distortion – Near-transparent signal path.

≥110 dB Signal-to-Noise Ratio – Clean, low-noise performance even at low listening levels.

≥100 dB Channel Separation – Excellent stereo width and imaging accuracy.

±0.5 dB Gain Matching (Output level ~10.5 dB) – Precision gain control for sensitive system components.

 Vinyl-Ready Phono Stage

Phono Gain – Selectable MM: 48 dB / MC: 64 dB.

High-Tolerance Inputs – Line-level sensitivity under 500 mV ensures compatibility with any source without clipping.

 Premium Build & Ergonomics

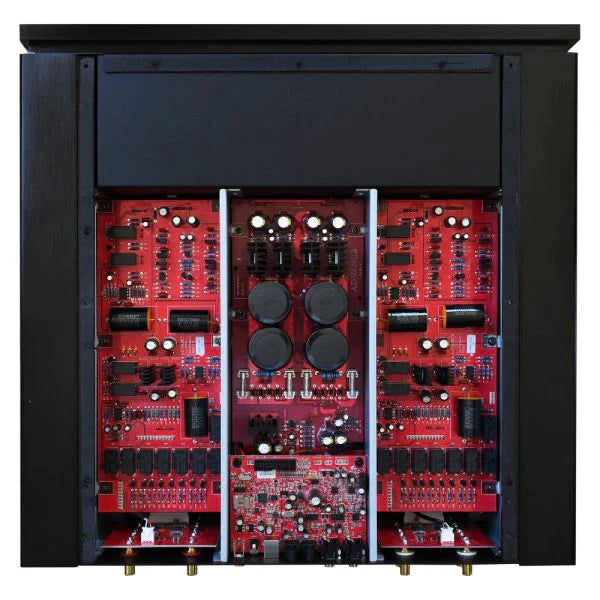

Compartmentalized chassis design isolates sensitive circuits and reduces resonance and cross-talk.

Dual toroidal transformers combined with 4×12,000 µF reservoir capacitors ensure stable, clean power.

Relay-based input/output switching using Burr Brown op-amps for balanced/unbalanced signal handling.

Robust construction at 14.2 kg net weight with industrial steel frame and heat-sink-mounted regulation circuits.

 Specifications at a Glance

Frequency Response: 10 Hz–150 kHz

Distortion: < 0.01%

Channel Separation: ≥ 100 dB

Input Impedance: 23 kΩ (RCA), 35 kΩ (XLR)

Power Use: ≤ 30 W (standby under 0.5 W)

Dimensions: 440 × 155 × 430 mm
