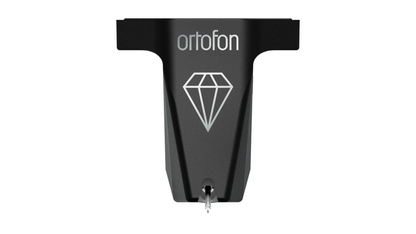

Ortofon MC X10 Moving Coil Cartridge

The perfect introduction to authentic moving coil performance, combining Ortofon's latest cartridge innovations with exceptional musicality, detail, and value.

A New Generation of Moving Coil Performance

For decades, Ortofon's MC 10, MC 20, and MC 30 cartridges introduced countless music lovers to the advantages of moving coil playback.

The MC X Series continues that legacy.

Developed as an entirely new platform, the MC X10 brings technologies previously reserved for far more expensive cartridges into a highly accessible package. Rather than simply creating an entry-level moving coil cartridge, Ortofon engineered the MC X10 to serve as the foundation of a completely new cartridge family.

The result is a cartridge that delivers exceptional clarity, speed, imaging, and musical engagement while remaining approachable for listeners making their first move beyond moving magnet designs.

Pure Silver Coil Technology

One of the most remarkable features of the MC X10 is its use of high-purity silver coil wire.

Silver offers superior electrical conductivity and signal transmission characteristics compared to many conventional conductor materials. By utilizing silver throughout the generator system, Ortofon ensures that delicate musical information is transferred with maximum accuracy and minimal signal loss.

Benefits include:

• Improved signal purity
• Greater transparency
• Enhanced detail retrieval
• Better transient response
• Superior low-level resolution
• Increased musical realism

The inclusion of silver coils at this performance level is one of the defining features of the MC X Series.

Newly Developed Magnet System

The MC X10 incorporates a completely redesigned magnetic architecture.

The new system utilizes a one-piece pole cylinder integrated into the rear magnet yoke, reducing complexity while improving magnetic efficiency. Combined with the silver coil system, this optimized magnetic structure generates a stronger and cleaner signal path.

Advantages include:

• Improved channel balance
• Better imaging precision
• Increased signal stability
• Lower distortion
• Greater dynamic expression
• Enhanced overall performance

This design helps deliver the speed and openness that moving coil enthusiasts value.

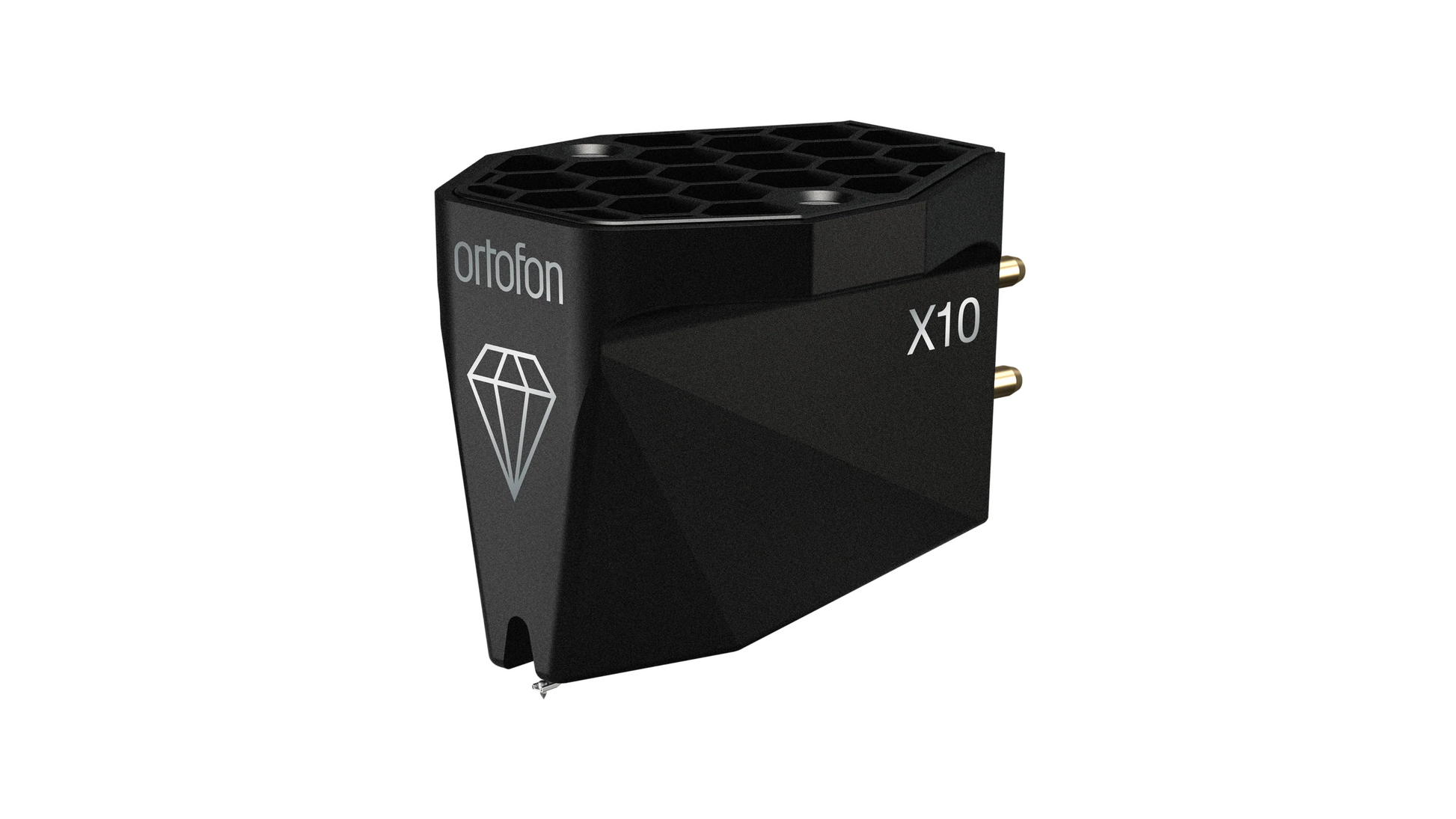

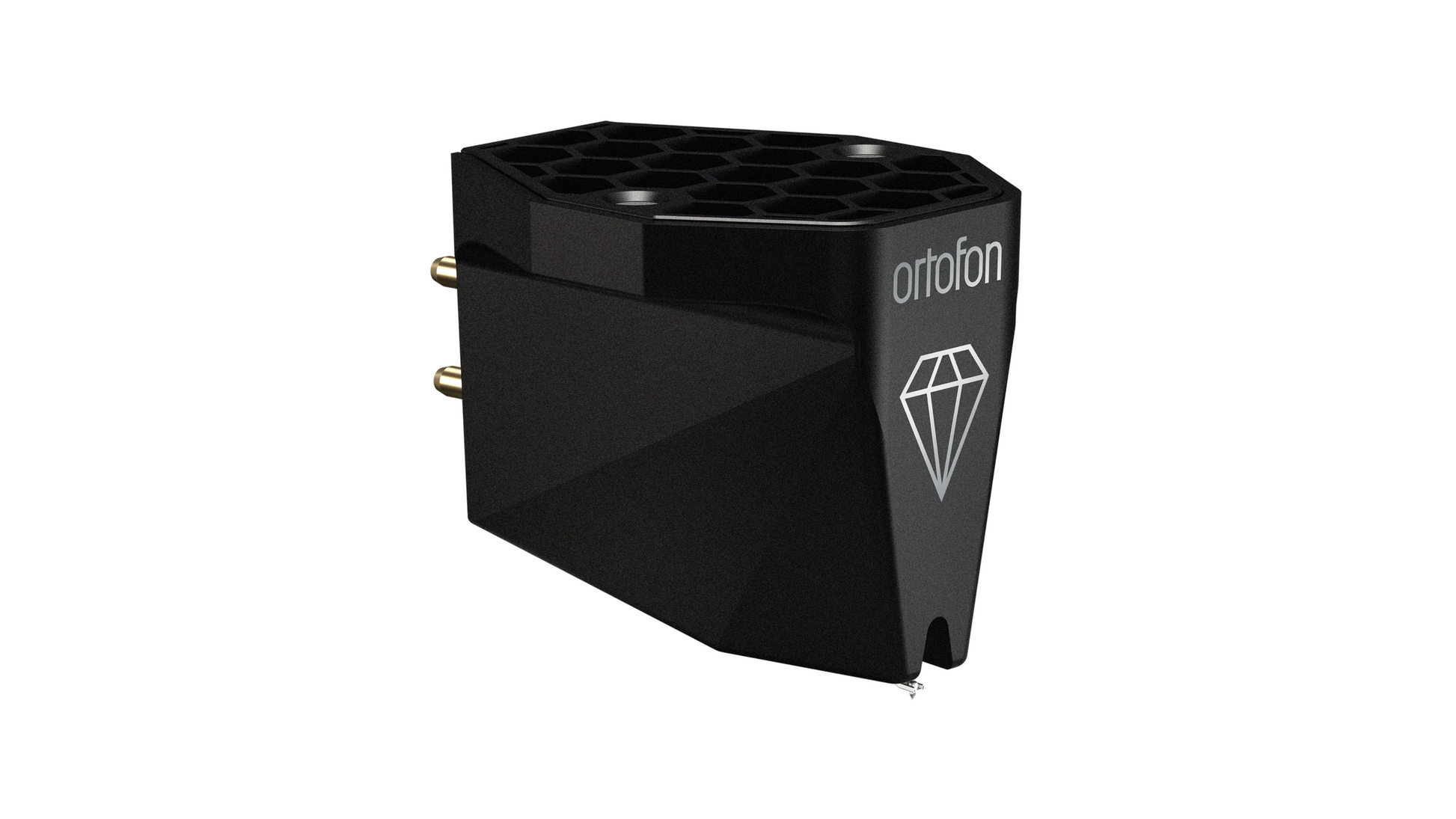

Honeycomb Stainless-Steel Frame

At the core of every MC X Series cartridge is an advanced stainless-steel frame produced using Metal Injection Molding technology.

The honeycomb structure significantly improves mechanical rigidity while maintaining precise control over unwanted resonances. After molding, the frame receives a Physical Vapor Deposition surface treatment that enhances durability and long-term stability.

Benefits include:

• Superior structural integrity
• Improved resonance control
• Greater tracking precision
• Enhanced energy transfer
• Better channel consistency
• Long-term reliability

This sophisticated platform provides the foundation for the MC X10's impressive performance.

Elliptical Diamond Stylus

The MC X10 utilizes a precision elliptical diamond stylus mounted to an aluminum cantilever.

This classic combination remains highly respected for its ability to provide excellent groove contact, reliable tracking performance, and musical balance.

Advantages include:

• Smooth frequency response
• Excellent tracking ability
• Reduced record wear
• Natural tonal balance
• Strong imaging performance
• Easy setup and alignment

The elliptical profile offers a forgiving and enjoyable listening experience while still delivering substantial detail.

Custom-Developed Damping System

Ortofon developed dedicated rubber damping compounds specifically for the MC X Series.

These proprietary dampers control unwanted mechanical movement while allowing the coil system to respond accurately to groove information. Proper damping contributes significantly to tracking ability, distortion reduction, and overall musical accuracy.

Benefits include:

• Improved tracking stability
• Reduced distortion
• Better bass control
• Enhanced transient response
• Lower resonance artifacts
• Greater musical coherence

Designed for First-Time MC Buyers

The MC X10 was engineered to provide a straightforward path into moving coil performance.

Compared to many moving magnet cartridges, listeners often experience:

• Greater detail retrieval
• Improved soundstage depth
• Faster transient response
• Better instrument separation
• Enhanced realism
• Increased musical involvement

It offers many of the advantages associated with moving coil technology without requiring an ultra-high-end analog system.

Compared to the MC X20

The MC X20 shares the same advanced chassis, magnet system, silver coil architecture, and overall platform.

The primary upgrade is the move from the MC X10's bonded elliptical stylus to the MC X20's nude elliptical design. This improves groove contact and allows the X20 to retrieve additional low-level information.

Choose the MC X10 if you want:

• Maximum value
• Exceptional entry-level MC performance
• Smooth musical presentation
• Outstanding price-to-performance ratio

Choose the MC X20 if you prioritize:

• Greater detail retrieval
• Improved microdynamics
• Higher overall resolution

Ideal System Matching

The MC X10 works beautifully with a wide range of modern turntables and tonearms.

Because the cartridge produces a 0.4 mV output signal, a moving coil phono stage or MC-capable phono preamplifier is required.

Phono Stage Compatibility

The MC X10 offers a healthy 0.4 mV output, making it easier to match than many low-output moving coil cartridges.

Recommended phono stage characteristics include:

• Dedicated MC gain capability
• Low-noise circuitry
• Load impedance above 50 ohms
• Stable gain structure
• Quality power supply design

With proper matching, the cartridge delivers performance that far exceeds expectations for its class.

A New Benchmark for Affordable Moving Coil Sound

The MC X10 proves that genuine innovation is still possible in affordable moving coil cartridge design.

Its combination of pure silver coils, advanced magnet architecture, honeycomb stainless-steel frame, custom damping system, and refined elliptical stylus creates a cartridge that delivers exceptional musical enjoyment while introducing listeners to the unique benefits of moving coil playback.

For anyone seeking their first serious moving coil cartridge, the MC X10 stands as one of the most compelling values available today.

Key Specifications Block

• Product: Ortofon MC X10
• Category: Moving Coil Cartridge
• Cartridge Type:
  • Low Output Moving Coil
• Mounting:
  • Standard Half-Inch Mount
• Output Voltage:
  • 0.4 mV
• Stylus:
  • Elliptical Diamond
• Stylus Radius:
  • r/R 8/18 µm
• Cantilever:
  • Aluminum
• Tracking Force:
  • 2.0 g
• Compliance:
  • 13 µm/mN
• Channel Balance:
  • 0.5 dB
• Channel Separation:
  • 24 dB
• Frequency Response:
  • 20 Hz – 20 kHz ±2 dB
• Internal Impedance:
  • 6 Ohms
• Recommended Load:
  • Greater Than 50 Ohms
• Coil Wire:
  • High-Purity Silver
• Coil System:
  • Quad Coil
• Body Structure:
  • MIM Stainless-Steel Honeycomb Frame
• Weight:
  • 8.6 g
• Warranty:
  • Manufacturer Warranty Included

Why Buy From All Elite Audio

All Elite Audio is an authorized Ortofon dealer and a destination for vinyl enthusiasts seeking the best possible analog performance.

Our team specializes in cartridge selection, tonearm compatibility, phono stage matching, cartridge alignment, and analog system optimization. Whether this is your first moving coil cartridge or the latest upgrade in a growing analog system, we can help ensure you achieve the best possible results.

Call: 443-402-5055

Text: 443-402-5064

Visit: 1921 York Rd, Timonium, MD 21093

FAQ

What is the MC X10?

The MC X10 is the entry model in Ortofon's new MC X Series and is designed to provide genuine moving coil performance at an accessible level.

Does the MC X10 use silver coils?

Yes. The MC X10 uses high-purity silver coil wire, a feature shared across the entire MC X Series.

Is the MC X10 a low-output moving coil cartridge?

Yes. It produces 0.4 mV of output and requires a moving coil phono stage or MC-compatible phono preamp.

What is the benefit of the honeycomb frame?

The MIM stainless-steel honeycomb frame improves rigidity and resonance control, creating a more stable platform for accurate playback.

How does the MC X10 compare to the MC X20?

The MC X20 upgrades to a nude elliptical stylus for greater detail retrieval and refinement, while the MC X10 emphasizes value and accessibility.

Is the MC X10 suitable for first-time MC users?

Absolutely. It was specifically developed to provide an easy entry into the world of moving coil cartridges while maintaining excellent performance.

What phono stage load should I use?

Ortofon recommends a load impedance greater than 50 ohms.

Is the stylus replaceable?

No. Like most moving coil cartridges, the stylus is not user replaceable and requires professional retipping or exchange services when worn.

What music works best with the MC X10?

The MC X10 performs exceptionally well across all genres, including jazz, rock, classical, blues, vocals, and acoustic recordings.

Where can I buy the Ortofon MC X10?

You can purchase the Ortofon MC X10 directly from All Elite Audio.
