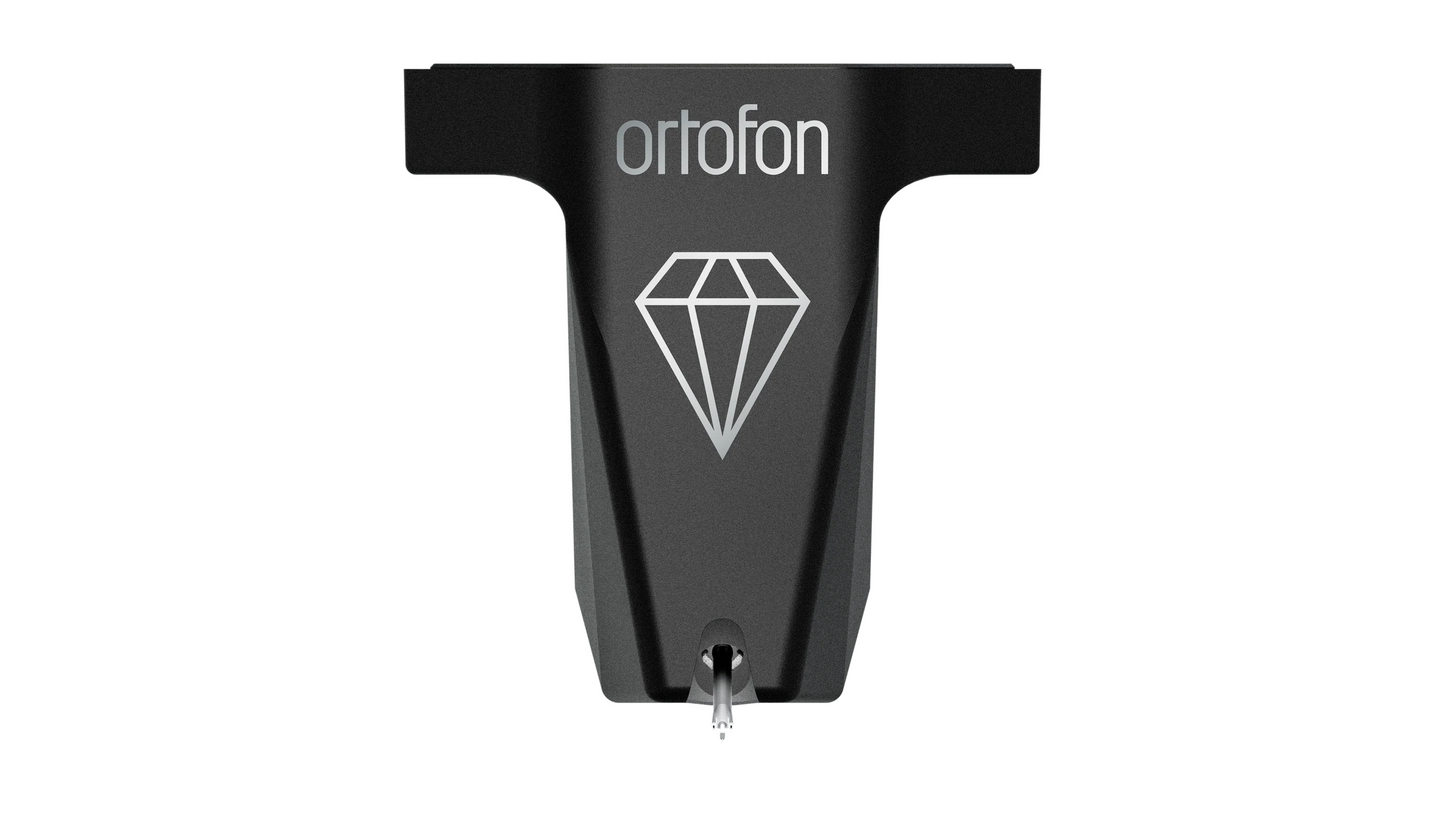

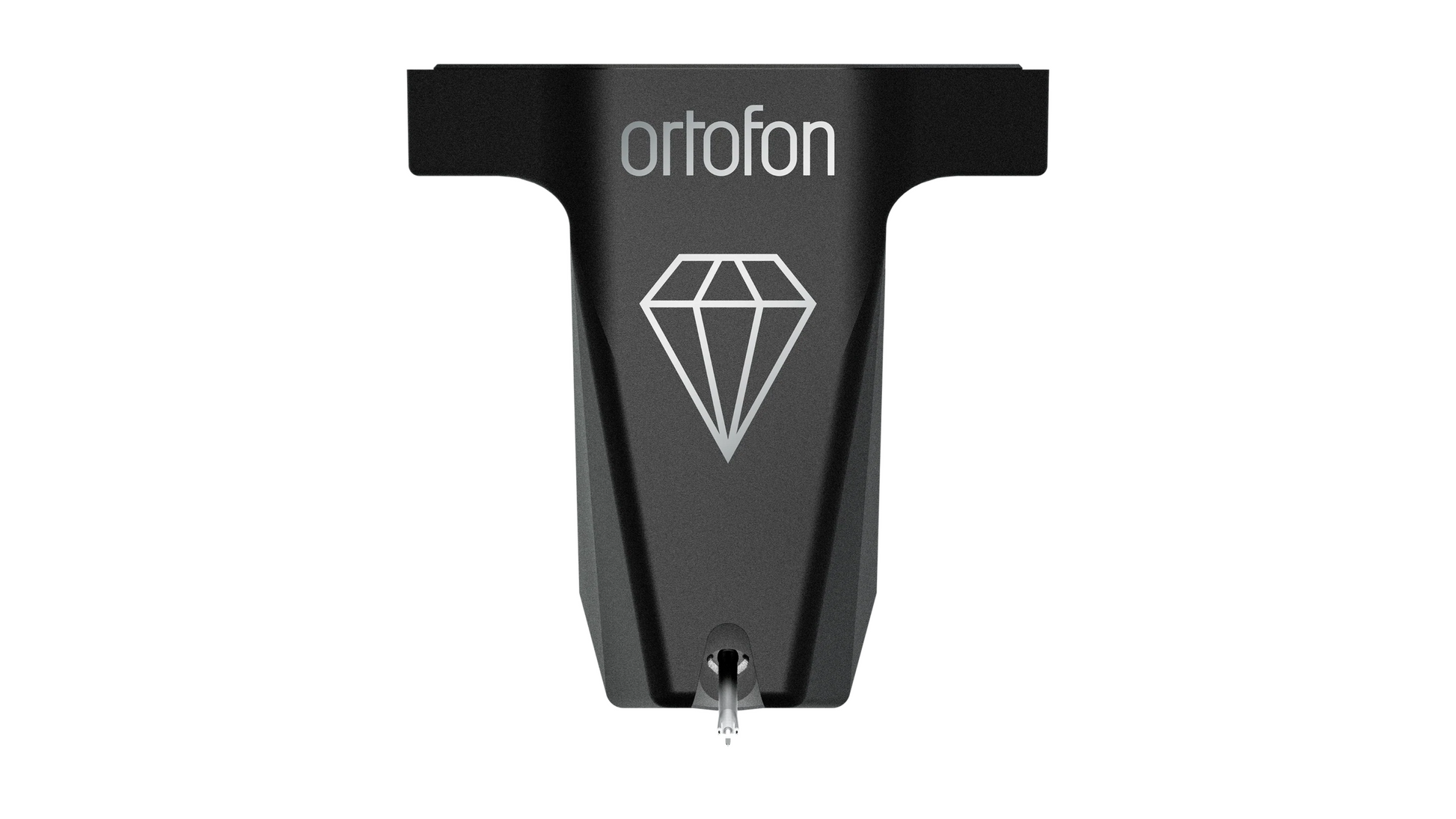

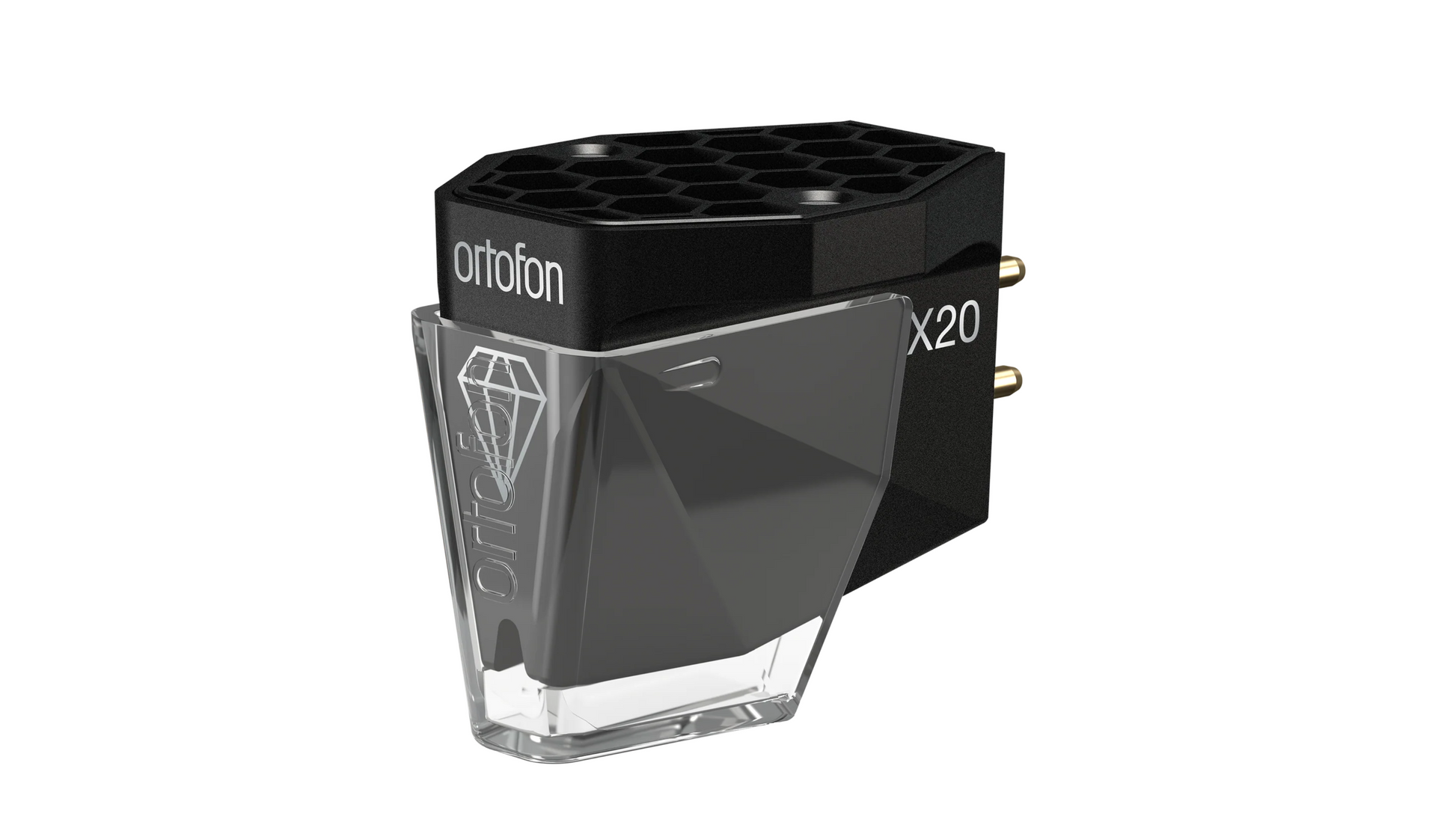

Ortofon MC X20 Moving Coil Cartridge

Name: Ortofon MC X20 Moving Coil Cartridge
Brand: Ortofon
Price: 539.99 USD
Availability: InStock

$539.99 USD

SALE Sold Out

Shipping calculated at checkout.

Call for info 443-402-5055

Ortofon MC X20 Moving Coil Cartridge

The sweet spot of Ortofon's new MC X Series, delivering a significant leap in refinement, detail retrieval, and musical engagement while maintaining exceptional value.

Discover New Layers in Your Music

The Ortofon MC X20 was developed for vinyl enthusiasts ready to move beyond entry-level cartridge performance and experience the true benefits of advanced moving coil design.

Building upon the foundation established by the MC X10, the MC X20 incorporates a Nude Elliptical diamond stylus that unlocks greater resolution, improved groove tracing, and enhanced musical nuance.

The result is a cartridge capable of revealing deeper layers of information within familiar recordings while maintaining the warmth, dynamics, and musicality that make vinyl playback so engaging.

A New Generation of Moving Coil Technology

The MC X Series represents an entirely new cartridge platform from Ortofon.

Rather than updating an existing design, Ortofon developed a new generator architecture, chassis structure, damping system, and magnetic circuit specifically for this family of cartridges.

The goal was simple:

Deliver premium moving coil performance at price points that make true high-end analog playback accessible to a broader audience.

Nude Elliptical Diamond Stylus

The defining feature of the MC X20 is its Nude Elliptical diamond stylus.

Unlike bonded elliptical stylus designs, where a small diamond tip is attached to a metal shank, a nude stylus is cut from a single piece of diamond. This reduces moving mass and improves the stylus's ability to respond to groove modulations.

Benefits include:

Improved detail retrieval
Better transient response
Enhanced tracking precision
Greater microdynamic expression
Reduced distortion
More natural musical presentation

The result is a cartridge capable of extracting substantially more information than many entry-level moving coil designs.

High-Purity Silver Coil System

Every cartridge in the MC X Series utilizes coils wound with high-purity silver wire.

Silver offers exceptional electrical conductivity, helping preserve low-level musical information and reducing signal loss within the generator system.

Advantages include:

Superior signal clarity
Improved transparency
Enhanced detail retrieval
Better transient speed
Increased resolution
Greater musical realism

The use of silver coils is one of the most significant engineering features of the entire MC X platform.

Newly Developed Magnet Architecture

The MC X20 incorporates Ortofon's newly developed magnet system.

A one-piece pole cylinder integrated into the rear magnet yoke improves magnetic efficiency while simplifying the signal path. Combined with the silver coil system, the design delivers exceptional consistency and precision.

Benefits include:

Stronger signal integrity
Improved channel balance
Better imaging
Enhanced dynamics
Lower distortion
Increased overall accuracy

This optimized magnetic architecture contributes significantly to the cartridge's open and dynamic presentation.

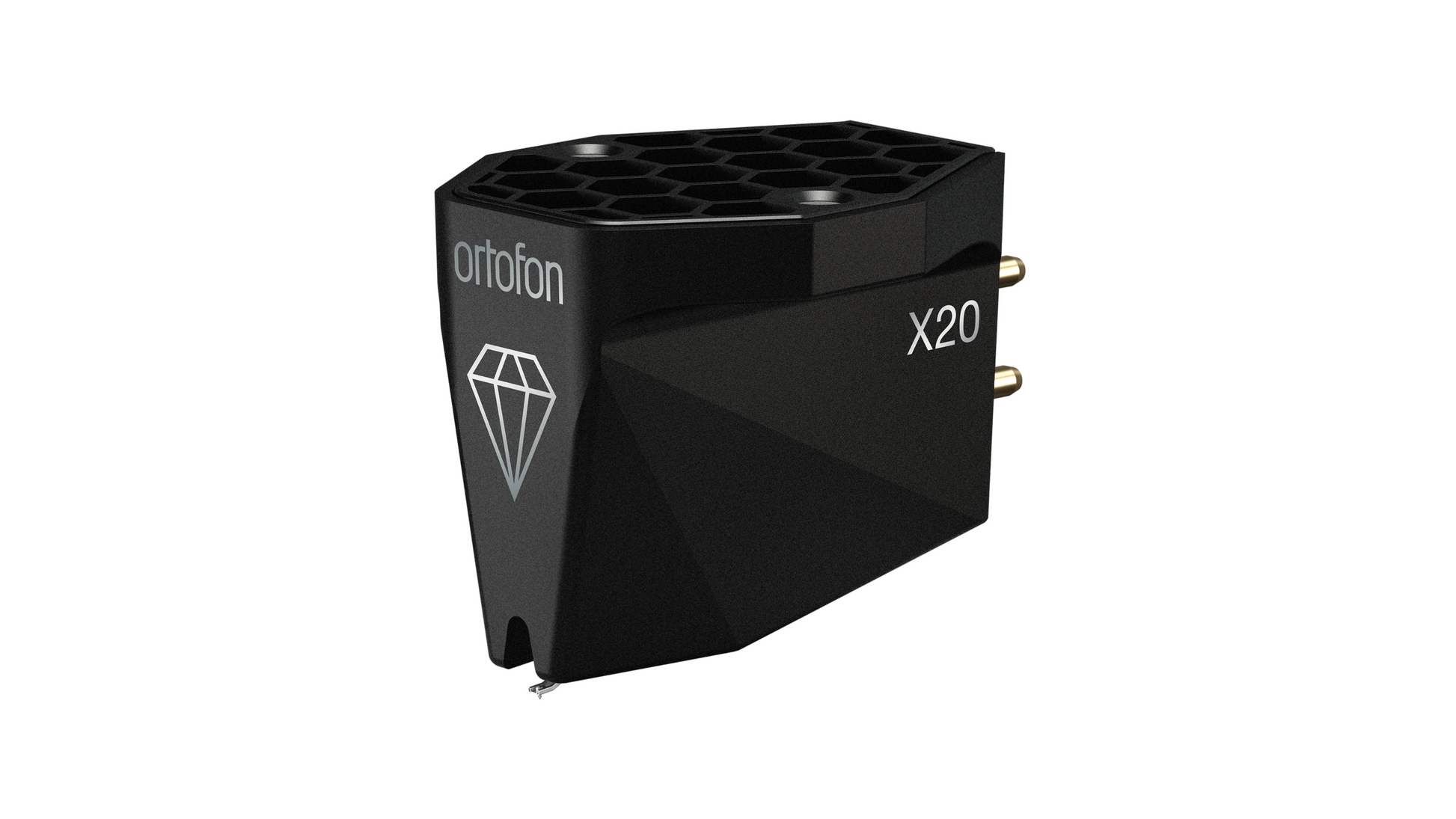

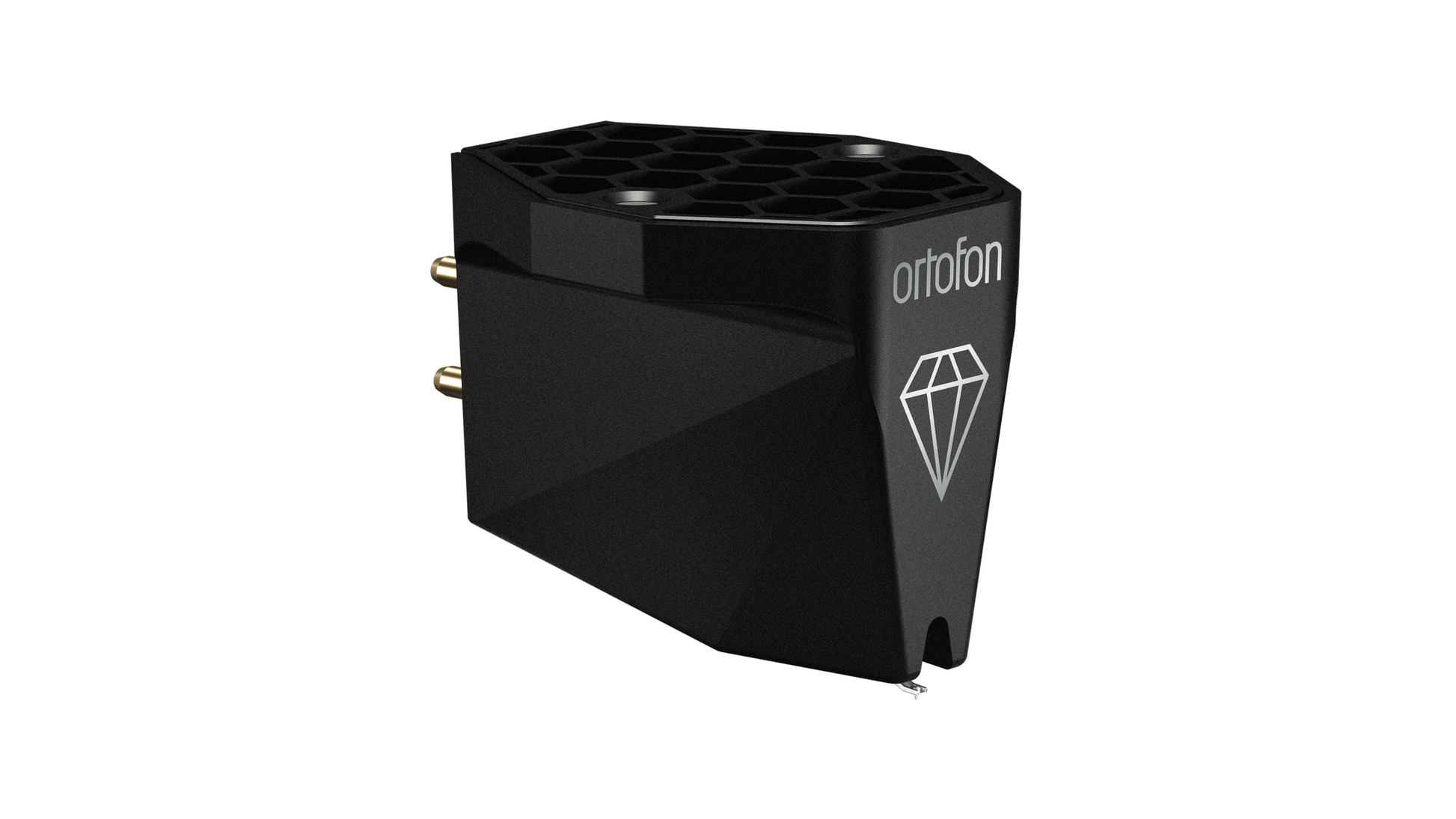

Honeycomb Stainless-Steel Chassis

At the core of the MC X20 is a stainless-steel frame featuring a honeycomb structure created using Metal Injection Molding technology.

This advanced chassis provides exceptional rigidity while controlling unwanted resonances that can blur musical detail.

Benefits include:

Improved mechanical stability
Better resonance management
Enhanced tracking precision
Greater structural integrity
Improved energy transfer
Long-term durability

The frame also receives a Physical Vapor Deposition surface treatment that enhances durability and preserves appearance over time.

Custom Damping Technology

The MC X20 utilizes Ortofon-developed rubber damping compounds engineered specifically for the MC X Series.

These materials control unwanted movement within the cartridge assembly while maintaining accurate stylus response to groove information.

Advantages include:

Superior tracking ability
Reduced distortion
Improved bass articulation
Better dynamic control
Enhanced musical coherence
Greater tonal accuracy

Proper damping plays a critical role in the cartridge's refined and controlled presentation.

Compared to the MC X10

The MC X10 and MC X20 share the same advanced platform, including:

Pure silver coil architecture
Advanced magnet system
Stainless-steel honeycomb chassis
Custom damping compounds
0.4mV output

The major upgrade comes from the MC X20's Nude Elliptical stylus.

Compared with the X10, listeners can expect:

Greater low-level detail retrieval
Improved transient speed
Better inner-groove tracking
Enhanced soundstage depth
Increased transparency
More refined presentation

For many enthusiasts, the MC X20 represents the point where the MC X Series begins to deliver truly high-end performance.

Compared to the MC X30

The MC X30 moves further up the range with a Fine Line stylus profile, offering even greater groove contact and information retrieval.

Choose the MC X20 if you want:

Outstanding value
Excellent resolution
Easy system matching
Balanced musical presentation

Choose the MC X30 if your priority is:

Maximum detail retrieval
Greater soundstage precision
Enhanced low-level resolution
More advanced stylus geometry

For many systems, the MC X20 delivers the ideal balance between performance and investment.

Ideal System Matching

The MC X20 pairs exceptionally well with a broad range of modern turntables and tonearms.

Its moderate compliance and 8.6-gram weight make it compatible with many medium-mass tonearms.

Phono Stage Compatibility

The MC X20 produces 0.4mV of output and requires a moving coil phono stage or MC-capable phono preamplifier.

Recommended phono stage characteristics include:

Dedicated MC gain capability
Load impedance above 50 ohms
Low-noise circuitry
Stable gain structure
High-quality power supply design

Proper phono stage matching allows the cartridge to reveal its full potential.

A True Sweet Spot in the MC X Series

The MC X20 occupies a unique position within Ortofon's lineup.

Its Nude Elliptical stylus, pure silver coils, advanced magnetic architecture, custom damping system, and stainless-steel honeycomb chassis combine to create a cartridge that delivers performance far beyond what most listeners expect at this level.

For vinyl enthusiasts seeking a meaningful step into serious moving coil performance, the MC X20 stands as one of the most compelling values in modern analog playback.

Key Specifications Block

Product: Ortofon MC X20
Category: Moving Coil Cartridge
Cartridge Type:
- Low Output Moving Coil

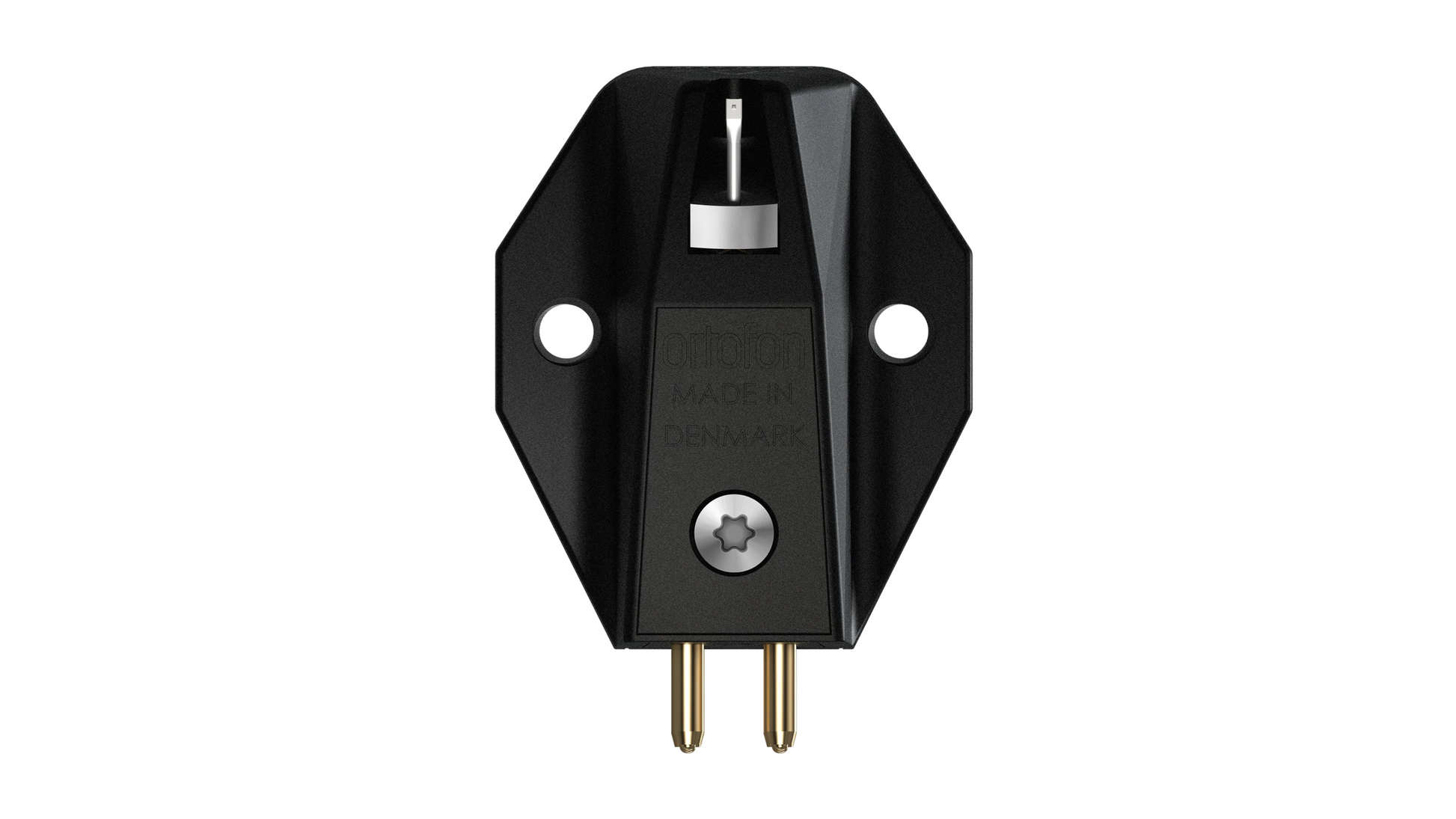

Mounting:
- Standard Half-Inch Mount
Output Voltage:
- 0.4 mV
Stylus:
- Nude Elliptical Diamond
Stylus Radius:
- r/R 8/18 µm
Cantilever:
- Aluminum
Tracking Force:
- 2.0 g
Compliance:
- 15 µm/mN
Channel Balance:
- 0.5 dB
Channel Separation:
- 25 dB
Frequency Response:
- 20 Hz – 20 kHz ±1 dB
Internal Impedance:
- 6 Ohms
Recommended Load:
- Greater Than 50 Ohms
Coil Wire:
- High-Purity Silver
Coil System:
- Quad Coil
Body Structure:
- MIM Stainless-Steel Honeycomb Frame
Weight:
- 8.6 g
Warranty:
- Manufacturer Warranty Included

Why Buy From All Elite Audio

All Elite Audio is an authorized Ortofon dealer and a destination for vinyl enthusiasts seeking exceptional analog performance.

Our team specializes in cartridge selection, tonearm compatibility, phono stage matching, cartridge alignment, VTA optimization, and complete analog system setup. Whether you're upgrading from a moving magnet cartridge or stepping into moving coil playback for the first time, we can help ensure you achieve the best possible performance.

Call: 443-402-5055

Text: 443-402-5064

Visit: 1921 York Rd, Timonium, MD 21093

FAQ

What makes the MC X20 different from the MC X10?

The MC X20 upgrades to a Nude Elliptical stylus, reducing moving mass and improving detail retrieval, tracking performance, and overall refinement.

Does the MC X20 use silver coils?

Yes. Like every cartridge in the MC X Series, the MC X20 uses high-purity silver coil wire for exceptional signal clarity.

Is the MC X20 a low-output moving coil cartridge?

Yes. The MC X20 produces 0.4mV of output and requires a moving coil phono stage or MC-capable phono preamplifier.

What is the advantage of a Nude Elliptical stylus?

A nude stylus is cut from a single piece of diamond, reducing moving mass and improving tracking accuracy, detail retrieval, and transient response.

What is the honeycomb frame?

The MC X20 uses a Metal Injection Molded stainless-steel honeycomb chassis designed to maximize rigidity while controlling unwanted resonances.

What phono stage load should I use?

Ortofon recommends a load impedance greater than 50 ohms.

Is the stylus replaceable?

No. Like most moving coil cartridges, the stylus is not user replaceable and requires professional retipping or exchange services when worn.

Is the MC X20 suitable for first-time MC users?

Absolutely. Many listeners consider the MC X20 the sweet spot of the MC X Series because it delivers significant performance improvements while remaining easy to integrate into a wide range of systems.
