Audio Technica AT-OC9XEB

Overview

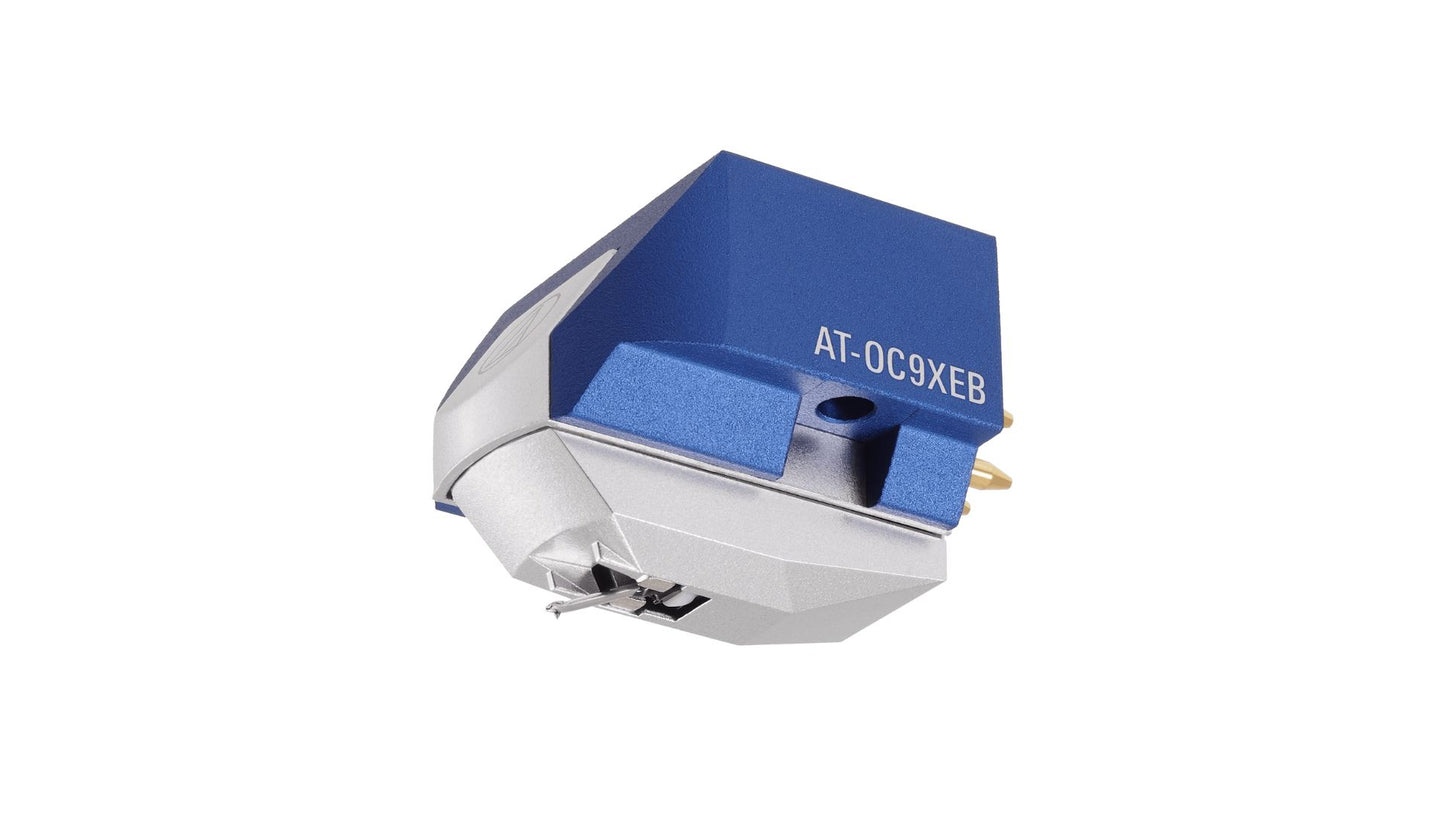

The Audio-Technica AT-OC9XEB sits at the entry of Audio-Technica's celebrated OC9X dual moving coil family, bringing genuine high-end MC performance to a wider range of turntables. It pairs a special line contact free elliptical bonded stylus with an aluminum cantilever and Audio-Technica's dual coil architecture, delivering the immediacy, transient snap, and airy presentation that moving coil listeners seek.

Like its siblings, the AT-OC9XEB uses a low mass core design that keeps the moving system light and responsive, so it tracks cleanly and resolves fine detail without exaggeration. The low output signature calls for a phono stage with moving coil gain, and in return it offers a naturally open midrange and controlled high frequencies that reward careful setup.

This cartridge is a strong fit for listeners upgrading from a moving magnet who want to step into true MC sound while keeping stylus and setup demands reasonable. Its bonded elliptical stylus makes it a sensible, durable starting point in the line, with clear paths to upgrade elsewhere in the OC9X family.

Key Features

• Dual moving coil generator for lively, detailed reproduction
• Special line contact free elliptical bonded stylus for smooth tracking
• Aluminum cantilever balancing rigidity and low mass
• Low mass core design for accurate transient response
• Low output moving coil design for use with MC capable phono stages
• Compatible with standard half inch mount tonearms and headshells
• Part of the acclaimed OC9X series with clear upgrade paths
• Nonmagnetic and precise body construction for consistent alignment

How the AT-OC9XEB Compares

Audio-Technica AT-OC9XEB Dual Moving Coil Cartridge vs Audio-Technica AT-OC9XEN

The AT-OC9XEN steps up from the AT-OC9XEB by fitting a nude special line contact stylus in place of the bonded elliptical. That upgraded stylus profile digs deeper into groove detail and inner resolution, making the EN a natural next step for listeners who want more from the same OC9X platform. Both share the dual moving coil generator and low output character. See the Audio-Technica AT-OC9XEN.

Audio-Technica AT-OC9XEB Dual Moving Coil Cartridge vs Ortofon MC Quintet Red

The Quintet Red is another low output moving coil option with its own tonal character, leaning toward a warm, cohesive presentation. The AT-OC9XEB tends toward an open, energetic delivery with pronounced transient clarity. Choose based on the voicing you prefer and the strengths of your system rather than one being superior. See the Ortofon MC Quintet Red.

Audio-Technica AT-OC9XEB Dual Moving Coil Cartridge vs Audio-Technica VM740ML

The VM740ML is a moving magnet design with a MicroLinear stylus and higher output, so it works with common MM phono inputs and offers easy setup. The AT-OC9XEB is a moving coil that needs an MC capable stage but rewards you with the immediacy typical of the format. Pick MM for flexibility or MC for the moving coil presentation. See the Audio-Technica VM740ML.

Recommended Turntables and Phono Stage

The AT-OC9XEB needs a stable tonearm and a phono stage with moving coil gain and a 100 ohm load. These pairings suit its low output and precise tracking.

• TEAC TN-4D-SE Direct Drive A stable direct drive platform with a solid tonearm that supports low output MC cartridges and holds tracking force accurately for consistent playback.
• Audio-Technica AT-LP7X A precise belt drive deck with a quality tonearm and switchable phono stage, giving the OC9XEB a well matched arm and a clean, resonance controlled setup.
• Dual CS 518 A refined belt drive turntable with a capable tonearm and adjustable setup that pairs well with a moving coil cartridge and an external MC phono stage.
• Parasound XRM Phono Preamplifier Offers dedicated moving coil gain and selectable loading, providing the extra amplification and 100 ohm option the low output OC9XEB requires.
• Accuphase AD-60 Phono Card A high quality phono option with moving coil support and adjustable loading for owners of compatible Accuphase electronics who want a refined MC front end.

Frequently Asked Questions

Is the AT-OC9XEB a moving coil or moving magnet cartridge?
It is a dual moving coil (MC) cartridge, part of Audio-Technica's OC9X series.

What phono stage do I need for the AT-OC9XEB?
You need a phono stage with a moving coil setting that provides enough gain for a low output cartridge and a load around 100 ohms.

What is the recommended tracking force?
The recommended tracking force is 1.8 to 2.2 g, with 2.0 g as the standard setting.

What is the output voltage?
Output is approximately 0.4 mV at 1 kHz and 5 cm/sec, which is typical for a low output MC design.

What stylus does the AT-OC9XEB use?

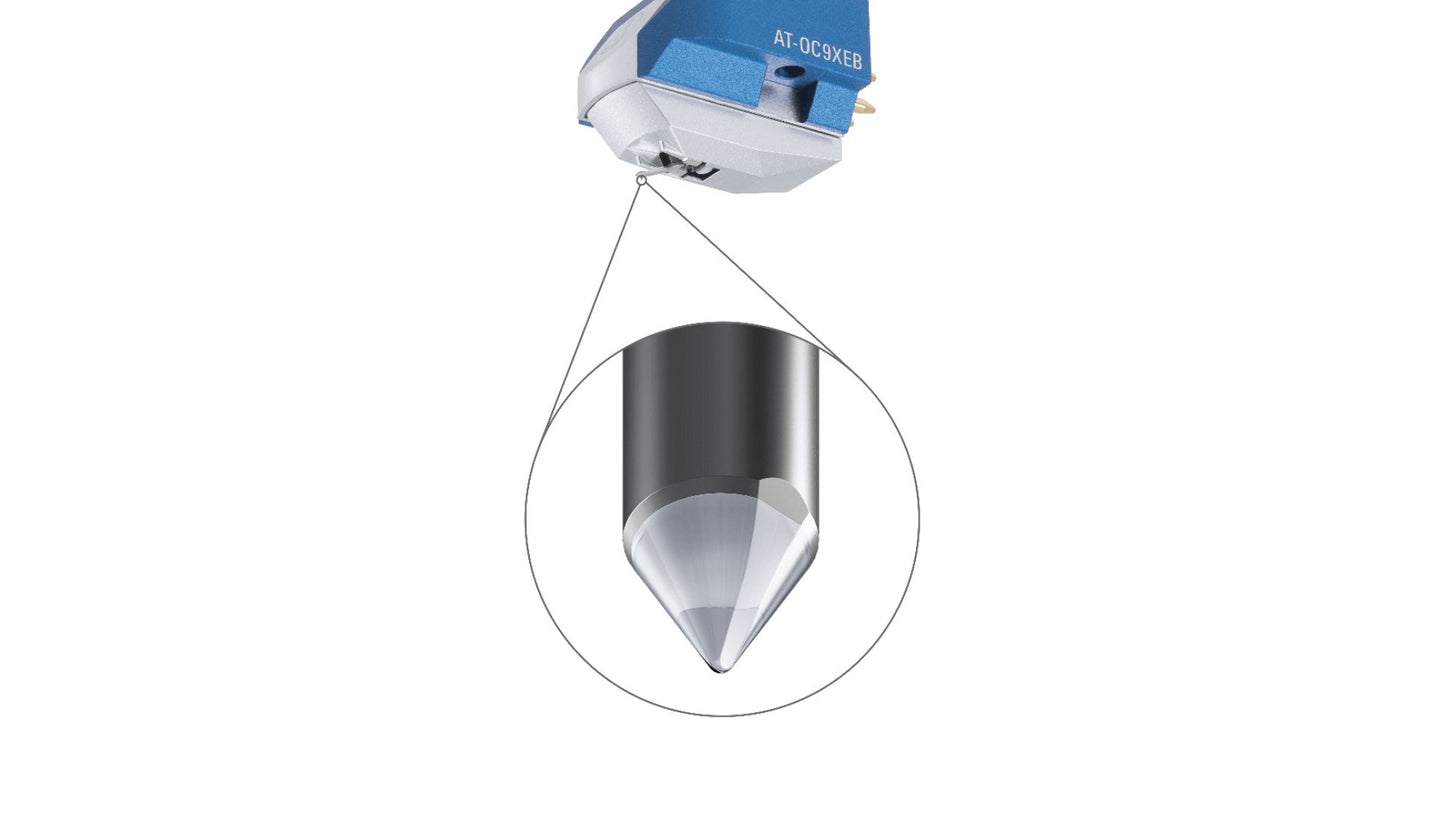

It uses a special line contact free elliptical bonded stylus on an aluminum cantilever.

What is the recommended load impedance?
A minimum load impedance of 100 ohms is recommended at the moving coil input.

Can I use this cartridge with a standard MM phono input?
Not directly. Its low output needs a moving coil phono stage or a step up transformer feeding an MM input.

Will it fit my tonearm and headshell?
Yes, it uses a standard half inch mount compatible with most tonearms and headshells.

How does it compare to the AT-OC9XEN?
The EN fits a nude special line contact stylus for greater detail and inner resolution, while the EB uses a bonded elliptical as the entry point in the series.

Is the stylus user replaceable?
The OC9X series cartridges are not user retippable at home, so a worn cartridge is typically replaced or serviced through Audio-Technica.

What frequency response does it offer?
The published frequency response is 20 Hz to 25 kHz.

What is the channel separation?
Channel separation is rated at 27 dB at 1 kHz.

Does it need a specific cartridge weight or headshell mass?
It pairs well with medium mass tonearms and headshells. Set overhang and azimuth carefully for best tracking.

Is a step up transformer required?
Not if your phono stage has an active MC input with sufficient gain. A step up transformer is an alternative when using an MM only phono stage.

Is the AT-OC9XEB good for a listener upgrading from moving magnet?
Yes. It is a sensible way to enter true moving coil sound while keeping setup and stylus demands reasonable, provided you have MC phono support.

What cantilever material is used?
The cantilever is aluminum, chosen to balance rigidity with low mass.

Which turntables pair well with it?
Stable belt or direct drive decks with quality tonearms such as the TEAC TN-4D-SE, Audio-Technica AT-LP7X, and Dual CS 518 are strong matches.

How long does a cartridge like this last?
Stylus life varies with cleaning and use. With clean records and proper setup, expect several years of listening before replacement is advised.

Does mounting hardware come in the box?
Yes, mounting screws, nuts, lead wires as supplied, a non-magnetic screwdriver, and a stylus guard are included.
