Specs
| Type | Integrated amplifier with built-in DAC |
| Rated Power | 2 x 45W into 8 ohms, 2 x 65W into 4 ohms |
| DAC | ESS Sabre32 ES9018K2M |
| Digital Formats | PCM to 384kHz over USB, DSD64/128/256 |
| Bluetooth | Bluetooth 5.0 (aptX, AAC) |
| Phono Stage | Moving magnet (MM) |
| Headphone Amplifier | Drives 20 to 600 ohm loads |

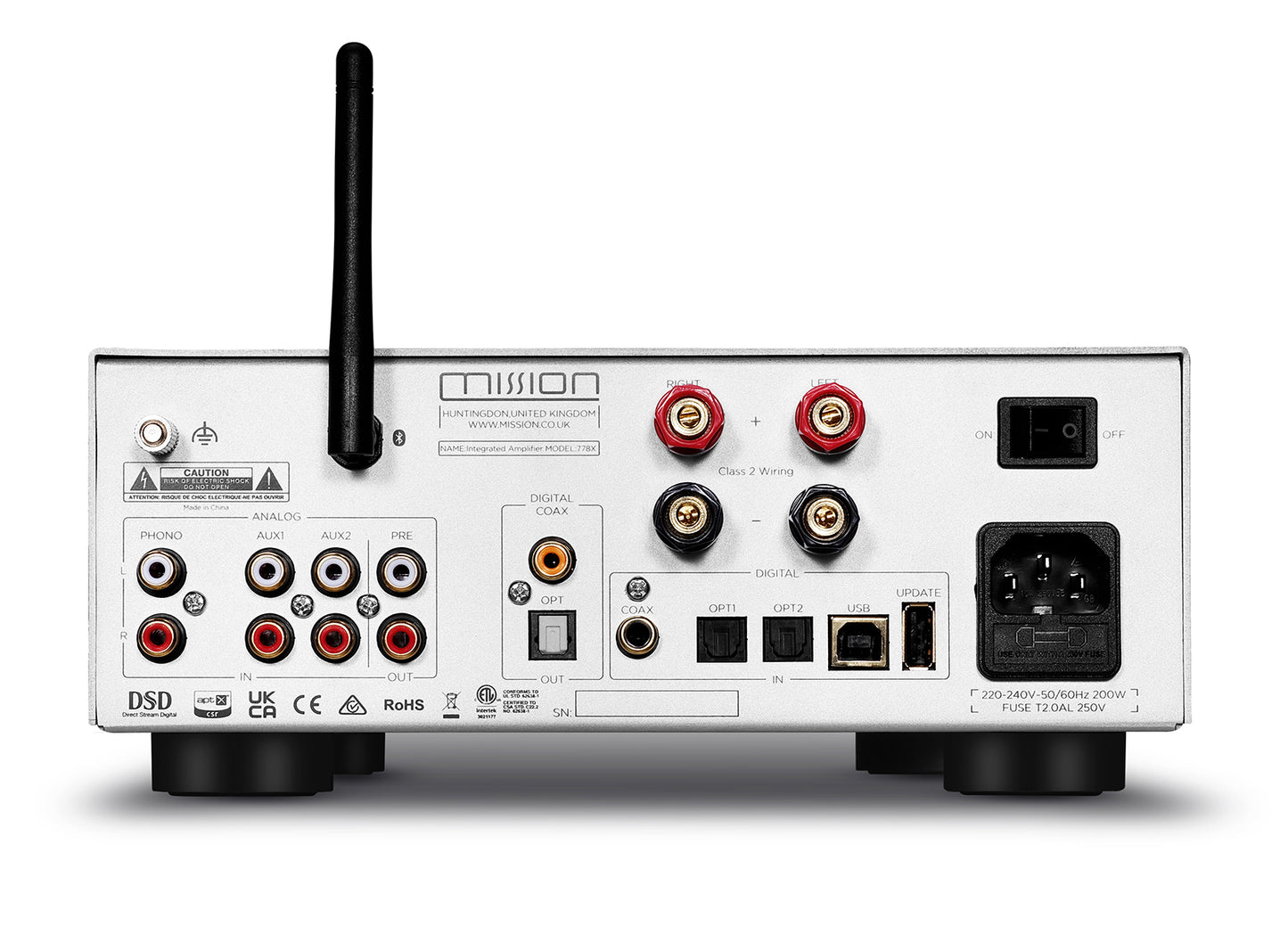

| Inputs | Coaxial, two optical, PC USB, Bluetooth, two AUX RCA, MM phono |
| Outputs | Coaxial, optical, RCA pre-out |
| THD | Under 0.005 percent |
| Signal to Noise Ratio | Over 108dB |
| Finishes | Black or Silver |
| Dimensions | 9.29 x 3.86 x 14.99 in |
| Weight | 13.89 lbs |
Warranty
Sold as an authorized Mission dealer by All Elite Audio. New Mission 778X units include the full Mission manufacturer warranty of 3 years parts and labor for the original owner. Contact us with any setup or service questions.
What's in the Box
- Mission 778X integrated amplifier
- Remote control
- Power cable
- User manual and documentation
Overview
The Mission 778X is the beating heart of the Mission 778 system, an integrated amplifier that revisits the spirit of the classic Mission 778 while adding modern digital capability. Built with Audiolab electronic engineering under the same IAG group, it pairs a clean, quietly powerful amplifier stage with a genuinely capable digital front end so a single box can serve as the hub of a complete music system.
Inside sits an ESS Sabre32 ES9018K2M DAC handling PCM to 384kHz over USB and DSD up to DSD256, feeding an amplifier rated at 2 x 45W into 8 ohms and 2 x 65W into 4 ohms. A wide input set covers coaxial, two optical, PC USB, two AUX RCA and Bluetooth 5.0 with aptX and AAC, while a moving magnet phono stage welcomes a turntable and a headphone amplifier drives loads from 20 to 600 ohms. Very low distortion below 0.005 percent and a signal to noise ratio above 108dB reflect the careful engineering behind it.
It is designed for the listener who wants one tidy, well made component to anchor a room, whether that is a pair of classic Mission stand mounts, a streamer, a CD transport or a record player. The compact chassis and choice of black or silver finish make it easy to place, and an RCA pre-out leaves the door open for future expansion.
Key Features
- Integrated amplifier rated 2 x 45W into 8 ohms and 2 x 65W into 4 ohms
- Built-in ESS Sabre32 ES9018K2M DAC supporting PCM to 384kHz and DSD64/128/256
- Moving magnet phono stage for direct turntable connection
- Bluetooth 5.0 with aptX and AAC for wireless streaming
- Dedicated headphone amplifier for loads from 20 to 600 ohms
- Comprehensive inputs including coaxial, two optical, PC USB and two AUX RCA
- RCA pre-out plus coaxial and optical digital outputs for system flexibility
- THD under 0.005 percent and signal to noise ratio over 108dB
- Built with Audiolab electronic engineering as the heart of the Mission 778 system
How the 778X Compares
Mission 778X vs Audiolab 6000A MKII
Both share IAG electronic engineering DNA, so they aim for the same clean, low distortion character. The Audiolab 6000A MKII presents that engineering in Audiolab's own system context, while the 778X is styled and voiced as the hub of the Mission 778 family. Choose the 778X if you want it to anchor a Mission speaker and source system with a coherent look and feel. See the Audiolab 6000A MKII.
Mission 778X vs LEAK Stereo 130
The LEAK Stereo 130 leans into a retro aesthetic with wood side panels and a warm, vintage inspired presentation, also built within IAG. The 778X takes a more contemporary, understated approach as part of the Mission 778 system. Pick the 778X when a modern minimalist chassis and Mission system synergy suit the room. See the LEAK Stereo 130.
Mission 778X vs Yamaha A-S801
The Yamaha A-S801 offers more amplifier power and Yamaha's long standing house sound with a familiar tone control set. The Mission 778X focuses on a compact footprint and being the tidy digital heart of a matching Mission stack. Choose based on whether you prioritize higher rated wattage or a purpose built Mission system centerpiece. See the Yamaha A-S801.
Recommended Speakers and Source
The 778X is designed to anchor a Mission system, so its natural partners are the classic Mission stand mounts and a matching 778 source.
- Mission 770 Classic A faithful reissue of the legendary 1980 Mission 770 with polypropylene mid-bass driver and real wood veneer, making it the flagship stand mount partner for the 778X.
- Mission 700 A classic series stand mount with the signature Mission character, an easy and satisfying match for the 778X in a mid sized room.
- Mission 750 A compact classic series bookshelf speaker that pairs neatly with the 778X for smaller spaces and near field listening.
- Mission 778S Streamer The matching network music streamer feeds the 778X built-in DAC over a digital connection to complete the streaming side of the 778 system.
- Mission 778CDT CD Transport A dedicated CD transport with no built-in DAC, it relies on the 778X ESS Sabre DAC for conversion, forming a clean disc based front end.
Frequently Asked Questions
What is the Mission 778X?
It is an integrated amplifier with a built-in DAC, designed as the heart of the Mission 778 system and built with Audiolab electronic engineering under the IAG group.
How much power does the 778X deliver?
It is rated at 2 x 45W into 8 ohms and 2 x 65W into 4 ohms.
Does it have a built-in DAC?
Yes, it uses an ESS Sabre32 ES9018K2M DAC handling PCM to 384kHz over USB and DSD64/128/256.
Can I connect a turntable directly?
Yes, it includes a moving magnet phono stage for direct connection of an MM cartridge turntable.
Does it support Bluetooth?
Yes, it has Bluetooth 5.0 with aptX and AAC support for wireless streaming.
Is there a headphone output?
Yes, it has a dedicated headphone amplifier that drives loads from 20 to 600 ohms.
What inputs does it have?
It offers coaxial, two optical, PC USB, Bluetooth, two AUX RCA, and MM phono inputs.
What outputs are available?
It provides coaxial and optical digital outputs plus an RCA pre-out.
Does the 778X stream music on its own?
It does not have a built-in network streamer. Pair it with the Mission 778S streamer for network audio, or use Bluetooth for wireless playback.
What finishes are available?
It comes in black or silver.
What are the dimensions and weight?
It measures 9.29 x 3.86 x 14.99 inches and weighs 13.89 pounds.
What high resolution formats does it handle?
It supports PCM up to 384kHz over USB and DSD64, DSD128 and DSD256.
How clean is the amplifier?
It has total harmonic distortion under 0.005 percent and a signal to noise ratio over 108dB.
Which speakers pair well with it?
The Mission 700, 750 and 770 Classic stand mounts are natural same brand partners that share the 778X coherent system voicing.
Can I add a CD player?
Yes, the Mission 778CDT CD transport connects digitally and uses the 778X built-in DAC, since the transport has no DAC of its own.
Can I use it as a preamplifier?
Yes, the RCA pre-out lets you feed an external power amplifier or a powered subwoofer for future expansion.
Does it work with a PC or Mac?
Yes, the PC USB input accepts high resolution audio directly from a computer.
Is the 778X part of a matching system?
Yes, it is the heart of the Mission 778 range alongside the 778S streamer and 778CDT CD transport.
What warranty does it carry?
It is covered by a 3 year parts and labor warranty from Mission for the original owner.
