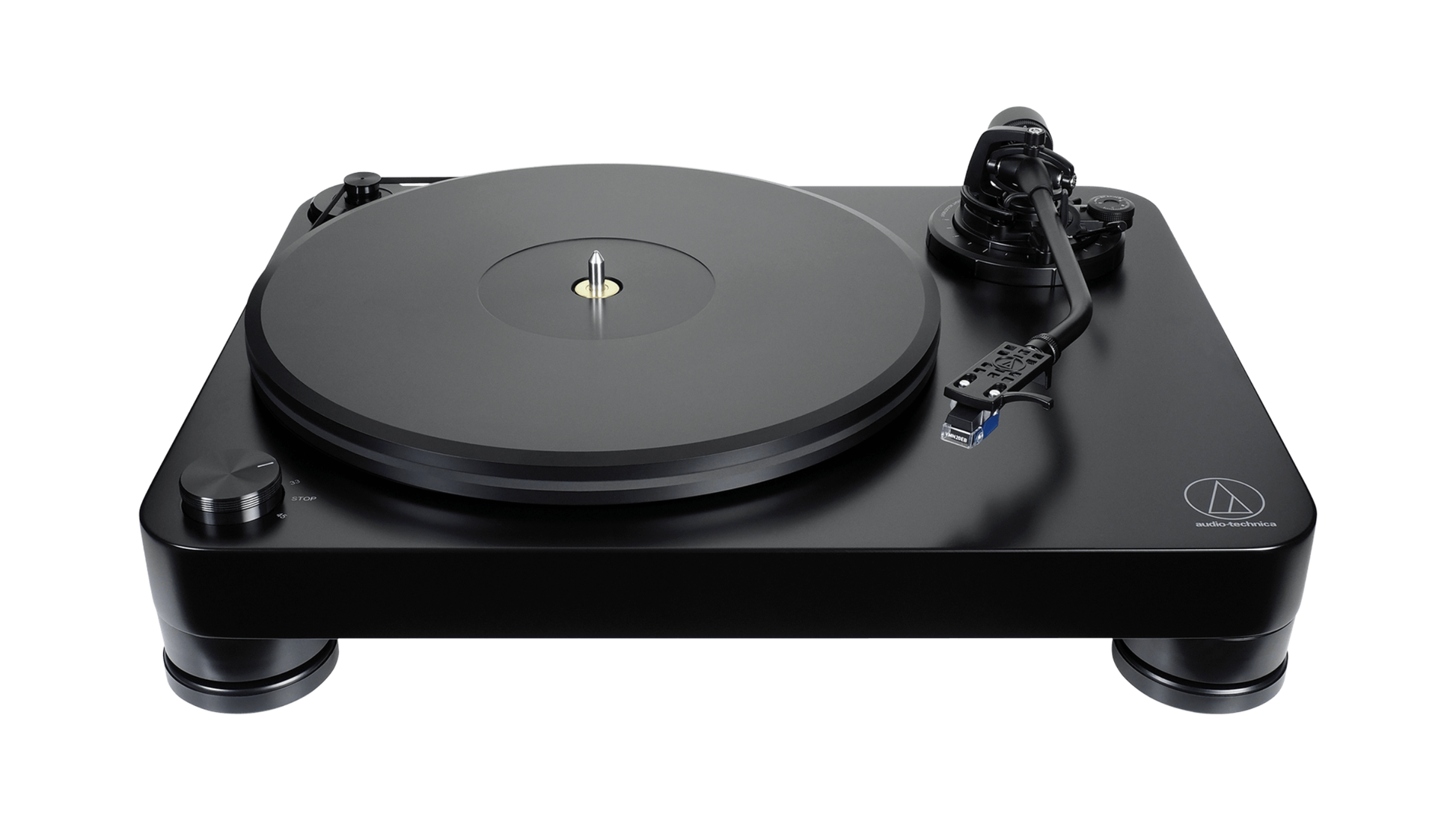

Audio-Technica AT-LP7 Fully Manual Belt-Drive Turntable

Audio-Technica AT-LP7 Fully Manual Belt-Drive Turntable

A complete audiophile belt-drive platform — 40mm MDF plinth, 20mm polyoxymethylene platter, J-shaped dual-axis gimbal tonearm with 0–6mm VTA adjustment, and a built-in MM/MC switchable phono stage.

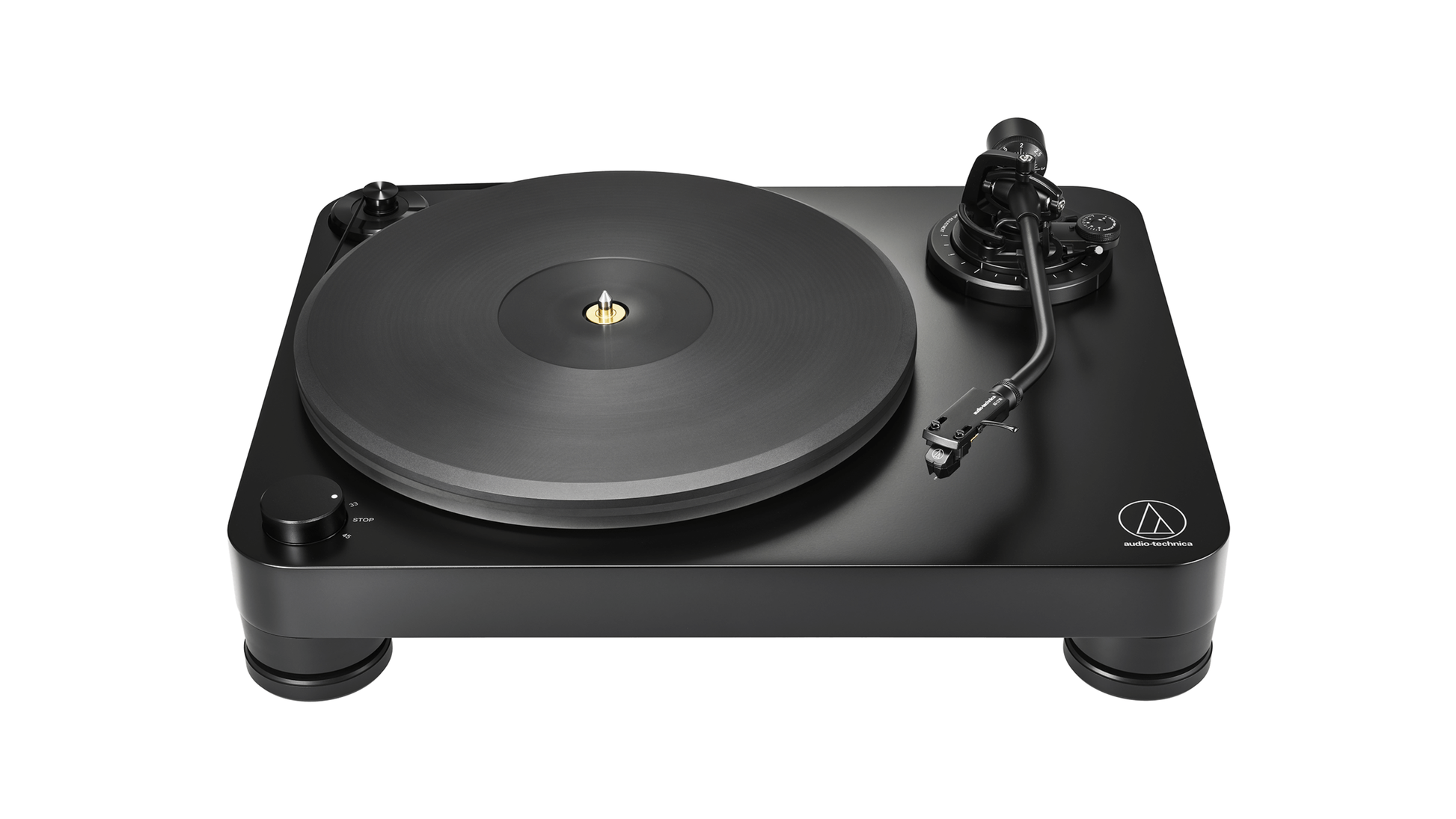

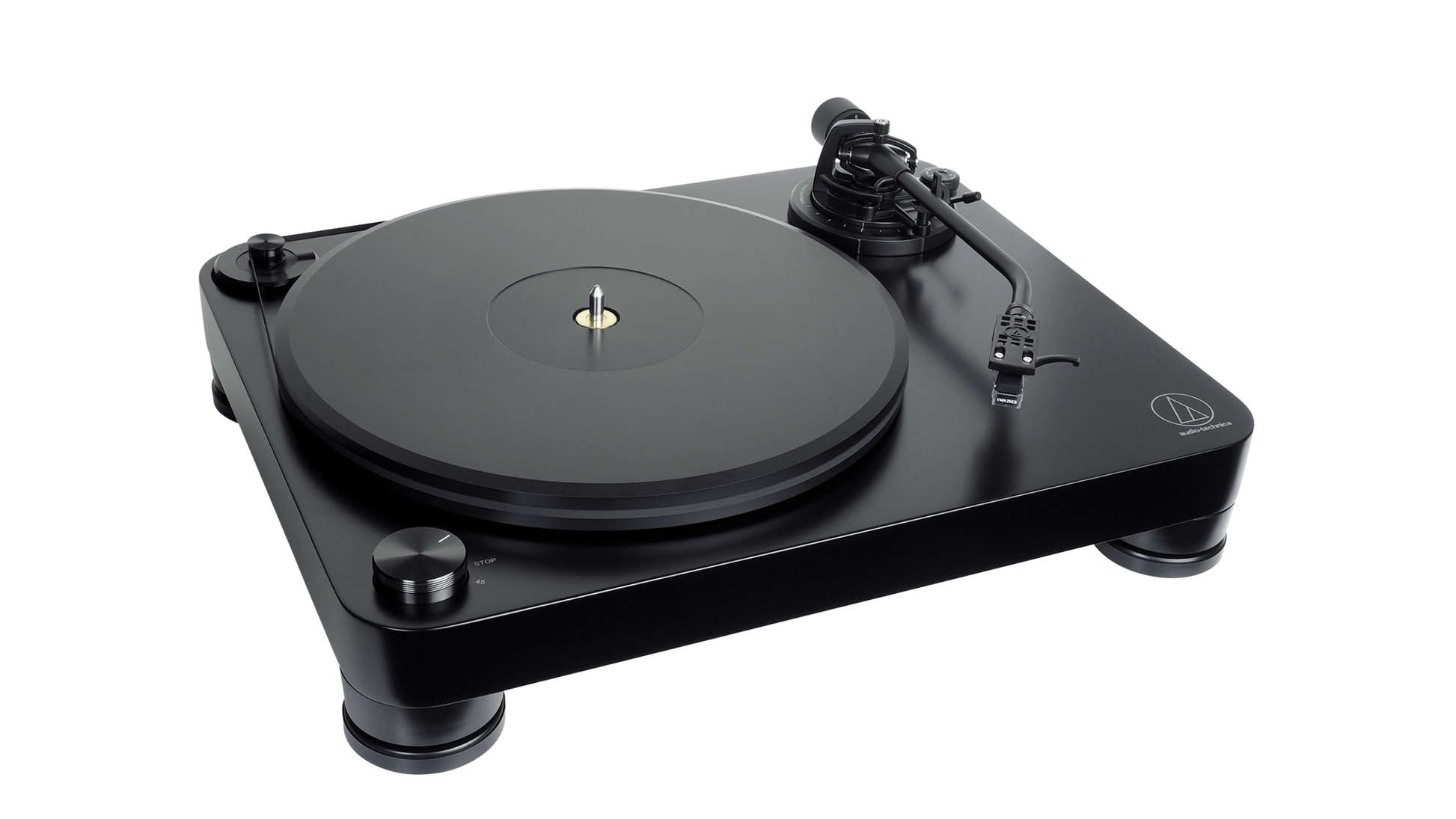

The Audio-Technica AT-LP7 is a fully manual belt-drive turntable built around a single organizing principle: the cartridge is the most critical element in vinyl playback, and every mechanical decision should support its performance. Audio-Technica built the AT-LP7 specifically around their VM cartridge line — a 40mm MDF plinth for exceptional acoustic isolation, a 20mm anti-resonance polyoxymethylene platter, a J-shaped aluminum tonearm with dual-axis metallic gimbal suspension, precision bearings, and 0–6mm VTA height adjustment, spring-loaded adjustable feet for leveling and isolation, an external 12V power supply keeping noise outside the chassis, and a built-in switchable phono preamp accepting both MM and MC cartridges. The VM520EB moving magnet cartridge arrives pre-installed and factory-aligned on the AT-HS10 headshell. Every VM stylus in the series is a direct drop-in upgrade without tools or realignment.

At $999 the AT-LP7 is positioned as Audio-Technica's primary audiophile-focused belt-drive turntable — above the LP120XUSB and the wood-bodied LPW series, and designed as a serious platform that rewards cartridge and stylus upgrades over time. The Absolute Sound, Australian Hi-Fi, and What Hi-Fi? have all praised it as a well-executed, complete deck with the mechanical precision to make cartridge quality genuinely audible.

Available now at All Elite Audio, your authorized Audio-Technica dealer in Timonium, Maryland — with in-store demos, expert guidance, and nationwide shipping.

40mm MDF Plinth — Unusually Thick for the Price

The AT-LP7's plinth is 40mm thick MDF — substantially thicker than most turntables at this price, including many at prices considerably higher. MDF is chosen for its high internal damping: at 40mm it provides genuine mechanical rigidity and mass that resists the low-frequency acoustic feedback that speaker bass energy can couple into a turntable chassis and transmit as coloration to the stylus. The What Hi-Fi? Australian review noted that what Audio-Technica achieved with this plinth design was the effective elimination of audible rumble even on quiet classical pressings — a result that speaks directly to the plinth's structural success.

The finish is uniform matte black throughout — no wood veneer, no chrome, no visual complexity. Four spring-loaded, elastomerically isolated feet support the chassis and provide independent leveling at each corner, compensating for uneven shelves and contributing mechanical isolation from footfall and surface vibration.

20mm Polyoxymethylene Platter — No Mat Required, Substantial Mass

The AT-LP7's platter is 20mm thick polyoxymethylene (POM) — a dense engineering thermoplastic with excellent internal damping properties. Despite being plastic, the platter weighs approximately 2.07 kg, providing meaningful rotational inertia for speed stability. POM's damping means records can be placed directly on the platter surface without a rubber mat — the material manages resonance at the record-to-platter interface. For listeners who prefer a mat, the J-shaped tonearm's 0–6mm VTA adjustment makes compensation straightforward.

The platter is driven by a flat rubber belt running around its periphery, connected to a DC servo motor that is elastomerically isolated from the plinth. Audio-Technica additionally isolates the motor's drive pulley from the motor body itself with a second elastomeric mount — two stages of mechanical isolation between motor vibration and platter. A sensor continuously monitors platter rotation and feeds corrections to the motor controller to maintain accurate speed. The external 12V power supply — designed and manufactured by Audio-Technica rather than sourced generically — keeps all AC-to-DC conversion noise physically outside the turntable chassis, away from tonearm wiring and cartridge output.

J-Shaped Tonearm — Dual-Axis Metallic Gimbal, Precision Bearings, 0–6mm VTA

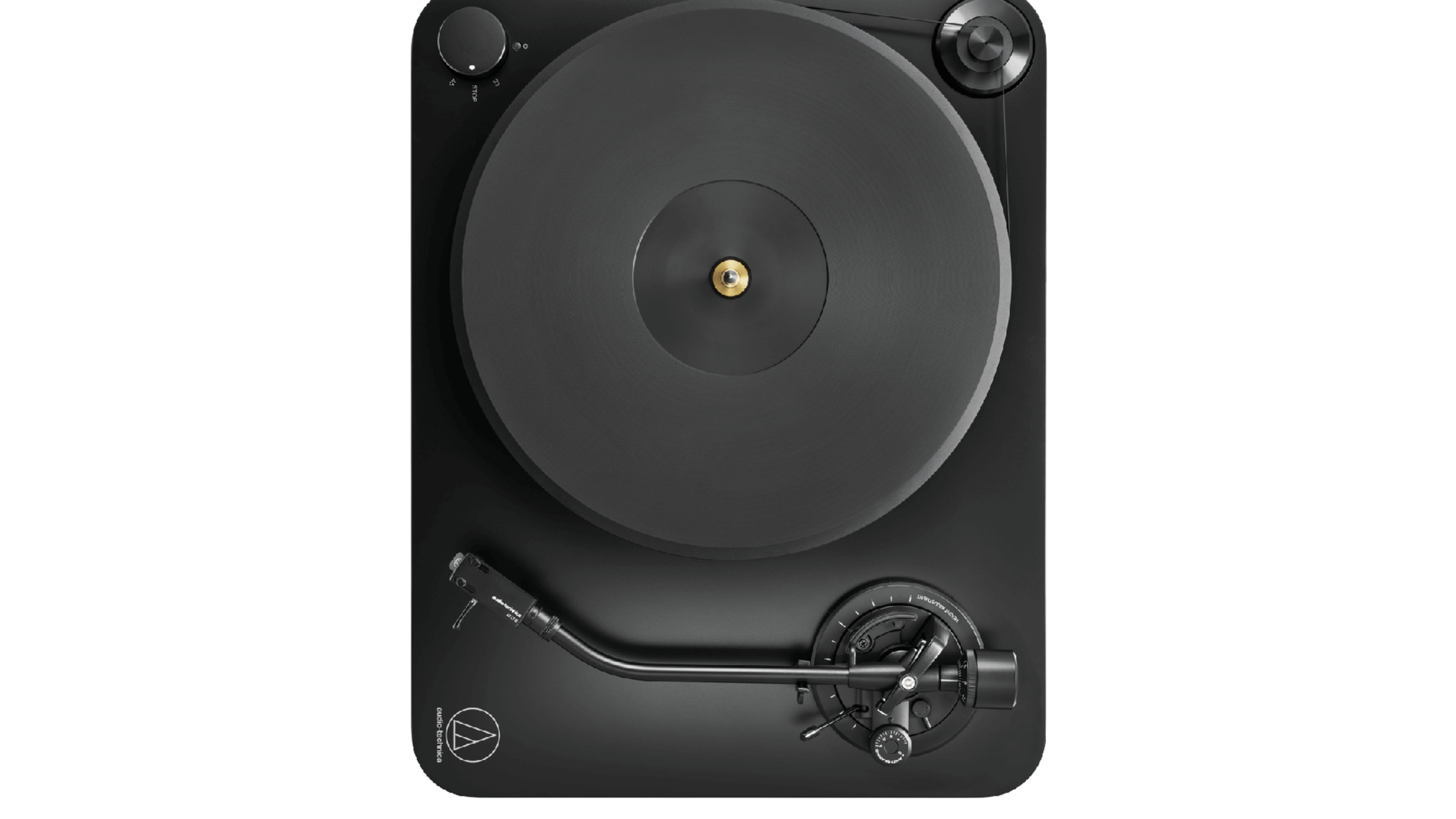

The AT-LP7's tonearm is the design element that most clearly signals its audiophile intent. It is a J-shaped aluminum arm drawing direct visual inspiration from Audio-Technica's classic arms of the 1960s and 1970s, using a dual-axis metallic gimbal suspension bearing system with precision ball bearings at both the vertical and horizontal pivot axes. The gimbal design provides independent, low-friction pivoting in both planes — producing movement that What Hi-Fi? described as smooth under any tracking load condition.

Effective arm length is 247mm with 17mm overhang and maximum tracking error less than 2.5 degrees across the record surface. VTA is adjustable from 0 to 6mm via a ring around the tonearm post — tool-free and achievable while a record is playing, which What Hi-Fi? specifically praised as an unusually practical implementation. Anti-skate is dial-adjustable with a 0 to 2.5g range. The AT-HS10 headshell uses the standard universal half-inch mount, accepting a wide range of aftermarket cartridges for future upgrades.

VM520EB Cartridge and the VM Stylus Upgrade Path

The included VM520EB is Audio-Technica's 500-series moving magnet cartridge using their proprietary Dual Magnet geometry — the two magnets are positioned to mirror the angles of the groove walls rather than sitting perpendicular to the stylus, improving channel separation and tracking accuracy at both groove walls simultaneously. The 0.3 × 0.7 mil bonded elliptical stylus provides strong tonal balance and detail retrieval as a starting point.

The VM stylus is fully interchangeable — the assembly snaps off and on without tools, no cartridge realignment required. This means the AT-LP7 has a clear, tool-free upgrade path through the entire VM series: VM95E (nude elliptical), VM95ML (MicroLine), and VM95SH (Shibata) styli are all compatible with the VM520EB body already installed. Each upgrade delivers progressively finer groove contact geometry and improved inner-groove resolution without touching the cartridge mounting. A listener who buys the AT-LP7 today and upgrades the stylus to a MicroLine next year has meaningfully improved the system's resolution at minimal cost — with no setup work beyond snapping in the new stylus.

Built-In MM/MC Switchable Phono Stage — 36 dB MM / 56 dB MC

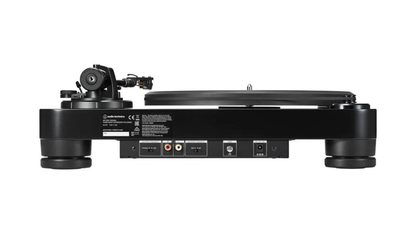

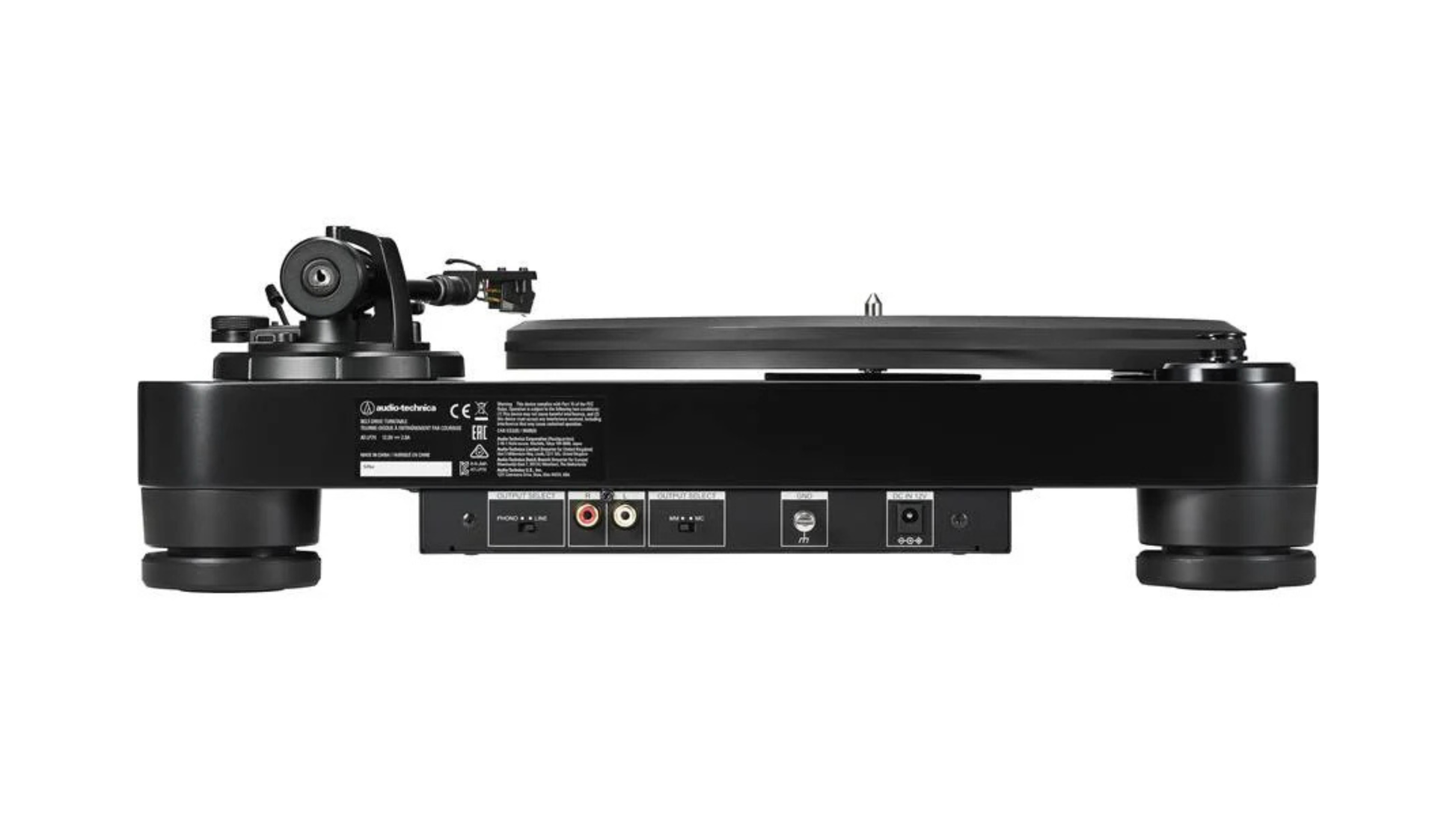

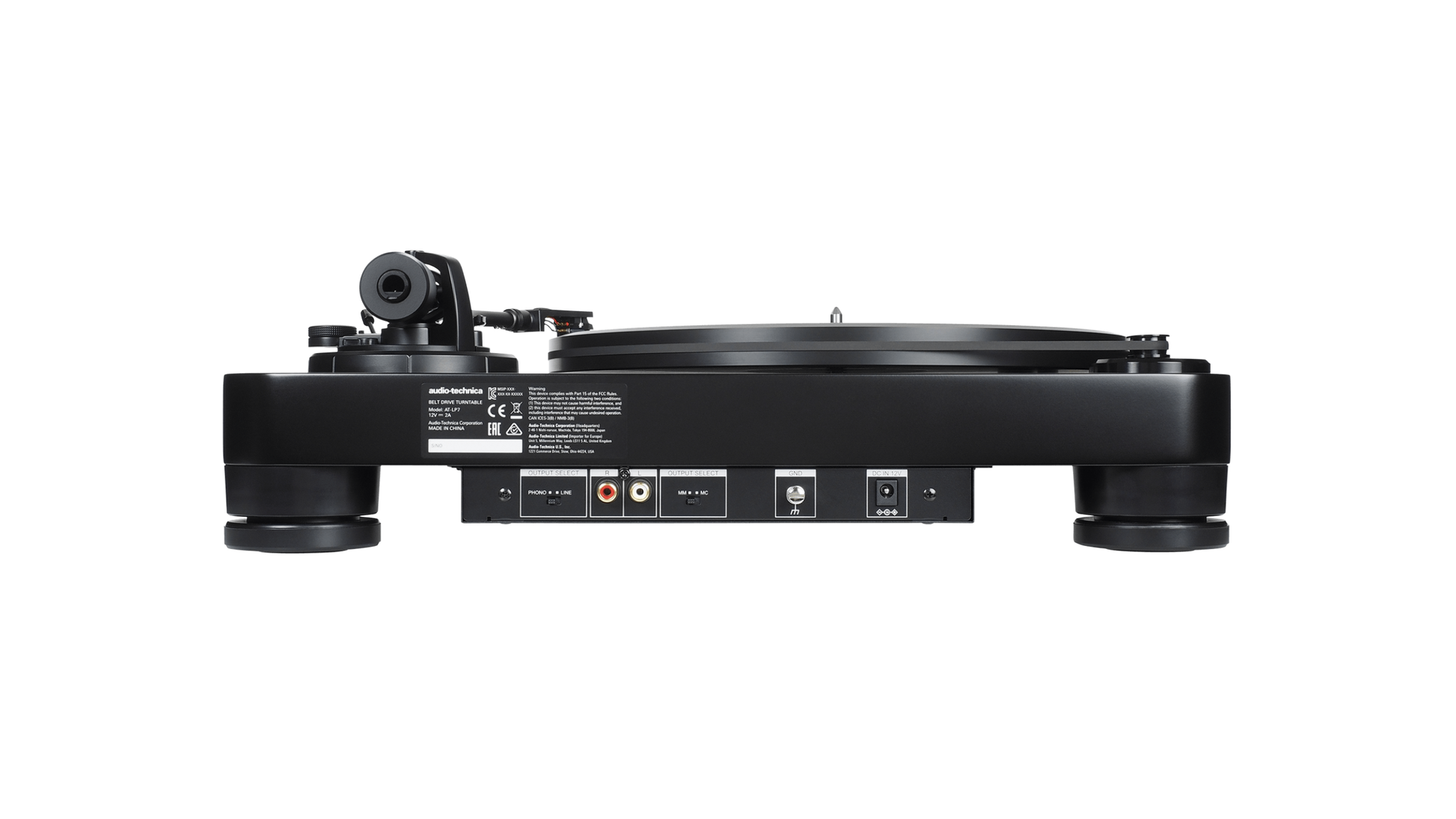

The AT-LP7's phono stage accepts both moving magnet and moving coil cartridges via a rear-panel selector switch. MM gain is 36 dB RIAA equalized with a line-level output of approximately 280 mV. MC gain steps up to 56 dB RIAA equalized with 100Ω input impedance and 0.4 mV sensitivity — accommodating the majority of low-output MC cartridges in common use. A separate switch selects PHONO mode (internal preamp active) or LINE mode (preamp bypassed, raw phono signal to an external stage).

The MC capability means the AT-LP7 is a genuine future-proof platform. A listener can start with the included VM520EB, upgrade through VM styli, and eventually move to a low-output MC cartridge — all without purchasing an external phono stage unless they choose to. The Absolute Sound and What Hi-Fi? both noted the built-in stage as a convenient starting point while recommending external stages as a natural next step when the listener is ready to extract maximum performance from the platform.

Output level is 4.5 mV nominal at 1 kHz / 5 cm/sec in PHONO mode. SNR is greater than 60 dB. Wow and flutter is less than 0.08% WRMS at 33 RPM — meaningfully better than the LPW series and a strong figure for a belt-drive at this price.

AT-LP7 vs AT-LP7X — The Current Evolution

The AT-LP7X, introduced at CES 2026 at $999, is the direct successor to the AT-LP7. Both share the same core platform — 40mm MDF plinth, J-shaped dual-axis gimbal aluminum tonearm with VTA adjustment, MM/MC switchable phono stage, and external power supply. The LP7X refines the platform in several specific ways: the platter upgrades from polyoxymethylene to higher-density acrylic; the cartridge steps up from the VM520EB to the superior VM95E (nude-mounted stylus vs bonded); the headshell changes from AT-HS10 to AT-LT10; anti-skate range expands from 2.5g to 4g; an included 16g subcounterweight extends cartridge/headshell combination compatibility to 23.5g (with an optional 32g subcounterweight extending to 28.5g); and chassis geometry is specifically optimized for improved lateral tracking angle. If the AT-LP7 is the right fit for your system and budget, it remains one of the most complete and refined belt-drive platforms Audio-Technica has produced. The LP7X is the current production successor for those who want the latest iteration.

AT-LP7 vs AT-LP120XUSB — Belt-Drive Audiophile vs Direct-Drive Versatile

The AT-LP120XUSB ($399) and AT-LP7 ($999) are both Audio-Technica manual turntables with built-in switchable phono preamps and VM95-series cartridges, but their design philosophies diverge sharply. The AT-LP120XUSB is direct-drive with a DJ-heritage layout — stroboscopic platter, pitch control, USB digitization, and 78 RPM — prioritizing feature versatility and convenience. The AT-LP7 is belt-drive with an audiophile-focused layout — thicker plinth, heavier polymer platter, dual-axis gimbal tonearm with VTA adjustment, MC phono capability, and a design philosophy that prioritizes mechanical isolation and cartridge performance over feature count. For listeners who want DJ features or USB recording, the LP120XUSB is the right choice. For listeners who want the most refined mechanical platform Audio-Technica offers at this price — with a tonearm capable of revealing what better styli and MC cartridges can do — the AT-LP7 is the serious choice.

Key Specifications

Drive System: Belt-drive, DC servo motor with speed sensor; dual elastomeric motor isolation Operation: Fully manual Speeds: 33⅓ and 45 RPM (front-panel rotary selector) Wow and Flutter: Less than 0.08% WRMS at 3 kHz (33 RPM) Signal-to-Noise Ratio: Greater than 60 dB Plinth: 40mm MDF; matte black finish Platter: 20mm polyoxymethylene; approximately 2.07 kg; no mat required Feet: Spring-loaded elastomerically isolated; independently adjustable height Tonearm: J-shaped aluminum; dual-axis metallic gimbal suspension; precision ball bearings; effective length 247mm; 17mm overhang; less than 2.5° maximum tracking error; VTA 0–6mm adjustment; adjustable counterweight and anti-skate (0–2.5g); stylus pressure range 0–2.5g Headshell: AT-HS10 lightweight; universal half-inch mount; detachable Cartridge: VM520EB dual moving magnet; 0.3 × 0.7 mil bonded elliptical stylus; pre-installed and factory-aligned VM Stylus Upgrade Path: Full VM series — direct drop-in replacements, no tools or realignment required Built-In Phono Stage: MM mode (36 dB, 47 kΩ, RIAA equalized) and MC mode (56 dB, 100Ω input impedance, 0.4 mV sensitivity, RIAA equalized); switchable PHONO (active) or LINE (bypass) Output Level (PHONO mode): 4.5 mV nominal at 1 kHz / 5 cm/sec Output Level (LINE MM mode): 280 mV nominal at 1 kHz / 5 cm/sec External Power Supply: Yes — 12V Audio-Technica designed; AC-to-DC outside chassis USB Output: None Bluetooth: None Pitch Control: None 78 RPM: Not supported Dimensions (W × D × H): 450 × 352 × 157 mm Weight: 8.3 kg (18.3 lbs) without dust cover Included: VM520EB cartridge on AT-HS10 headshell, detachable RCA cable, 45 RPM adapter, AC power adapter, detachable dustcover Price: $999 Warranty: 1 year manufacturer warranty

Why Buy From All Elite Audio

All Elite Audio is an authorized Audio-Technica dealer located in Timonium, Maryland. We carry the full Audio-Technica turntable lineup including the AT-LP7, AT-LP7X, AT-LP8X, AT-LP120XUSB, AT-LP140XP, and AT-LPA2 flagship. Our team can advise on phono stage upgrades, VM stylus selection, and MC cartridge pairing to grow the AT-LP7's performance over time.

We offer in-store demos, expert guidance before and after purchase, and nationwide shipping.

Call: 443-402-5055 Text: 443-402-5064 Visit: 1921 York Rd, Timonium, MD 21093

Frequently Asked Questions — Audio-Technica AT-LP7

What is the AT-LP7 and what makes it different from the LP120XUSB and the LPW series? The AT-LP7 is Audio-Technica's audiophile-positioned belt-drive turntable, built around a 40mm MDF plinth, 20mm polyoxymethylene platter, J-shaped dual-axis metallic gimbal tonearm with 0–6mm VTA adjustment, and MM/MC switchable built-in phono stage. It differs from the LP120XUSB in drive system (belt vs direct), tonearm quality (dual-axis gimbal vs conventional), and design philosophy — the LP120XUSB prioritizes feature versatility while the LP7 prioritizes mechanical isolation and cartridge performance. It differs from the LPW series in tonearm design (metallic gimbal vs straight carbon fiber), platter material (polyoxymethylene vs die-cast aluminum), and MC phono capability.

Does the AT-LP7 have a built-in phono preamp that works with MC cartridges? Yes. The built-in preamp accepts both MM cartridges (36 dB gain, 47 kΩ input impedance) and MC cartridges (56 dB gain, 100Ω input impedance, 0.4 mV sensitivity). A rear-panel switch selects MM or MC mode; a separate switch selects PHONO (active preamp) or LINE (bypass for an external phono stage).

What is the VM stylus upgrade path on the AT-LP7? The VM520EB's stylus snaps off and on without tools and is compatible with any VM-series replacement stylus — VM95E (nude elliptical), VM95ML (MicroLine), and VM95SH (Shibata) are all direct drop-in upgrades with progressively finer groove contact geometry. No cartridge realignment is needed. This makes the AT-LP7 a platform that can be meaningfully upgraded at stylus replacement time without purchasing a new cartridge body.

What is the difference between the AT-LP7 and the AT-LP7X? The AT-LP7X ($999 at launch), introduced in January 2026, is the direct successor to the AT-LP7. The LP7X upgrades the platter material from polyoxymethylene to higher-density acrylic, the cartridge from the VM520EB to the superior VM95E (nude stylus mount vs bonded), the headshell from AT-HS10 to AT-LT10, and expands anti-skate range from 2.5g to 4g. It also adds a 16g subcounterweight enabling cartridge/headshell combinations up to 23.5g, and features updated chassis geometry for improved lateral tracking angle. The AT-LP7 remains an excellent platform; the LP7X is the current production evolution.

Why does VTA adjustment matter on the AT-LP7? VTA (Vertical Tracking Angle) is the angle at which the stylus cantilever meets the record surface. Different cartridge body heights and different LP thicknesses require different VTA settings for geometrically correct playback. The AT-LP7 provides 0–6mm of continuous tonearm height adjustment, allowing precise VTA setting for any cartridge and any record thickness. What Hi-Fi? specifically noted this can be done while a record is playing, without tools.

What warranty does the Audio-Technica AT-LP7 include? The AT-LP7 carries a one-year manufacturer warranty. All Elite Audio is a fully authorized Audio-Technica dealer, ensuring your warranty is valid and supported.

Where can I buy the AT-LP7 and hear it in person? All Elite Audio is an authorized Audio-Technica dealer at 1921 York Rd, Timonium, Maryland 21093. We carry the AT-LP7 alongside the full Audio-Technica turntable lineup. Call us at 443-402-5055 or text 443-402-5064. We also ship nationwide.
