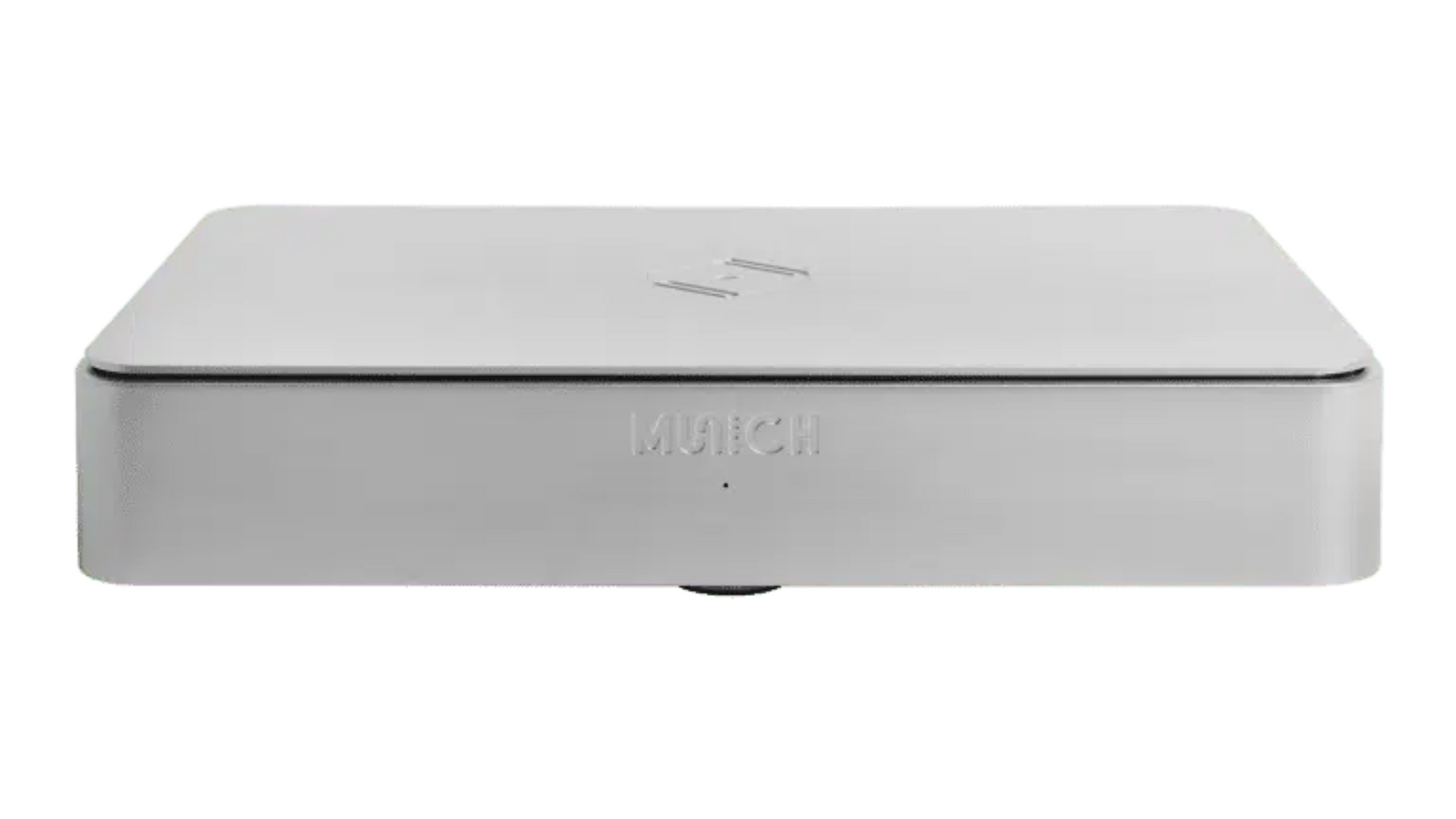

Silent Angel Munich MU Reference Network Music Streamer DAC and Music Server

Reference level network music streamer with integrated ESS SABRE DAC, optional internal SSD storage, balanced outputs, and external master clock support.

Designed as the Flagship of the Silent Angel Lineup

The Silent Angel Munich MU represents the company's most ambitious streaming platform to date. Building upon the success of the Munich M1, the MU was engineered as a complete digital source component capable of serving as the centerpiece of a reference level audio system. It combines a high performance network streamer, premium ESS SABRE digital to analog converter, advanced music server functionality, balanced analog outputs, and extensive digital connectivity within a single purpose built chassis. Rather than simply adding features, Silent Angel redesigned virtually every aspect of the platform to pursue higher levels of performance, stability, and sonic refinement.

For listeners seeking a serious digital front end without assembling multiple separate components, the Munich MU provides an elegant solution that integrates streaming, storage, playback, and conversion into one highly refined product.

Reference Grade DAC Performance

At the heart of the Munich MU is an ESS SABRE DAC designed to deliver exceptional analog performance. The DAC stage is paired with both balanced XLR outputs and single ended RCA outputs, allowing direct connection to integrated amplifiers, preamplifiers, power amplifiers with volume control, and active loudspeakers. Silent Angel designed the analog section to provide natural musicality while preserving the resolution and transparency demanded by modern high resolution recordings.

Unlike digital transports that require an external DAC, the Munich MU functions as a complete source component. This makes system design significantly simpler while maintaining the flexibility to add an external DAC later through the available digital outputs.

Advanced Streaming Platform and Music Server Functionality

The Munich MU utilizes Silent Angel's VitOS operating system and powerful six core processing architecture. The processor combines dual Cortex A72 cores with four Cortex A53 cores to provide exceptional responsiveness and stability during playback. Four gigabytes of low noise memory and dedicated high speed system storage further support smooth operation and efficient music management.

The platform supports TIDAL, Qobuz, Spotify Connect, AirPlay 2, DLNA, Internet Radio, local USB storage devices, and network attached storage systems. Users can manage extensive music libraries through the VitOS Orbiter application while accessing playback information including bit depth, sample rate, and file format.

Internal SSD Expansion for Massive Music Libraries

One feature that separates the Munich MU from many competing streamers is support for an internal M.2 NVMe solid state drive. The chassis includes a dedicated SSD bay supporting up to 4TB of storage capacity. This allows users to create a complete music server within the streamer itself without relying exclusively on external NAS devices or USB drives.

For collectors with extensive high resolution libraries, this capability can dramatically simplify system architecture while maintaining fast access to locally stored music. The result is a streamlined digital front end with fewer external components and reduced cable complexity.

Precision Clocking and External Master Clock Support

Timing accuracy remains one of the most important aspects of digital audio performance. To address this, Silent Angel incorporates a precision TCXO clock system within the Munich MU. The clock architecture was developed to minimize timing errors and reduce jitter throughout the digital signal path.

The Munich MU also includes a dedicated external 25MHz clock input. This feature allows the streamer to synchronize with high precision external master clocks such as the Silent Angel Genesis GX. For enthusiasts building ultimate performance streaming systems, external clock synchronization provides another level of system optimization not typically available at this price point.

Double Layer Chassis Construction

The Munich MU utilizes a sophisticated double layer chassis architecture inspired by Silent Angel's flagship Bonn NX network switch and Genesis GX master clock. Rather than relying on conventional folded sheet metal construction, the chassis was developed to improve structural rigidity, vibration control, and electromagnetic isolation.

This design helps separate sensitive digital and analog circuits while reducing the impact of external interference. Silent Angel further employs EMI absorption technologies, specialized shielding, and carefully selected audiophile grade components throughout the design to maintain signal integrity from input to output.

Extensive Connectivity for Any System

The Munich MU provides remarkable flexibility for system integration. Balanced XLR and RCA analog outputs allow direct connection to amplifiers and active speakers. Digital outputs include AES EBU, I2S, Coaxial, and USB Audio for users who prefer external digital conversion. USB Audio supports PCM playback up to 768kHz and DSD256 while AES EBU, I2S, and Coaxial outputs support PCM up to 384kHz and DSD128.

The platform also includes Gigabit Ethernet connectivity, multiple USB ports for external storage devices, and support for both internal and external music sources. This level of connectivity ensures compatibility with virtually any modern audio system.

How the Munich MU Compares to the Munich M1

The Munich M1 remains one of the strongest values in network streaming and offers an excellent combination of streaming, DAC functionality, and headphone listening capabilities. The Munich MU moves substantially higher within the Silent Angel hierarchy by introducing a completely redesigned chassis, a more advanced six core processing platform, ESS SABRE DAC implementation, internal NVMe SSD capability, external 25MHz clock synchronization, improved analog output stages, and significantly greater upgrade potential.

For listeners seeking an excellent compact streamer, the M1 remains highly attractive. For systems operating at a true reference level where every detail matters, the Munich MU becomes the more compelling long term solution.

A True Reference Digital Source Component

The Munich MU was designed for music lovers who view streaming as a primary source rather than a convenience feature. Its combination of advanced processing, high performance analog circuitry, precision clocking, server functionality, extensive storage options, and premium construction make it one of the most complete products in the Silent Angel portfolio.

Whether used as a streamer, DAC, music server, or complete digital front end, the Munich MU delivers the flexibility and performance required for modern high end audio systems.

Key Specifications Block

• Product: Silent Angel Munich MU
• Category: Reference Network Music Streamer DAC and Music Server
• Price: $3,599
• Operating System: VitOS
• Control App: VitOS Orbiter
• Processor:
  • Dual Core Cortex A72 1.8GHz
  • Quad Core Cortex A53 1.4GHz
• Memory: 4GB Low Noise RAM
• System Storage: 32GB High Speed Internal Storage
• DAC: ESS SABRE DAC
• Analog Outputs:
  • Balanced XLR Stereo
  • RCA Stereo
• Digital Outputs:
  • AES EBU
  • I2S
  • Coaxial
  • USB Audio
• USB Audio Resolution:
  • PCM up to 768kHz
  • DSD256
• AES EBU Resolution:
  • PCM up to 384kHz
  • DSD128
• Coaxial Resolution:
  • PCM up to 384kHz
  • DSD128
• I2S Resolution:
  • PCM up to 384kHz
  • DSD128
• External Clock Input:
  • 25MHz
• Internal Storage Expansion:
  • M.2 NVMe SSD
  • Up to 4TB
• Streaming Services:
  • TIDAL
  • Qobuz
  • Spotify Connect
  • AirPlay 2
  • DLNA
  • Internet Radio
• Ethernet:
  • Gigabit RJ45
• USB Ports:
  • USB 3.0 x2
  • USB 2.0 x1
• Supported Formats:
  • AAC
  • M4A
  • MP3
  • OGG
  • FLAC
  • WAV
  • ALAC
  • DSD
  • WAV64
  • AIFF
  • CUE
  • WMA
  • APE
• Chassis:
  • Double Layer Aluminum Construction
• Available Finishes:
  • Black
  • Silver
• Dimensions:
  • Width: 360mm
  • Height: 73mm
  • Depth: 220mm
• Weight:
  • 4.65kg
  • 10.25lbs
• Included Accessories:
  • Power Cord
  • Network Cable
  • Quick Start Guide
  • Warranty Card
• Warranty: Contact All Elite Audio for Current Manufacturer Warranty

Why Buy From All Elite Audio

All Elite Audio is an authorized dealer for Silent Angel and every brand we carry. Every product we sell is sourced directly through authorized distribution channels and includes full manufacturer support.

Call: 443-402-5055

Text: 443-402-5064

Visit: 1921 York Rd, Timonium, MD 21093

FAQ

What is the Silent Angel Munich MU?

The Munich MU is Silent Angel's flagship streaming platform. It combines a network streamer, ESS SABRE DAC, music server capability, balanced analog outputs, and advanced digital connectivity within a single component. Unlike many streamers that require multiple supporting devices, the MU can function as a complete digital front end for a high performance audio system. It is designed for listeners seeking reference level streaming performance.

Does the Munich MU include a DAC?

Yes. The Munich MU incorporates an ESS SABRE DAC along with both balanced XLR and RCA analog outputs. This allows direct connection to amplifiers, preamplifiers, and active loudspeakers without requiring an external DAC. Many users will find the internal DAC sufficiently capable to serve as the primary digital conversion stage in their system.

Does the Munich MU support internal music storage?

Yes. The chassis includes support for an internal M.2 NVMe SSD with capacities up to 4TB. This allows users to store extensive music collections directly inside the streamer. The internal storage capability transforms the MU into a complete music server while eliminating dependence on external storage devices.

What streaming services are supported?

The Munich MU supports TIDAL, Qobuz, Spotify Connect, AirPlay 2, DLNA, and Internet Radio. It also supports playback from USB storage devices and network attached storage systems. This broad compatibility allows the MU to integrate easily into virtually any modern digital music ecosystem.

What is the benefit of the external 25MHz clock input?

The external clock input allows synchronization with a precision master clock. A high quality external clock can improve timing accuracy and reduce jitter throughout the digital playback chain. For enthusiasts building a reference level streaming system, this feature provides significant future upgrade flexibility.

Can I use the Munich MU with an external DAC?

Yes. In addition to its internal DAC, the Munich MU includes AES EBU, I2S, Coaxial, and USB Audio outputs. These outputs allow the streamer to function as a high performance digital transport feeding virtually any external DAC. This flexibility allows owners to experiment with different system configurations over time.

How does the Munich MU compare to the Munich M1?

The Munich M1 is a compact streamer with integrated DAC and headphone amplifier functionality. The Munich MU adds a significantly more advanced chassis, superior processing platform, ESS SABRE DAC implementation, internal SSD support, external clock synchronization capability, and higher overall system optimization. For serious reference systems, the MU occupies a substantially higher performance tier.

Does the Munich MU support high resolution audio?

Yes. Through USB Audio output the MU supports PCM up to 768kHz and DSD256. Through AES EBU, I2S, and Coaxial outputs it supports PCM up to 384kHz and DSD128. This makes it compatible with virtually every modern high resolution music format currently available.

Can I connect the Munich MU directly to powered speakers?

Yes. The balanced XLR and RCA analog outputs allow direct connection to powered speakers that include volume control functionality or integrated amplification. This makes it possible to build a remarkably simple yet highly capable streaming system around the Munich MU.

Where can I buy the Silent Angel Munich MU?

You can purchase the Silent Angel Munich MU directly from All Elite Audio. As an authorized Silent Angel dealer, we provide manufacturer supported products, expert system matching guidance, and personalized service before and after the sale. Call 443-402-5055, text 443-402-5064, or visit 1921 York Rd, Timonium, MD 21093.
