Silent Angel Bonn NX Flagship Audiophile Network Switch

Reference grade eight port audiophile network switch engineered for the highest level of digital audio streaming performance.

The Flagship Network Switch from Silent Angel

The Silent Angel Bonn NX represents the culmination of everything Silent Angel has learned about designing network infrastructure for high performance music streaming. Positioned above the Bonn N8 Pro and Bonn N16 LPS, the Bonn NX serves as the company's flagship network switch and was developed specifically for listeners pursuing the highest levels of streaming performance.

While conventional network switches are built for office environments and data throughput, the Bonn NX focuses on a different objective. Every aspect of its design centers on reducing electrical noise, improving timing accuracy, minimizing network interference, and delivering the cleanest possible data transmission path to connected audio components. Silent Angel approaches the network switch as a critical audio component rather than a generic networking accessory.

Designed Around Precision Clock Performance

At the heart of the Bonn NX is a specialized 25MHz TCXO clock system developed specifically for high resolution audio applications. TCXO technology provides significantly greater frequency stability than the standard crystal oscillators commonly found in traditional network hardware.

Silent Angel designed the clock architecture to reduce network latency issues and minimize jitter effects throughout the data transmission process. The company specifies measurable improvements in timing precision compared to conventional switches, allowing the Bonn NX to serve as a highly stable networking platform for demanding streaming systems. The clock circuitry is further supported by multiple stages of dedicated power filtration to ensure the timing signal remains as clean and stable as possible.

Advanced Power Architecture

Unlike many audiophile network switches that require external upgrades to achieve their full potential, the Bonn NX incorporates a highly sophisticated internal power architecture from the start. Silent Angel utilizes what it describes as a radar grade power module, developed specifically for noise sensitive electronic applications.

The power system incorporates AC filtering circuits, low ripple regulation stages, wide dynamic range power conversion, and extensive isolation techniques. Together these technologies help prevent unwanted electrical contamination from entering the switch circuitry while maintaining highly stable operating conditions. The result is a cleaner network environment for connected streamers, servers, DACs, and music playback devices.

A Chassis Built Like a High End Audio Component

The Bonn NX departs significantly from conventional networking hardware through its elaborate chassis construction. Rather than using a simple metal enclosure, Silent Angel developed a dual layer architecture consisting of an inner galvanized steel structure and an outer aluminum alloy shell.

This approach provides multiple benefits. The inner structure improves shielding from electromagnetic interference while the outer aluminum layer contributes mechanical rigidity and vibration control. Silent Angel also incorporates EMI absorbing materials throughout the design to further suppress unwanted electrical noise. The result is a switch that behaves more like a reference audio component than a typical piece of networking equipment.

External Clock Upgrade Capability

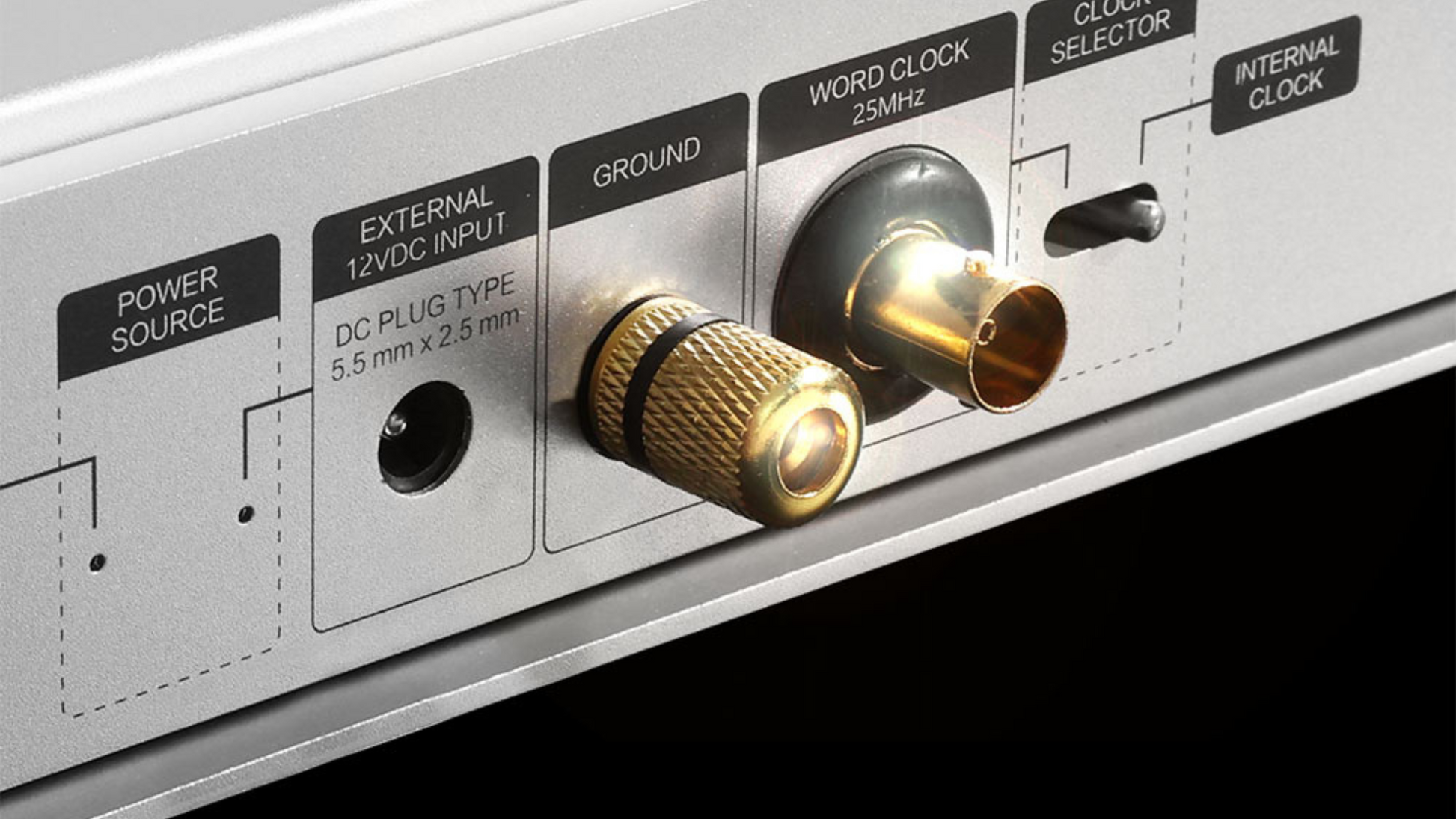

One of the defining features of the Bonn NX is its support for an external 25MHz master clock. The rear panel includes a dedicated gold plated BNC clock input along with an internal and external clock selector.

This capability allows owners to connect products such as the Silent Angel Genesis GC or the flagship Genesis GX master clock. When connected to an external clock source, the Bonn NX can synchronize to an even more precise timing reference. This creates a meaningful upgrade path for advanced digital audio systems and allows the switch to remain a long term foundation as the rest of the system evolves.

Built for Serious Streaming Systems

The Bonn NX was developed specifically for modern streaming ecosystems. Silent Angel optimized the switch for use with Roon environments, network music servers, streamers, NAS devices, and high resolution streaming services.

Within the Silent Angel ecosystem, the Bonn NX pairs naturally with products such as the Rhein Z1 music server, Munich series streamers, Forester F2 linear power supply, and Genesis series master clocks. The switch also integrates seamlessly with high performance components from Matrix Audio, Aurender, Lumin, Innuos, Eversolo, and many other manufacturers. Its purpose is not simply to move data from one device to another but to create a dedicated audio network environment optimized for digital music playback.

Gold Plated Connectivity Throughout

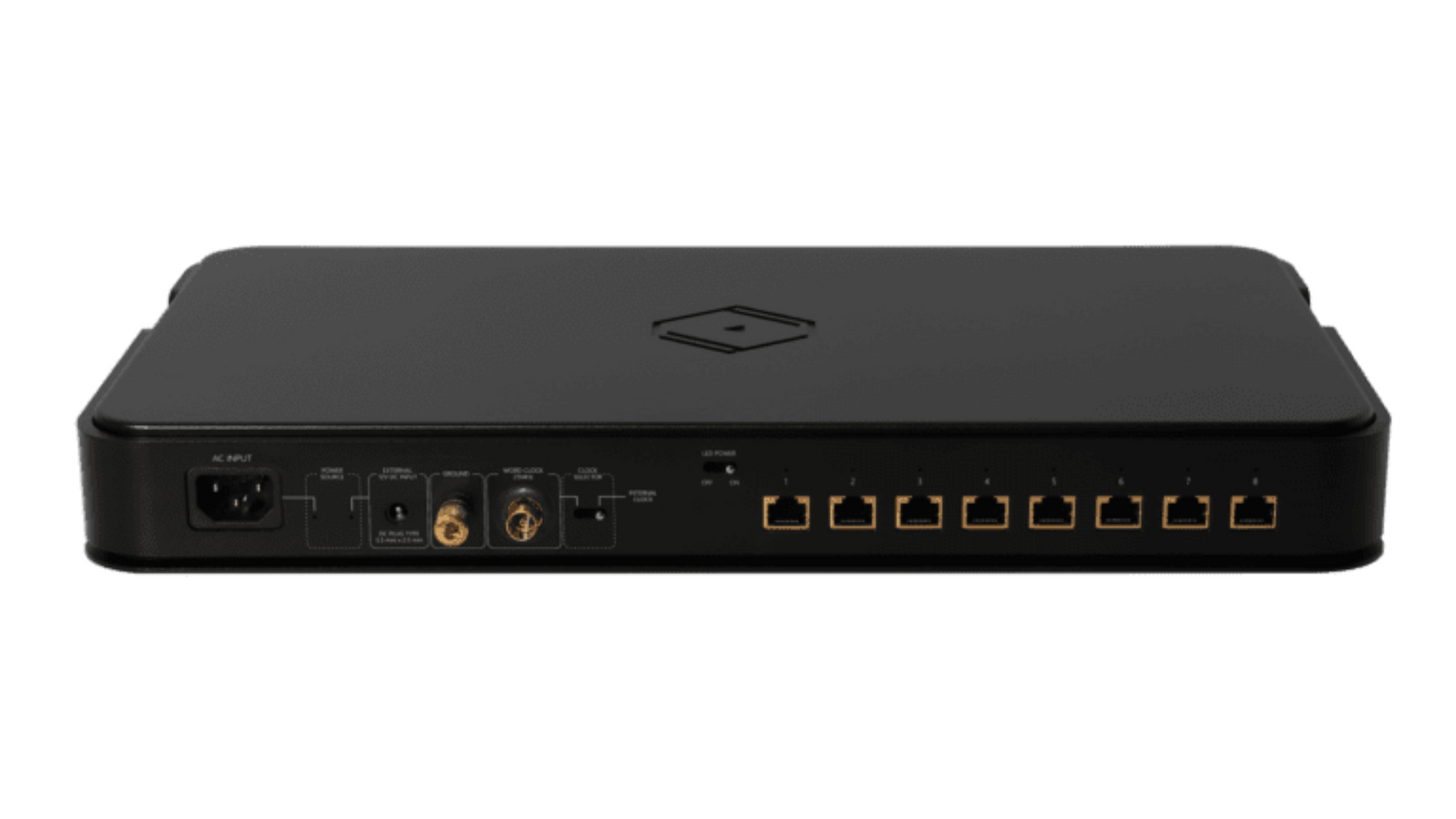

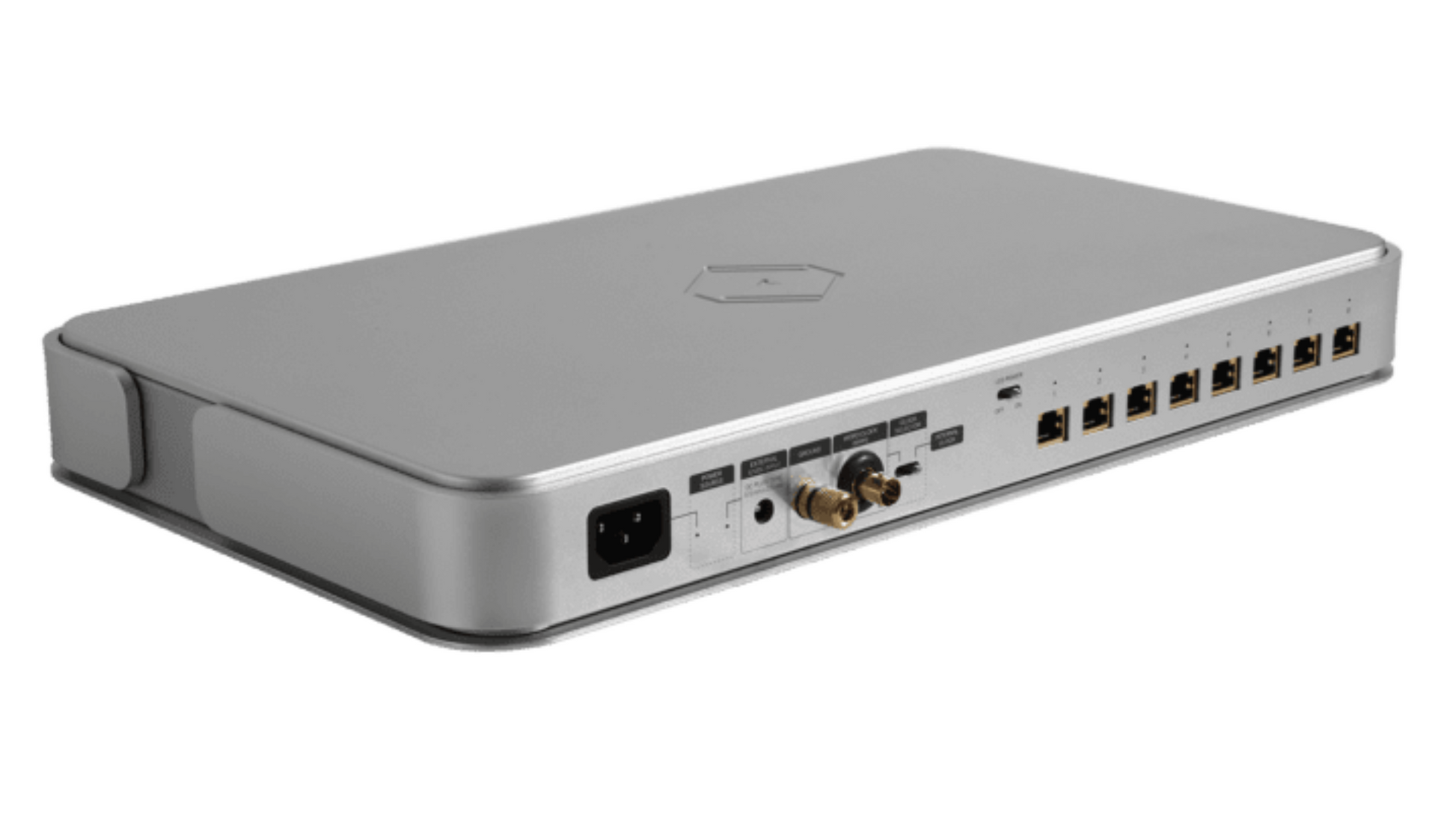

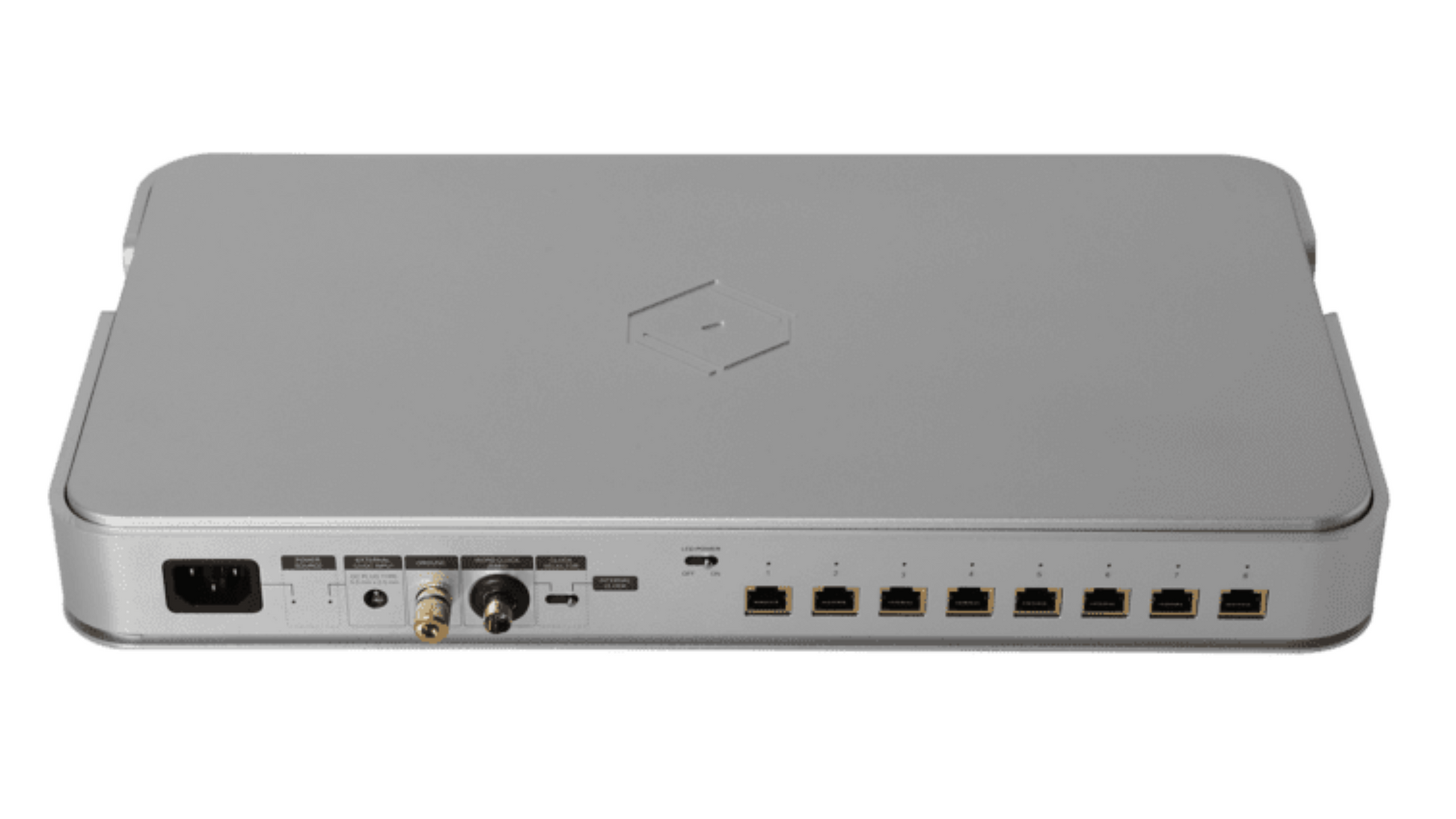

The Bonn NX features eight carefully spaced Gigabit Ethernet ports fitted with gold plated RJ45 connectors. Silent Angel selected the port spacing to minimize potential interference between adjacent connections while improving cable management flexibility.

Additional features include a gold plated grounding terminal for use with compatible grounding systems and a user selectable LED control that allows port activity lights to be disabled. These details may seem minor individually, but they reflect the overall engineering philosophy behind the Bonn NX. Every aspect of the design focuses on minimizing potential sources of interference and maximizing signal integrity.

How the Bonn NX Compares to the Bonn N8 Pro

The Bonn N8 Pro is an outstanding audiophile network switch featuring an integrated linear power supply, precision clocking, and external clock support. The Bonn NX advances substantially beyond that platform through its flagship power architecture, more sophisticated chassis construction, enhanced shielding, advanced vibration control, upgraded internal circuitry, and reference level engineering throughout.

For listeners building a true reference streaming system, the Bonn NX occupies a higher performance tier and serves as the top network switch in the Silent Angel lineup.

A Reference Foundation for Digital Audio

The quality of a streaming system depends on every component involved in delivering music from source to playback device. The Bonn NX was created to provide the highest level of network performance available within the Silent Angel ecosystem.

Through its advanced clock architecture, premium power design, extensive shielding, external clock support, and reference grade construction, the Bonn NX establishes itself as a centerpiece component for serious digital audio systems. For listeners pursuing the maximum potential from high resolution streaming, it represents one of the most sophisticated network switch solutions available today.

Key Specifications Block

• Product: Silent Angel Bonn NX
• Category: Flagship Audiophile Network Switch
• Price: $4,199
• Ethernet Ports:
  • 8 Gold Plated Gigabit Ethernet RJ45 Ports
• Network Speed:
  • 10 Mbps
  • 100 Mbps
  • 1000 Mbps Gigabit Ethernet
• Clock Technology:
  • Silent Angel TCXO
  • 25MHz
  • 0.1 ppm Accuracy
• External Clock Input:
  • 25MHz BNC Input
• Clock Selection:
  • Internal Clock
  • External Clock
• Grounding:
  • Gold Plated Ground Terminal
• Power Inputs:
  • IEC AC Input
  • 100V to 240V
  • 50Hz to 60Hz
  • External 12V DC Input
• External Power Supply Compatibility:
  • Silent Angel Forester F2
• Chassis Construction:
  • Dual Layer Design
  • Inner Galvanized Steel Structure
  • Outer Aluminum Alloy Chassis
• EMI Protection:
  • High Permeability EMI Absorbers
• LED Controls:
  • User Selectable LAN LED On and Off
• Width:
  • 439 mm
  • 17.29 Inches
• Height:
  • 63 mm
  • 2.49 Inches
• Depth:
  • 250 mm
  • 9.95 Inches
• Weight:
  • 6.4 kg
  • 14.34 Pounds
• Available Finishes:
  • Black
  • Silver
• Operating Temperature:
  • 32°F to 86°F
• Warranty:
  • 2 Year Manufacturer Warranty

Why Buy From All Elite Audio

All Elite Audio is an authorized dealer for Silent Angel and every brand we carry. Every product we sell is sourced directly through authorized distribution channels and includes full manufacturer support.

Call: 443-402-5055

Text: 443-402-5064

Visit: 1921 York Rd, Timonium, MD 21093

FAQ

What makes the Bonn NX different from the Bonn N8 Pro?

The Bonn NX is the flagship network switch in the Silent Angel lineup and incorporates a significantly more advanced overall architecture. It features a dual layer chassis, upgraded power systems, enhanced EMI control, vibration damping technology, and a more elaborate internal design philosophy. While the N8 Pro is an excellent audiophile switch, the Bonn NX was engineered specifically for reference level streaming systems.

Does the Bonn NX include a linear power supply?

The Bonn NX incorporates a highly sophisticated internal power module optimized for low noise operation. In addition, it supports connection to an external 12V linear power supply such as the Silent Angel Forester F2. This allows owners to further upgrade power performance as their systems evolve.

What is the purpose of the TCXO clock?

The TCXO clock serves as the timing reference for network data transmission. Compared to conventional clock designs, the Silent Angel TCXO offers greater precision and stability. This improved timing performance helps reduce network latency and jitter effects within the digital audio environment.

Can I connect a Genesis GX clock to the Bonn NX?

Yes. The Bonn NX includes a dedicated 25MHz BNC clock input specifically designed for external clock synchronization. Compatible products include the Silent Angel Genesis GC and Genesis GX master clocks. This capability provides a substantial upgrade path for advanced streaming systems.

Why does the Bonn NX have a grounding terminal?

The gold plated grounding terminal allows integration with compatible grounding systems and grounding boxes. Many advanced audio systems utilize dedicated grounding solutions to further reduce electrical noise. Silent Angel includes this feature to maximize installation flexibility and system optimization potential.

Does the Bonn NX support Roon?

Yes. Silent Angel specifically optimized the Bonn NX for Roon environments. It works exceptionally well with Roon Core servers, network streamers, NAS devices, and internet streaming services. No special configuration is required for normal operation within a Roon based system.

How many devices can I connect?

The Bonn NX provides eight Gigabit Ethernet ports. This is sufficient for most dedicated high performance streaming systems and allows simultaneous connection of routers, streamers, music servers, NAS storage devices, DACs with Ethernet capability, and other network components.

What is special about the chassis design?

The chassis utilizes both galvanized steel and aluminum alloy construction. This dual layer architecture improves shielding, reduces vibration, controls eddy currents, and helps suppress unwanted interference. The result is a more stable operating environment for the sensitive clock and networking circuits inside the switch.

Is the Bonn NX only for Silent Angel products?

No. While it integrates perfectly with the Silent Angel ecosystem, the Bonn NX functions as a standard Gigabit Ethernet switch and is compatible with virtually any streamer, music server, DAC, NAS, or network audio component. It can be used with products from a wide range of high end audio manufacturers.

Where can I buy the Silent Angel Bonn NX?

You can purchase the Silent Angel Bonn NX directly from All Elite Audio. As an authorized Silent Angel dealer, we provide manufacturer supported products, expert system matching guidance, and personalized service before and after the sale. Call 443-402-5055, text 443-402-5064, or visit 1921 York Rd, Timonium, MD 21093.
