Specs
| Type |
CD Player |
| Supported discs |
CD, CD-R, CD-RW |
| Analog output |
Stereo line out (RCA) |
| Digital output |
Digital output for external DAC |
| Finish |
Silver |
| Series |
Onkyo Icon Series |
| Model |
C-30 (Onkyo's own designation is C-30, not CD-30) |
| Disc Compatibility |
Audio CD, CD-R*, CD-RW*, MP3(CD-R*, CD-RW*) (* Discs that have not been properly finalized may only be partially playable or not playable at all.) |
| Frequency Response |
4 Hz - 20 kHz |
| THD (Total Harmonic Distortion) |
0.004 % |
| Signal to Noise Ratio |
103 dB |
| Audio Dynamic Range |
100 dB |
| Rated RCA Output Level and Impedance |
2.0 V (rms) / 540 Ohm |
| Audio Output (Digital/Optical) |
-22.5 dBm |
| Audio Output/Impedance (Digital/Coaxial) |
0.5 V p-p / 75 Ohm |
| Audio Outputs |
Digital Outputs: 2 (OPTICAL x 1, COAXIAL x 1); Analog Outputs: 1 (stereo RCA) |
| Headphone Output |
PHONES jack — standard stereo jack for connecting stereo headphones, with a front-panel PHONES LEVEL knob |
| D/A Conversion / Noise Shaping |
VLSC (Vector Linear Shaping Circuit) |
| Clock Precision |
±10PPM clock |
| Front Panel |
Vibration-resistant aluminum front panel with a sandblasted finish |
| Display |
Front-panel display with switchable brightness (Normal / Dim / Dimmer) and MP3 ID3 tag (TITLE / ARTIST / ALBUM) readout |
| Operation Condition Temperature/Humidity |
5 °C-35 °C / 5 %-85 % |
| Power Supply |
North American : AC 120 V, 60 Hz |
| Power Consumption |
North American : 12W |
| Stand-by Power Consumption |
0.2 W |
| Weight |
5.3 kg (11.7 lbs) |
| Supplied Accessories |
Instruction manual, RCA audio cable, Remote controller, AAA (R03) batteries x 2 |
| Model Codes |
C-30(S)MDC SILVER UPC 889951004080 (US); C-30(S)MMP SILVER EAN 4573211155938 |
| Dimensions (W x H x D) |
435 x 100 x 305 mm (17 1/8 x 4 x 12 3/64 inches) |
Warranty
Sold as an authorized Onkyo dealer by All Elite Audio. New Onkyo C-30 Silver units include the full Onkyo manufacturer warranty of 2 years parts and labor for the original owner. Contact us with any setup or service questions.
What's in the Box
- Onkyo Icon C-30 CD Player (Silver)
- Remote control
- Power cable
- Quick start guide and documentation
Overview

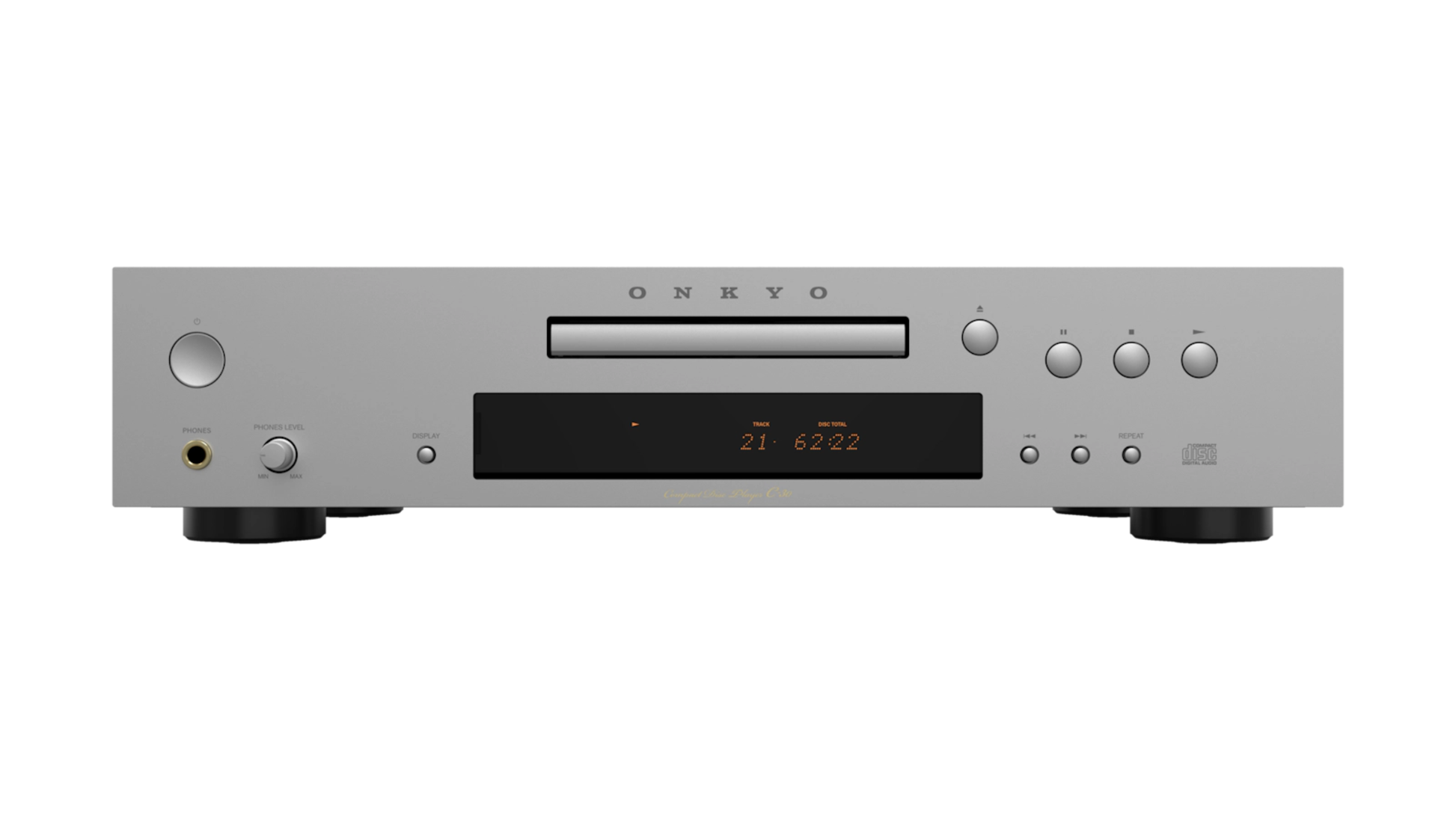

The Onkyo Icon C-30 in silver is a dedicated compact disc player built as part of Onkyo's Icon separates range, a modern reboot of the brand's high fidelity heritage that dates to 1946. It is designed to do one job with focus and precision: read and reproduce the music on your CDs with clarity, low noise, and a natural sense of timing. The Icon aesthetic pairs a clean silver fascia with a matching chassis footprint intended to stack visually and electrically with the Icon A-50 integrated amplifier and other Icon components.
Engineering priorities center on a stable disc mechanism, careful mechanical layout to reduce vibration and read errors, and a clean analog output stage that keeps the signal path short. The C-30 provides both analog line output and digital output, so you can use its onboard conversion or feed a separate DAC of your choice. This flexibility makes it equally at home as a plug and play source or as a transport within a larger system.
It is ideal for the listener who still values physical media and wants a purpose built player rather than a multi function box. If you own a CD collection and want honest, engaging playback in a room built around Onkyo Icon or Muse electronics, the C-30 is a natural cornerstone source component.
Key Features
- Dedicated Icon series CD player focused on pure disc playback
- Silver fascia and chassis styled to match Onkyo Icon components
- Stable disc transport mechanism engineered for reliable, low error reading
- Analog line output for direct connection to an integrated amplifier or preamplifier
- Digital output to feed an external DAC when preferred
- Short, clean signal path for low noise and natural tonality
- Front panel display and disc controls for straightforward operation
- Designed to stack and integrate visually with the Icon A-50 and Icon separates
How the C-30 Silver Compares
Onkyo C-30 Silver vs Onkyo Icon C-30 Black
This is the same Icon C-30 CD player in a black finish rather than silver. The engineering, transport, and outputs are identical, so the choice is purely about which fascia suits your rack and other components. Choose silver to match a lighter Icon stack or black to blend into a darker setup. See the Onkyo Icon C-30 Black.
Onkyo C-30 Silver vs Audiolab 6000CDT
The Audiolab 6000CDT is a pure CD transport with digital output only, intended for listeners who already own a strong external DAC and want a dedicated disc reader. The Onkyo C-30 differs by offering onboard conversion with analog line output, so it works as a complete source straight into an amplifier. Pick the C-30 for a self contained player, or the 6000CDT if you want to route everything through your own converter. See the Audiolab 6000CDT.
Onkyo C-30 Silver vs LEAK CDT
The LEAK CDT is a transport with vintage inspired styling that outputs a digital signal for an external DAC. The Onkyo C-30 takes a different approach with its own analog output and Icon series styling designed to match Onkyo electronics. Choose the C-30 for a ready to use source that integrates cleanly with an Icon system. See the LEAK CDT.
Recommended Amplifier and Speakers
Build a coherent all Onkyo system around the C-30 by pairing it with matching Icon or Muse electronics and a pair of speakers suited to the room.
-
Onkyo Icon A-50 Integrated Amplifier The natural Icon partner for the C-30, matching in styling and footprint while providing the amplification the player needs to drive a pair of speakers.
-
Onkyo Icon P-80 Network Preamplifier For a full separates build, the P-80 adds network streaming and a built-in DAC alongside the C-30, giving you both physical media and modern sources in one Icon stack.
-
Onkyo Icon M-80 Power Amplifier Pair the M-80 with the P-80 to complete a dedicated pre and power system, delivering the clean output to drive demanding speakers around the C-30 source.
-
Onkyo Muse Y 50 A compact one box streaming integrated alternative, letting you add the C-30 as a disc source to a system that already handles streaming and amplification.
-
Gauder Akustik Arcona 40 A refined floorstanding option to reveal the detail and natural tonality the C-30 delivers, rounding out a high fidelity room.
Frequently Asked Questions
What is the Onkyo Icon C-30?
It is a dedicated compact disc player in Onkyo's Icon separates range, designed to read and reproduce CDs with clarity and low noise.
Does the silver version differ from the black version?
No. The silver and black C-30 share identical engineering and outputs. The only difference is the finish of the fascia and chassis.
What disc formats does it play?
It plays standard CD, and typically CD-R and CD-RW discs. Check the included documentation for the full supported list.
Does the C-30 have analog outputs?
Yes. It provides a stereo analog line output so you can connect it directly to an integrated amplifier or preamplifier.
Can I use it with an external DAC?
Yes. It offers a digital output so you can feed the signal to a separate DAC if you prefer to use your own conversion.
Which amplifier pairs best with the C-30?
The Onkyo Icon A-50 integrated amplifier is the natural match, sharing the Icon styling and footprint. The P-80 preamplifier with the M-80 power amplifier is an option for a full separates build.
Can I add streaming to a C-30 system?
Yes. Pair it with an Onkyo Icon P-80 or a Muse streaming integrated to add network streaming alongside your CD playback.
Does the C-30 stream music itself?
No. The C-30 is a dedicated disc player. Streaming is handled by Onkyo's network models such as the P-80 or the Muse series.
Does it have a headphone output?
The C-30 is designed as a source component. For headphone listening, use the headphone stage on a partnering Onkyo amplifier or preamplifier where fitted.
Is it a CD transport or a full player?
It is a full CD player with onboard conversion and analog output, unlike a pure transport that requires an external DAC.
How does it compare to a transport like the Audiolab 6000CDT?
The 6000CDT is transport only with digital output, while the C-30 also offers analog output for direct connection to an amplifier, making it a self contained source.
Will it match the rest of my Onkyo Icon system?
Yes. The C-30 is styled to stack visually and integrate electrically with other Icon components such as the A-50, P-80, and M-80.
What speakers work well with a C-30 system?
It depends on your amplifier and room, but options such as the Gauder Akustik Arcona 40 can reveal the detail and natural tonality the player delivers.
Does it come with a remote control?
Yes. A remote control is included along with a power cable and documentation.
What finish options are available?
The C-30 is offered in silver and in black, so you can match your existing components.
Is the C-30 suitable for someone with a large CD collection?
Yes. It is purpose built for CD playback, making it an ideal cornerstone source for listeners who value physical media.
What warranty does it carry?
It is covered by a 2 year parts and labor warranty from Onkyo USA for the original owner when purchased from an authorized dealer.
Is All Elite Audio an authorized Onkyo dealer?
Yes. All Elite Audio is an authorized Onkyo dealer, so your purchase is covered by the full manufacturer warranty.
Can I build a full separates system around the C-30?
Yes. Combine the C-30 with the Icon P-80 preamplifier and M-80 power amplifier for a dedicated pre and power system with streaming and disc playback.
