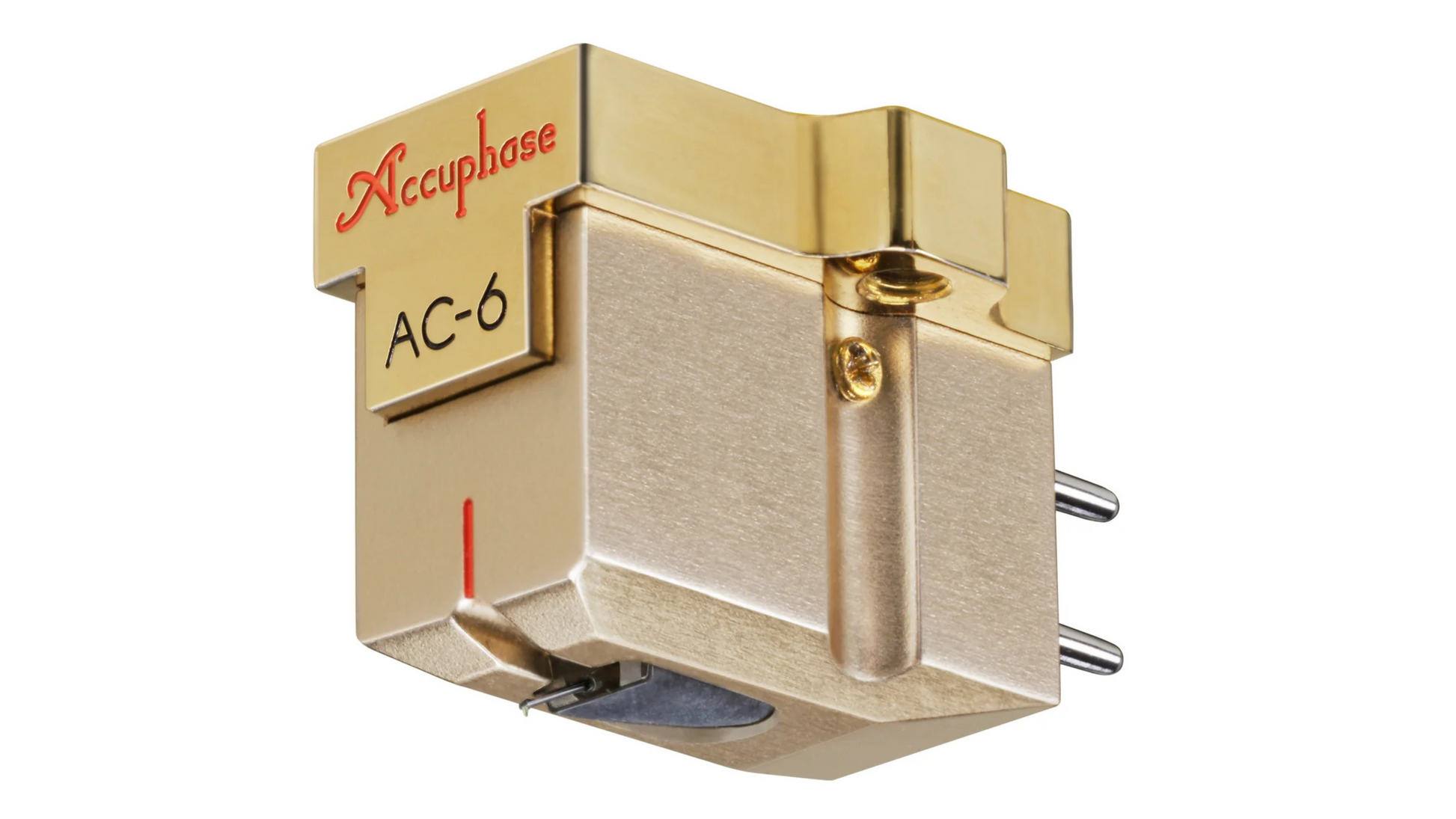

Accuphase AC-6 Moving Coil Phono Cartridge
Accuphase AC-6 Moving Coil Phono Cartridge
Accuphase AC-6 Moving Coil Phono Cartridge
Reference-level MC phono cartridge designed for ultra-precise vinyl playback and remarkable musical refinement.
The Accuphase AC-6 Moving Coil Phono Cartridge is crafted in Japan for discerning analog enthusiasts seeking absolute precision and musical depth. Its semi line-contact diamond stylus rides on a solid boron cantilever to retrieve every groove detail with speed and clarity. Designed for ultra-low noise and high-resolution playback, the Accuphase AC-6 transforms the subtleties of your records into a lifelike listening experience.
The Accuphase AC-6 features a rigid, vibration-resistant structure with a titanium base plated in gold ion and an aluminum body finished in gold-colored alumite. Its magnetic circuit uses a high-grade neodymium magnet (N50), ensuring exceptional magnetic flux linearity and faithful signal conversion. Every component is engineered to minimize distortion and preserve dynamic range.
With a rated output of 0.4 mV at 1 kHz, an internal impedance of just 1.8 Ω, and a frequency response extending from 10 Hz to 50 kHz, the Accuphase AC-6 pairs beautifully with high-gain MC phono stages and premium turntables. Its tracking force range of 1.9 to 2.2 g and 13.5 g mass make it ideal for tonearms with medium to higher effective mass. The result is a cartridge that reveals space, texture, and musical nuance with effortless realism.
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team. All Elite Audio is an authorized Maryland dealer with a full home audio showroom.
Key Specifications
Cartridge Type: Moving Coil (MC)
Stylus: Semi line-contact diamond, 3 µm × 30 µm
Cantilever: Solid boron, 0.3 mm diameter
Output Voltage: 0.4 mV (1 kHz)
Internal Impedance: 1.8 Ω (DCR)
Frequency Response: 10 Hz – 50 kHz
Compliance: 8 × 10⁻⁶ cm/dyne (100 Hz)
Recommended Tracking Force: 1.9 – 2.2 g (centered at 2.0 g)
Channel Balance: Within ±0.5 dB (1 kHz)
Channel Separation: Minimum 30 dB (1 kHz)
Recommended Load Impedance: 100 Ω or higher
Mass: 13.5 g
Terminal Pins: Rhodium-plated
Top 20 Questions About the Accuphase AC-6 Moving Coil Phono Cartridge
What type of cartridge is the Accuphase AC-6?
The Accuphase AC-6 is a moving coil (MC) phono cartridge designed for high-end vinyl playback and precision analog performance.
What is the output voltage of the Accuphase AC-6?
It delivers 0.4 mV at 1 kHz, suitable for use with high-gain phono stages or step-up transformers.
What is the internal impedance of the Accuphase AC-6?
The cartridge has an internal impedance of just 1.8 Ω, allowing for efficient signal transfer with minimal loss.
How wide is the frequency response of the Accuphase AC-6?
Its frequency response spans from 10 Hz to 50 kHz, ensuring lifelike extension and clarity across the audible spectrum.
What is the recommended tracking force for the Accuphase AC-6?
The ideal tracking force range is 1.9 to 2.2 g, with 2.0 g as the optimum setting.
What stylus design does the Accuphase AC-6 use?
It features a semi line-contact diamond stylus that provides high tracking accuracy and low groove wear.
What is the cantilever material in the Accuphase AC-6?
The solid boron cantilever offers exceptional rigidity and speed, enhancing micro-detail and transient precision.
What materials are used in the Accuphase AC-6 body?
It uses an extruded titanium base with gold-ion plating and an aluminum body finished in gold-colored alumite for rigidity and resonance control.
What magnet is used in the Accuphase AC-6?
The cartridge uses an N50 neodymium magnet for strong magnetic flux and precise signal conversion.
What is the channel balance and separation performance?
Channel balance is within ±0.5 dB at 1 kHz, and separation is at least 30 dB, ensuring excellent stereo imaging.
What tonearm works best with the Accuphase AC-6?
A medium to high-mass tonearm will complement its compliance and ensure stable tracking.
What phono stage should be used with the Accuphase AC-6?
It pairs best with a high-gain MC phono preamp or quality step-up transformer with a load impedance of 100 Ω or higher.
Is the Accuphase AC-6 easy to set up?
Careful setup is essential for peak performance—precise alignment, tracking force, and anti-skate adjustment are recommended.
How much does the Accuphase AC-6 weigh?
The cartridge weighs approximately 13.5 g.
What kind of sound does the Accuphase AC-6 produce?
It offers transparent, detailed, and spacious sound with natural tonal balance and superb microdynamics.
Is the Accuphase AC-6 suitable for all turntables?
It works with turntables that can accommodate medium to high-mass tonearms and MC-compatible phono stages.
Does the Accuphase AC-6 require special maintenance?
Regular stylus cleaning and proper storage are recommended; service should be performed by authorized specialists.
What makes the Accuphase AC-6 different from other cartridges?
Its materials, magnetic design, and precision engineering deliver superior sonic realism and mechanical integrity.
What is the warranty on the Accuphase AC-6?
The Accuphase AC-6 includes a manufacturer’s warranty; please contact All Elite Audio for specific coverage details.
How can I get expert help with the Accuphase AC-6?
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team at All Elite Audio, your authorized Maryland dealer with a full home audio showroom.
