Silent Angel Forester F2 Linear Power Supply

Audiophile grade linear power supply designed to provide stable low noise DC power for streaming audio components.

Built for the Foundation of Better Streaming Audio

The Silent Angel Forester F2 was developed around a simple but often overlooked reality. Every digital audio component depends on the quality of its power source. Music servers, streamers, network switches, clocks, and storage devices may process digital information, but they still rely on stable electrical power to operate at their highest level.

Many audio components are supplied with compact switching power adapters designed primarily for efficiency and low manufacturing cost. While these adapters allow equipment to function properly, they often introduce electrical noise and voltage instability that can limit the performance of highly resolving audio systems. The Forester F2 was created to replace those compromises with a dedicated audiophile grade linear power supply engineered specifically for high performance streaming environments.

True Linear Power Architecture

At the core of the Forester F2 is a fully symmetrical linear power supply design built around a custom toroidal transformer and low noise MOSFET circuitry. Unlike switching power supplies that rapidly convert voltage through high frequency switching operations, the F2 uses a traditional linear architecture focused on stability, low noise, and clean power delivery.

The toroidal transformer provides substantial current reserves while reducing electromagnetic radiation compared to many conventional transformer designs. Silent Angel pairs this transformer with carefully selected low noise MOSFET components to deliver highly stable DC power with extremely low voltage fluctuation. The result is a cleaner electrical environment for sensitive digital audio equipment.

Multiple Outputs for Complete System Integration

One of the greatest strengths of the Forester F2 is its ability to power multiple devices simultaneously. Rather than purchasing separate power supplies for every component, the F2 provides four dedicated DC outputs designed to support an entire streaming ecosystem.

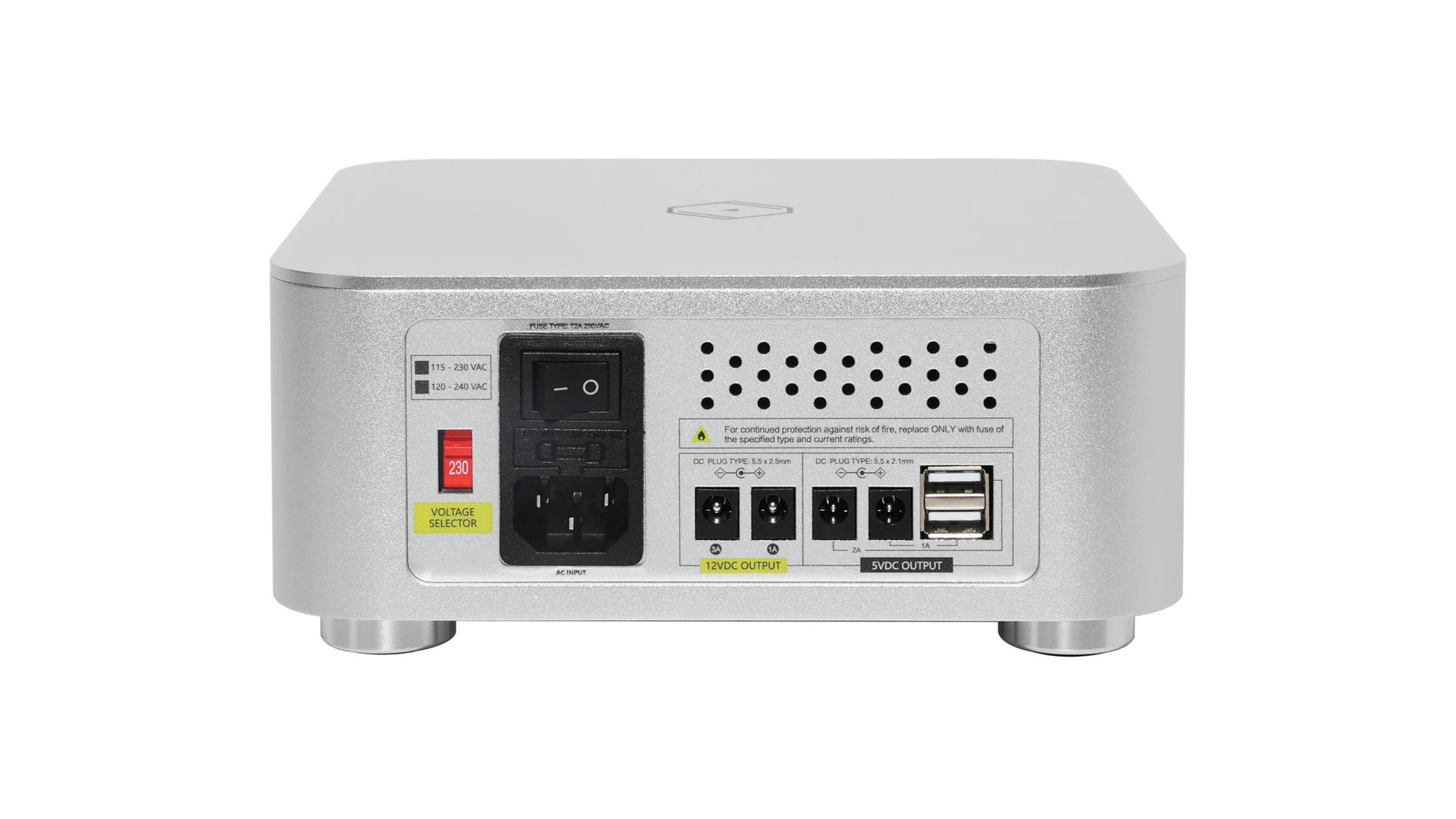

The unit includes 12V 3A, 12V 1A, 5V 2A, and 5V 1A outputs. The 5V outputs can also be used through integrated USB connections, providing additional flexibility for modern network audio equipment. This design allows a single F2 to power combinations of streamers, network switches, music servers, and storage devices from one centralized power platform.

Designed Specifically for Streaming Audio Systems

Silent Angel created the Forester F2 as part of its broader ecosystem of streaming audio products. The power supply is designed to work with components such as the Rhein series music servers, Bonn network switches, Munich streamers, Bremen streamers, and Expander storage devices.

The flexibility of the output configuration also makes the F2 attractive for compatible third party products that require clean and stable 5V or 12V power. For enthusiasts building dedicated streaming systems, the F2 provides a centralized solution capable of supporting multiple devices simultaneously while maintaining consistent power quality throughout the system.

Advanced EMI Suppression and Noise Reduction

Electrical noise exists throughout modern homes. Wireless networks, switching power supplies, computers, routers, appliances, and countless other devices contribute to a complex electrical environment that can affect sensitive audio components.

The Forester F2 incorporates high permeability EMI absorption materials designed to suppress high frequency electrical noise across a broad frequency range. Silent Angel also employs extensive shielding and vibration management techniques to reduce both electrical and mechanical interference. The objective is a cleaner power source that allows connected components to operate with greater precision and consistency.

Heavy Duty Audiophile Construction

The chassis of the Forester F2 reflects the same attention to detail found throughout Silent Angel's premium product lineup. The front and rear panels utilize substantial 8mm aluminum alloy construction designed to minimize vibration while providing excellent shielding.

The upper and lower panels are manufactured from galvanized SECC steel, selected for durability, corrosion resistance, and structural rigidity. Stainless steel isolation feet further contribute to vibration control. The result is a power supply that feels every bit as substantial as the premium components it supports.

How the Forester F2 Compares to the Forester F1

The Forester F1 was developed primarily for lower power 5V applications such as the Bonn N8 network switch and Munich streamers. It provides dual 5V outputs and is ideal for compact systems focused on a small number of devices.

The Forester F2 expands significantly on that concept. With both 5V and 12V outputs available, substantially higher current capability, and support for up to four components simultaneously, the F2 serves as a far more versatile solution for larger streaming systems. For enthusiasts using music servers, advanced network switches, and multiple digital devices, the F2 offers considerably greater flexibility and expansion capability.

A Critical Upgrade for Serious Streaming Systems

Power quality affects every aspect of digital audio reproduction. Stable voltage contributes to more accurate clock operation, cleaner network transmission, reduced jitter, and improved overall system stability. While the improvements achieved through power optimization vary from system to system, the foundation remains the same. Better power allows connected devices to operate closer to their full potential.

For listeners who have invested in quality streamers, music servers, DACs, and network infrastructure, the Forester F2 provides a dedicated power platform designed to support the entire digital front end. It is an upgrade focused not on adding features, but on improving the performance of everything already connected to the system.

Key Specifications

• Product: Silent Angel Forester F2
• Category: Linear Power Supply
• Power Architecture: Fully Symmetrical Linear Power Supply
• Transformer Type: Custom Toroidal Transformer
• Output 1: 12V DC 3A
• Output 2: 12V DC 1A
• Output 3: 5V DC 2A
• Output 4: 5V DC 1A
• Additional Outputs: USB Outputs for 5V Connections
• Maximum Power Consumption: 100W
• Power Input: IEC AC Input
• Input Voltage: 115V to 230V AC or 120V to 240V AC
• Maximum Input Current: 1.5A
• Noise Reduction: High Permeability EMI Absorber
• Chassis Material: Aluminum Alloy and SECC Galvanized Steel
• Front Panel Thickness: 8mm
• Rear Panel Thickness: 8mm
• Output Status Indicators: 4
• Over Temperature Indicators: 2
• Width: 200mm
• Height: 111mm
• Depth: 200mm
• Weight: 4.2kg
• Available Finishes: Black, Silver
• Included Accessories: Power Cord, DC Power Cables, User Manual, Warranty Card
• Warranty: Contact All Elite Audio for Current Manufacturer Warranty
• Price: Contact All Elite Audio for Current Pricing

Why Buy From All Elite Audio

All Elite Audio is an authorized dealer for Silent Angel and every brand we carry. Every product we sell is sourced directly through authorized distribution channels and includes full manufacturer support.

Call: 443-402-5055

Text: 443-402-5064

Visit: 1921 York Rd, Timonium, MD 21093

FAQ

What does the Silent Angel Forester F2 do?

The Forester F2 replaces factory switching power adapters with a dedicated audiophile grade linear power supply. Its purpose is to provide cleaner and more stable DC power to streamers, network switches, music servers, and related digital audio devices. By reducing electrical noise and voltage fluctuations, it helps connected components operate under more consistent conditions. The result can be improved system stability and enhanced overall performance.

Why does a linear power supply matter for digital audio?

Digital audio components rely on stable power for processors, clocks, networking circuits, and storage systems. Variations in power quality can affect timing accuracy and contribute to electrical noise within the system. A linear power supply focuses on providing clean and consistent DC power with very low noise levels. This creates a better operating environment for sensitive audio electronics.

What devices can the Forester F2 power?

The F2 can power a wide variety of compatible 5V and 12V audio devices. Common examples include network switches, music servers, streamers, storage expansion devices, and master clocks. Silent Angel specifically designed it for products such as the Rhein Z1, Bonn N8 Pro, Bonn N8, Munich M1, Munich M1T, and Expander E1. Compatibility should always be confirmed before connection.

How many devices can I connect at one time?

The Forester F2 provides four independent DC outputs. These include one 12V 3A output, one 12V 1A output, one 5V 2A output, and one 5V 1A output. Depending on the power requirements of the connected devices, users can operate up to four compatible components simultaneously. This makes the F2 particularly useful for complete streaming systems.

What is the advantage of a toroidal transformer?

Toroidal transformers are often favored in high end audio equipment because they can reduce electromagnetic radiation and improve efficiency. They also provide substantial current reserves and excellent voltage stability. Silent Angel uses a custom toroidal transformer within the F2 to provide a stable foundation for the entire power supply architecture. This contributes to cleaner and more consistent power delivery.

Can the F2 power both a music server and a network switch?

Yes. This is one of the primary design goals of the F2. For example, a Rhein Z1 music server can be connected to the 12V 3A output while a Bonn N8 Pro network switch can use the 12V 1A output. Additional outputs remain available for compatible devices such as storage expansion units and streamers.

How does the F2 compare to the Forester F1?

The Forester F1 focuses on dual 5V outputs and is designed primarily for smaller systems. The Forester F2 adds both 12V and 5V outputs, substantially higher flexibility, and support for up to four devices simultaneously. For larger streaming systems, the F2 is generally the more comprehensive solution. The F1 remains an excellent option when only a few 5V devices require upgraded power.

Does the F2 reduce electrical noise?

Yes. The F2 incorporates low noise MOSFET circuitry, EMI absorption technology, shielding, and vibration suppression measures designed to minimize electrical interference. Silent Angel developed these technologies specifically to improve power quality for streaming audio systems. The objective is cleaner operation and greater system stability.

Can I use the F2 with products from other brands?

In many cases, yes. Any component with compatible voltage requirements, connector type, and current requirements may potentially work with the F2. Because power specifications vary widely among manufacturers, compatibility should always be confirmed before connection. All Elite Audio can assist with system matching and compatibility questions.
