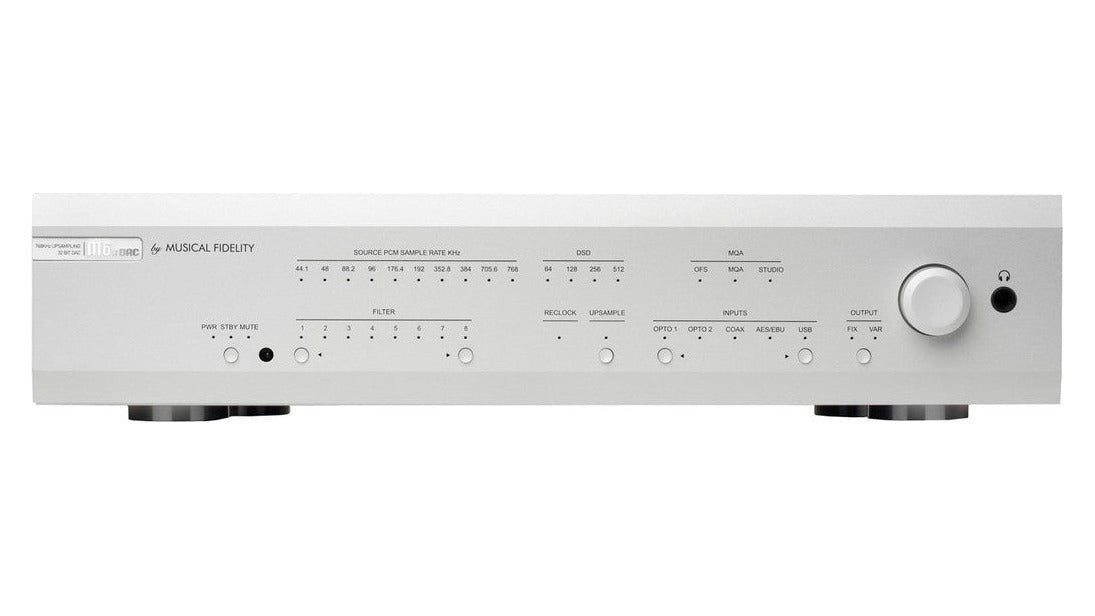

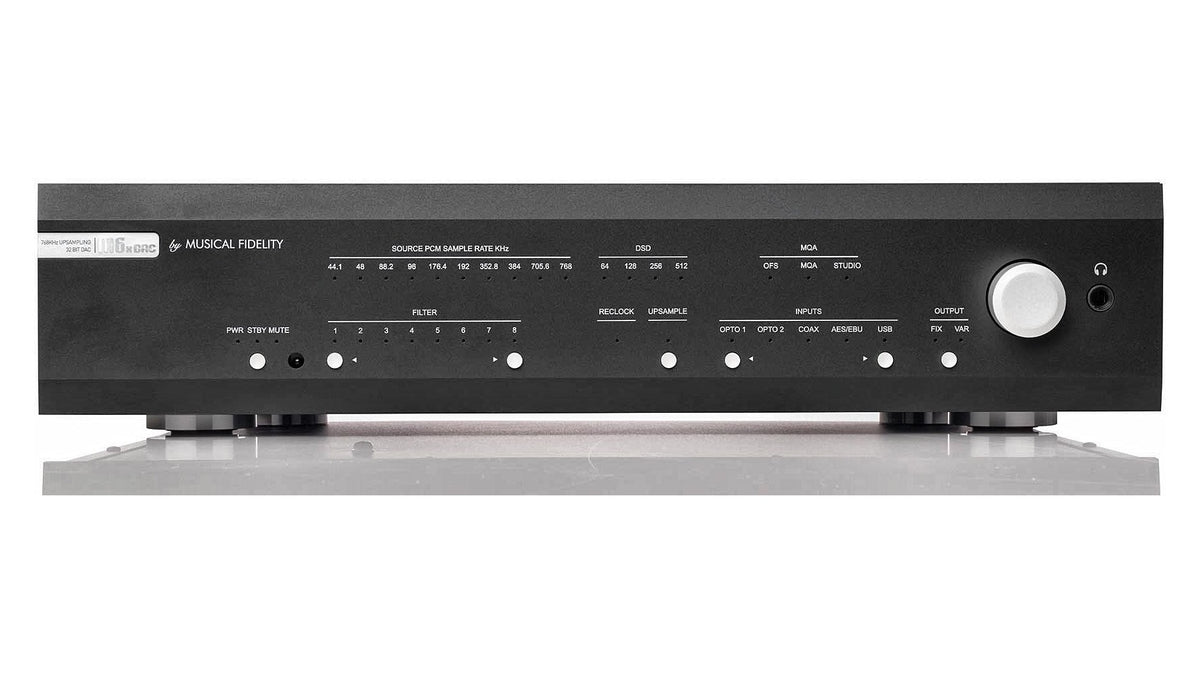

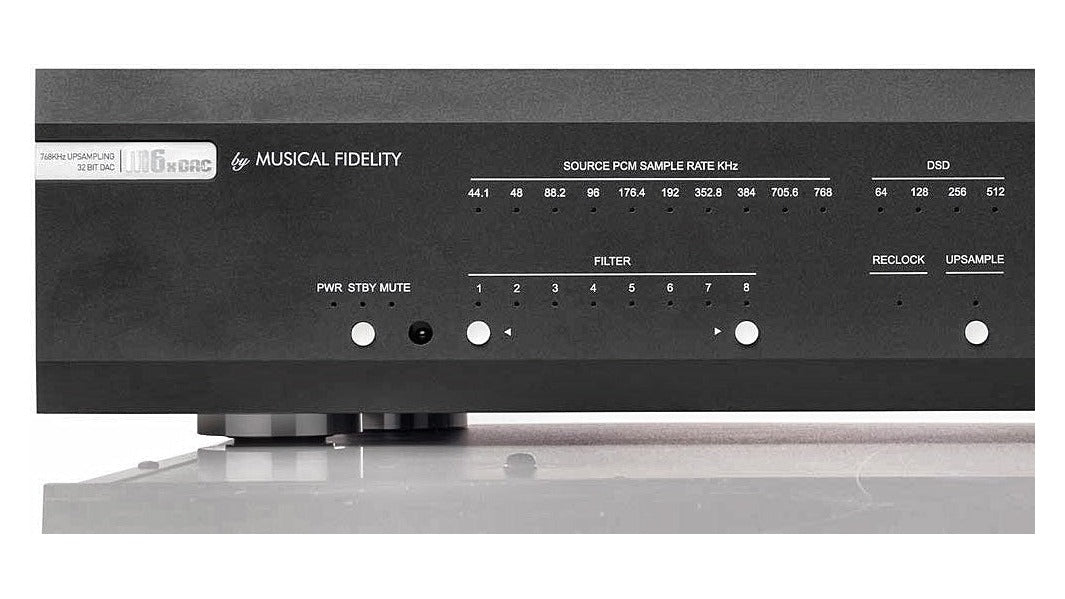

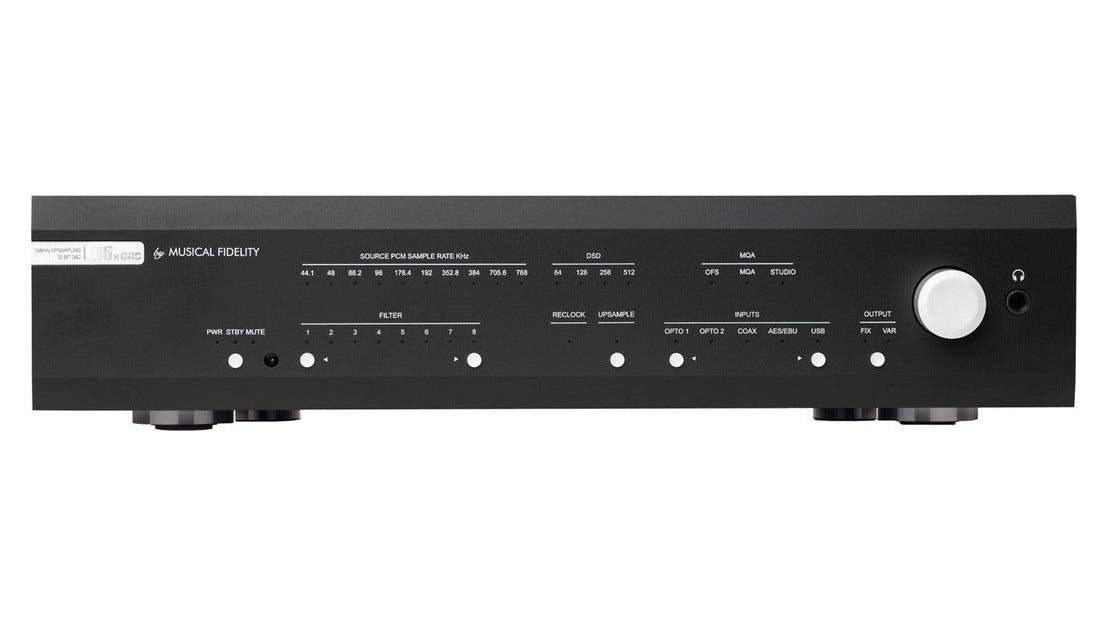

Musical Fidelity M6xDAC 32 Bit Dual Mono DAC

Overview

The Musical Fidelity M6xDAC brings the British brand's understated engineering philosophy to a full featured desktop and system digital hub. Built around dual differential ES9038Q2M converters running a 32 bit Hyperstream II circuit, it separates left and right channels into a true dual mono topology for low noise and precise stereo focus. It is a natural anchor for a two channel rig or a serious headphone setup.

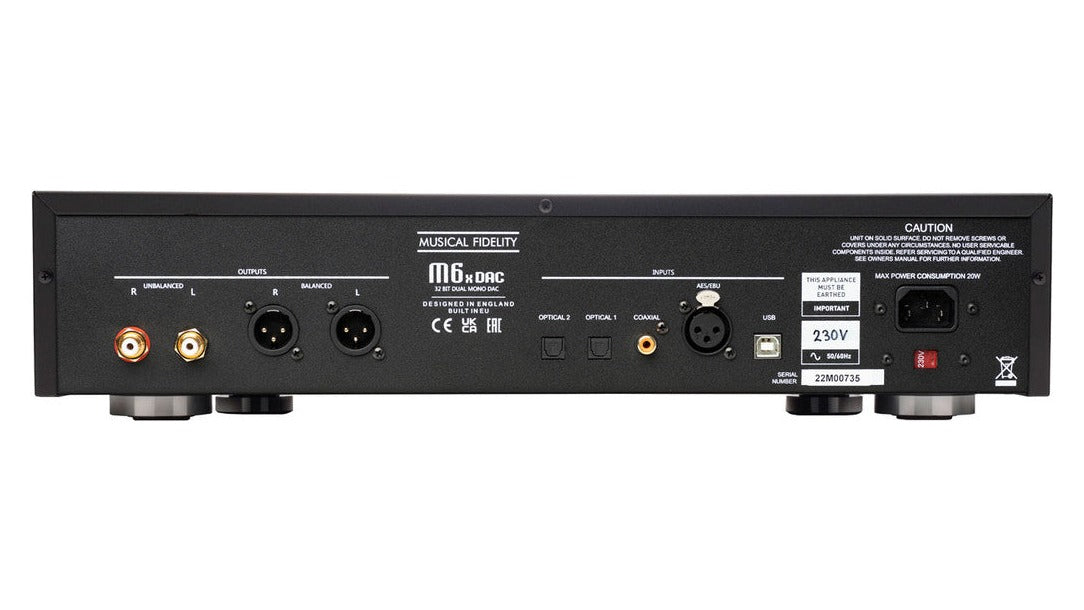

Connectivity is generous. You get coaxial, two optical inputs, AES/EBU, and asynchronous USB-B for computer audio, so nearly any digital source has a home. Balanced XLR and single ended RCA outputs are provided in both fixed and variable modes, letting you feed a power amp directly or slot into a preamp based system as you prefer.

A dedicated 6.3 mm headphone output rounds out the package, making the M6xDAC a flexible one box solution for listeners who move between speakers and cans. As a new authorized Musical Fidelity dealer, All Elite Audio is pleased to offer this component with full factory warranty and expert setup guidance.

Key Features

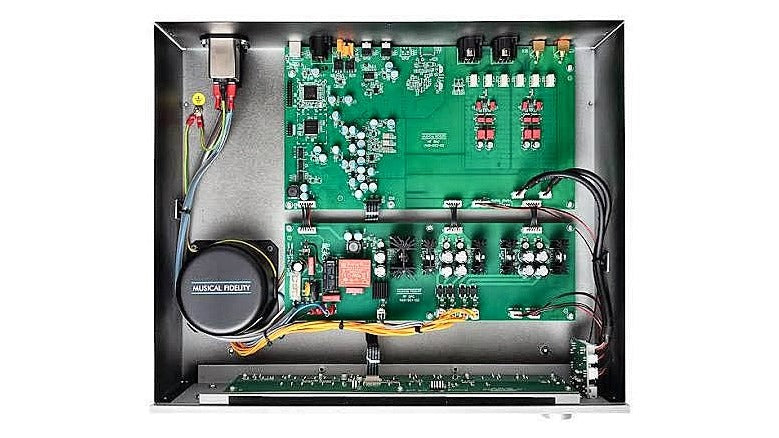

• Dual Mono Architecture. Left and right channels are kept fully independent for low crosstalk and a stable, well separated stereo image.
• Dual Differential ES9038Q2M. Two ES9038Q2M converters operate in differential mode, a configuration prized for its resolution and low distortion.
• 32 Bit Hyperstream II Circuit. The 32 bit Hyperstream II DAC circuit handles digital to analog conversion with a smooth, detailed presentation.
• Comprehensive Digital Inputs. Coaxial, two optical, AES/EBU, and USB-B inputs accept a wide range of sources from streamers to computers.
• Fixed and Variable Outputs. Balanced XLR and RCA outputs each offer fixed and variable line modes, so you can drive a power amp directly or use a preamp.

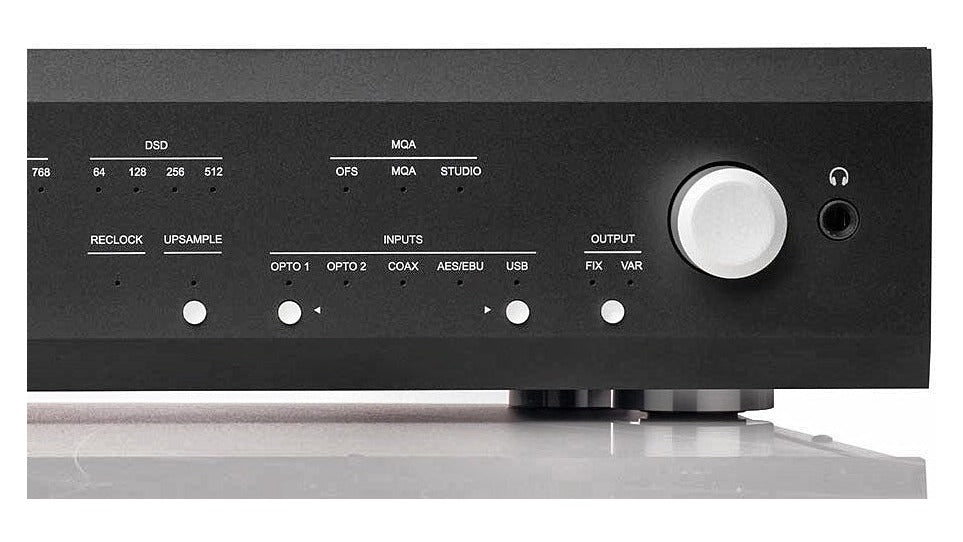

• Built In Headphone Amp. A 6.3 mm headphone output lets you enjoy private listening without adding a separate box.
• Solid Build. At 7.2 kg with a full width 440 mm chassis, the M6xDAC feels substantial and pairs well with other full size components.

How the M6xDAC Compares

Musical Fidelity M6xDAC vs Audiolab D9 DAC/Headphone Amp

The Audiolab D9 is another full featured DAC with a headphone stage. Choose the D9 if you want a display driven interface with a wide menu of filter options, or the M6xDAC if a dual mono layout and Musical Fidelity's voicing appeal to you.

Musical Fidelity M6xDAC vs Luxman DA-07X USB D/A Converter

The Luxman DA-07X is a refined balanced converter with a distinctly Japanese tuning. Listeners who favor a warm, relaxed character may prefer the Luxman, while the M6xDAC leans toward a crisp, resolving British presentation.

Musical Fidelity M6xDAC vs Matrix Audio ND-1 Audio DAC

The Matrix Audio ND-1 emphasizes network streaming flexibility. Pick the ND-1 if built in streaming is a priority, or the M6xDAC if you already have a source and want a straightforward dual mono converter with headphone output.

Musical Fidelity M6xDAC vs EverSolo DAC Z10 Flagship DAC, Preamplifier & Headphone Amplifier

The EverSolo Z10 combines DAC, preamp, and headphone amp with a touchscreen forward experience. It suits users who want an all in one hub, while the M6xDAC offers a more traditional component approach.

Musical Fidelity M6xDAC vs Musical Fidelity M8xDAC (next step up)

The M8xDAC steps up to dual mono ES9038Q2M chips with more digital inputs including CD I2S plus both 6.3 mm and 4-pin XLR headphone outputs.

Musical Fidelity M6xDAC vs Musical Fidelity M3xDAC (next step down)

The M3xDAC is a more affordable option built around the Texas Instruments PCM1795 with coaxial, optical, and USB-B inputs.

Frequently Asked Questions

What DAC chips does the M6xDAC use?

It uses two ES9038Q2M converters in a dual differential configuration.

What does dual mono mean here?

The left and right channels run on independent circuitry, which helps reduce crosstalk and improve stereo separation.

What is the Hyperstream II circuit?

It is a 32 bit DAC circuit that manages digital to analog conversion for a detailed, smooth sound.

Which digital inputs are available?

You get coaxial, two optical inputs, AES/EBU, and USB-B.

Can I connect a computer directly?

Yes, the USB-B input is designed for computer audio playback.

Does the M6xDAC have balanced outputs?

Yes, it provides XLR balanced outputs in both fixed and variable line modes.

Are RCA outputs included?

Yes, RCA line outputs are provided with fixed and variable options.

What is the difference between fixed and variable output?

Fixed output sends a constant level to a preamp, while variable output lets the DAC control volume so you can drive a power amp directly.

Can I use the M6xDAC as a preamp?

Yes, using the variable output mode you can feed a power amp directly and control level from the DAC.

Does it have a headphone output?

Yes, there is a 6.3 mm headphone output built in.

How much does the M6xDAC weigh?

It weighs 7.2 kg.

What are the dimensions?

It measures 440 x 100 x 360 mm, width by height by depth.

Will it fit in a standard rack?

Its 440 mm width matches typical full size components, so it fits most standard racks and shelves.

Is a remote control included?

Yes, a remote control is supplied in the box.

Can I connect a CD transport?

Yes, use the coaxial, optical, or AES/EBU input depending on your transport's output.

How many optical inputs are there?

There are two optical inputs, which is helpful when you have multiple optical sources.

Is the M6xDAC a good match for a headphone focused setup?

Yes, the integrated headphone output paired with the dual mono DAC makes it a flexible choice for headphone listening.
