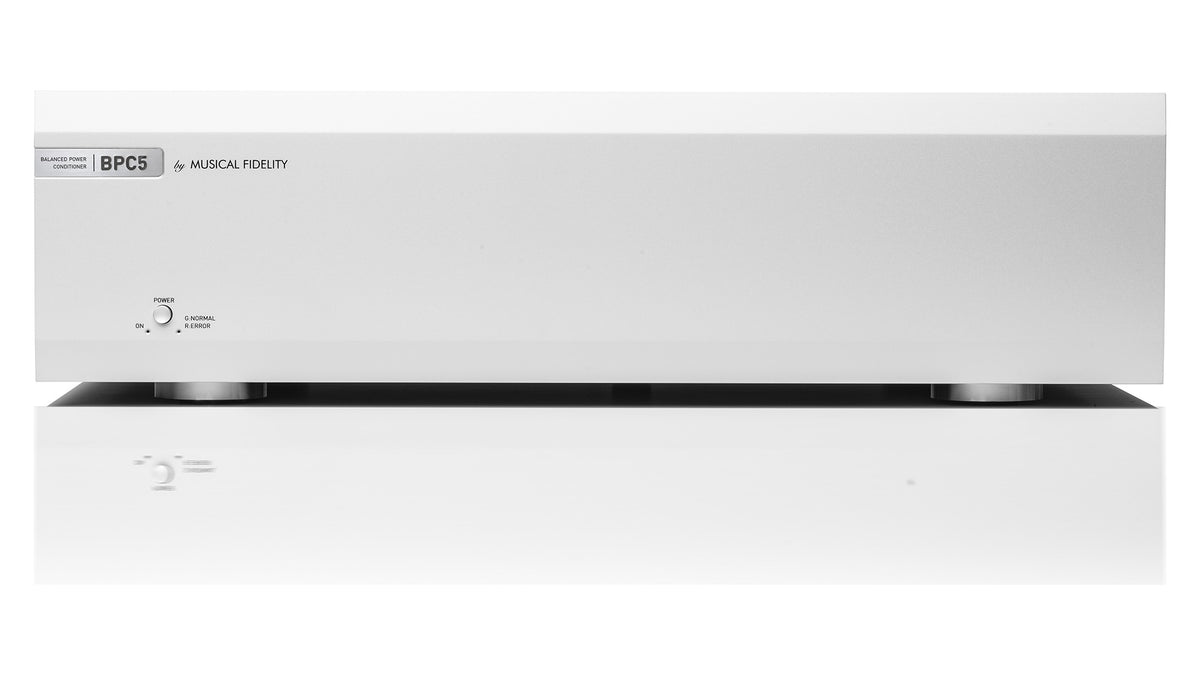

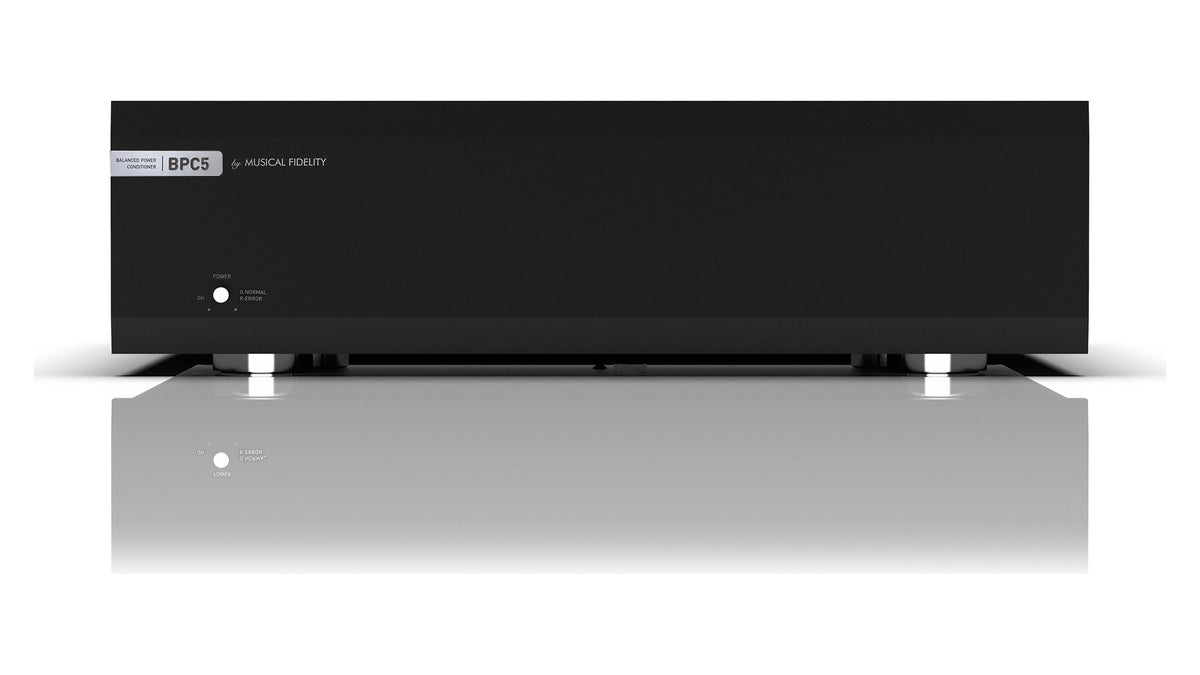

Musical Fidelity BPC5 Balanced Power Conditioner

Overview

The Musical Fidelity BPC5 is a balanced power conditioner engineered to treat the power feeding your system as a genuine component in the signal chain. Clean, stable power contributes to the sonic quality of every device connected to it, and the BPC5 delivers that with a toroidal transformer at its heart and two isolated output zones that keep different types of electronics from interfering with one another.

The two zone design is the practical genius of this unit. One zone is intended for sources like phono stages, preamplifiers, and disc players, while a second zone can host a power amplifier drawing up to its rated ceiling. By separating devices with switch mode supplies from those with linear supplies, the BPC5 helps avoid differential mode cross contamination between your electronics, which many listeners hear as a larger soundstage, tighter bass contours, and better separation of instruments.

Built with series mode surge suppression rather than the more common shunt approach, the BPC5 absorbs surges without dumping excess voltage to ground, keeping the ground reference clean. With four outlets, overload protection, and a substantial 22 kg chassis, it is a serious foundation for a high end setup. As a new authorized Musical Fidelity dealer, All Elite Audio is proud to offer the BPC5 in Maryland.

Key Features

• Two Isolated Zones. The BPC5 provides two isolated power output zones so you can separate switch mode supplies from linear supplies and avoid cross contamination between connected electronics.

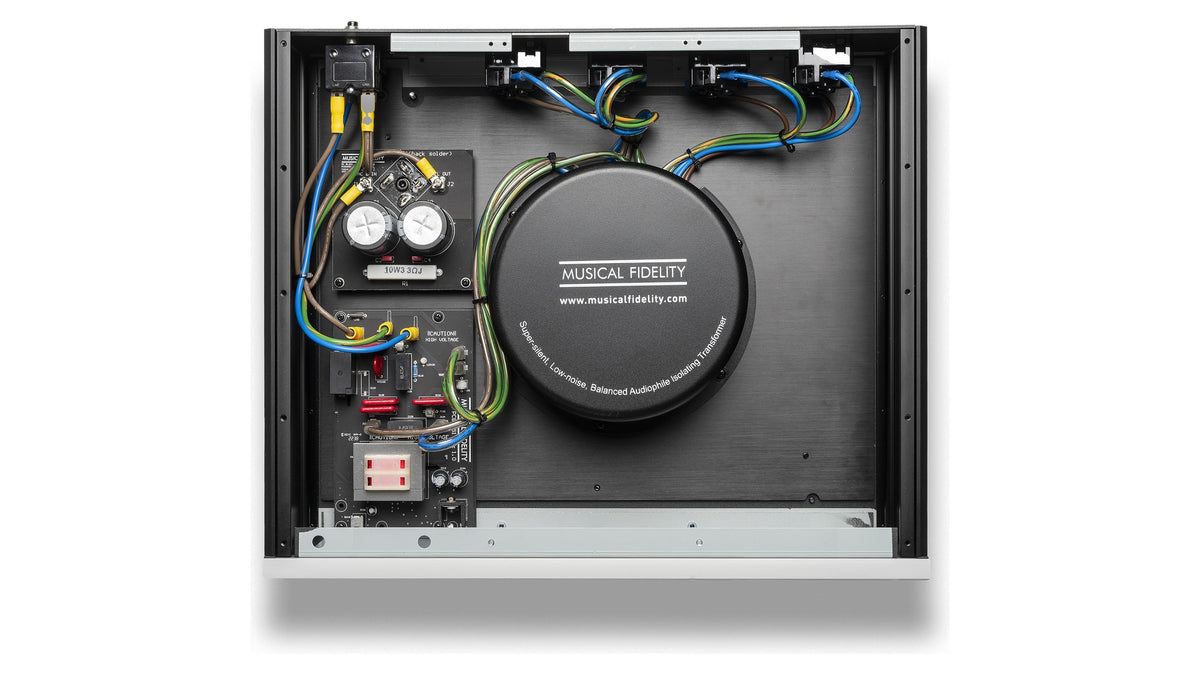

• Toroidal Transformer. A toroidal transformer sits at the core of the design, prized for high efficiency and a magnetic field roughly one tenth that of a comparable EI transformer, which helps deliver cleaner power.
• Strong RFI Attenuation. Radio frequency interference is attenuated greater than 57 dB at 235 kHz and greater than 40 dB at 1 MHz, keeping high frequency noise off your power lines.
• Series Mode Surge Suppression. Rather than shunting surges to ground and raising the ground voltage, the BPC5 uses series mode suppression that absorbs surges above peak line voltage while keeping the ground reference clean.
• Overload Protection. Built in overload protection guards your connected equipment and the conditioner itself against excessive current draw.

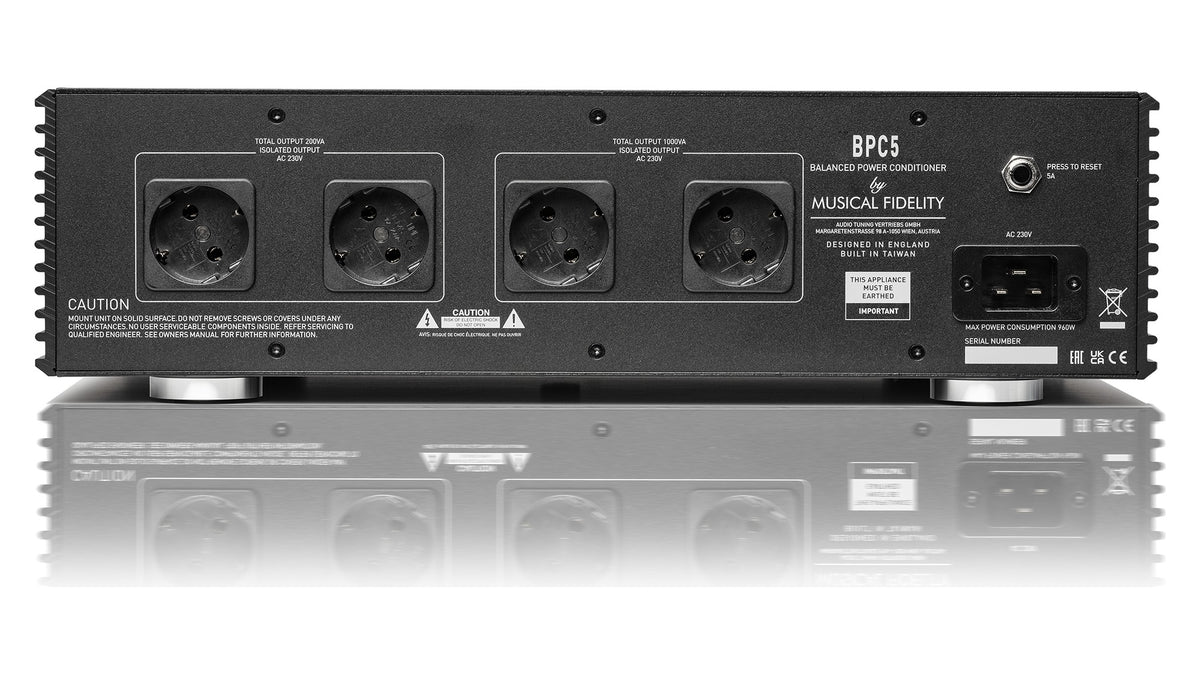

• Four Outlets. Four power outlets provide connection for a full front end plus a power amplifier, and a power strip can extend a zone as long as the zone limit is respected.
• Substantial Build. At 22 kg with a 440 x 110 x 365 mm chassis, the BPC5 is a robust, rack friendly foundation for a high end system.

Musical Fidelity BPC5 vs Musical Fidelity BPC10 (next step up)

The BPC10 expands to six power outlets across three isolated zones in a larger chassis.

Musical Fidelity BPC5 vs Musical Fidelity BPC3 (next step down)

The BPC3 is a more compact option with four outlets across three isolated power output zones.

Frequently Asked Questions

What is the Musical Fidelity BPC5?

The BPC5 is a balanced power conditioner designed to clean and stabilize the power feeding your audio system, using a toroidal transformer and two isolated output zones.

How many outlets does the BPC5 have?

The BPC5 provides four power outlets.

What are the two zones for?

The BPC5 has two isolated power output zones. Musical Fidelity recommends placing devices with switch mode power supplies in one zone and electronics with linear power supplies in the other to avoid cross contamination between them.

What kind of transformer does the BPC5 use?

It uses a toroidal transformer, which offers high efficiency and radiates roughly one tenth of the magnetic field of a comparable EI transformer.

How effective is the RFI filtering?

The BPC5 attenuates radio frequency interference by greater than 57 dB at 235 kHz and greater than 40 dB at 1 MHz.

Does the BPC5 offer surge protection?

Yes. It uses series mode surge suppression that absorbs surges above peak line voltage without dumping excess to ground, which keeps the ground reference clean.

Why is series mode surge suppression different?

Most surge circuits are shunt mode and divert excess voltage to ground, which can raise the ground voltage and contaminate signals. The BPC5 absorbs surges instead, so ground is not affected.

Does the BPC5 have overload protection?

Yes, the BPC5 includes overload protection to guard connected equipment and the conditioner itself.

Can I connect a power amplifier to the BPC5?

Yes. The BPC5 is designed to power sources as well as a power amplifier, provided the amplifier stays within the rated ceiling of its zone.

Can I use a power strip with the BPC5?

Yes. If you need more sockets, a power strip can be connected as long as you do not exceed the maximum output power of that zone.

What plug does the US version include?

US models include 15A US plugs.

How much does the BPC5 weigh?

The BPC5 weighs 22 kg, reflecting its substantial toroidal transformer and chassis.

What are the dimensions of the BPC5?

The BPC5 measures 440 x 110 x 365 mm (W x H x D).

Will the BPC5 fit in an equipment rack?

Its 440 mm width and 110 mm height make it well suited to standard equipment racks and shelving.

What sonic benefits can I expect?

Listeners often report a larger soundstage, clearer bass contours, and better separation of instruments when using a BPC conditioner in the power chain.

Should I put my DAC and amplifier in the same zone?

The recommendation is to group by power supply type. Keep switch mode devices together in one zone and linear supply devices in the other for the best isolation.

Is a power conditioner really worth it?

The power feeding each device contributes to overall sound quality. A conditioner like the BPC5 delivers cleaner, more stable power, which many listeners find meaningfully improves the presentation of their system.
