Musical Fidelity BPC3 Balanced Power Conditioner

Overview

The Musical Fidelity BPC3 is a balanced power conditioner designed to give your digital and analog source components the clean, stable power they deserve. Clean power is one of the most overlooked contributors to sound quality, and the BPC3 addresses it directly with a toroidal transformer at its core and multiple isolated output zones that help keep your electronics working at their best.

With three isolated power output zones and four outlets, the BPC3 lets you separate devices with switch mode supplies from those with linear supplies, reducing differential mode cross contamination between connected electronics. This is an ideal solution for a phono stage, preamplifier, DAC, CD player, or turntable, and it can also feed TV sets and low powered amplifiers.

Series mode surge suppression protects your gear while keeping the power clean, absorbing surges without raising ground voltage. As an authorized Musical Fidelity dealer, All Elite Audio is proud to bring this British engineered conditioner to listeners across Maryland who want a quieter, more composed presentation from their systems.

Key Features

• Three Isolated Zones. The BPC3 splits its output across three isolated power output zones, helping keep devices from contaminating one another and letting you group linear and switch mode supplies separately.
• Balanced Power Design. As a balanced power conditioner, the BPC3 delivers cleaner mains power to your source components for a lower noise floor and improved clarity.

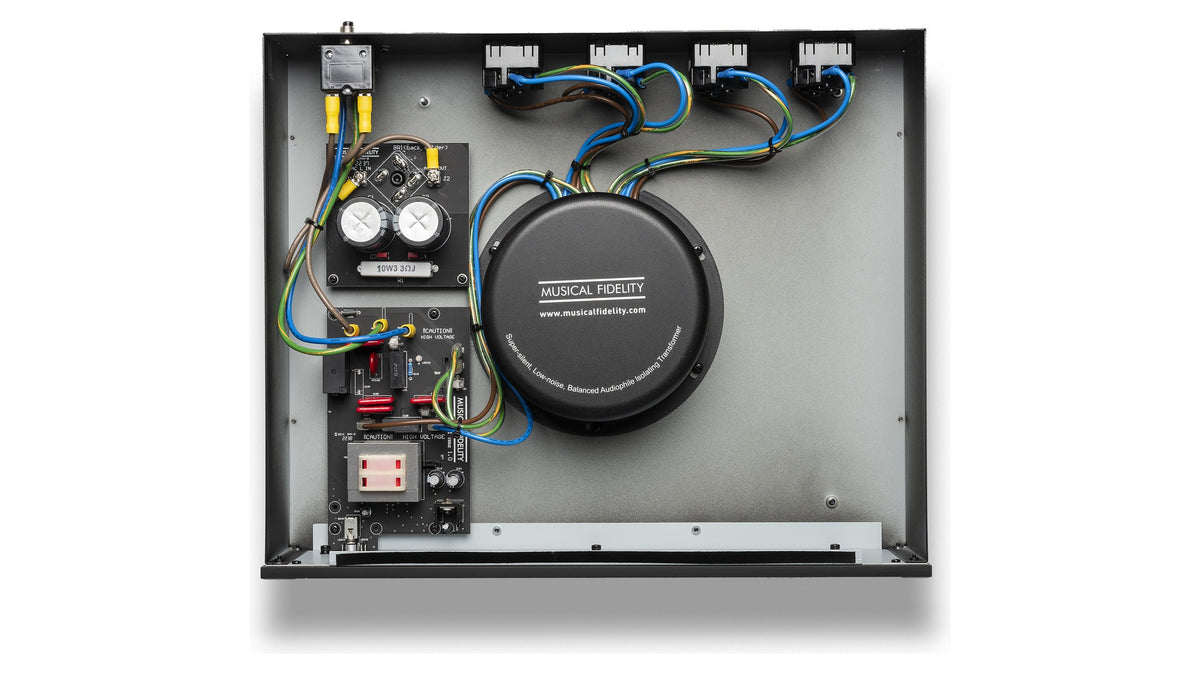

• Toroidal Transformer. A grain oriented silicon steel toroidal transformer sits at the heart of the BPC3, offering high efficiency and radiating far less magnetic field than typical EI transformers.
• Effective RFI Attenuation. The BPC3 provides RFI attenuation greater than 57 dB at 235 kHz and greater than 40 dB at 1 MHz, helping keep high frequency noise out of your signal chain.
• Series Mode Surge Suppression. Innovative series mode surge suppression absorbs excessive voltage without shunting it to ground, so your audio and video signals stay uncontaminated.
• Overload Protection. Built in overload protection guards connected equipment and helps ensure each zone stays within its safe output limits.
• Ideal for Sources and Low Power Amps. Purpose built for phono stages, preamplifiers, DACs, CD players, and turntables, the BPC3 can also power TV sets and low powered amplifiers.

Musical Fidelity BPC3 vs Musical Fidelity BPC5 (next step up)

The BPC5 is a heavier build with the same RFI attenuation across two isolated power output zones.

Frequently Asked Questions

What is the Musical Fidelity BPC3?

The BPC3 is a balanced power conditioner from Musical Fidelity designed to deliver clean, stable power to digital and analog source devices as well as very low powered amplifiers.

How many outlets does the BPC3 have?

The BPC3 provides four power outlets.

How many zones does the BPC3 have?

It features three isolated power output zones, which help prevent cross contamination between connected electronics.

What does the BPC3 do for sound quality?

By supplying cleaner, balanced power, a conditioner like the BPC3 can contribute to a larger soundstage, clearer bass contours, and better separation of instruments.

What kind of components should I connect to the BPC3?

It is ideal for sources such as phono preamplifiers, preamplifiers, CD players, and turntables, and it can also feed TV sets and low powered amplifiers.

Can the BPC3 power a large amplifier?

The BPC3 is intended for source devices and very low powered amps. For higher current amplifiers, a larger conditioner in the BPC range would be more appropriate, so we are happy to advise based on your system.

What is the RFI attenuation of the BPC3?

The BPC3 offers RFI attenuation greater than 57 dB at 235 kHz and greater than 40 dB at 1 MHz.

Why does the BPC3 use a toroidal transformer?

The toroidal transformer offers high efficiency and radiates roughly one tenth of the magnetic field of a typical EI transformer, which helps keep noise out of your system.

How does the surge protection work?

The BPC3 uses series mode surge suppression that absorbs surges more than 2V above peak line voltage without shunting excess to ground, so ground voltage and your signals stay clean.

Does the BPC3 have overload protection?

Yes, the BPC3 includes overload protection to safeguard connected equipment.

Why should I separate linear and switch mode supplies?

Grouping devices with switch mode power supplies in one zone and linear supply devices in another helps avoid differential mode cross contamination for cleaner performance.

Can I connect a power strip to the BPC3?

You can add a power strip to a zone if you need more sockets, as long as you do not exceed the maximum output power of that zone.

What plug type does the US model use?

US models of the BPC3 include 15A US plugs.

What are the dimensions of the BPC3?

The BPC3 measures 445 x 90 x 370 mm (W x H x D).

How much does the BPC3 weigh?

The BPC3 weighs 12 kg.

Is the BPC3 suitable for a turntable setup?

Yes, it is well suited to phono stages and turntables, which are particularly sensitive to mains noise, making the BPC3 a natural fit for analog front ends.

Will the BPC3 help with noise in my system?

The BPC3 is designed to reduce mains borne noise through its balanced design, RFI attenuation, and toroidal transformer with common mode rejection.

Is Musical Fidelity a British brand?

Yes, Musical Fidelity is a British HiFi brand, and All Elite Audio is a new authorized dealer.

Is the BPC3 covered by warranty?

Yes, when purchased from an authorized dealer like All Elite Audio, your BPC3 is covered by the full manufacturer warranty.

Why buy from All Elite Audio?

All Elite Audio is an authorized Musical Fidelity dealer in Maryland, so you receive a genuine, warranty backed BPC3 along with expert guidance on integrating it into your system. We are happy to help you match it to your components for the best results.
