Klipsch LaScala AL6

Klipsch La Scala AL6 – Heritage Horn, Reborn with Power and Precision
The Klipsch La Scala AL6 honors its roots as a 1963 icon while propelling forward with modern upgrades that elevate performance and expand versatility. This sixth-generation model enhances the three-way horn-loaded design with a new midrange compression driver, Tractrix® horn advancements, and the option for active crossover integration. Hand-built in Hope, Arkansas, the La Scala AL6 delivers legendary efficiency and explosively dynamic sound—now with fuller bass and broader dispersion than ever before.

🔹 Three-Way, Horn-Loaded Design for Maximum Efficiency
🔹 1" Titanium Compression Tweeter (K-771) – Mated to a K-792 horn with a patented extended phase plug, this high-frequency driver offers remarkable dispersion and crystalline highs with minimal distortion.

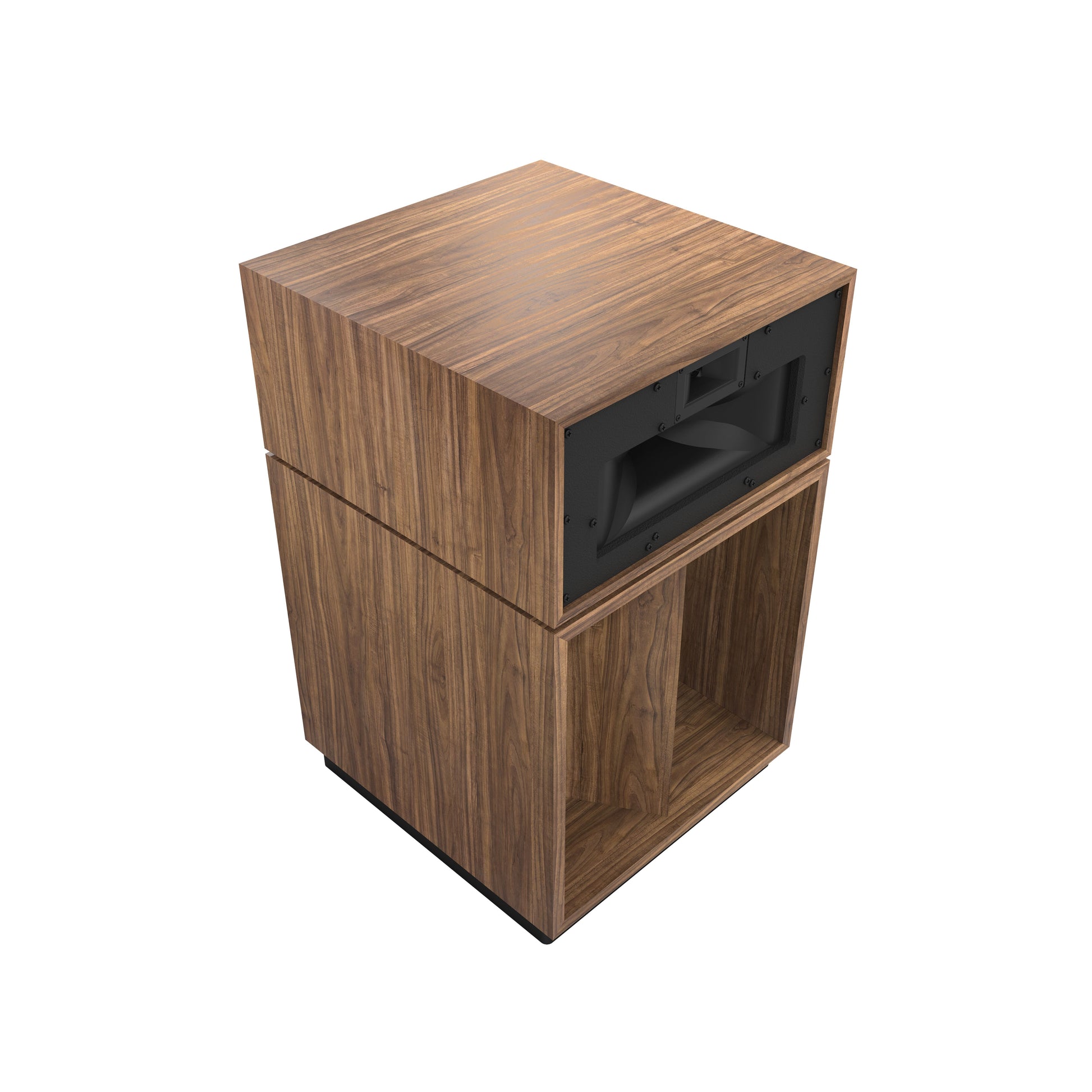

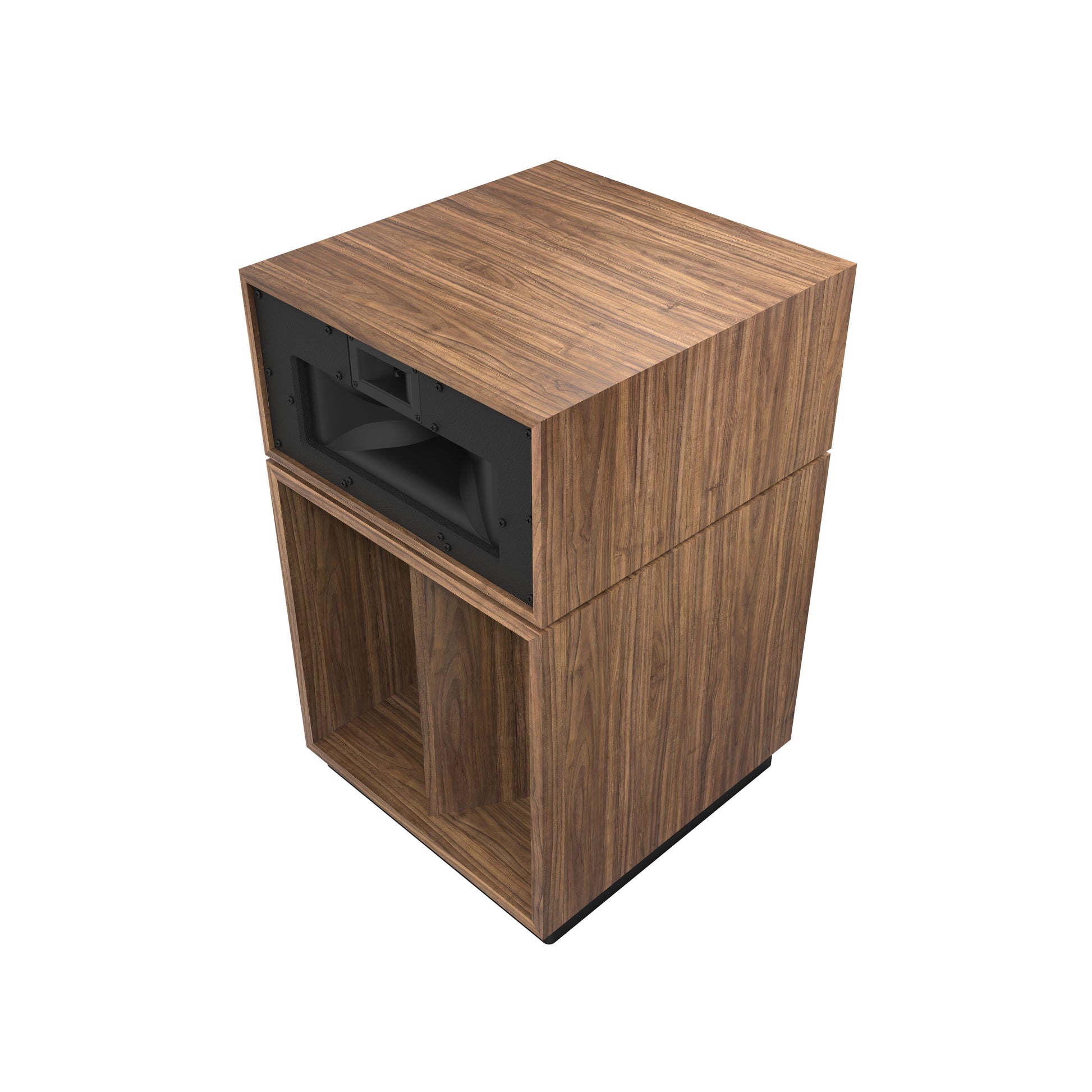

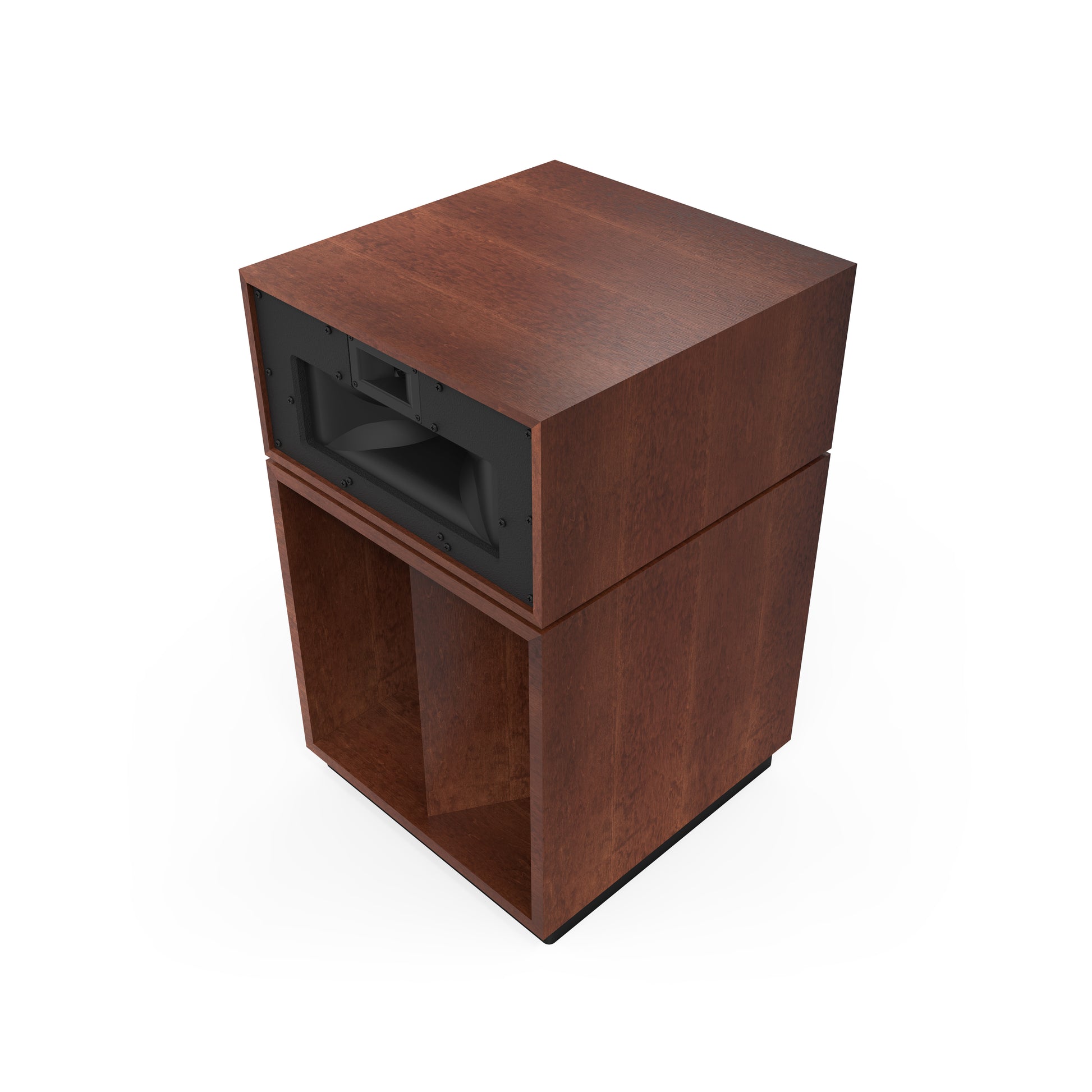

🔹 3" Midrange Compression Driver (K-1133-HP) – Larger than previous La Scala generations, this powerful driver delivers enhanced presence and midband realism. Paired with the K-406M Tractrix® horn and Mumps™ contours, it ensures focused, lifelike performance with room-filling accuracy.

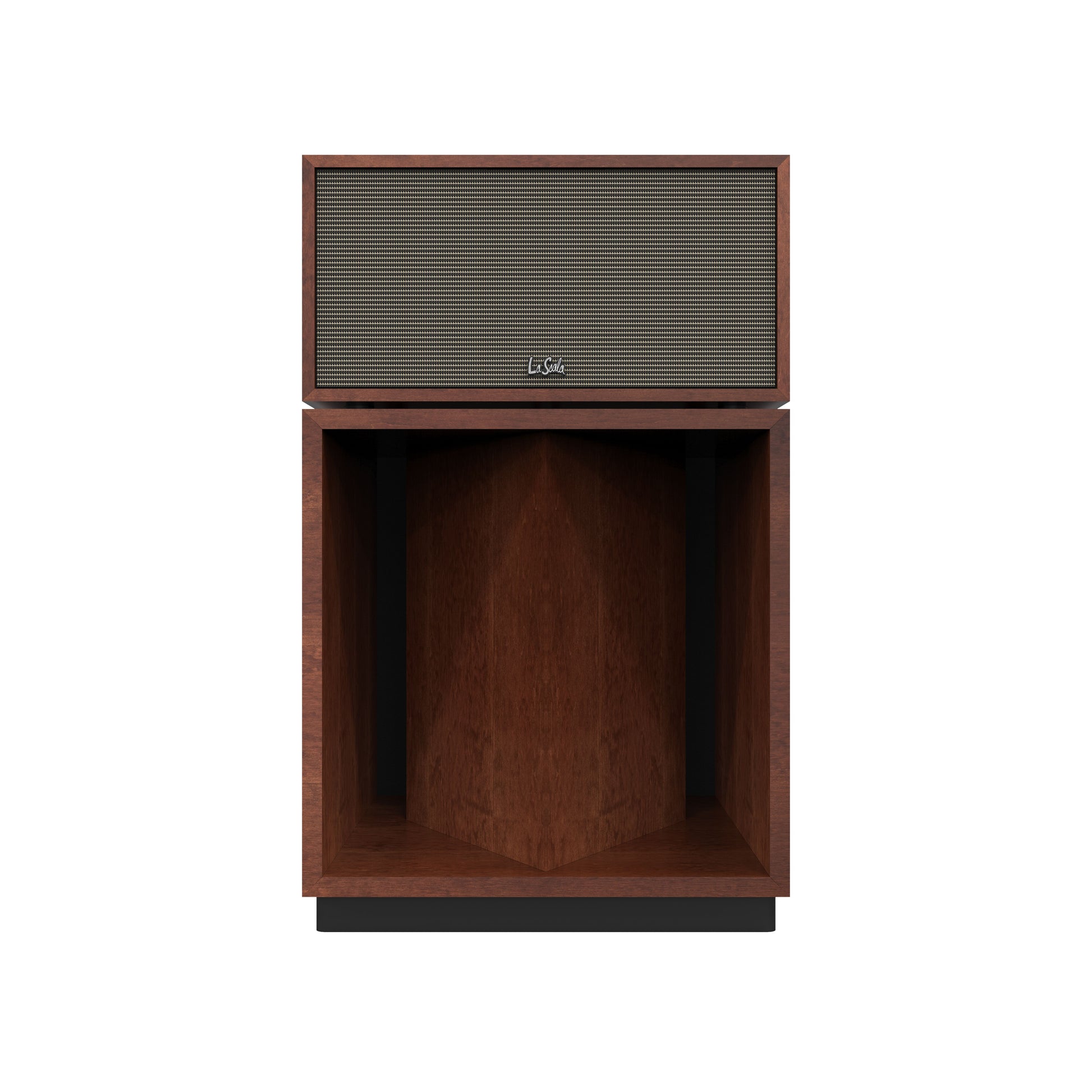

🔹 12" Woofer in Horn-Loaded Vented Cabinet – The K-281 woofer now benefits from a new folded horn and vented system, providing deeper, more robust bass while maintaining the transient response and clarity Klipsch is known for.

🔹 Upgraded Cabinet Engineering and Flexibility
🔹 New Horn-Loaded, Vented Bass Enclosure – Combining the dynamic advantages of horn-loading with the output benefits of a vented design, this updated structure improves low-end performance across room placements.

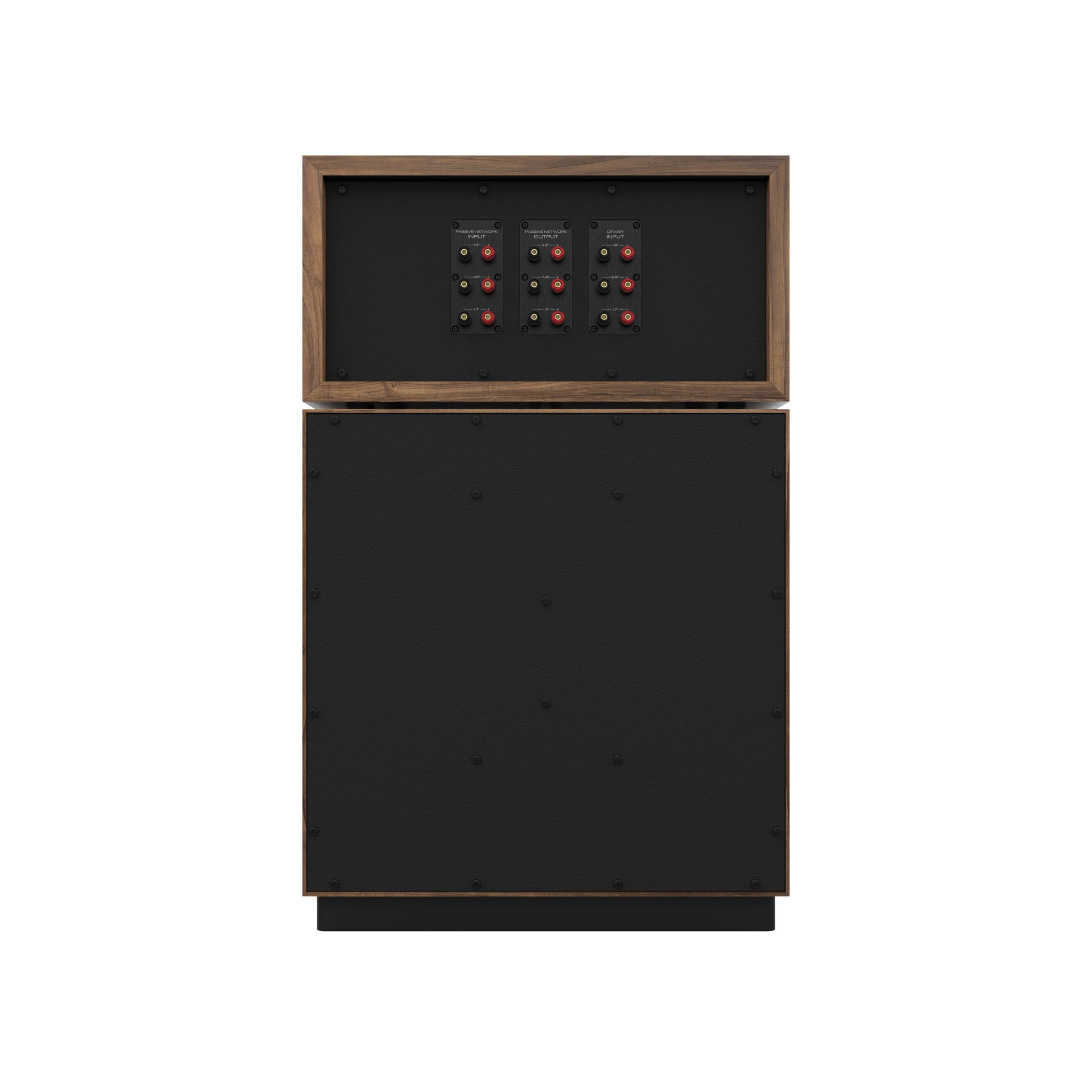

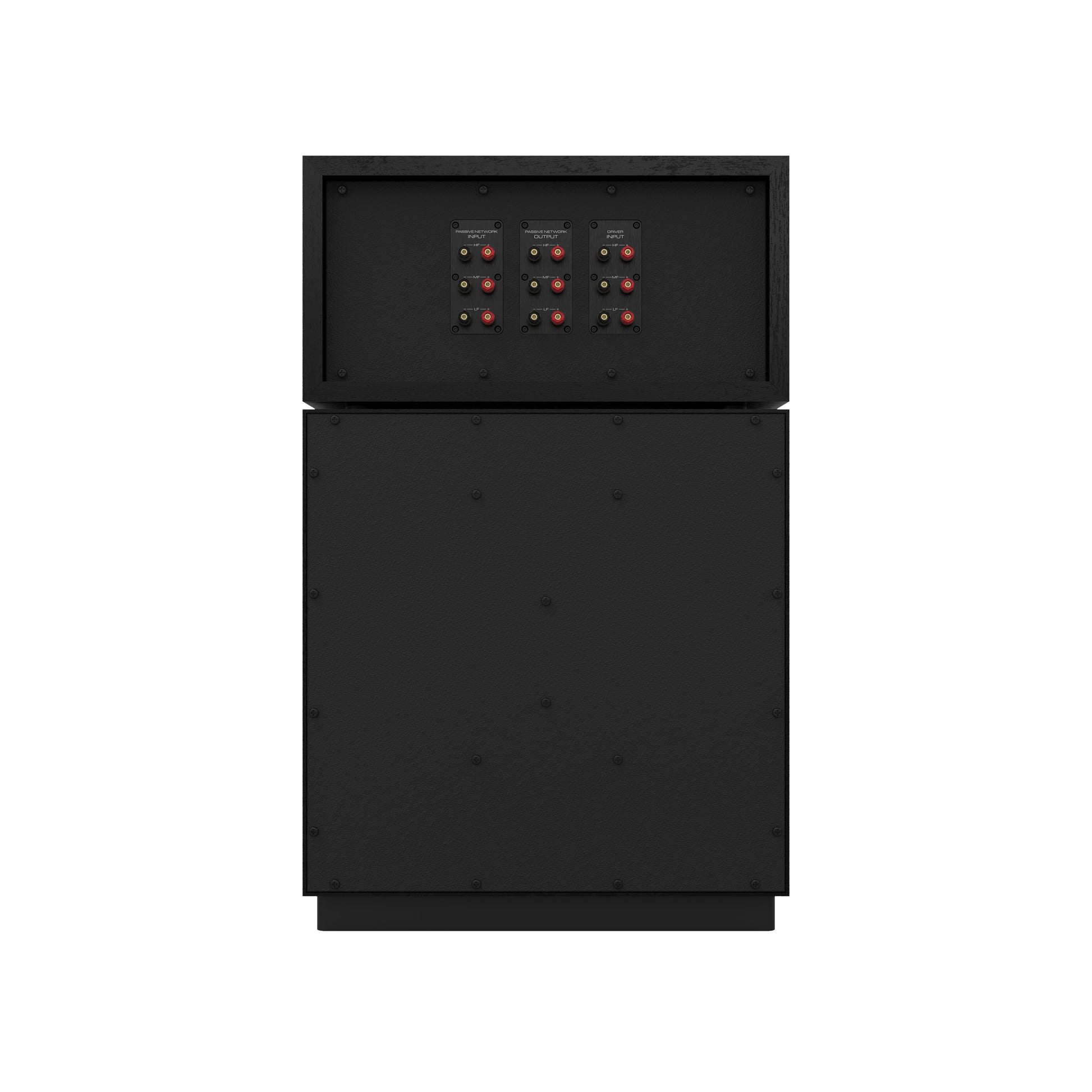

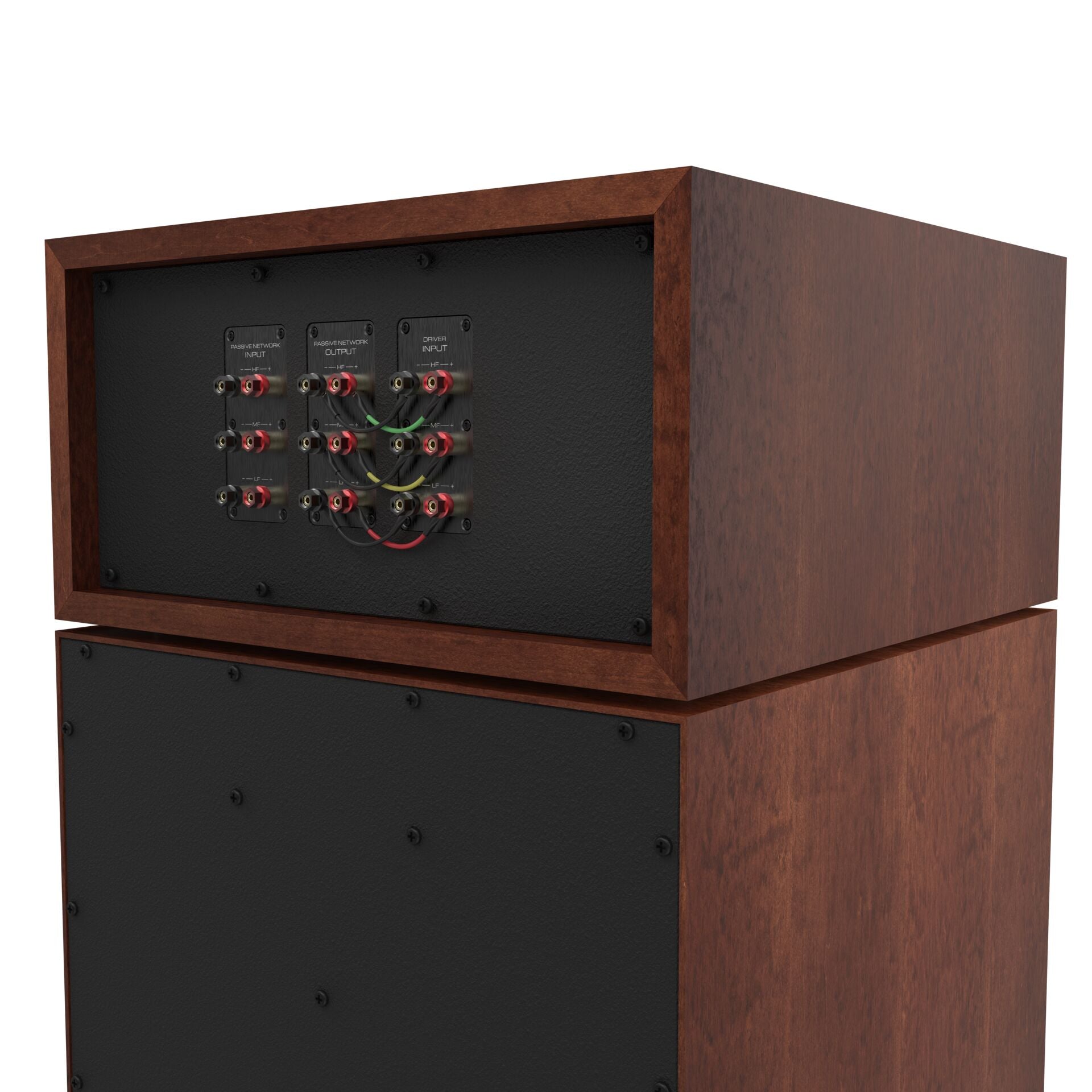

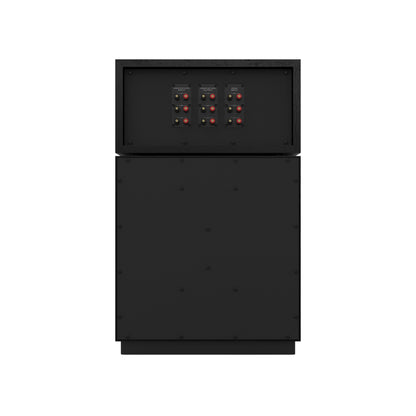

🔹 Redesigned I/O Panel – Accommodates both active and passive configurations, with clear access to dual binding posts and a cleaner layout relocated to the rear of the cabinet.

🔹 Optional Heritage Active Crossover – For those seeking digital precision, the optional Heritage DSP Crossover (inspired by the Klipsch Jubilee) allows for time and phase alignment, EQ refinement, and tonal balance customization.

🔹 Craftsmanship Rooted in American Tradition

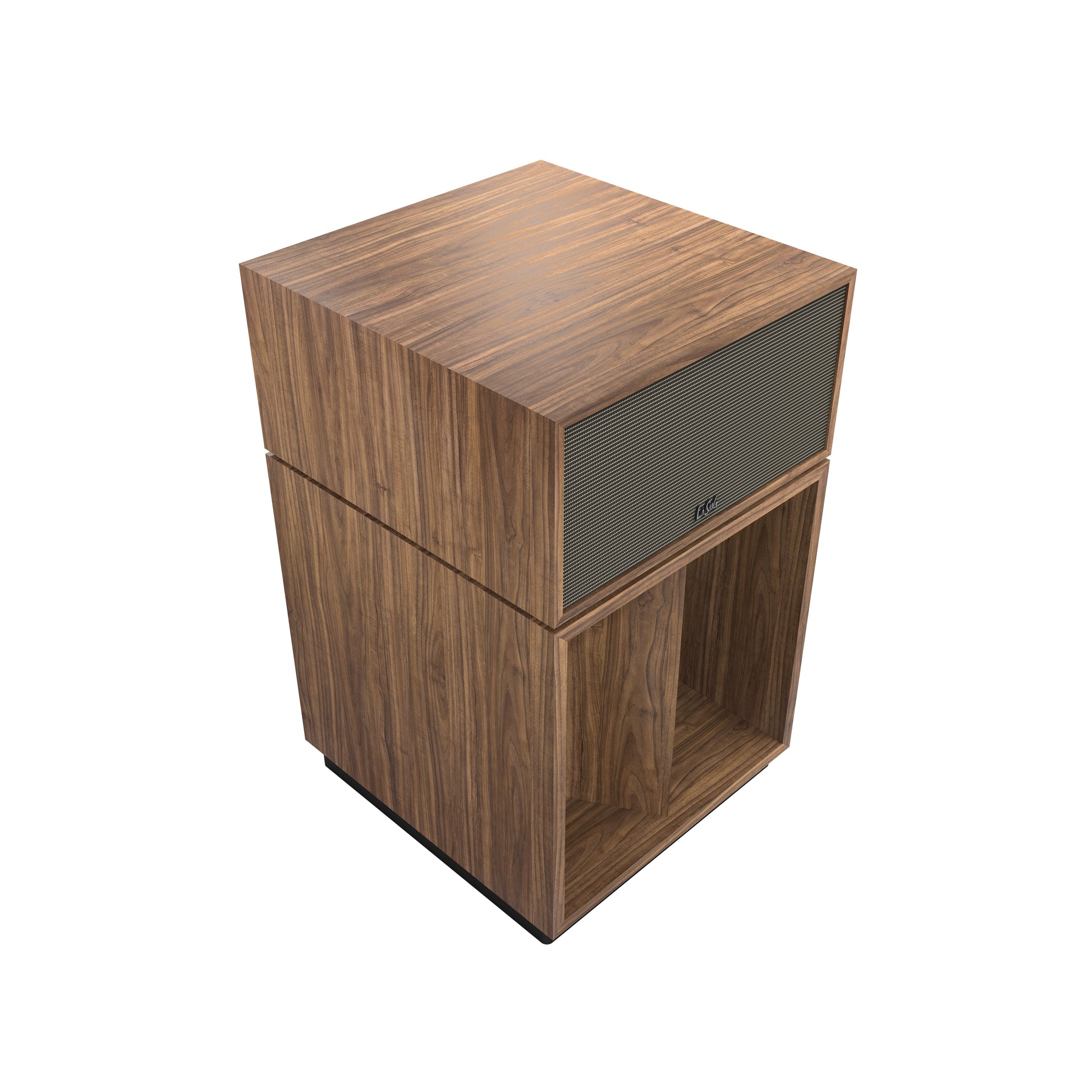

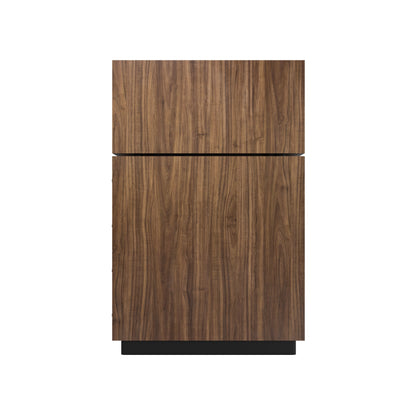

🔹 Book-Matched Veneers – Each pair is crafted from the same timber, arranged in a mirror-image configuration for stunning visual symmetry.

🔹 Matched Serial Numbers – Ensures every pair of La Scalas leaves the factory as a unified, aesthetically and acoustically aligned set.

🔹 Built to Last – Constructed with thick veneered MDF and engineered with premium adhesives and fasteners for generational durability.

🔹 Technical Specifications – Passive Network
Design: 3-Way, Fully Horn-Loaded Loudspeaker
Tweeter: 1" K-771 Titanium Compression Driver with K-792 Horn
Midrange: 3" K-1133-HP Compression Driver with K-406M Tractrix® Horn + Mumps
Woofer: 12" K-281 Fiber-Composite Cone in Horn-Loaded Vented System
Frequency Response: 40Hz – 19kHz (±4 dB)
Sensitivity: 103 dB @ 2.83V / 1m
Power Handling: 100W Continuous / 400W Peak
Maximum SPL: 120 dB
Nominal Impedance: 8 Ohms (3.2 Ohm Minimum at 70Hz)
Crossover Frequencies: 425Hz / 2900Hz
Inputs: Dual Binding Posts (Bi-amp/Bi-wire Capable)
Cabinet Finish: Book-Matched Real Wood Veneer
Enclosure Material: Veneered MDF
Dimensions (W x H x D): 24.5" × 39.125" × 25.5"
Weight: 205 lbs. (Each)
Grille Cloth: Silver Metallic
Warranty: 10 Years

The La Scala AL6 remains one of the most efficient and expressive loudspeakers ever made. Whether you drive it with low-wattage tube gear or a full-blown solid-state powerhouse, its effortless dynamics, horn-loaded clarity, and bold presence make it a cornerstone for serious two-channel and home theater setups. A legend, refined.
