Accuphase DAC-60 Digital Input Board
Accuphase DAC-60 Digital Input Board
Accuphase DAC-60 Digital Input Board
High-performance digital input upgrade module for compatible Accuphase amplifiers and preamplifiers, enabling superior digital-to-analog conversion from multiple modern sources.
The Accuphase DAC-60 Digital Input Board adds premium digital connectivity to select Accuphase integrated amplifiers and control preamplifiers. Using advanced dual ESS ES9016K2M converters in a parallel “2MDS+” (Multiple Delta Sigma) configuration, the DAC-60 achieves exceptional linearity, ultra-low distortion, and true high-resolution performance.
With support for PCM up to 384 kHz / 32-bit and native DSD at 2.8224, 5.6448, and 11.2896 MHz, the Accuphase DAC-60 ensures full compatibility with today’s highest-resolution digital sources. Its USB, coaxial, and optical inputs make it ideal for integrating streamers, computers, CD transports, or other digital components into your Accuphase system.
Automatic input selection simplifies operation, prioritizing coaxial, then optical, and finally USB input when multiple devices are connected. The result is a seamless digital listening experience that preserves Accuphase’s signature musicality and precision.

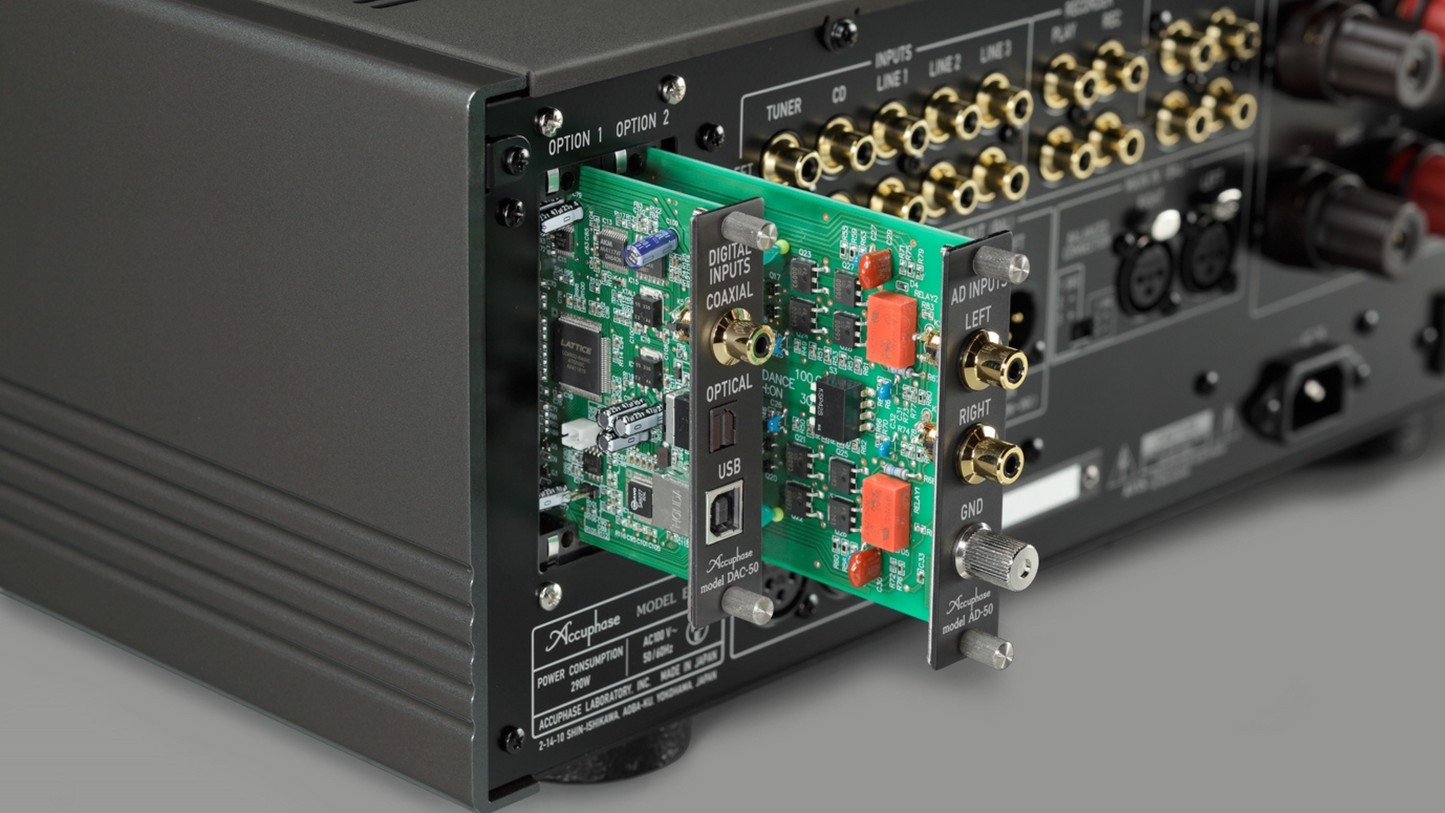

Installation is simple for any compatible Accuphase model equipped with expansion slots, and when installed, the DAC-60 functions as a factory-level upgrade, perfectly matched to the amplifier’s analog stages.
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team. All Elite Audio is an authorized Maryland dealer with a full home audio showroom.
Key Specifications
• Digital Inputs: USB (Type B), Optical, Coaxial
• USB Input: PCM 32 kHz–384 kHz / 32-bit; DSD 2.8224 / 5.6448 / 11.2896 MHz (ASIO)
• Optical Input: PCM 32 kHz–96 kHz / 24-bit
• Coaxial Input: PCM 32 kHz–192 kHz / 24-bit
• DAC Architecture: 2MDS+ system using dual ESS ES9016K2M converters
• Automatic Input Switching: Yes (Coaxial → Optical → USB)
• Compatible Models: Accuphase amplifiers and preamplifiers with option board slots (e.g., E-480, E-600, C-2120, and similar)
• Installation: Dealer or user-installable option board
• Power Supply: Draws power from host unit
• In Stock
Top 20 Questions About the Accuphase DAC-60 Digital Input Board
What is the Accuphase DAC-60 Digital Input Board?
The Accuphase DAC-60 is an optional internal board that adds digital input functionality to compatible Accuphase amplifiers and preamplifiers.
Which Accuphase models are compatible with the DAC-60?
It works with Accuphase units equipped with digital option board slots, including select integrated amplifiers and control preamps.
What type of DAC chip does the DAC-60 use?
The board features two ESS ES9016K2M DAC chips operating in parallel under Accuphase’s proprietary 2MDS+ design.
What digital formats does the DAC-60 support?
It supports PCM up to 384 kHz / 32-bit and native DSD at 2.8224, 5.6448, and 11.2896 MHz.
What inputs are available on the DAC-60?
The DAC-60 provides USB (Type B), optical, and coaxial digital inputs.
Does the DAC-60 automatically switch inputs?
Yes. It automatically prioritizes coaxial first, optical second, and USB third when multiple connections are active.
Is the USB input asynchronous?
It supports high-speed USB 2.0 transfer with high-resolution audio, ensuring minimal jitter and superior performance.
Can the DAC-60 decode DSD files?
Yes. The DAC-60 handles native DSD playback up to 11.2896 MHz (ASIO mode).
Does the DAC-60 improve sound quality over external DACs?
It often provides superior integration and lower noise since it’s powered and shielded inside the Accuphase chassis.
How is the DAC-60 installed?
It fits into an internal expansion slot on compatible Accuphase units and can be installed by the user or dealer.
Does it require additional power?
No. The DAC-60 draws power directly from the host amplifier or preamp.
Will the host display sample rate information?
Many compatible Accuphase models show the active sample rate on the display when the DAC-60 is installed.
Can it be used as a standalone DAC?
No. The DAC-60 is an internal board designed only for Accuphase models with expansion capability.
Does the DAC-60 work with computers?
Yes. The USB input allows direct connection to computers for playback of high-resolution files.
What sampling rates are supported via optical input?
The optical input supports up to 96 kHz / 24-bit PCM signals.
What is the difference between the DAC-50 and DAC-60?
The DAC-60 uses newer ESS DAC chips and supports higher-resolution PCM and DSD playback.
Can multiple DAC boards be installed in one amplifier?
Typically, only one DAC board can be used at a time per unit.
Does the DAC-60 support MQA or network streaming?
No. It handles digital audio input only via physical connections (USB, coaxial, optical).
What is the warranty on the Accuphase DAC-60?
The DAC-60 carries the standard Accuphase manufacturer’s warranty when purchased from an authorized dealer.
How can I get help installing or configuring the DAC-60?
For assistance or product questions, call 443-402-5055 or text 443-402-5064 to reach our team at All Elite Audio, your authorized Maryland dealer with a full home audio showroom.
