Wharfedale NOVA 12

Overview

The Wharfedale NOVA 12 is a powered subwoofer engineered to disappear into your system. Rather than announcing itself, it fills in the lowest octaves with controlled, natural bass that starts and stops with the music, following the leading edge of each note and then getting out of the way. The result is weight and scale that feels like it belongs to your main speakers rather than a separate box in the room.

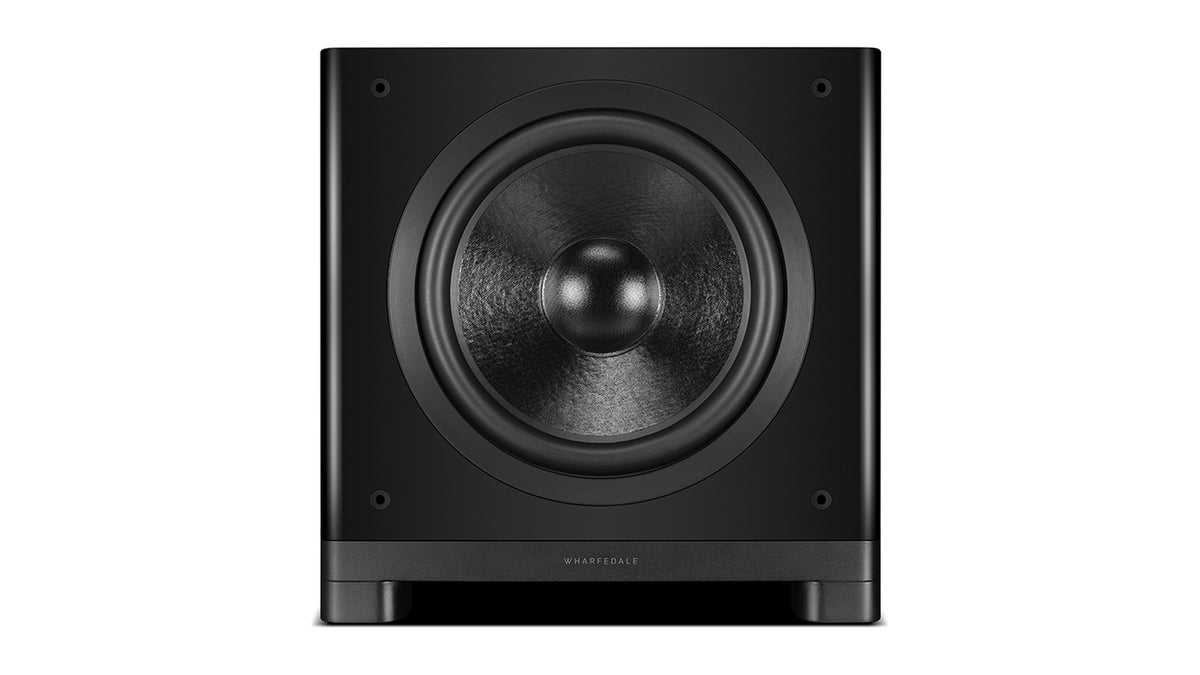

At its heart is a 300mm (12 inch) long-throw cone paired with a down-firing 300mm ABR (Auxiliary Bass Radiator). This ABR loading avoids the chuffing and port noise that can plague vented designs, extending output cleanly to 28Hz (-6dB) while keeping the cabinet compact. A Class-D amplifier rated at 280W nominal and 770W peak supplies the headroom, with a maximum SPL of 110dB at 40Hz.

Flexible integration controls and dedicated Music and Movie EQ presets make the NOVA 12 equally at home with a two-channel rig or a home cinema. Housed in a discreet matte black cabinet, it settles into a room visually as well as sonically, and it is backed by a 5 year parts and labor warranty through Wharfedale USA.

Key Features

• 300mm long-throw driver. A 12 inch cone with extended excursion moves the air needed for deep, effortless bass down to 28Hz (-6dB) without strain.
• Aluminium demodulation ring. Positioned in the motor system to stabilize the magnetic field, it tightens timing and lowers distortion so bass notes stop cleanly.
• Down-firing Auxiliary Bass Radiator. A 300mm SPL paper-cone ABR loads the driver for low-end extension without the port noise of a vented design.
• High-current Class-D amplifier. Rated 280W nominal and 770W peak, it delivers up to 110dB at 40Hz with headroom to spare on dynamic peaks.
• 3-stage DSP limiting. Thermal, excursion, and peak protection work together to keep the driver and amplifier safe while preserving clean output at high levels.
• Dynamic EQ. Fletcher-Munson based compensation boosts low bass at lower listening volumes so the balance stays full at any level.
• Music and Movie EQ presets. Two voicings let you switch between tight, tuneful bass for music and deeper, more impactful low end for film.
• Full integration controls. An adjustable crossover from 40Hz to 160Hz, phase control, plus both high-level (speaker-level binding posts) and low-level (RCA) inputs make blending with any system straightforward.

How It Compares

Wharfedale NOVA 12 vs NOVA 10

Both share the NOVA design language, ABR loading, and DSP feature set, but the NOVA 12 steps up to a 300mm (12 inch) driver where the NOVA 10 uses a smaller cone. The NOVA 12 moves more air for greater output and scale in medium to large rooms, while the NOVA 10 is a natural fit for smaller spaces or where cabinet size is a priority.

Wharfedale NOVA 12 vs NOVA 15

The NOVA 15 is the largest of the range, with a 15 inch driver built for the deepest reach and highest output in big rooms and dedicated cinema spaces. The NOVA 12 offers a more room-friendly footprint while still extending to 28Hz (-6dB) and hitting 110dB at 40Hz, making it the balanced choice for typical living rooms and mixed music and movie use.

Wharfedale NOVA 12 vs REL Classic 98

The REL Classic 98 favors a high-level connection and a musical, vintage-styled presentation that many two-channel listeners enjoy. The NOVA 12 offers both high-level and low-level inputs, an adjustable crossover from 40Hz to 160Hz, and dedicated Music and Movie EQ presets, giving it broader flexibility across music and cinema in a discreet matte black cabinet.

Recommended Speakers

The NOVA 12 is designed to complement your main speakers, taking over the lowest octaves so the mains can be high-passed and run cleaner. It pairs especially well with these Wharfedale models we carry, along with a few excellent alternatives.

• Wharfedale Aura 4 A natural tonal match from the same family; the NOVA 12 adds authority and scale for larger rooms while keeping the Aura voicing intact.
• Wharfedale Elysian 3R A refined floorstander that benefits from offloading its deepest bass, letting the NOVA 12 handle the bottom end for tighter, cleaner midbass.
• Wharfedale Dovedale A large standmount that gains true full-range reach when the NOVA 12 fills in below its natural roll-off, ideal for medium rooms.
• Wharfedale Aston A compact bookshelf that transforms into a full-scale system once the NOVA 12 handles the lows, high-passed for effortless output.
• Klipsch Heresy IV Heritage A high-efficiency design that rolls off in the low bass; the NOVA 12 extends it down to 28Hz for complete coverage.

Frequently Asked Questions

How do I set the crossover on the NOVA 12?

Set the crossover to roughly where your main speakers begin to roll off. The NOVA 12 offers an adjustable range from 40Hz to 160Hz, so smaller bookshelf speakers may crossover higher (around 80Hz to 120Hz) and larger floorstanders lower (around 40Hz to 60Hz). Adjust by ear until the transition sounds seamless.

What does the phase control do and how should I set it?

Phase aligns the subwoofer output in time with your main speakers at the crossover region. Play music with steady bass and try both phase settings, choosing the one that gives the fullest, most even bass at your listening seat.

Should I use the Music or Movie EQ preset?

Use the Music preset for tight, tuneful bass that emphasizes accuracy, and the Movie preset for deeper, more impactful low end with cinema. You can switch depending on what you are listening to or watching.

What is an ABR and how is it different from a port?

An ABR is an Auxiliary Bass Radiator, a passive cone that is tuned to reinforce low frequencies. Unlike a vented port, it does not produce chuffing or air noise at high output, so the NOVA 12 can extend deep bass cleanly.

Can I use two NOVA 12 subwoofers together?

Yes. Running dual subs can smooth out room modes and provide more even bass across multiple seats. Each sub has its own controls, so set the crossover, phase, and level consistently and position them for the flattest response.

My bass sounds boomy. How do I fix it?

Boom is usually a room interaction. Try moving the sub away from corners and walls, reduce the level slightly, and experiment with the phase control. The Dynamic EQ and preset choice can also help balance the response.

Should I use the high-level or RCA inputs?

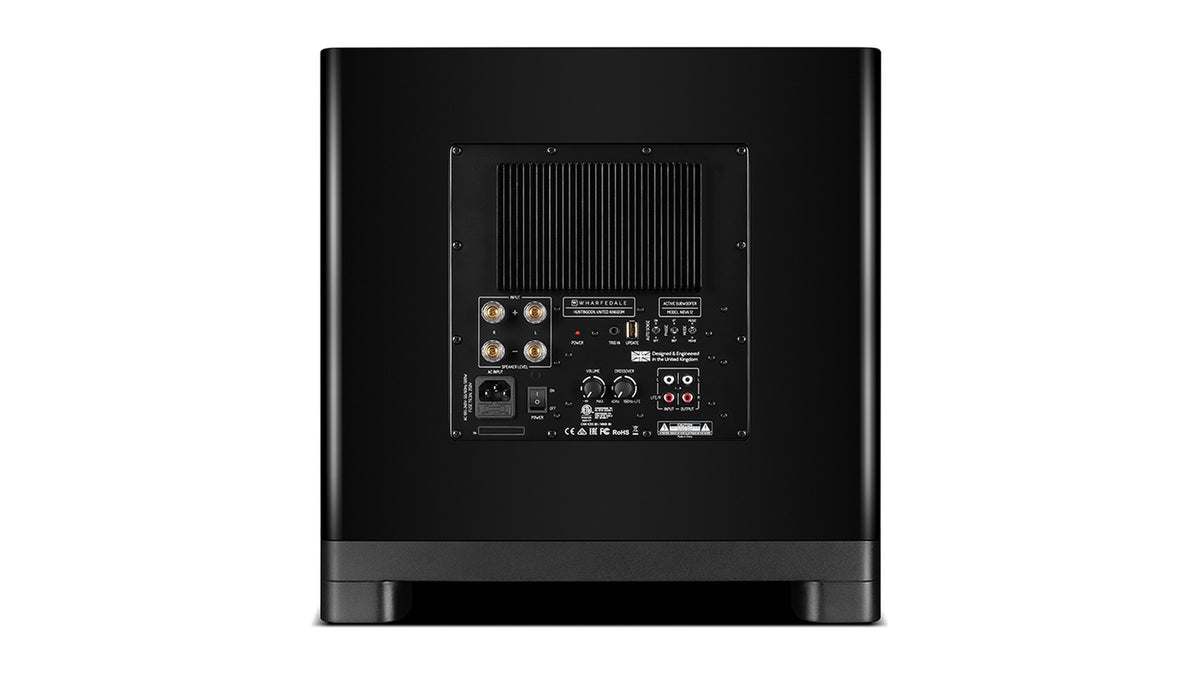

The NOVA 12 supports both. Low-level RCA is convenient when your receiver or preamp has a subwoofer or line output, while high-level (speaker-level) binding posts connect from your amplifier outputs and can preserve the tonal signature of your main amp. Either works well; choose what fits your system.

Does the NOVA 12 have an LFE input?

Yes. The right channel of the stereo line-level RCA input supports LFE, so you can connect it to the subwoofer output of an AV receiver or processor for home cinema.

What is the low-level output for?

The stereo line-level RCA output lets you daisy-chain to a second subwoofer or pass the signal through for other purposes, useful in multi-sub setups.

How deep does the NOVA 12 go?

It extends to 28Hz at the -6dB point and can reach a maximum SPL of 110dB at 40Hz, giving it deep, powerful output for both music and film.

How much power does the amplifier have?

The Class-D amplifier is rated at 280W nominal and 770W peak, providing ample headroom for dynamic bass transients.

What does the 3-stage DSP limiting do?

It protects the subwoofer with thermal, excursion, and peak limiting stages working together. This keeps the driver and amplifier safe at high output while maintaining clean, controlled bass.

What is Dynamic EQ?

Dynamic EQ applies Fletcher-Munson based compensation, boosting low bass at lower listening levels. This keeps the bass balance full and satisfying even when you are not playing loud.

Which NOVA model is right for my room?

The NOVA 12 suits typical medium to large living rooms and mixed music and movie use. For smaller rooms consider the NOVA 10, and for large or dedicated cinema spaces the NOVA 15 offers greater output and reach.

Can I use the NOVA 12 with a two-channel music system?

Absolutely. With high-level inputs, an adjustable crossover, phase control, and a Music EQ preset, it integrates cleanly with a stereo setup to add extension without drawing attention to itself.

Does it have a trigger or standby feature?

Yes. It includes a 12V trigger for automatic switching with a compatible system, and it draws under 0.5W in standby for low idle consumption.

Can I update the firmware?

Yes. The NOVA 12 has a USB connection for firmware updates.

What finish is available and how does it look in a room?

The NOVA 12 comes in a matte black finish. The discreet, low-sheen cabinet blends into most rooms and keeps the subwoofer visually understated.

What warranty comes with the NOVA 12?

It is covered by a 5 year parts and labor warranty through Wharfedale USA when purchased from an authorized dealer like All Elite Audio.
