Wharfedale EVO5.C Center Channel Speaker
Wharfedale EVO5.C Center Channel Speaker
Specs
| Speaker Type | 2-way center channel |
| Enclosure Type | Bass reflex with tri-directional SLPP port |
| Bass Drivers | 2 x 5 inch (130 mm) black woven Kevlar cones |
| Treble Driver | 35 x 70 mm AMT (Air Motion Transformer) |
| Frequency Response (+/-3 dB) | 56 Hz to 24 kHz |
| Bass Extension (-6 dB) | 49 Hz |
| Crossover Frequency | 2.3 kHz |
| Sensitivity (2.83 V @ 1 m) | 89 dB |
| Nominal Impedance | 4 ohms compatible |
| Minimum Impedance | 4.1 ohms |
| Recommended Amplifier Power | 25 to 120 W |
| Peak SPL | 103 dB |
| Cabinet | Stiffer multi-layer real-wood cabinet with precision spot bracing |
| Dimensions (H x W x D) | 7.4 in x 20.5 in x 12.0 in |
| Net Weight | 27.6 lbs each |
| Sold | Each |
Warranty
In the USA, Wharfedale provides a 5 year parts and labor warranty on the EVO5.C for the original purchaser. Distributed by MoFi Distribution and sold as an authorized dealer by All Elite Audio. Register your speakers to activate coverage and contact us with any questions.
What's in the Box
- Wharfedale EVO5.C center channel speaker (single)
- Grille
- Rubber feet
- Owner's manual and documentation
Overview

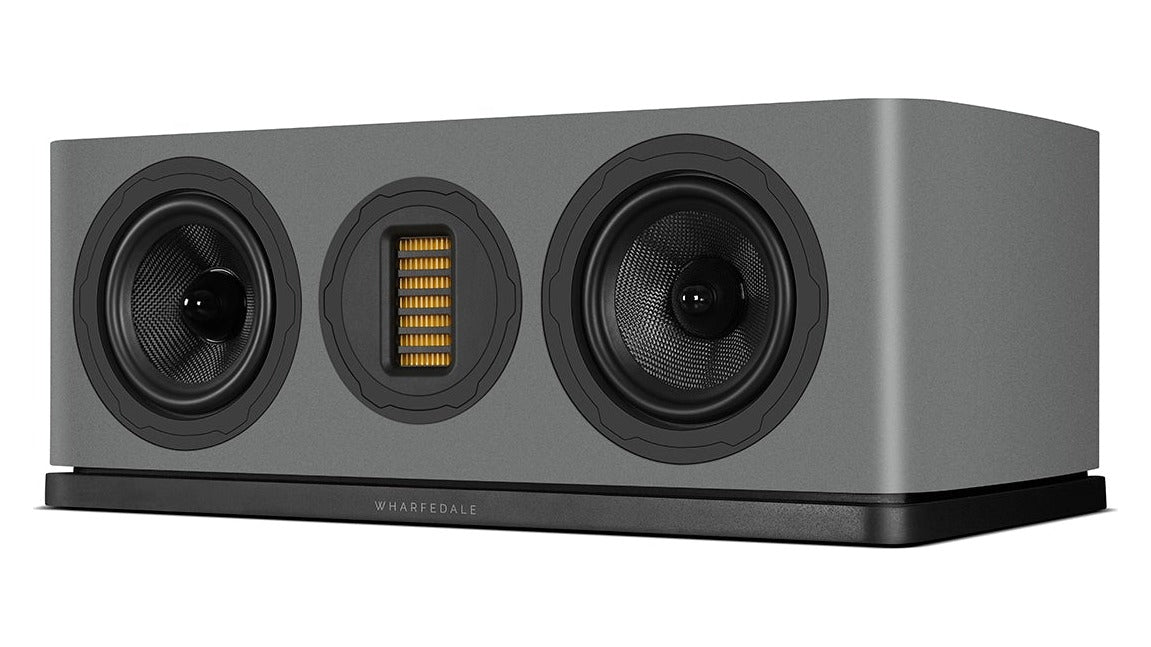

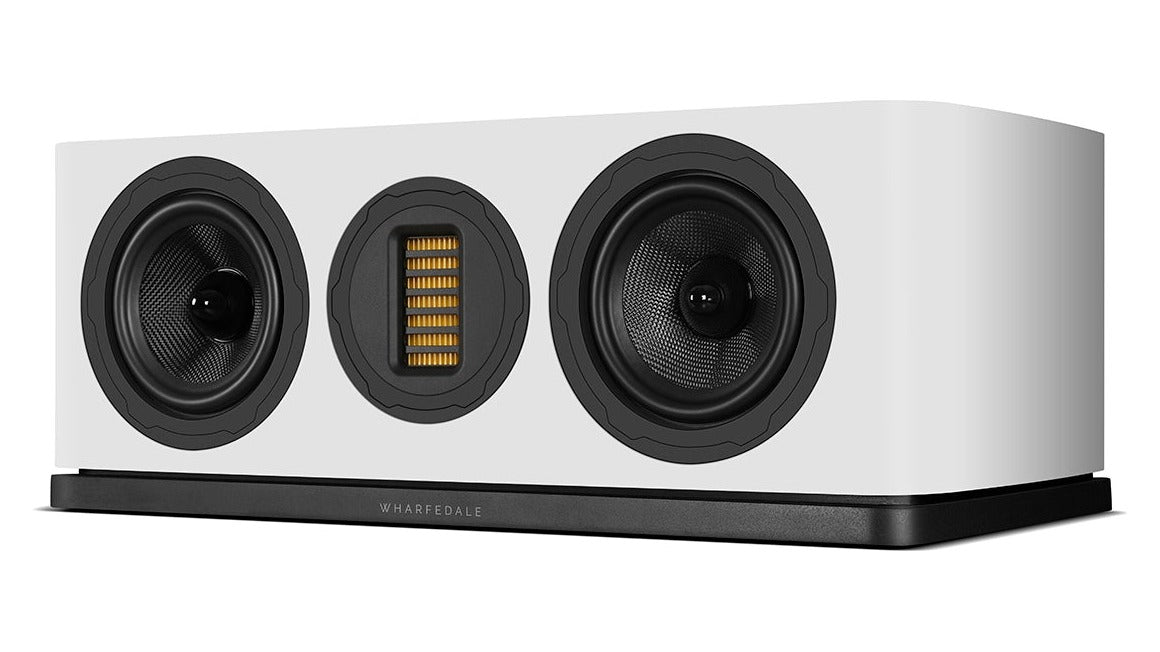

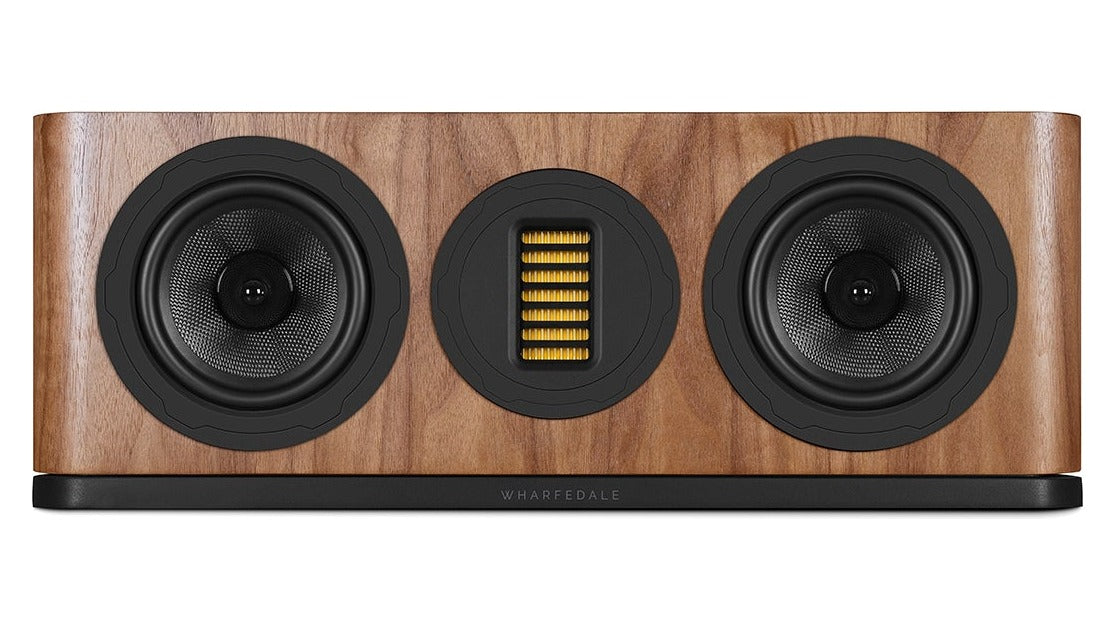

The Wharfedale EVO5.C is the dedicated center channel of the EVO 5 series, engineered to anchor dialogue and vocals in a home cinema system with the natural, musical British character Wharfedale is known for. Two 5 inch woven Kevlar cones flank the signature AMT tweeter in a low-profile cabinet that slides neatly into AV furniture while keeping the on-screen action clear and intelligible.
Developed alongside Wharfedale's flagship Elysian series, the EVO 5 range introduces targeted upgrades including a larger Air Motion Transformer tweeter, a tri-directional SLPP bass port, Kevlar woofers with elastomer damping, and a stiffer multi-layer real-wood cabinet with precision spot bracing. The result is faster transients, wider dispersion, and ultra-low coloration.

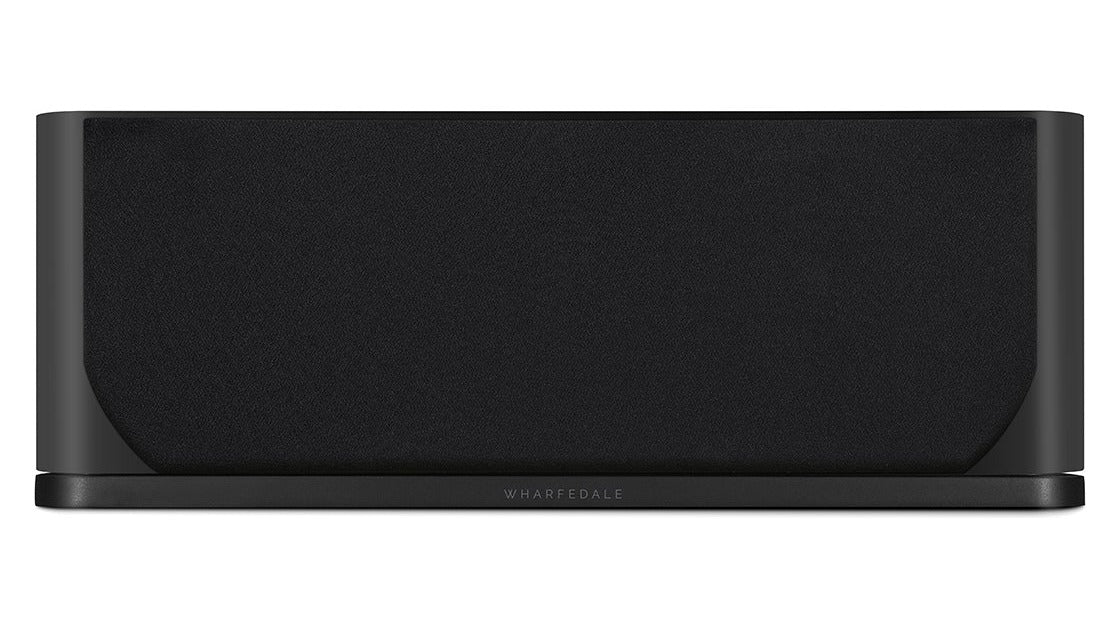

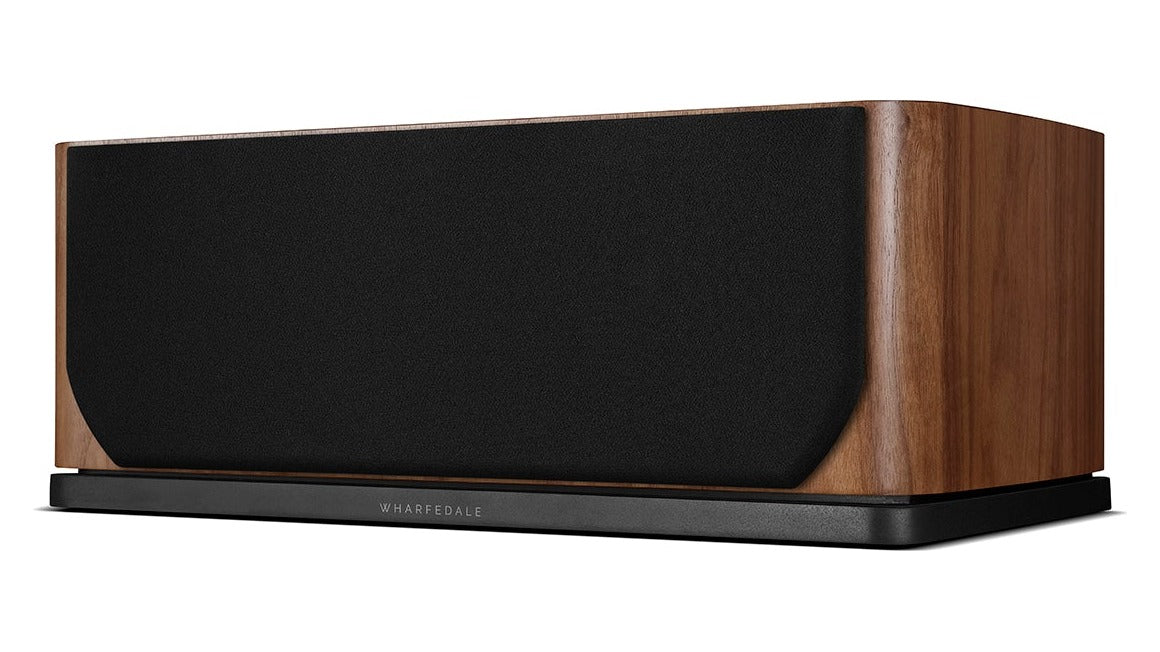

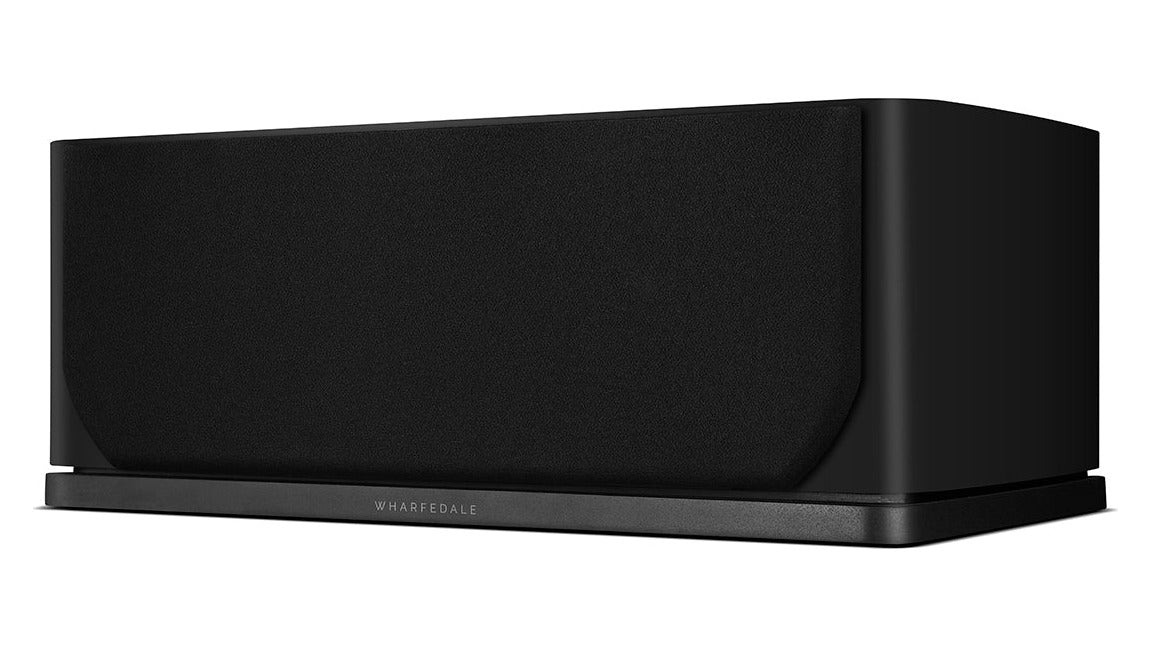

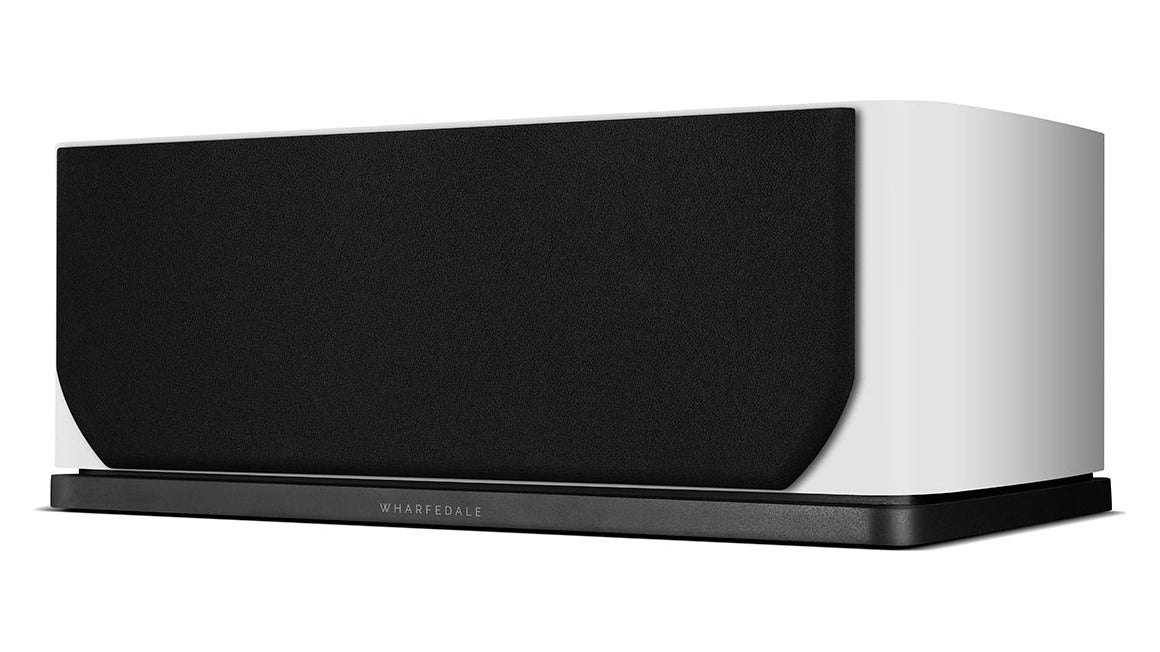

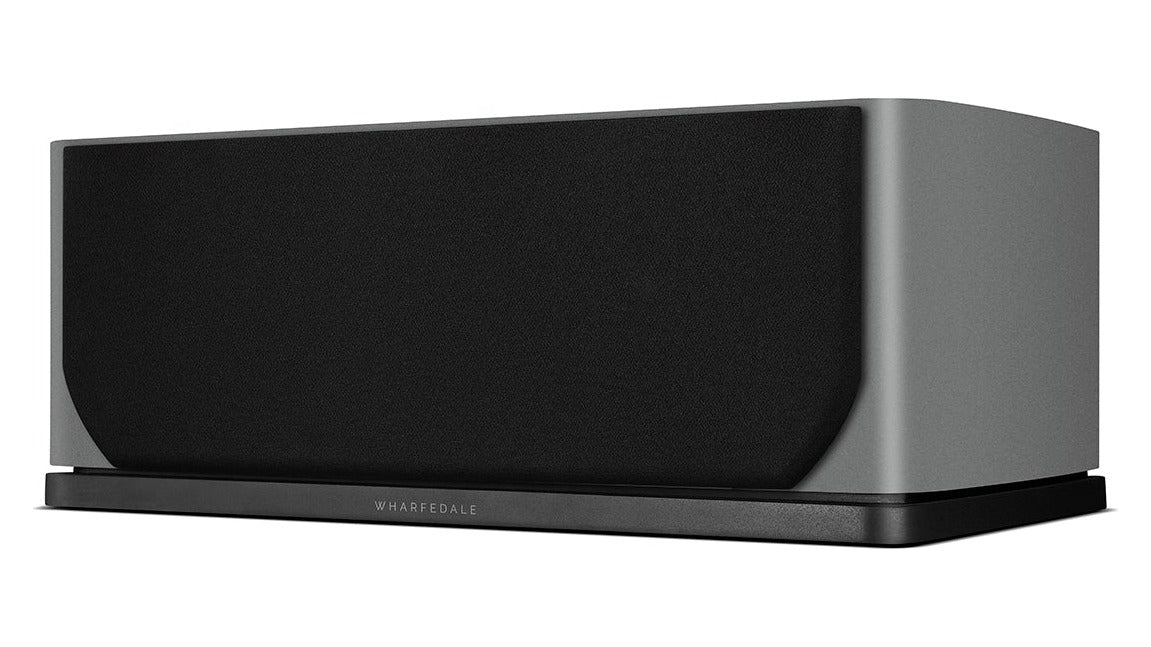

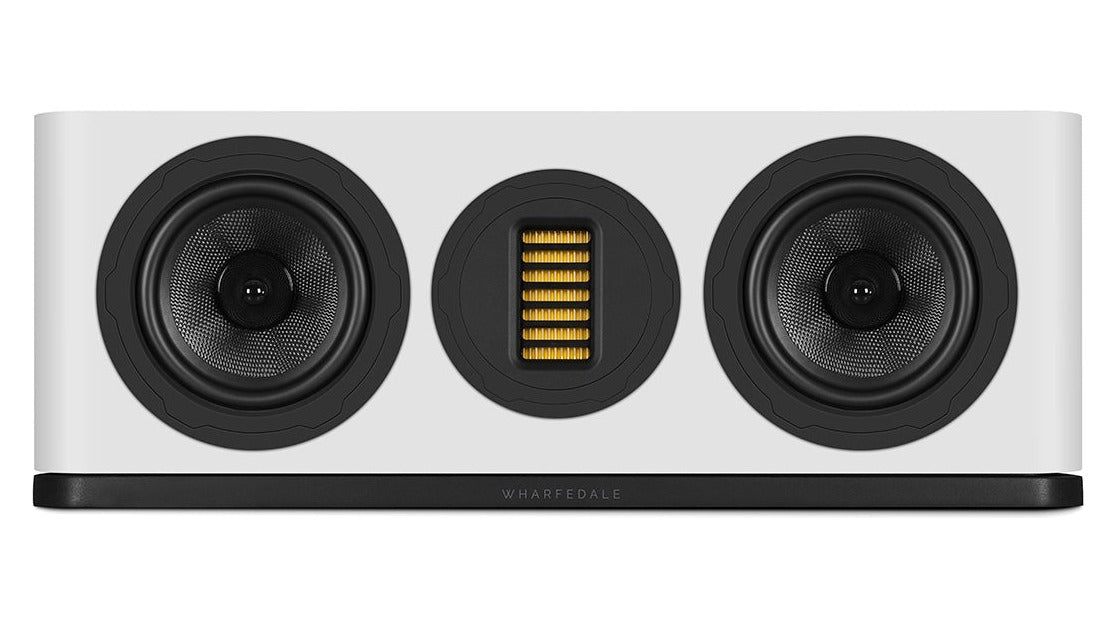

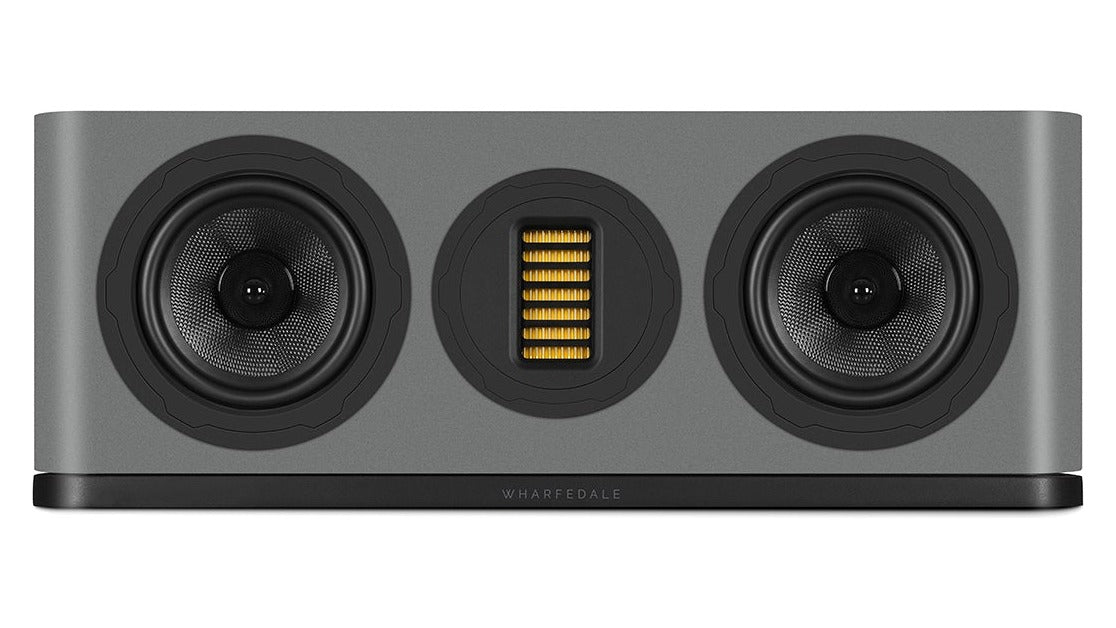

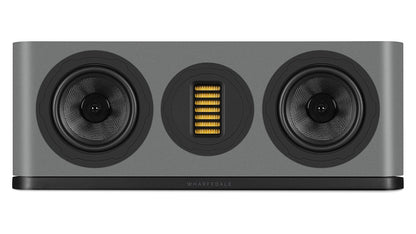

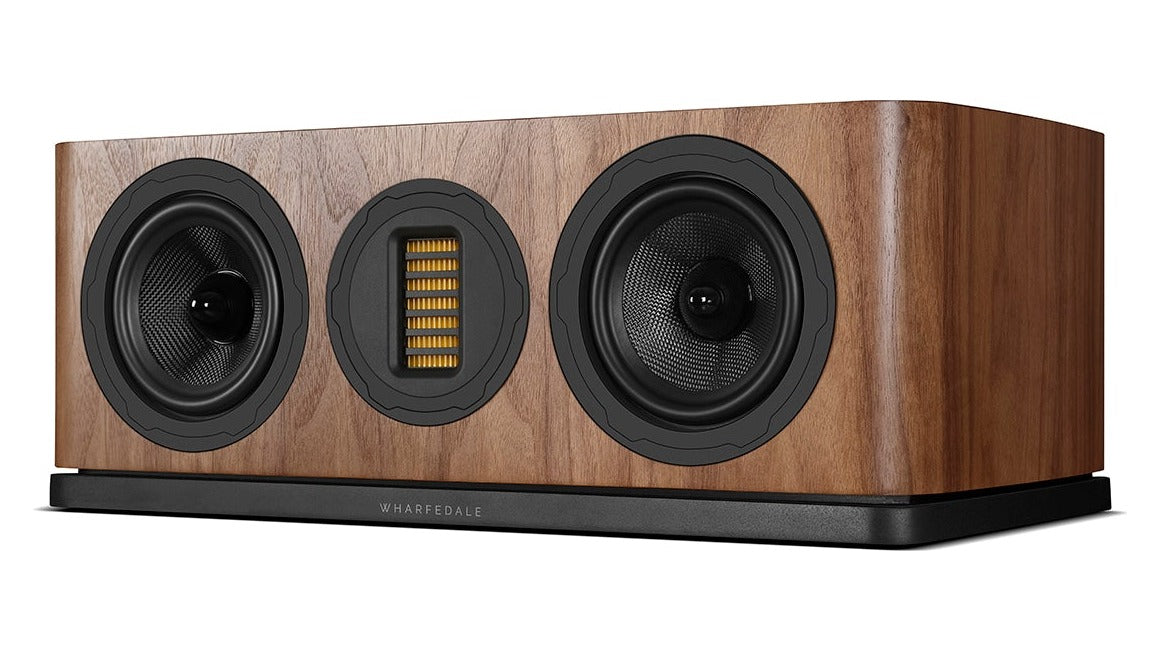

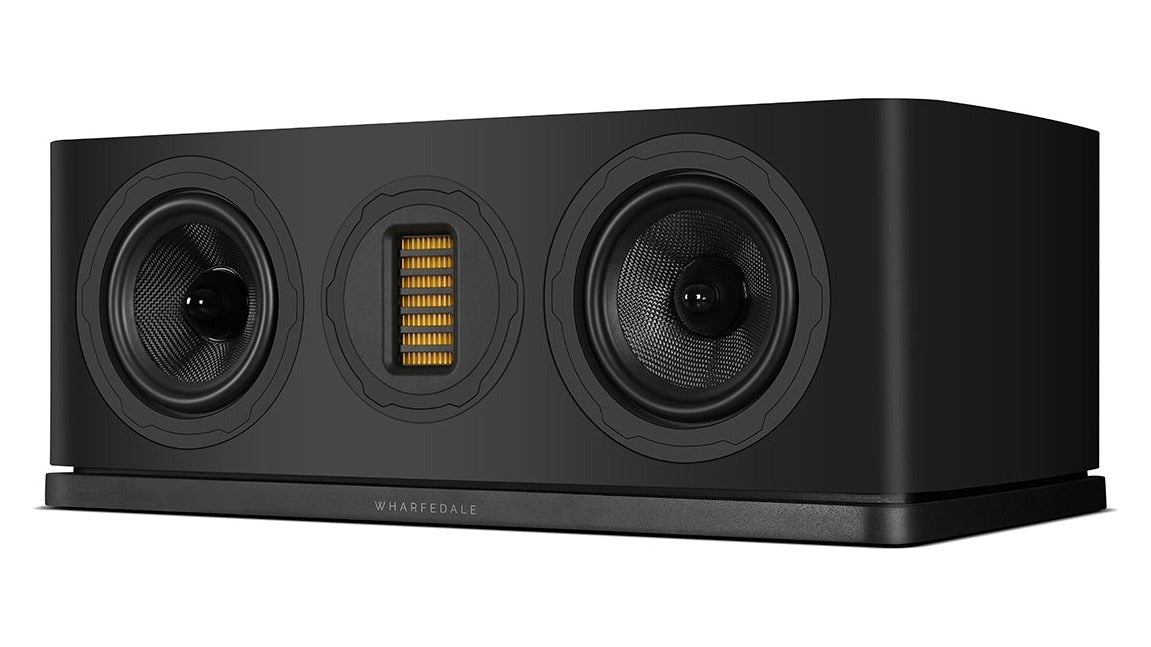

Voiced to match the rest of the EVO 5 family, the 5.C ensures seamless tonal continuity as sounds pan across the front stage. Its SLPP port keeps bass consistent with your main channels, elevating movies, television, and multichannel music toward a true audiophile standard. Available in Walnut, Lunar Grey, Black, and White finishes and sold each.
Key Features
- Dedicated Center Channel Design. Two 5 inch Kevlar drivers flank the AMT tweeter for crystal-clear dialogue and even dispersion across a wide seating area.
- Enhanced AMT Tweeter. The 35 x 70 mm pleated Air Motion Transformer diaphragm is driven by precision magnets with acoustic damping and an elastomer frame for faster transients and wider dispersion.
- Woven Kevlar Cones. The 5 inch black woven Kevlar bass drivers use elastomer damping to deliver clean, controlled midrange and articulate low frequencies.
- Tri-Directional SLPP Port. The Slot-Loaded Profiled Port maintains bass consistency to match your main channels for a cohesive front soundstage.
- Real-Wood Multi-Layer Cabinet. A stiffer multi-layer real-wood enclosure with precision spot bracing reduces resonance for lower coloration and cleaner output.
- Seamless Tonal Matching. Voiced to blend with the EVO 5 floorstanders and bookshelves so sounds travel smoothly across the front stage.
- Low-Profile Cabinet. A slim horizontal enclosure integrates neatly into AV furniture and beneath displays without dominating the room.
Frequently Asked Questions
Is the EVO5.C sold individually or as a pair?
The EVO5.C is sold each as a single center channel speaker.
What type of speaker is the EVO5.C?
It is a 2-way center channel speaker with a bass reflex enclosure.
What drivers does the EVO5.C use?
It uses two 5 inch woven Kevlar cones flanking a 35 x 70 mm AMT tweeter.
What is an AMT tweeter?
An Air Motion Transformer uses a pleated diaphragm to move air quickly, delivering fast transients and wide dispersion for clear high frequencies.
What is the frequency response of the EVO5.C?
The frequency response is 56 Hz to 24 kHz within plus or minus 3 dB, with bass extension to 49 Hz at minus 6 dB.
What is the sensitivity of the EVO5.C?
Sensitivity is 89 dB measured at 2.83 volts at 1 meter.
What is the nominal impedance?
The EVO5.C is 4 ohm compatible with a minimum impedance of 4.1 ohms.
How much amplifier power does it need?
Wharfedale recommends between 25 and 120 watts of amplifier power.
What is the peak SPL?
The EVO5.C is rated for a peak SPL of 103 dB.
What is the crossover frequency?
The crossover point is set at 2.3 kHz.
What are the dimensions of the EVO5.C?
It measures 7.4 inches high by 20.5 inches wide by 12.0 inches deep.
How much does the EVO5.C weigh?
Each unit weighs 27.6 lbs.
What finishes are available?
The EVO5.C is offered in Walnut, Lunar Grey, Black, and White.
Is the EVO5.C magnetically shielded?
No, it is not magnetically shielded. This is typically not a concern with modern displays.
Will the EVO5.C match my EVO 5 front speakers?
Yes, it is voiced to tonally match the EVO 5 series so dialogue and effects blend seamlessly across the front stage.
What is the SLPP port?
The Slot-Loaded Profiled Port is a tri-directional bass port that helps keep the center channel's low frequency output consistent with your main channels.
Is the cabinet real wood?
Yes, the EVO5.C uses a stiffer multi-layer real-wood cabinet with precision spot bracing to reduce resonance.
Where should I place the EVO5.C?
Its low-profile shape is designed to sit horizontally on AV furniture below or above the display, ideally aimed toward the listening position.
Can I use the EVO5.C for music as well as movies?
Yes, its clarity and tonal accuracy handle multichannel music and vocals well, though its primary role is reproducing center channel content.
