Velodyne Impact X 12 Subwoofer

Velodyne Acoustics Impact X 12 – Powerful Mid‑Size Subwoofer

The Velodyne Impact X 12 delivers impressive low‑end performance in a compact form, making it ideal for home theater systems or music setups in medium‑sized rooms. It combines solid power, flexible tuning, and refined build quality for deep bass without overwhelming your space.

Performance & Power

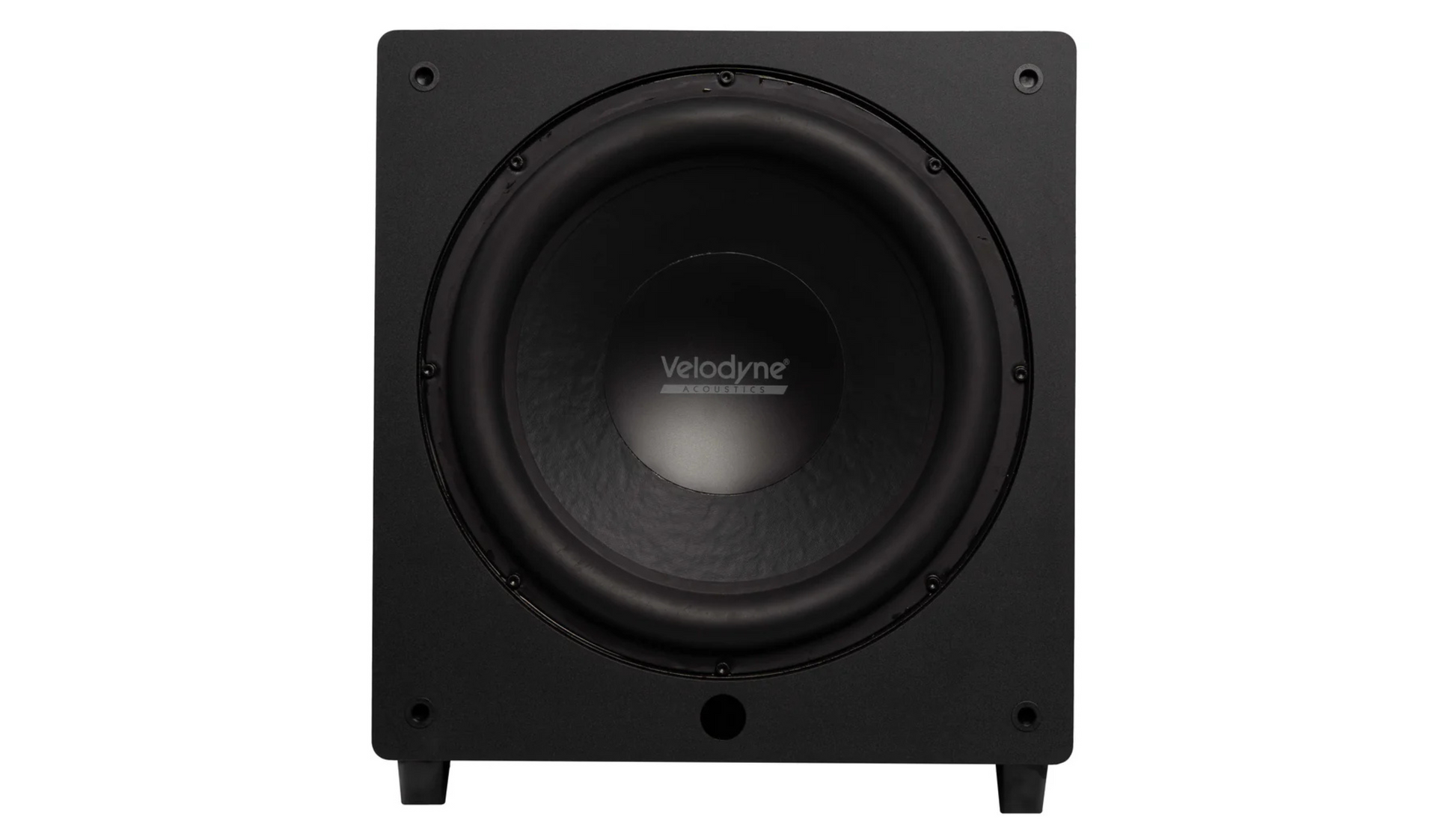

• 12″ front‑firing high‑excursion woofer with a double‑vented basket and a reinforced paper cone, designed for strong bass output and low distortion.

• Power rating: 600 watts peak / 300 watts RMS via a Class‑D amplifier.

• Frequency response (±3 dB): 29 – 180 Hz — deep enough for strong bass presence.

• Extended range (±10 dB): 23 – 250 Hz — able to go lower for greater rumble when needed.

Controls, Tuning & Controls

• Low‑pass crossover: adjustable between 50 Hz and 180 Hz (12 dB/octave slope), letting you match the sub to your main speakers.

• Phase switch: 0° / 180° to align the sub’s output with your main speakers for coherent bass.

• Four DSP presets (via remote control) for different room/acoustic conditions or media types.

• Anti‑clipping circuitry to prevent distortion when playback demands are high.

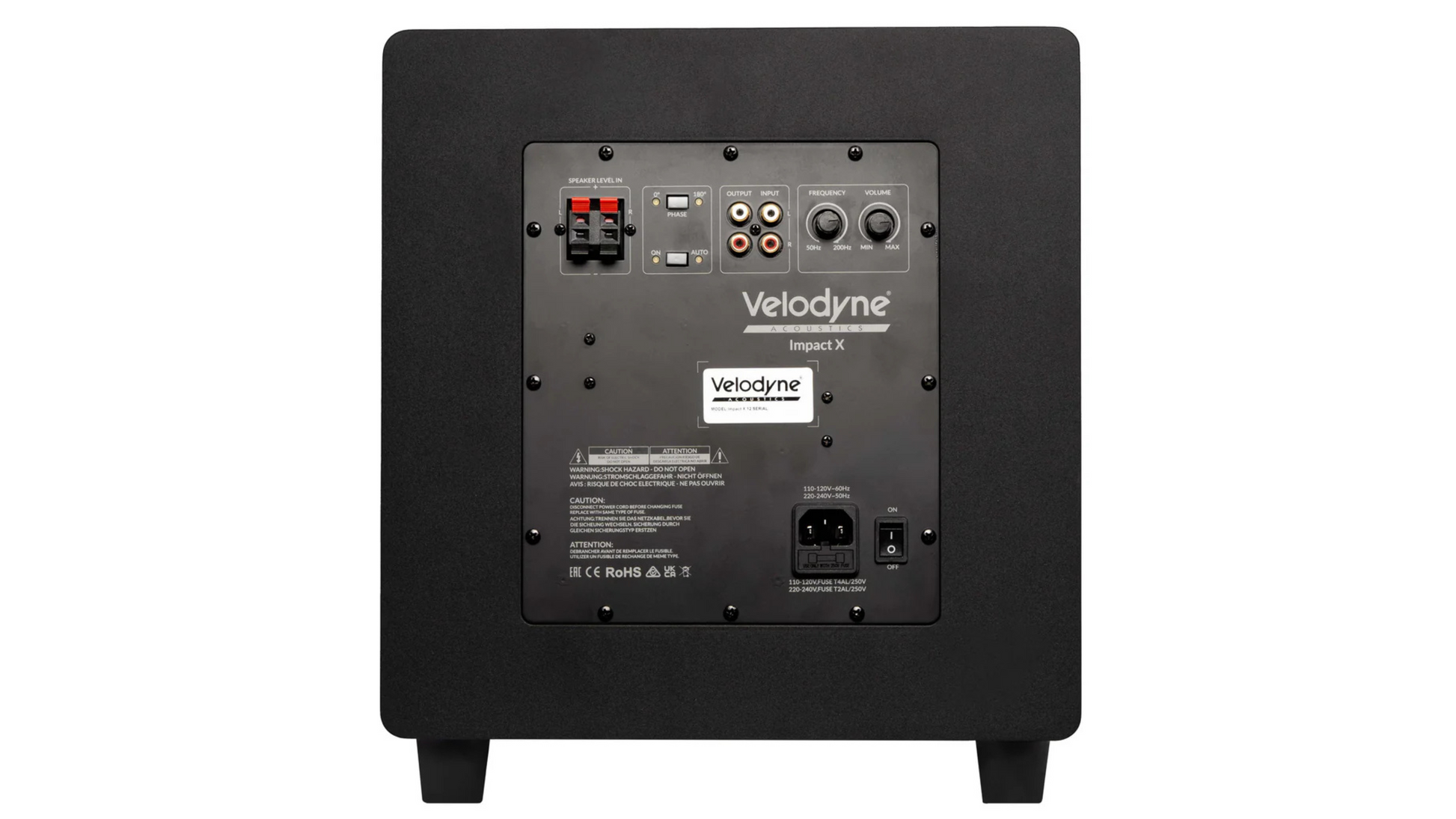

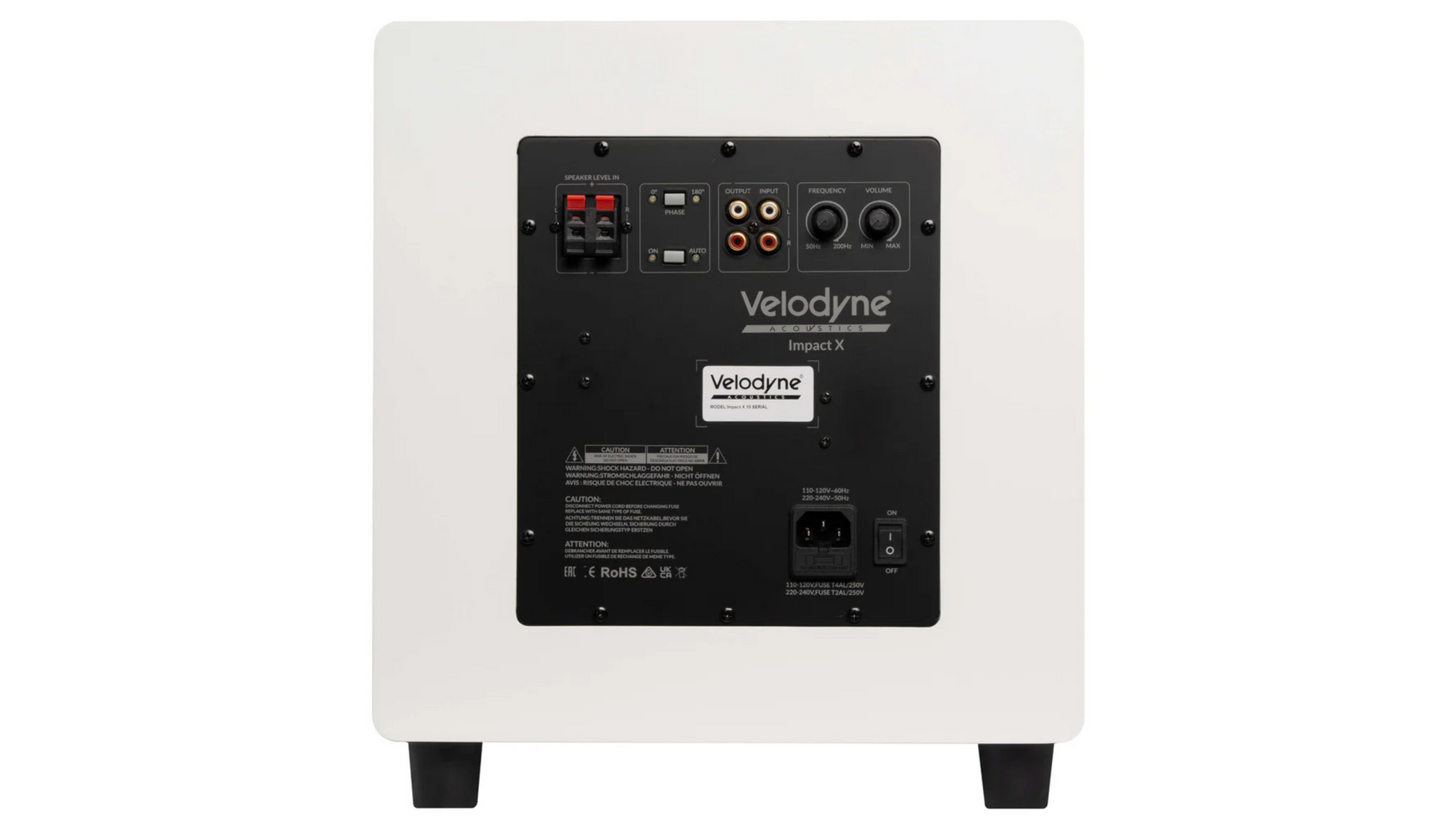

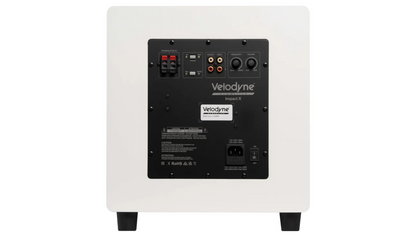

Connectivity & Inputs / Outputs

• Inputs:
  • Stereo / LFE RCA (gold‑plated)
  • High‑level (speaker‑level) input plated nickel

• Output:
  • Stereo / LFE RCA output (gold‑plated) for chaining or feeding another device.

• Power selector: Off / Auto / On to save power and convenience.

Build, Dimensions & Design

• Enclosure made from 20 mm MDF, which helps reduce panel vibration and maintain tight, clean bass.

• Magnet structure: dual ferrite magnet motor for strong magnetic field and reliable performance.

• Voice coil: Four‑layer, 2″ / 52 mm, designed for thermal resilience and preserving output under load.

• Dimensions (W × H × D, includes feet and connectors): ~36 cm × 42 cm × 51 cm.

• Weight: ~18 kg (about 40 lbs).

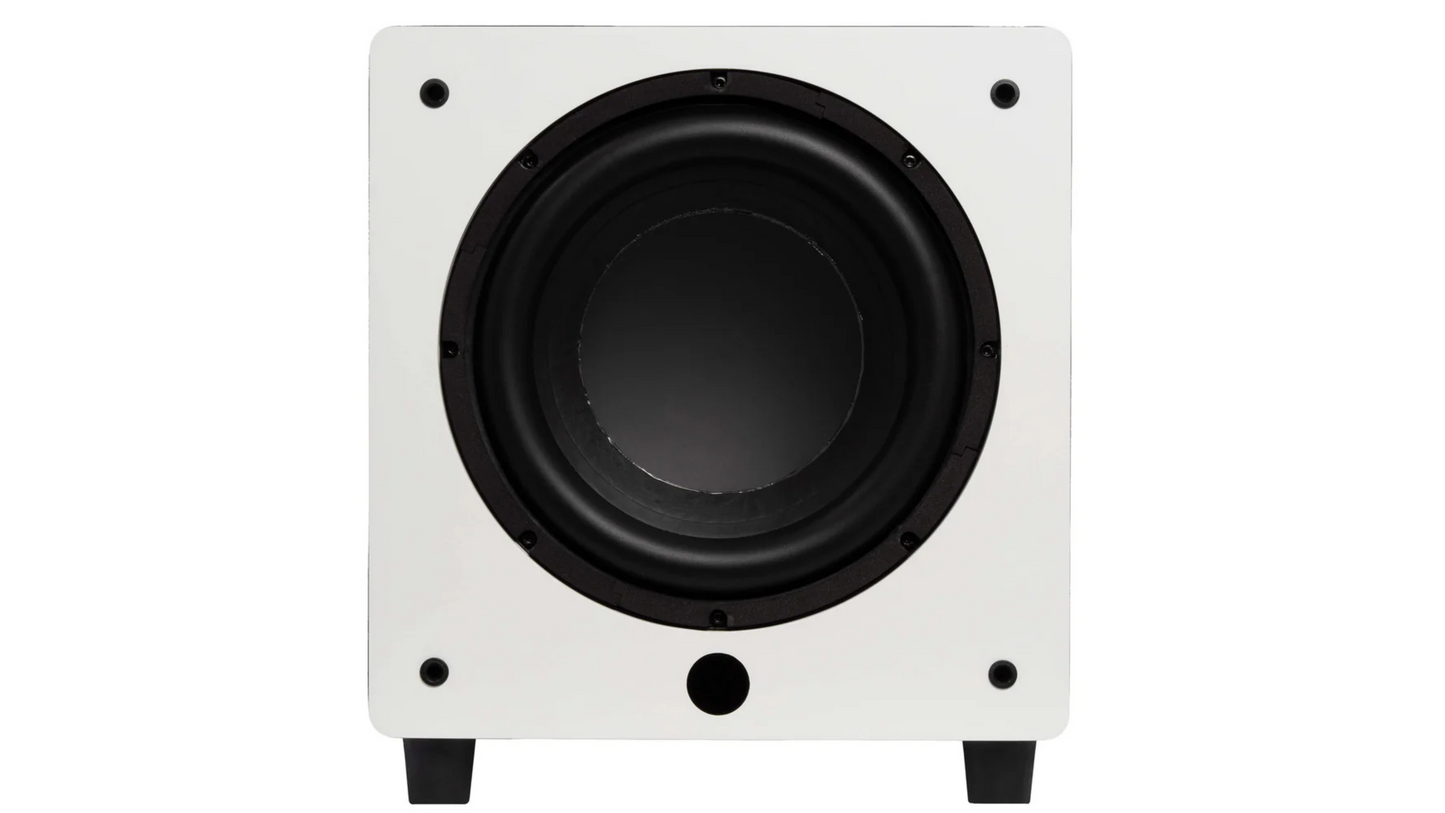

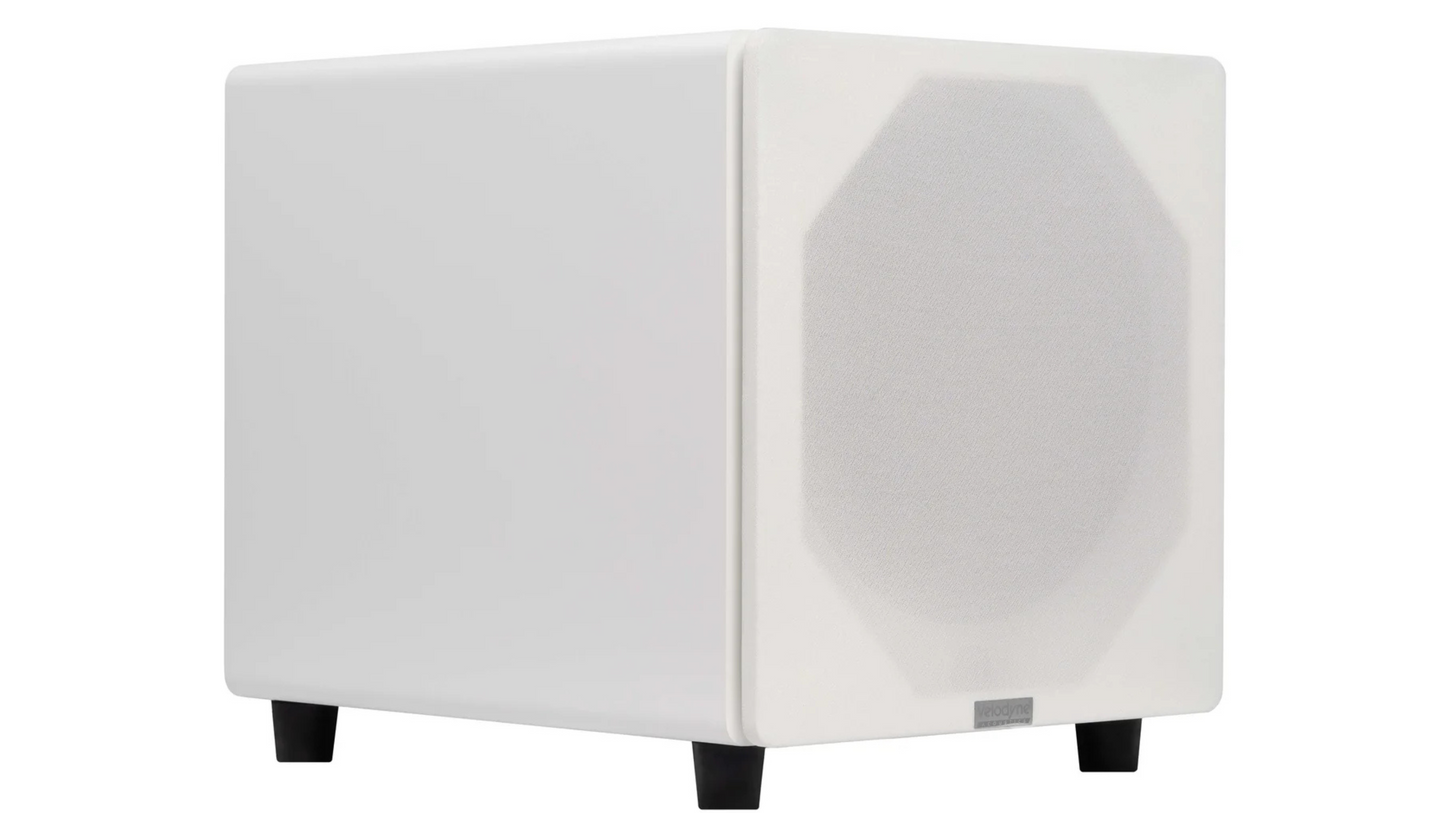

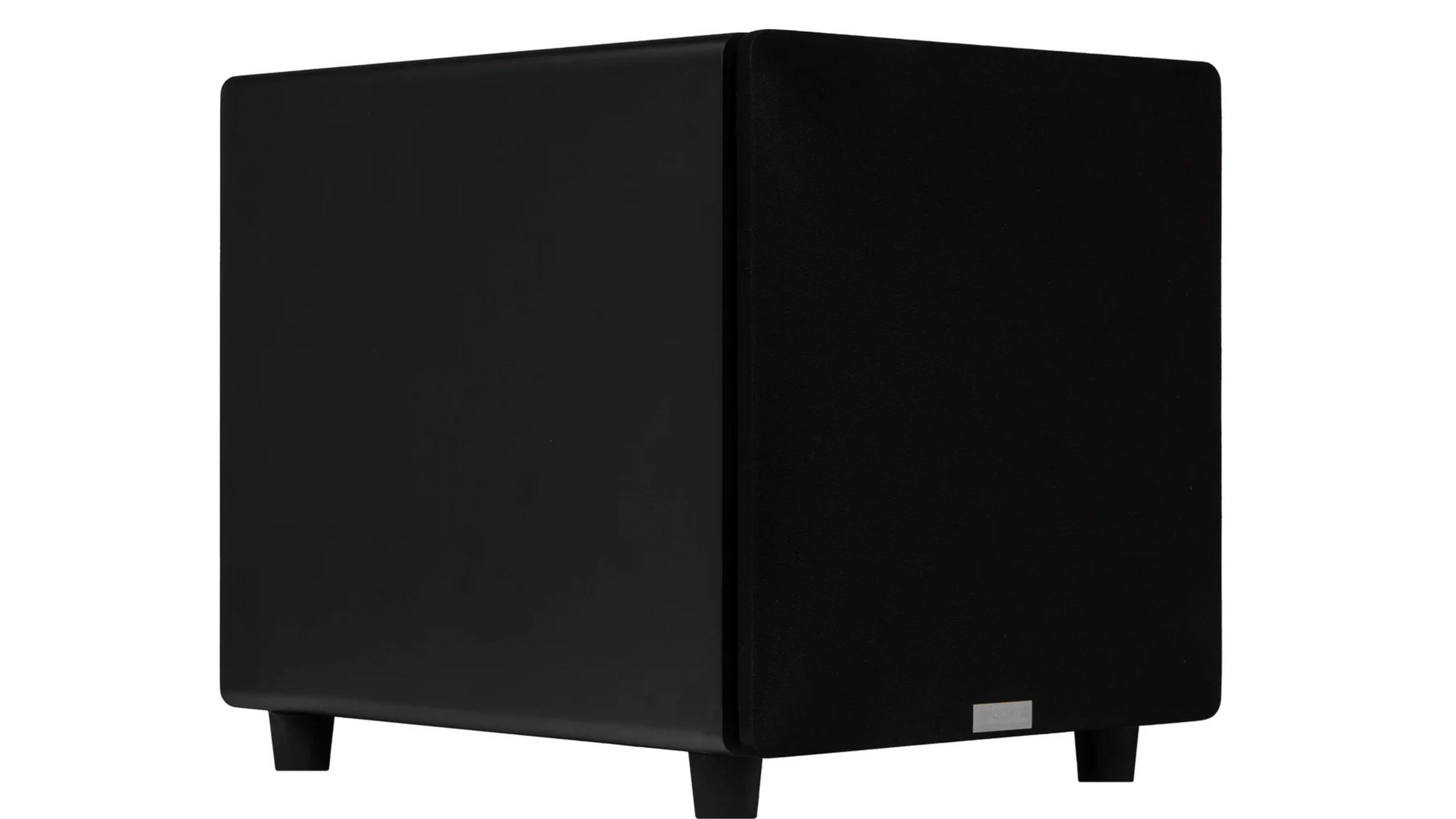

• Available finishes: Black or white.
