Velodyne Impact X 10 Subwoofer

Velodyne Acoustics Impact X 10 – Compact Powerhouse Subwoofer

The Velodyne Impact X 10 is a highly capable active subwoofer designed for both home theater and music systems where deep, controlled bass is essential but space is a concern. It offers a rare combination of compact form factor, high output, and flexible tuning options.

Performance & Power

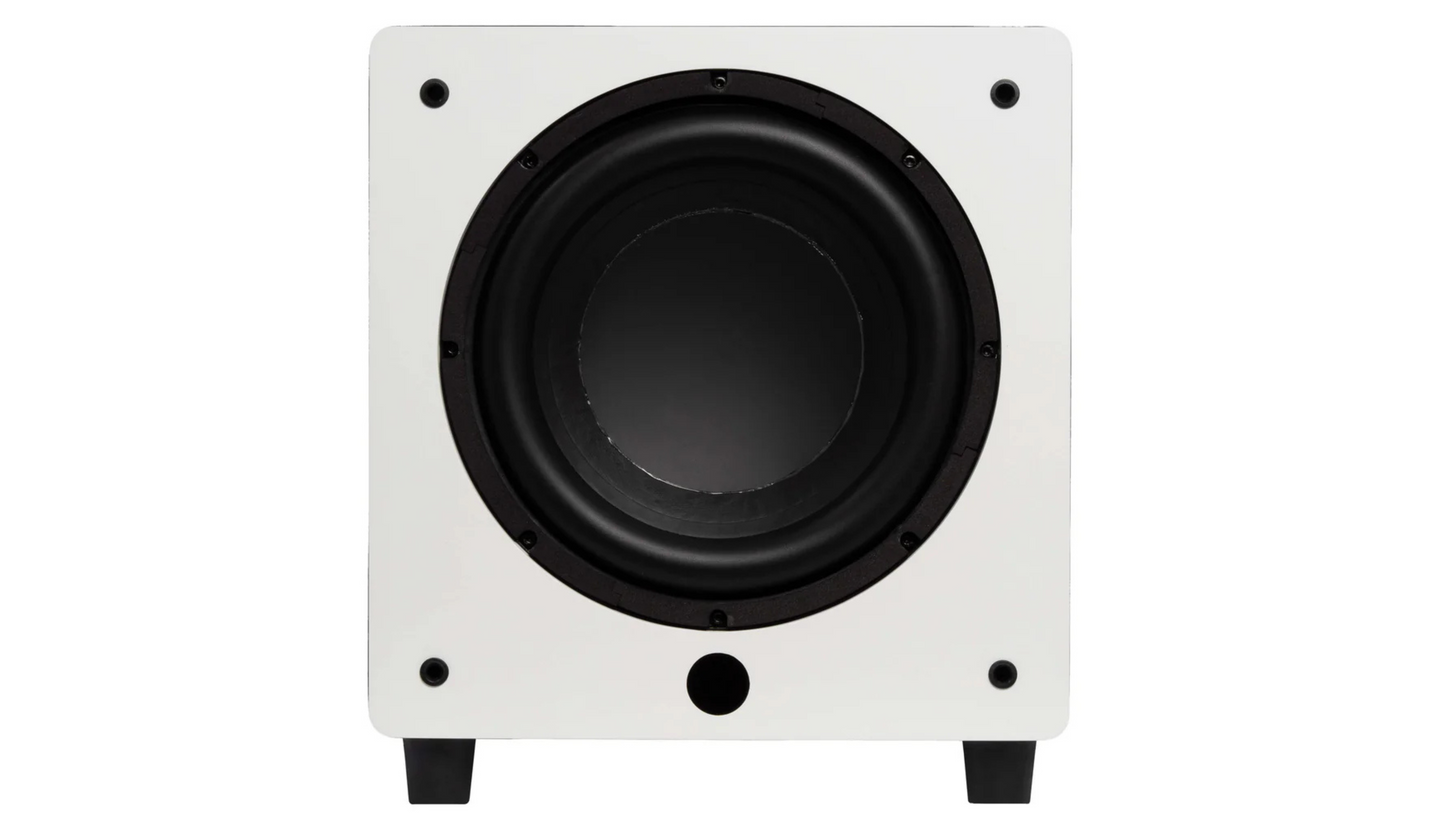

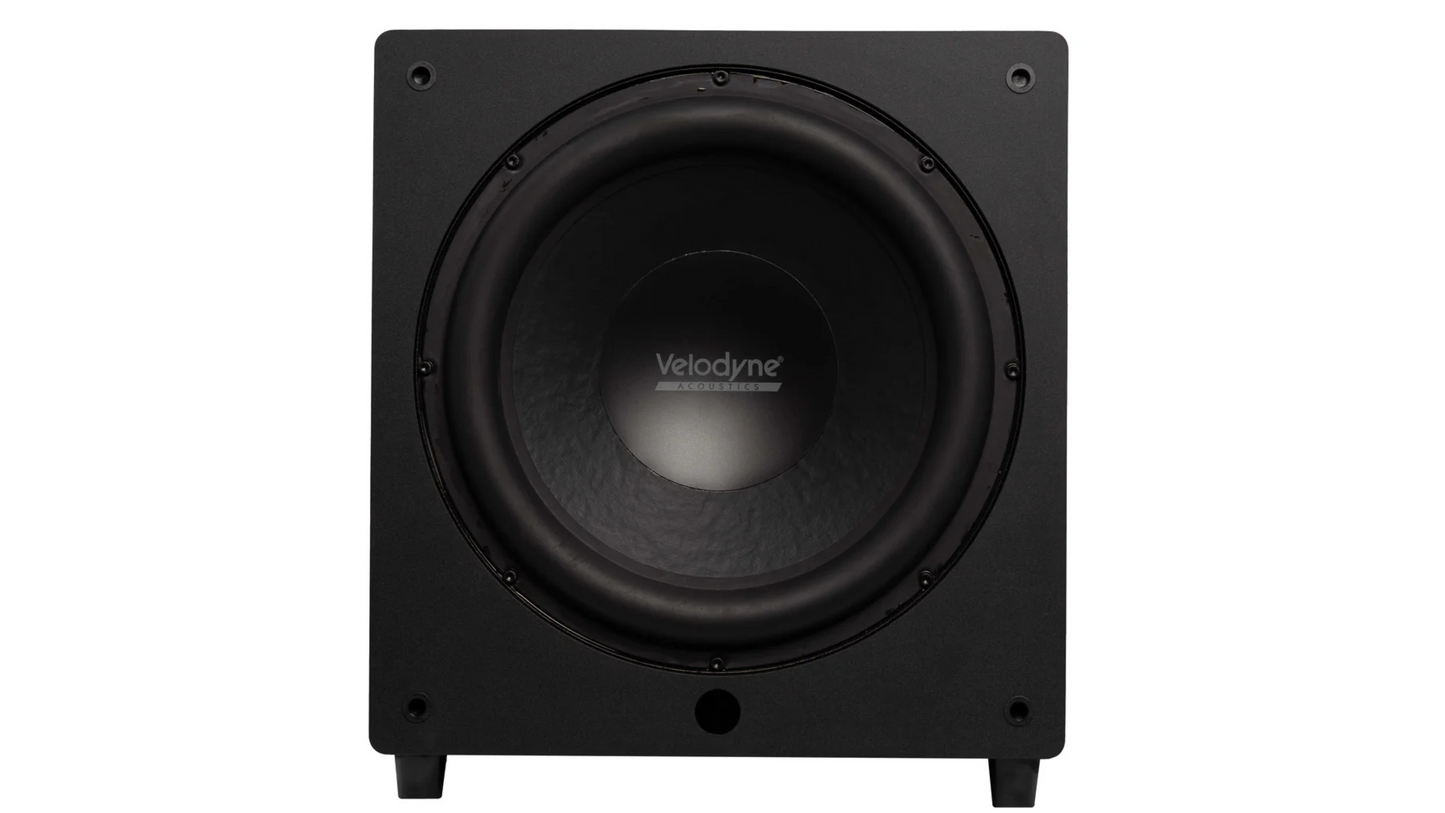

• 10″ front-firing driver in a high-excursion, double-vented basket design, reinforced for stability and reliable performance.

• Class-D amplifier rated at 500 watts dynamic / 250 watts RMS, providing strong headroom and clean control.

• Frequency response of 32 Hz to 180 Hz (±3 dB) ensures useful low-end extension while maintaining control.

• Extended range down to 25 Hz (±10 dB) for those moments when deeper bass is needed.

Controls, Tuning & Integration

• Low-pass crossover adjustable from 50 Hz up to 180 Hz (12 dB/octave slope), giving you control over how low the sub handles.

• Phase switch (0° / 180°) to help align bass with your main speakers and reduce cancellation. Four DSP presets accessible via remote control, allowing for convenient optimization depending on room mode or content.

• Anti-clipping circuitry to prevent distortion when pushed hard.

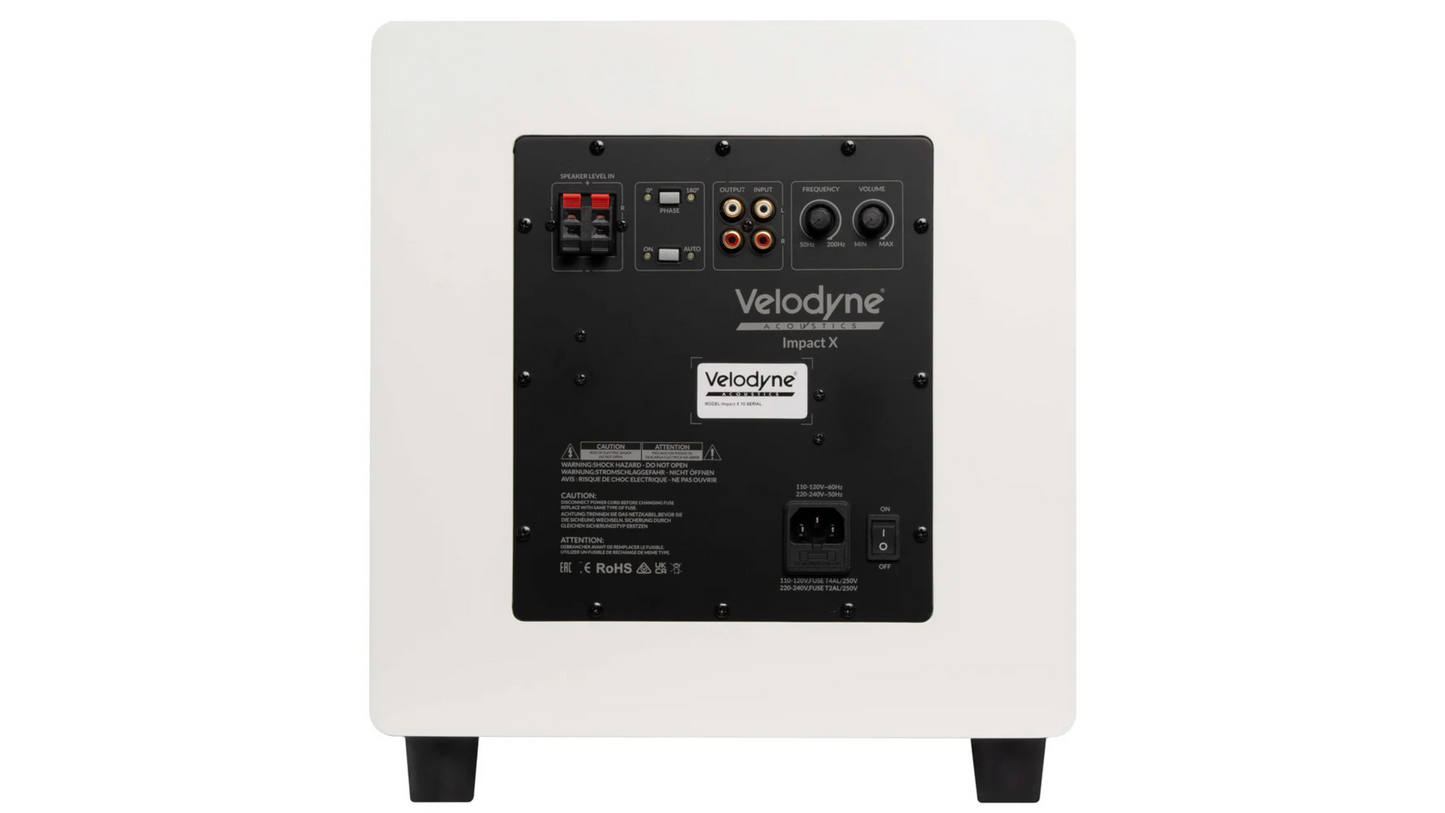

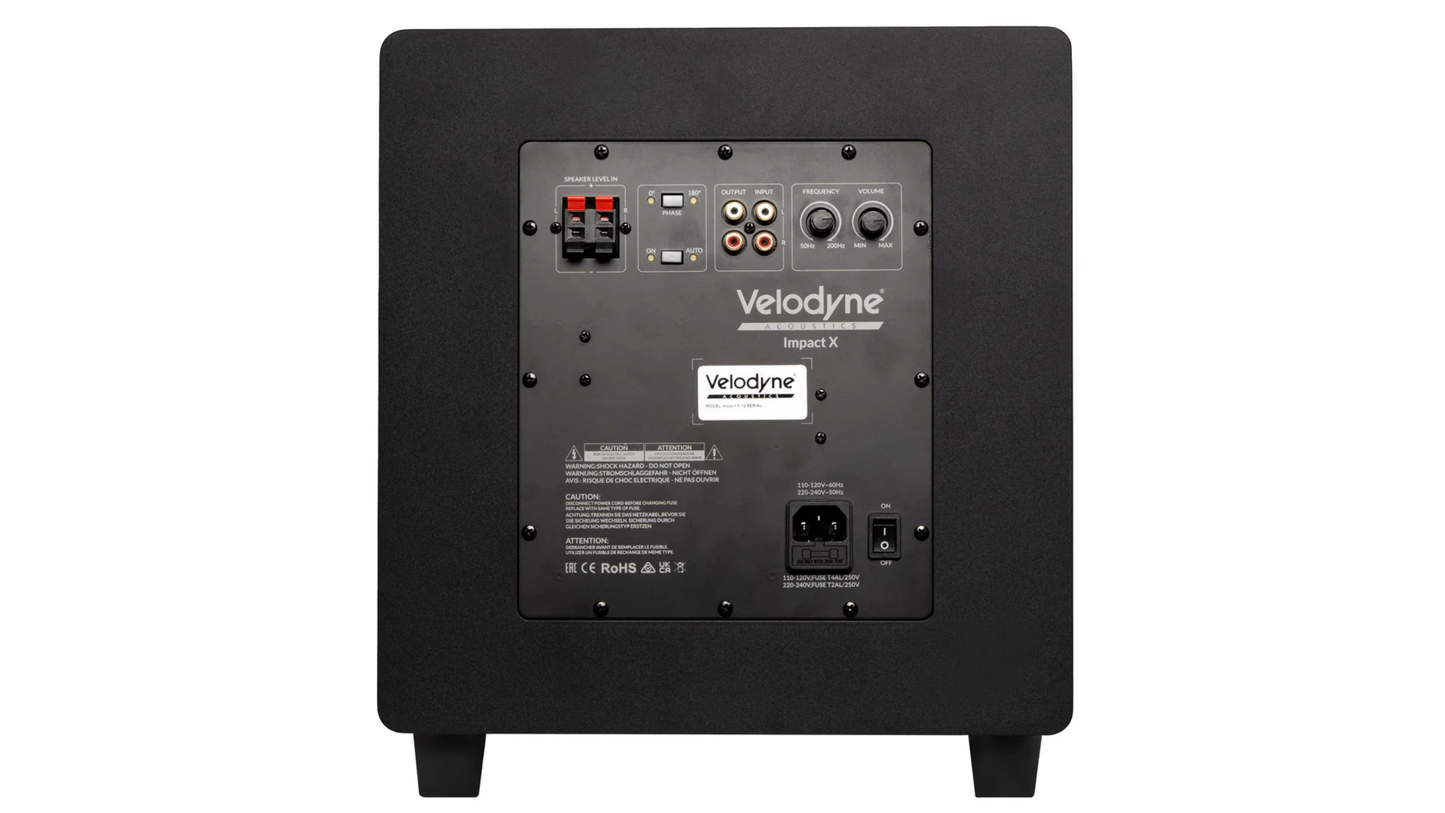

Connectivity & Inputs/Outputs

• Inputs:
  • Gold-plated Stereo / LFE RCA input
  • Nickel-plated high-level (speaker-level) inputs for systems without a dedicated sub output

• Outputs:
  • Gold-plated Stereo / LFE RCA output for passing signal onward

• Power modes: Off / Auto / On for flexible operation and energy saving

Cabinet & Build

• Constructed from 20 mm MDF for rigidity and reduced resonance.

• Compact dimensions: 32 cm (W) × 36 cm (H) × 40 cm (D) (includes feet and connectors)

• Weight: approximately 15 kg (shipping weight ~17 kg)

• Available in black or white finishes to suit different décor styles.
