Velodyne Acoustics Deep Blue 10 Subwoofer

Velodyne Acoustics Deep Blue 10 – Powerful Compact Subwoofer

The Velodyne Deep Blue 10 (DB‑10) is a high‑performance, forward‑firing subwoofer that delivers impressive low-end output in a compact and room-friendly design. It’s built for both home theater setups and music systems where powerful bass is desired without overwhelming space.

🔹 Driver & Amplification
• 10" high‑excursion, front‑firing driver in a double‑vented basket with reinforced polypropylene (PP) membrane.
• Dual ferrite magnet motor and four‑layer 2″ / 52 mm voice coil for strong magnetic force and thermal handling.
• Class AB amplifier delivering about 850 watts peak (dynamic) and 350 watts RMS.

🔹 Frequency Response & Crossover
• Full range frequency: 16 – 280 Hz overall.
• ±3 dB range: 28 – 180 Hz, ensuring tight control across most audible bass.
• Low-pass crossover adjustable from 50 Hz to 180 Hz (12 dB/octave slope) to match your main speakers.
• Phase control from 0° to 180° to align timing with the rest of your system.

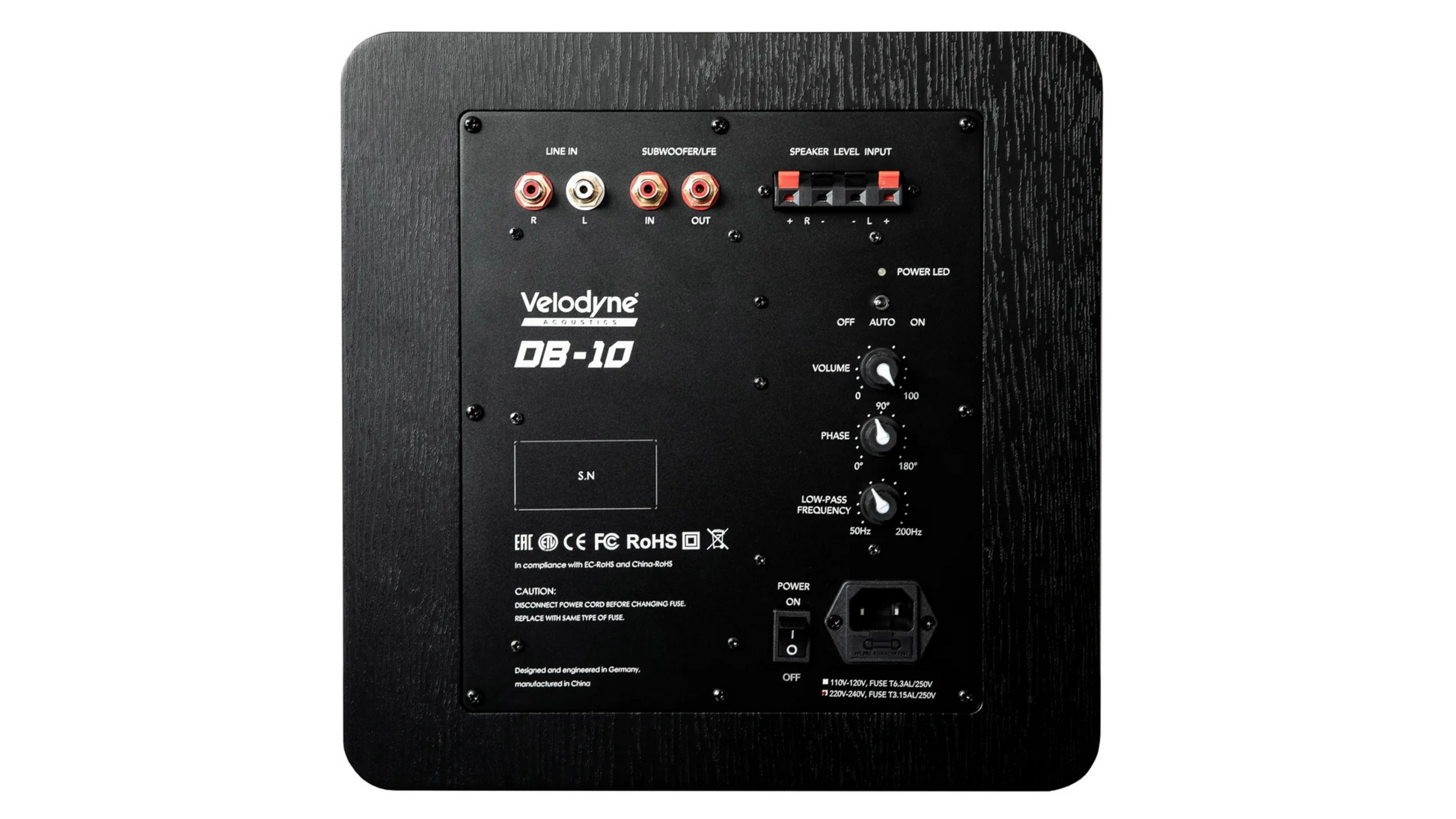

🔹 Inputs & Outputs
• Gold‑plated stereo RCA Line‑In and LFE Input.
• Nickel‑plated high‑level (speaker‑level) inputs for systems without a dedicated sub output.
• Gold‑plated RCA LFE / pass‑through output for daisy‑chaining or integration with other components.

🔹 Control Features
• Power selector with Off / Auto / On modes for energy efficiency.
• Adjustable crossover, level, and phase for flexible tuning.

🔹 Enclosure & Finish
• Closed‑box (sealed) cabinet made of solid MDF with a thick front baffle (~52 mm / 2") to reduce distortion and interface cleanly with your room.

🔹 Dimensions & Weight
• Size (W × H × D, including feet & connectors): approx 29.6 × 31.6 × 34.8 cm.
• Weight: about 11 kg (~24 lbs); shipping weight roughly 12.5 kg.

🔹 Finish & Appearance
• Matte black finish; removable grille.
